notes chapter 13 rna protein synthesis

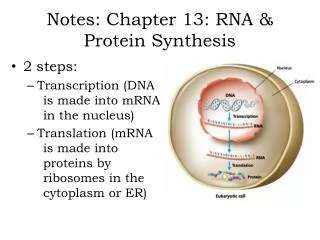

Notes: Chapter 13: RNA & Protein Synthesis
  • 2 steps:
    • Transcription (DNA is made into mRNA in the nucleus)
    • Translation (mRNA is made into proteins by ribosomes in the cytoplasm or ER)
rna structure
RNA Structure
  • Similar to DNA, but with some important differences:
    • Single strand (DNA double)
    • Ribose is the sugar (not deoxyribose like DNA)
    • Uracilmatches adenine (instead of thymine like DNA)
    • Shorter than DNA
rna functions
RNA Functions
  • Three different types of RNA:
    • mRNA (messenger) used as template to make proteins
    • rRNA(ribosomal) makes up ribosomes
    • tRNA(transfer) matches amino acids to mRNA to help make proteins
transcription
Transcription
  • transcribe(to copy)
  • happens in the nucleus
  • DNA’s code is copied onto RNA
    • 1. RNA polymerase binds to beginning of a gene (promoter) and unwinds DNA
    • 2. Complementary bases copied from 1 sideof DNA
    • 3. Termination (end) signal reached, mRNA and DNA free
  • http://www.youtube.com/watch?v=ztPkv7wc3yU
translation
Translation
  • RNA’s “language” is translated into amino acids (which will become a protein)
  • RNA’s language is set of three nucleotides called a codon…3 nitrogen bases in a row
  • Codonsmatch with specific amino acids to make polypeptide chain (which will be modified to make a protein)
  • 20 amino acids all together
  • More than 20 codons, so some amino acids have more than one codon. There is also 1 start codon and 3 stop codons.
translation2
Translation

1. ribosome attaches to mRNA

2. tRNA with amino acid matches mRNA codon(area on tRNA that matches called an anticodon). This process is called initiation. 2 tRNAs can fit at one time.

3. ribosome moves down and matches next codon.

4. Amino acids form peptide bond and protein continues to grow, 1 amino acid at a time. This process is called elongation.

5. ribosome reaches stop codon, mRNA, tRNAs, protein and ribosome released. This process is called termination.

The product is called a polypeptide. Modified in ER or Golgi to make a protein.

translation3
Translation
  • Each mRNA can be used more than once, by more than 1 ribosome at a time, so many proteins can be translated from 1 transcribed piece mRNA.
  • http://www.youtube.com/watch?v=-zb6r1MMTkc
gene expression
Gene expression
  • The whole process of going from DNA to RNA to a protein that runs a cell process is called gene expression
gene expression1
Gene expression
  • After the polypeptide chain is made, it is often modified in the ER or Golgi Apparatus
  • The finished product is a protein and it has a three dimensional shape that decides its function
mutations
Mutations
  • Certain things can cause changes to the DNA/RNA code. They are called mutagensand cause mutations.
  • e.g. UV light, smoking, X rays, exposure to chemicals
  • Not all are bad…some allow for adaptation and evolution
point mutations
Point mutations
  • Occur to one base or a small number of bases on DNA or RNA
  • Most are harmless, as many codons often code for the same amino acid.
  • 3 kinds:
    • Substitution: one base is used instead of another
    • Insertion*: one base is added
    • Deletion*: one base is left out
    • * lead to a frameshift mutation, where everything is “off by one” base.
chromosomal mutations
Chromosomal mutations
  • Change to a gene, series of genes or an entire chromosome
  • These are often helpful in plants, e.g. polyploidy…chromosomes do not separate during meiosis. Leads to seedless fruit that are bigger
  • In animals, they are often harmful or even lethal. You might be researching one disorder in the next unit on genetics…
chromosomal mutations1
Chromosomal mutations
  • Deletion: one or more genes is/are left out when copied
  • Duplication: one or more genes is/are copied more than once
  • Inversion: one or more genes is/are copied backwards
  • Translocation: one or more genes is/are moved from 1 chromosome to another
  • Nondisjunction (not shown): homologs fail to separate during meiosis
