  1. ASAB New Additions Extended Bypass Models Ethernet Modules Remote Control Panel

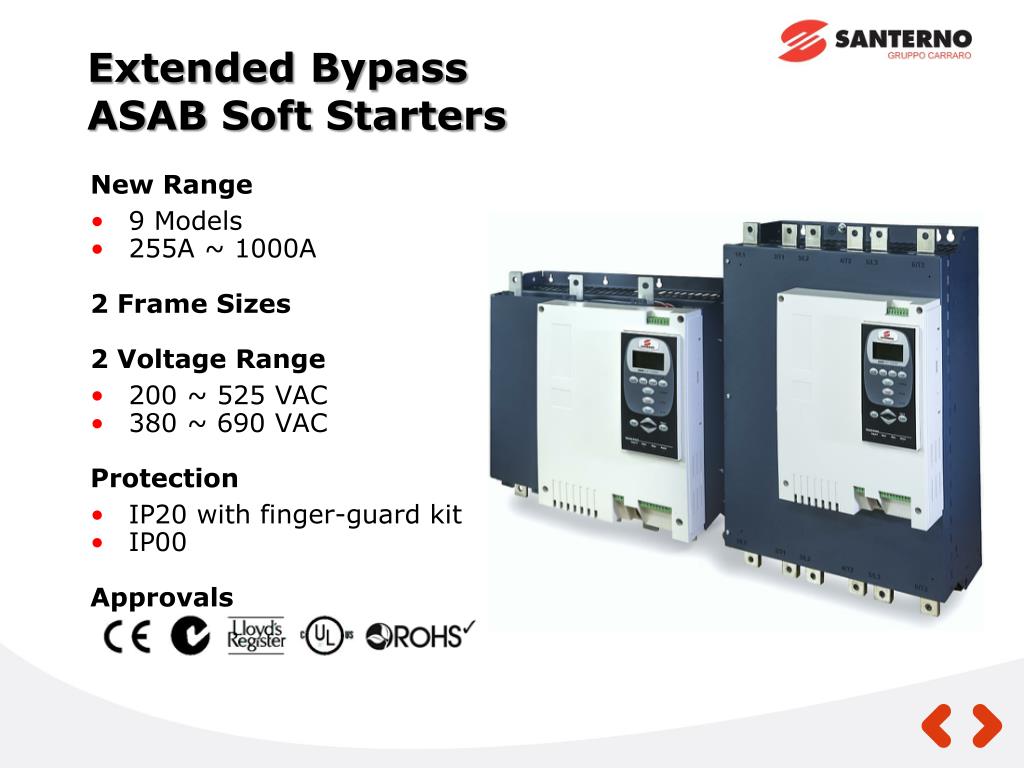

  2. Extended Bypass ASAB Soft Starters New Range • 9 Models • 255A ~ 1000A 2 Frame Sizes 2 Voltage Range • 200 ~ 525 VAC • 380 ~ 690 VAC Protection • IP20 with finger-guard kit • IP00 Approvals

  3. Extended Bypass ASAB Soft Starters Advantages • Lower installed cost • Save on labour costs • Smaller total solution footprint • Self-contained phase arms • Easy to service • Save training • Little heat-dissipation during run • Prolong lifetime

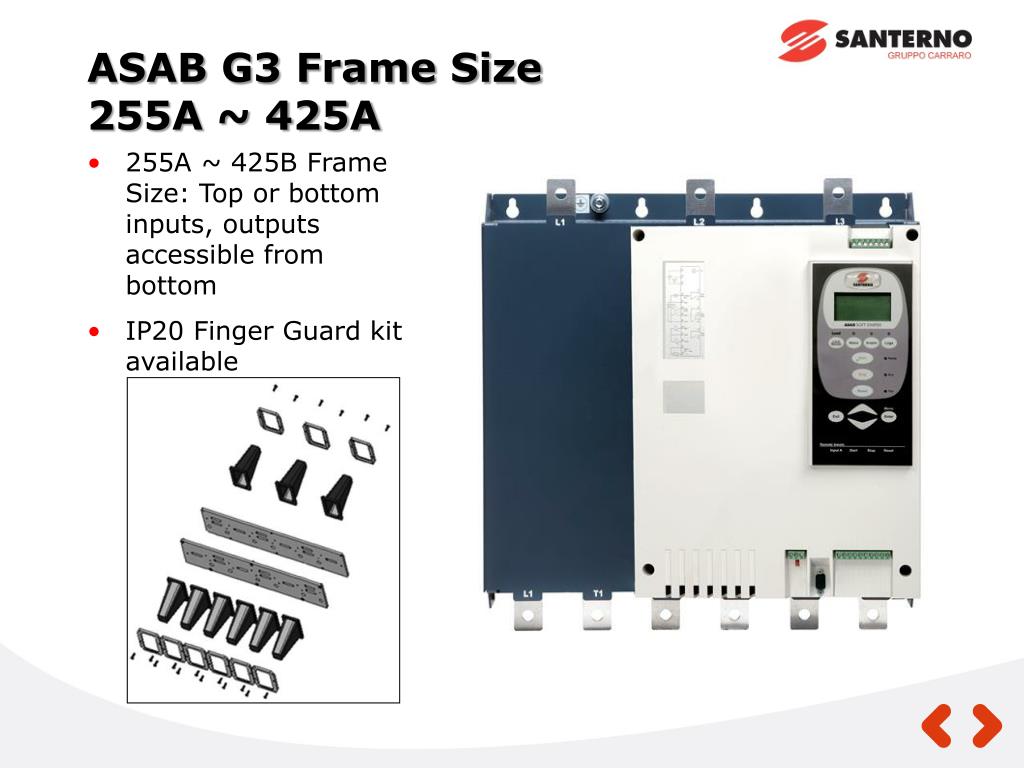

  4. ASAB G3 Frame Size 255A ~ 425A • 255A ~ 425B Frame Size: Top or bottom inputs, outputs accessible from bottom • IP20 Finger Guard kit available

  5. ASAB G4 Frame Size 500A ~ 1000A • 500A ~ 1000B Frame Size: Inputs and outputs accessible from top and bottom • Door panel for easy access • IP20 Finger Guard kit available

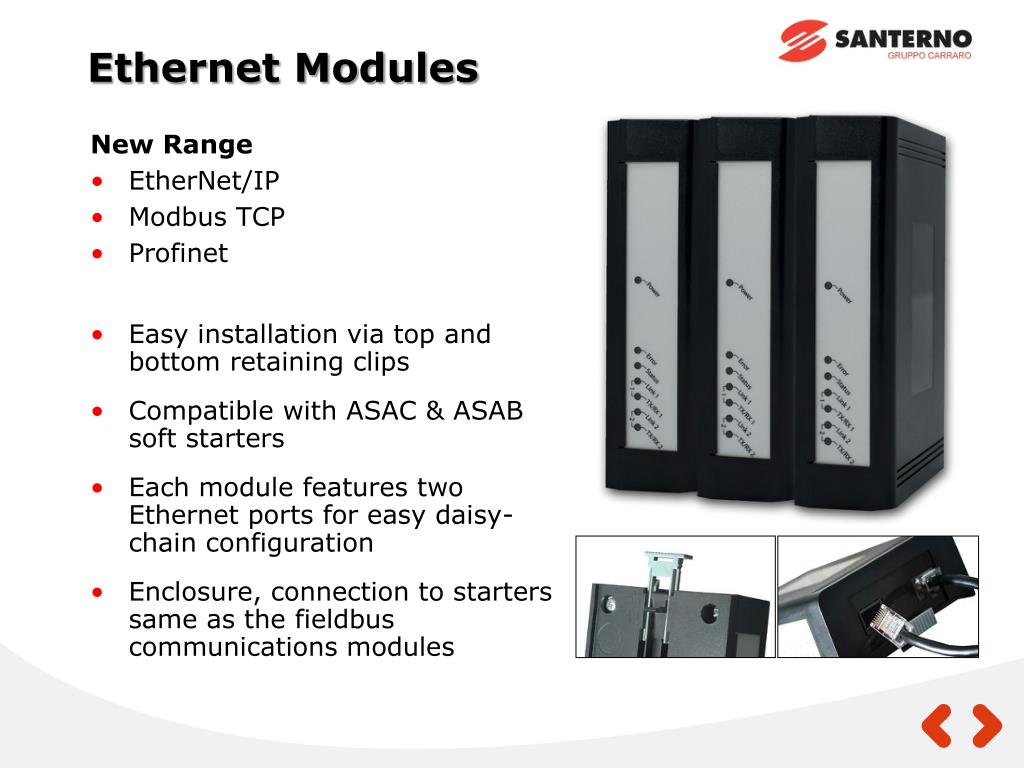

  6. Ethernet Modules New Range • EtherNet/IP • Modbus TCP • Profinet • Easy installation via top and bottom retaining clips • Compatible with ASAC & ASAB soft starters • Each module features two Ethernet ports for easy daisy-chain configuration • Enclosure, connection to starters same as the fieldbus communications modules

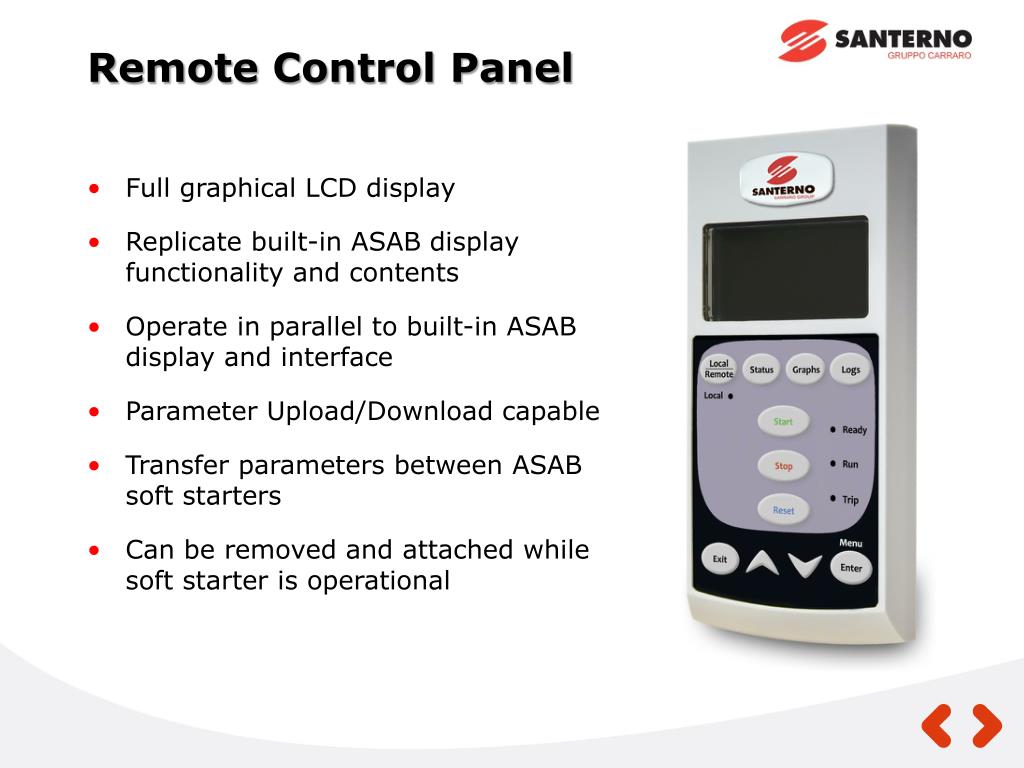

  7. Remote Control Panel • Full graphical LCD display • Replicate built-in ASAB display functionality and contents • Operate in parallel to built-in ASAB display and interface • Parameter Upload/Download capable • Transfer parameters between ASAB soft starters • Can be removed and attached while soft starter is operational

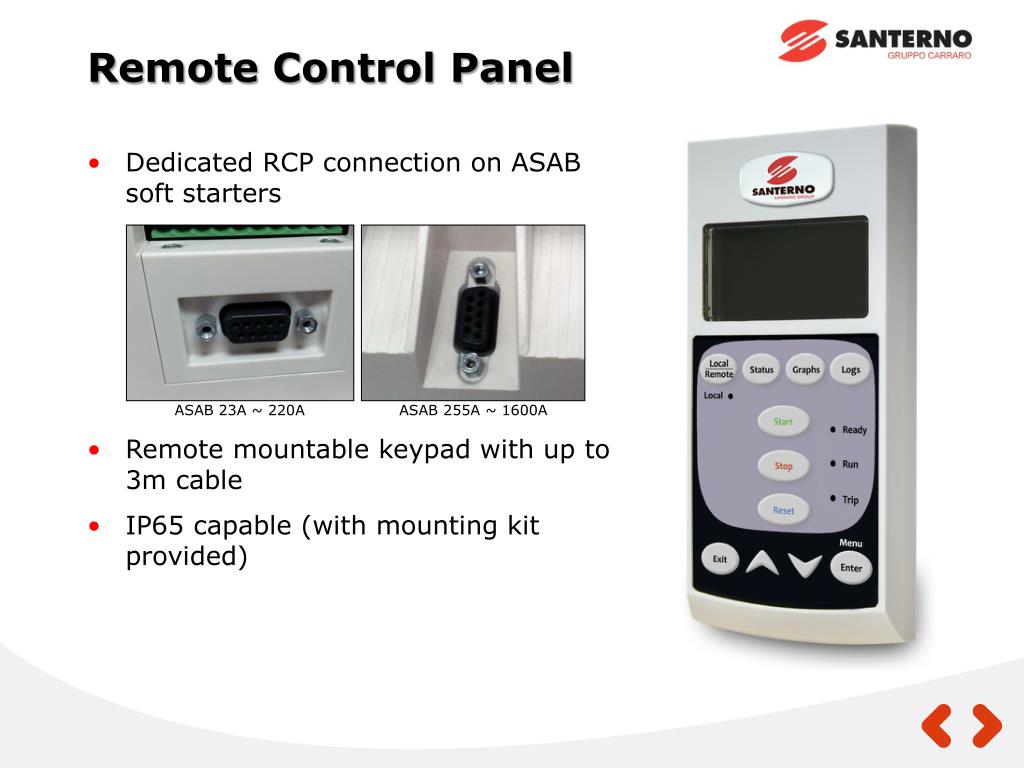

  8. Remote Control Panel • Dedicated RCP connection on ASAB soft starters ASAB 23A ~ 220A ASAB 255A ~ 1600A • Remote mountable keypad with up to 3m cable • IP65 capable (with mounting kit provided)
