pulmonary disease

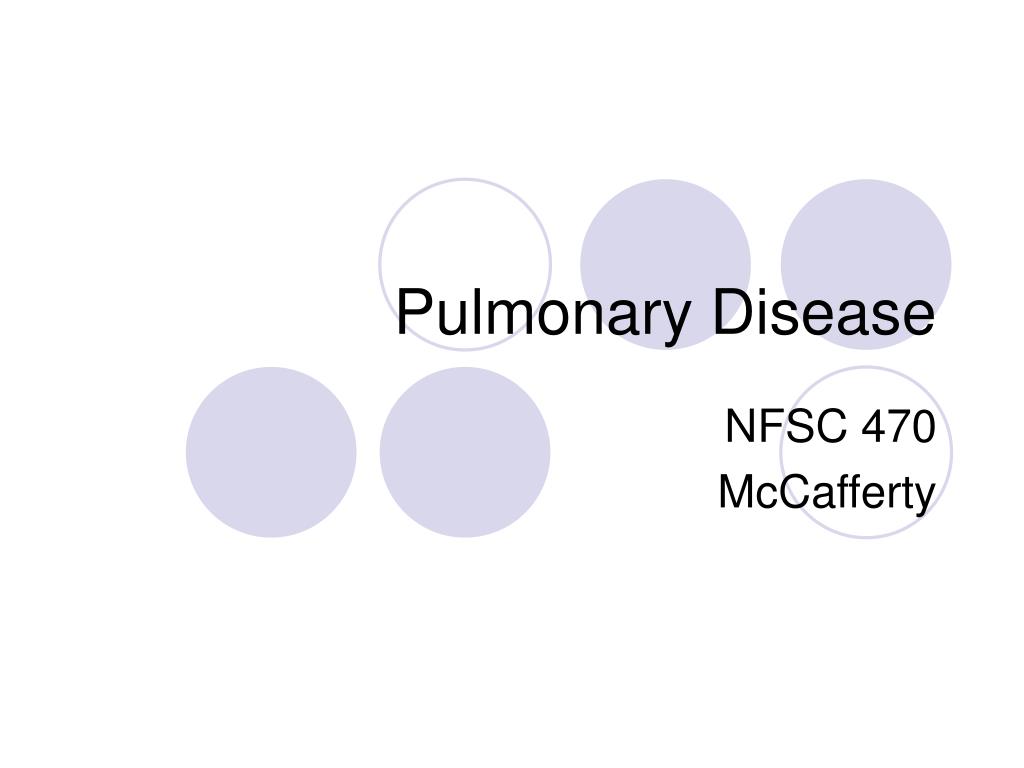

Pulmonary Disease

NFSC 470


components of the respiratory system

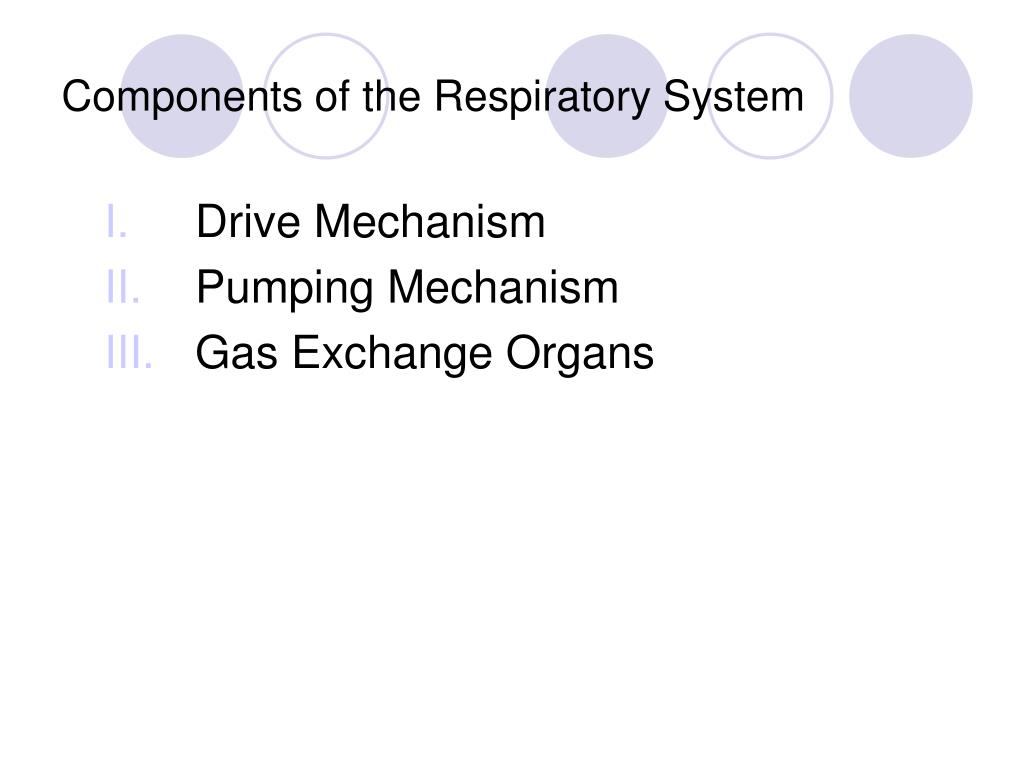

Components of the Respiratory System
  • Drive Mechanism
  • Pumping Mechanism
  • Gas Exchange Organs

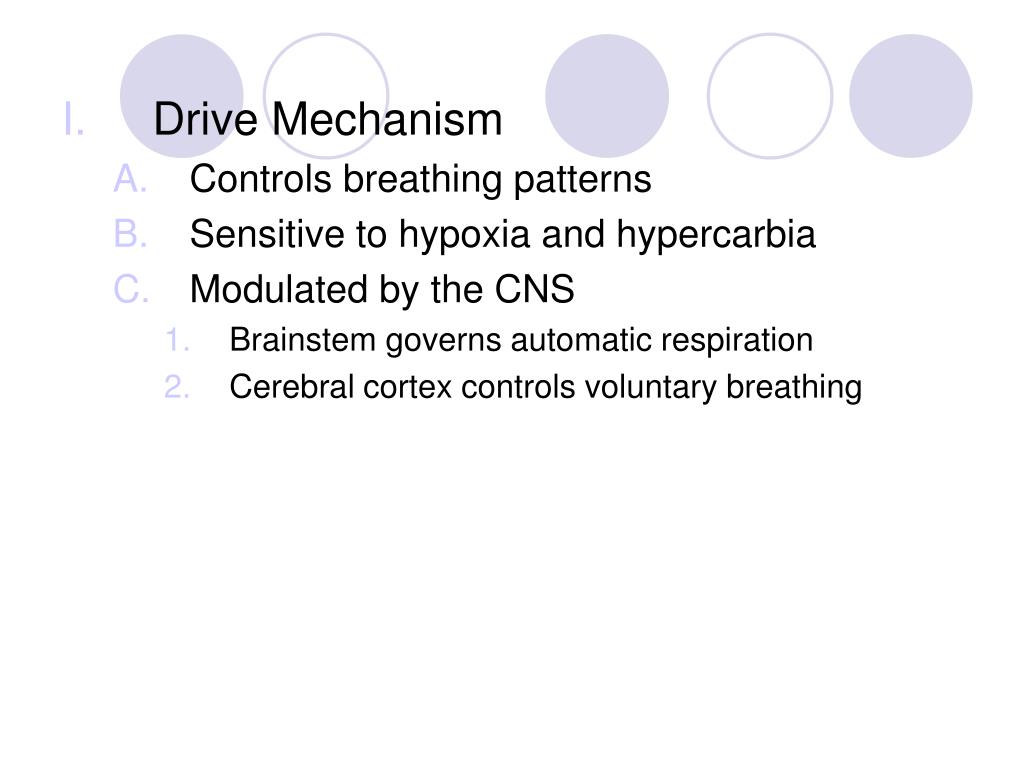

Drive Mechanism
    • Controls breathing patterns
    • Sensitive to hypoxia and hypercarbia
    • Modulated by the CNS
      • Brainstem governs automatic respiration
      • Cerebral cortex controls voluntary breathing

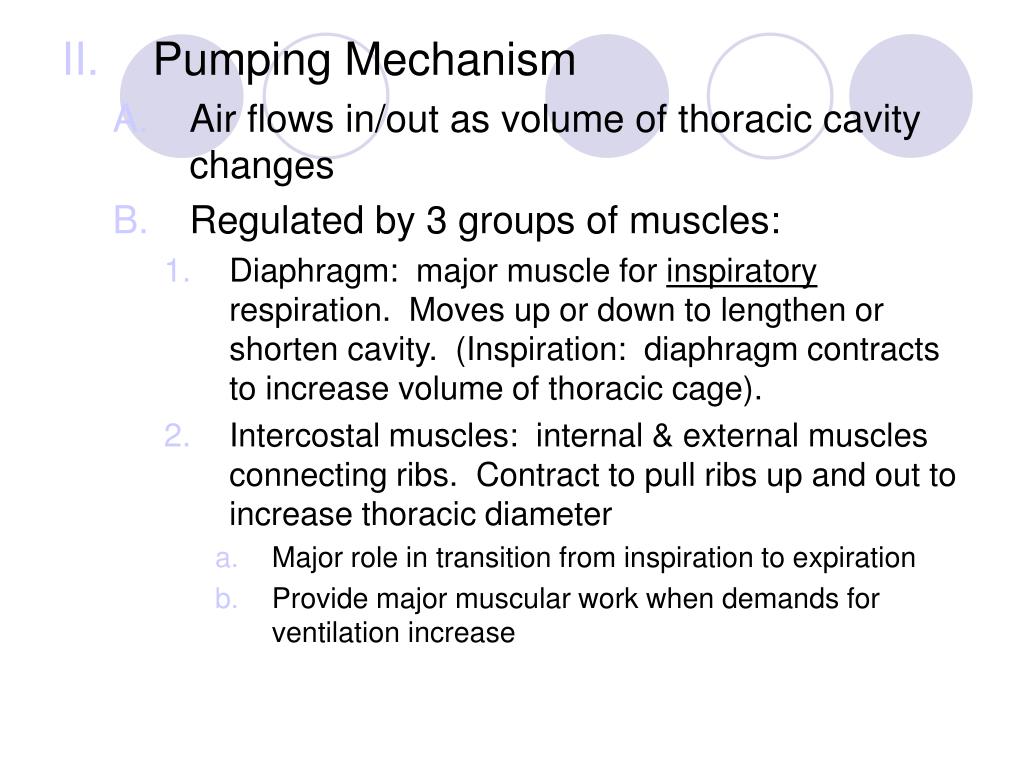

Pumping Mechanism
    • Air flows in/out as volume of thoracic cavity changes
    • Regulated by 3 groups of muscles:
      • Diaphragm: major muscle for inspiratory respiration. Moves up or down to lengthen or shorten cavity. (Inspiration: diaphragm contracts to increase volume of thoracic cage).
      • Intercostal muscles: internal & external muscles connecting ribs. Contract to pull ribs up and out to increase thoracic diameter
        • Major role in transition from inspiration to expiration
        • Provide major muscular work when demands for ventilation increase
Accessory muscles: elevate and stabilize chest wall at its largest diameter (once already “open”). Increases efficiency of diaphragm. Active during heavy breathing.


  • Chest wall assist with inspiration
  • Abdominals: used in active exhalation, ie. Exercise. Also role in inspiration

Inspiration is usually active – major role in pumping mechanism.

Expiration is usually passive.

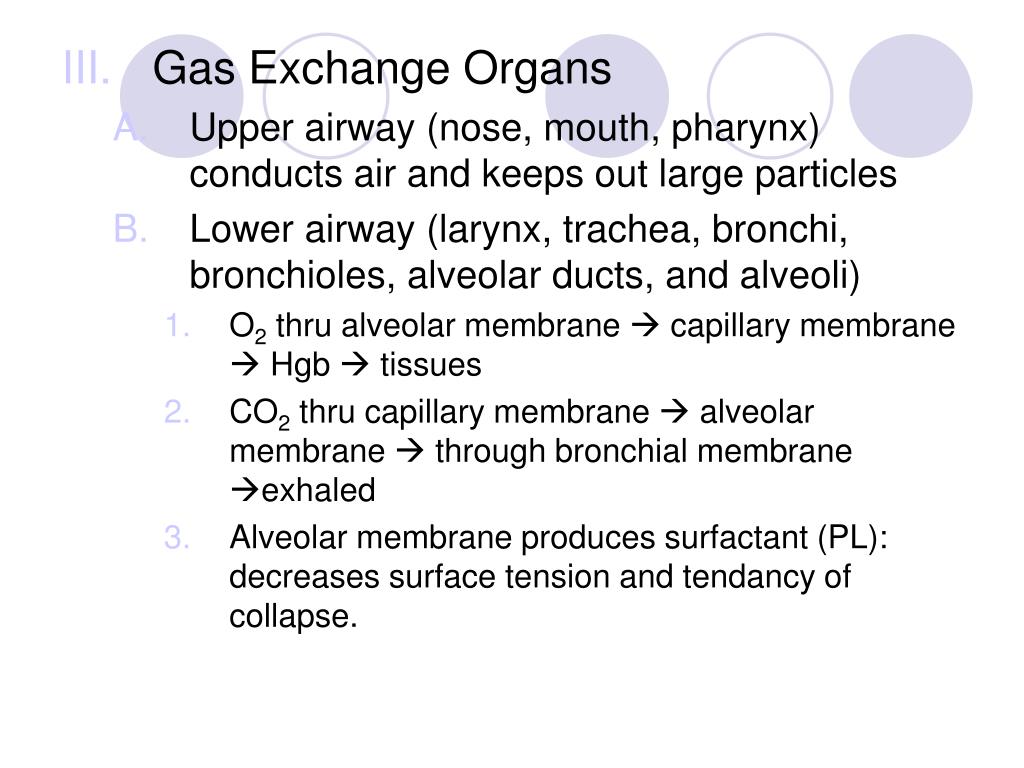

Gas Exchange Organs
    • Upper airway (nose, mouth, pharynx) conducts air and keeps out large particles
    • Lower airway (larynx, trachea, bronchi, bronchioles, alveolar ducts, and alveoli)
      • O2 thru alveolar membrane  capillary membrane  Hgb  tissues
      • CO2 thru capillary membrane  alveolar membrane  through bronchial membrane exhaled
      • Alveolar membrane produces surfactant (PL): decreases surface tension and tendancy of collapse.
functions of the respiratory system

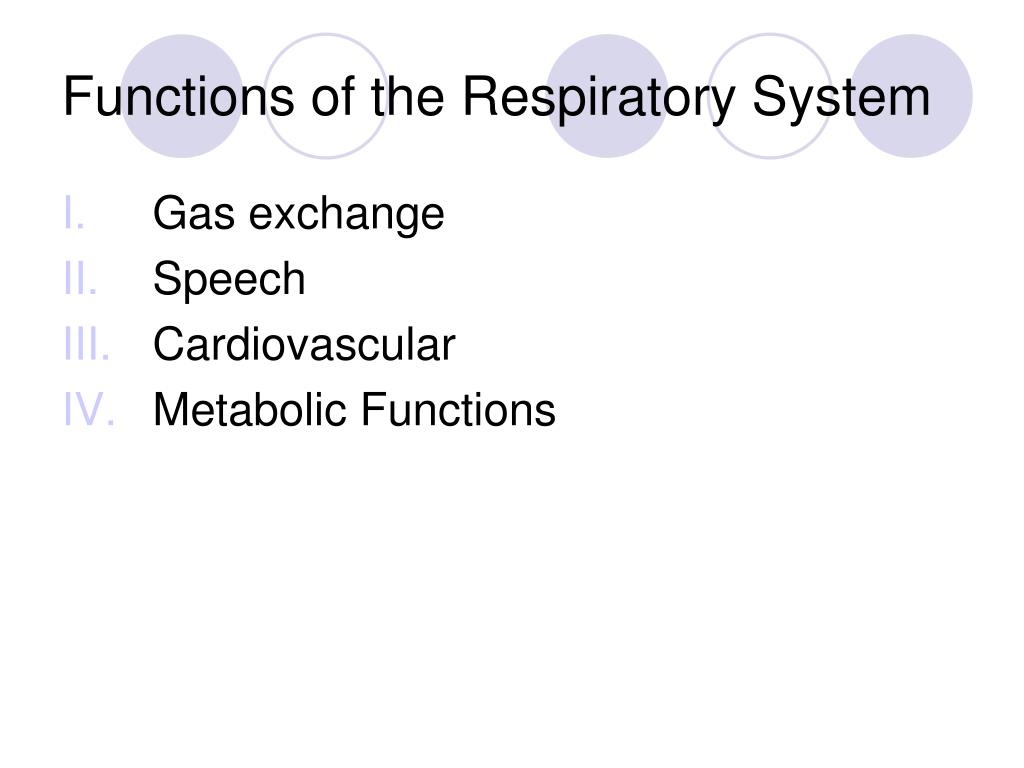

Functions of the Respiratory System
  • Gas exchange
  • Speech
  • Cardiovascular
  • Metabolic Functions

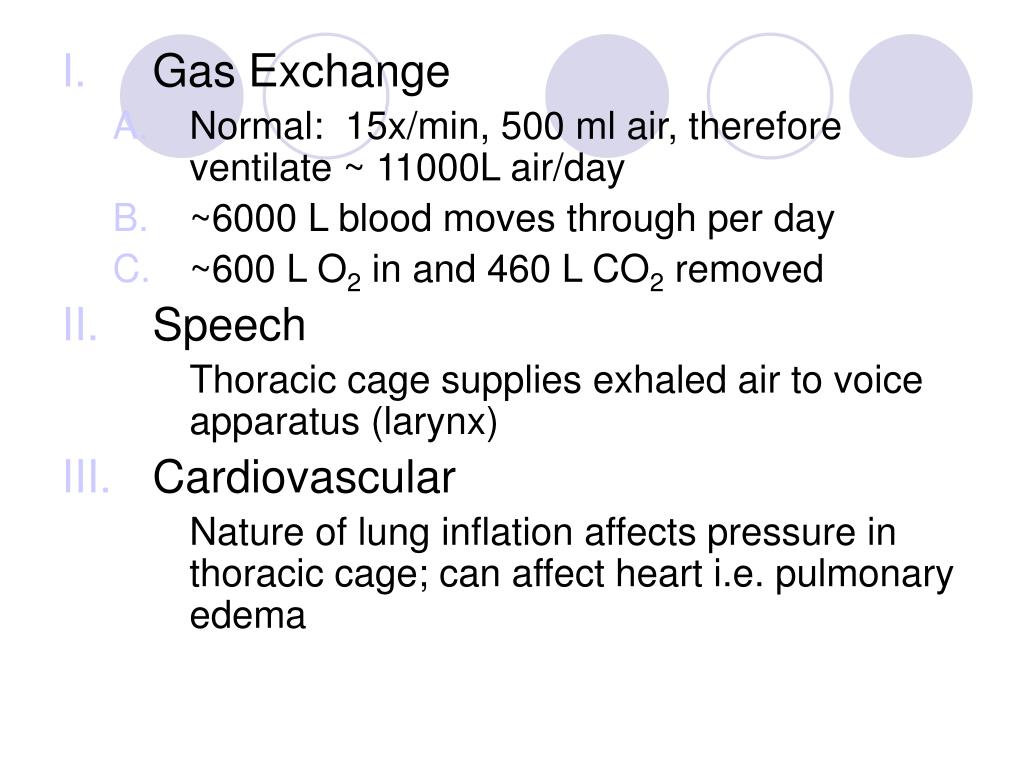

Gas Exchange
    • Normal: 15x/min, 500 ml air, therefore ventilate ~ 11000L air/day
    • ~6000 L blood moves through per day
    • ~600 L O2 in and 460 L CO2 removed
  • Speech

Thoracic cage supplies exhaled air to voice apparatus (larynx)

  • Cardiovascular

Nature of lung inflation affects pressure in thoracic cage; can affect heart i.e. pulmonary edema

Metabolic Functions
    • Surfactant production
    • Formation of angiotensin-converting enzyme (ACE)
    • Endothelial cells: produce SOD enzymes

I. Partial Pressure: used to indicate the amount of any gas in the atmosphere, alveoli, or plasma

  • PCO2 Partial Pressure of carbon dioxide
    • Normal arterial blood values = 35-45 mm Hg
    • Normal venous blood values = 41-51 mm Hg
  • PO2 Partial Pressure of oxygen
    • Normal arterial blood values = 80-100 mm Hg
    • Normal venous blood values = 35-40 mm Hg
  • Arterial blood preferred: oxygenated, coming from the heart
    • Gives idea of how things are throughout the body
    • Gives idea of how well lungs have oxygenated the blood

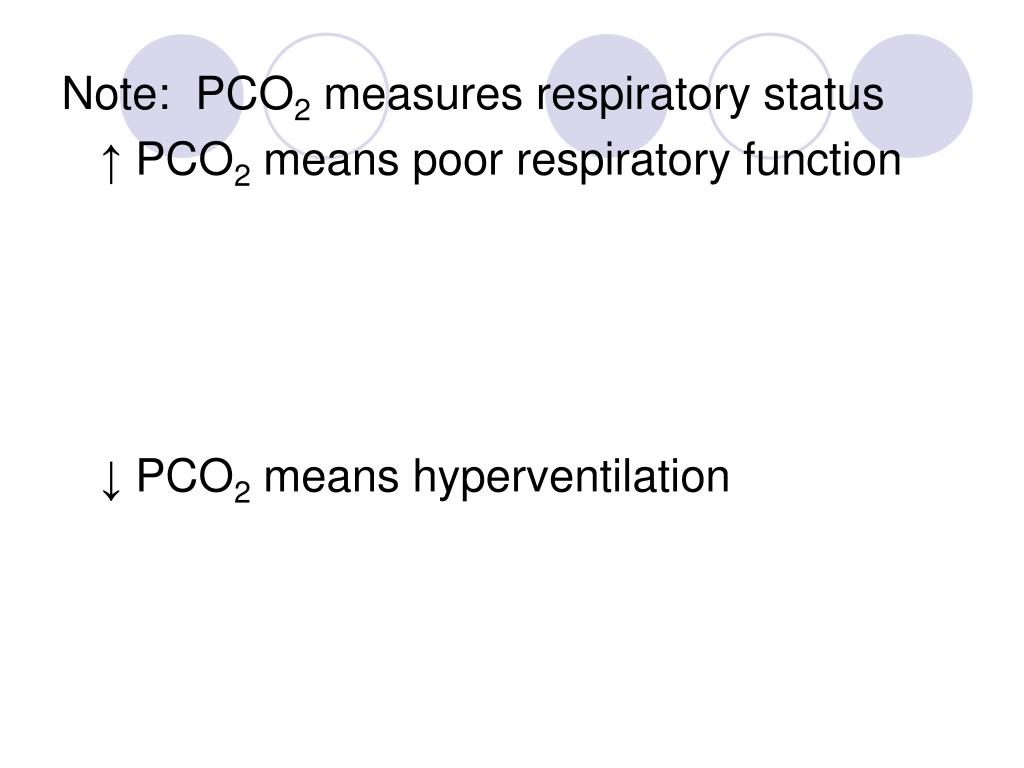

Note: PCO2 measures respiratory status

↑ PCO2 means poor respiratory function

↓ PCO2 means hyperventilation

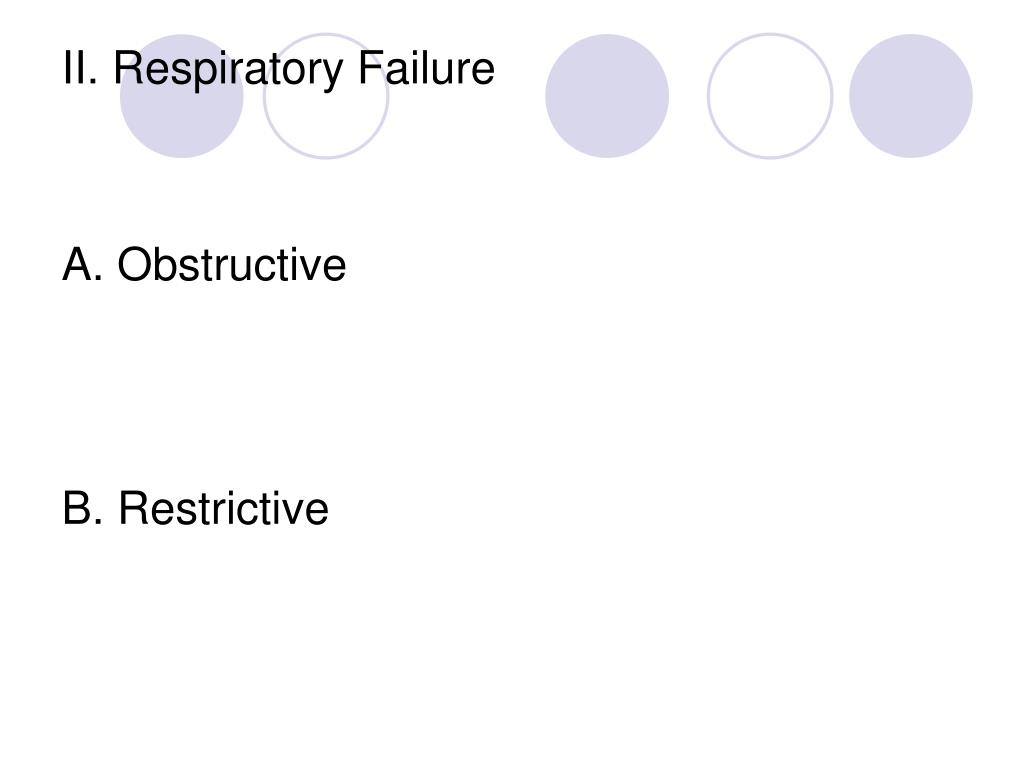

II. Respiratory Failure

A. Obstructive

B. Restrictive

effects of respiratory ds on nutritional status
Effects of Respiratory Ds. On Nutritional Status
  • intake (see previous slide)
  • Medications

Steroids (anti-inflammatory) cause protein catabolism, gluconeogenesis, muscle wasting and neg. N balance.

  • Constipation/diarrhea

Choice of low fiber foods (2’ dyspnea); poor peristalsis 2’  O2 to GI tract.

respiratory complications malnutrition

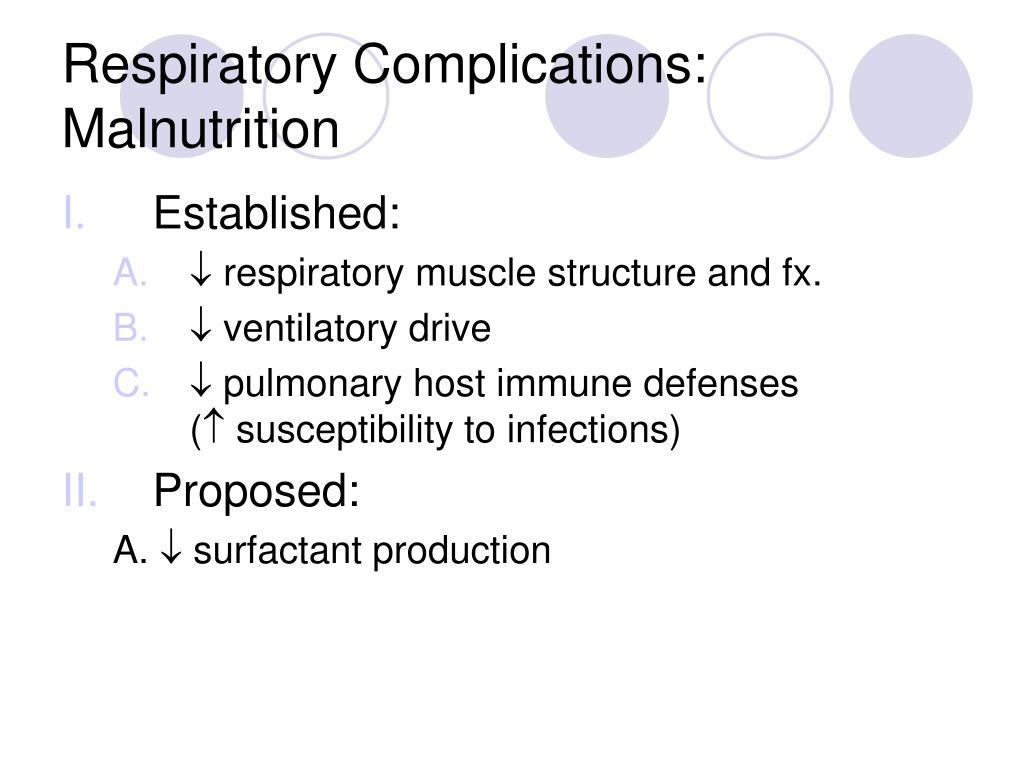

Respiratory Complications: Malnutrition
  • Established:
    •  respiratory muscle structure and fx.
    •  ventilatory drive
    •  pulmonary host immune defenses ( susceptibility to infections)
  • Proposed:

A.  surfactant production

copd chronic obstructive pulmonary disease

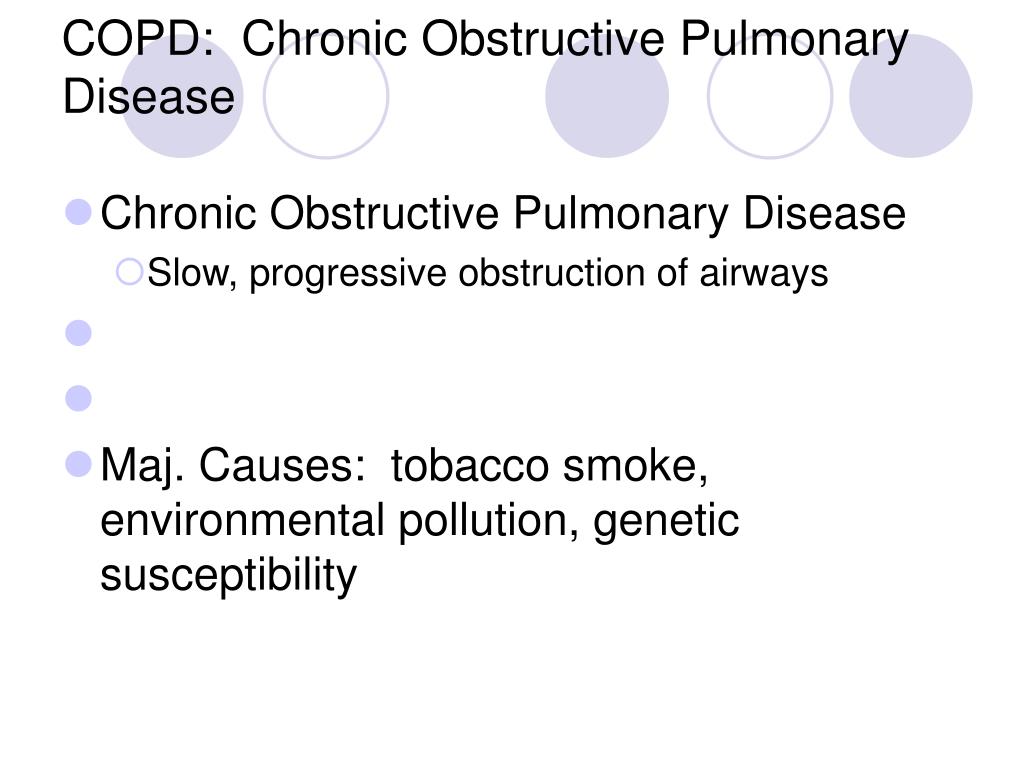

COPD: Chronic Obstructive Pulmonary Disease
  • Chronic Obstructive Pulmonary Disease
    • Slow, progressive obstruction of airways
  • Maj. Causes: tobacco smoke, environmental pollution, genetic susceptibility

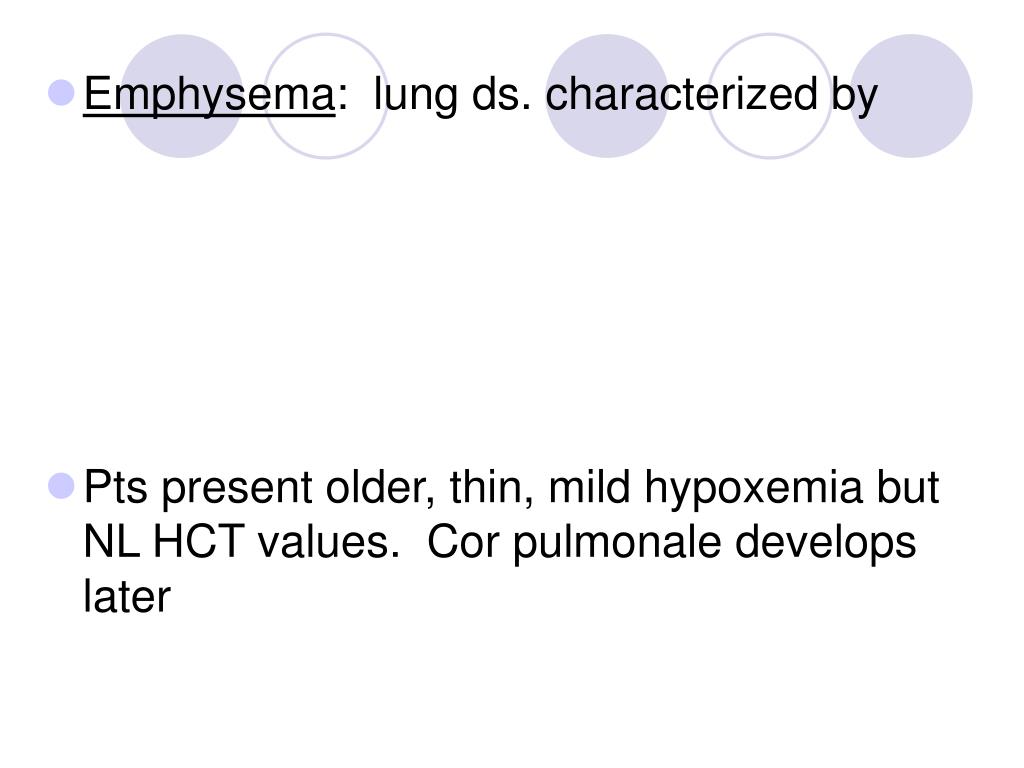

Emphysema: lung ds. characterized by
  • Pts present older, thin, mild hypoxemia but NL HCT values. Cor pulmonale develops later
Cron. Bronchitis:
  • pts NL wt to ovrwt, hypoxemia and  HCT
  • Cor pulmonale develops early.
  • Cor Pulmonale:

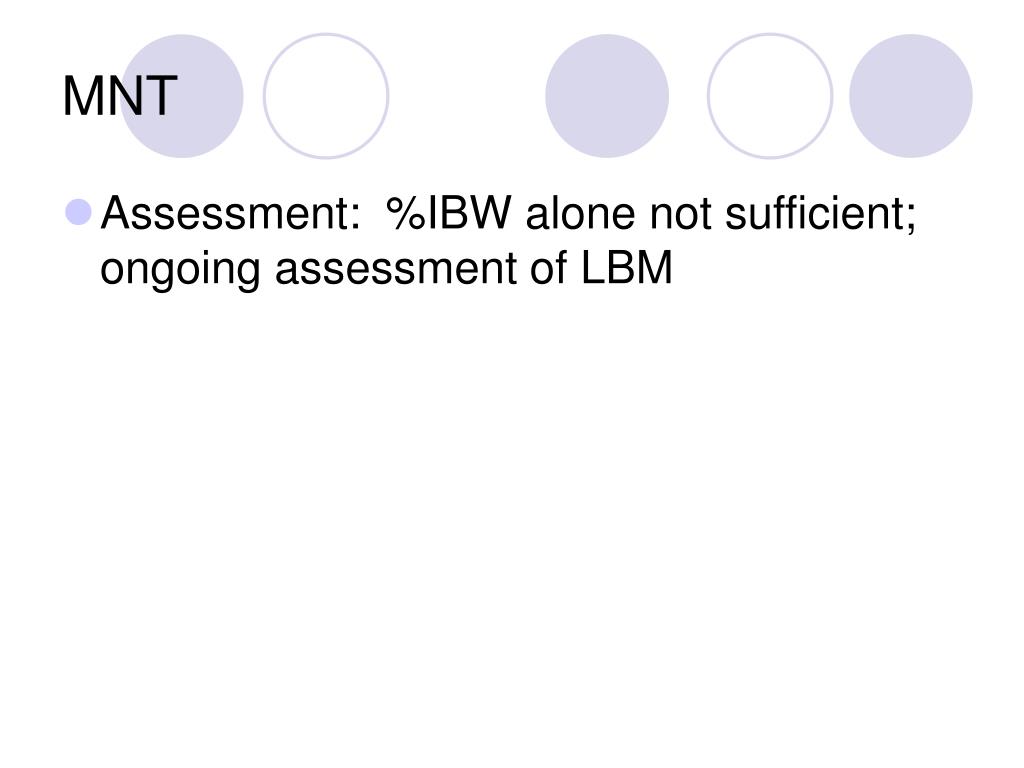

  • Assessment: %IBW alone not sufficient; ongoing assessment of LBM

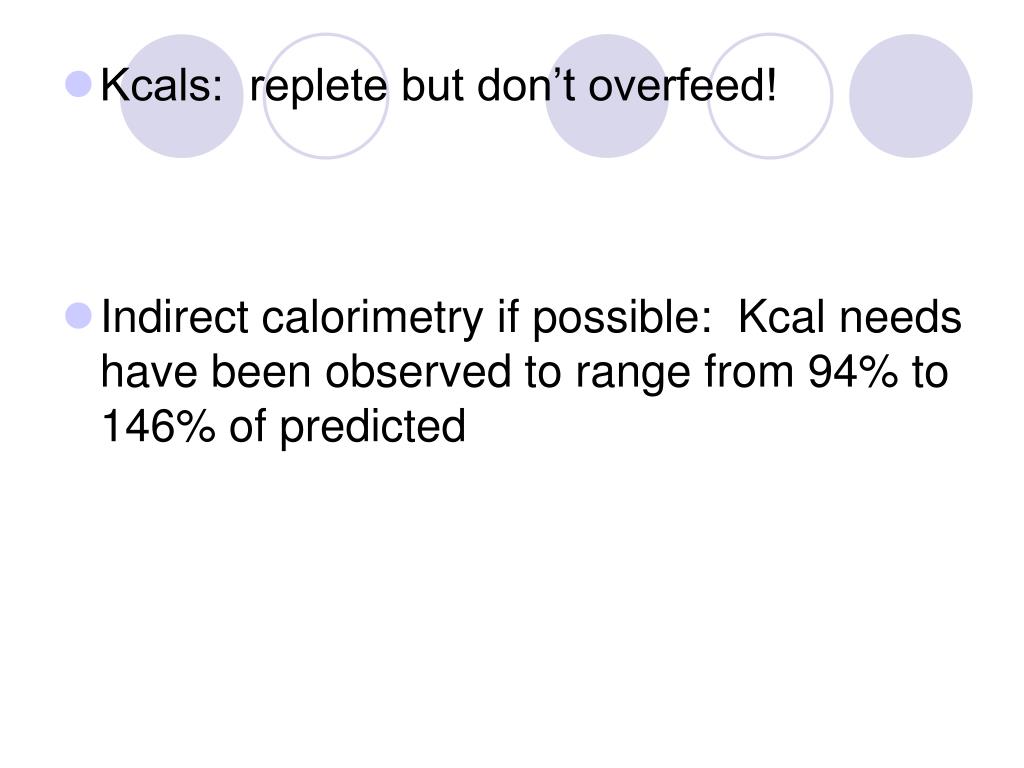

Kcals: replete but don’t overfeed!
  • Indirect calorimetry if possible: Kcal needs have been observed to range from 94% to 146% of predicted
respiratory quotient

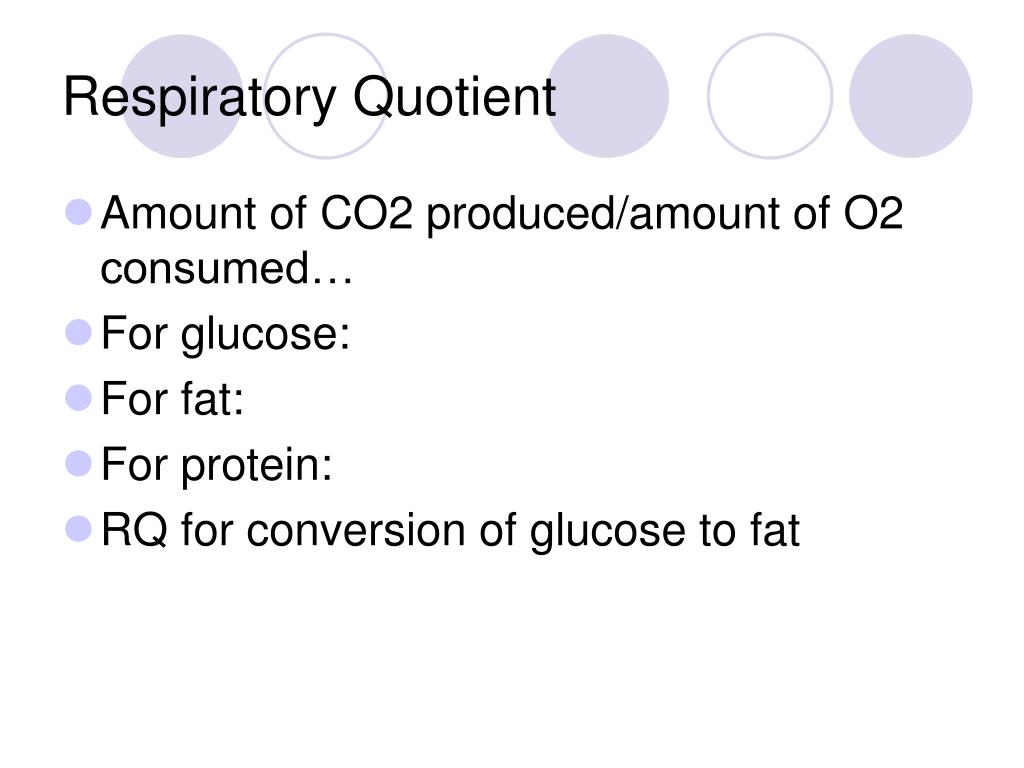

Respiratory Quotient
  • Amount of CO2 produced/amount of O2 consumed…
  • For glucose:
  • For fat:
  • For protein:
  • RQ for conversion of glucose to fat
  • Preserve lung, muscle, and immune fx
  • To preserve appropriate RQ:
  • Prot:
  • Fat:
  • CHO:
  • Smokers :
  • Mg and Ca imp in muscle contraction/relax, Mg and Phos monitored
  • Poss vit D&K
Respiratory rehab: exercise, fluids, easily chewed diet w/adequate fiber  GI motility
  • If experiencing bloating, decrease gaseous foods.
To  intake
    • Prevent aspiration:
    • TF to  kcals in some pts (aspiration issues)
      • Issues of O2 use at nighttime (overnight feedings). O2 consumption decreases by 15%-25% during sleep.
respiratory failure

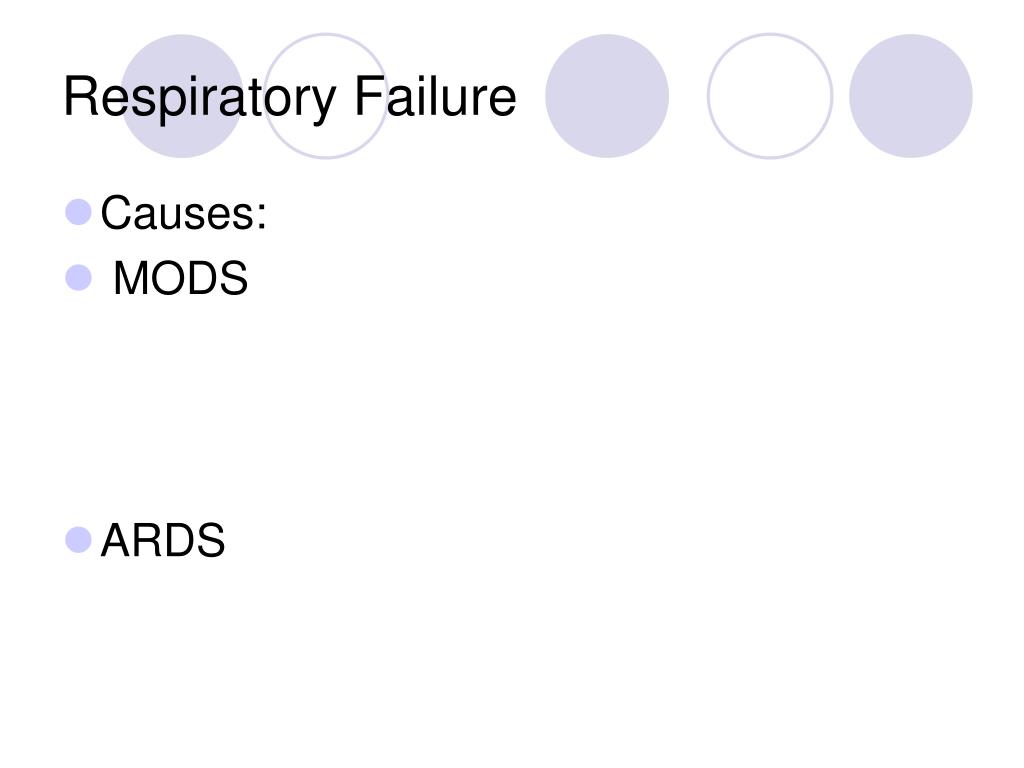

Respiratory Failure
  • Causes:
  • MODS
  • ARDS
respiratory failure cont

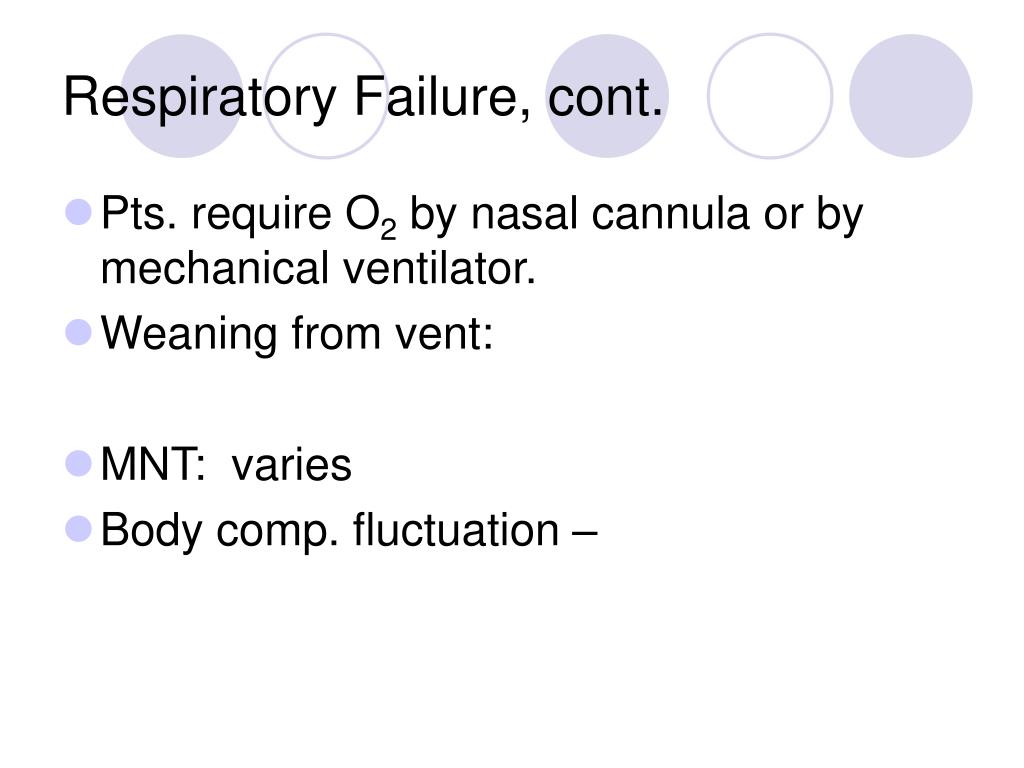

Respiratory Failure, cont.
  • Pts. require O2 by nasal cannula or by mechanical ventilator.
  • Weaning from vent:
  • MNT: varies
  • Body comp. fluctuation –
