  1. Evolutionary Hardware Dmitry Berenson

  2. What is Evolutionary Hardware? • Automated Digital Circuit Design • Automated Analog Circuit Design • Automated VLSI Layout Design • Automated Filter Design • Automated Controller Design • Automated Antenna Design • Fault Tolerance

  3. Previous Work • Adrian Thompson (1996) – FPGA Tone Discriminator • Layzell et al. (1998) – Evolvable Motherboard • Flockton and Sheenan (1998) – Intrinsic Evolution of analog circuits on Zetex TRAC chip • Stoica and Zebulum (2002-2003) – FPTA and SABLES

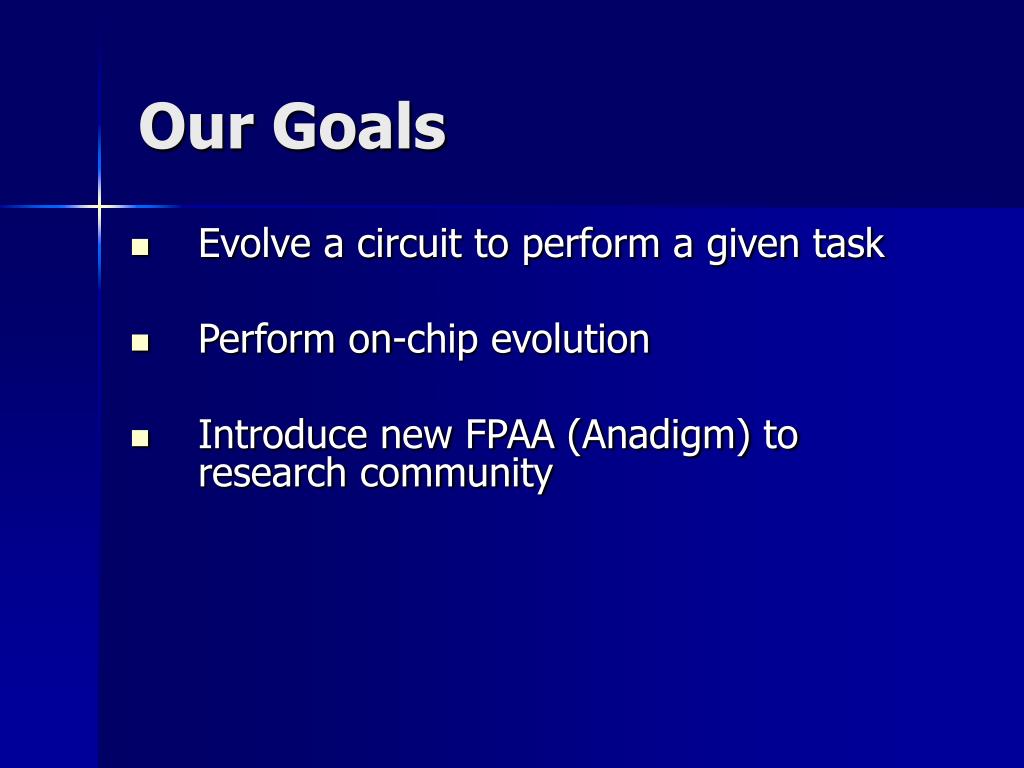

  4. Our Goals • Evolve a circuit to perform a given task • Perform on-chip evolution • Introduce new FPAA (Anadigm) to research community

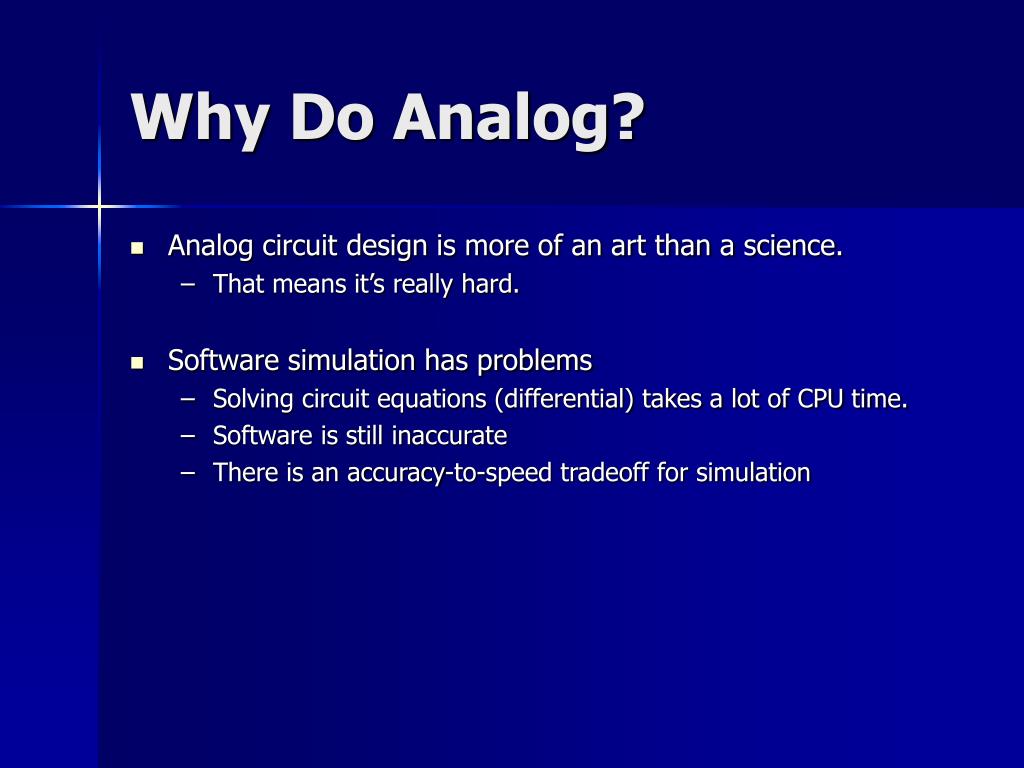

  5. Why Do Analog? • Analog circuit design is more of an art than a science. • That means it’s really hard. • Software simulation has problems • Solving circuit equations (differential) takes a lot of CPU time. • Software is still inaccurate • There is an accuracy-to-speed tradeoff for simulation

  6. The Setup • FPAA • Anadigm AN221E04 • Lattice ispPAC30 • Computer • Gets Samples • Computes Fitness • Runs Genetic Algorithm • Programs FPAA • A/D Converter • Dataq DI-158U The Setup

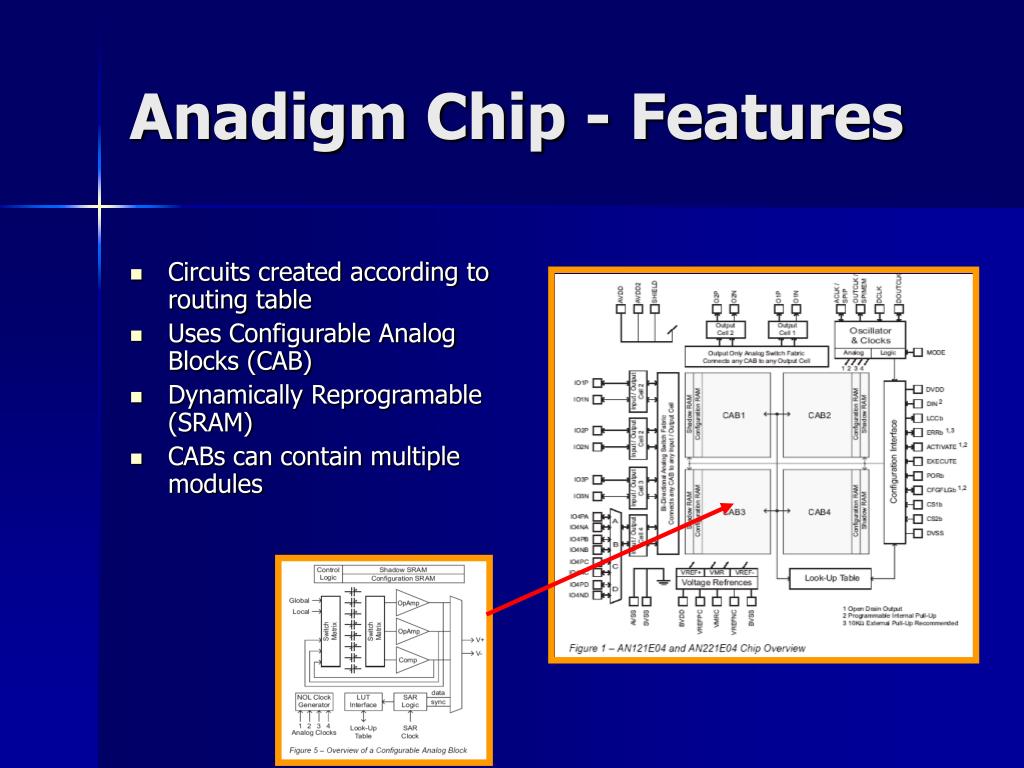

  7. Anadigm Chip - Features • Circuits created according to routing table • Uses Configurable Analog Blocks (CAB) • Dynamically Reprogramable (SRAM) • CABs can contain multiple modules

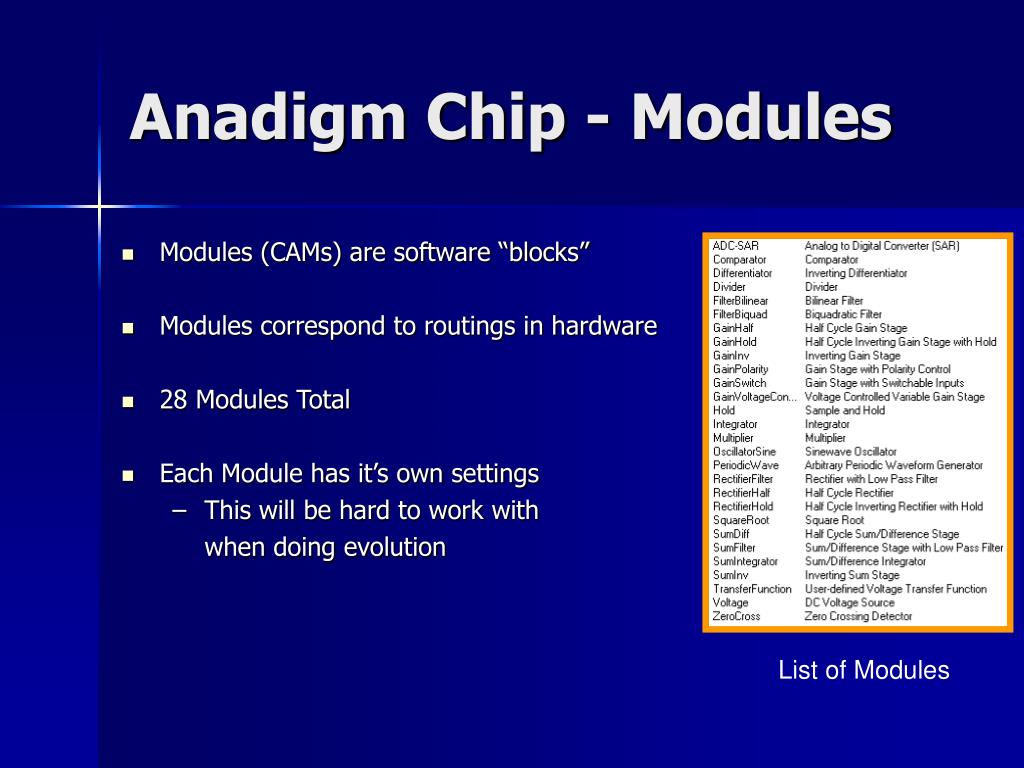

  8. Anadigm Chip - Modules • Modules (CAMs) are software “blocks” • Modules correspond to routings in hardware • 28 Modules Total • Each Module has it’s own settings • This will be hard to work with when doing evolution List of Modules

  9. Anadigm Chip - Procedure • Place modules • Make connections • Another problem: some blocks have more than 2 connections • Download to chip • Placement/Connections can be automated through C++ commands • “Not Officially Released” Anadigm Designer Interface

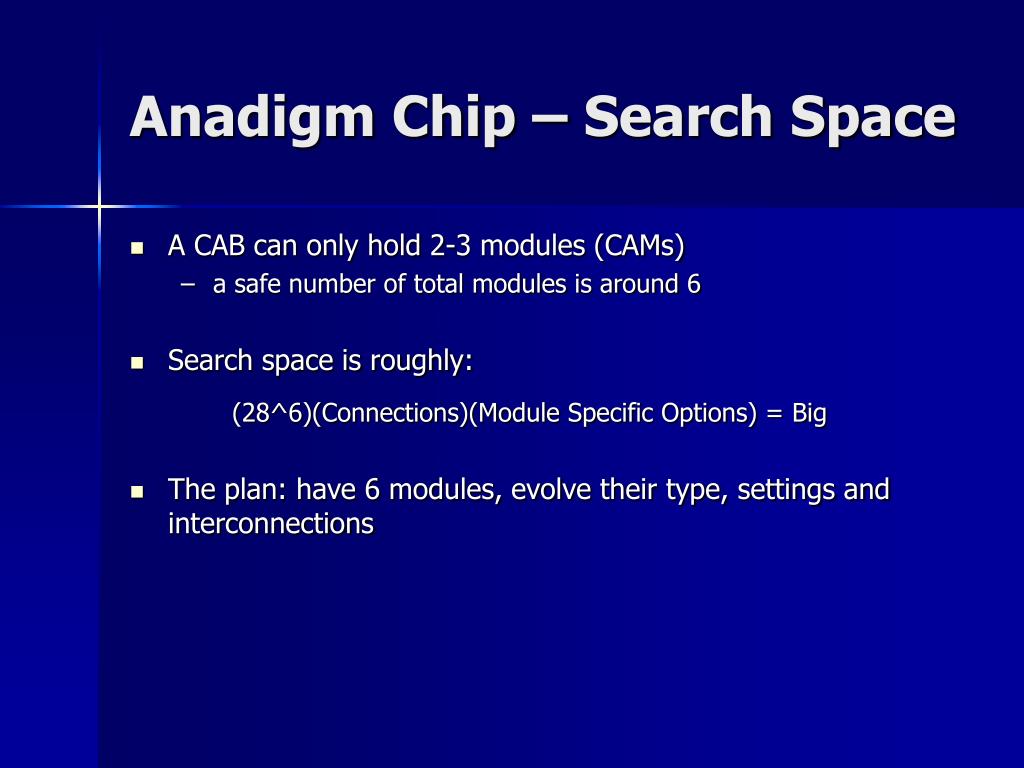

  10. Anadigm Chip – Search Space • A CAB can only hold 2-3 modules (CAMs) • a safe number of total modules is around 6 • Search space is roughly: (28^6)(Connections)(Module Specific Options) = Big • The plan: have 6 modules, evolve their type, settings and interconnections

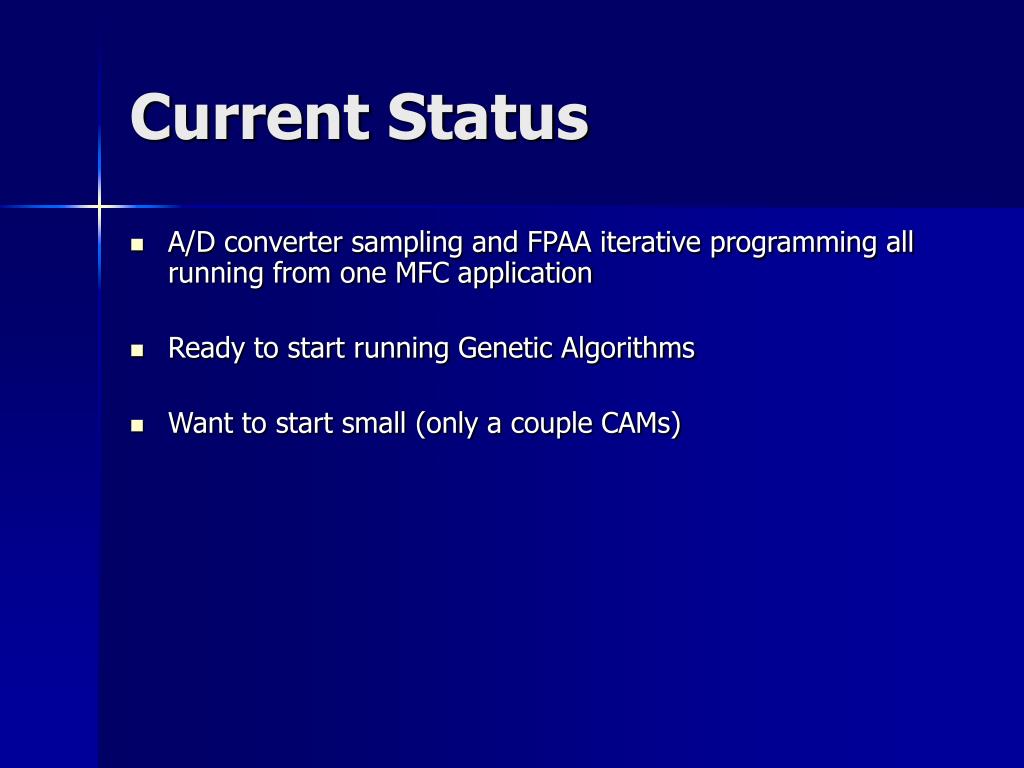

  11. Current Status • A/D converter sampling and FPAA iterative programming all running from one MFC application • Ready to start running Genetic Algorithms • Want to start small (only a couple CAMs)

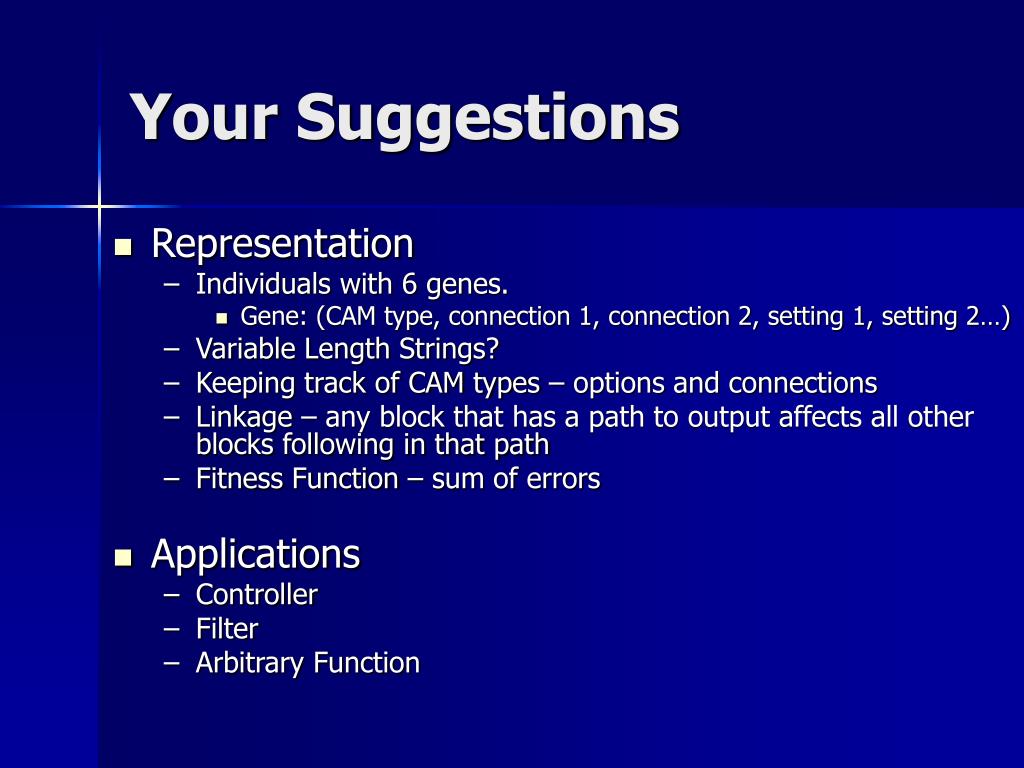

  12. Your Suggestions • Representation • Individuals with 6 genes. • Gene: (CAM type, connection 1, connection 2, setting 1, setting 2…) • Variable Length Strings? • Keeping track of CAM types – options and connections • Linkage – any block that has a path to output affects all other blocks following in that path • Fitness Function – sum of errors • Applications • Controller • Filter • Arbitrary Function
