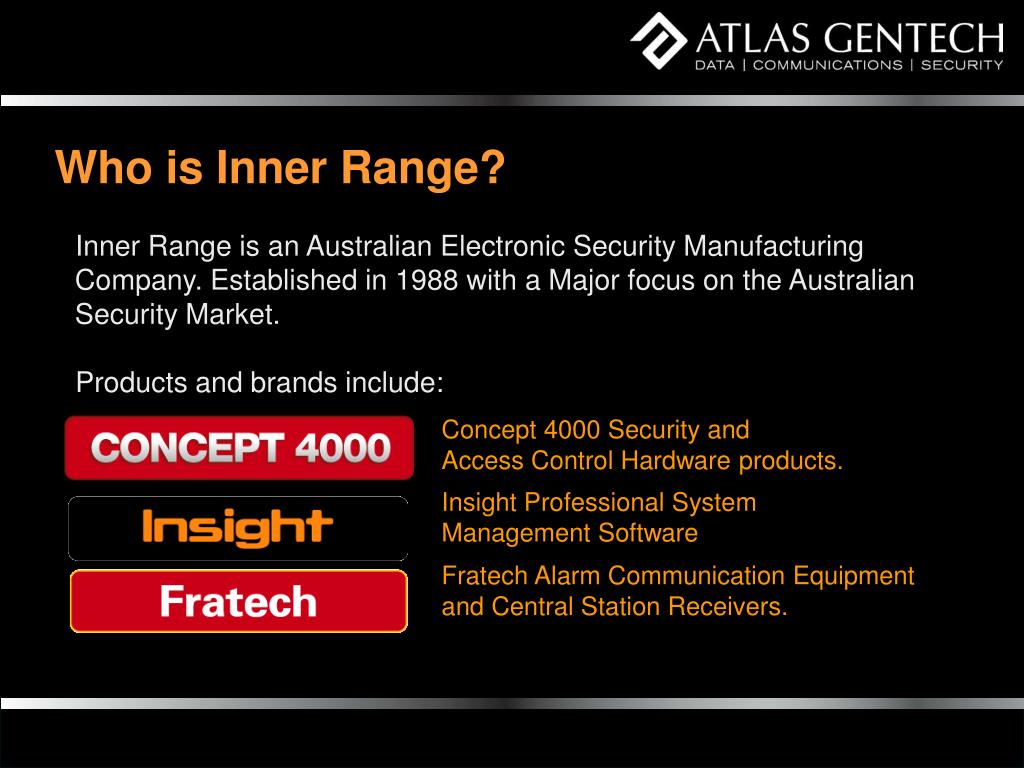

  1. Who is Inner Range? • Inner Range is an Australian Electronic Security Manufacturing Company. Established in 1988 with a Major focus on the Australian Security Market. • Products and brands include: Concept 4000 Security and Access Control Hardware products. Insight Professional System Management Software Fratech Alarm Communication Equipment and Central Station Receivers.

  2. Inner Range A Complete Security & Access Control Solution

  3. System Overview

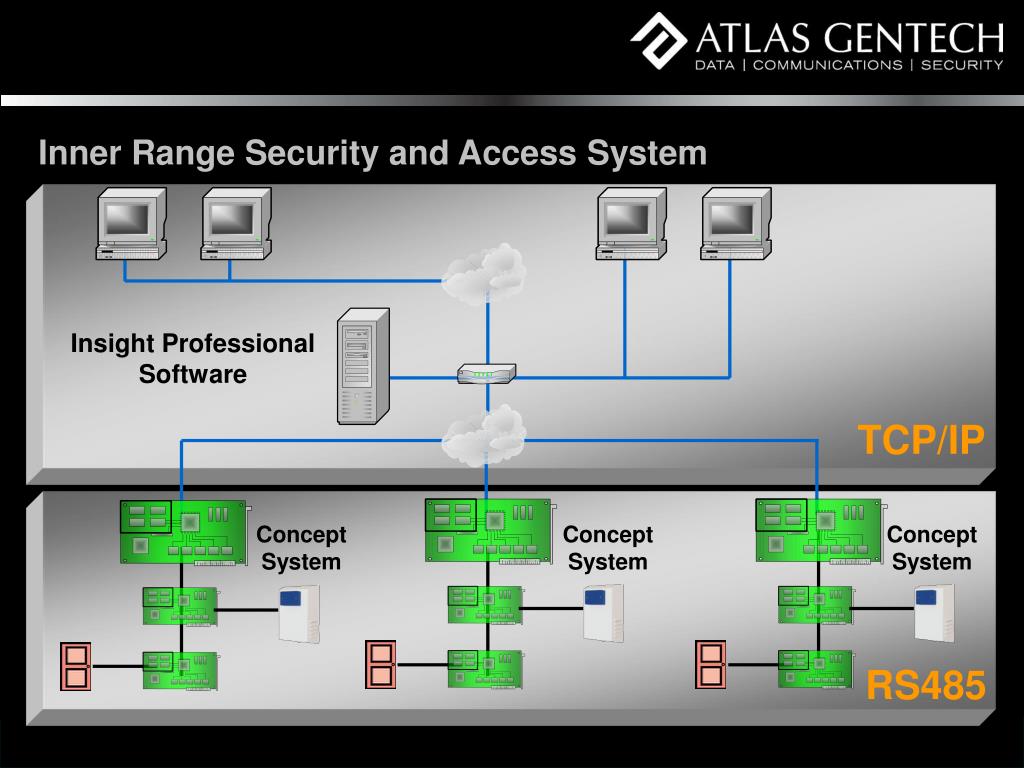

  4. Inner Range Security and Access System Insight Professional Software TCP/IP Concept System Concept System Concept System RS485

  5. CONCEPT 3000 / 4000 Hardware Design

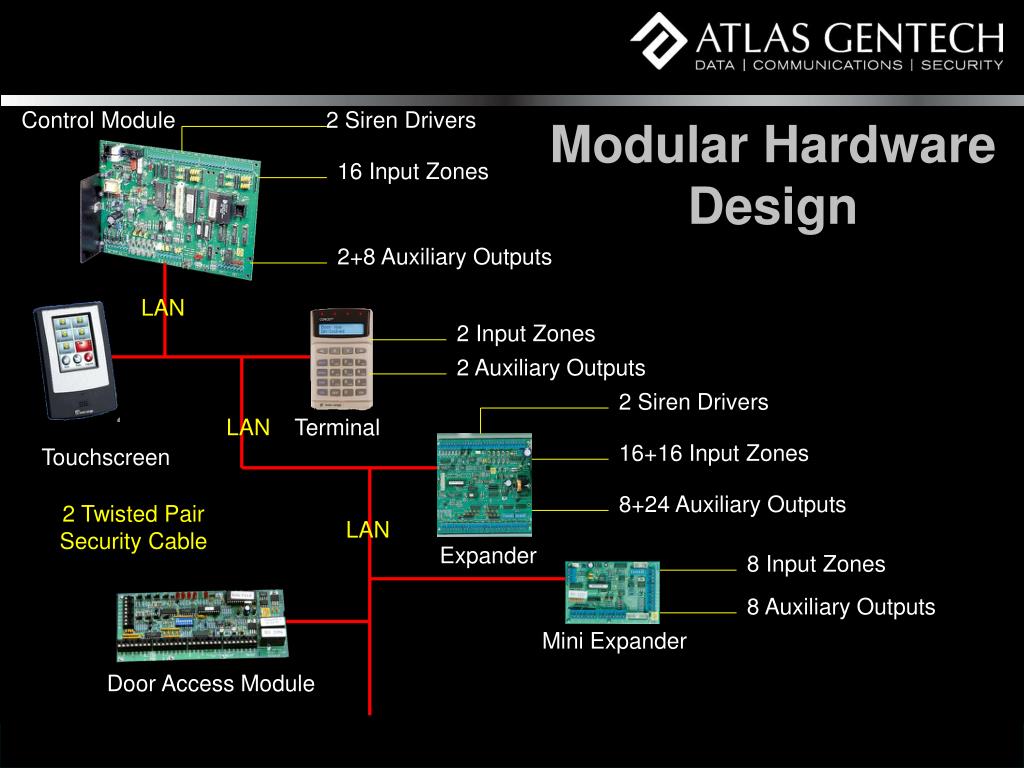

  6. Control Module 2 Siren Drivers Modular Hardware Design 16 Input Zones 2+8 Auxiliary Outputs LAN 2 Input Zones 2 Auxiliary Outputs 2 Siren Drivers LAN Terminal 16+16 Input Zones Touchscreen 8+24 Auxiliary Outputs 2 Twisted Pair Security Cable LAN Expander 8 Input Zones 8 Auxiliary Outputs Mini Expander Door Access Module

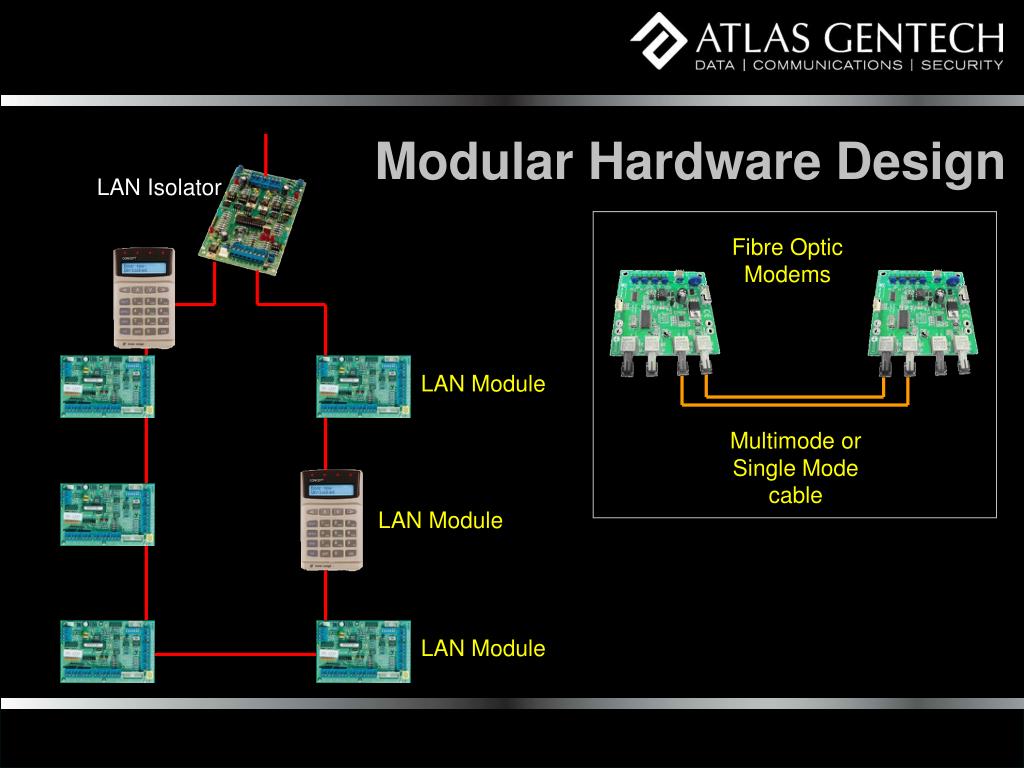

  7. Modular Hardware Design LAN Isolator Fibre Optic Modems LAN Module Multimode or Single Mode cable LAN Module LAN Module

  8. Insight Professional System Management Software

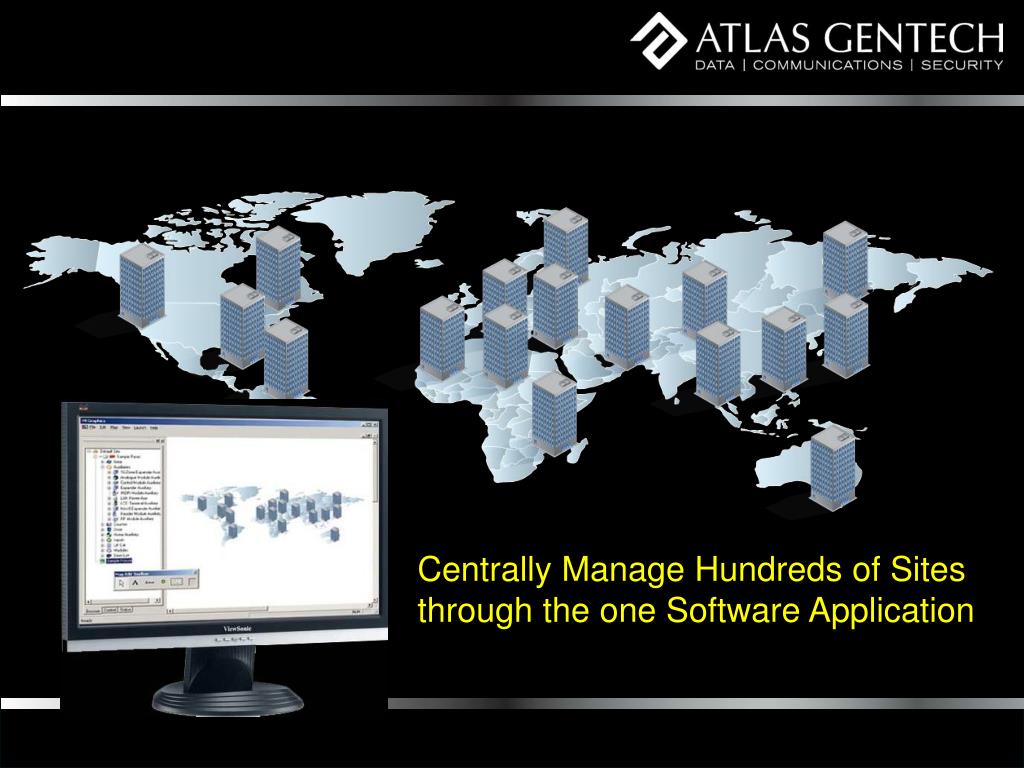

  9. Centrally Manage Hundreds of Sites through the one Software Application

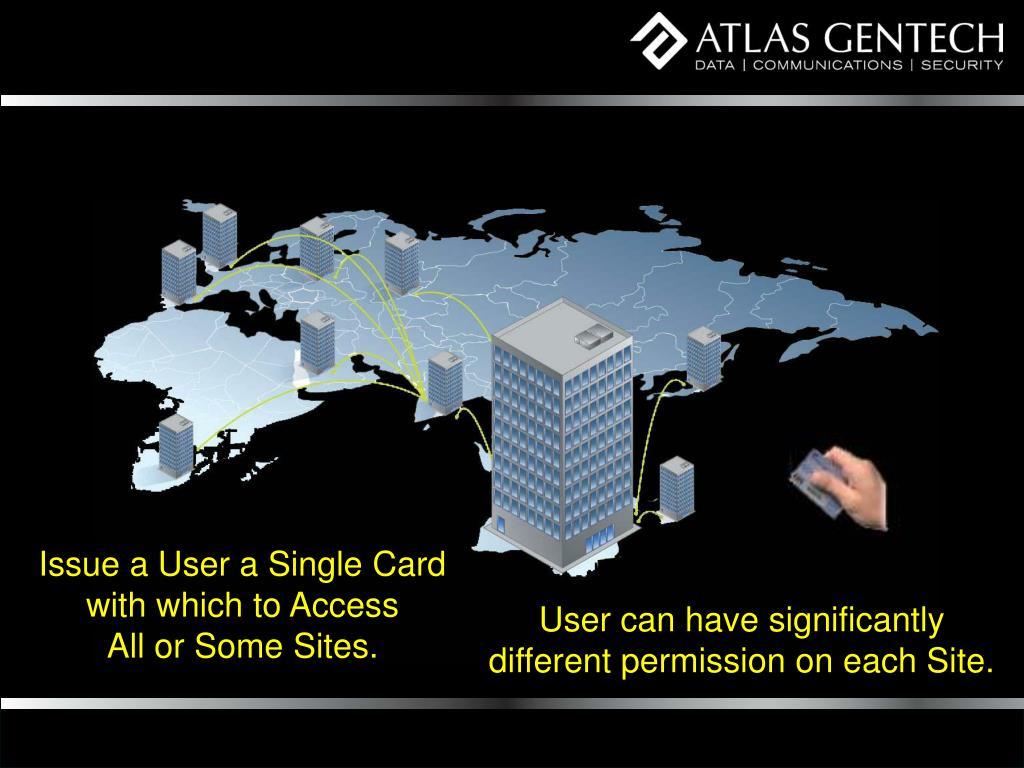

  10. Issue a User a Single Card with which to Access All or Some Sites. User can have significantly different permission on each Site.

  11. Features and benefits Insight Professional • Core Modules • Insight Edit. • Insight License Manager. • Insight Operators. • Insight Review. • Insight Alarm Handler. • Insight Schematics. • Insight Archiver for SQL Express. • Support for a Single Panel and a Single Workstation.

  12. Features and benefits Insight Professional • Optional Modules • Insight PhotoID. • Insight Card Pool. • Insight DVR Interface. • Advanced Reporting Module. • Dynamic User Import Module. • Communicator Module for Paging, Email, SMS and Text Communication. • COM Interface to other Databases and Applications (COM) • Support for Multiple Panels and Multiple Workstations.

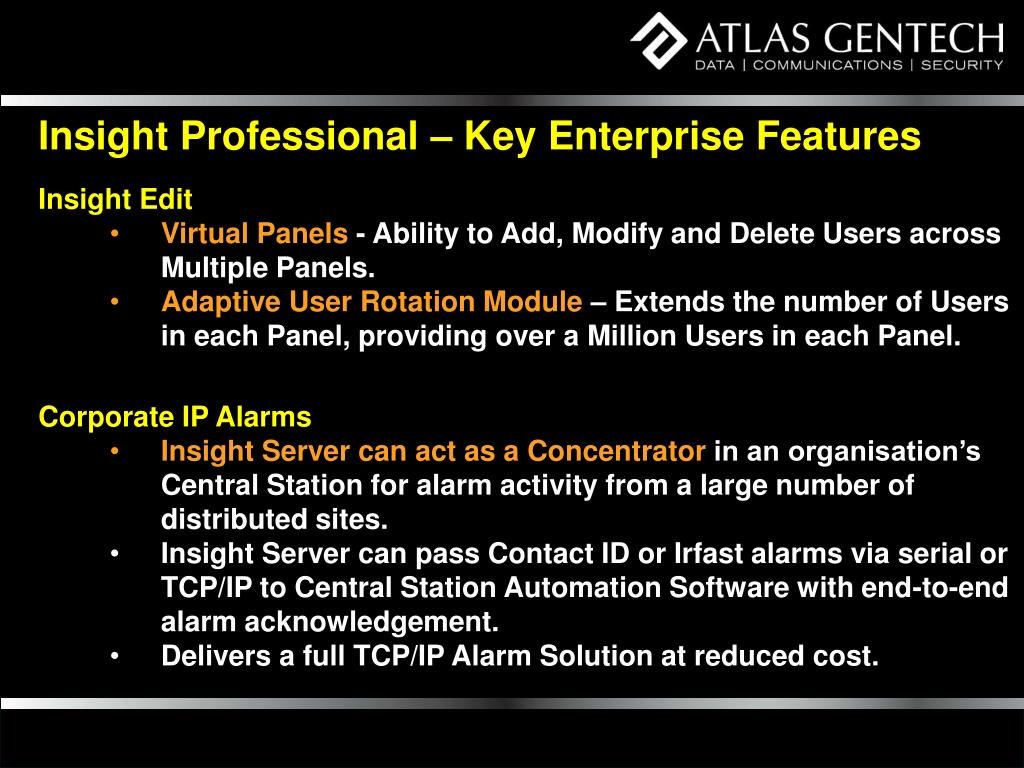

  13. Insight Professional – Key Enterprise Features • Insight Edit • Virtual Panels - Ability to Add, Modify and Delete Users across Multiple Panels. • Adaptive User Rotation Module – Extends the number of Users in each Panel, providing over a Million Users in each Panel. • Corporate IP Alarms • Insight Server can act as a Concentrator in an organisation’s Central Station for alarm activity from a large number of distributed sites. • Insight Server can pass Contact ID or Irfast alarms via serial or TCP/IP to Central Station Automation Software with end-to-end alarm acknowledgement. • Delivers a full TCP/IP Alarm Solution at reduced cost.

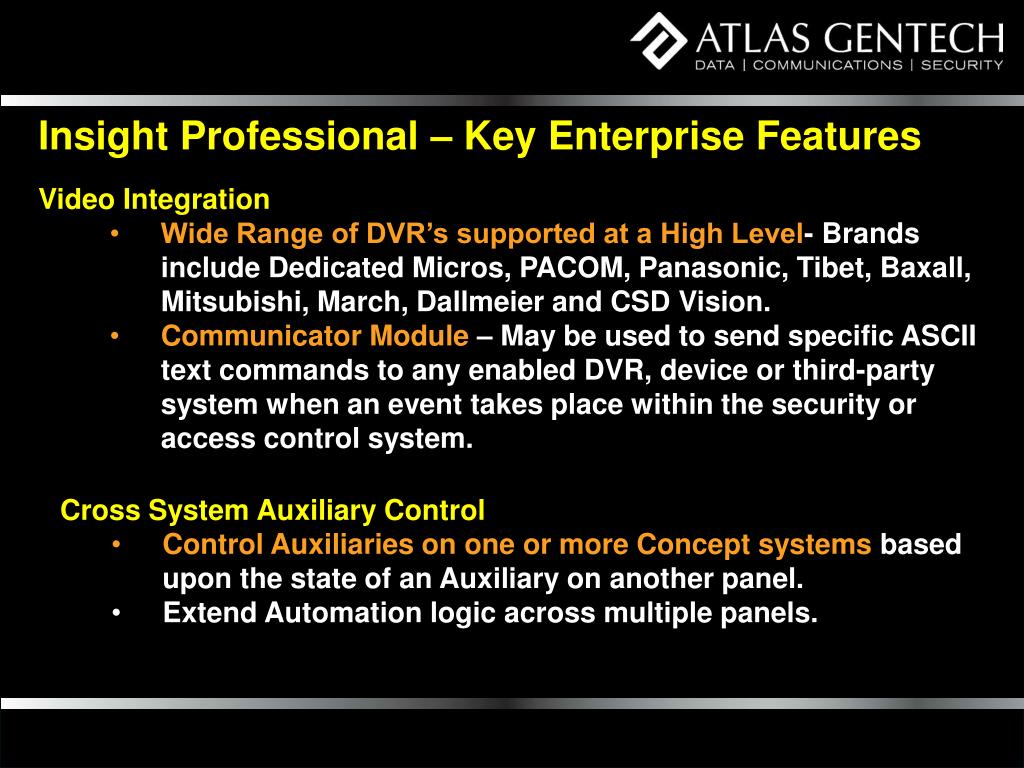

  14. Insight Professional – Key Enterprise Features • Video Integration • Wide Range of DVR’s supported at a High Level- Brands include Dedicated Micros, PACOM, Panasonic, Tibet, Baxall, Mitsubishi, March, Dallmeier and CSD Vision. • Communicator Module – May be used to send specific ASCII text commands to any enabled DVR, device or third-party system when an event takes place within the security or access control system. • Cross System Auxiliary Control • Control Auxiliaries on one or more Concept systems based upon the state of an Auxiliary on another panel. • Extend Automation logic across multiple panels.

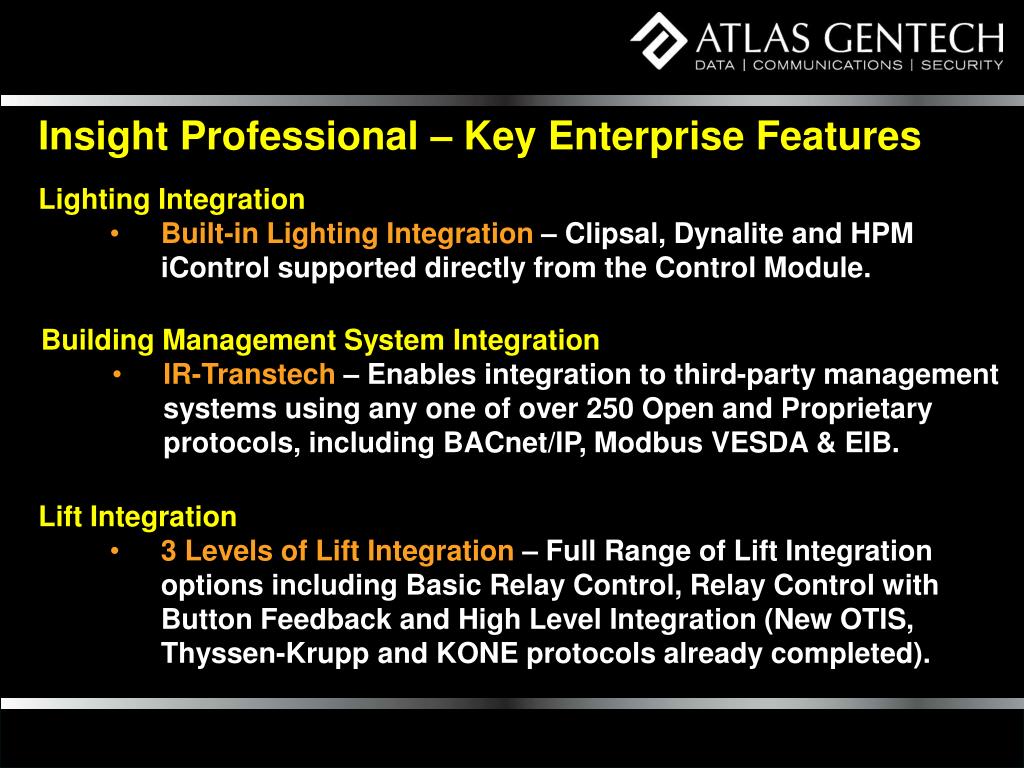

  15. Insight Professional – Key Enterprise Features • Lighting Integration • Built-in Lighting Integration – Clipsal, Dynalite and HPM iControl supported directly from the Control Module. • Building Management System Integration • IR-Transtech – Enables integration to third-party management systems using any one of over 250 Open and Proprietary protocols, including BACnet/IP, Modbus VESDA & EIB. • Lift Integration • 3 Levels of Lift Integration – Full Range of Lift Integration options including Basic Relay Control, Relay Control with Button Feedback and High Level Integration (New OTIS, Thyssen-Krupp and KONE protocols already completed).

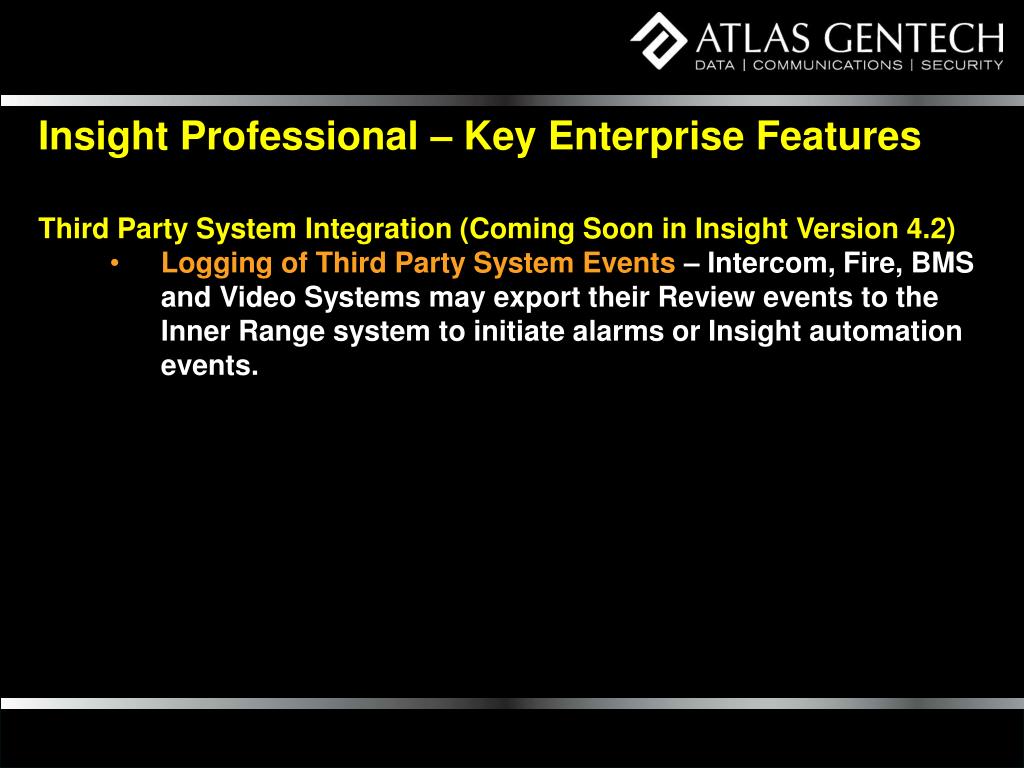

  16. Insight Professional – Key Enterprise Features • Third Party System Integration (Coming Soon in Insight Version 4.2) • Logging of Third Party System Events – Intercom, Fire, BMS and Video Systems may export their Review events to the Inner Range system to initiate alarms or Insight automation events.

  17. Insight Professional Questions and Demos?

  18. New Products

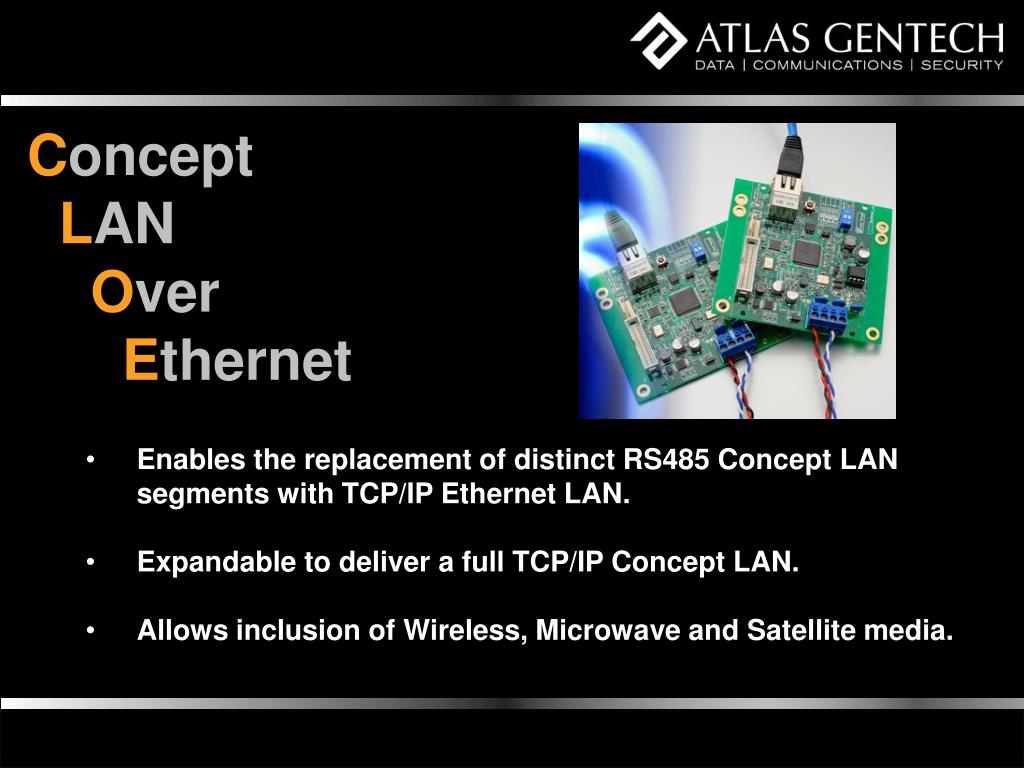

  19. Concept LAN Over Ethernet • Enables the replacement of distinct RS485 Concept LAN segments with TCP/IP Ethernet LAN. • Expandable to deliver a full TCP/IP Concept LAN. • Allows inclusion of Wireless, Microwave and Satellite media.

  20. Concept Graphic Terminal • New Colour Icon Based Screen. • Modern Menu Control. • Backwards Compatible with existing Concept 4000 Series Controllers, with a simple firmware upgrade. • Similar Pricing to Existing Elite Terminal.

  21. NEW NVR Integration with Insight • Verint. • Milestone. • Genetec.

  22. Questions?
