Presentation Transcript

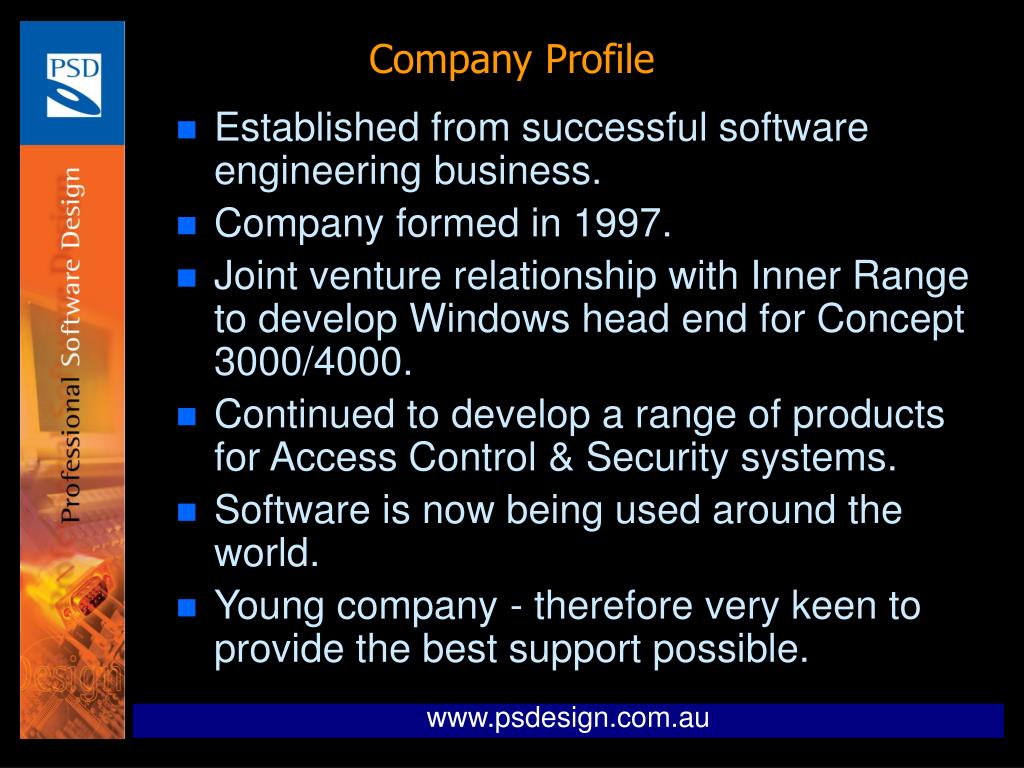

slide1

Company Profile

  • Established from successful software engineering business.
  • Company formed in 1997.
  • Joint venture relationship with Inner Range to develop Windows head end for Concept 3000/4000.
  • Continued to develop a range of products for Access Control & Security systems.
  • Software is now being used around the world.
  • Young company - therefore very keen to provide the best support possible.

www.psdesign.com.au

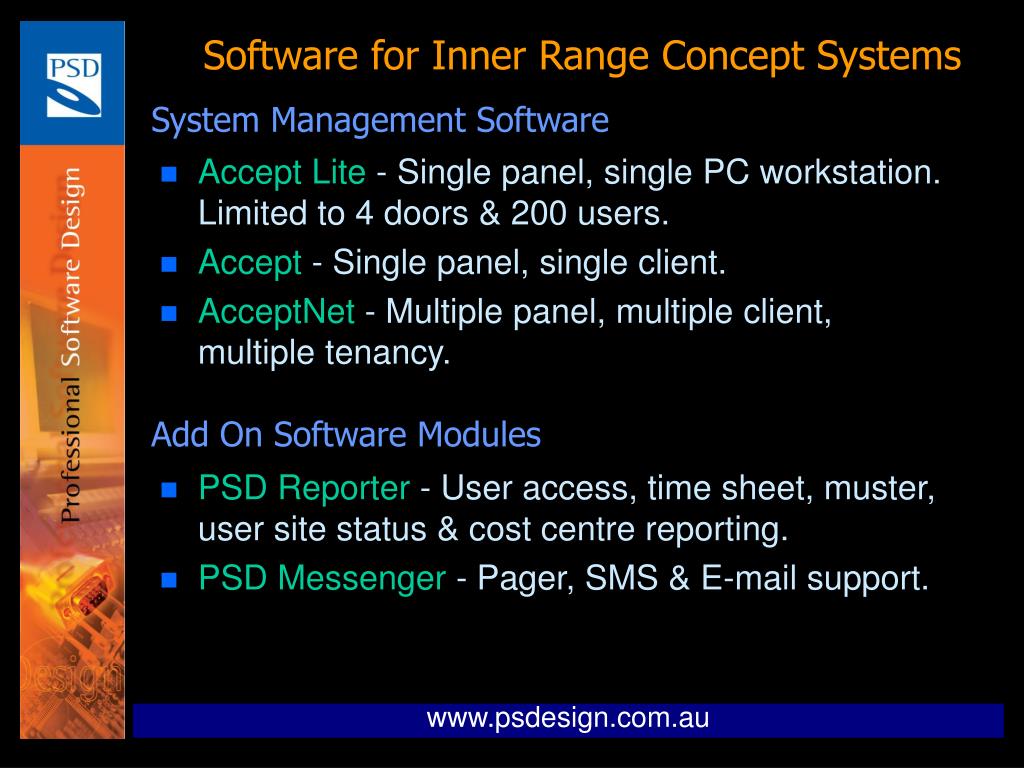

slide2

Software for Inner Range Concept Systems

System Management Software

  • Accept Lite - Single panel, single PC workstation. Limited to 4 doors & 200 users.
  • Accept - Single panel, single client.
  • AcceptNet - Multiple panel, multiple client, multiple tenancy.

Add On Software Modules

  • PSD Reporter - User access, time sheet, muster, user site status & cost centre reporting.
  • PSD Messenger - Pager, SMS & E-mail support.

www.psdesign.com.au

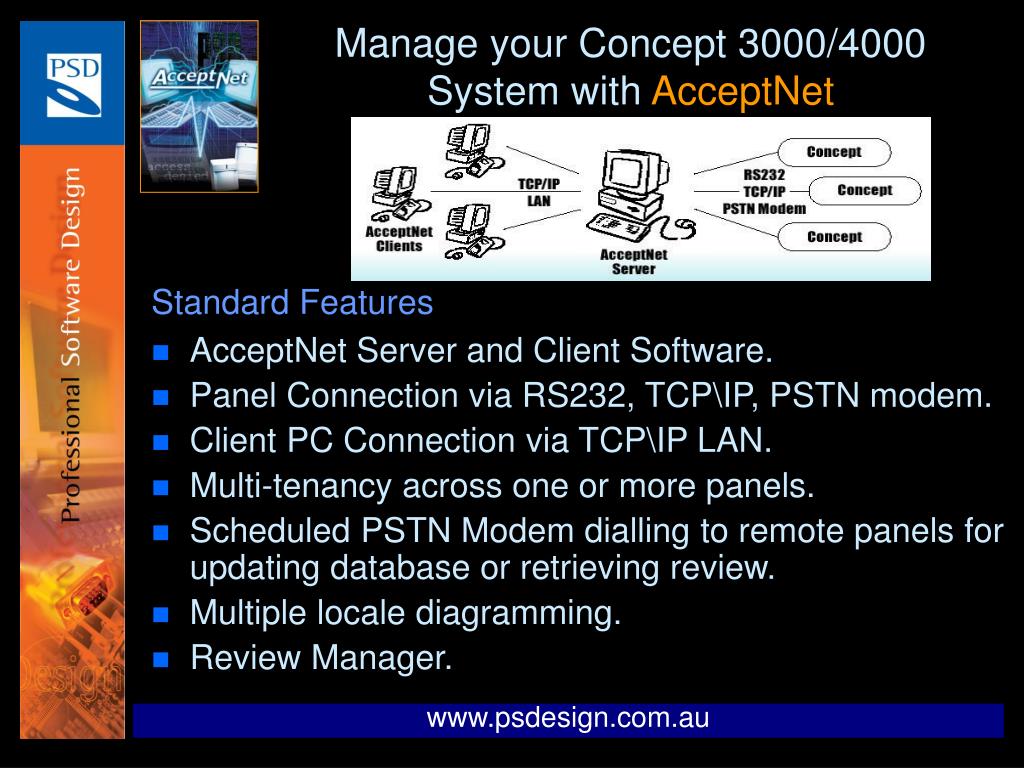

slide3

Manage your Concept 3000/4000 System with AcceptNet

  • AcceptNet Server and Client Software.
  • Panel Connection via RS232, TCP\IP, PSTN modem.
  • Client PC Connection via TCP\IP LAN.
  • Multi-tenancy across one or more panels.
  • Scheduled PSTN Modem dialling to remote panels for updating database or retrieving review.
  • Multiple locale diagramming.
  • Review Manager.

Standard Features

www.psdesign.com.au

slide4

Manage your Concept 3000/4000 System with AcceptNet

Standard Features

  • Full panel database programming for all panels.
  • Easily manage users across one or more panels.
  • Automatic review archiving.
  • Powerful review filtering system.
  • Unlimited operators & permissions.
  • Automatic backup of AcceptNet System.
  • Server can run as a Service on NT4, Win 2000 or XP.
  • Import user data from external text file.
  • Direct Card translation for PS2 Keyboard Readers.
  • Visitor database for large sites.
  • Protected by Hardware Key.
  • Windows 95, 98, ME, NT4, 2000, XP compatible.
  • Anti-virus software warning – slow, possible corruption.

www.psdesign.com.au

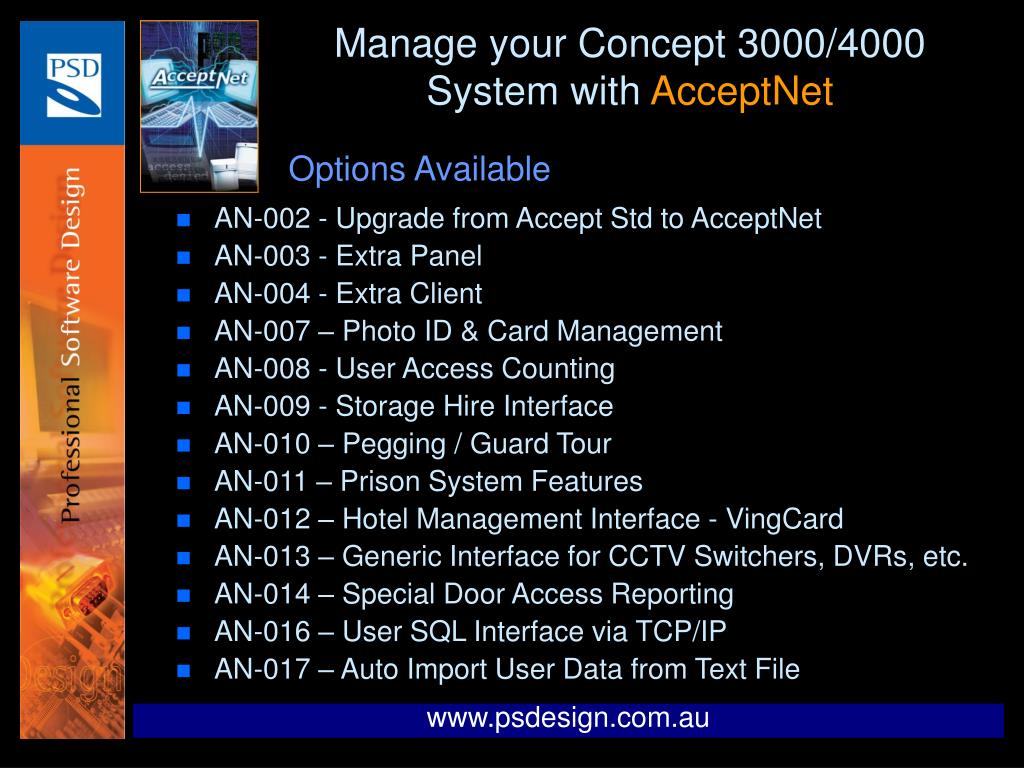

slide5

Manage your Concept 3000/4000 System with AcceptNet

Options Available

  • AN-002 - Upgrade from Accept Std to AcceptNet
  • AN-003 - Extra Panel
  • AN-004 - Extra Client

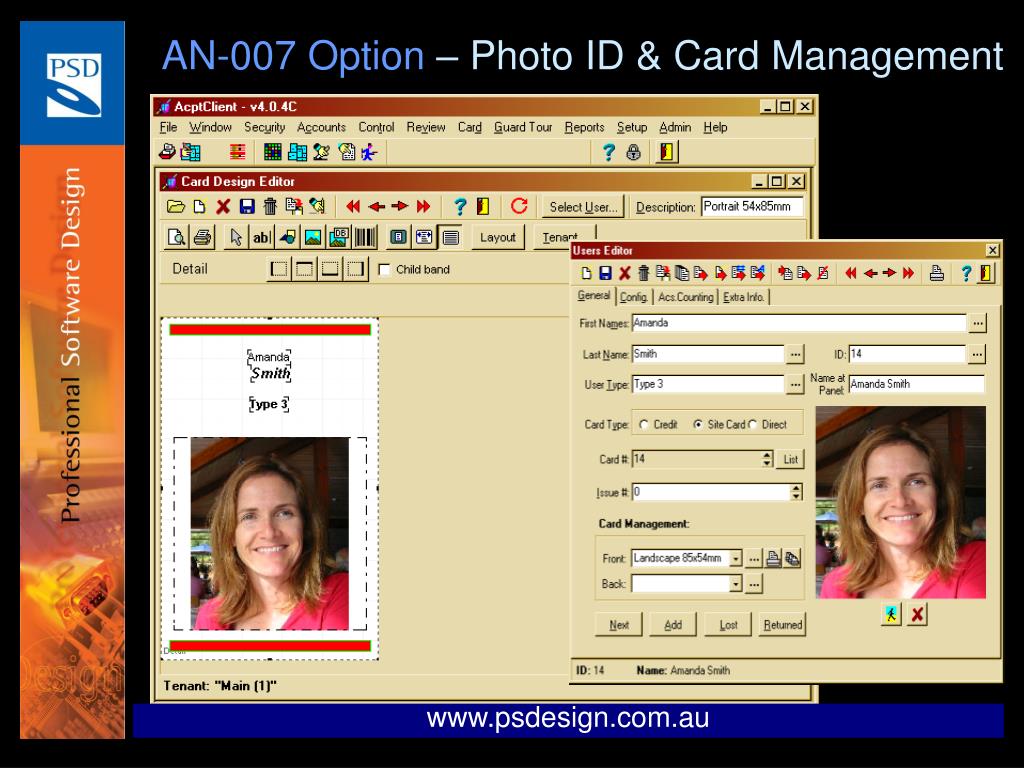

  • AN-007 – Photo ID & Card Management
  • AN-008 - User Access Counting
  • AN-009 - Storage Hire Interface

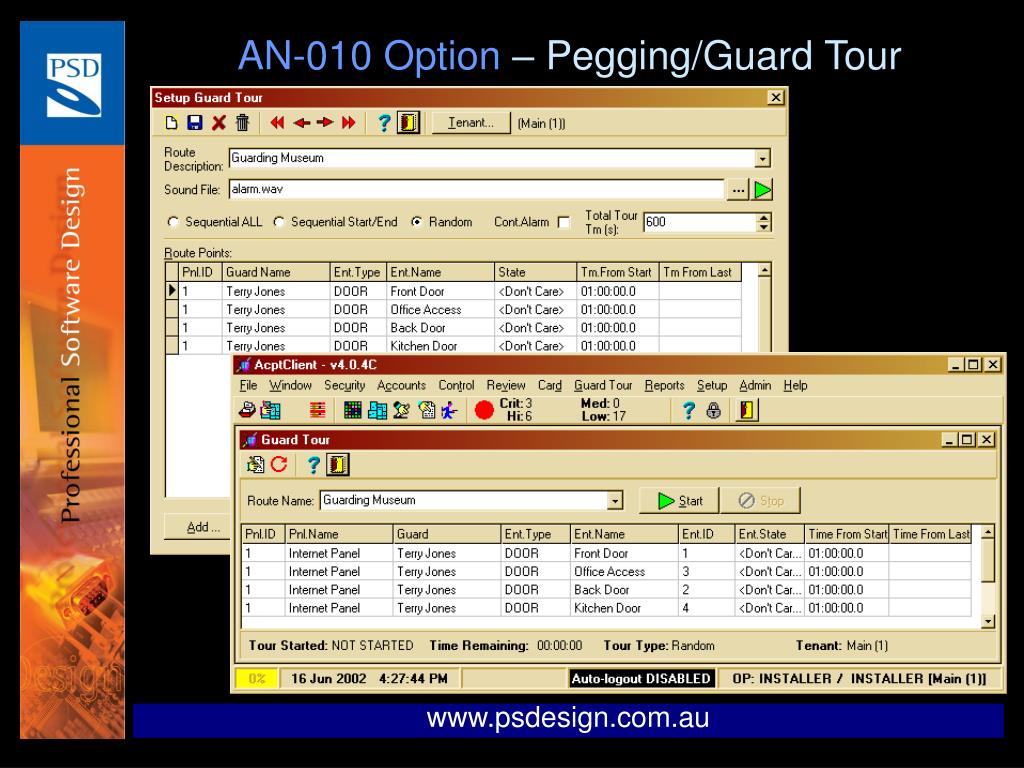

  • AN-010 – Pegging / Guard Tour
  • AN-011 – Prison System Features
  • AN-012 – Hotel Management Interface - VingCard
  • AN-013 – Generic Interface for CCTV Switchers, DVRs, etc.
  • AN-014 – Special Door Access Reporting
  • AN-016 – User SQL Interface via TCP/IP
  • AN-017 – Auto Import User Data from Text File

www.psdesign.com.au

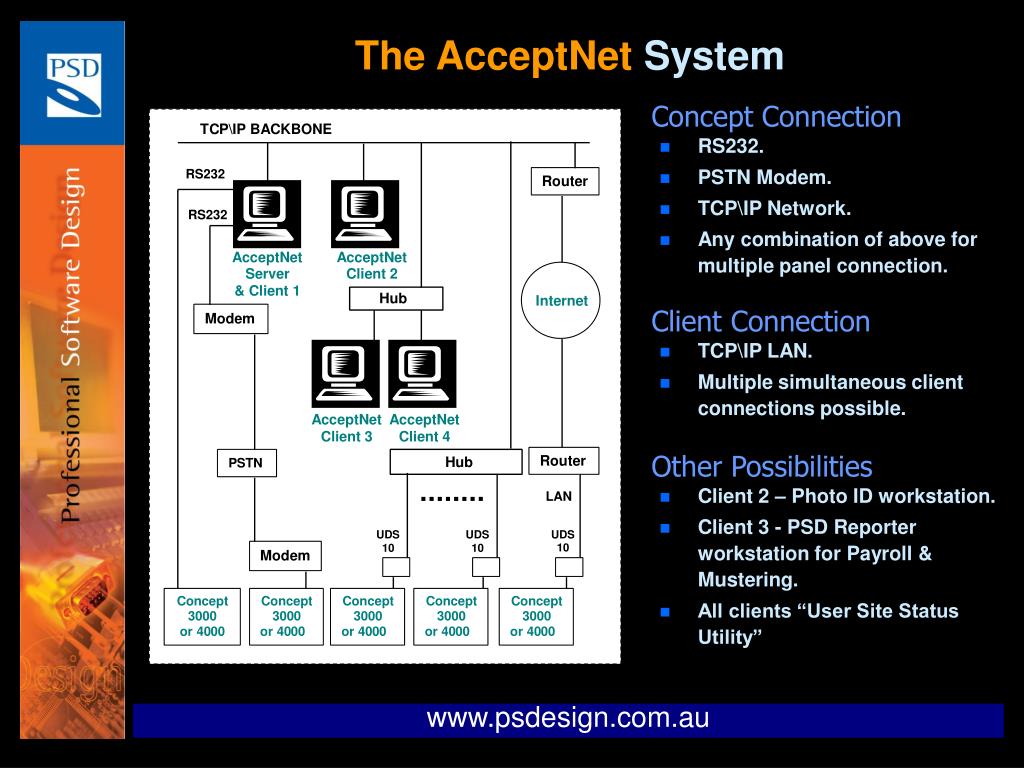

slide6

The AcceptNet System

Concept Connection

  • RS232.
  • PSTN Modem.
  • TCP\IP Network.
  • Any combination of above for multiple panel connection.

Client Connection

  • TCP\IP LAN.
  • Multiple simultaneous client connections possible.

Other Possibilities

  • Client 2 – Photo ID workstation.
  • Client 3 - PSD Reporter workstation for Payroll & Mustering.
  • All clients “User Site Status Utility”

www.psdesign.com.au

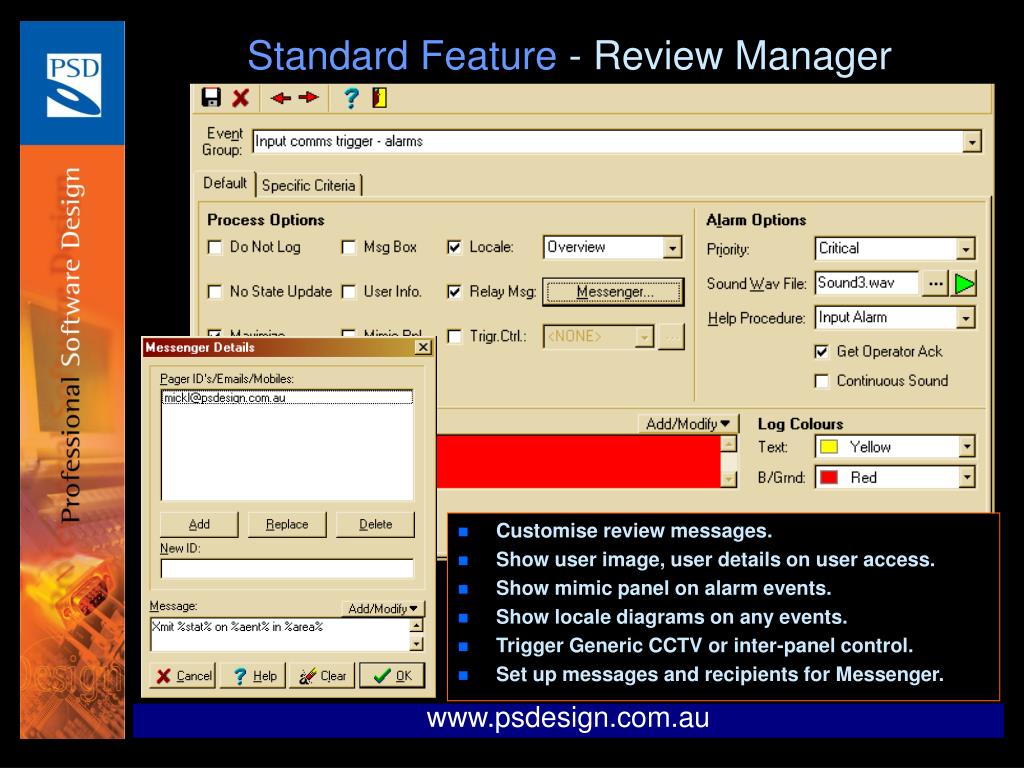

slide7

Standard Feature- Review Manager

  • Customise review messages.
  • Show user image, user details on user access.
  • Show mimic panel on alarm events.
  • Show locale diagrams on any events.
  • Trigger Generic CCTV or inter-panel control.
  • Set up messages and recipients for Messenger.

www.psdesign.com.au

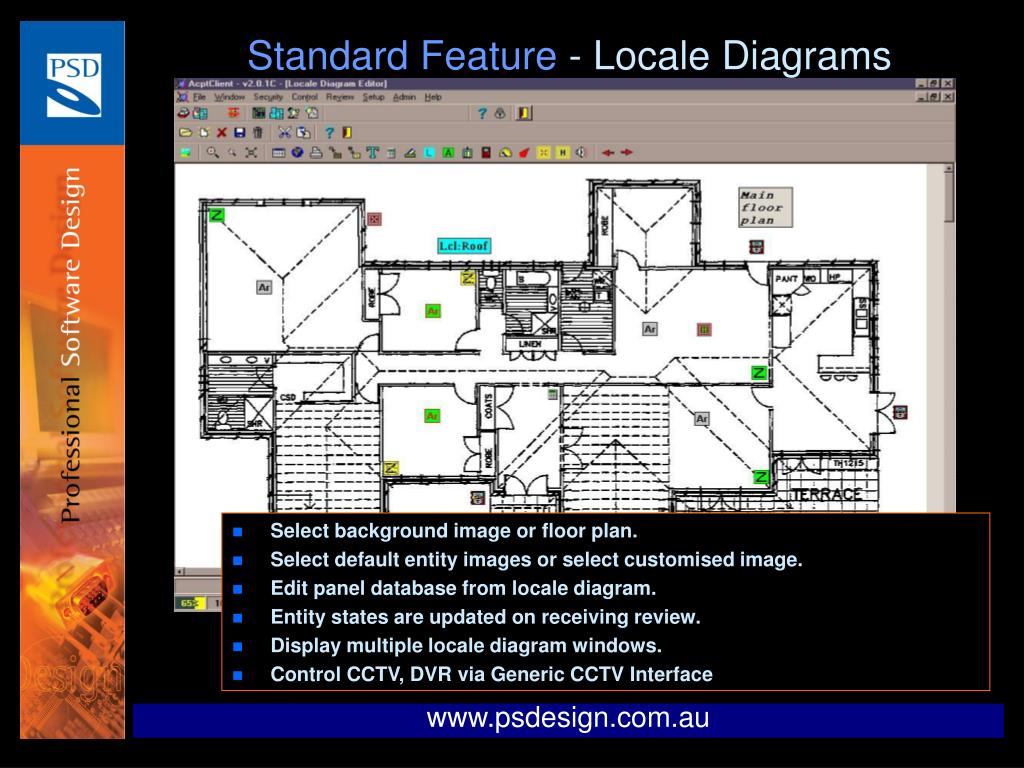

slide8

Standard Feature- Locale Diagrams

  • Select background image or floor plan.
  • Select default entity images or select customised image.
  • Edit panel database from locale diagram.
  • Entity states are updated on receiving review.
  • Display multiple locale diagram windows.
  • Control CCTV, DVR via Generic CCTV Interface

www.psdesign.com.au

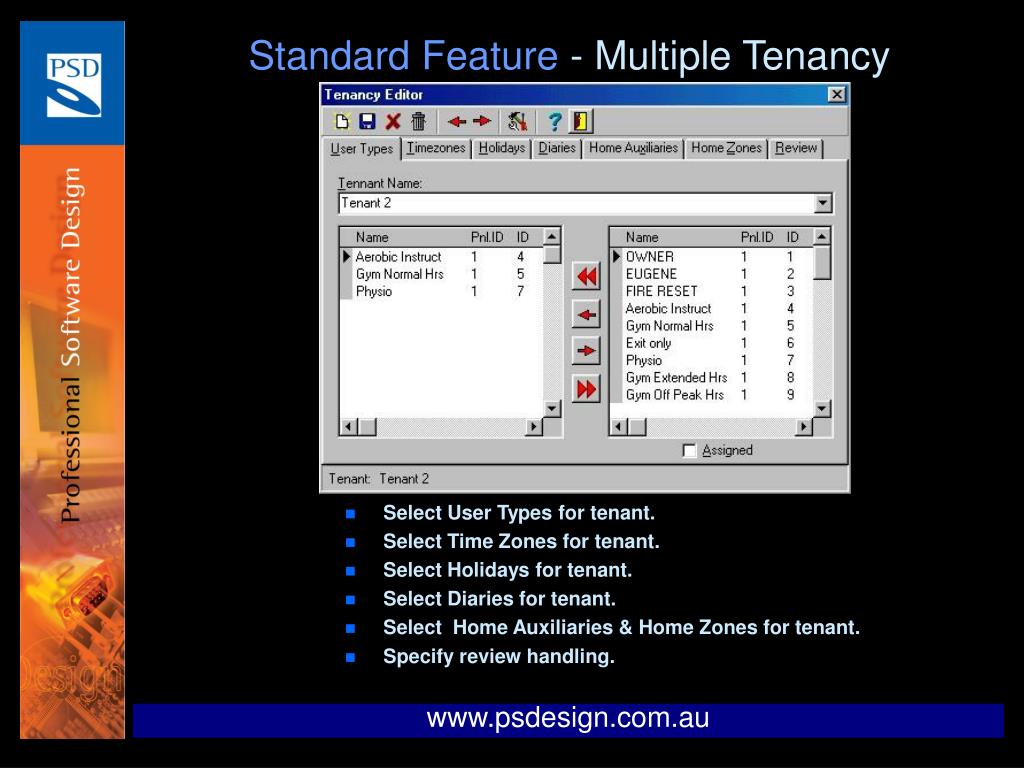

slide9

Standard Feature- Multiple Tenancy

  • Select User Types for tenant.
  • Select Time Zones for tenant.
  • Select Holidays for tenant.
  • Select Diaries for tenant.
  • Select Home Auxiliaries & Home Zones for tenant.
  • Specify review handling.

www.psdesign.com.au

slide11

AN-008 Option- Access Counting

  • Currently used to control car park at Wollongong Hospital.
  • Exit boom gate AUX controlled by card swipe if user has credit.
  • User purse is decremented for a valid period and max entry count.
  • User type can be neutralised, or swapped, if user has empty purse.
  • Keeps track of number of cars and can control car park full sign.
  • Could be customised for Amusement Arcades or wherever credit can be given to an access card.

www.psdesign.com.au

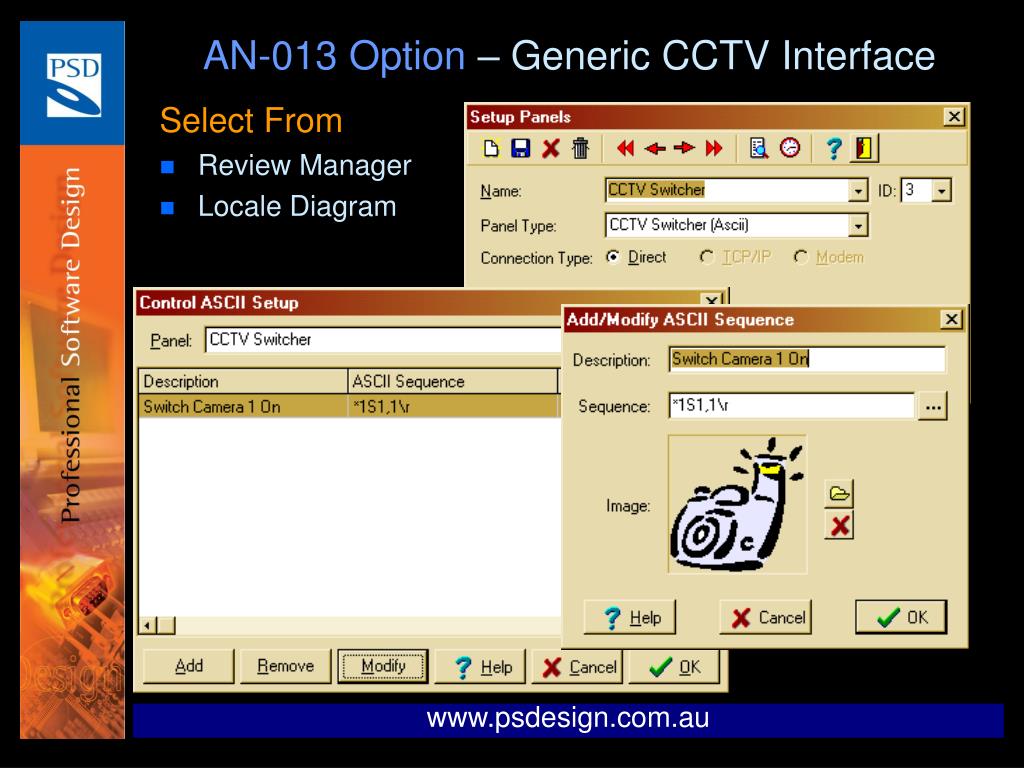

slide13

AN-013 Option– Generic CCTV Interface

Select From

  • Review Manager
  • Locale Diagram

www.psdesign.com.au

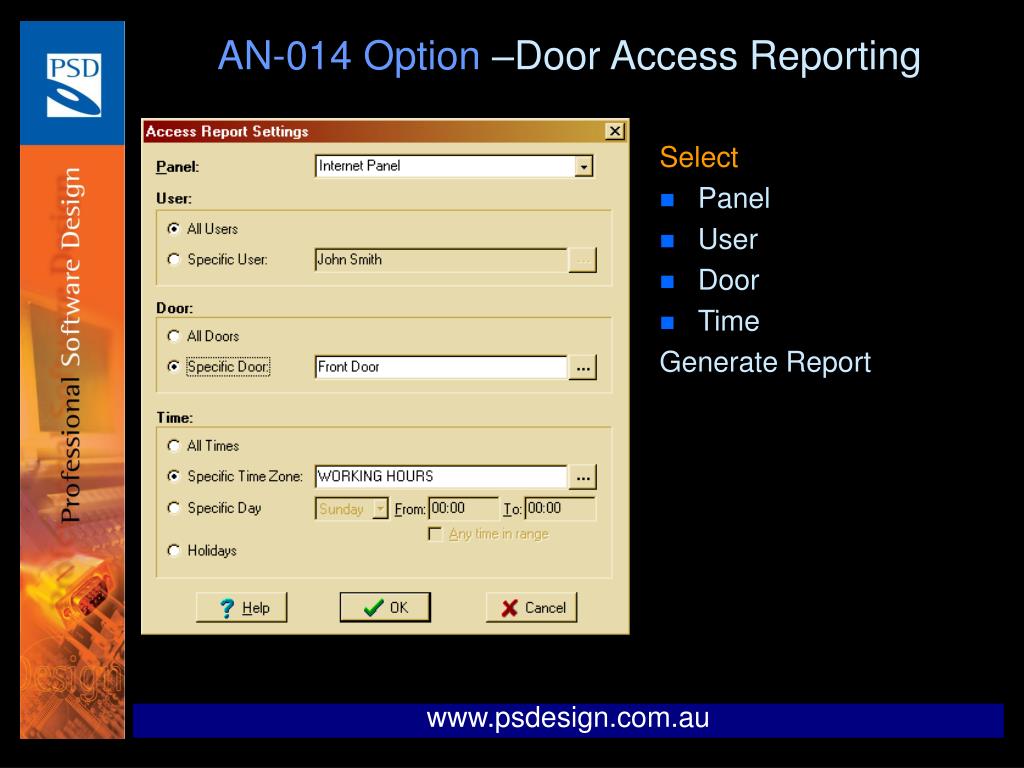

slide14

AN-014 Option–Door Access Reporting

Select

  • Panel
  • User
  • Door
  • Time

Generate Report

www.psdesign.com.au

slide15

Current & Future Developments for AcceptNet

  • Contact ID /IRFast for monitoring remote panels.
  • Real time video display.
  • Thin Client for low bandwidth connection to Server. Internet & Pocket PC clients.
  • Super Server for managing multiple AcceptNet Servers.
  • Speech Recognition and Text to Speech.
  • Web browser for iHome & iBusiness.
  • Expand interface list to include High Level interfaces to Lift Controllers, etc.
  • Improve documentation. Training manuals, trouble shooting guides, etc.
  • Professionally designed icons and locale images, etc.

www.psdesign.com.au

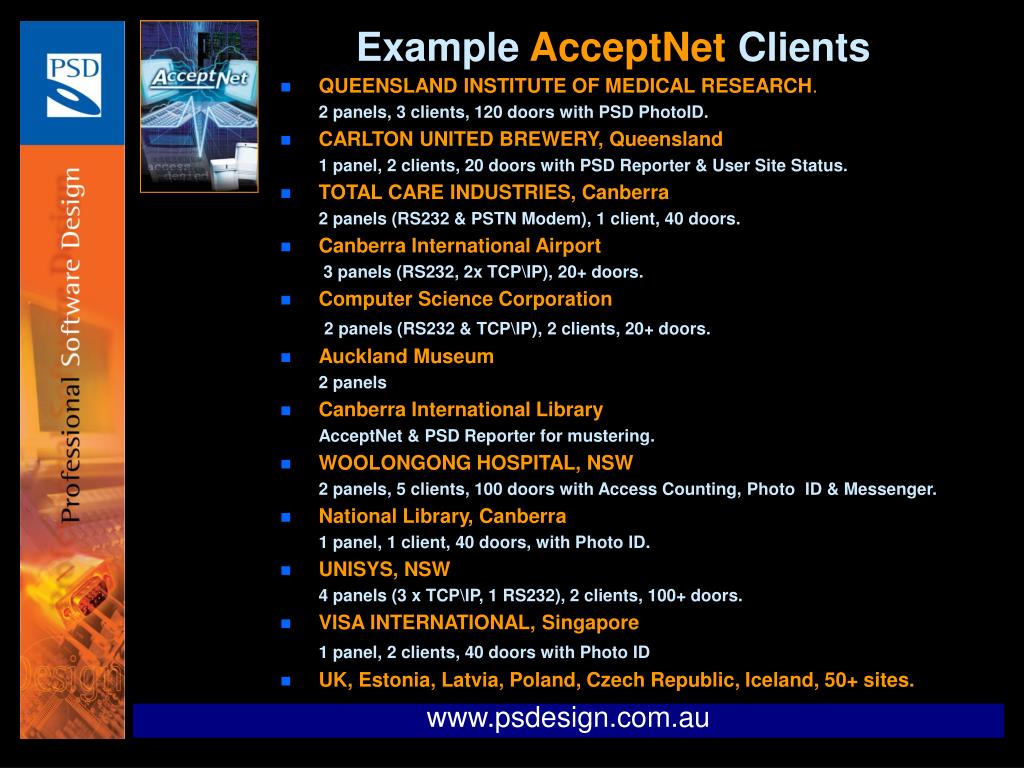

slide16

Example AcceptNet Clients

  • QUEENSLAND INSTITUTE OF MEDICAL RESEARCH.

2 panels, 3 clients, 120 doors with PSD PhotoID.

  • CARLTON UNITED BREWERY, Queensland

1 panel, 2 clients, 20 doors with PSD Reporter & User Site Status.

  • TOTAL CARE INDUSTRIES, Canberra

2 panels (RS232 & PSTN Modem), 1 client, 40 doors.

  • Canberra International Airport

3 panels (RS232, 2x TCP\IP), 20+ doors.

  • Computer Science Corporation

2 panels (RS232 & TCP\IP), 2 clients, 20+ doors.

  • Auckland Museum

2 panels

  • Canberra International Library

AcceptNet & PSD Reporter for mustering.

  • WOOLONGONG HOSPITAL, NSW

2 panels, 5 clients, 100 doors with Access Counting, Photo ID & Messenger.

  • National Library, Canberra

1 panel, 1 client, 40 doors, with Photo ID.

  • UNISYS, NSW

4 panels (3 x TCP\IP, 1 RS232), 2 clients, 100+ doors.

  • VISA INTERNATIONAL, Singapore

1 panel, 2 clients, 40 doors with Photo ID

  • UK, Estonia, Latvia, Poland, Czech Republic, Iceland, 50+ sites.

www.psdesign.com.au

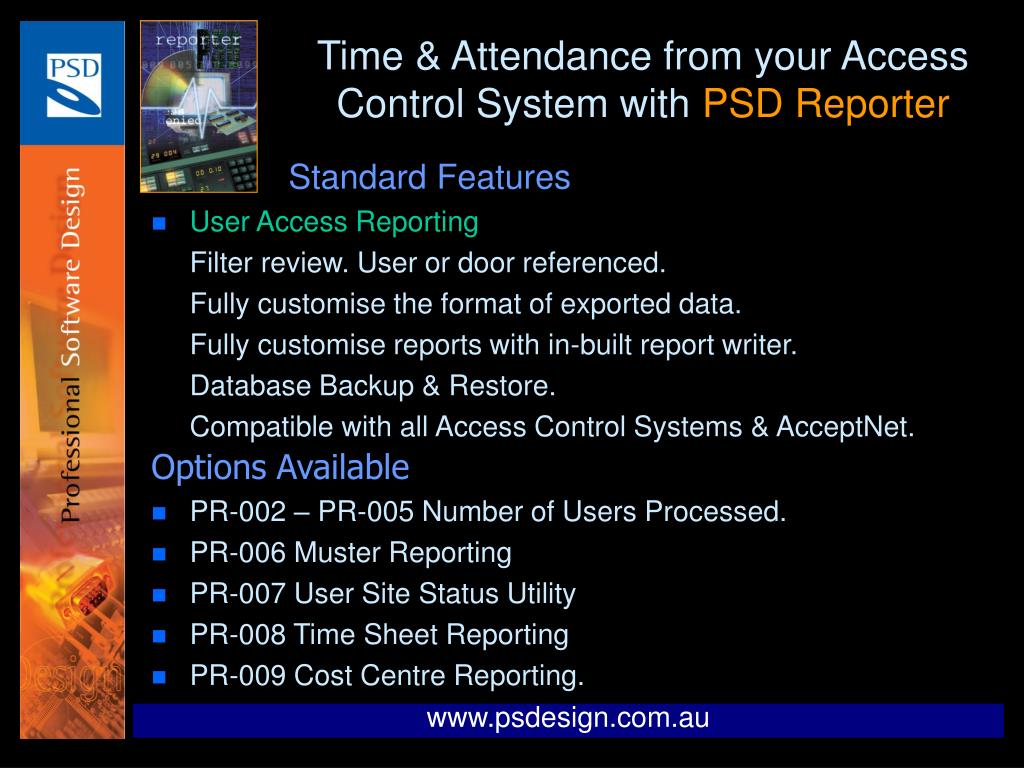

slide17

Time & Attendance from your Access Control System with PSD Reporter

Standard Features

  • User Access Reporting

Filter review. User or door referenced.

Fully customise the format of exported data.

Fully customise reports with in-built report writer.

Database Backup & Restore.

Compatible with all Access Control Systems & AcceptNet.

Options Available

  • PR-002 – PR-005 Number of Users Processed.
  • PR-006 Muster Reporting
  • PR-007 User Site Status Utility
  • PR-008 Time Sheet Reporting
  • PR-009 Cost Centre Reporting.

www.psdesign.com.au

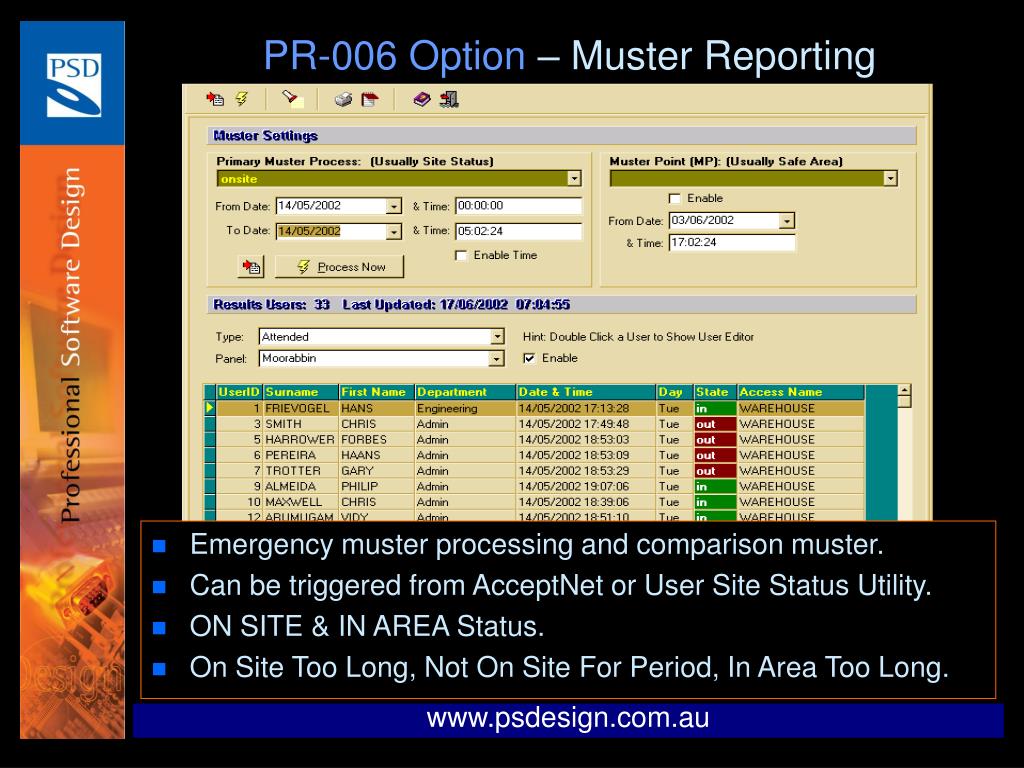

slide18

PR-006 Option– Muster Reporting

  • Emergency muster processing and comparison muster.
  • Can be triggered from AcceptNet or User Site Status Utility.
  • ON SITE & IN AREA Status.
  • On Site Too Long, Not On Site For Period, In Area Too Long.

www.psdesign.com.au

slide19

PR-007 Option– User Site Status Utility

  • Shows ON SITE, IN AREA, Last Access, On Site Too Long, Not On Site For Period, In Area Too Long. View Time Sheets & User Access Events.
  • Status is updated by timer, on demand or on first search character typed.
  • Trigger Emergency Muster Reports in PSD Reporter.

www.psdesign.com.au

slide20

PR-008 Option– Time Sheet Reporting

  • Filter or round entry & exit times for individual user types.
  • Add pay codes.
  • Leave reconciliation & accumulated hours reports.

PR-009 Option– Cost Centre Reporting

  • Fixed charge per access or timed charged.
  • Charge tenants for after hours air conditioning use.
  • Can also count access events.

For All Process Options

  • Automatic export of data to other applications.
  • Auto batch processing of all configured processes.
  • Windows 95, 98, ME, NT4, 2000, XP compatible.

www.psdesign.com.au

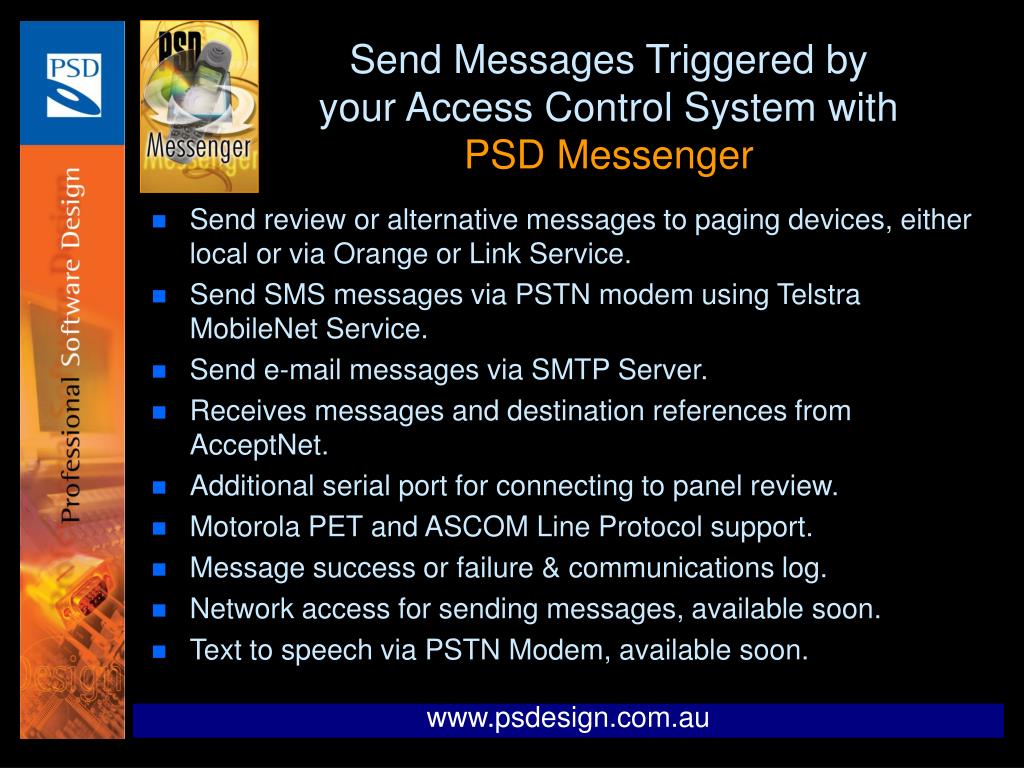

slide21

Send Messages Triggered by your Access Control System with PSD Messenger

  • Send review or alternative messages to paging devices, either local or via Orange or Link Service.
  • Send SMS messages via PSTN modem using Telstra MobileNet Service.
  • Send e-mail messages via SMTP Server.
  • Receives messages and destination references from AcceptNet.
  • Additional serial port for connecting to panel review.
  • Motorola PET and ASCOM Line Protocol support.
  • Message success or failure & communications log.
  • Network access for sending messages, available soon.
  • Text to speech via PSTN Modem, available soon.

www.psdesign.com.au

slide22

PSD Software Support

  • Customise software to meet clients requirements.
  • Offer support directly to our design engineers.
  • Free phone, e-mail support to installer companies who need help with installation.
  • Support contracts available for end users. Takes pressure off installers having to know the software in detail.
  • Detailed manuals are included with software.
  • On-line help system included with software.
  • Web site contains; support, manuals and trial downloads. Free demo version of AcceptNet.
  • Products sold and distributed by Security Merchants.

www.psdesign.com.au
