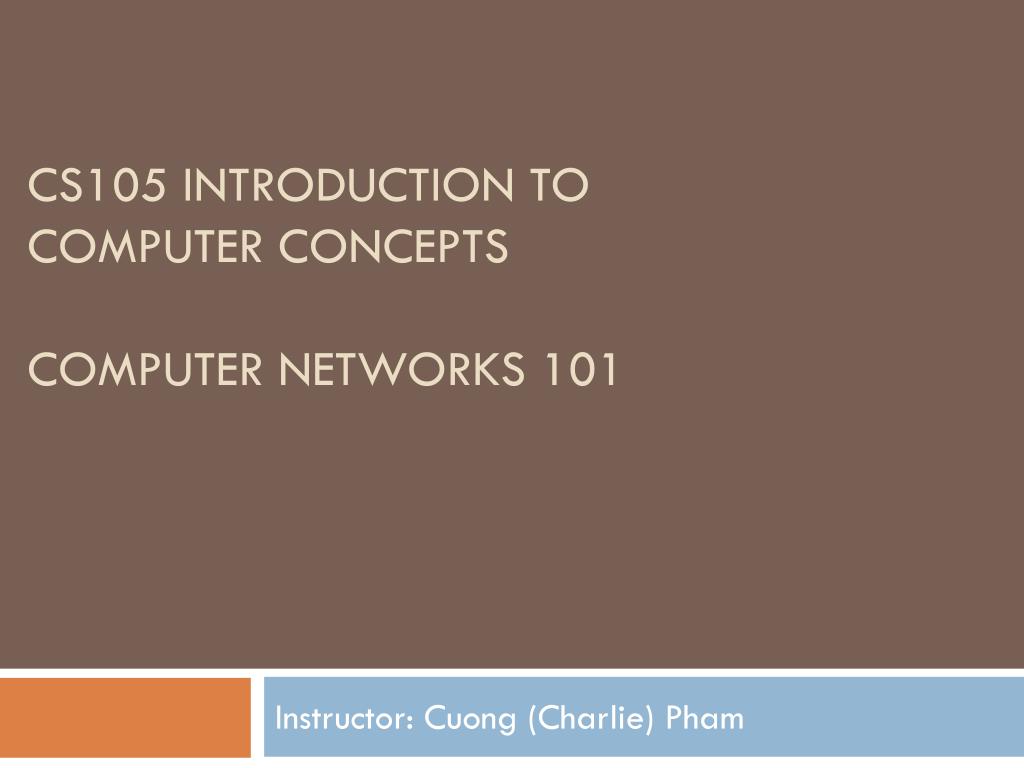

CS105 Introduction to Computer Concepts Computer networks 101. Instructor: Cuong (Charlie) Pham. Computer Network. A collection of computing devices connected in order to communicate and share resources

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'CS105 Introduction to Computer Concepts Computer networks 101' - keon


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
computer network

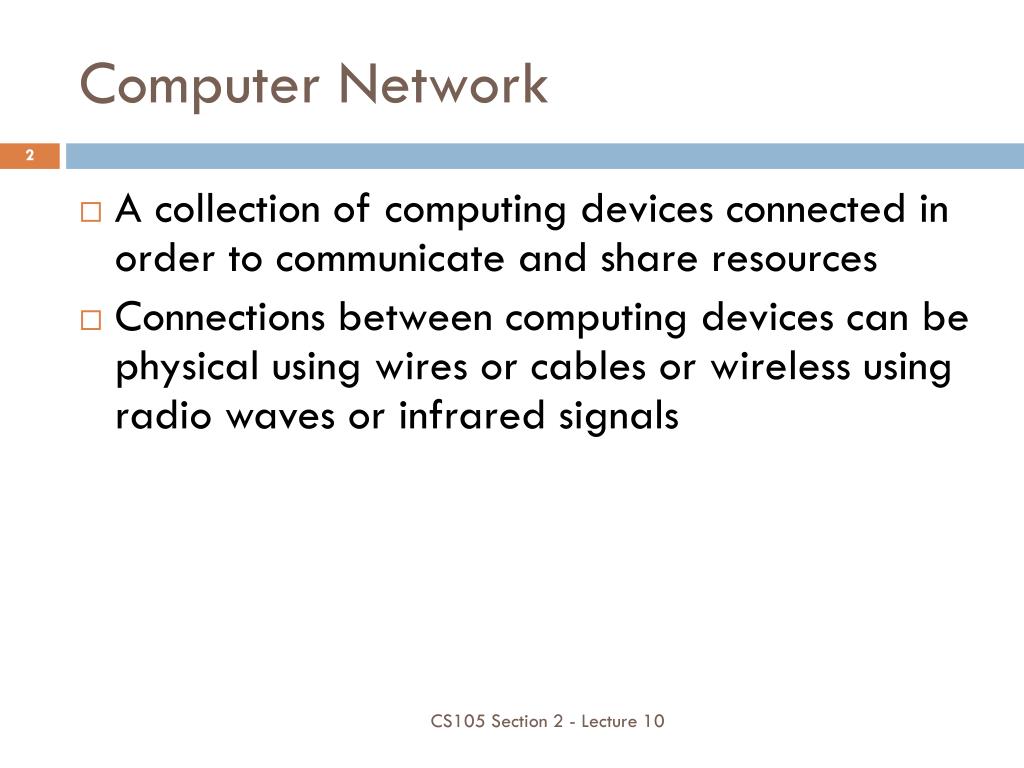

Computer Network
  • A collection of computing devices connected in order to communicate and share resources
  • Connections between computing devices can be physical using wires or cables or wireless using radio waves or infrared signals

CS105 Section 2 - Lecture 10

network devices
Network Devices
  • To connect multiple segments of networks into a larger one
    • Hub: A multiport repeater to enhance signal within the same network
    • Switch: Like hub but with intelligent  Better performance
    • Router: Forward packets from one network to another

CS105 Section 2 - Lecture 10

cabling
Cabling

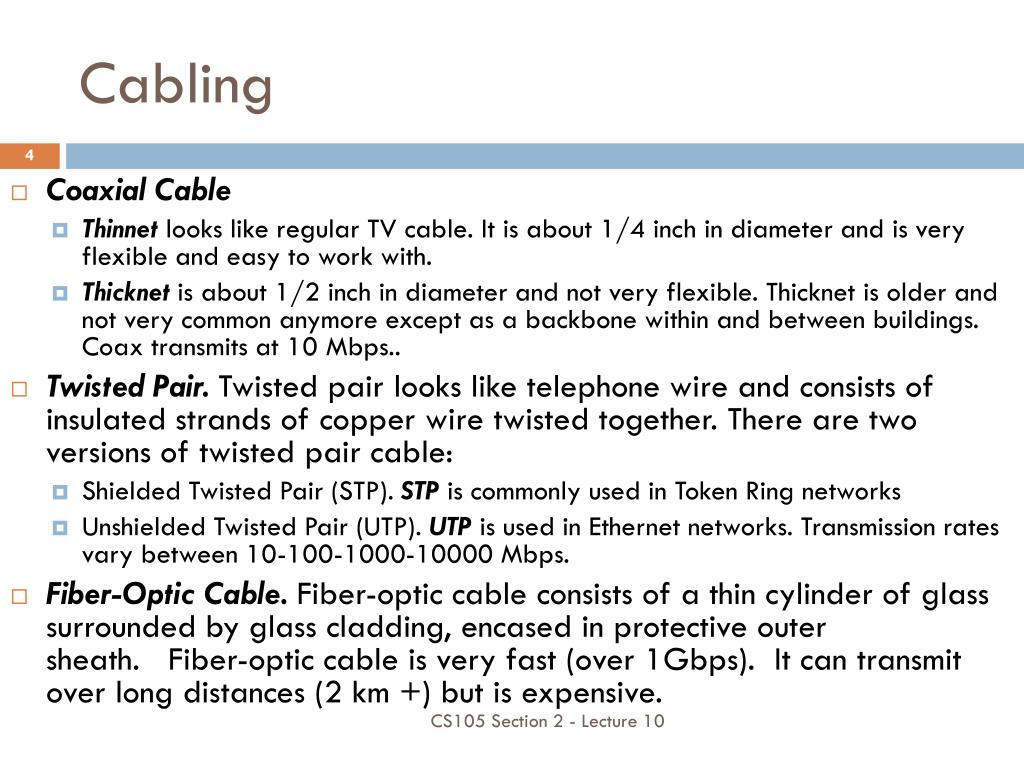

  • Coaxial Cable
    • Thinnet looks like regular TV cable. It is about 1/4 inch in diameter and is very flexible and easy to work with.
    • Thicknetis about 1/2 inch in diameter and not very flexible. Thicknet is older and not very common anymore except as a backbone within and between buildings. Coax transmits at 10 Mbps..
  • Twisted Pair. Twisted pair looks like telephone wire and consists of insulated strands of copper wire twisted together. There are two versions of twisted pair cable:
    • Shielded Twisted Pair (STP). STP is commonly used in Token Ring networks
    • Unshielded Twisted Pair (UTP). UTP is used in Ethernet networks. Transmission rates vary between 10-100-1000-10000 Mbps.
  • Fiber-Optic Cable. Fiber-optic cable consists of a thin cylinder of glass surrounded by glass cladding, encased in protective outer sheath.   Fiber-optic cable is very fast (over 1Gbps).  It can transmit over long distances (2 km +) but is expensive.

CS105 Section 2 - Lecture 10

cabling1
Cabling
  • Top: Unshielded Twisted Pair and Shielded Twisted Pair Cable
  • Bottom: Coaxial and Optical Fiber Cable

CS105 Section 2 - Lecture 10

network types
Network Types

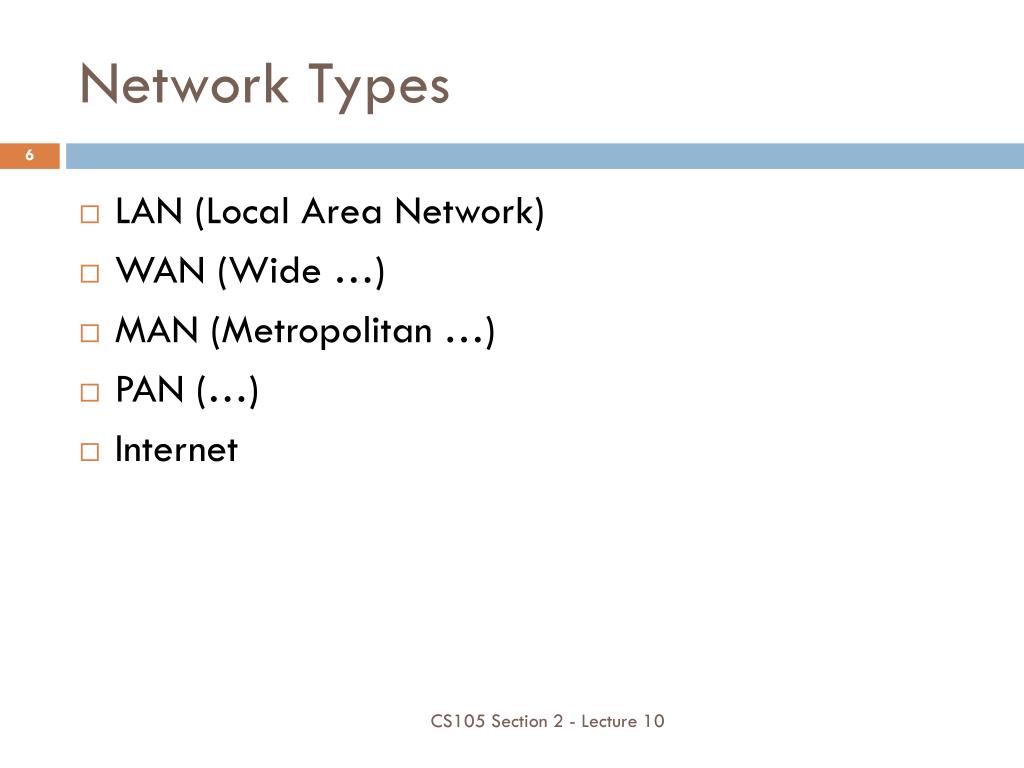

  • LAN (Local Area Network)
  • WAN (Wide …)
  • MAN (Metropolitan …)
  • PAN (…)
  • Internet

CS105 Section 2 - Lecture 10

slide7
LAN

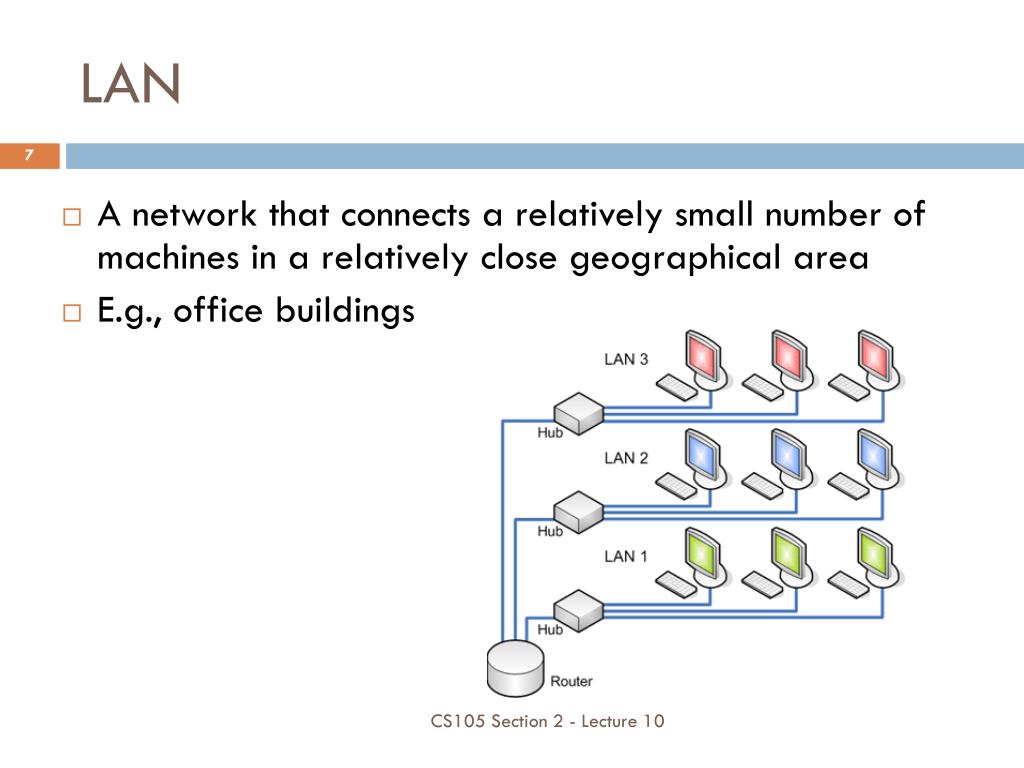

  • A network that connects a relatively small number of machines in a relatively close geographical area
  • E.g., office buildings

CS105 Section 2 - Lecture 10

lan topologies

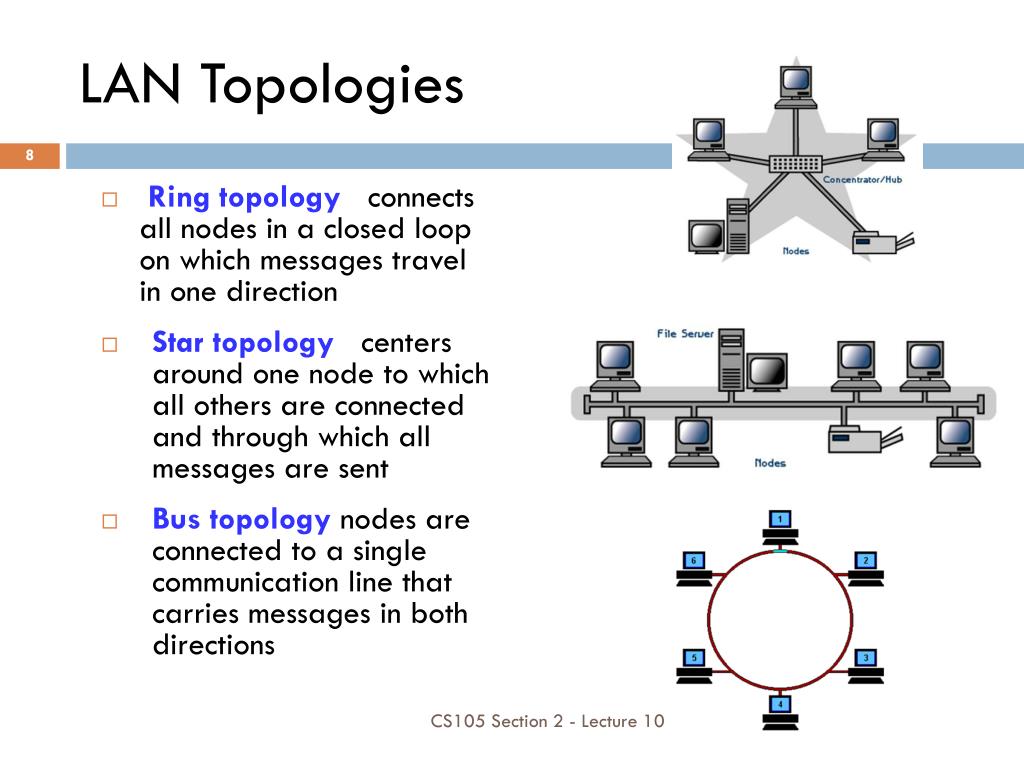

LAN Topologies
  • Ring topology connects all nodes in a closed loop on which messages travel in one direction
  • Star topology centers around one node to which all others are connected and through which all messages are sent
  • Bus topology nodes are connected to a single communication line that carries messages in both directions

CS105 Section 2 - Lecture 10

ethernet
Ethernet
  • The industry standard bus (star) technology for LAN
    • 10BaseT
      • 10Mbps (Mega bits per second)
    • 100BaseT
      • 100Mbps
    • 1000BaseT
      • 1000Mbps or 1Gbps

CS105 Section 2 - Lecture 10

wlan wireless lan
WLAN (Wireless LAN)
  • Wi-Fi (Wireless Fidelity)
    • A wireless technology that connects computers without cables
  • Access Point (AP)
    • A device (base station) that connects wireless devices together
    • Usually connected to a wired-network
  • SSID (Service Set ID)
    • A “name” for the AP, eg. mobilenet
  • Hotspot
    • The area covered by wireless access points

CS105 Section 2 - Lecture 10

wlan wireless lan1
WLAN (Wireless LAN)
  • Standard
    • 802.11b - 11Mbps
    • 802.11g - 54Mbps
    • 802.11a - 54Mbps
  • Security
    • WEP (Wired Equivalent Privacy)
    • WPA (Wi-Fi Protected Access)
    • To prevent wardriving

2.4G

5G

CS105 Section 2 - Lecture 10

wan man
WAN/MAN
  • Wide-area network(WAN) A network that connects local-area networks over a potentially large geographic distance
    • Metropolitan-area network(MAN)The communication infrastructures that have been developed in and around large cities
    • Internet A wide area network that spans the planet

CS105 Section 2 - Lecture 10

gateway
Gateway

One particular set up to handle all communication going between that LAN and other networks

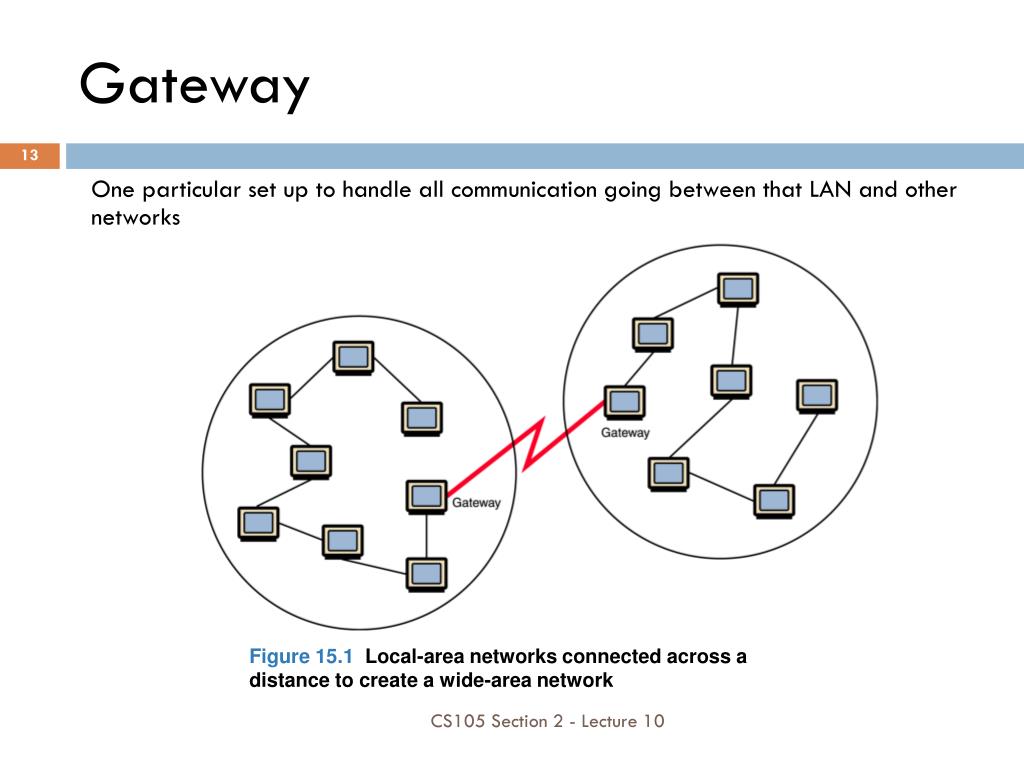

Figure 15.1 Local-area networks connected across a distance to create a wide-area network

CS105 Section 2 - Lecture 10

internet connections

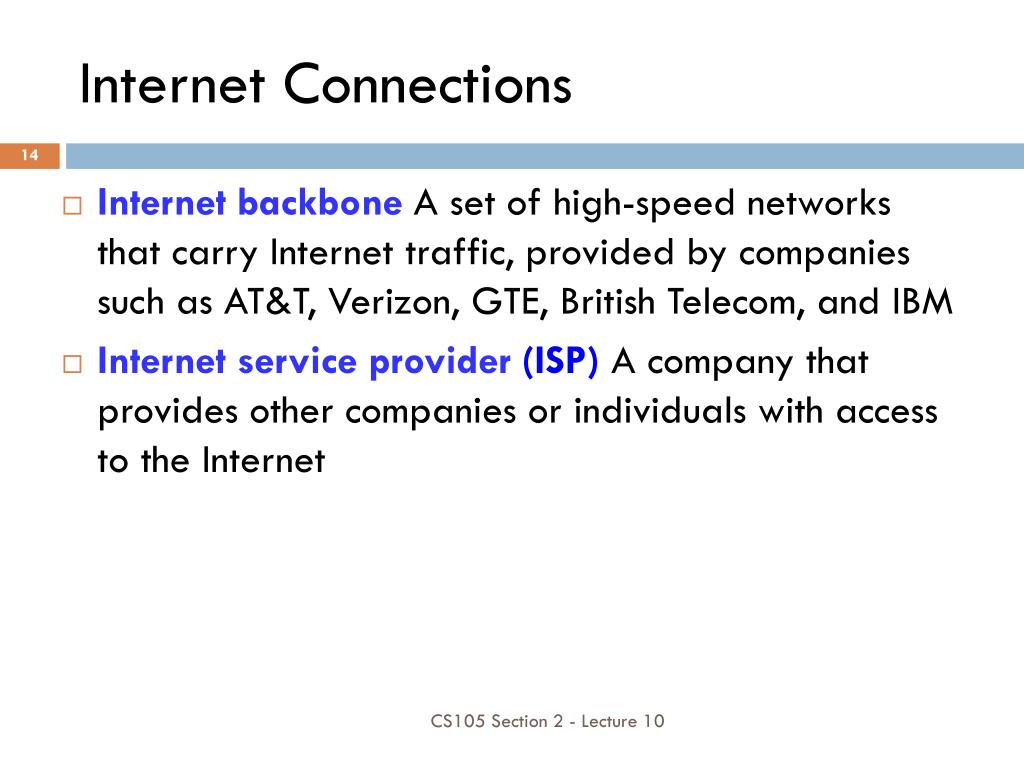

Internet Connections
  • Internet backbone A set of high-speed networks that carry Internet traffic, provided by companies such as AT&T, Verizon, GTE, British Telecom, and IBM
  • Internet service provider(ISP)A company that provides other companies or individuals with access to the Internet

CS105 Section 2 - Lecture 10

dial up services
Dial-up Services
  • Modem
    • Modulator/demodulator
    • A device that converts analog signal to digital (modulation) and vice versa (demodulation)
    • Speed
      • 1200/2400/9600 bps
      • 14.4/28.8/33.6 Kbps
      • 56 Kbps

CS105 Section 2 - Lecture 10

dial up services1
Dial-up Services

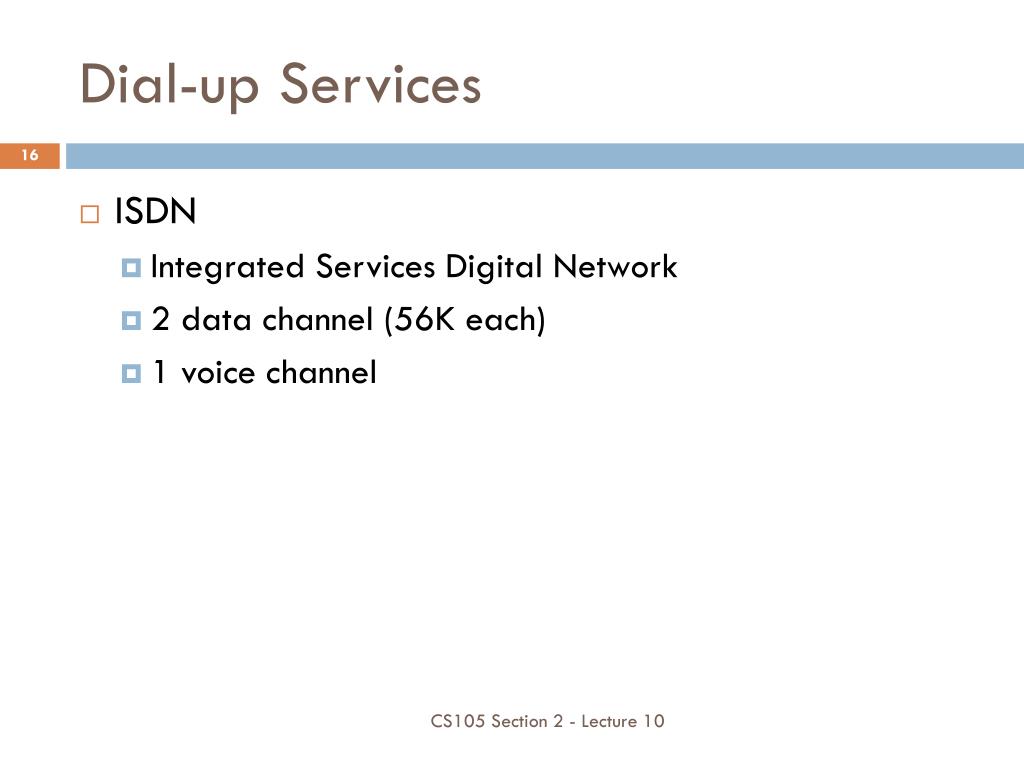

  • ISDN
    • Integrated Services Digital Network
    • 2 data channel (56K each)
    • 1 voice channel

CS105 Section 2 - Lecture 10

broadband services
Broadband Services
  • xDSL (Digital Subscriber Line)
    • A technology that provides digital data transmission over unused frequencies on traditional telephone lines
    • For example, ADSL (Asymmetric DSL)
    • Speed
      • Downlink
        • 128Kbps - 4Mbps
      • Uplink
        • 64Kbps - 800Kbps
    • Need a DSL modem
    • Splitters are needed to separate the voice and data signal

CS105 Section 2 - Lecture 10

broadband services1
Broadband Services
  • Cable
    • A technology that provides digital data transmission over cable TV infrastructure
    • Speed
      • Downlink
        • 128Kbps - 3~5Mbps
      • Uplink
        • 64Kbps - 128Kbps~1Mbps
    • Need a cable modem

CS105 Section 2 - Lecture 10

broadband services2
Broadband Services
  • Satellite
    • A technology that provide digital data transmission over satellites
    • Speed
      • Downlink
        • 500Kbps - 1Mbps
      • Uplink
        • 50Kbps - 100Kbps
    • Need a satellite dish

CS105 Section 2 - Lecture 10

home network single machine
Home Network (single machine)

Wall Jack

DSL/Cable Modem

USB/Ethernet Cable

CS105 Section 2 - Lecture 10

home network multiple machines

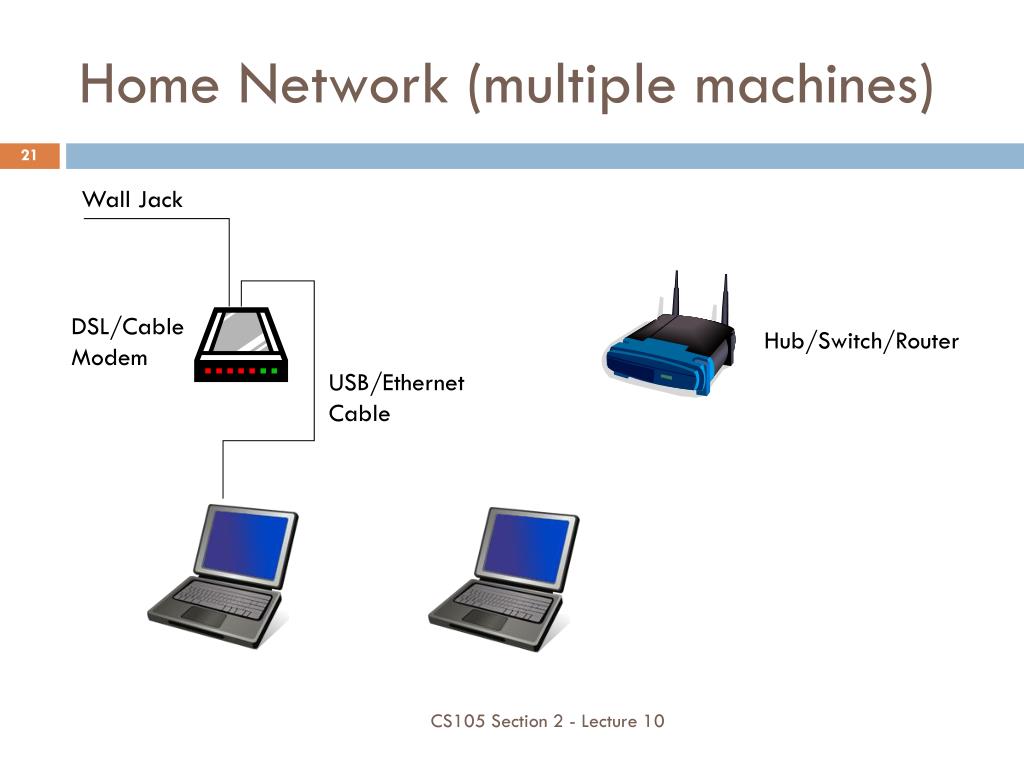

Home Network (multiple machines)

Wall Jack

DSL/Cable Modem

Hub/Switch/Router

USB/Ethernet Cable

CS105 Section 2 - Lecture 10

home network multiple machines1

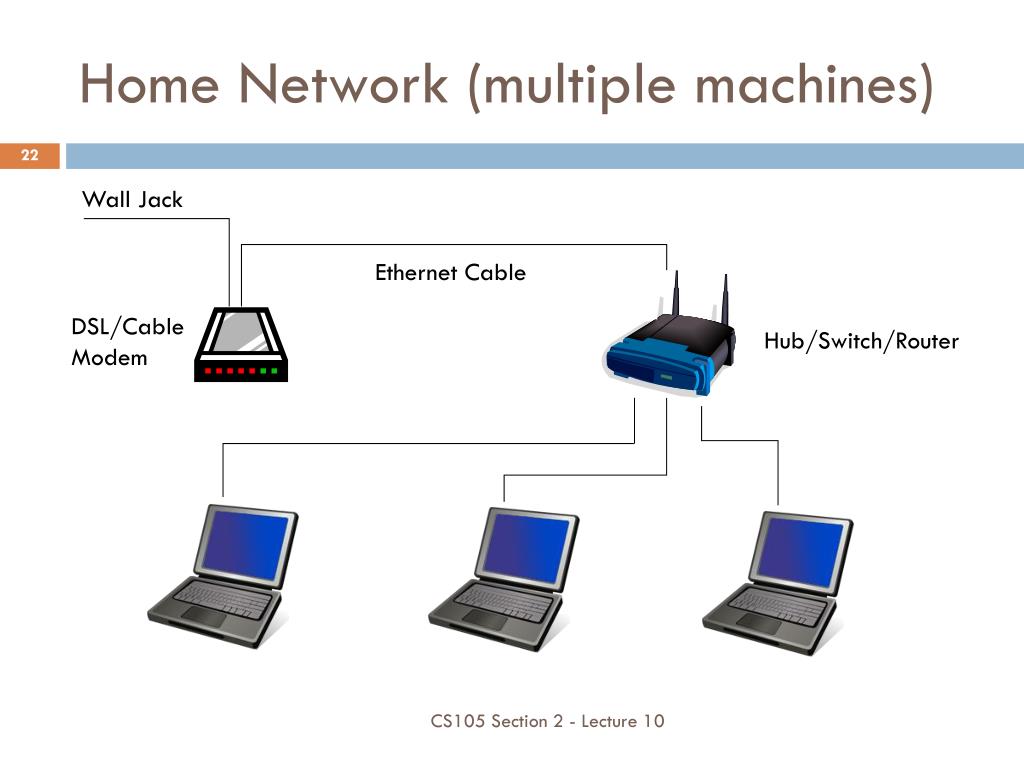

Home Network (multiple machines)

Wall Jack

Ethernet Cable

DSL/Cable Modem

Hub/Switch/Router

CS105 Section 2 - Lecture 10

home wireless network

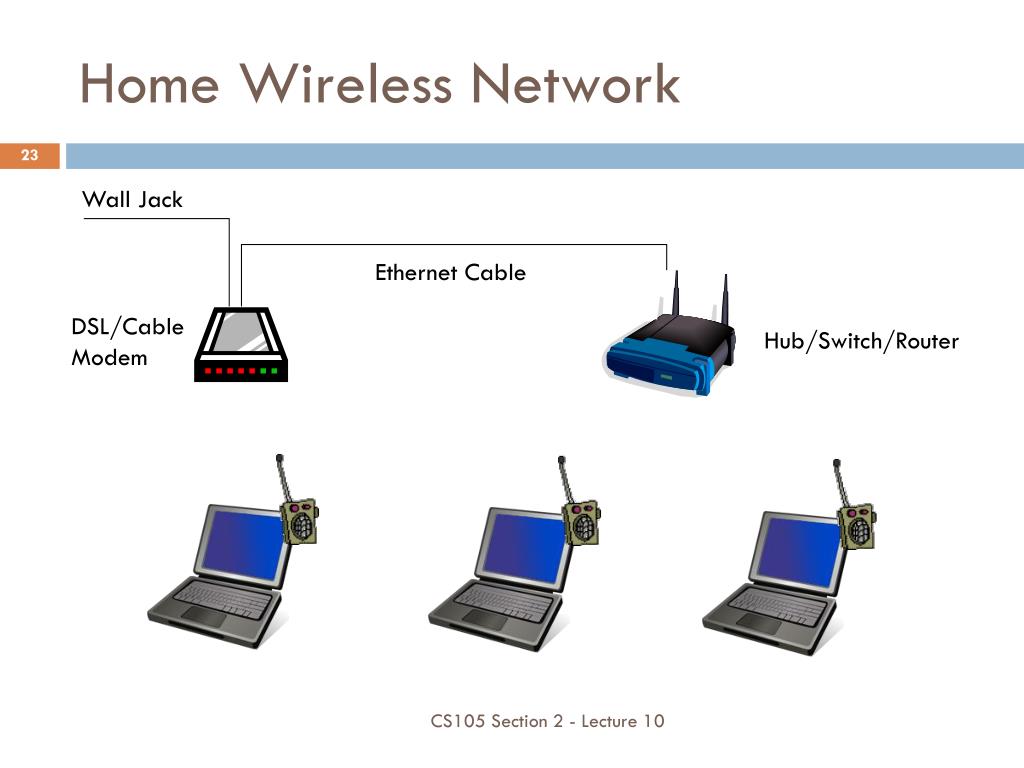

Home Wireless Network

Wall Jack

Ethernet Cable

DSL/Cable Modem

Hub/Switch/Router

CS105 Section 2 - Lecture 10

network security
Network Security

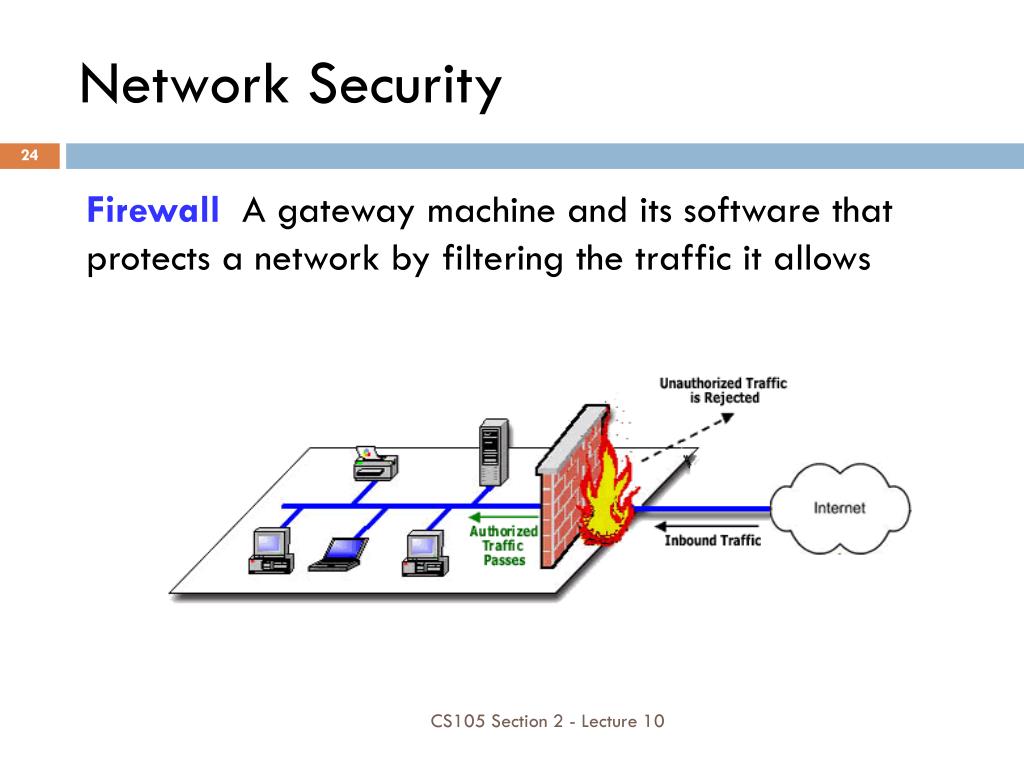

Firewall A gateway machine and its software that protects a network by filtering the traffic it allows

CS105 Section 2 - Lecture 10

network addresses

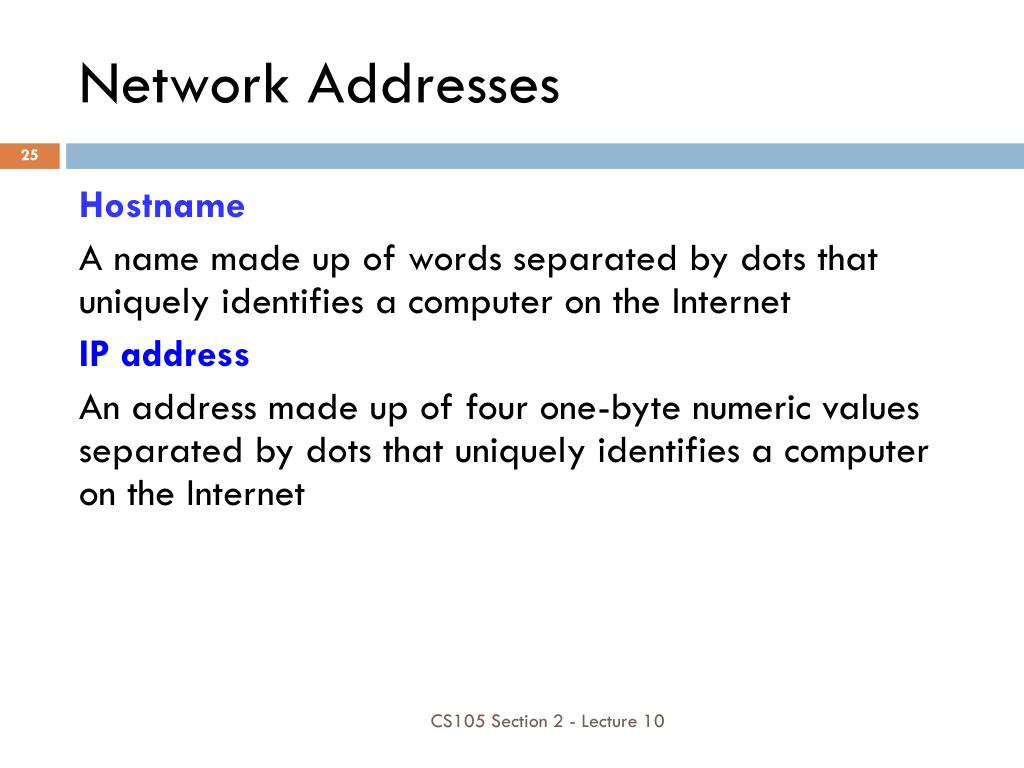

Network Addresses

Hostname

A name made up of words separated by dots that uniquely identifies a computer on the Internet

IP address

An address made up of four one-byte numeric values separated by dots that uniquely identifies a computer on the Internet

CS105 Section 2 - Lecture 10

network addresses1
Network Addresses

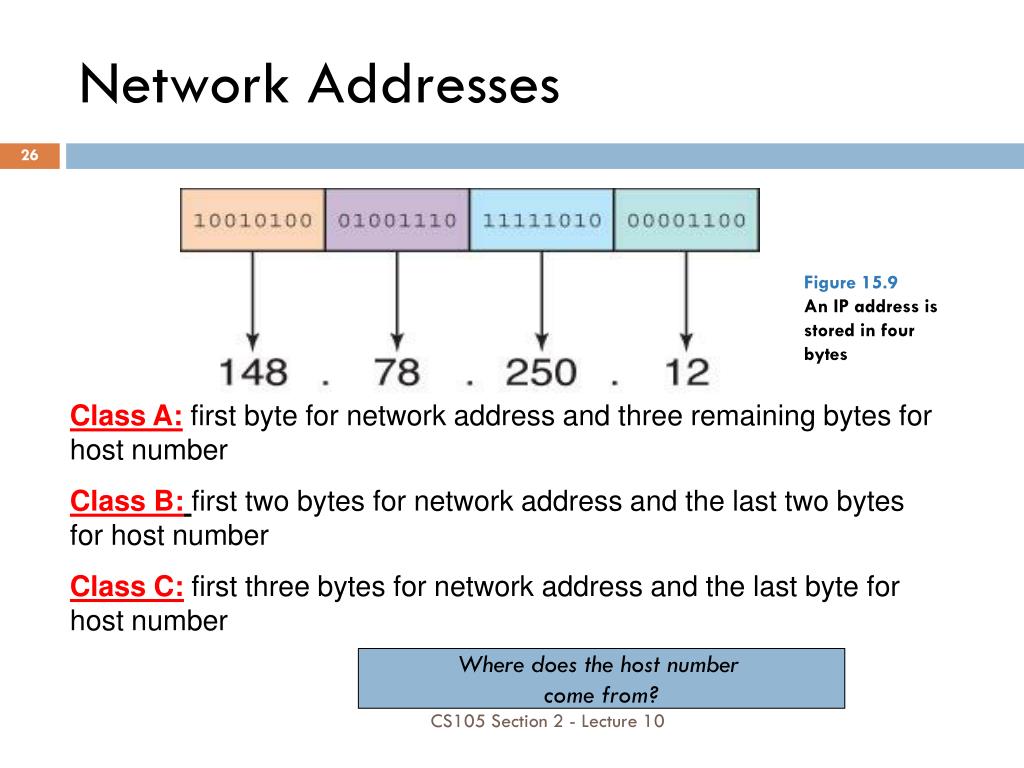

Figure 15.9 An IP address is stored in four bytes

Class A: first byte for network address and three remaining bytes for host number

Class B:first two bytes for network address and the last two bytes for host number

Class C: first three bytes for network address and the last byte for host number

Where does the host number

come from?

CS105 Section 2 - Lecture 10

domain name system

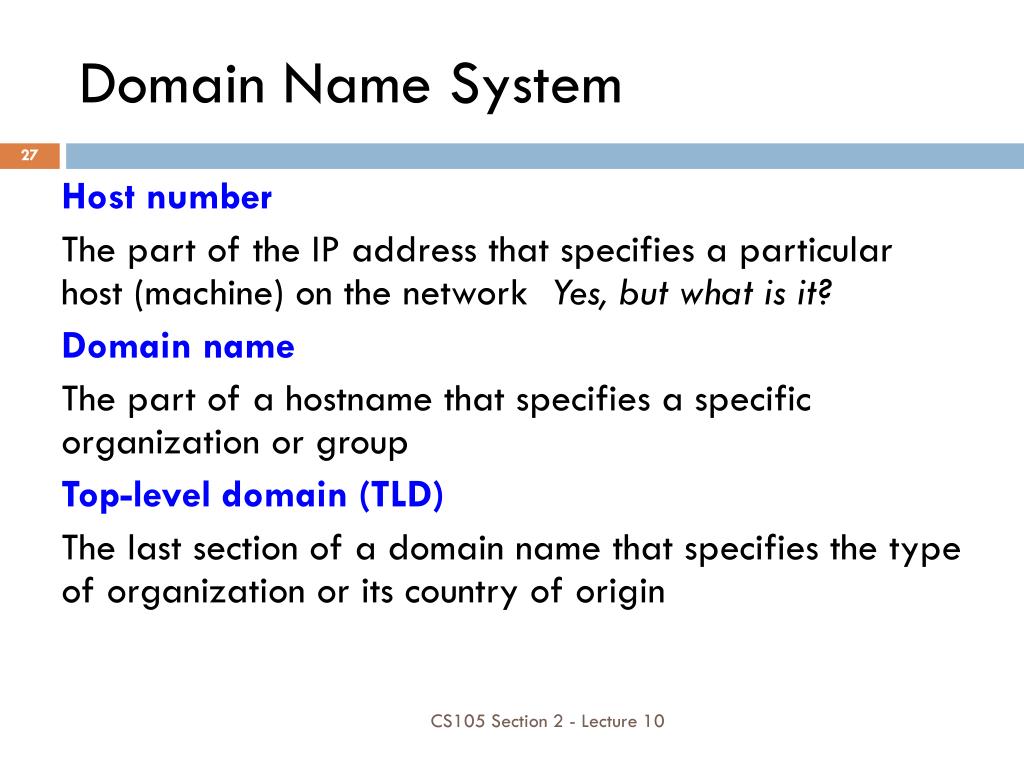

Domain Name System

Host number

The part of the IP address that specifies a particular host (machine) on the network Yes, but what is it?

Domain name

The part of a hostname that specifies a specific organization or group

Top-level domain (TLD)

The last section of a domain name that specifies the type of organization or its country of origin

CS105 Section 2 - Lecture 10

domain name system1
Domain Name System

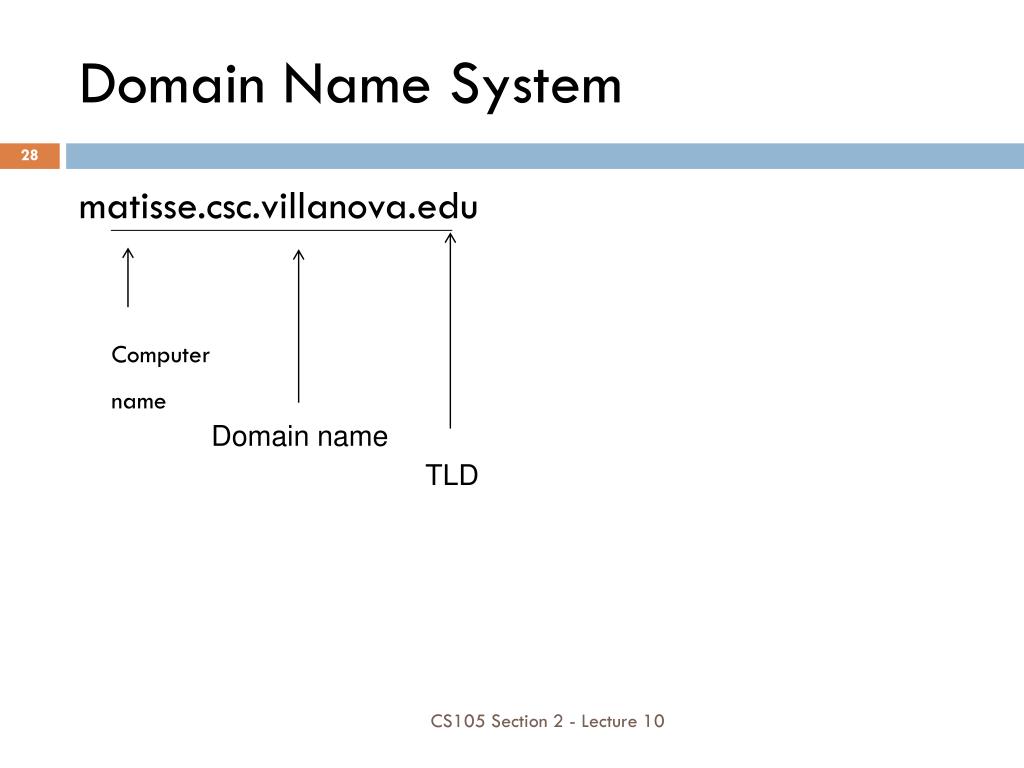

matisse.csc.villanova.edu

Computer

name

Domain name

TLD

CS105 Section 2 - Lecture 10

domain name system2
Domain Name System

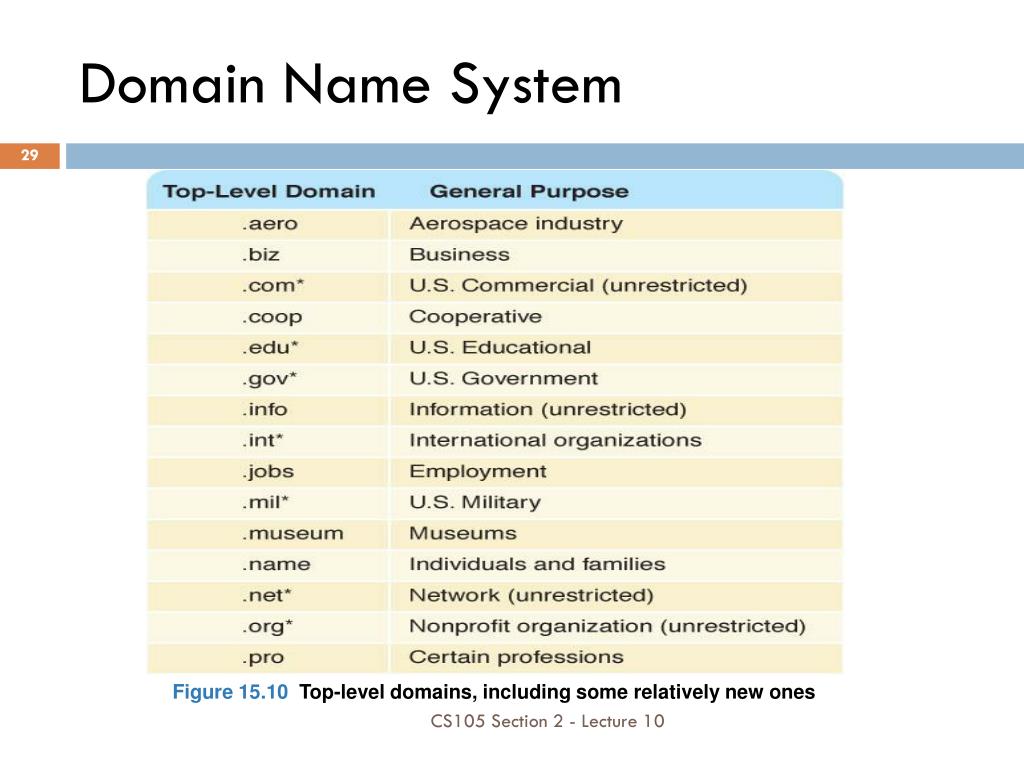

Figure 15.10 Top-level domains, including some relatively new ones

CS105 Section 2 - Lecture 10

domain name system3
Domain Name System

Organizations based in countries other than the United States use a top-level domain that corresponds to their two-letter country codes

Do you

email

someone

in another

country?

Figure 15.11Some of the top-level domain names based on country codes

CS105 Section 2 - Lecture 10

domain name system4
Domain Name System

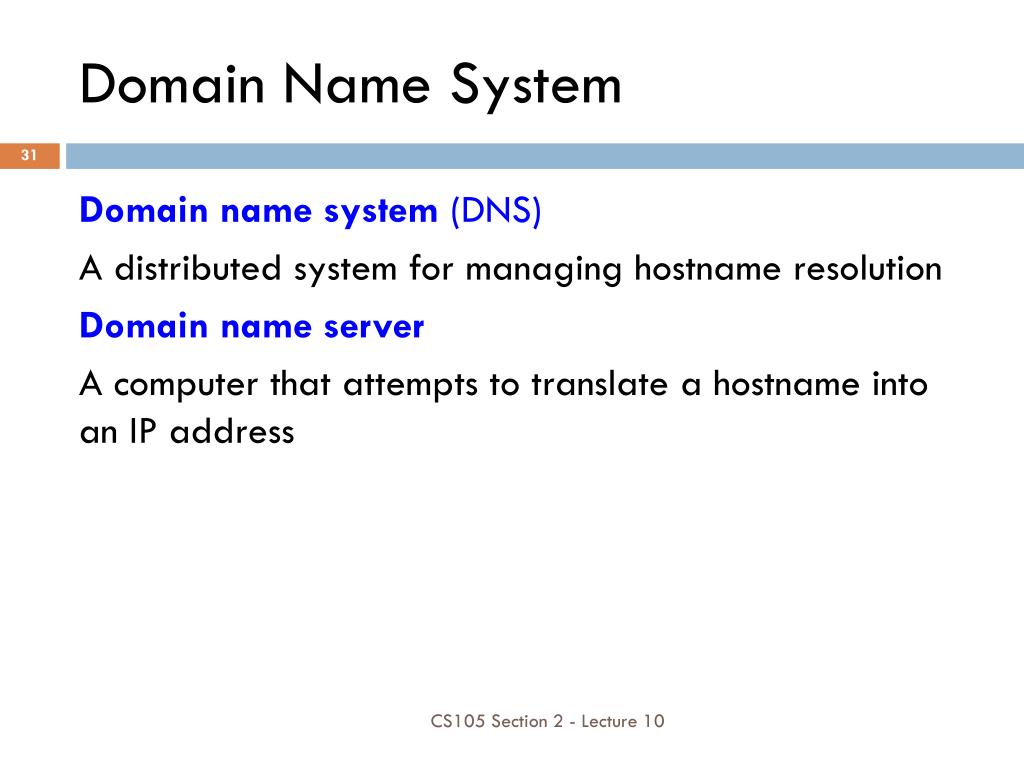

Domain name system (DNS)

A distributed system for managing hostname resolution

Domain name server

A computer that attempts to translate a hostname into an IP address

CS105 Section 2 - Lecture 10

references

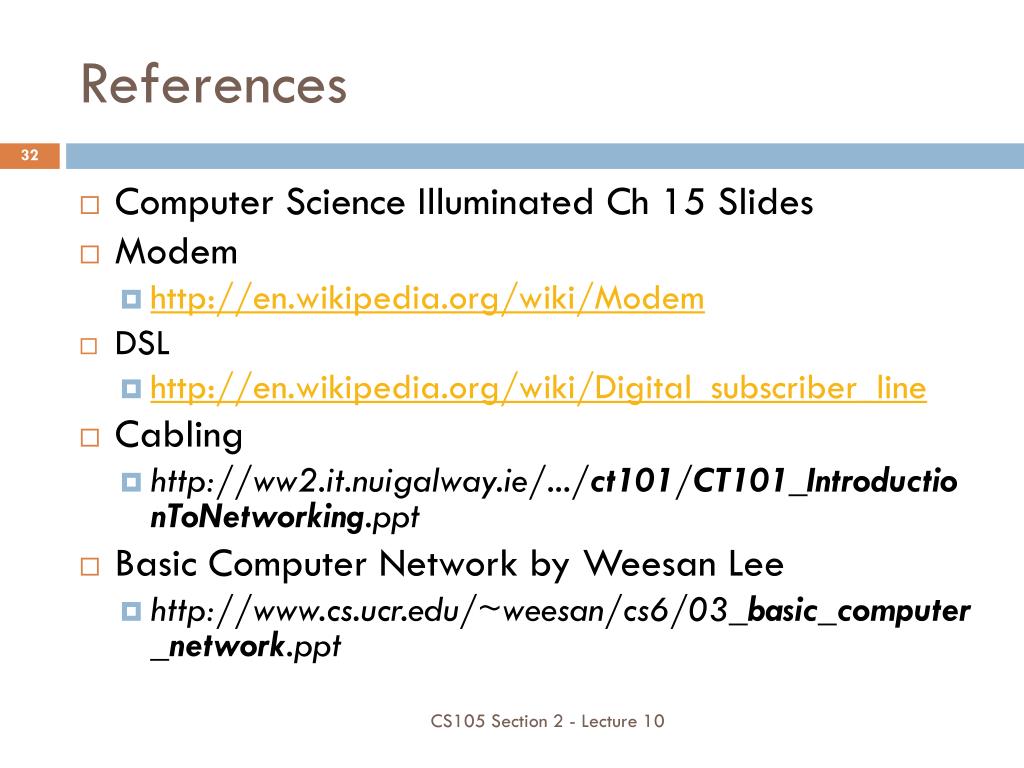

References
  • Computer Science Illuminated Ch15 Slides
  • Modem
    • http://en.wikipedia.org/wiki/Modem
  • DSL
    • http://en.wikipedia.org/wiki/Digital_subscriber_line
  • Cabling
    • http://ww2.it.nuigalway.ie/.../ct101/CT101_IntroductionToNetworking.ppt
  • Basic Computer Network by Weesan Lee
    • http://www.cs.ucr.edu/~weesan/cs6/03_basic_computer_network.ppt

CS105 Section 2 - Lecture 10

references cont
References (cont)

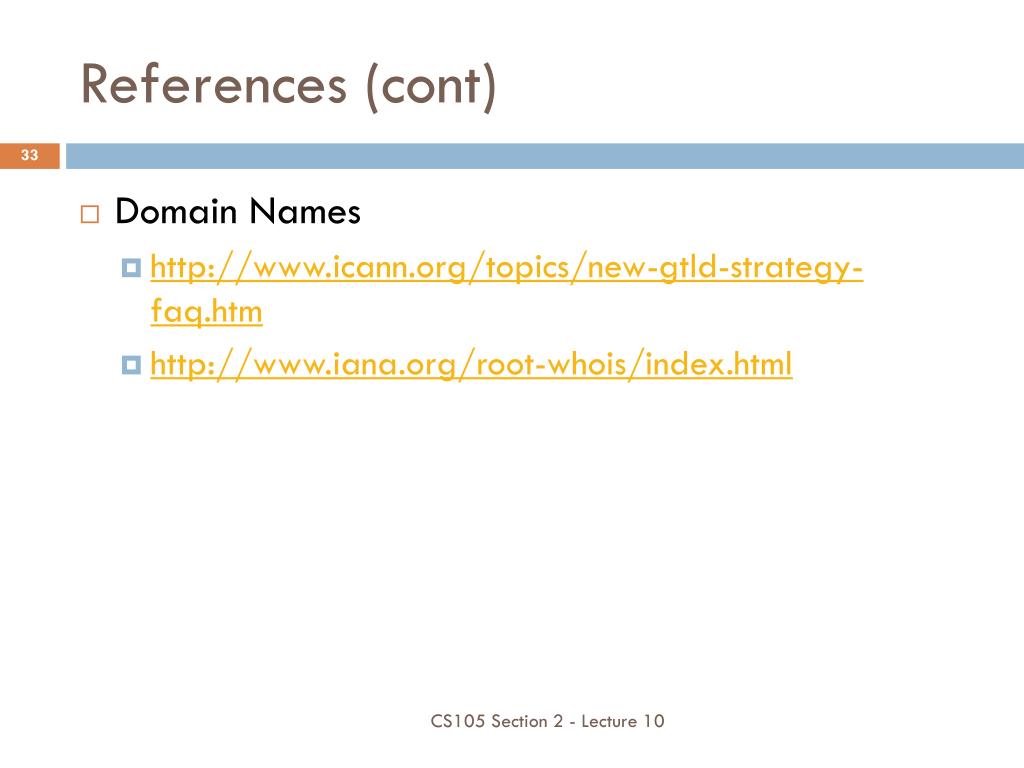

  • Domain Names
    • http://www.icann.org/topics/new-gtld-strategy-faq.htm
    • http://www.iana.org/root-whois/index.html
