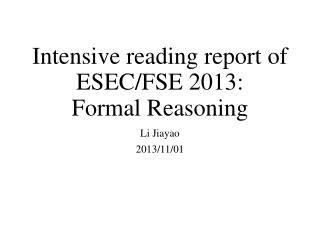

Intensive reading report of ESEC/FSE 2013: Formal Reasoning. Li Jiayao 2013/11/01. Papers of Formal Reasoning. Bayesian Inference using Data Flow Analysis Guillaume Claret, Sriram K. Rajamani , Aditya V. Nori , Andrew D. Gordon, and Johannes Borgström

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Intensive reading report of ESEC/FSE 2013: Formal Reasoning' - kenton


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
papers of formal reasoning
Papers of Formal Reasoning
  • Bayesian Inference using Data Flow Analysis
    • Guillaume Claret, Sriram K. Rajamani, Aditya V. Nori, Andrew D. Gordon, and Johannes Borgström
  • Second-Order Constraints in Dynamic Invariant Inference
    • Kaituo Li, ChristophReichenbach, YannisSmaragdakis, and Michal Young
  • Z3-str: A Z3-Based String Solver for Web Application Analysis
    • YunhuiZheng, Xiangyu Zhang, and Vijay Ganesh
background
Background
  • Dynamic Invariant Inference
    • An invariant: a property that holds at a certain point or points in a program; often seen in assert statements, documentation, and formal specifications. Examples: “array a is sorted”.
    • For systematically understanding program properties.
    • Software testing, documentation, and maintenance benefit directlyfrom dynamic invariant inference.
  • Daikon
    • An implementation of dynamic detection of likely invariants.
    • By monitoring a large number of program executions and heuristically inferring abstract logical properties of the program, expressed as invariants.

http://groups.csail.mit.edu/pag/daikon/

problem solution
Problem & Solution
  • Problem
    • How to improve the quality of produced invariants?
    • To reduce erroneous and noisy invariants that are inconsistent with program semantics or programmer knowledge, and to derive more relevant invariants?
  • Solution
    • An annotation mechanism for high-level constraints (a.k.a. “meta-invariants” or “second-order constraints”).
    • Benefit 1: Improves the quality of produced invariants.
    • Benefit 2: Serves as a concise and deeper documentation of program behavior by dynamically inferring “second-order constraints”.
vocabulary of second order constraints
Vocabulary of second-order constraints
  • A vocabulary to describe common second-order constraints.
    • Subdomain(processDiagonal, processUpperTriangular)
    • Subrange(listTail, listRange)
    • CanFollow(open, write)
    • Follows(add, remove)
    • Concord(triangularMultiply, matrixMultiply)
      • For methods that specialize other methods.
    • OnlyCareAboutVariable(<var>), OnlyCareAboutField(<fld>)
  • It actually reflects the relationship between conditions at two program points.
daikon implementation
Daikon implementation
  • Easy for Subdomain, Subrange, CanFollow, Follows:
    • Example: Subdomain(foo(int), bar(int))
  • A bit complex for Concord.

foo(inti)

bar(inti)

i >= 0

i == 2

i >= 0

evaluation 1
Evaluation(1)
  • Do second-order constraints aid the inference of better first-order invariants?
    • Reduce spurious invariants?
    • Add correct and insightful invariants?
  • 3 case studies.
    • StackAr, a small example application with a relatively thorough test suite.
    • Apache Commons Collections and AspectJCompiler, with their actual test suites
    • Second-order constraints are determined manually.
    • Diff the inferred invariants before and after applying second-order constraints.
evaluation 1 continued
Evaluation(1)(Continued)
  • Case Study #1: StackAr
    • an array-based fixed-size stack implementation that ships with Daikon as a Daikon benchmark and demonstration example.
evaluation 1 continued1
Evaluation(1)(Continued)
  • Experiment #1: add:
    • Subdomain(StackAr.topAndPop(), StackAr.pop()),
    • Subdomain(StackAr.pop(), StackAr.top()), and
    • Subdomain(StackAr.top(), StackAr.topAndPop()).
  • Result: eliminate 5 spurious invariants from pop:
    • this has only one value
    • this.theArrayhas only one value
    • size(this.theArray[]) == 100
    • this.theArray[this.topOfStack] != null
    • this.topOfStack< size(this.theArray[])-1
  • And add 2 correct invariants:
    • this.topOfStack <= size(this.theArray[])-1
    • this.DEFAULT_CAPACITY != size(this.theArray[])
evaluation 1 continued2
Evaluation(1)(Continued)
  • Case Study #2: Apache Commons Collections
    • 356 classes, of which 18 is usedexplicitly.
    • With actual test suites.
  • Result:
    • All 35 invariants removed were false.
    • Add 26 invariants, 25 of which is true.
dynamically inferring of second order constraints
Dynamically inferring of “second-order constraints”
  • Key problem: to detect implication relationship between pre/post conditions P and Q at two different program points.
  • Success rate:
    • N: the number of invariants in Q that can be implied by P.
    • M: the number of invariants of Q.
  • Second-order constraint confidence:
    • : confidences of invariants of P or Q.
    • Z: the number of invariants of P.
  • Set SA and MA threshold to filter out constraints.
evaluation 2
Evaluation(2)
  • Evaluate the success of our dynamic process of inferring second-order constraints:
    • in documenting the program behavior on their own,
    • in offering the programmer a set of mostly-correct second-order constraints, and
    • in finding bugs in manually written second-order constraints.
evaluation 2 continued
Evaluation(2)(Continued)
  • Evaluate correctness of inferred constraints.
    • manually verified all the generated second-order constraints.
    • 99% precision.
    • 5 false constraints due to the low quality of Daikon invariants.
    • Not necessarily all interesting.
    • Reflects the absence of other useful vocabulary.
      • E.g. for immutable class.
evaluation 2 continued1
Evaluation(2)(Continued)
  • Inferred vs. Manual Constraints.
    • Helps in eliminating 12 erroneous manually written constraints.
    • Of the 52 constraints in Evaluation(1), produced 37 and missed 15.
      • Due to noisy invariants, absence of data samples and unimplemented vocabulary.
reflection
Reflection
  • A novel idea that goes beyond Dynamic Invariant Inference.
    • Practical in describing the semantics of program.
    • Benefit testing, maintenance and documenting.
  • A more systematical vocabulary is necessary.
thanks

Thanks!
