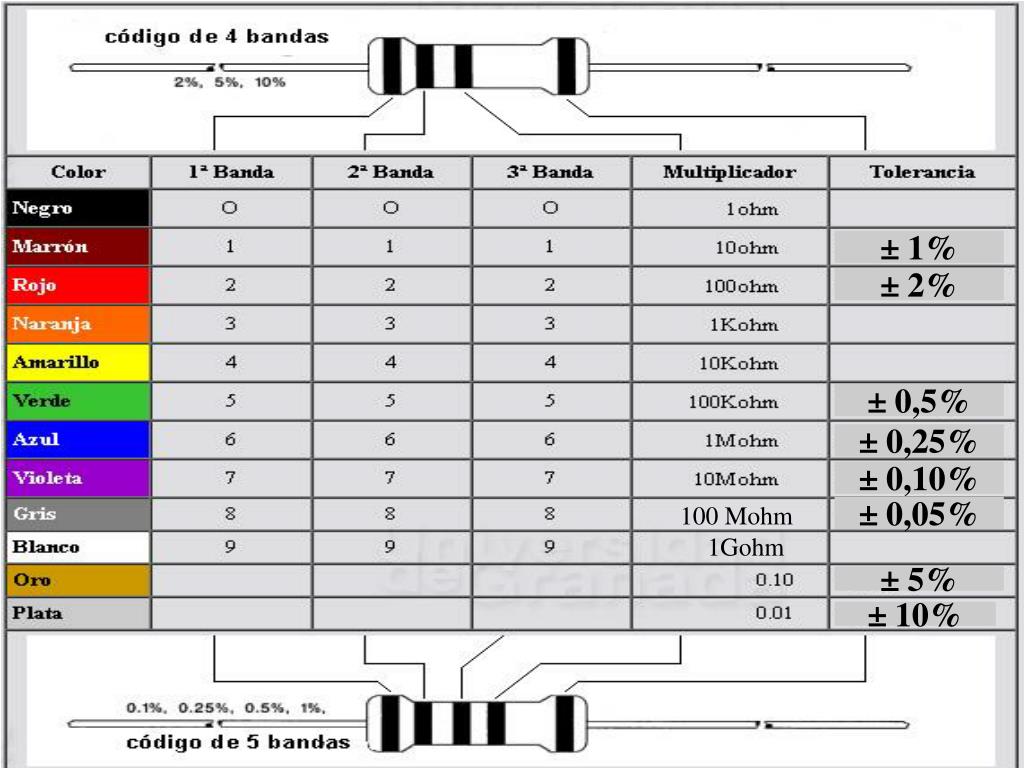

  1. 100 Mohm 1Gohm ± 1% ± 2% ± 0,5% ± 0,25% ± 0,10% ± 0,05% ± 5% ± 10%

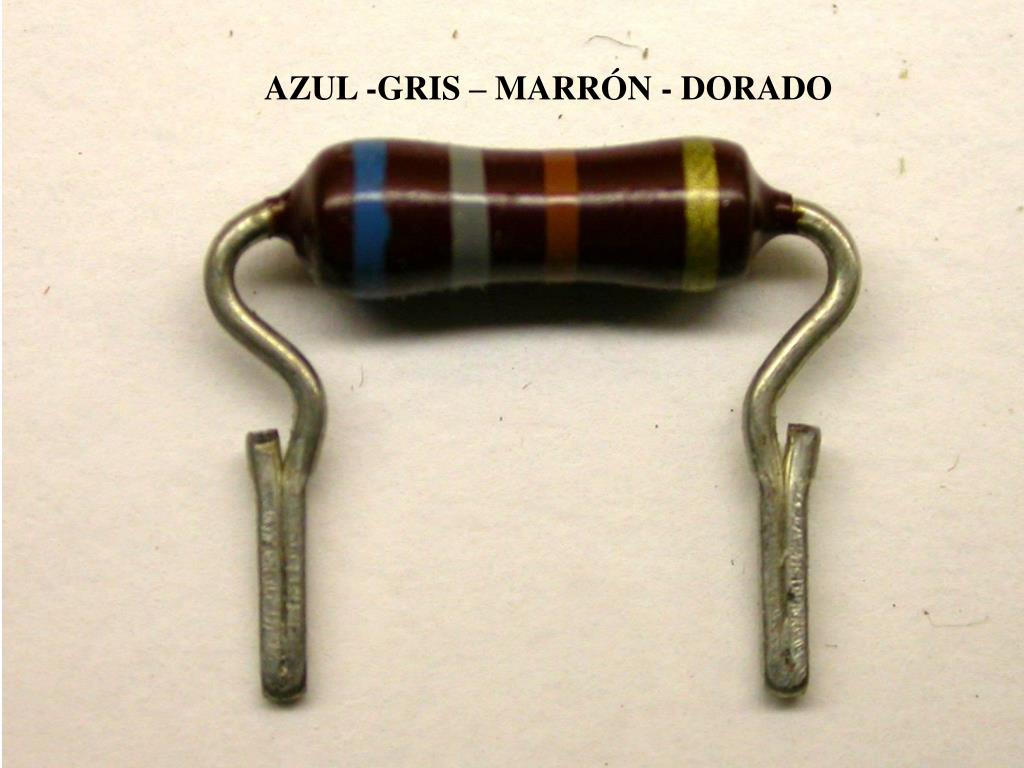

  2. AZUL -GRIS – MARRÓN - DORADO

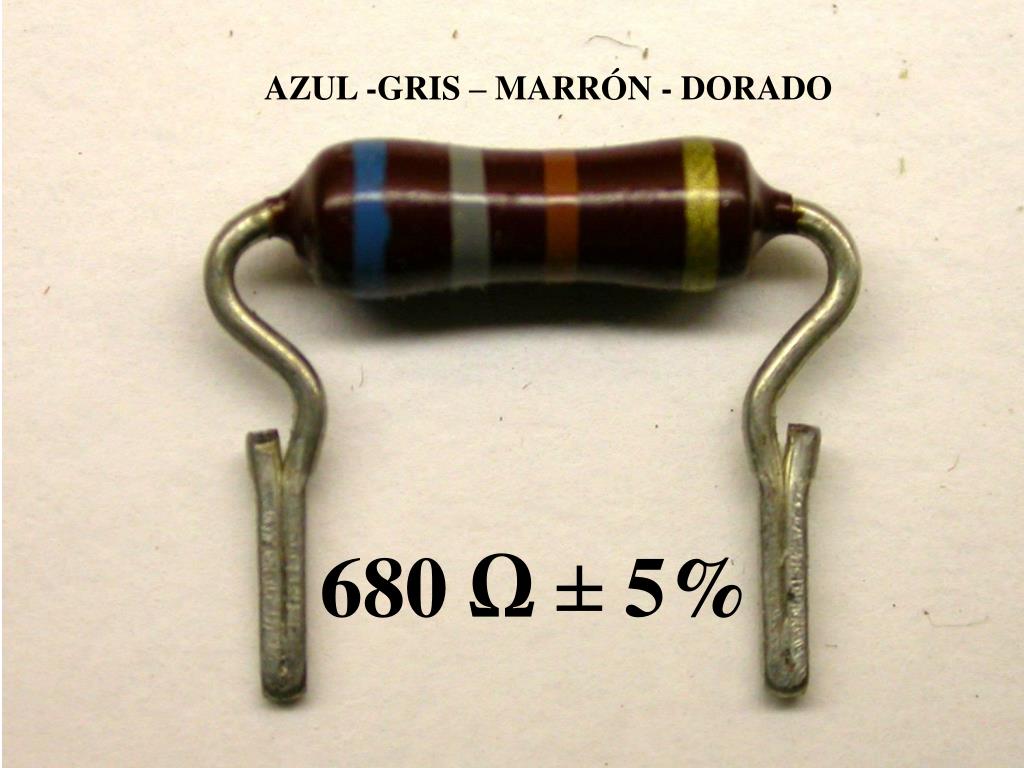

  3. AZUL -GRIS – MARRÓN - DORADO 680 Ω ± 5%

  4. GRIS – ROJO – ROJO - DORADO

  5. GRIS – ROJO – ROJO - DORADO 8K2=8,2KΩ=8200Ω±5%

  6. MARRÓN – VERDE – NARANJA - PLATA

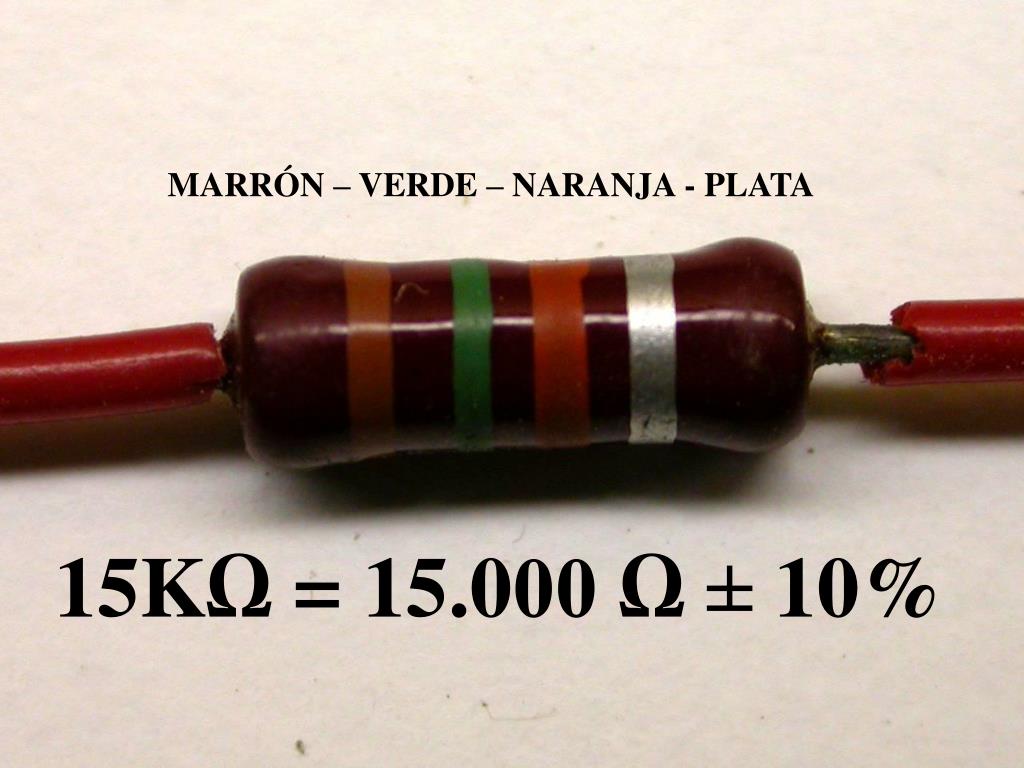

  7. MARRÓN – VERDE – NARANJA - PLATA 15KΩ = 15.000 Ω ± 10%

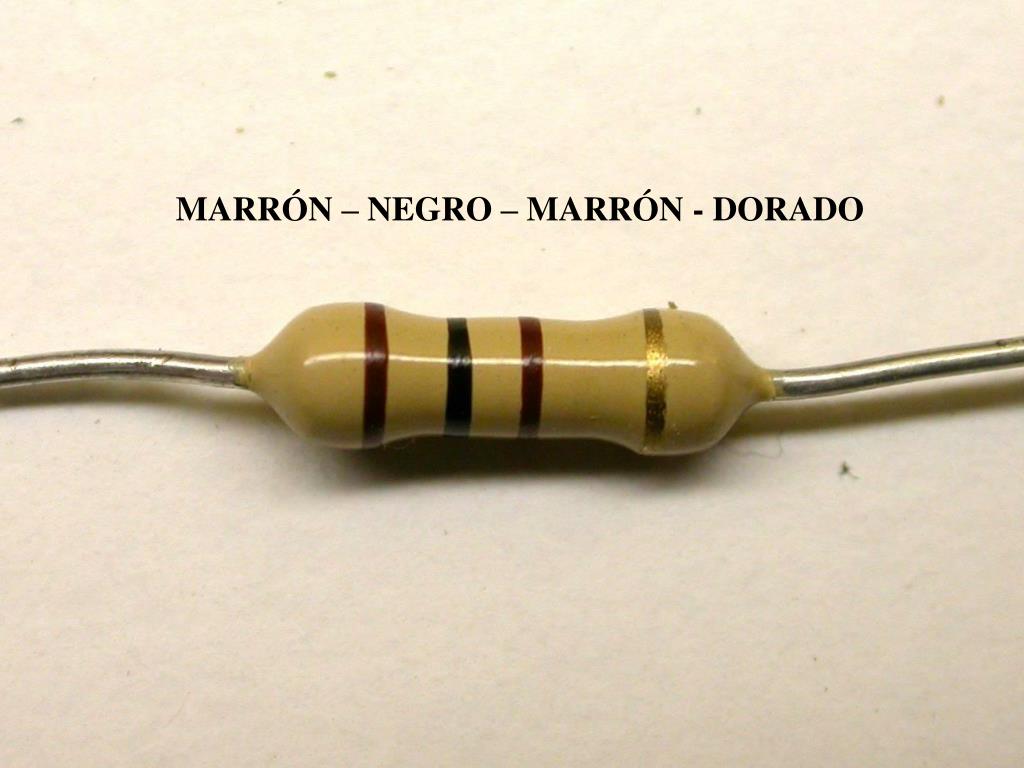

  8. MARRÓN – NEGRO – MARRÓN - DORADO

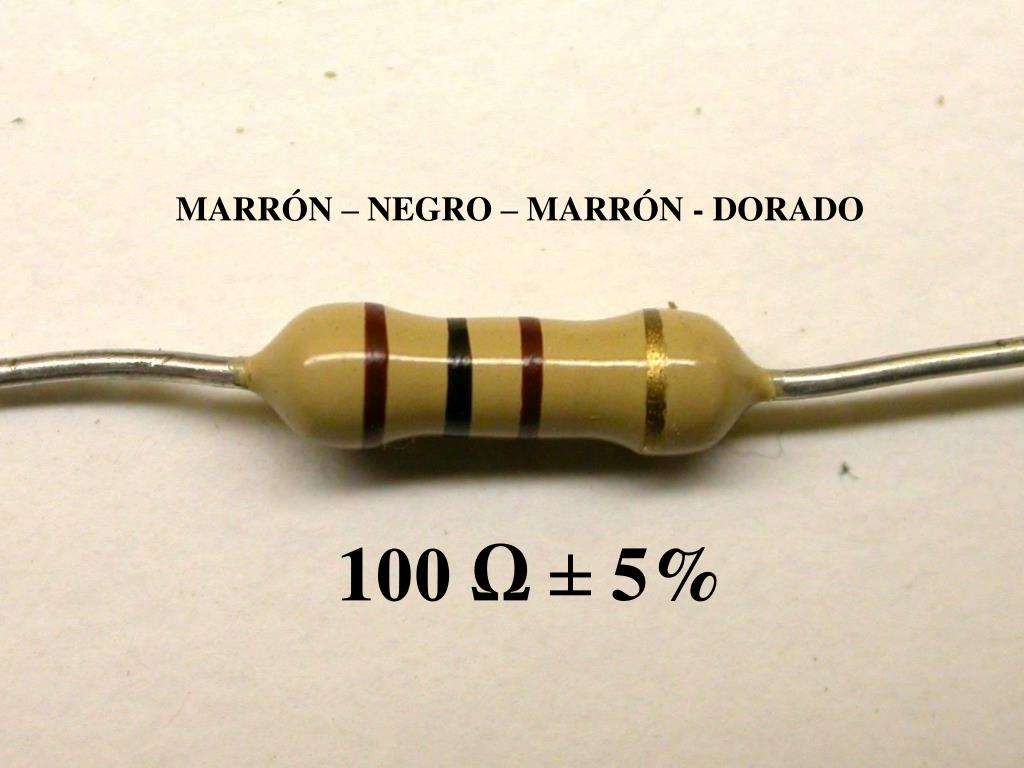

  9. MARRÓN – NEGRO – MARRÓN - DORADO 100 Ω ± 5%

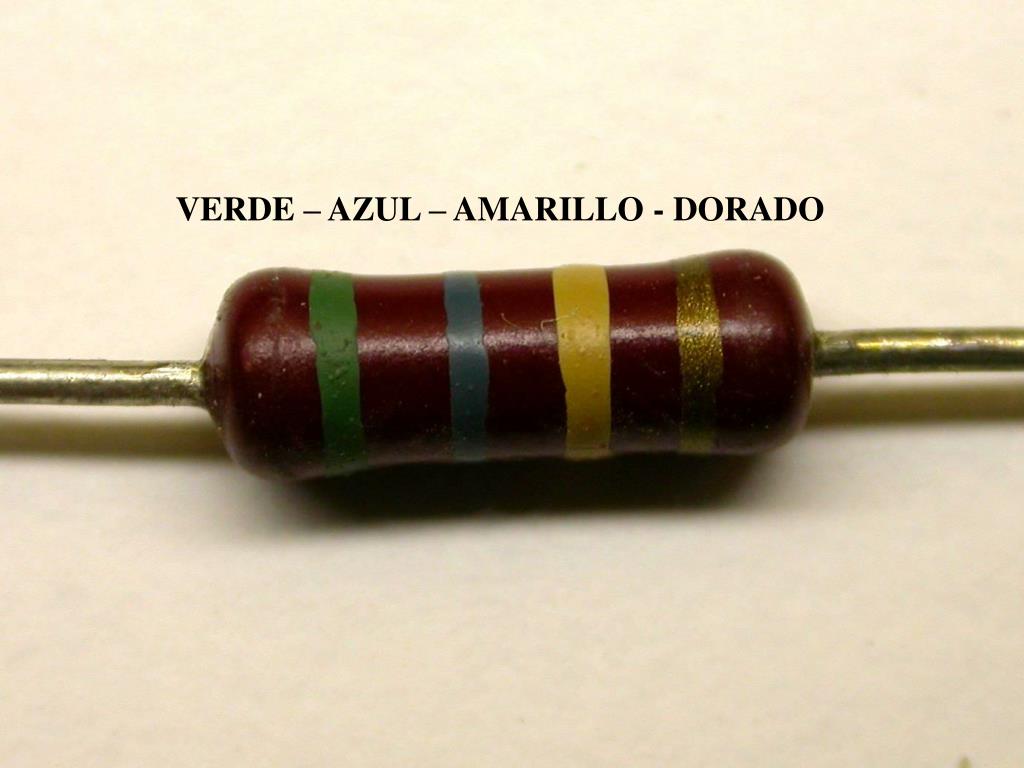

  10. VERDE – AZUL – AMARILLO - DORADO

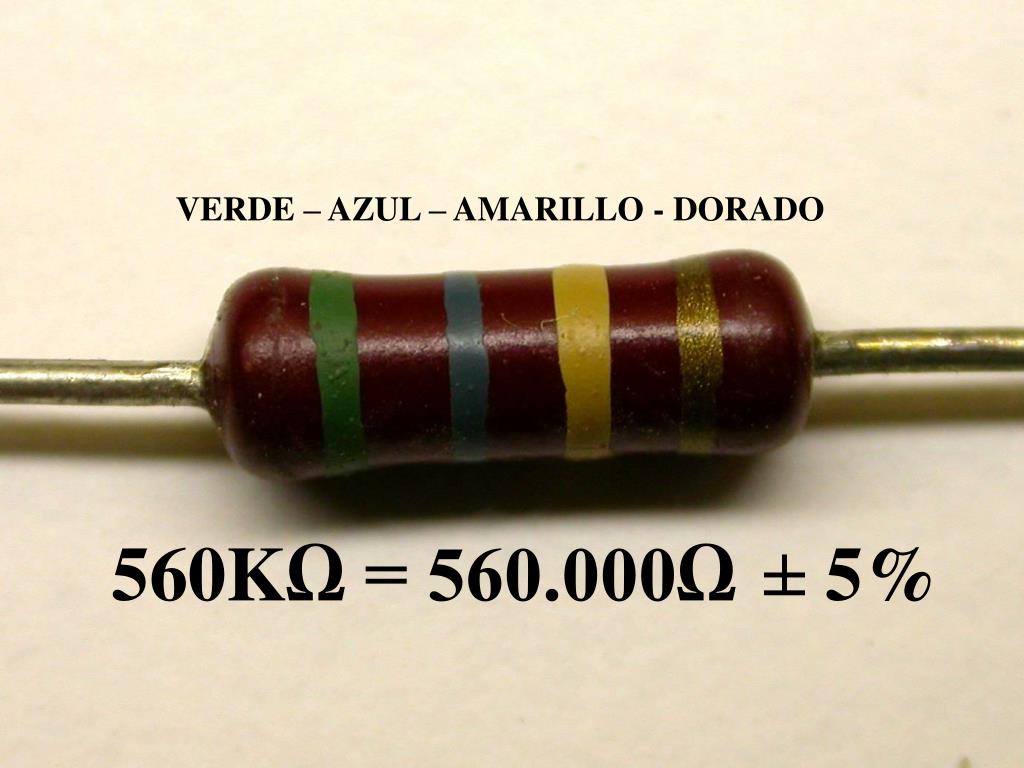

  11. VERDE – AZUL – AMARILLO - DORADO 560KΩ = 560.000Ω ± 5%

  12. FIN
