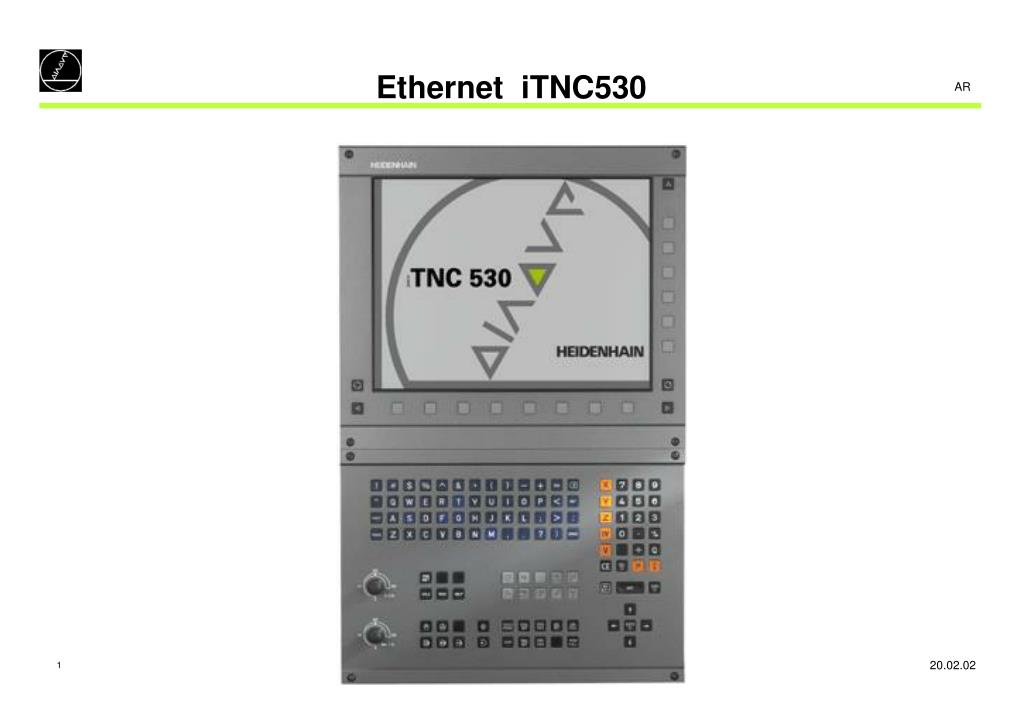

  1. Ethernet iTNC530 AR

  2. Ethernet iTNC530 - Configuration AR EnterCode numberNET123 :

  3. iTNC 530 ADDRESSNetwork address of the control MASK Network mask foil of the control BROADCASTBroadcast address of the control ROUTERNetwork address of the default router HOSTHost name of the control DOMAIN Domain name of the control or path of hosts file NAMESERVERNetwork address of the domain-name server Ethernet iTNC530 - Configuration AR TNC 426/430 ADDRESSNetwork address of the control MASK Network mask foil of the control ROUTERNetwork address of the default router PROTProtocol of the network connection HOSTHost name of the control

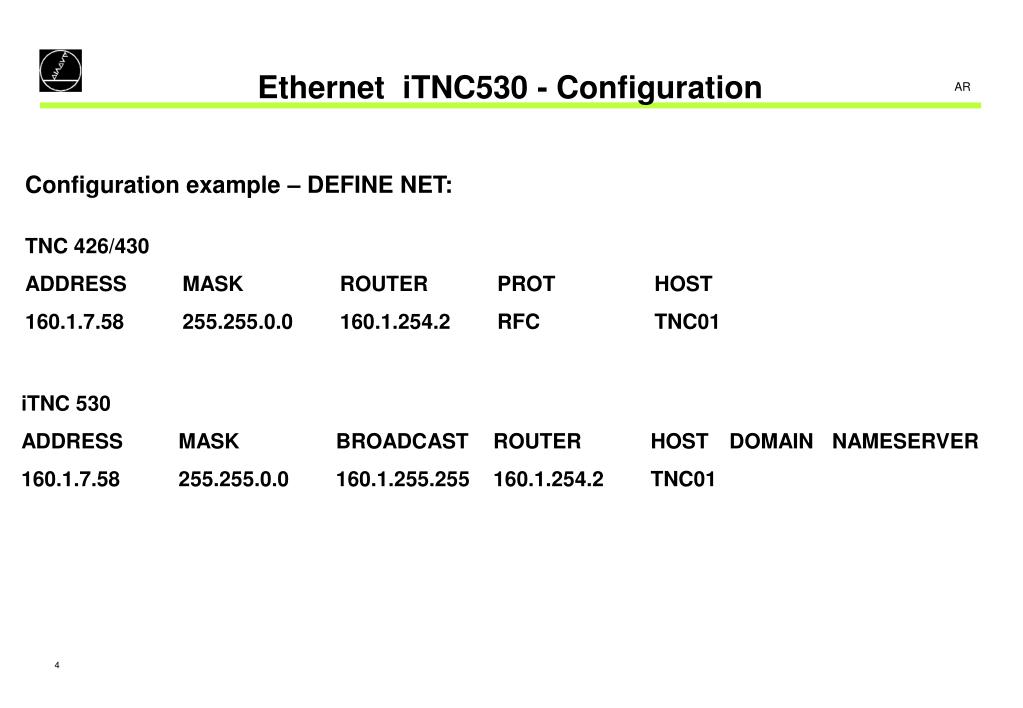

  4. Ethernet iTNC530 - Configuration AR Configuration example – DEFINE NET: TNC 426/430 ADDRESS MASK ROUTER PROT HOST 160.1.7.58 255.255.0.0 160.1.254.2 RFC TNC01 iTNC 530 ADDRESS MASK BROADCAST ROUTER HOST DOMAIN NAMESERVER 160.1.7.58 255.255.0.0 160.1.255.255 160.1.254.2 TNC01

  5. Ethernet iTNC530 - Configuration AR

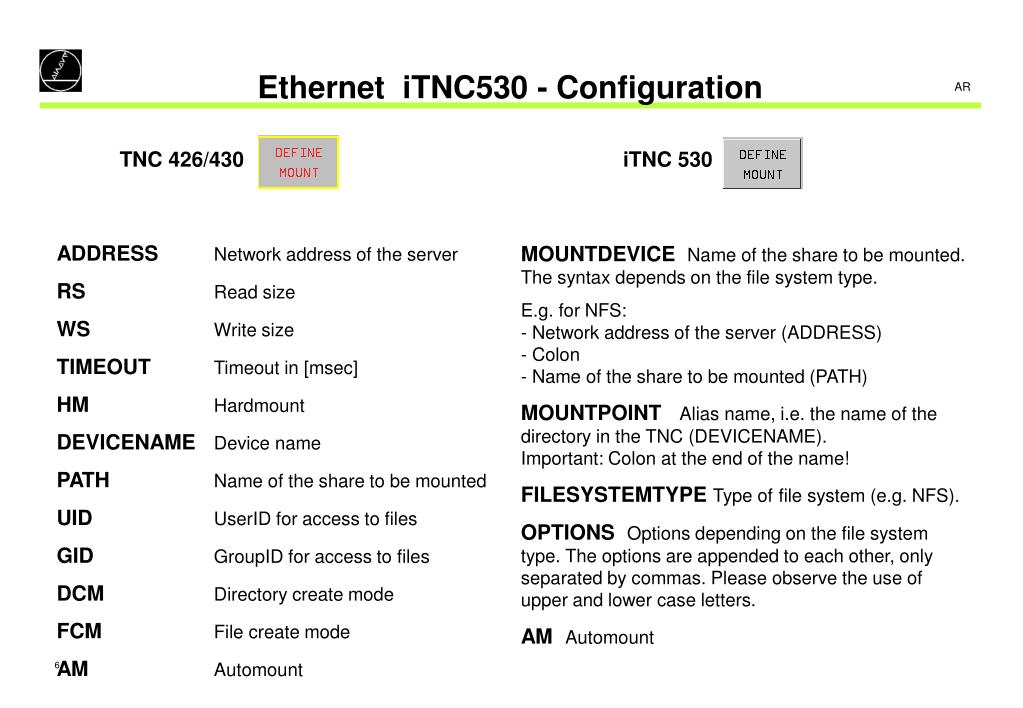

  6. TNC 426/430 iTNC 530 ADDRESSNetwork address of the server RS Read size WS Write size TIMEOUTTimeout in [msec] HMHardmount DEVICENAMEDevice name PATH Name of the share to be mounted UIDUserID for access to files GID GroupID for access to files DCMDirectory create mode FCM File create mode AM Automount MOUNTDEVICEName of the share to be mounted. The syntax depends on the file system type. E.g. for NFS:- Network address of the server (ADDRESS)- Colon- Name of the share to be mounted (PATH) MOUNTPOINTAlias name, i.e. the name of the directory in the TNC (DEVICENAME). Important: Colon at the end of the name! FILESYSTEMTYPE Type offile system (e.g. NFS). OPTIONS Options depending on the file system type.The options are appended to each other, only separated by commas. Please observe the use of upper and lower case letters. AM Automount Ethernet iTNC530 - Configuration AR

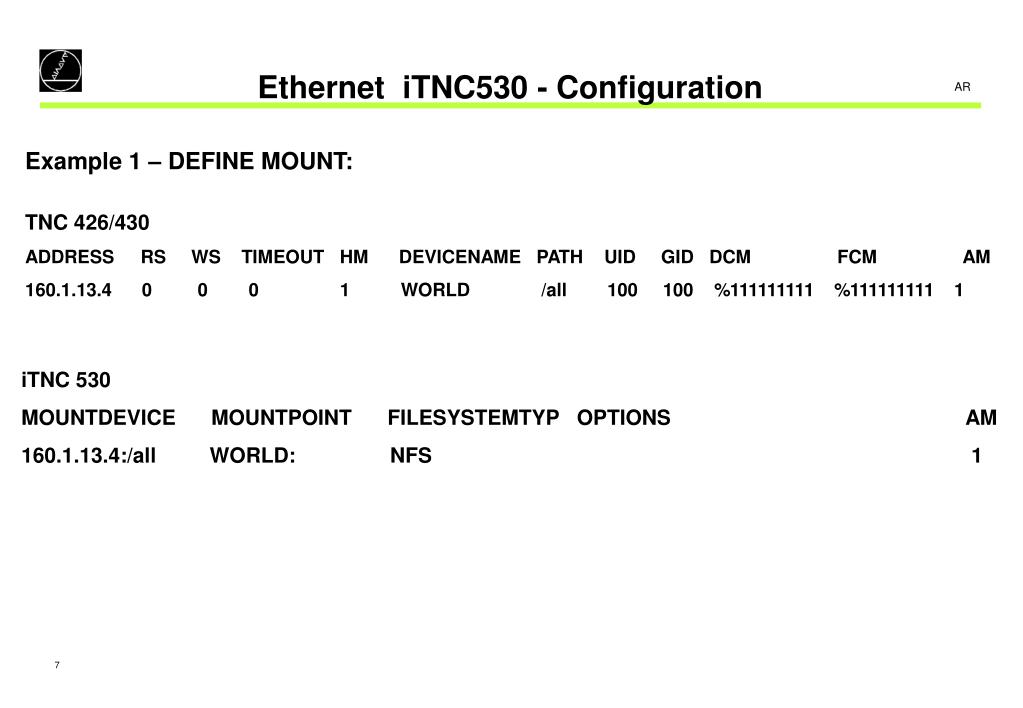

  7. Ethernet iTNC530 - Configuration AR Example 1 – DEFINE MOUNT: TNC 426/430 ADDRESS RS WS TIMEOUT HM DEVICENAME PATH UID GID DCM FCM AM 160.1.13.4 0 0 0 1 WORLD /all 100 100 %111111111 %111111111 1 iTNC 530 MOUNTDEVICE MOUNTPOINT FILESYSTEMTYP OPTIONS AM 160.1.13.4:/all WORLD: NFS 1

  8. Ethernet iTNC530 - Configuration AR Example 2 – DEFINE MOUNT: TNC 426/430 ADDRESS RS WS TIMEOUT HM DEVICENAME PATH UID GID DCM FCM AM 160.1.13.4 1024 1024 100 0 WORLD /all 100 100 %111111111 %111111111 1 iTNC 530 MOUNTDEVICE MOUNTPOINT FILESYSTEMTYP OPTIONS AM 160.1.13.4:/all WORLD: NFS rsize=1024,wsize=1024,timeo=1,soft 1

  9. Ethernet iTNC530 - Configuration AR Example 3 – Use of alias name: DEFINE NET: ADDRESS MASK BROADCAST ROUTER HOST DOMAIN NAMESERVER 160.1.7.58 255.255.0.0 160.1.255.255 160.1.254.2 TNC01 PLC:\HOSTS DEFINE MOUNT: MOUNTDEVICE MOUNTPOINT FILESYSTEMTYP OPTIONS AM PC1432:/all PC1432: NFS 0

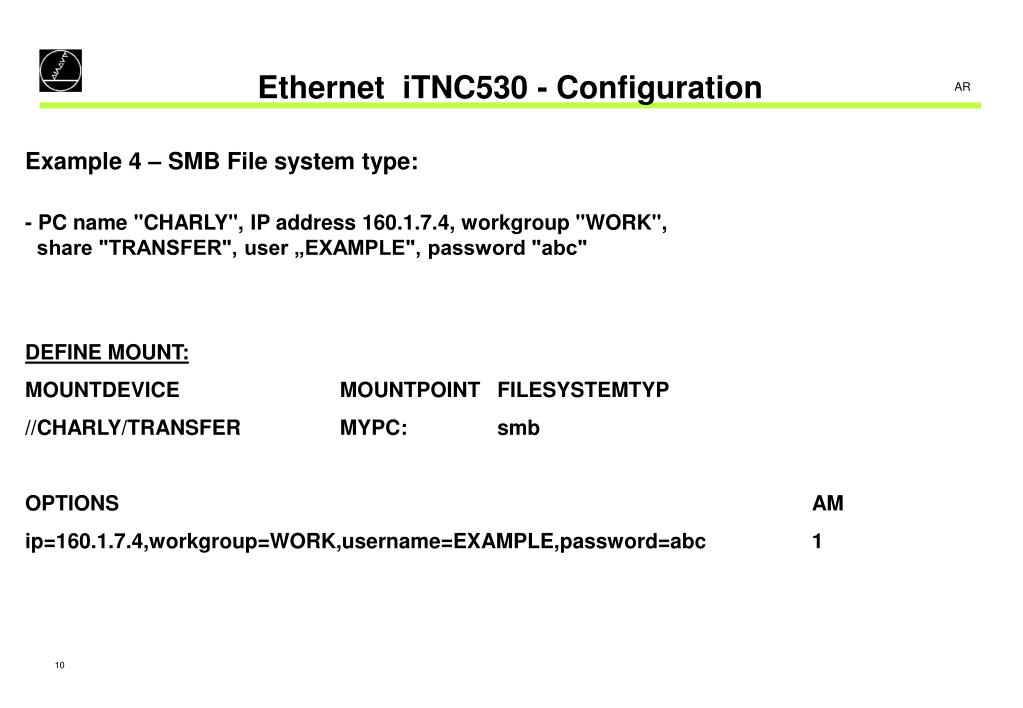

  10. Ethernet iTNC530 - Configuration AR Example 4 – SMB File system type: - PC name "CHARLY", IP address 160.1.7.4, workgroup "WORK", share "TRANSFER", user „EXAMPLE", password "abc" DEFINE MOUNT: MOUNTDEVICE MOUNTPOINT FILESYSTEMTYP //CHARLY/TRANSFER MYPC: smb OPTIONS AM ip=160.1.7.4,workgroup=WORK,username=EXAMPLE,password=abc 1

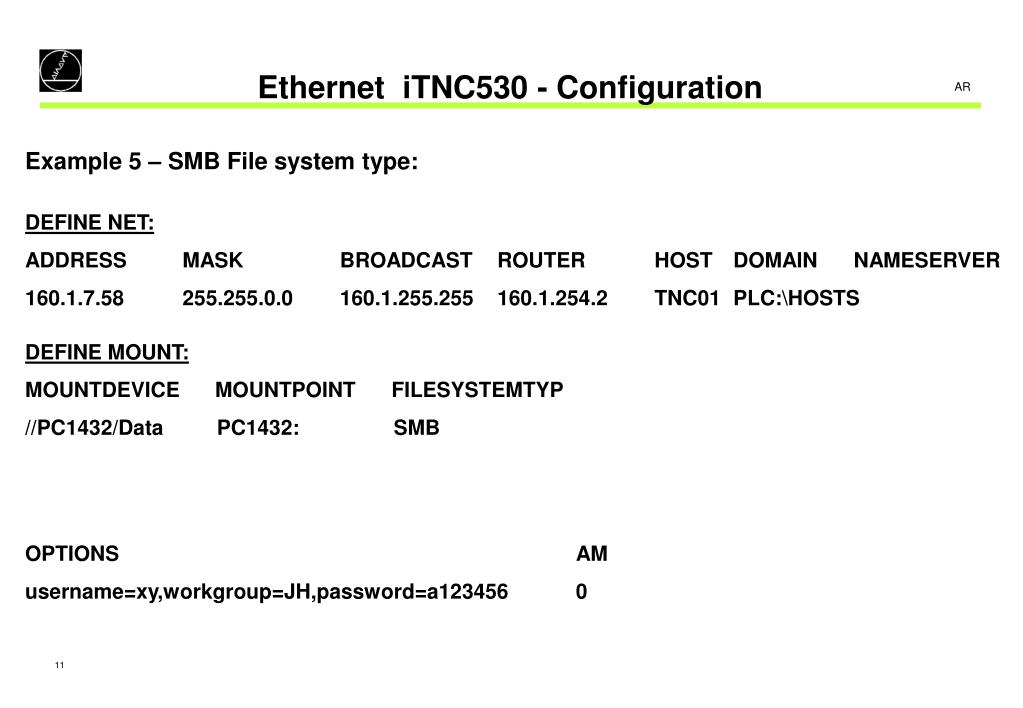

  11. Ethernet iTNC530 - Configuration AR Example 5 – SMB File system type: DEFINE NET: ADDRESS MASK BROADCAST ROUTER HOST DOMAIN NAMESERVER 160.1.7.58 255.255.0.0 160.1.255.255 160.1.254.2 TNC01 PLC:\HOSTS DEFINE MOUNT: MOUNTDEVICE MOUNTPOINT FILESYSTEMTYP //PC1432/Data PC1432: SMB OPTIONS AM username=xy,workgroup=JH,password=a123456 0

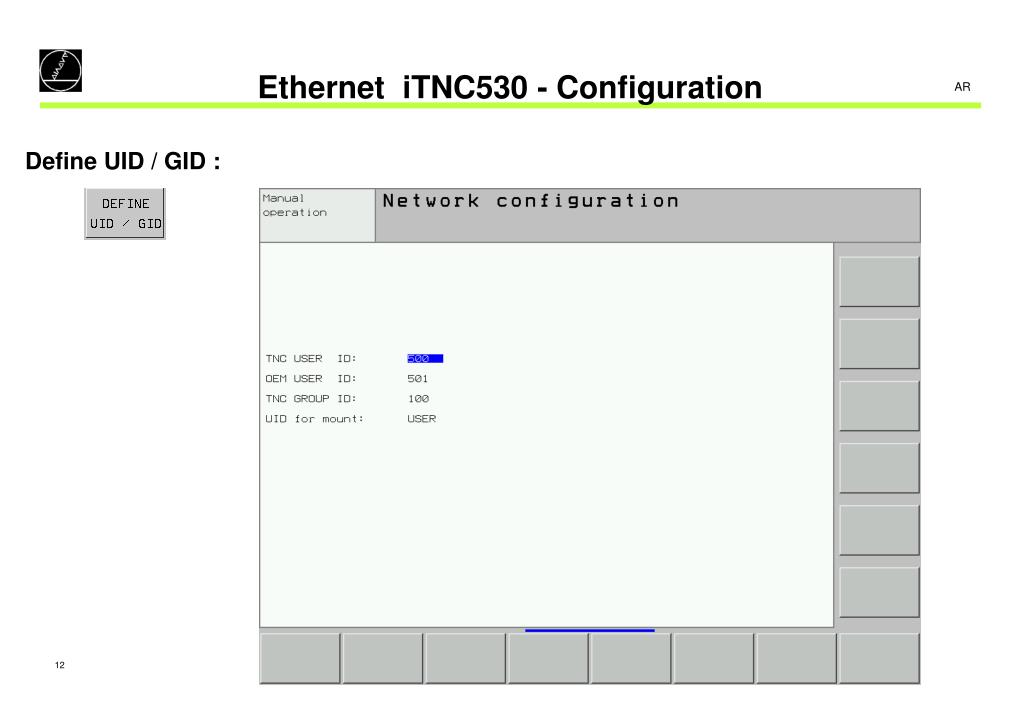

  12. Ethernet iTNC530 - Configuration AR Define UID / GID :

  13. Ethernet iTNC530 - Configuration AR
