  1. Communications Devices Lecture on 6/21, 6/28, 7/5, 7/12, 7/19, 7/26 in 2016 Hirohito YAMADA

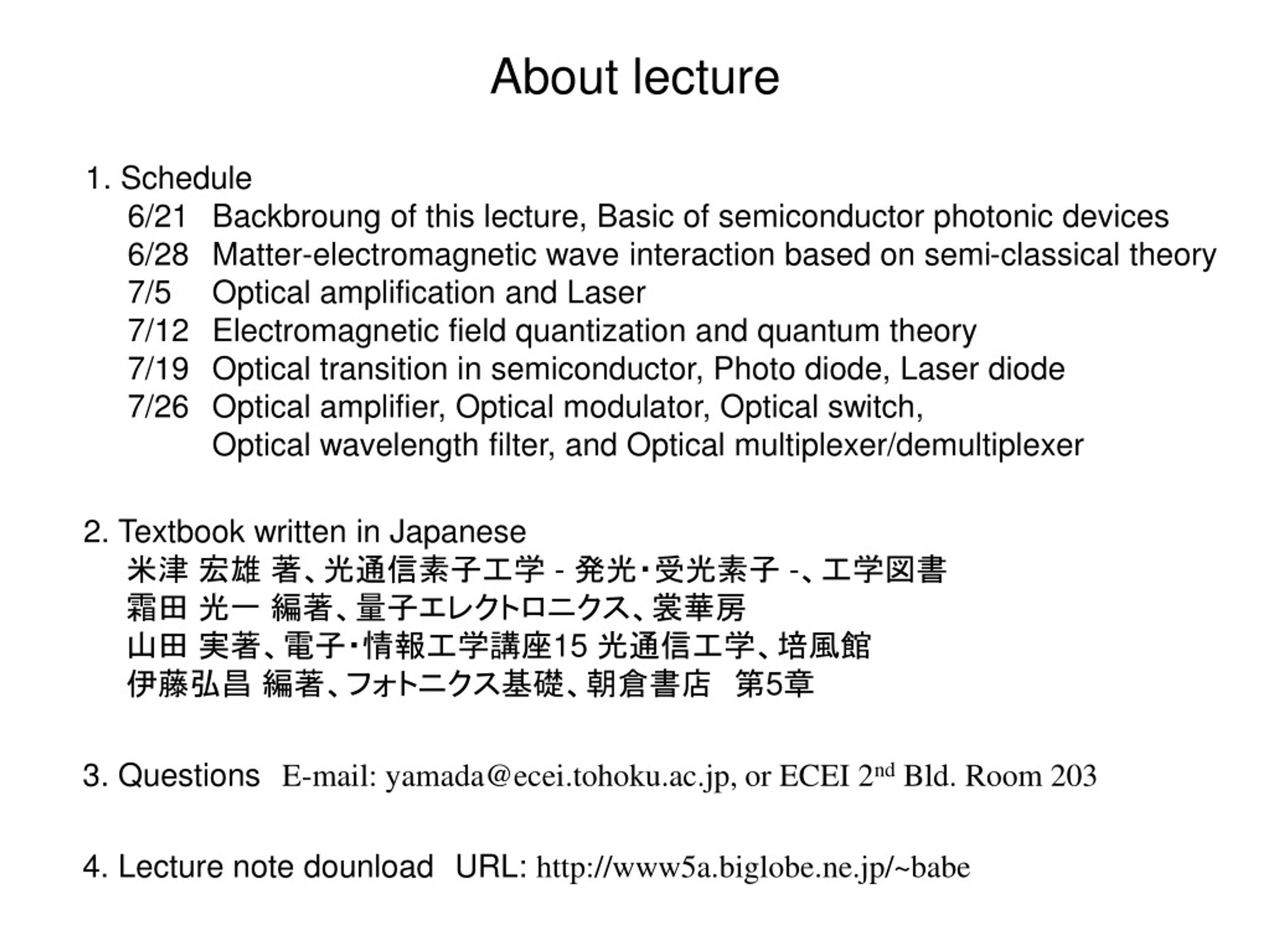

  2. 1. Schedule 6/21Backbroung of this lecture, Basic of semiconductor photonic devices6/28Matter-electromagnetic wave interaction based on semi-classical theory7/5Optical amplification and Laser7/12 Electromagnetic field quantization and quantum theory 7/19Optical transition in semiconductor, Photo diode, Laser diode7/26Optical amplifier, Optical modulator, Optical switch, Optical wavelength filter, and Optical multiplexer/demultiplexer About lecture 2. Textbook written in Japanese   米津 宏雄 著、光通信素子工学 - 発光・受光素子 -、工学図書   霜田 光一 編著、量子エレクトロニクス、裳華房   山田 実著、電子・情報工学講座15 光通信工学、培風館   伊藤弘昌 編著、フォトニクス基礎、朝倉書店 第5章 3. QuestionsE-mail: yamada@ecei.tohoku.ac.jp, or ECEI 2nd Bld. Room 203 4.Lecture note dounloadURL: http://www5a.biglobe.ne.jp/~babe

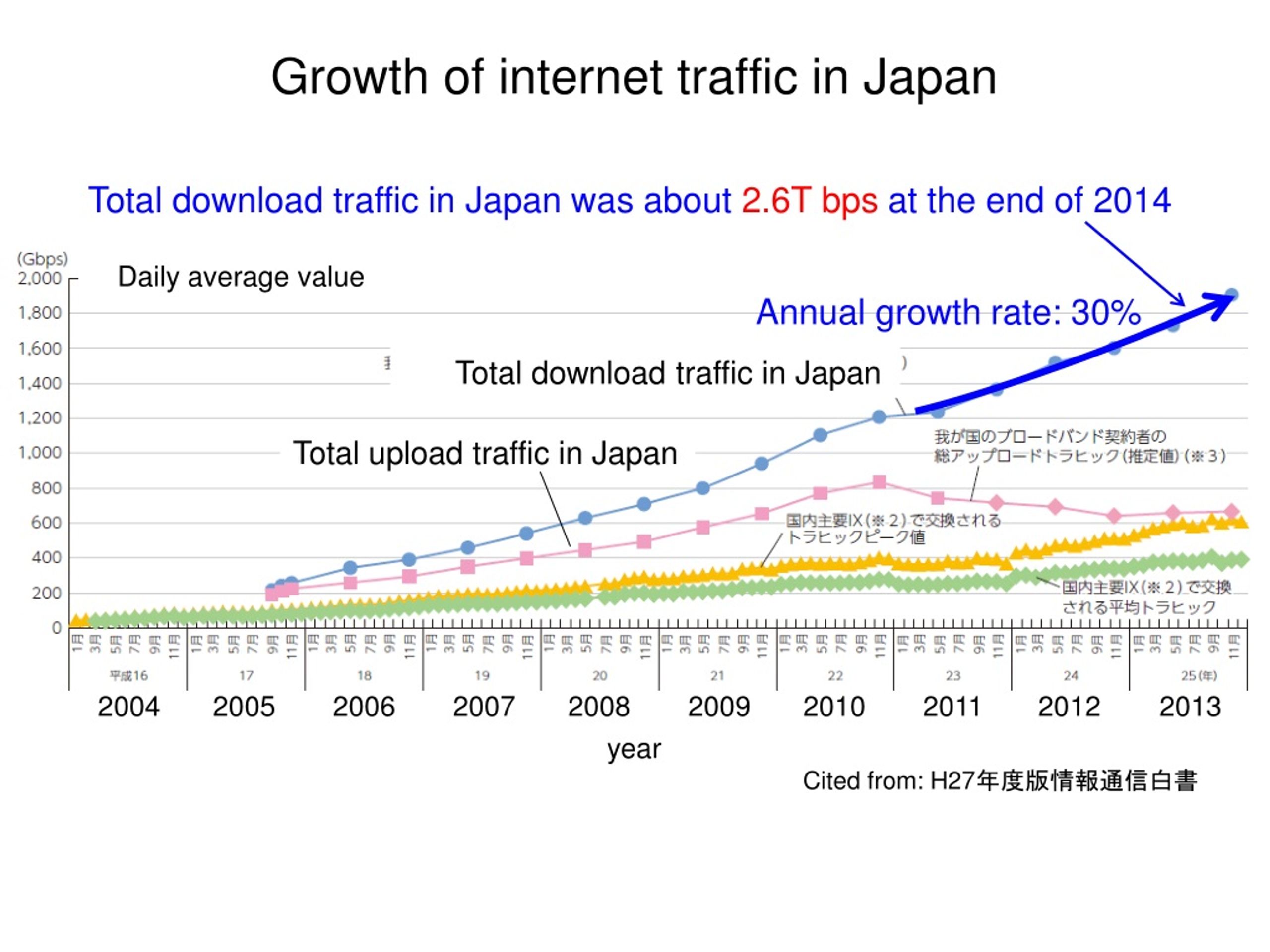

  3. Growth of internet traffic in Japan Total download traffic in Japan was about 2.6T bps at the end of 2014 Daily average value Annual growth rate: 30% Total download traffic in Japan Total upload traffic in Japan 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 Cited from: H27年度版情報通信白書 year

  4. Optical fiber submarine networks Cited from http://www1.alcatel-lucent.com/submarine/refs/index.htm

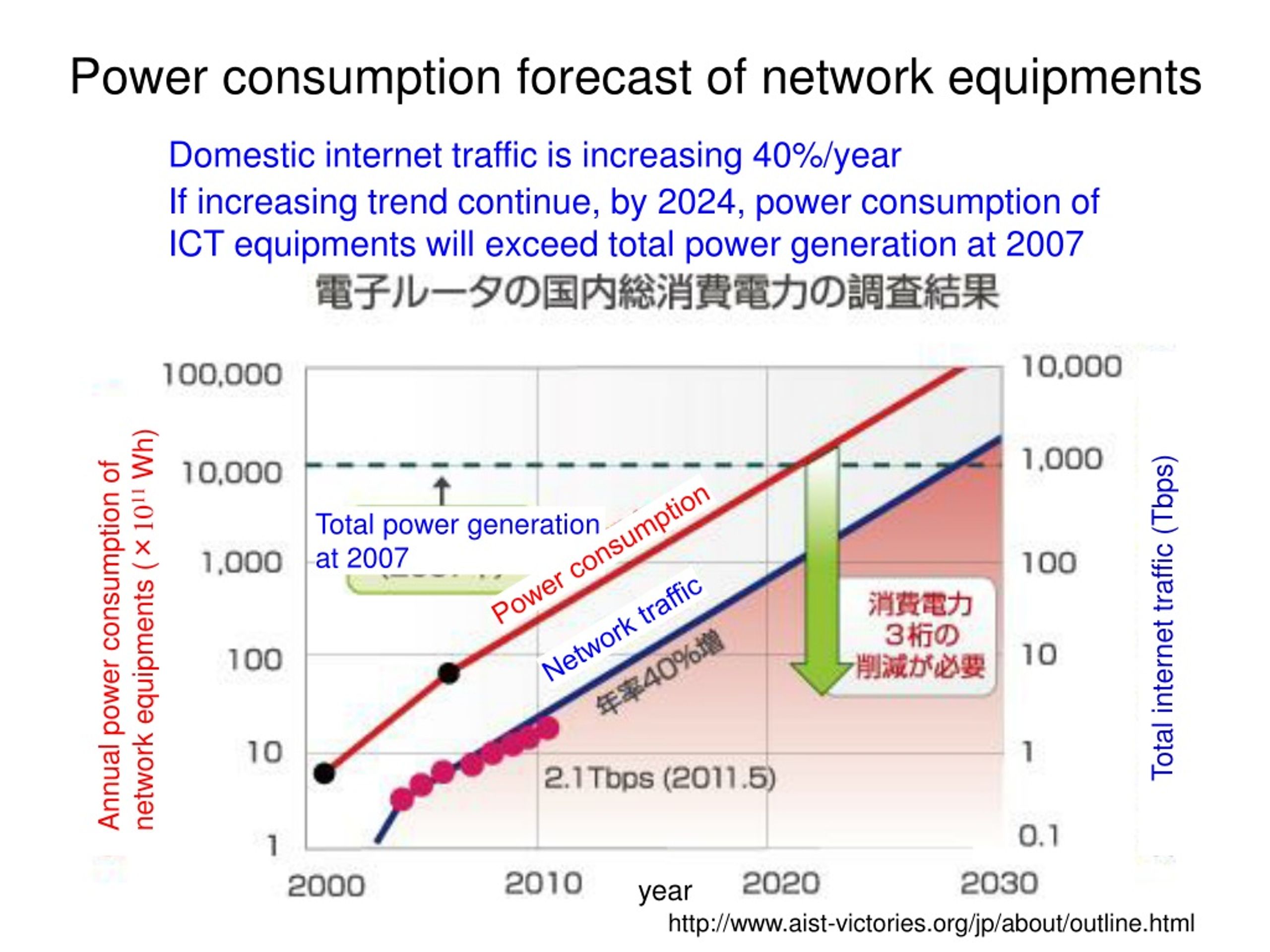

  5. Power consumption forecast of network equipments Domestic internet traffic is increasing 40%/year If increasing trend continue, by 2024, power consumption of ICT equipments will exceed total power generation at 2007 Total power generation at 2007 Power consumption Total internet traffic (Tbps) Annual power consumption of network equipments (×1011Wh) Network traffic year http://www.aist-victories.org/jp/about/outline.html

  6. Expanding applied area of optical communication Nowadays, application area of optical communications are spreading from rack-to-rack of server to universal-bass-interface of PCs Universal Bass interface (Light Peak) installed in SONYVAIO Z Backplane of a server (Orange color cables are optical fibers)

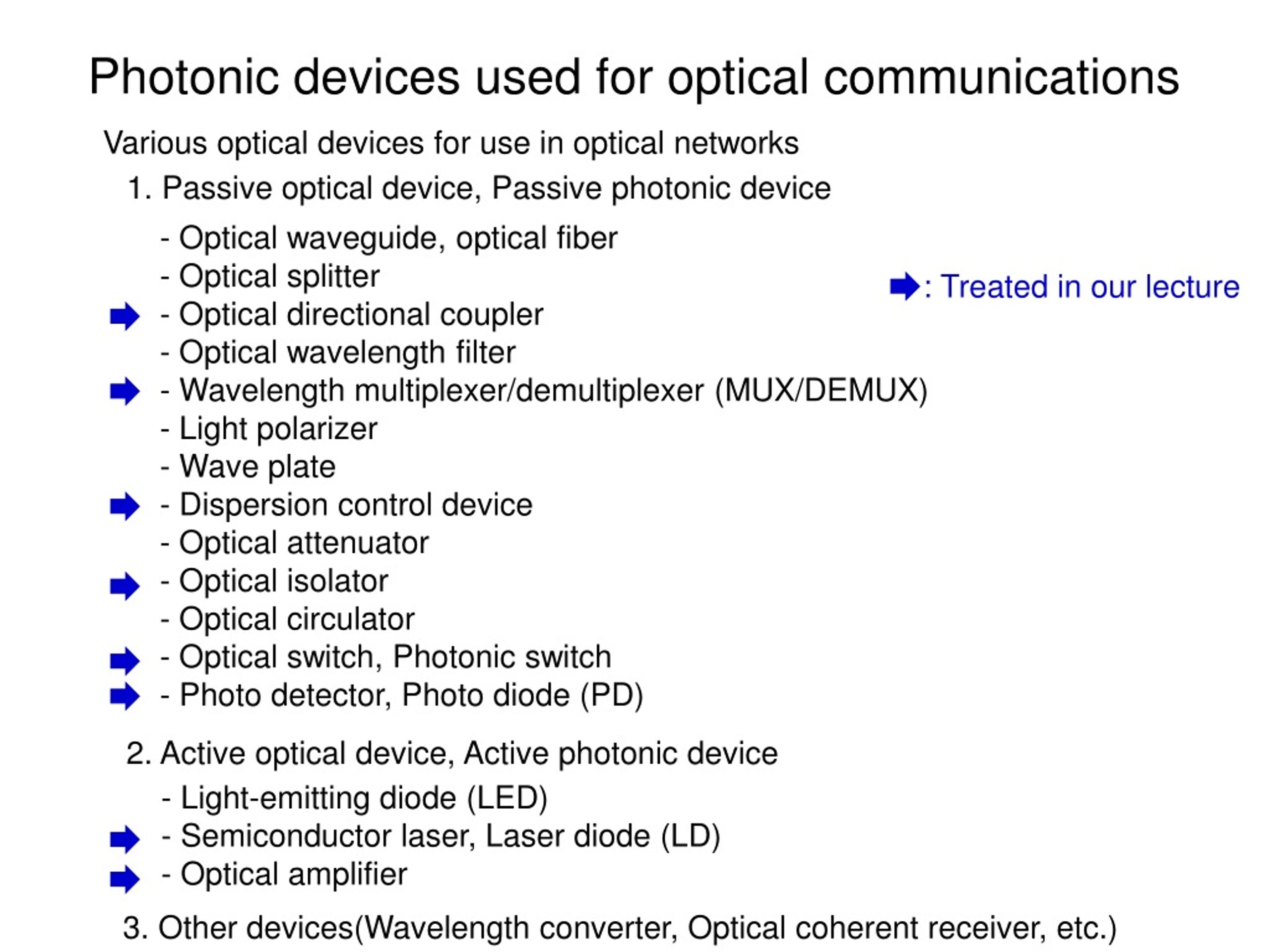

  7. Various optical devices for use in optical networks 1.Passive optical device, Passive photonic device • -Optical waveguide, optical fiber • Optical splitter • -Optical directional coupler • -Optical wavelength filter • Wavelength multiplexer/demultiplexer (MUX/DEMUX) • Light polarizer • Wave plate • -Dispersion control device • - Optical attenuator • Optical isolator • - Optical circulator • - Optical switch, Photonic switch • -Photo detector, Photo diode (PD) : Treated in our lecture Photonic devices used for optical communications 2.Active optical device, Active photonic device • -Light-emitting diode (LED) • Semiconductor laser, Laser diode (LD) • Optical amplifier 3.Other devices(Wavelength converter, Optical coherent receiver, etc.)

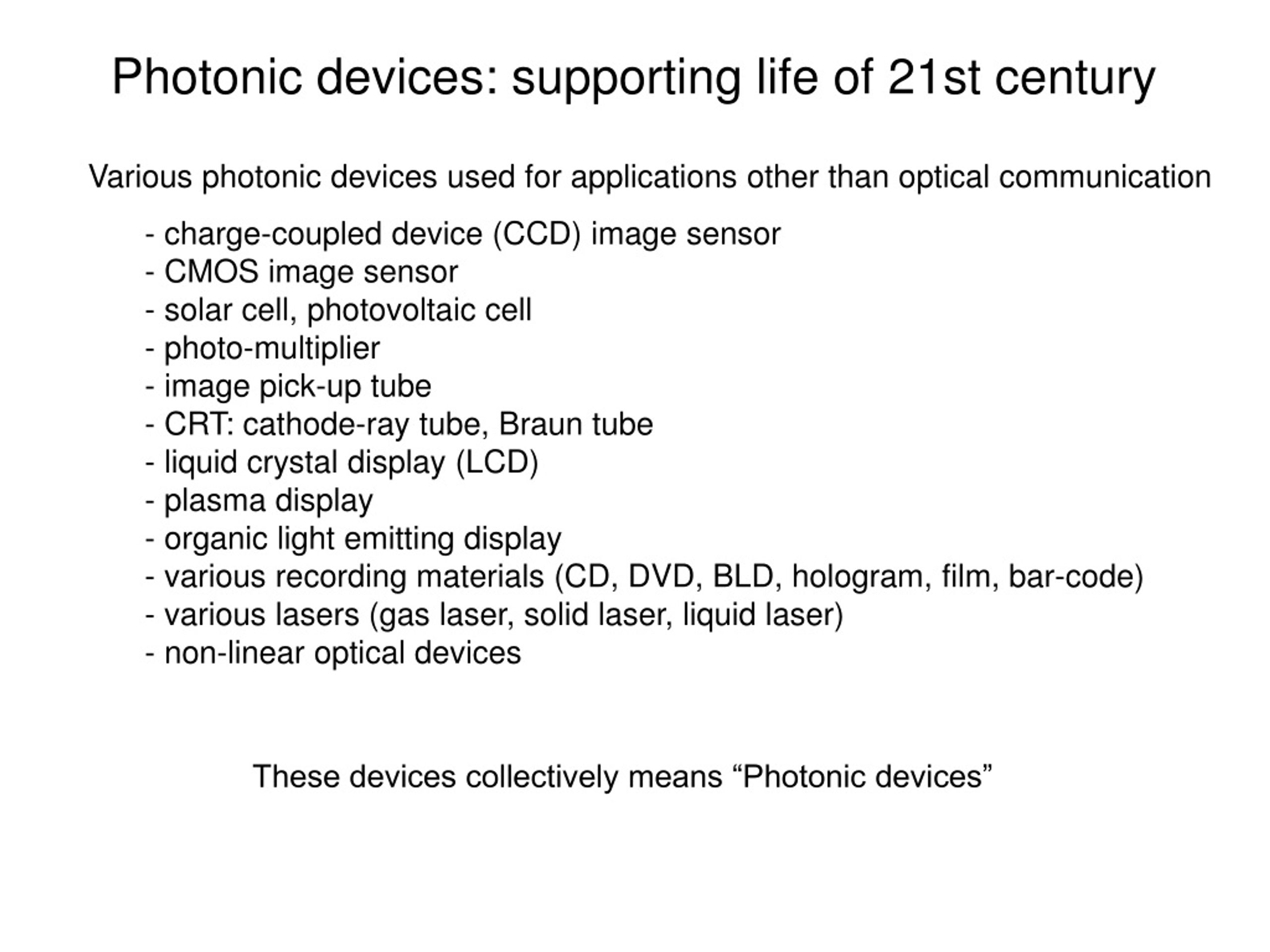

  8. Various photonic devices used for applications other than optical communication • charge-coupled device (CCD) image sensor • -CMOS image sensor • -solar cell, photovoltaic cell • photo-multiplier • -image pick-up tube • CRT: cathode-ray tube, Braun tube • - liquid crystal display (LCD) • - plasma display • organic light emitting display • various recording materials (CD, DVD, BLD, hologram, film, bar-code) • various lasers (gas laser, solid laser, liquid laser) • - non-linear optical devices Photonic devices: supporting life of 21st century These devices collectively means “Photonic devices”

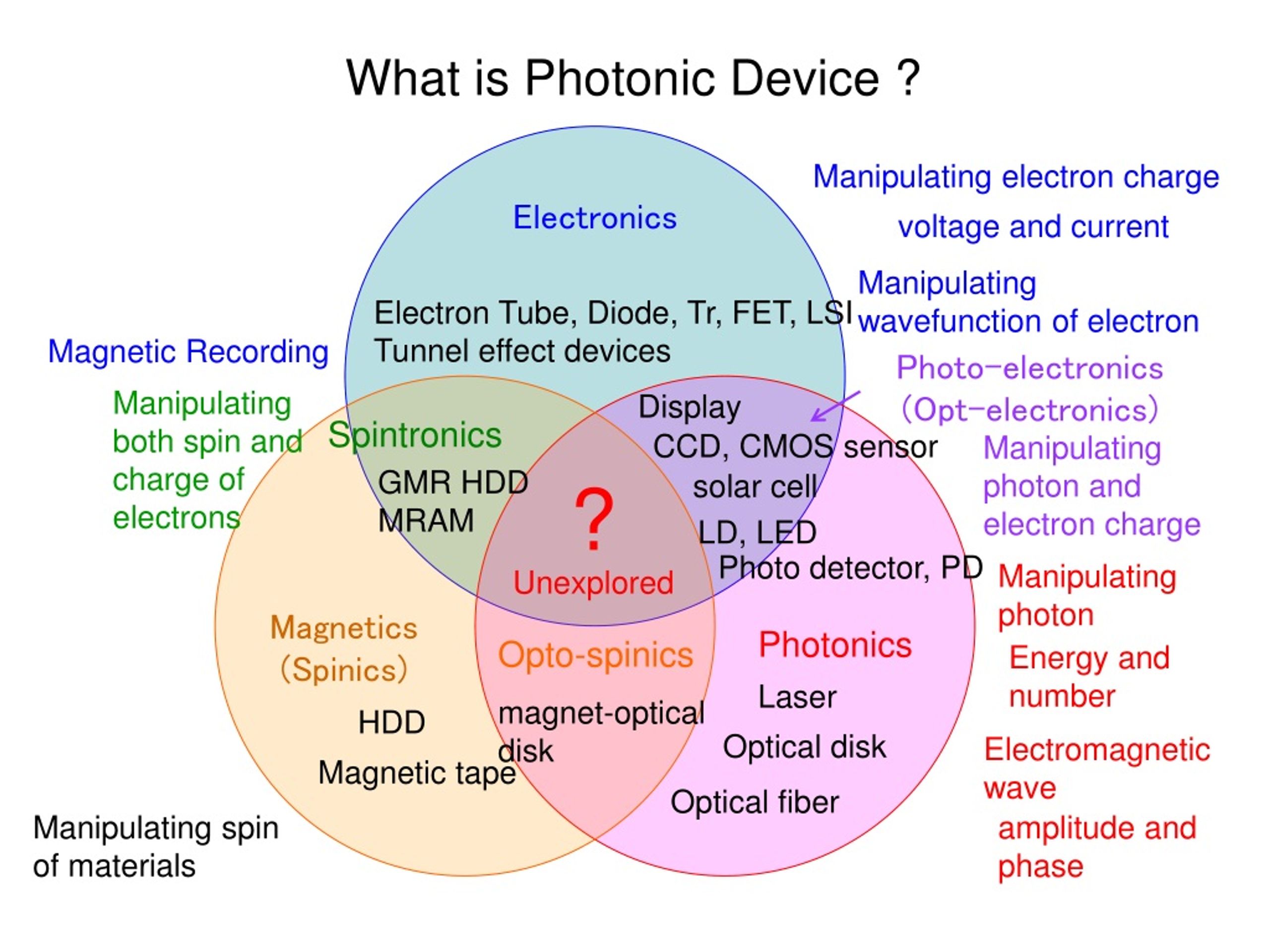

  9. What is Photonic Device ? Manipulating electron charge Electronics voltage and current Manipulating wavefunction of electron Electron Tube, Diode, Tr, FET, LSI Tunnel effect devices Magnetic Recording Photo-electronics (Opt-electronics) Manipulating both spin and charge of electrons Display Spintronics CCD, CMOS sensor Manipulating photon and electron charge GMR HDD MRAM solar cell ? LD, LED Photo detector, PD Manipulating photon Unexplored Magnetics (Spinics) Photonics Opto-spinics Energy and number Laser magnet-optical disk HDD Optical disk Electromagnetic wave Magnetic tape Optical fiber Manipulating spin of materials amplitude and phase

  10. 105 T = 300K Si In0.53Ga0.47As 104 GaAs Optical absorption coefficient: α(cm-1) InP Ge 103 102 0.4 0.6 0.8 1.0 1.2 1.4 1.6 Wavelength: λ(μm) Properties required for semiconductor used as photonic devices Passive devices(Non light-emitting devices) ・ Transparent at operating wavelength Basis of semiconductor photonic devices ・ Small nonlinear optical effect (as distinct from nonlinear optical devices) ・ Better for small material dispersion ・ Small birefringence (polarization independence) Active devices(Light-emitting devices) ・ Moderately-opaque at operating wavelength ・ High radiant transition probability in case of light-emitting devices (Direct transition semiconductor ) ・ To be obtained pn-junction (To be realized current injection devices) Optical absorption coefficient of major semiconductor materials

  11. Semiconductor and band structure According to Bloch theorem, wave function of an electrons in crystal is described as a quantum number called “wave number” This predicts existing dispersion relation between energy and wave number of electron. This relation is called energy band (structure) Band structure of semiconductors Electron In bulk Si, holes distribute at around the Γ point, on the other hand, electrons distribute at around the X point (Indirect transition semiconductors) Hole Band gap ~1.1eV Dispersion relation of electron energy in Si

  12. Band structure of compound semiconductors Both electrons and holes distribute at around the Γ point (Direct transition semiconductors) Band structure of semiconductors Electron Electron Hole Hole GaAs InP

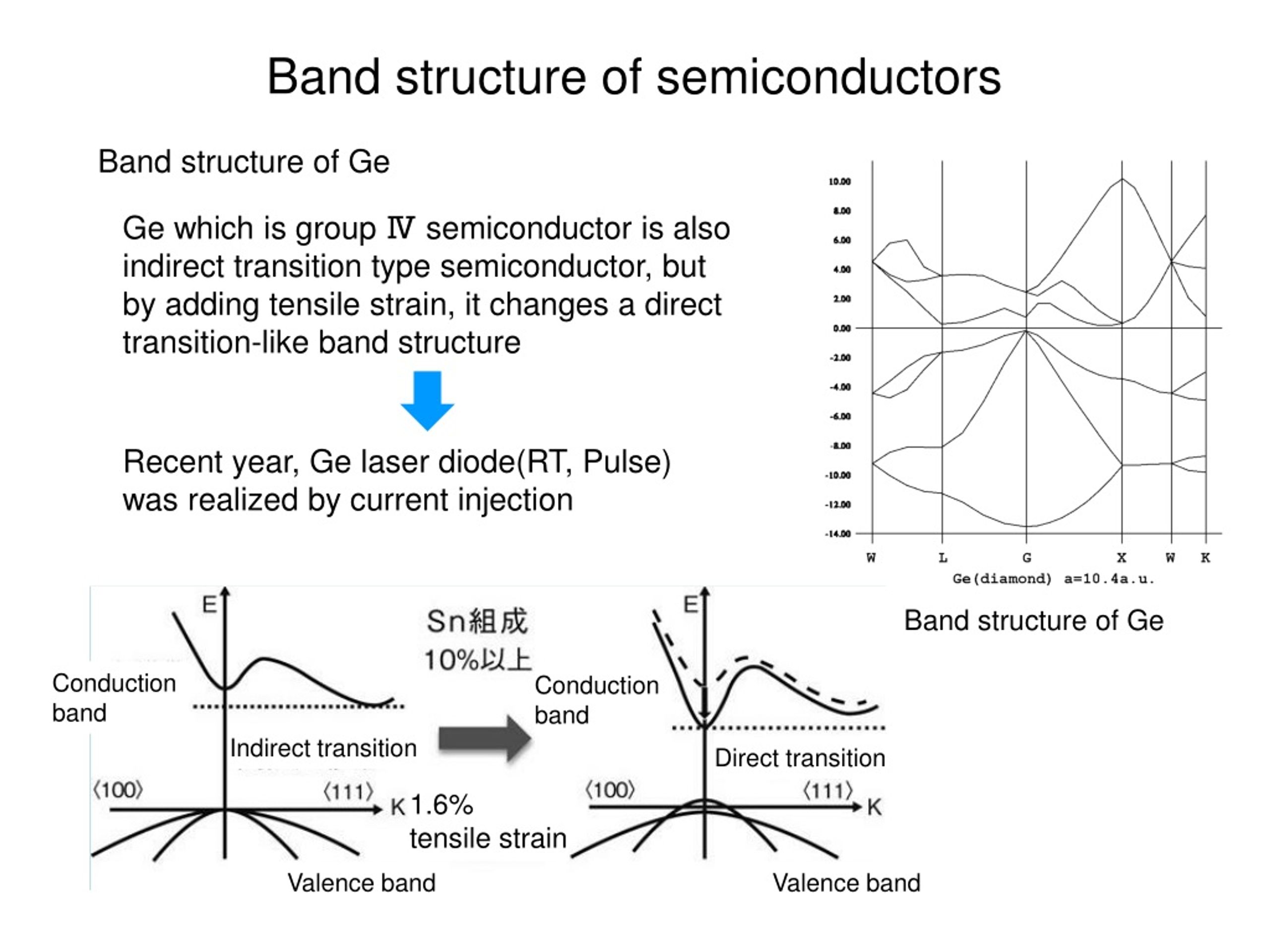

  13. Band structure of Ge Ge which is group Ⅳ semiconductor is also indirect transition type semiconductor, but by adding tensile strain, it changes a direct transition-like band structure Band structure of semiconductors Recent year, Ge laser diode(RT, Pulse) was realized by current injection Band structure of Ge Conduction band Conduction band Indirect transition Direct transition 1.6% tensile strain Valence band Valence band

  14. Material dispersion Values of dielectric constant (refractive index), magnetic permeability depend on frequency of electromagnetic wave interacting with the material Material equation Basis of semiconductor photonic devices Dielectric constant (refractive index) significantly changes at the resonance frequency of materials. In linear response, between real part and imaginary part of frequency response function holds Kramers-Kronig relation. Calc. Real part W. Sellmeier equation Photon energy (eV) Phenomenologically-derived equation of relation between wavelength and refractive index Calc. Imaginary part Here, λi = c/νi, c: light speed, νi: resonance frequency of material, Ai: Constant Photon energy (eV) Calculation of dielectric function ε of Si

  15. Birefringence In anisotropic medium, dielectric constant (refractive index), magnetic permeability are tensor Basis of semiconductor photonic devices Optical axis Outgoing ray (Material equation) extraordinary ray Incident ray Crystal is optically anisotropic medium ordinary ray When light beam enter a crystal, it splits two beams (ordinary ray and extraordinary ray) In birefringence crystals, an incident direction where light beam does not split is called optical axis (correspond to c-axis of the crystal) Birefringence of calcite

  16. Nonlinear optical effect Values of dielectric constant (refractive index), magnetic permeability depend on amplitude of electromagneticfield interacting with the material Material equation Basis of semiconductor photonic devices When strong electric field (light) applied to a material, nonlinear optical effects emerge. Wavelength conversion devices use this effects. When intensity of incident light is weak, linear polarization P which proportional to the electric field Eis induced. Linear polarization c: Electricsusceptibility When intensity of incident light become strong, electricsusceptibility become depended on the electric field E

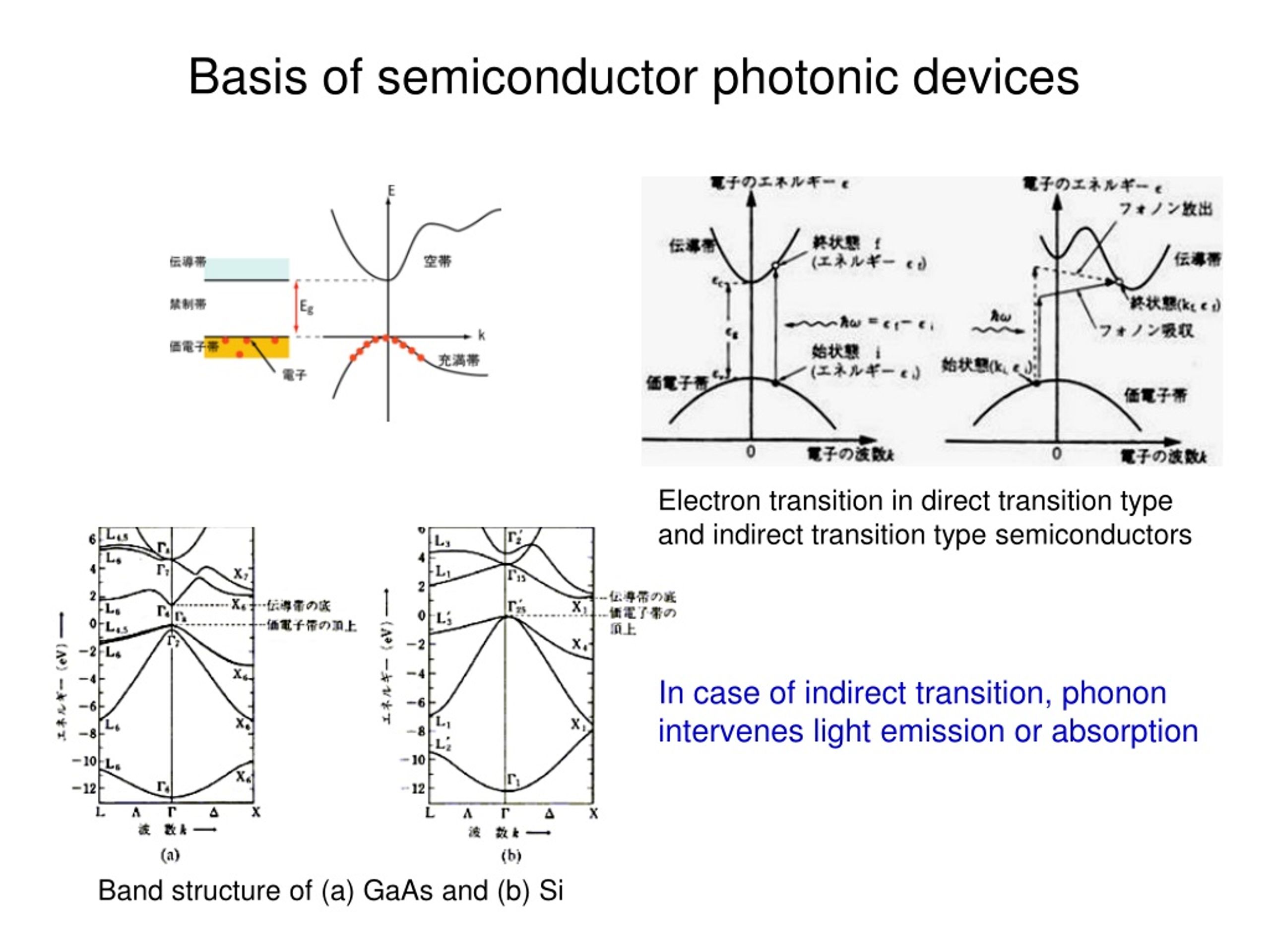

  17. Basis of semiconductor photonic devices Electron transition in direct transition type and indirect transition type semiconductors In case of indirect transition, phonon intervenes light emission or absorption Band structure of (a) GaAs and (b) Si

  18. Excited state Nucleus Light absorption and emission in material All light come from atoms ! Sun light‥‥Nuclear fusion of hydrogen Light emission from materials Fluorescence of fireflies ‥‥Chemical reaction of organic materials Light Ground state Light from burning materials ‥‥ Chemical reaction of organic materials Excited state ν ΔE Light Electroluminescence from LED‥‥Electron transition in semiconductors Ground state ΔE = hν Why materials emit light? You have to learn about interaction mechanism of matter with electromagnetic field if you want to understand these phenomena In the field of Quantum electronics

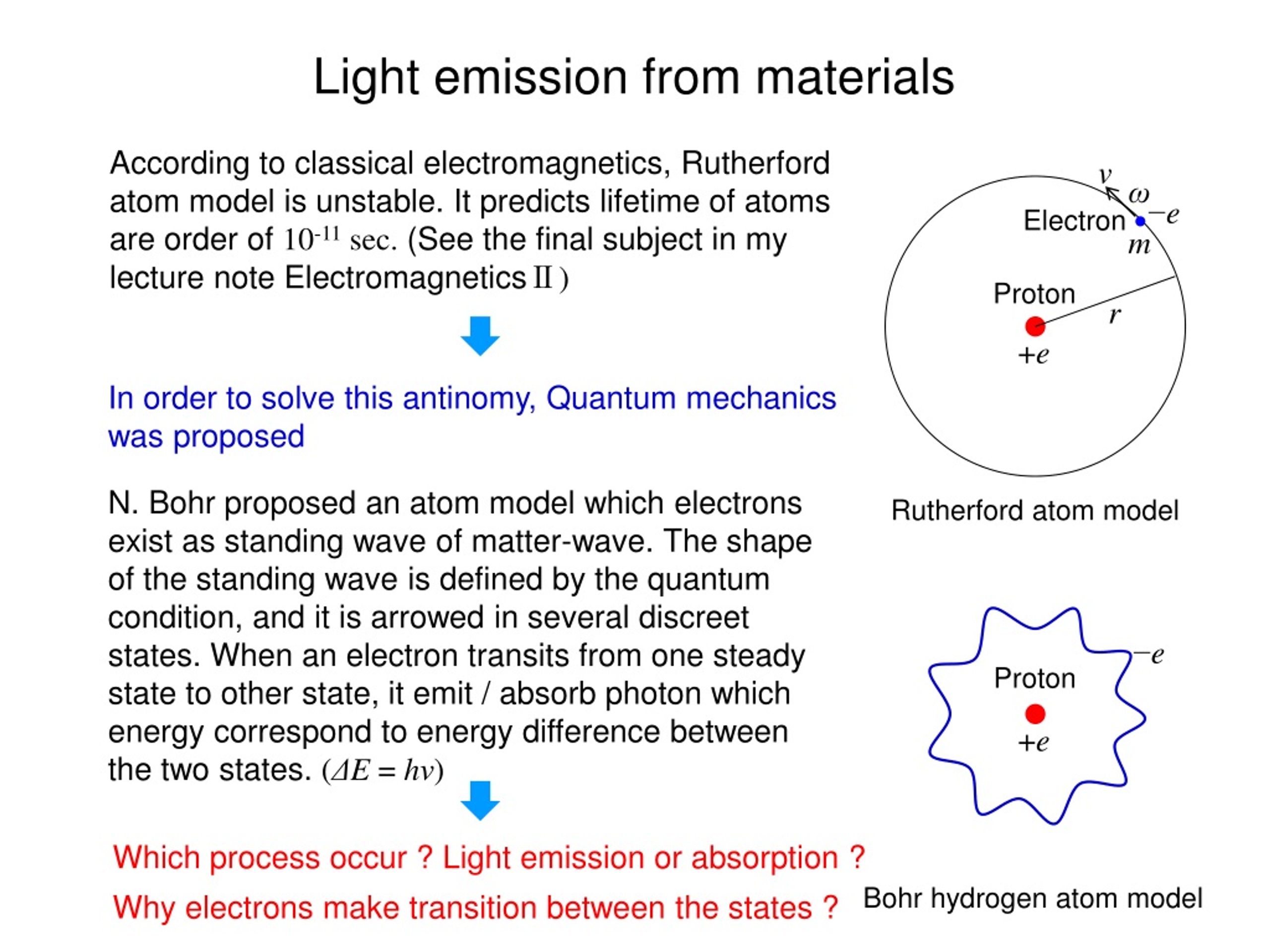

  19. v ω −e Electron m Proton r +e Rutherford atom model According to classical electromagnetics, Rutherford atom model is unstable. It predicts lifetime of atoms are order of 10-11sec. (See the final subject in my lecture note ElectromagneticsⅡ) Light emission from materials In order to solve this antinomy, Quantum mechanics was proposed N. Bohr proposed an atom modelwhich electrons exist as standing wave of matter-wave. The shape of the standing wave is defined by the quantum condition, and it is arrowed in several discreet states. When an electron transits from one steady state to other state, it emit / absorb photon which energy correspond to energy difference between the two states. (ΔE = hν) −e Proton +e Which process occur ? Light emission or absorption ? Bohr hydrogen atom model Why electrons make transition between the states ?

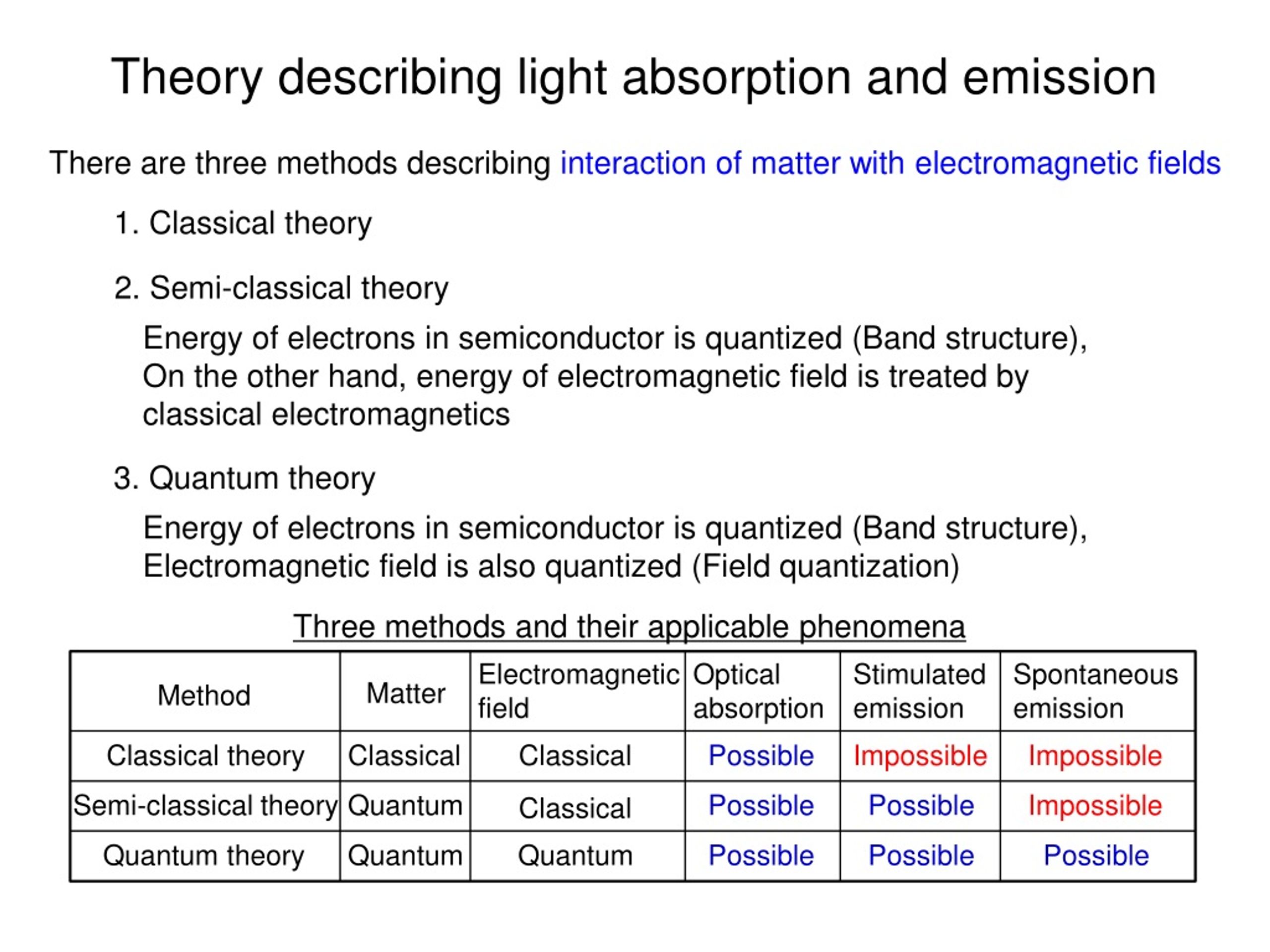

  20. There are three methods describing interaction of matter with electromagnetic fields 1.Classical theory 2.Semi-classical theory Theory describing light absorption and emission Energy of electrons in semiconductor is quantized (Band structure), On the other hand, energy of electromagnetic field is treated by classical electromagnetics 3.Quantum theory Energy of electrons in semiconductor is quantized (Band structure), Electromagnetic field is also quantized (Field quantization) Three methods and their applicable phenomena Electromagnetic field Optical absorption Stimulated emission Spontaneous emission Matter Method Classical theory Classical Classical Possible Impossible Impossible Semi-classical theory Quantum Possible Possible Impossible Classical Quantum theory Quantum Quantum Possible Possible Possible

  21. In order to understand interaction of matter with electromagnetic field, we need to describe electromagnetic field and to understand its fundamental characteristics Maxwell equations Description of electromagnetic field Electric fieldEand magnetic fieldBcan be also described as follows with electromagnetic potentialA(x, t) and ϕ(x, t) Therefore, Maxwell equations can be replaced to equations with Aand ϕas values of electromagnetic field, instead of EandB

  22. Electromagnetic potentials can be described as follows with arbitrary scalar function χ(x, t). Description of electromagnetic field This function χ(x, t)is called a “gauge function”, and selecting these new electromagnetic potentialALand ϕL is called “gauge transformation”. Whenχ(x, t) was selected as ALand ϕL satisfying the following relation, the gauge is called “Lorenz gauge”. In this case, basic equations that describe electromagnetic phenomena is reduced to two simple equations regarding ALand ϕLas follows. These equations indicate that electromagnetic potentialALand ϕL caused by ie or epropagate as wave with light speed.

  23. Other than Lorenz gauge, whenAwas selected as satisfying condition, the gauge is called “Coulomb gauge”. In this case, basic equations that describe electromagnetic phenomena is as follows Description of electromagnetic field In free space where both electric chargeρeand electric currentie do not exist, Therefore, Eand Bis derived from Awith the following relations By selecting Coulomb gauge,electromagnetic fields can be described by only vector potential A, because scalar potential ϕ is constant in whole space when electric charge dose not exist in the thinking space.

  24. When single charged particle (electron) is in electromagnetic field, Hamiltonian of the particle is described as follows Interaction of charged particles with electromagnetic fields Here, p is the momentum operator, mis electron mass, Vis potential of electron, eis elementary charge, and A is vector potential. Hamiltonian H can be also written as, Here, H0 is an Unperturbed Hamiltonian which is for an electron in space without electromagnetic field, and Hintis an Interaction Hamiltonianwhich is originated by interaction between an electron and electromagnetic field. The last term in Hint is proportional to A2, and it reveals higher order effects (nonlinear optical effect). Here, we ignore it because the contribution is small.

  25. Position of a charged particle is described as Polarization of electron cloud Momentum of a charged particle is described as E r Electrical-dipole approximation of the interaction Vector potential is described as Polarization of atom +e e+iωt E Electric field is e−iωt r −e Therefore, Electrical dipole Terms “ei2ωt”or“e−i2ωt” disappear when integrating for time Here, R = er, and it called electric dipole moment

  26. Interaction Hamiltonian only include effect by electric field “RE” although the derived interaction equation for a charged particle include effects by both electric field (Coulomb force) and magnetic field (Lorentz force). The reason is that we assume the motion of a charged particle as which is vibration at a limited place. If we assume parallel motion for it, effect by magnetic field will be also included. Electrical-dipole approximation of the interaction In this way, when the interaction only depend on electric field, and the interaction can be described asRE, it is called electric dipole approximation. In some case, higher order polarization “multipolar” (such as electric quadrupole or electric octopole) occasionally emerge. 皆さんへのメッセージ 工学で扱う物理現象は非常に複雑なものが多い。従って、全ての物理現象を取り入れた完璧な理論を構築することは不可能である。 良きエンジニアとは、それら複雑な物理現象の中で、何が本質的に重要かを見極め、近似をうまく使い、無視できる物理現象は思い切って無視し、シンプルな理論を構築できる人である。ただし、どんな近似を使ったのかは決して忘れてはいけない。

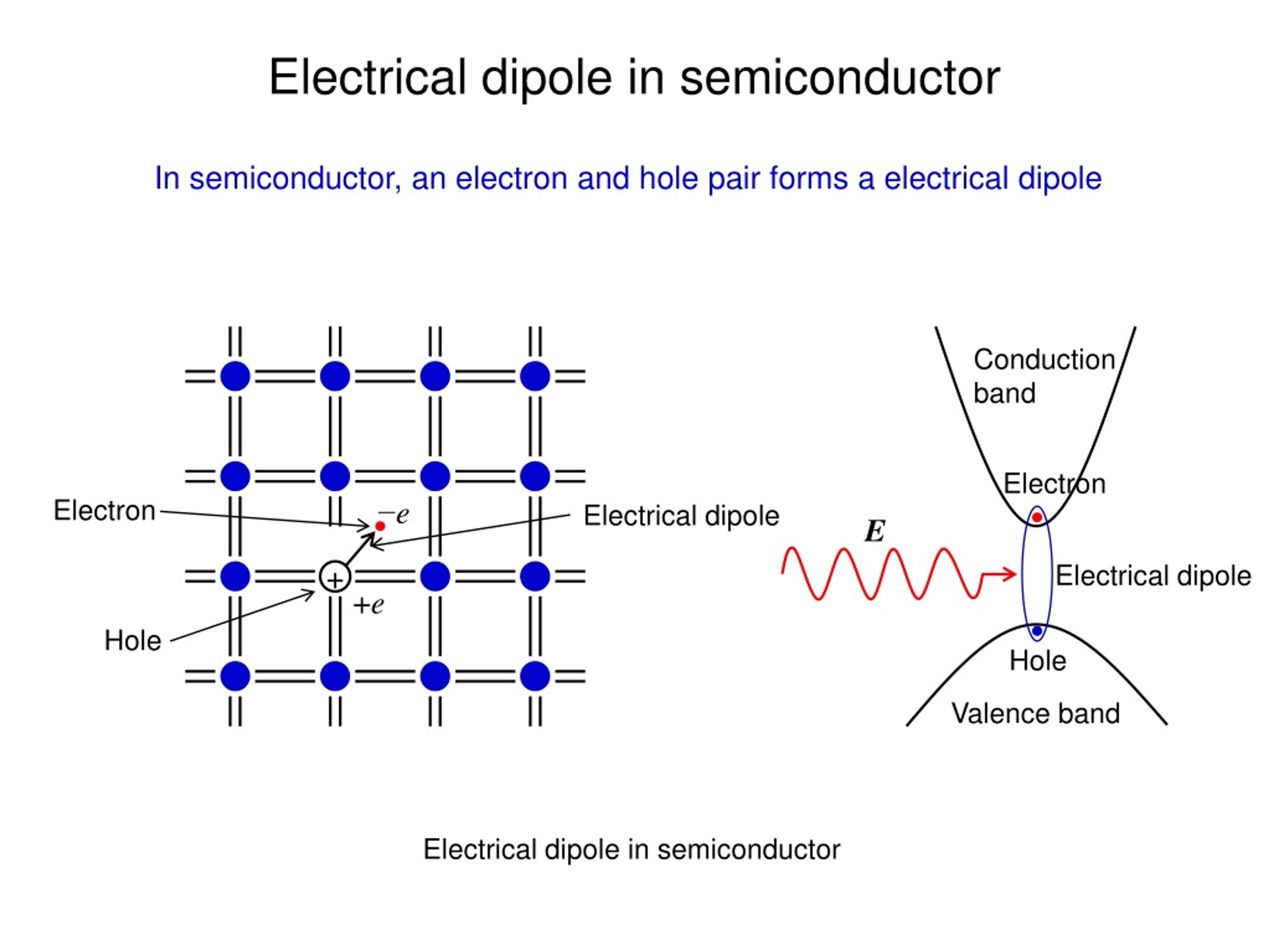

  27. In semiconductor, an electron and hole pair forms a electrical dipole Electrical dipole in semiconductor Conduction band Electron Electron −e Electrical dipole E Electrical dipole + +e Hole Hole Valence band Electrical dipole in semiconductor

  28. Physical quantities involving many particles (electrons) such as electrical current are statistical average values for the particles. Furthermore, expected values for multiple measurements of a single event is needed statistical treatments. We discuss about statistical nature for many particles or multiple measurements. State for νth particle or νth measurement can be described as Quantum statistics and density matrix . Here, is an energy eigenstate for single particle. It is assumed to form complete space. Therefore, any can be formed bylinear combination of . does not required the suffix (ν). If operator for a physical quantity is assumed as A,expected value for νth particle is . Next, we develop an average of expected values for the group of particle (ensemble average).We assume the contribution from the νthe particle (probability for finding n th particle) as P(ν) , and normalize it.

  29. Statistical average (ensemble average) of the expected value is described as Here, we rewrite as below Quantum statistics and density matrix Matrix ρhaving ρmn as its elements is called density matrix Using density matrix . is identity operator is summation of on-diagonal elements ofρA, that is Trace. , and

  30. If we know the nature of the density matrixρ, we can obtain expected value including statistical nature, even we do not know the state of each particle in the group or the probability for finding n th particleP(ν). Then we direct equations for density matrix. Here, we rewrite the definition of matrix elements of density matrix as below Motion equation of density matrix Then, density matrix can be described as By differentiating both sides of this equation with respect to t, we can obtain Here, we assume probability for finding n th particleP(ν)is time independent.

  31. From Schroedinger equation and its Hermitian conjugate , we obtain Motion equation of density matrix . This denotes time evolution of density matrix. Then we call it motion equation of density matrix or Quantum Liouville equation.
