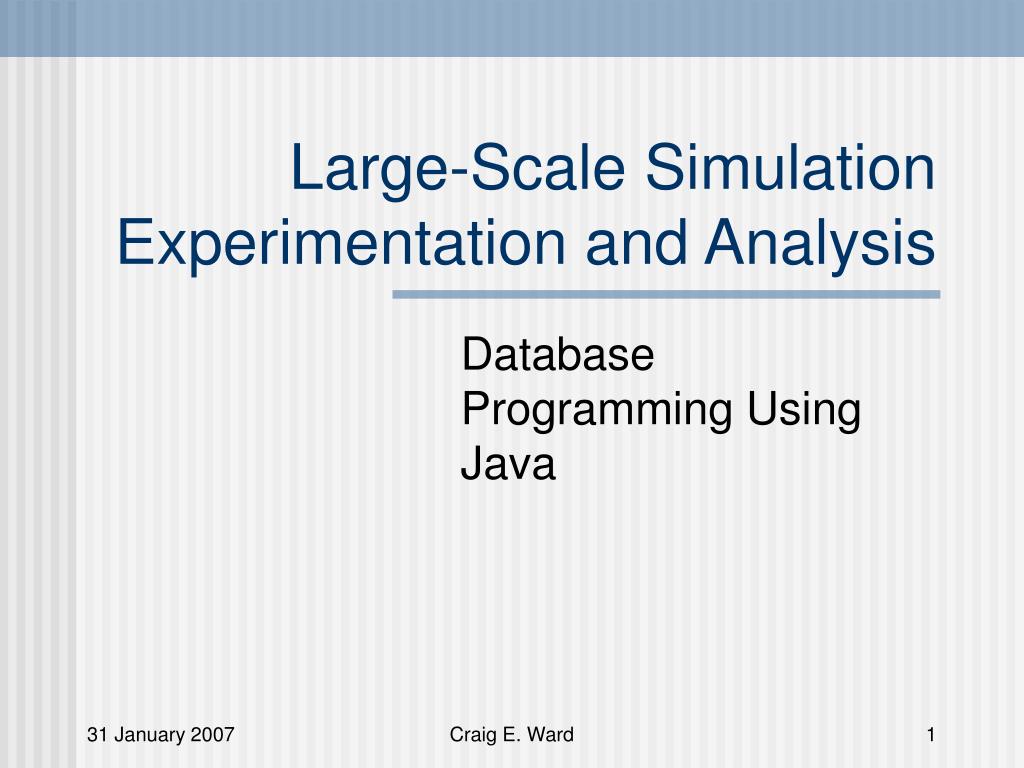

Large-Scale Simulation Experimentation and Analysis

Database Programming Using Java

Craig E. Ward

agenda

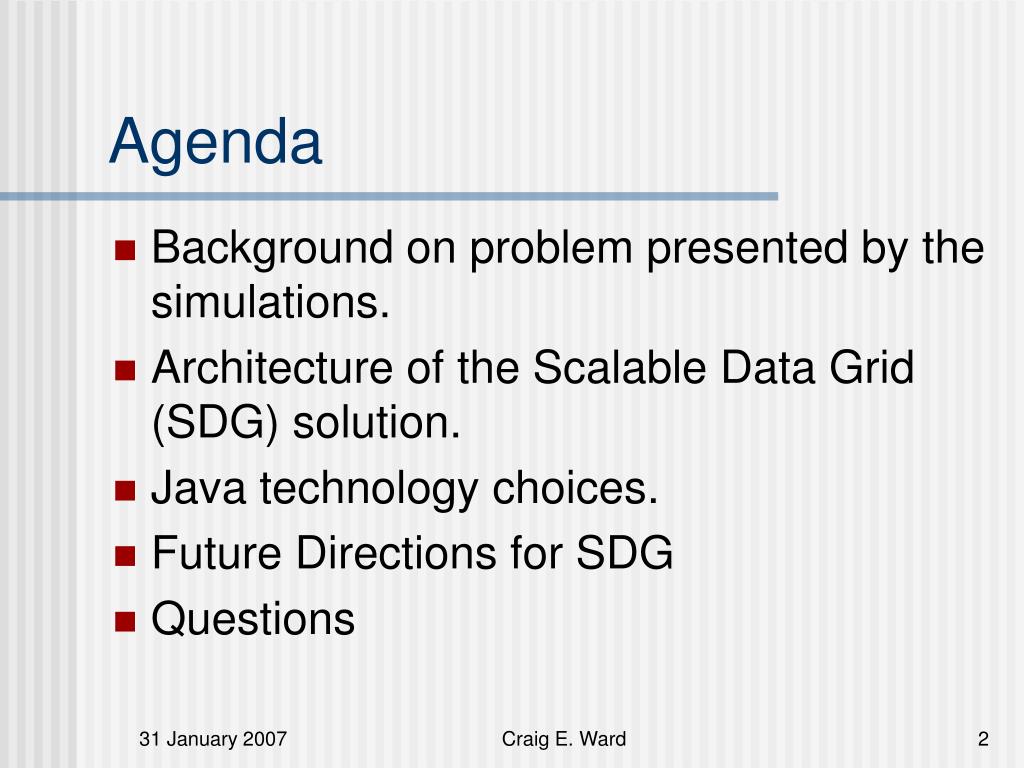

Agenda
  • Background on problem presented by the simulations.
  • Architecture of the Scalable Data Grid (SDG) solution.
  • Java technology choices.
  • Future Directions for SDG
  • Questions

Craig E. Ward

simulation environment
Simulation Environment

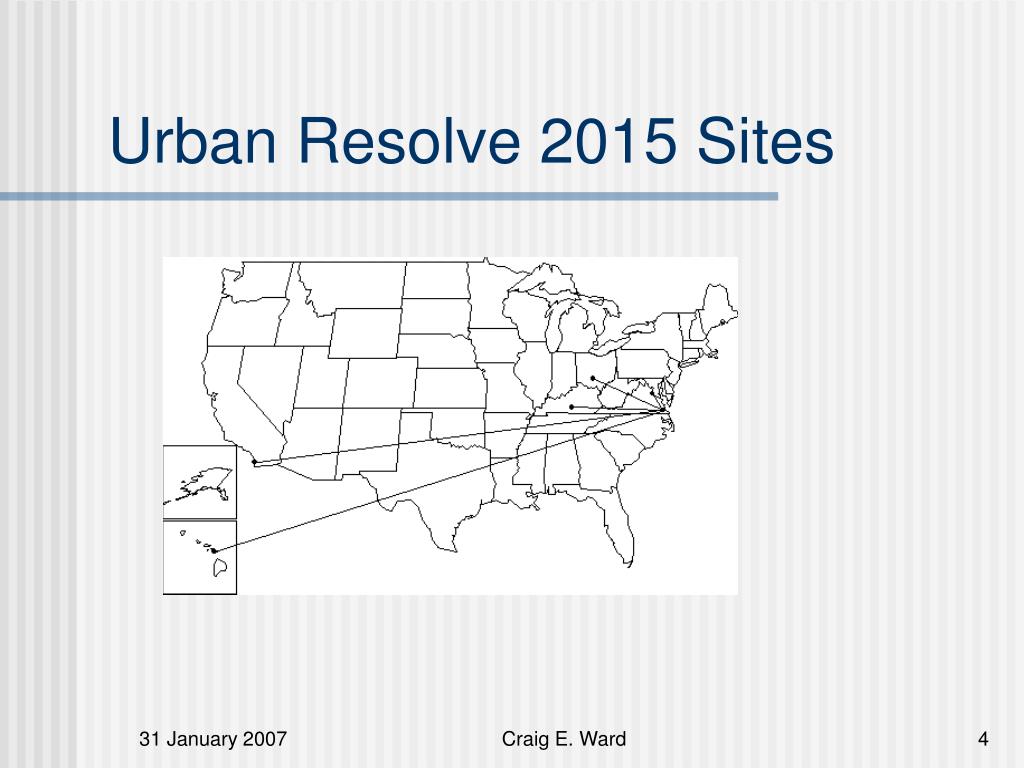

  • Joint Semi-Autonomous Forces (JSAF) environment in Urban Resolve experiments.
  • Distributed across multiple workstations and two 128-node clusters.
  • Goal of simulating 1,000,000 entities.

Craig E. Ward

logging simulation data

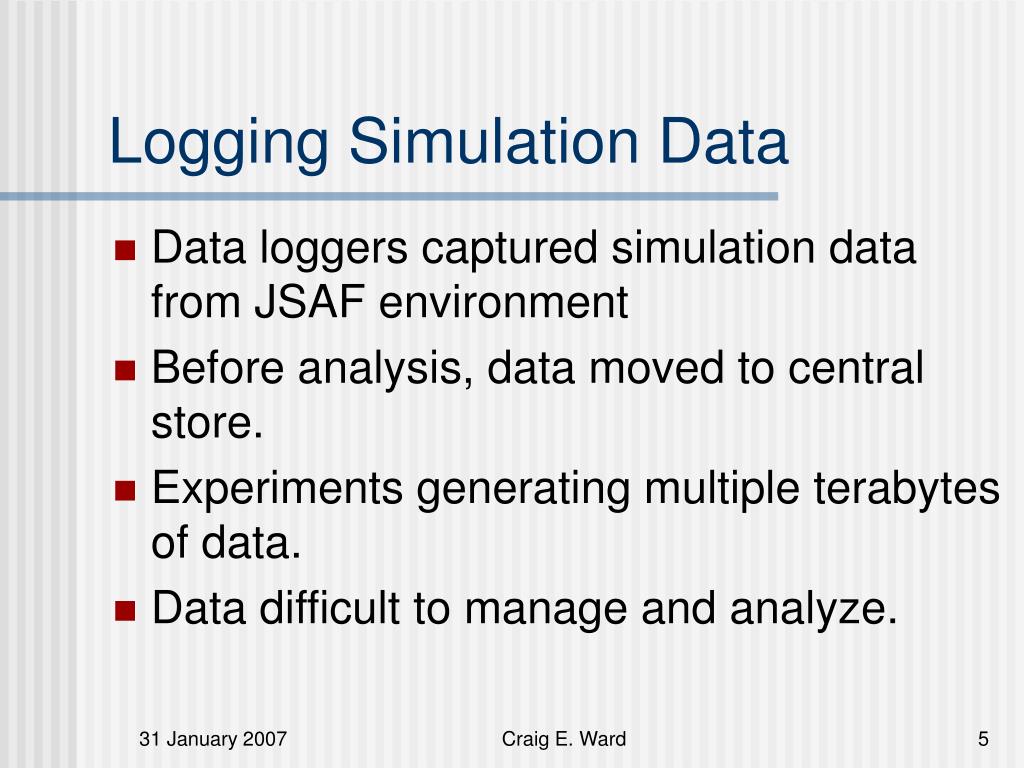

Logging Simulation Data
  • Data loggers captured simulation data from JSAF environment
  • Before analysis, data moved to central store.
  • Experiments generating multiple terabytes of data.
  • Data difficult to manage and analyze.

Craig E. Ward

scaleable data grid

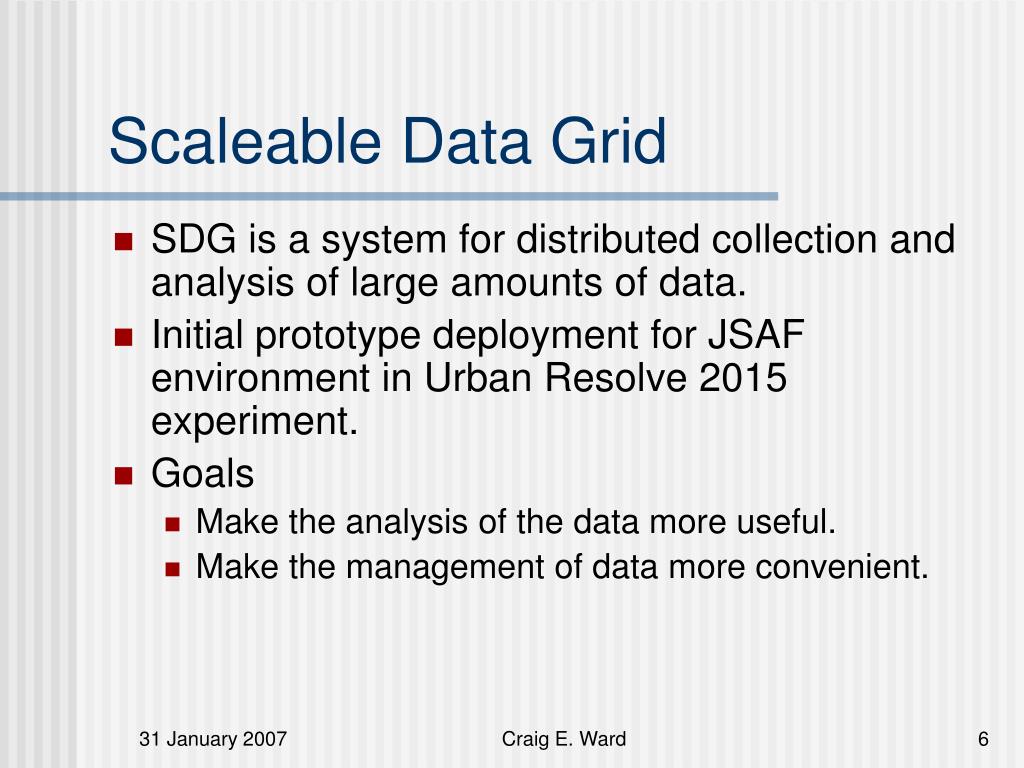

Scaleable Data Grid
  • SDG is a system for distributed collection and analysis of large amounts of data.
  • Initial prototype deployment for JSAF environment in Urban Resolve 2015 experiment.
  • Goals
    • Make the analysis of the data more useful.
    • Make the management of data more convenient.

Craig E. Ward

sdg n tier architecture

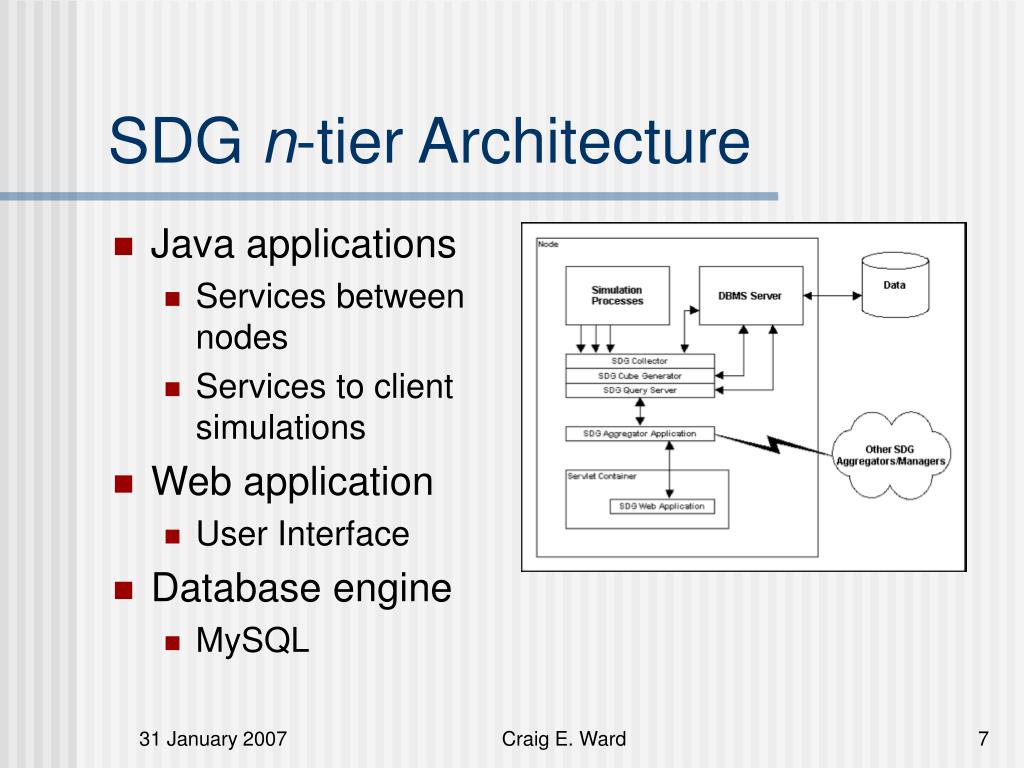

SDG n-tier Architecture
  • Java applications
    • Services between nodes
    • Services to client simulations
  • Web application
    • User Interface
  • Database engine
    • MySQL

Craig E. Ward

multidimensional cubes

Detection Cube

Multidimensional Cubes
  • Use the raw data to create multidimensional cubes of dimensions of interest.
  • Dimensions “roll up” into categories of greater abstraction.

Craig E. Ward

sdg cube implementation concepts

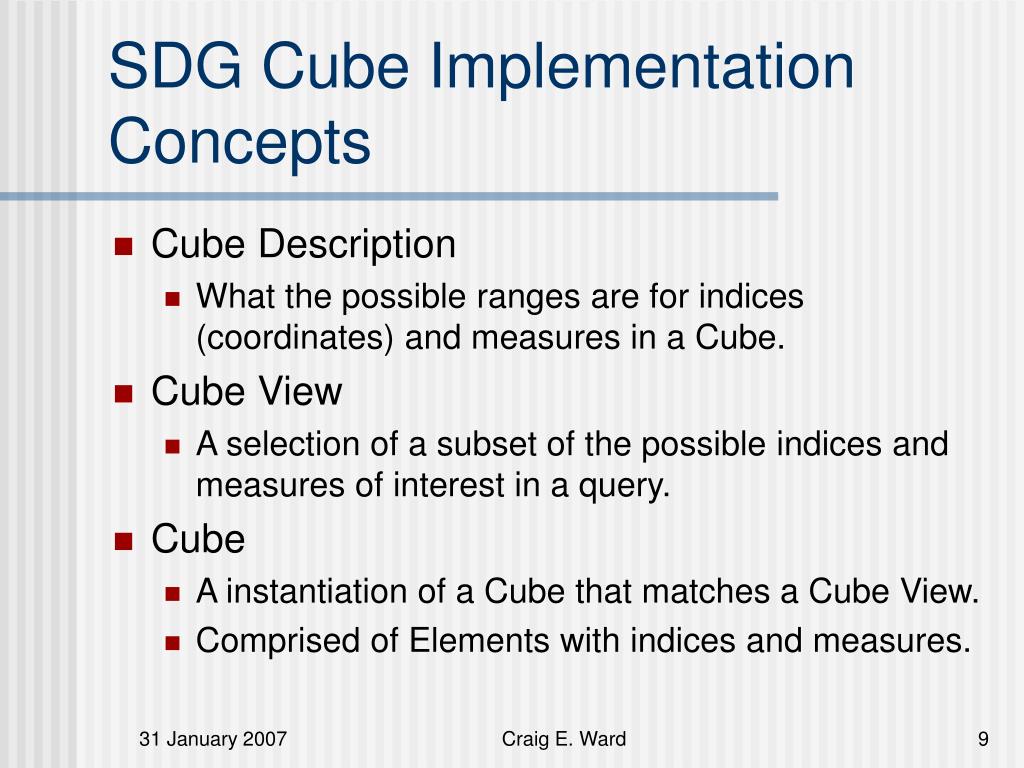

SDG Cube Implementation Concepts
  • Cube Description
    • What the possible ranges are for indices (coordinates) and measures in a Cube.
  • Cube View
    • A selection of a subset of the possible indices and measures of interest in a query.
  • Cube
    • A instantiation of a Cube that matches a Cube View.
    • Comprised of Elements with indices and measures.

Craig E. Ward

distributed communication

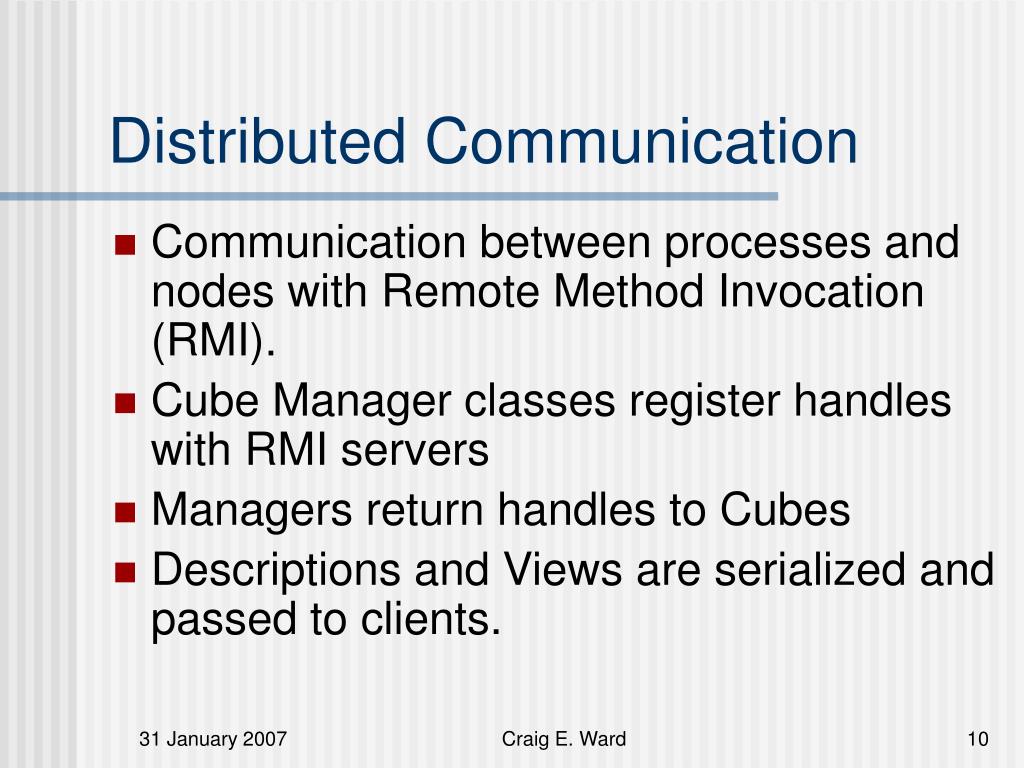

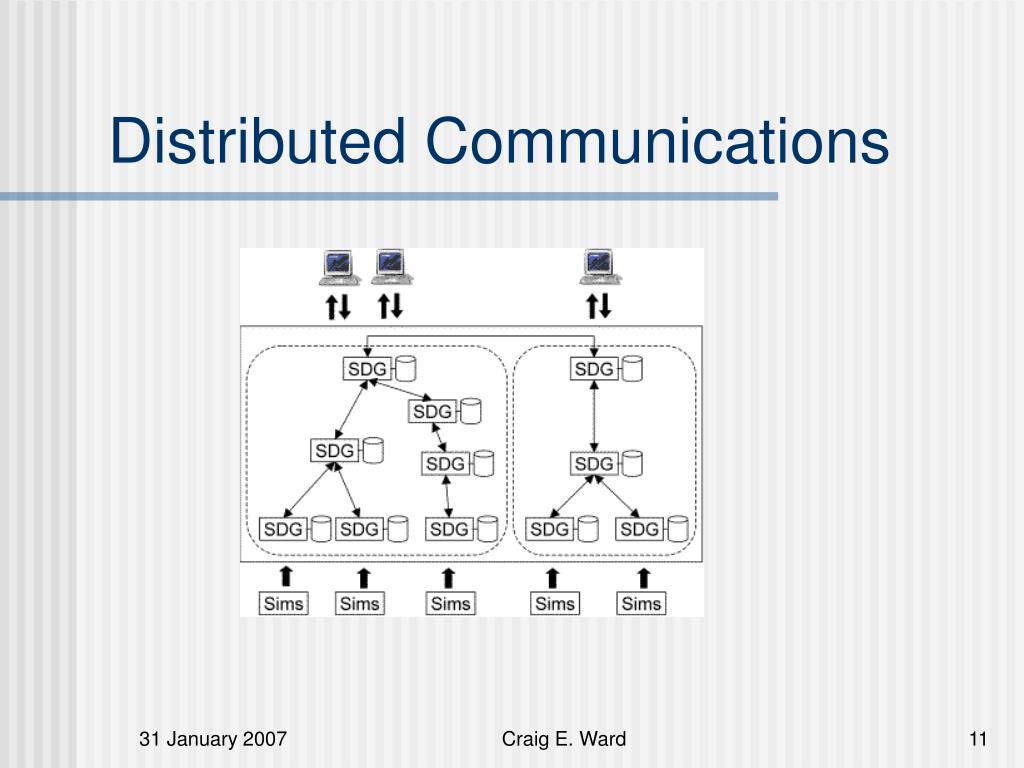

Distributed Communication
  • Communication between processes and nodes with Remote Method Invocation (RMI).
  • Cube Manager classes register handles with RMI servers
  • Managers return handles to Cubes
  • Descriptions and Views are serialized and passed to clients.

Craig E. Ward

slide12
JDBC
  • Cubes do not exist in their entirety outside of the database tables.
  • Tables store simple elements of the Cubes.
    • Measures at the coordinates in relational table.
  • Elements are very simple Java objects.

Craig E. Ward

threaded processing

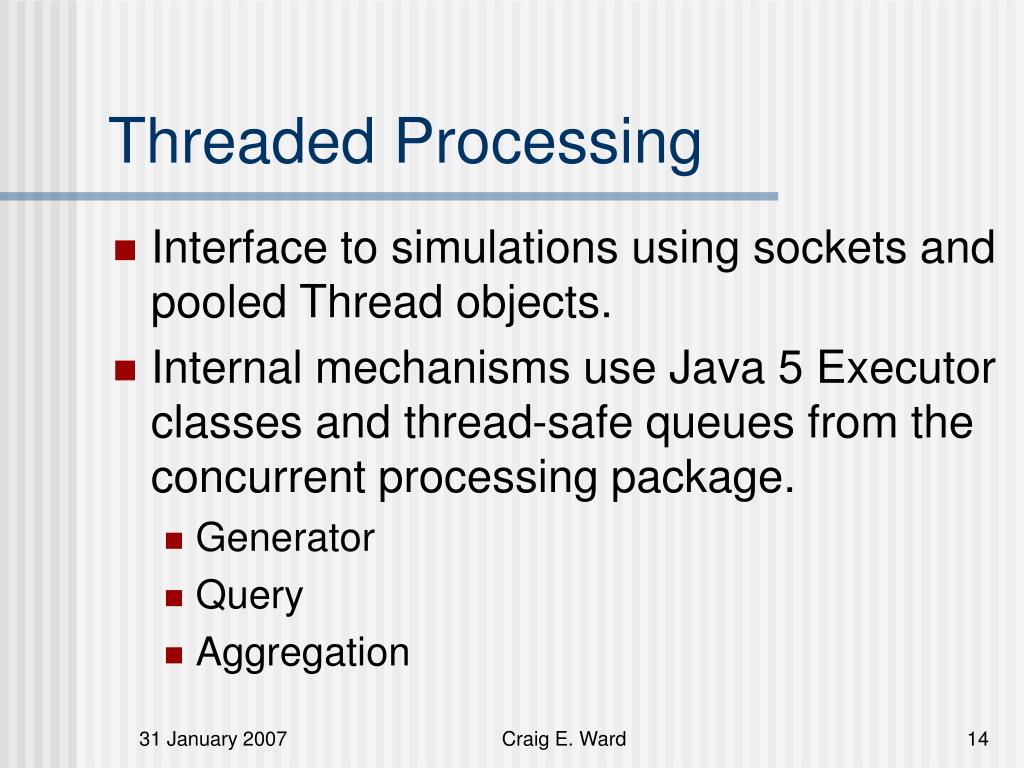

Threaded Processing
  • Interface to simulations using sockets and pooled Thread objects.
  • Internal mechanisms use Java 5 Executor classes and thread-safe queues from the concurrent processing package.

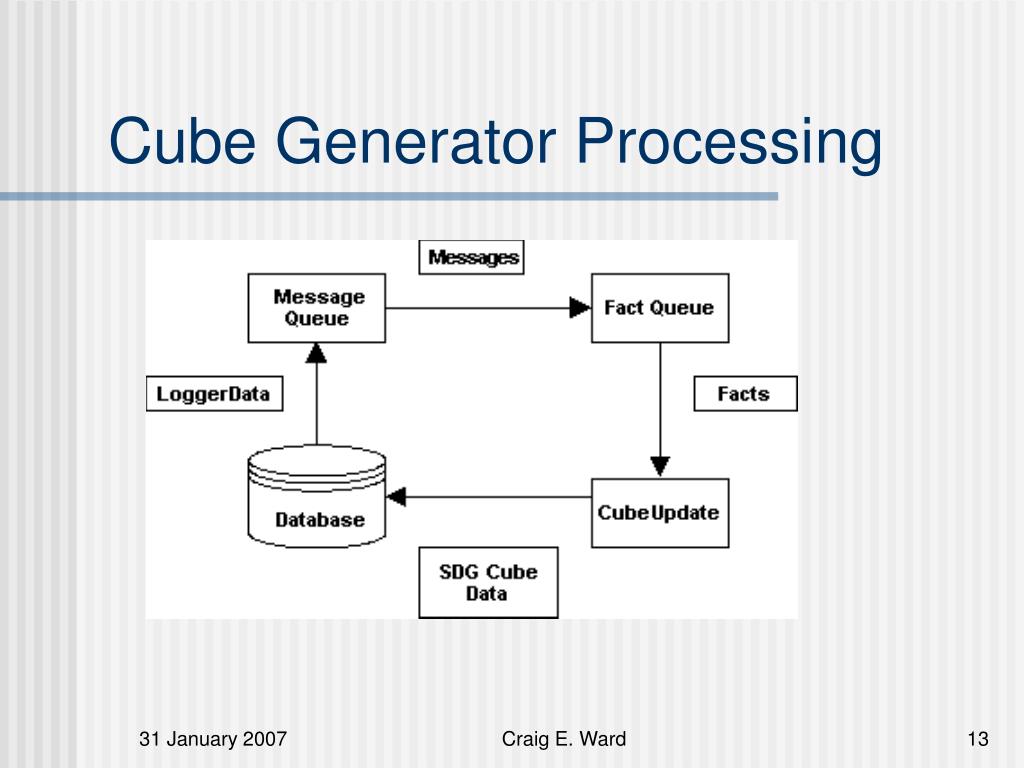

    • Generator
    • Query
    • Aggregation

Craig E. Ward

sdg web application

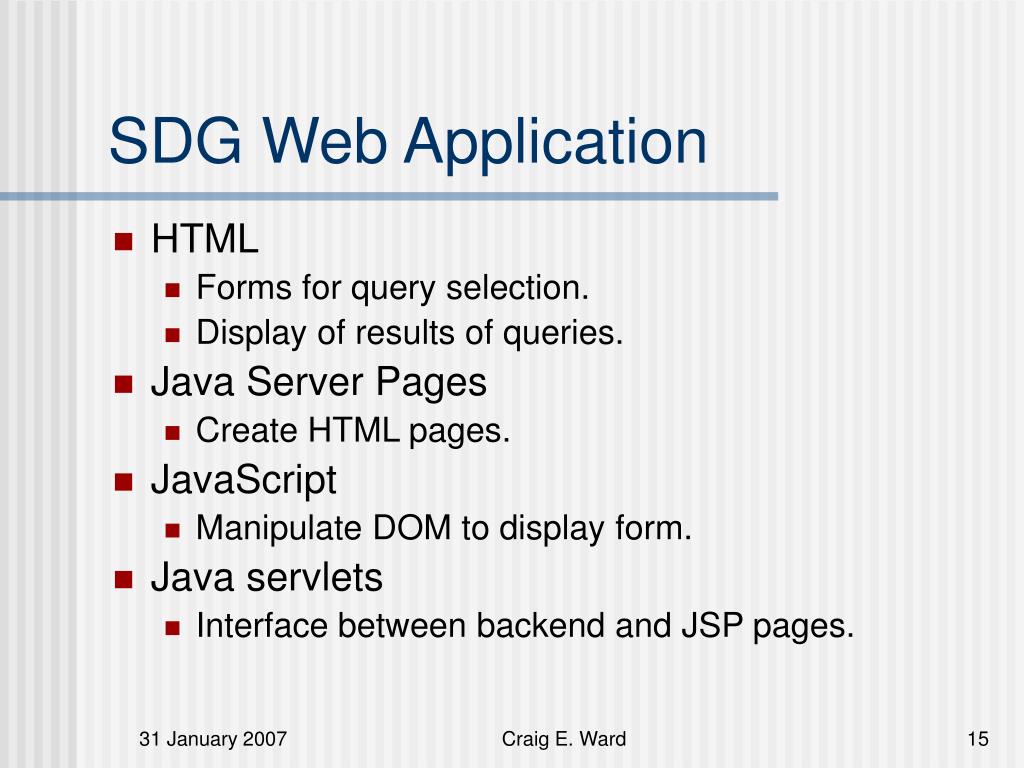

SDG Web Application
  • HTML
    • Forms for query selection.
    • Display of results of queries.
  • Java Server Pages
    • Create HTML pages.
  • JavaScript
    • Manipulate DOM to display form.
  • Java servlets
    • Interface between backend and JSP pages.

Craig E. Ward

java technologies used

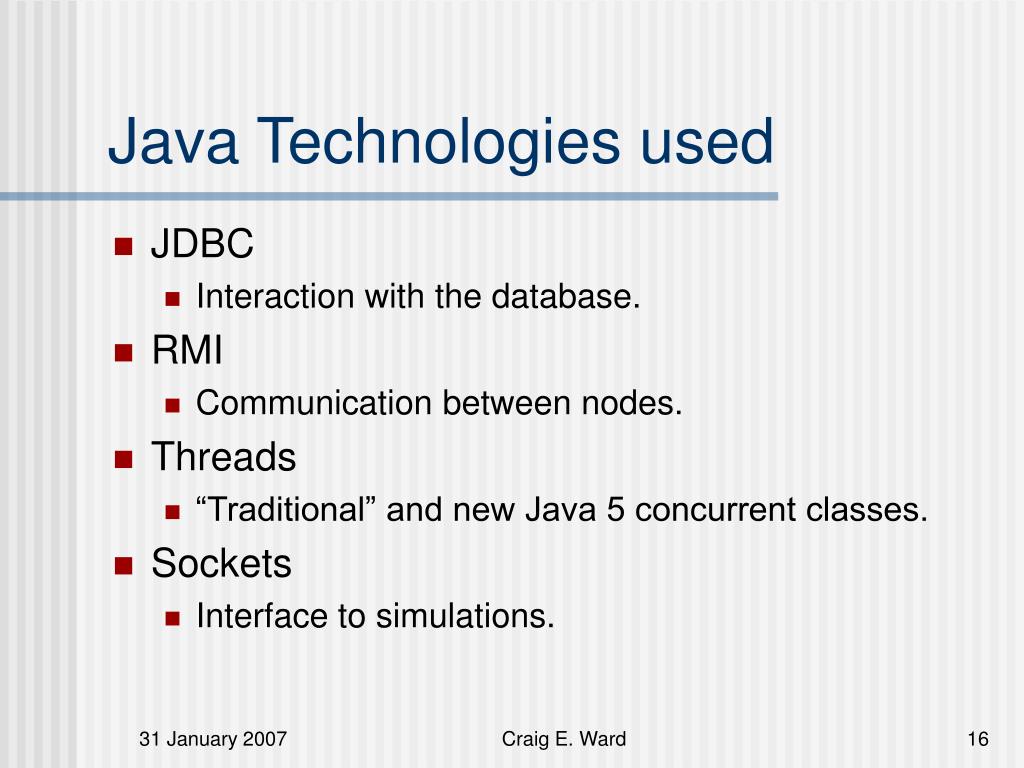

Java Technologies used
  • JDBC
    • Interaction with the database.
  • RMI
    • Communication between nodes.
  • Threads
    • “Traditional” and new Java 5 concurrent classes.
  • Sockets
    • Interface to simulations.

Craig E. Ward

technologies not used

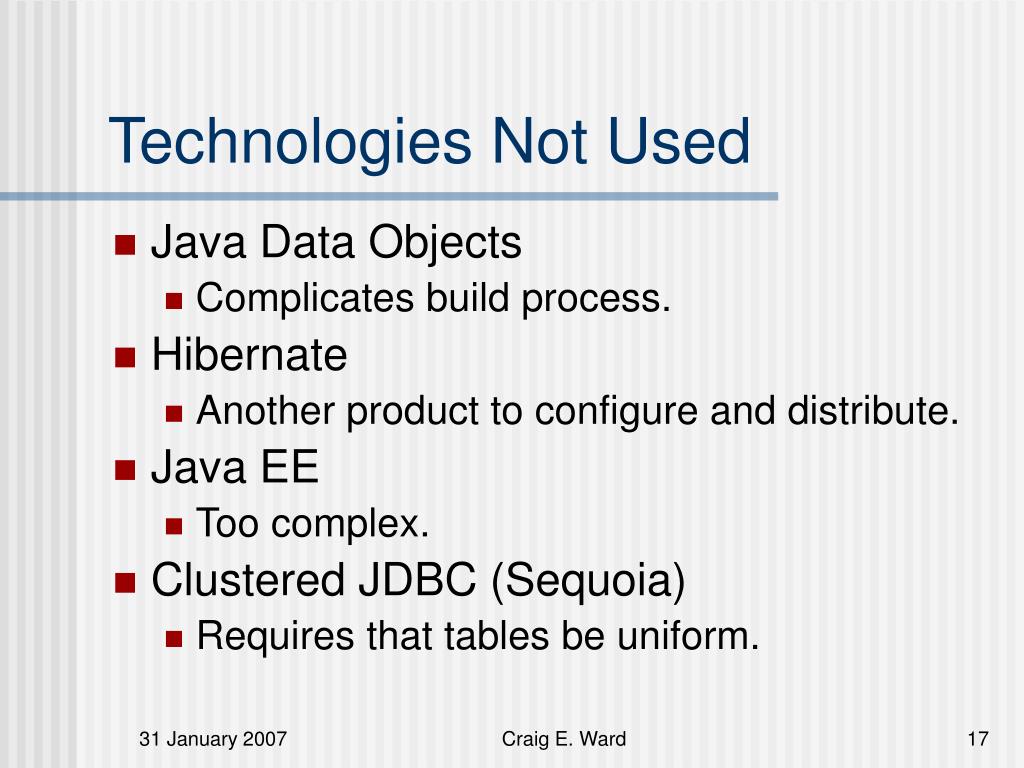

Technologies Not Used
  • Java Data Objects
    • Complicates build process.
  • Hibernate
    • Another product to configure and distribute.
  • Java EE
    • Too complex.
  • Clustered JDBC (Sequoia)
    • Requires that tables be uniform.

Craig E. Ward

future sdg development

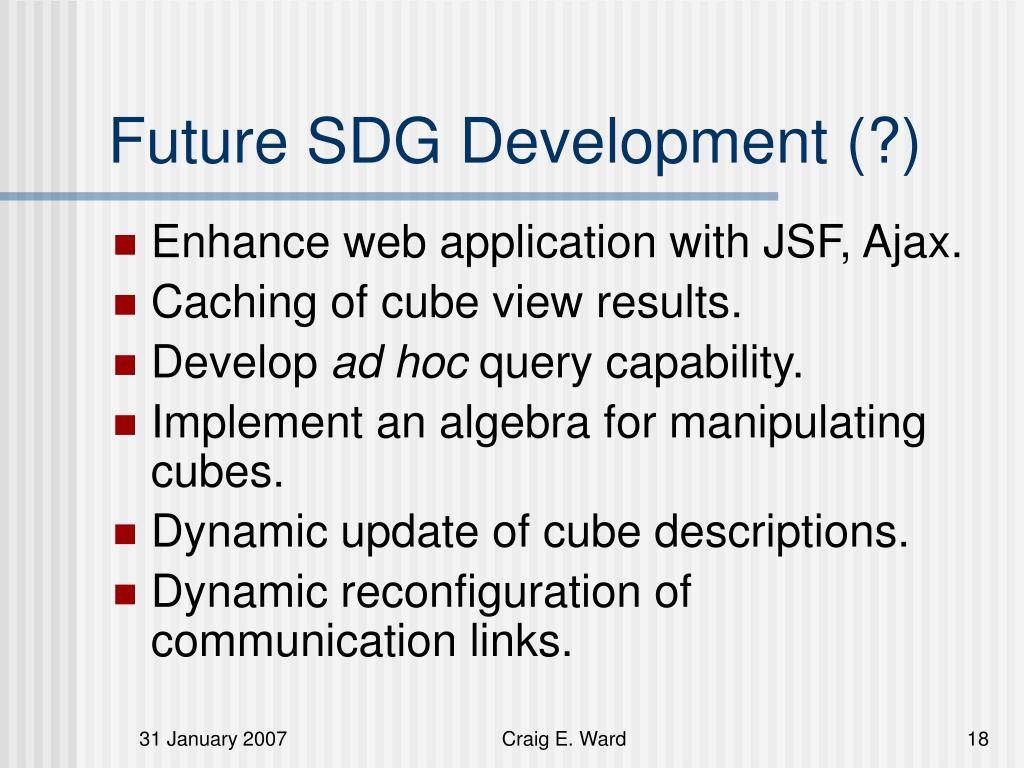

Future SDG Development (?)
  • Enhance web application with JSF, Ajax.
  • Caching of cube view results.
  • Develop ad hoc query capability.
  • Implement an algebra for manipulating cubes.
  • Dynamic update of cube descriptions.
  • Dynamic reconfiguration of communication links.

Craig E. Ward
