  1. AMDS Selection

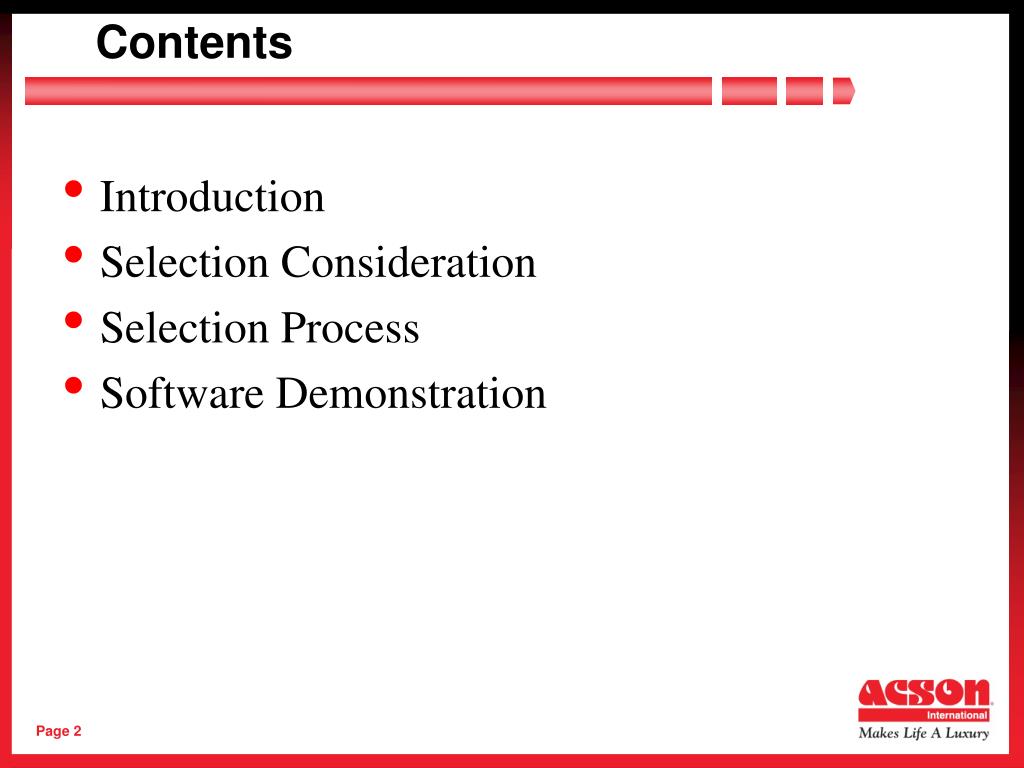

  2. Contents • Introduction • Selection Consideration • Selection Process • Software Demonstration

  3. Introduction

  4. Sample of Installation

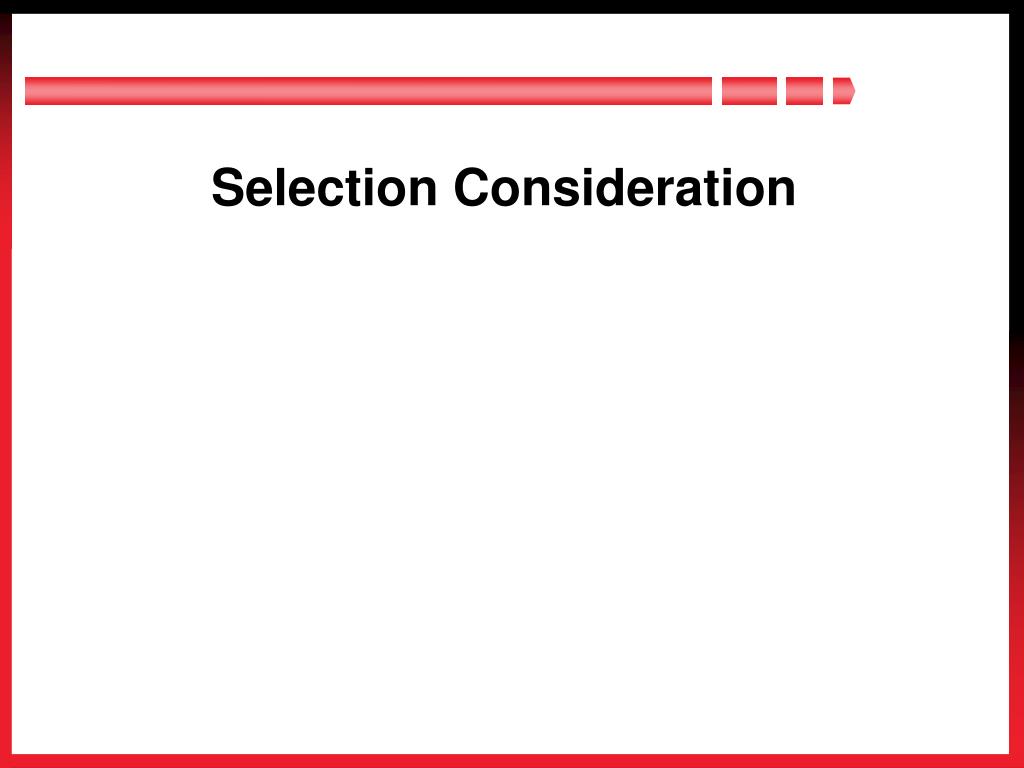

  5. Selection Consideration

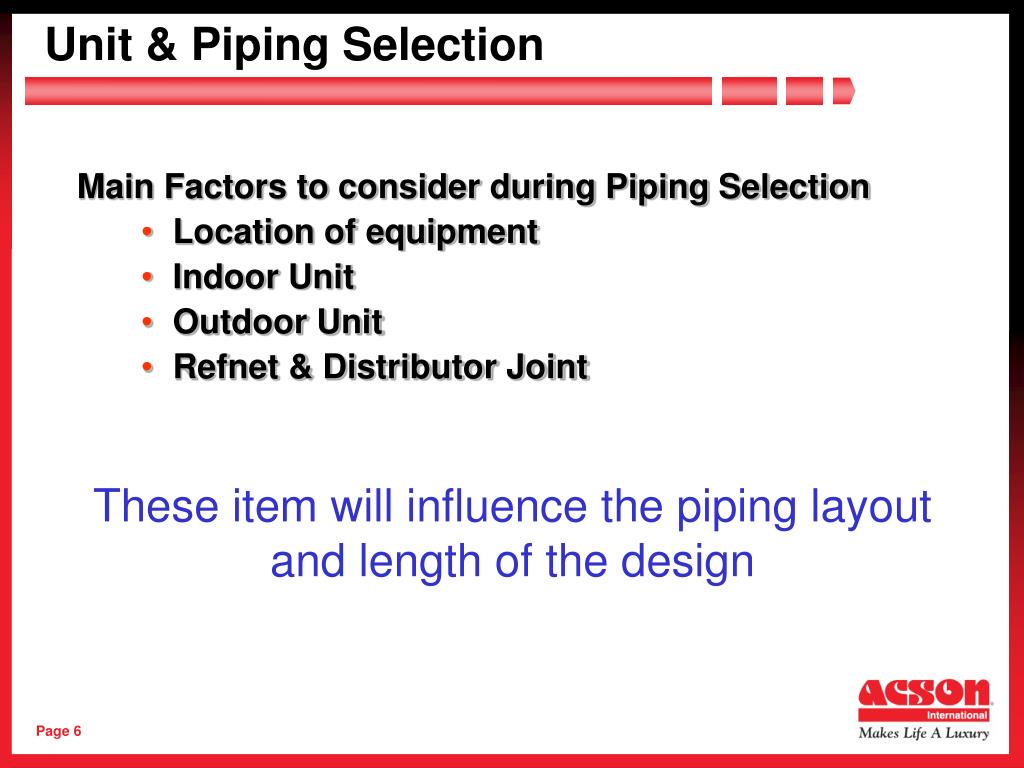

  6. Unit & Piping Selection Main Factors to consider during Piping Selection • Location of equipment • Indoor Unit • Outdoor Unit • Refnet & Distributor Joint These item will influence the piping layout and length of the design

  7. Unit & Piping Selection Some other factors to consider during Piping Selection • Equivalent Piping Length • Type of Joint for branches • Outdoor capacity factor • Piping length & height factor • Refrigerant Pipe Specification

  8. Equivalent Piping Calculation Equivalent length is the converted length and includes parts such as elbow, which has pressure losses in the pipe. The formula is as follow: Equivalent length = Real length of tubing + No. of elbow × Equivalent length of each elbow + No. of oil trap ×Equivalent length of each oil trap

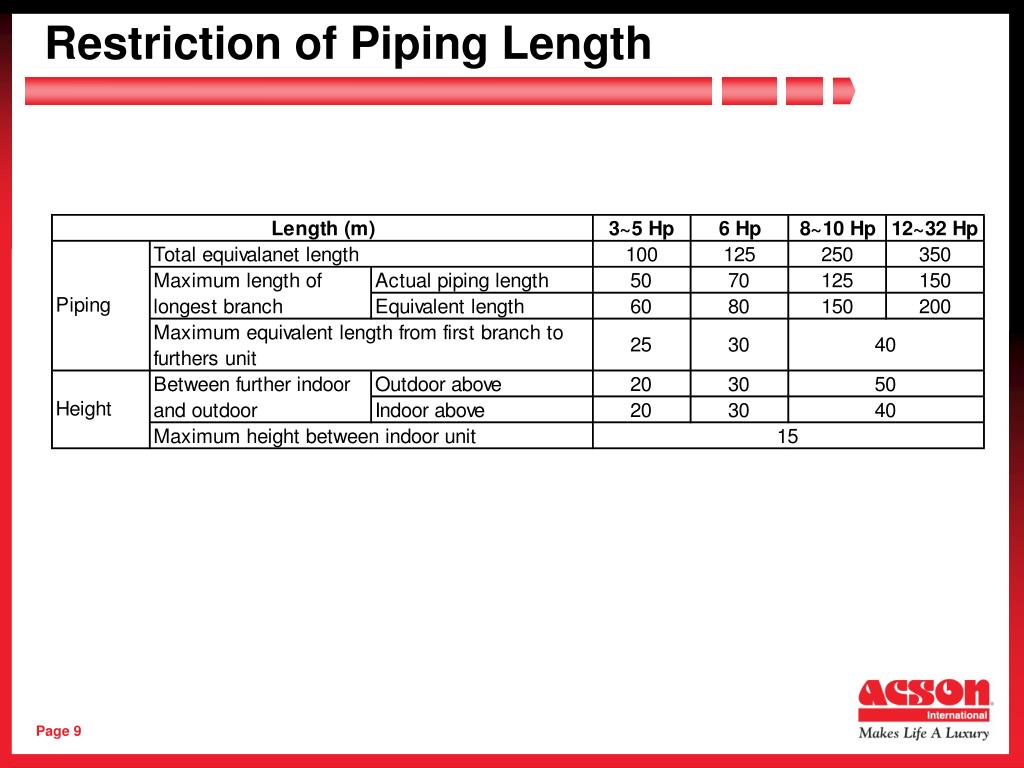

  9. Restriction of Piping Length

  10. Important Factor to Consider Example: Outdoor Model : MDS100BR Pipe Diameter : 28.6 mm Main Pipe : 80m Branch Length: 20m Elbows: 10 units Oil traps: 3 units Equivalent Length = Real length of tubing + No. of elbow × Equivalent length of each elbow + No. of oil trap ×Equivalent length of each oil trap = (80 + 20) + (10 X 0.5) + (3 X 3.7) = 116.1 m

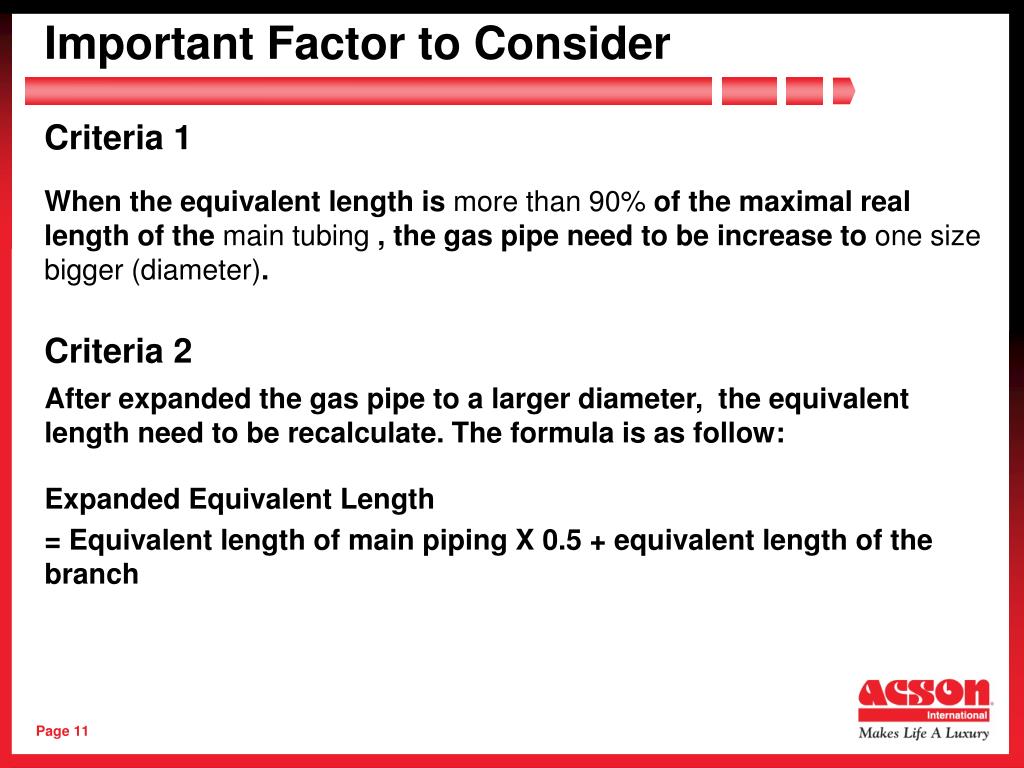

  11. Important Factor to Consider Criteria 1 When the equivalent length is more than 90% of the maximal real length of the main tubing , the gas pipe need to be increase to one size bigger (diameter). Criteria 2 After expanded the gas pipe to a larger diameter, the equivalent length need to be recalculate. The formula is as follow: Expanded Equivalent Length = Equivalent length of main piping X 0.5 + equivalent length of the branch

  12. Important Factor to Consider Example: Maximum allow actual length for 10Hp is 125m Calculated Equivalent Length is 116.1m Ratio of Equivalent Length over Maximum allow Actual Length= 92.88% Equivalent length is more than 90% of the maximal real length. Hence the gas Pipe of MDS100BR need to change.

  13. Unit & Piping Selection Refrigerant Copper Pipe Specification : MDS-B

  14. Important Factor to Consider Example: Hence the gas Pipe of MDS100BR need to change from 28.6 mm to 39.40 mm After expanded the gas pipe to a larger diameter, the equivalent length need to be recalculate. Expanded Equivalent Length = Equivalent length of main piping X 0.5 + equivalent length of the branch Main Pipe : 80m Branch Length: 20m Elbows: 10 units Oil traps: 3 units Equivalent Length = Real length of tubing + No. of elbow × Equivalent length of each elbow + No. of oil trap ×Equivalent length of each oil trap = (80 + 20) + (10 X 0.5) + (3 X 3.7) = 116.1 m Expanded Equivalent Length = [80 + (10 X 0.5) + (3 X 3.7)] X 0.5 + 20 Expanded Equivalent Length = 68.05 m

  15. Unit & Piping Selection • Type of Joint for branches • Influence the piping layout design • Outdoor capacity factor • Influence by the design ambient temperature and indoor temperature • Piping length & height factor • Influence by the location of outdoor and the total piping length • Refrigerant Pipe Specification • Use to determine the branches diameter

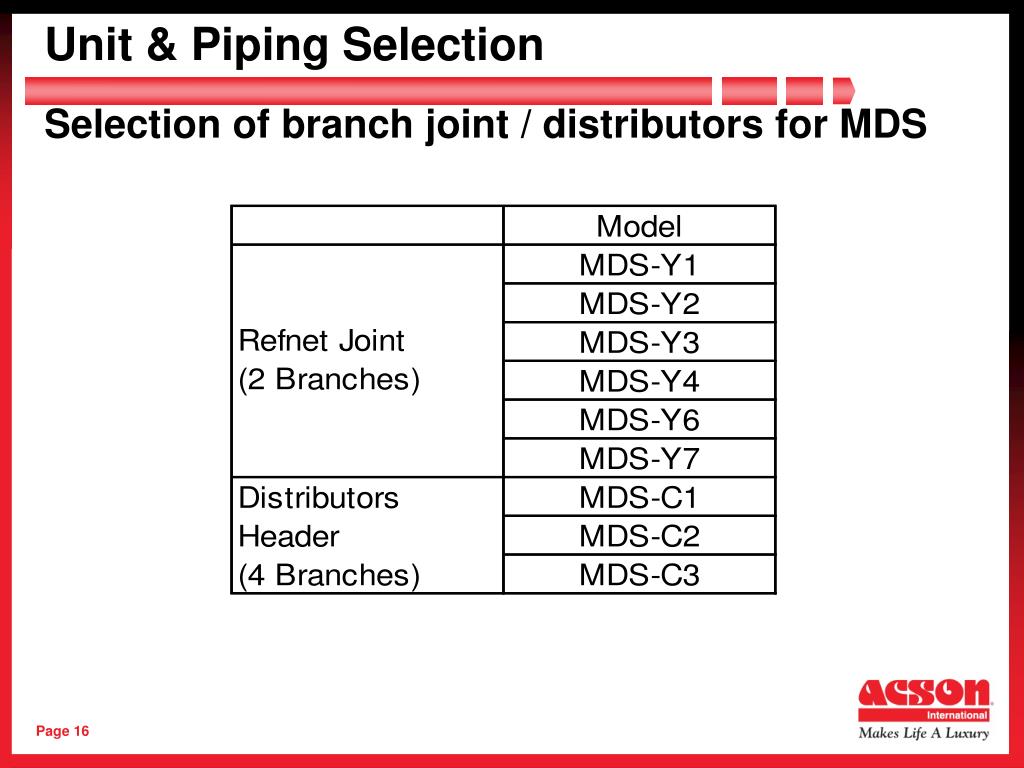

  16. Unit & Piping Selection Selection of branch joint / distributors for MDS

  17. Unit & Piping Selection MDS-Y1~Y4 dimensional drawing

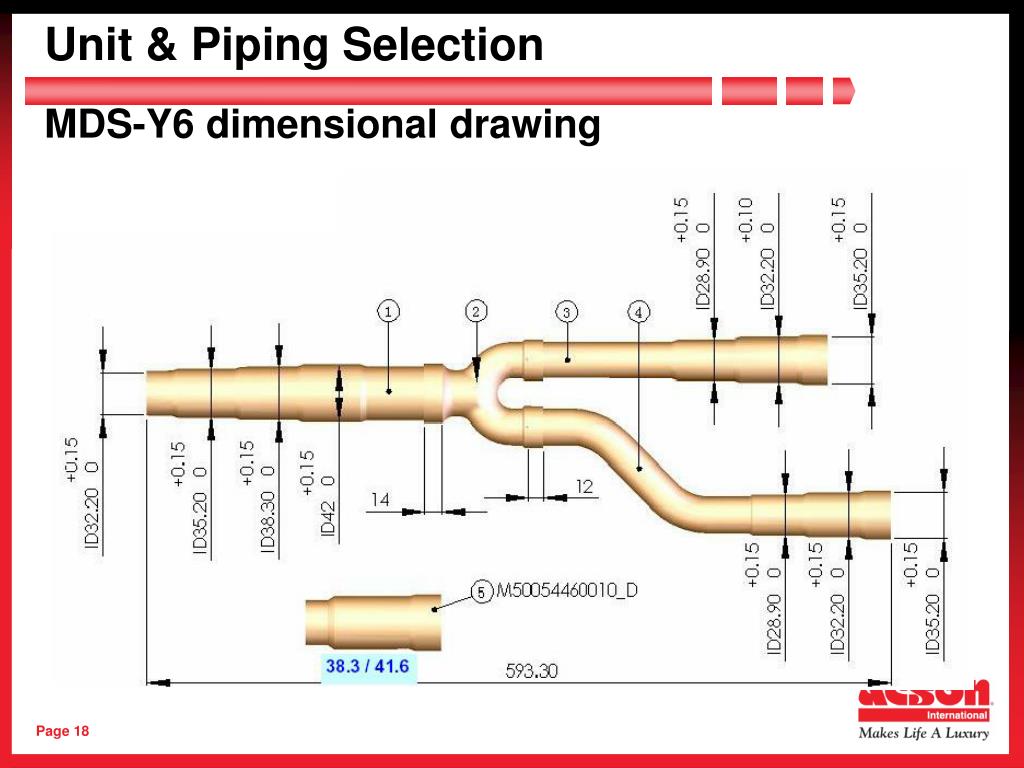

  18. Unit & Piping Selection MDS-Y6 dimensional drawing

  19. Unit & Piping Selection MDS-Y7 dimensional drawing

  20. Unit & Piping Selection MDS-C1 dimensional drawing

  21. Unit & Piping Selection MDS-C2~C3 dimensional drawing

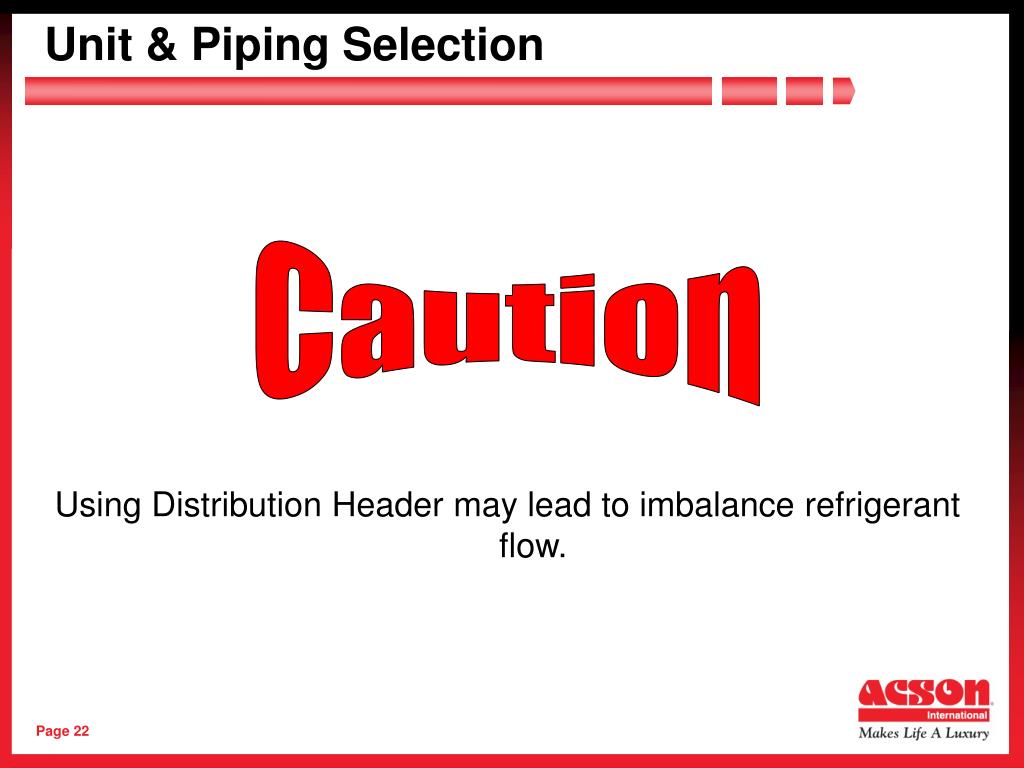

  22. Unit & Piping Selection Caution Using Distribution Header may lead to imbalance refrigerant flow.

  23. Refnet Joint Refrigerant Pipe Work Connection Type of Refnet Joint/Distributors Allow

  24. Distributor Refrigerant Pipe Work Connection Type of Refnet Joint/Distributor Allow

  25. Refrigerant Pipe Work Connection Type of Refnet Joint/Distributors Allow Refnet Joint Distributor

  26. Refrigerant Pipe Work Connection Type of Refnet Joint/Distributors Not Allow Refnet Joint Distributor

  27. Unit & Piping Selection Cooling Capacity Correction Factor

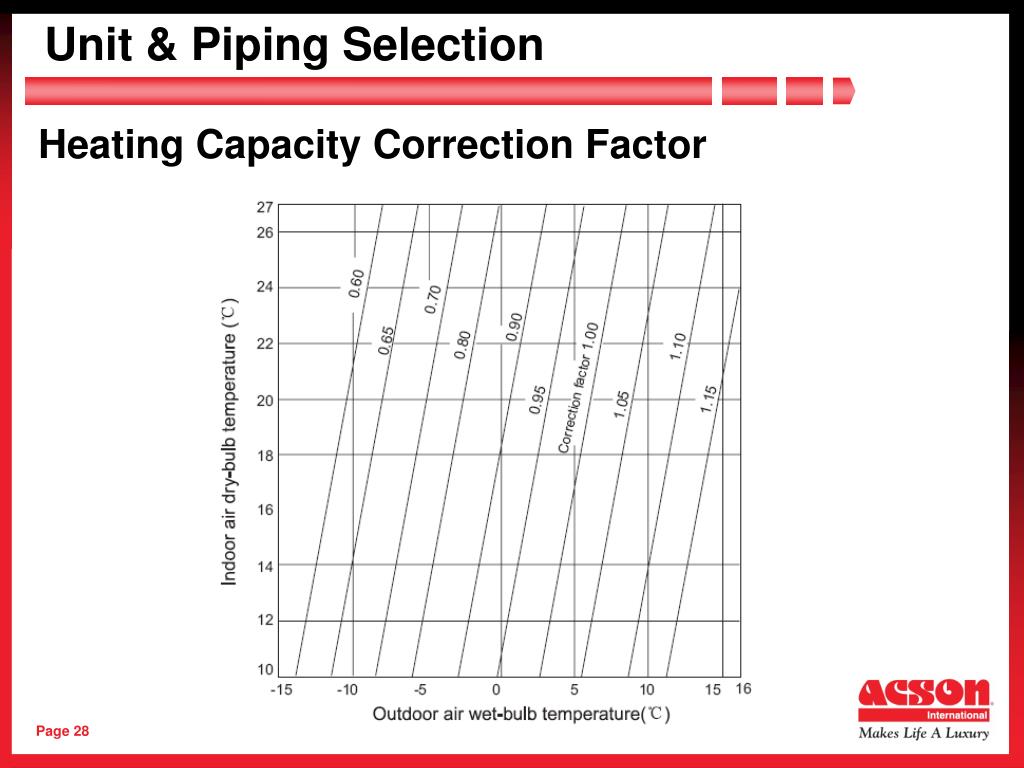

  28. Unit & Piping Selection Heating Capacity Correction Factor

  29. Unit & Piping Selection Cooling Capacity Correction Factor Cooling cap. factor

  30. Unit & Piping Selection Heating Capacity Correction Factor

  31. Unit & Piping Selection Refrigerant Pipe Specification : MDS-A

  32. Unit & Piping Selection Refrigerant Pipe Specification : MDS-B

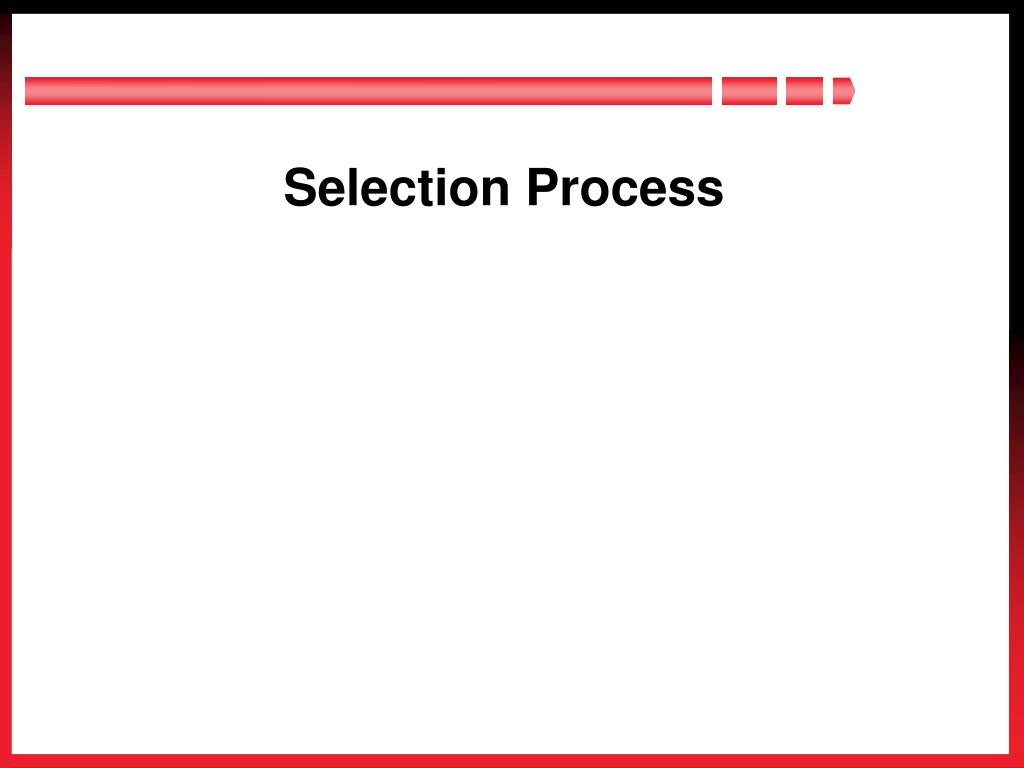

  33. Selection Process

  34. E A B F C D Unit & Piping Selection Example Building Type: Bungalow

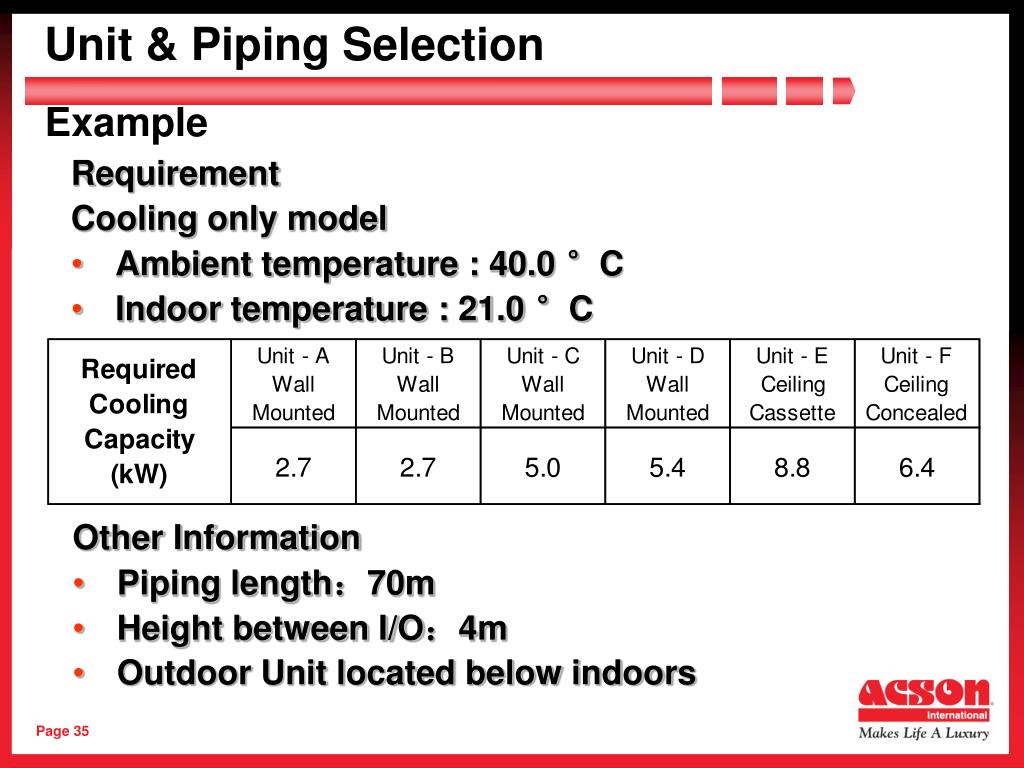

  35. Unit & Piping Selection Example Requirement Cooling only model • Ambient temperature : 40.0 °C • Indoor temperature : 21.0 °C Other Information • Piping length:70m • Height between I/O:4m • Outdoor Unit located below indoors

  36. Unit & Piping Selection Indoor Requirement

  37. Unit & Piping Selection Example • Total Indoor capacity is 32.3 kW

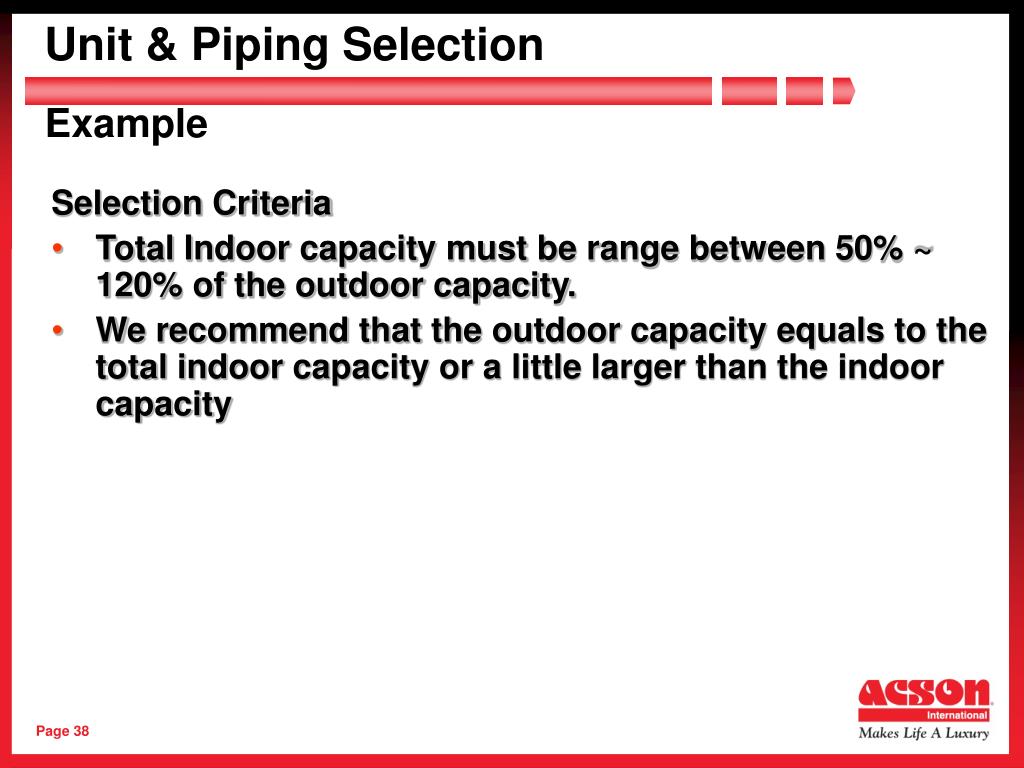

  38. Unit & Piping Selection Example Selection Criteria • Total Indoor capacity must be range between 50% ~ 120% of the outdoor capacity. • We recommend that the outdoor capacity equals to the total indoor capacity or a little larger than the indoor capacity

  39. Unit & Piping Selection Example Selected Outdoor : MDS120B Cooling Capacity : 32.5kW Comply to selection criteria

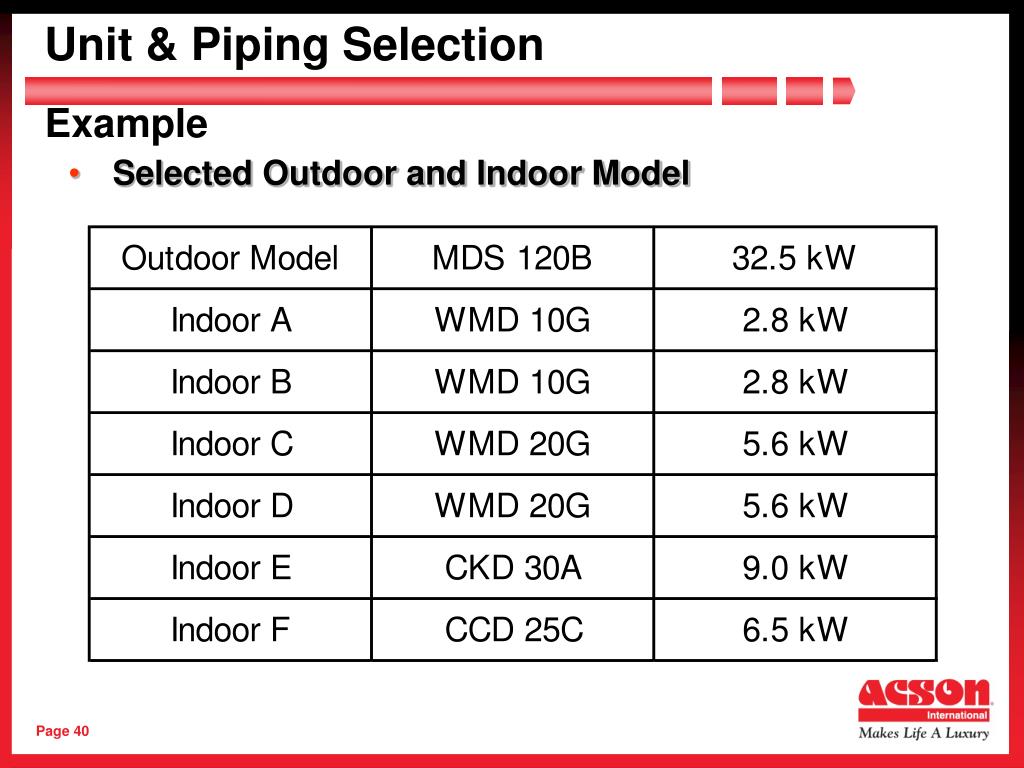

  40. Unit & Piping Selection Example • Selected Outdoor and Indoor Model

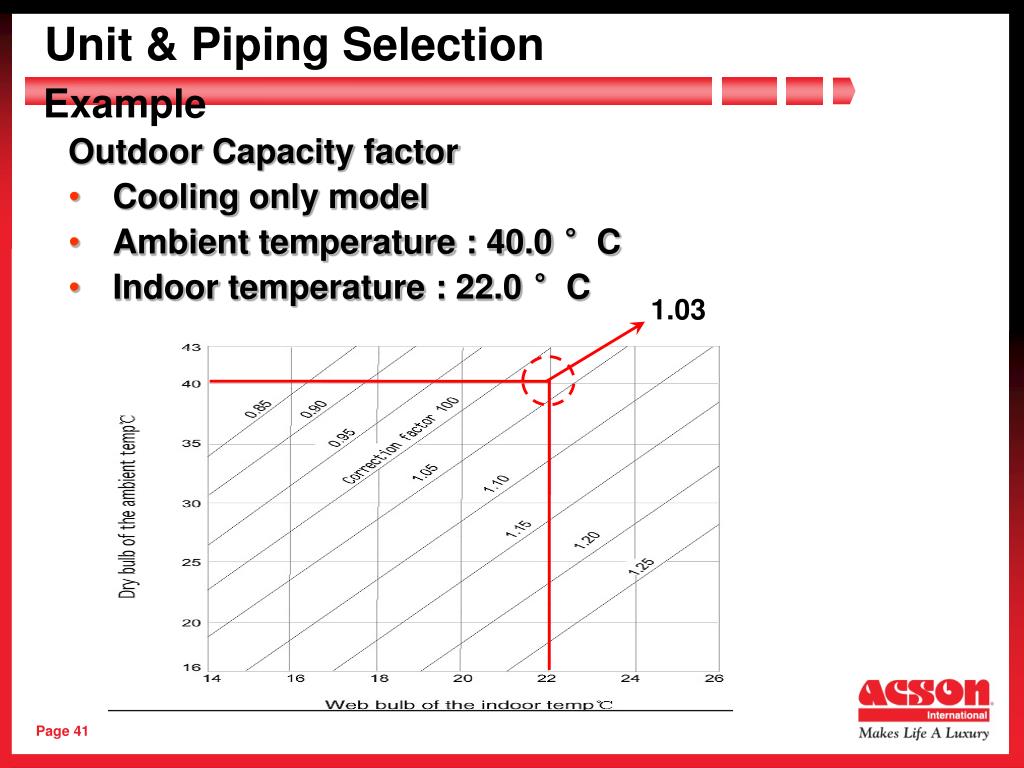

  41. Unit & Piping Selection Example Outdoor Capacity factor • Cooling only model • Ambient temperature : 40.0 °C • Indoor temperature : 22.0 °C 1.03

  42. Unit & Piping Selection Example Piping length & height factor • Piping length:70m • Height between I/O:4m • Outdoor Unit located below indoors 91%

  43. Unit & Piping Selection Example Total Capacity • = Outdoor Capacity X Outdoor Capacity Factor • X Piping length & height Factor • = 32.5 kW X 1.03 X 94% • = 31.47 kW Comply to requirement

  44. E A B F C D Unit & Piping Selection Example Building Type: Bungalow

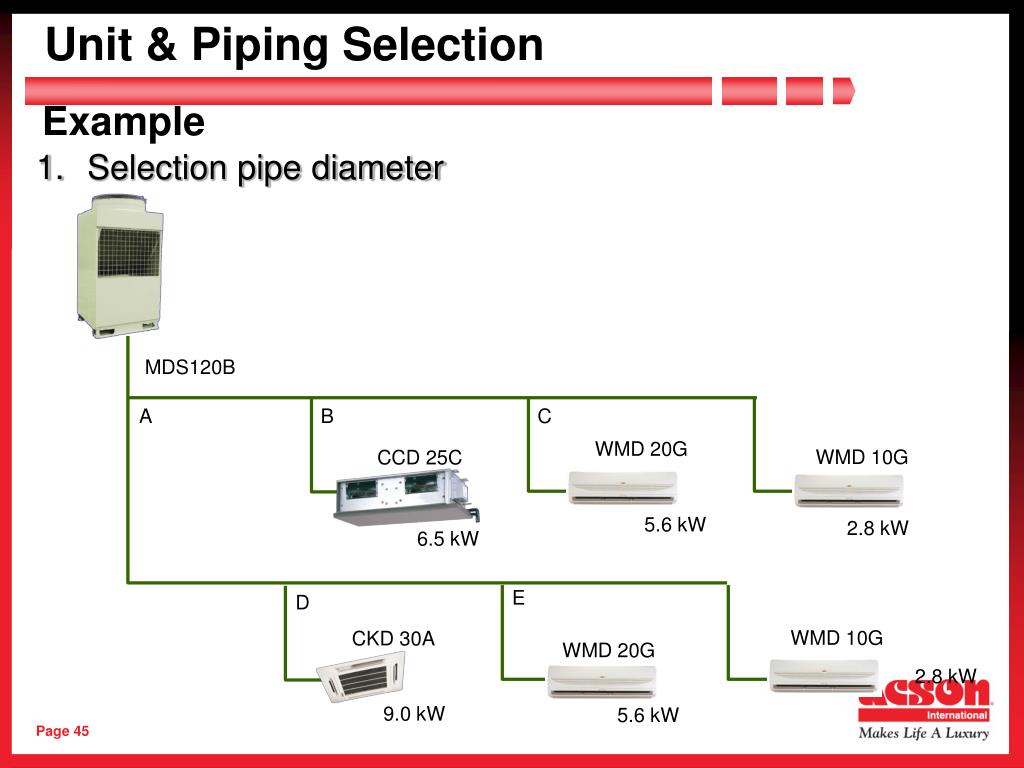

  45. Unit & Piping Selection Example • Selection pipe diameter MDS120B A B C WMD 20G WMD 10G CCD 25C 5.6 kW 2.8 kW 6.5 kW E D WMD 10G CKD 30A WMD 20G 2.8 kW 9.0 kW 5.6 kW

  46. Unit & Piping Selection Refrigerant Pipe Specification : MDS-B

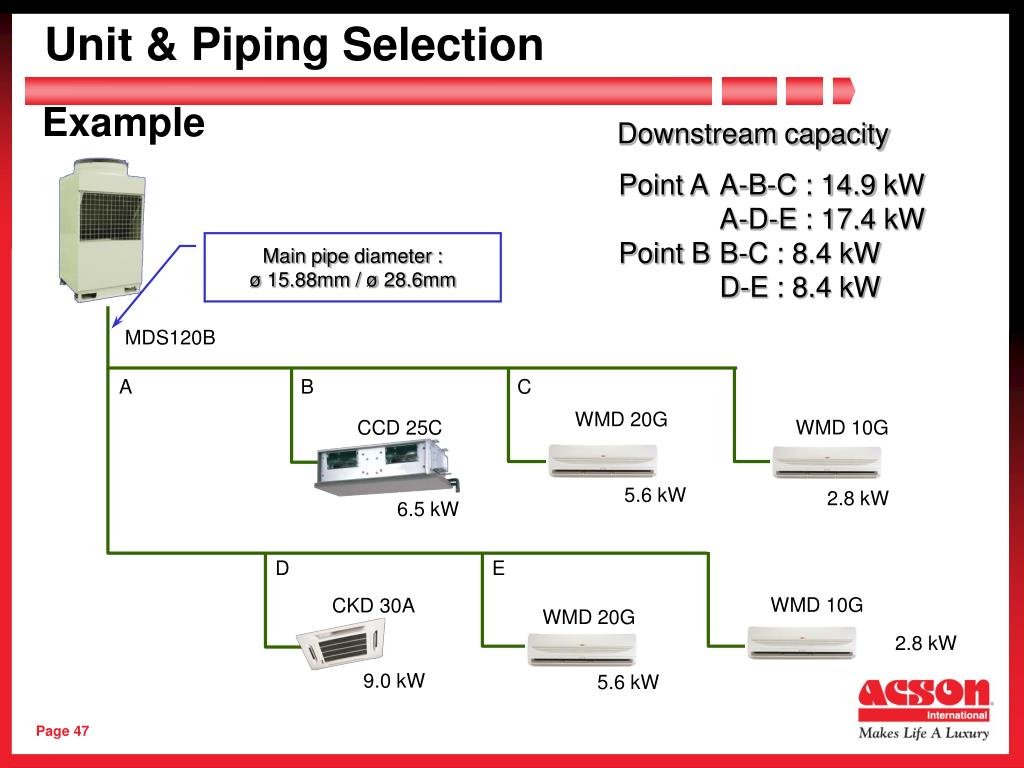

  47. Unit & Piping Selection Example Downstream capacity Point A A-B-C : 14.9kW A-D-E : 17.4 kW Point BB-C : 8.4 kW D-E : 8.4 kW Main pipe diameter : ø 15.88mm / ø 28.6mm MDS120B A B C WMD 20G WMD 10G CCD 25C 5.6 kW 2.8 kW 6.5 kW D E WMD 10G CKD 30A WMD 20G 2.8 kW 9.0 kW 5.6 kW

  48. Unit & Piping Selection Refrigerant Pipe Specification : MDS-B Point A A-B-C : 14.9kW A-D-E : 17.4 kW

  49. Unit & Piping Selection Example Main pipe diameter : ø 15.88mm / ø 28.60mm A-B diameter : ø 9.52mm / ø 19.05mm MDS120B A B C WMD 20G WMD 10G CCD 25C 5.6 kW 2.8 kW 6.5 kW D E WMD 10G CKD 30A WMD 20G A-D diameter : ø 12.70mm / ø 22.23mm 2.8 kW 9.0 kW 5.6 kW

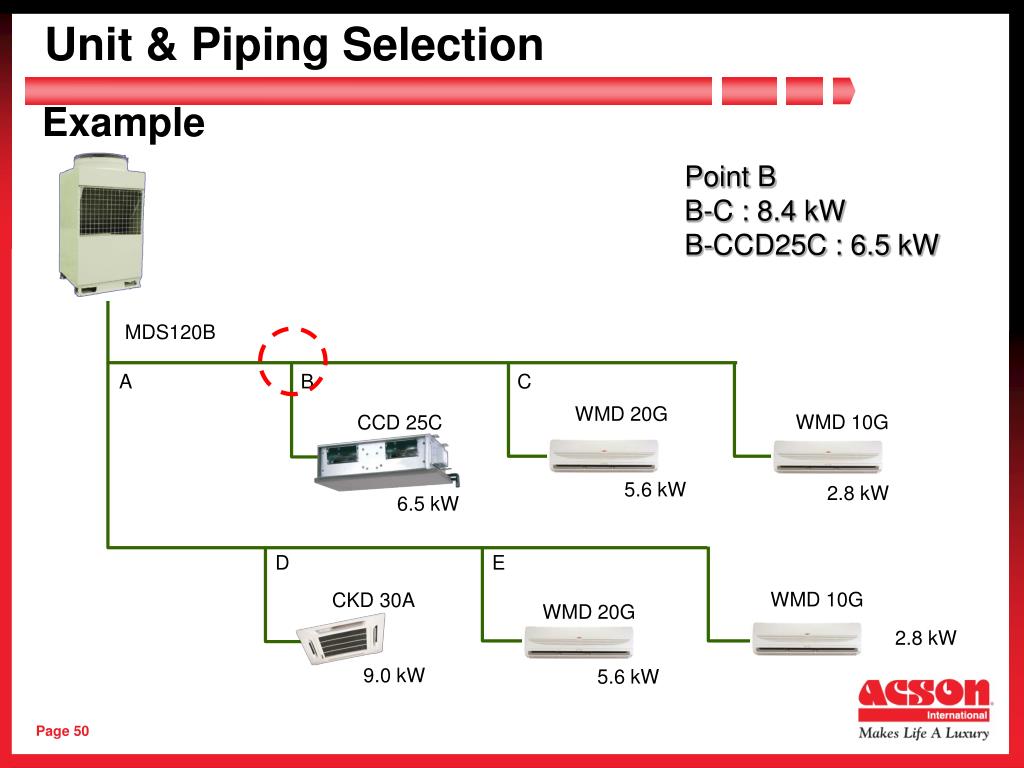

  50. Unit & Piping Selection Example Point B B-C : 8.4 kW B-CCD25C : 6.5kW MDS120B A B C WMD 20G WMD 10G CCD 25C 5.6 kW 2.8 kW 6.5 kW D E WMD 10G CKD 30A WMD 20G 2.8 kW 9.0 kW 5.6 kW
