  1. Introduction to Databases Lecture One Relational and Object-Oriented Database Concepts Introduction to Database Design and Techniques

  2. Examples of Database Applications • Purchases from the supermarket • Purchases using your credit card • Booking a holiday at the travel agents • Using the local library • Taking out insurance • Using the Internet • Studying at university

  3. File-Based Systems • Collection of application programs that perform services for the end users (e.g. reports). • Each program defines and manages its own data.

  4. Limitations of File-Based Approach • Separation and isolation of data • Each program maintains its own set of data. • Users of one program may be unaware of potentially useful data held by other programs. • Duplication of data • Same data is held by different programs. • Wasted space and potentially different values and/or different formats for the same item.

  5. Database Approach • Arose because: • Definition of data was embedded in application programs, rather than being stored separately and independently. • No control over access and manipulation of data beyond that imposed by application programs. • Result: • the database and Database Management System (DBMS).

  6. Database • Shared collection of logically related data (and a description of this data), designed to meet the information needs of an organization. • System catalog (metadata) provides description of data to enable program–data independence. • Logically related data comprises entities, attributes, and relationships of an organization’s information.

  7. Database Approach • Controlled access to database may include: • A security system. • An integrity system. • A concurrency control system. • A recovery control system. • A user-accessible catalog. • A view mechanism. • Provides users with only the data they want or need to use.

  8. Views • Allows each user to have his or her own view of the database. • A view is essentially some subset of the database.

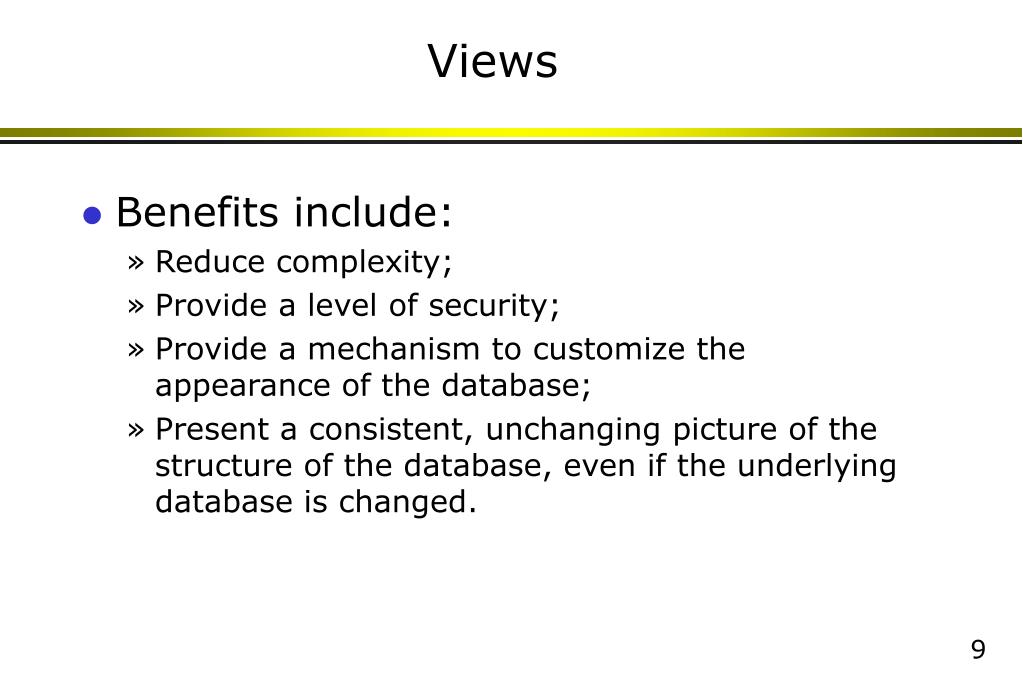

  9. Views • Benefits include: • Reduce complexity; • Provide a level of security; • Provide a mechanism to customize the appearance of the database; • Present a consistent, unchanging picture of the structure of the database, even if the underlying database is changed.

  10. History of Database Systems • First-generation • Hierarchical and Network • Second generation • Relational • Third generation • Object-Oriented

  11. The DBMS Marketplace • Relational DBMS companies – Oracle, Sybase – are among the largest software companies in the world. • IBM offers its relational DB2 system. With IMS, a non-relational system, IBM is by some accounts the largest DBMS vendor in the world. • Microsoft offers SQL-Server, plus Microsoft Access for the cheap DBMS on the desktop

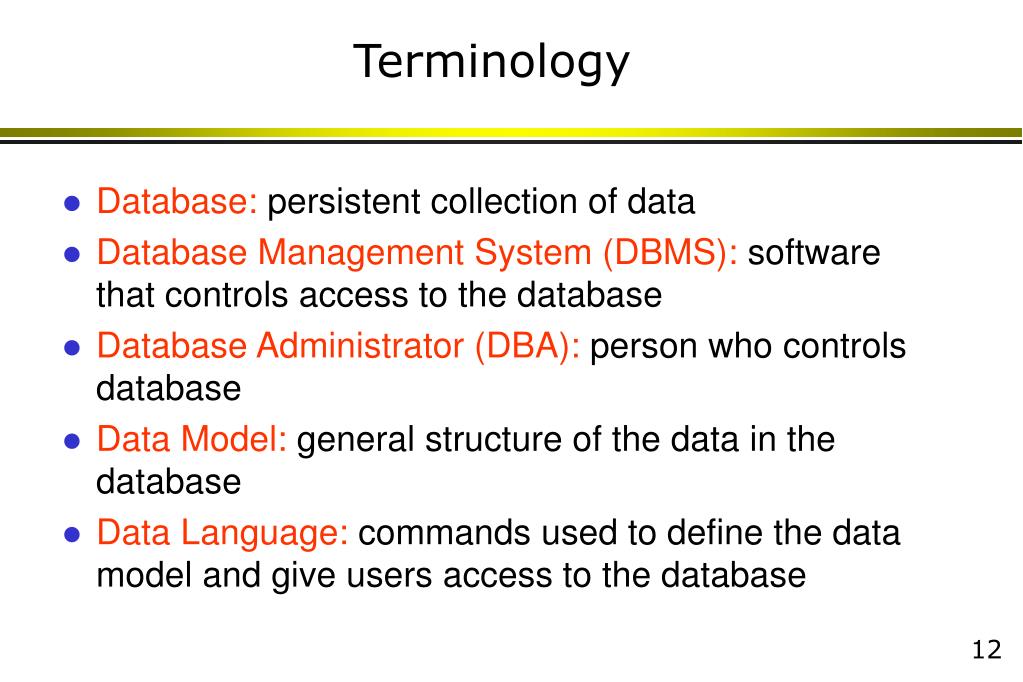

  12. Terminology • Database:persistent collection of data • Database Management System (DBMS):software that controls access to the database • Database Administrator (DBA):person who controls database • Data Model:general structure of the data in the database • Data Language:commands used to define the data model and give users access to the database

  13. Utility of Databases • Data has value independent of use • Organized approach to data management • Eliminate redundancy in data • Share data • Archive data • Security of data • Integrity of data

  14. DB Terms and Techniques • Database access is a key feature of current enterprise computing • Relational DB: tables • To link/merge tables and extract/write information: Structured Query Language (SQL) – language of all modern databases (but many dialects) • SQL is transparent; operates with statements like SELECT, INSERT, DELETE, etc. • SQL provides its result sets in table format

  15. DB and the Internet • One vs. multiple user access • Internet browsers make it easy to access database programs (compared with traditional client/server programs)

  16. Relational Database Model • Database • Database is a collection of tables (relations) • Data are stored in tables • Tables • Each table has a name • Each table has a set of columns (fields) and rows of data (records) • Each table has a fixed number of columns • Each table has an arbitrary number of rows • Based on set theory • SQL (Structured Query Language) • DBMS independent language

  17. Database Columns (Fields) • Columns • Each column has a name • Columns are accessed by name • No standard column ordering • Data in a column belongs to a particular domain • Columns are the “attributes” of the dataset • Each value in a column is from the same domain • Each value in a column is of the same data type

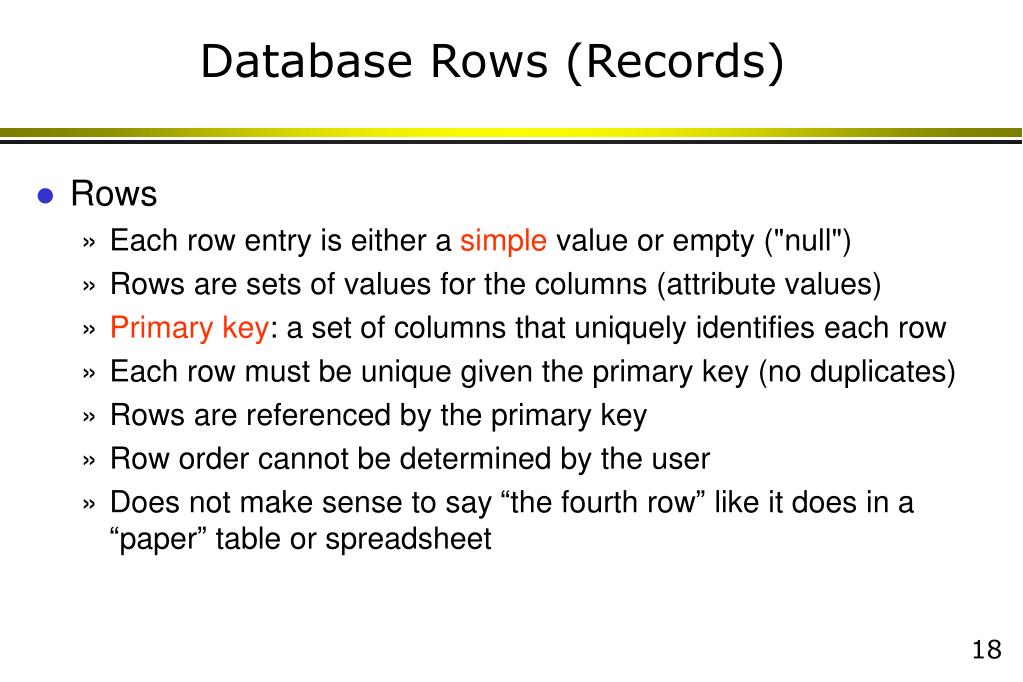

  18. Database Rows (Records) • Rows • Each row entry is either a simple value or empty ("null") • Rows are sets of values for the columns (attribute values) • Primary key: a set of columns that uniquely identifies each row • Each row must be unique given the primary key (no duplicates) • Rows are referenced by the primary key • Row order cannot be determined by the user • Does not make sense to say “the fourth row” like it does in a “paper” table or spreadsheet

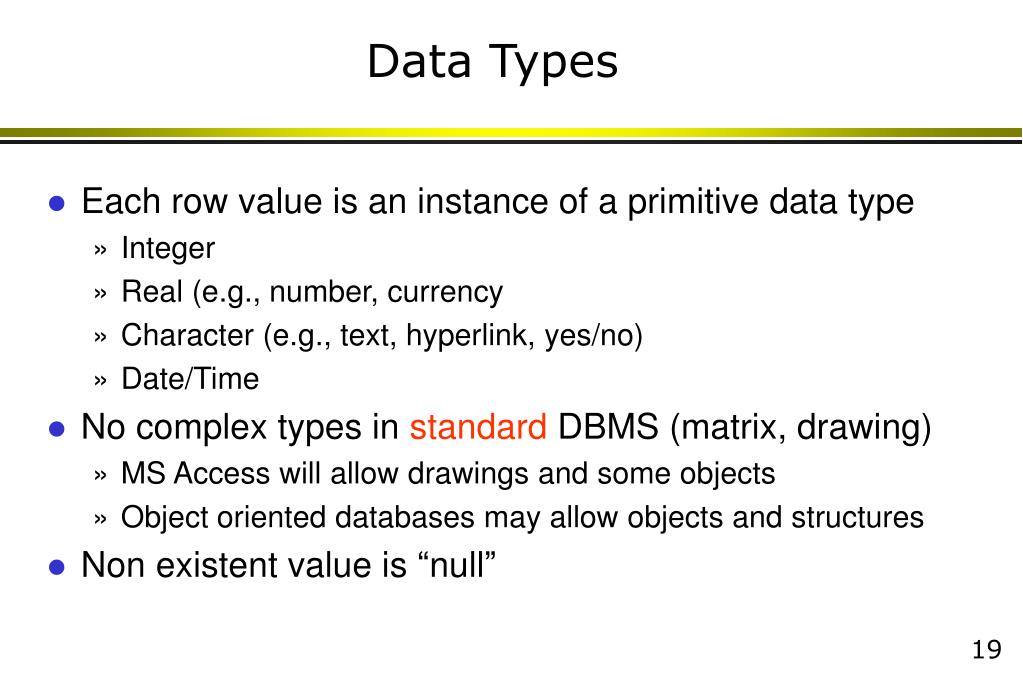

  19. Data Types • Each row value is an instance of a primitive data type • Integer • Real (e.g., number, currency • Character (e.g., text, hyperlink, yes/no) • Date/Time • No complex types in standard DBMS (matrix, drawing) • MS Access will allow drawings and some objects • Object oriented databases may allow objects and structures • Non existent value is “null”

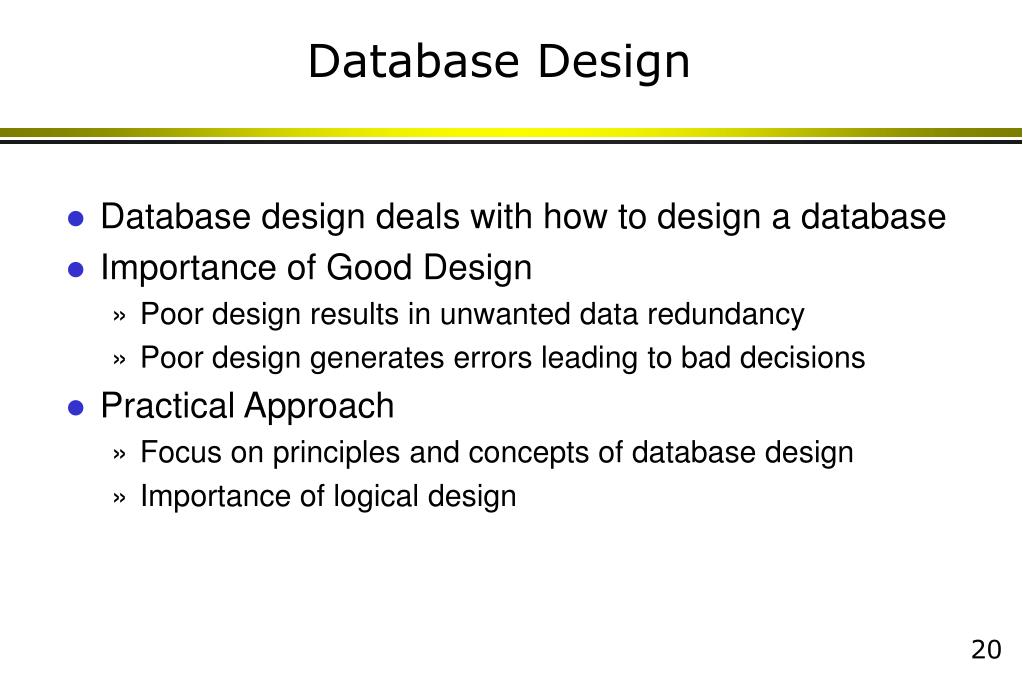

  20. Database Design • Database design deals with how to design a database • Importance of Good Design • Poor design results in unwanted data redundancy • Poor design generates errors leading to bad decisions • Practical Approach • Focus on principles and concepts of database design • Importance of logical design

  21. Database Design Goals • Create a balanced design which is good for all users • Based on a set of assumptions about the world being modeled • Determine the data to be stored • Determine the relations among the data • Determine the operations to be performed • Specify the structure of the tables

  22. Database Design Process • Identify all the objects, entities, and attributes • Identify all the dependencies, draw a dependency diagram • Design tables to represent the data items and dependencies • Verify the design • Implement the database • Design the queries • Test and revise

  23. Identify All Objects and Entities • Determine the objects of your Database • For each object, describe each entity to be stored • example: better to store first name and last name separately • Determine the data type for each item • text, currency, date, etc. • Determine the range of allowable values for each item • non-negative? • greater than zero? • decimal points? • any of the 50 state abbreviations • zip code between 00000 and 99999 • phone number

  24. Turn Data Items into Attributes • Each attribute should have: • a meaningful name • a description of what the attribute means or what kind of data make up the attribute • a domain • the data type of the attribute • the range or a list of allowable values of the attribute

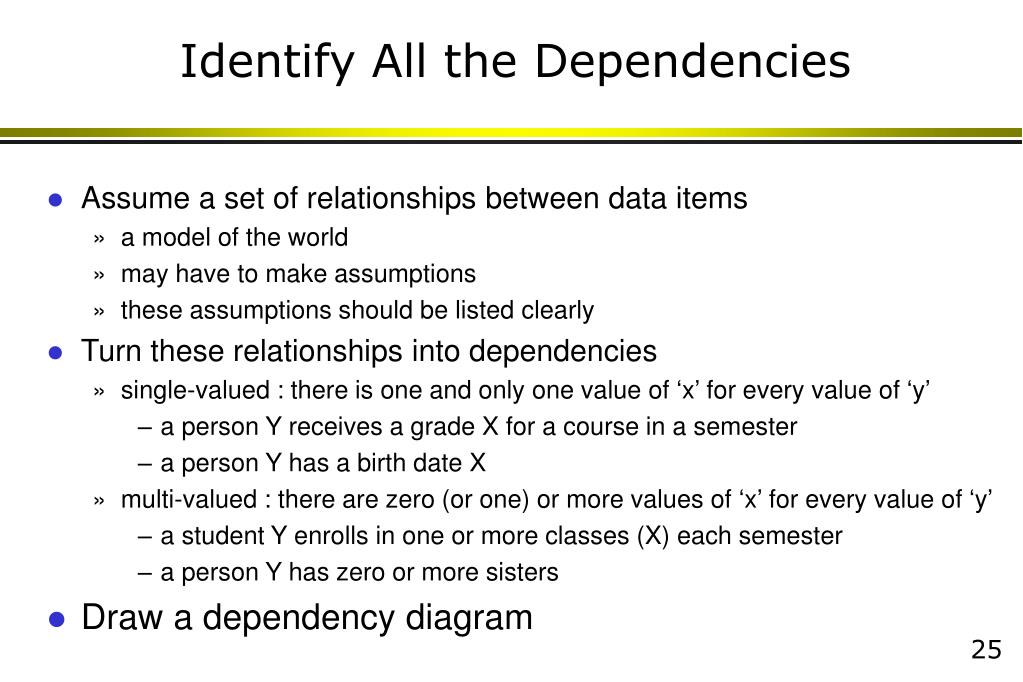

  25. Identify All the Dependencies • Assume a set of relationships between data items • a model of the world • may have to make assumptions • these assumptions should be listed clearly • Turn these relationships into dependencies • single-valued : there is one and only one value of ‘x’ for every value of ‘y’ • a person Y receives a grade X for a course in a semester • a person Y has a birth date X • multi-valued : there are zero (or one) or more values of ‘x’ for every value of ‘y’ • a student Y enrolls in one or more classes (X) each semester • a person Y has zero or more sisters • Draw a dependency diagram

  26. Single-Valued (One-to-One) Dependencies • Draw a single-headed arrow for single-valued dependencies a person has one and only one birth date PERSON BIRTHDATE a student has one and only one final grade for a course FINAL COURSE GRADE STUDENT

  27. Multi-Valued (One-to-Many) Dependencies • Draw a double-headed arrow between multi-valued dependencies a student can enroll in one or more classes STUDENT CLASSES a person has zero or more sisters SISTERS PERSON

  28. Independent vs. Dependent Attributes • Some attributes are independent • E.g., in a business – client relationship, your client’s phone number does not depend on when you are scheduled to meet him • your client still exists whether or not you have an appointment with him • Some attributes are dependent • the length of a side rails on a bridge is dependent on the structure of the bridge • the side rails of a bridge would not exist if the bridge itself was not there

  29. Dependent vs. Independent Attribute Representation • Start a new bubble around an independent attribute • properties of that attribute are attached to the new bubble • properties that are dependent on other attributes are attached to the old bubble • Each appointment is with one or more clients. Each appointment with one or more clients has a time. Each client has a single phone number. PHONE NUMBER CLIENT APPOINTMENT TIME

  30. Design the Tables • Draw a dependency diagram • Each dependency statement is a part of the diagram • Each statement is a single path through the diagram • Tables are formed by traversing the dependency diagram

  31. Traversing the Dependency Diagram • Choose an attribute at the end of a path • Follow the chain of arrows upwards • each multi-valued dependency on the path becomes a primary key for the table • combine all single-valued attributes at first level up into a single table • all attributes on the path should be included in the table • stop when you reach a bubble that has no arrows coming into it • each path becomes a separate table • Mark off your traversed path • Repeat until all paths have been traversed

  32. Verify the design • Inspect your tables • are all of the data included? • Do you have too many tables? too few? • If your design does not appear correct • go back to step 1 • you must repeat all steps of process in order • do not try to “rearrange” dependency diagram to give you the tables you think you should have

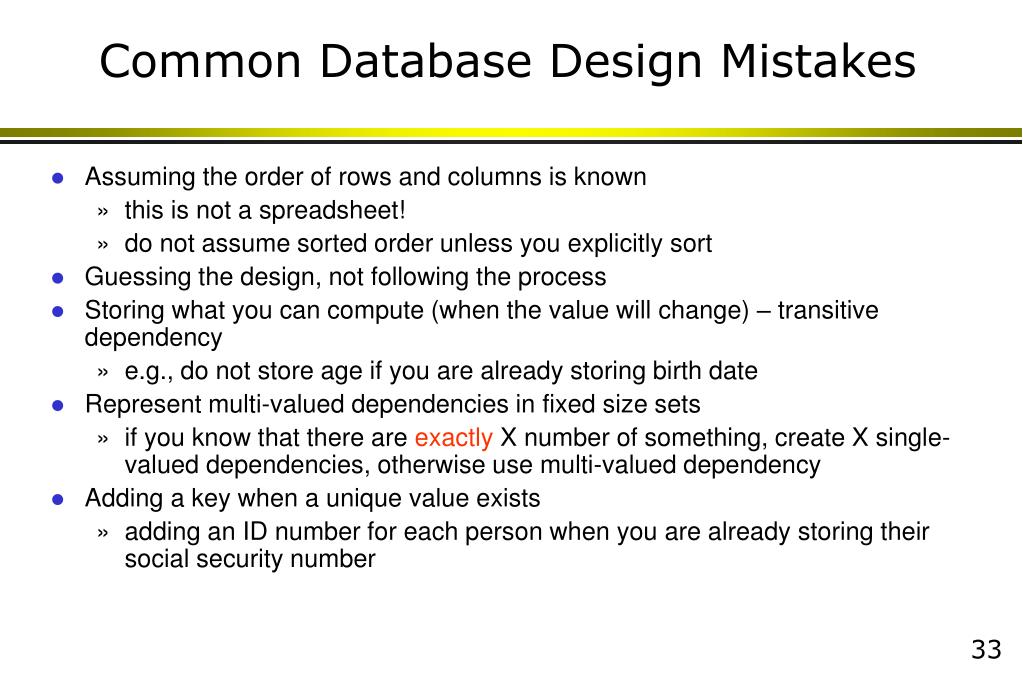

  33. Common Database Design Mistakes • Assuming the order of rows and columns is known • this is not a spreadsheet! • do not assume sorted order unless you explicitly sort • Guessing the design, not following the process • Storing what you can compute (when the value will change) – transitive dependency • e.g., do not store age if you are already storing birth date • Represent multi-valued dependencies in fixed size sets • if you know that there areexactly X number of something, create X single-valued dependencies, otherwise use multi-valued dependency • Adding a key when a unique value exists • adding an ID number for each person when you are already storing their social security number

  34. Results • If you follow the process correctly • you will not have redundant data • you will not lose unrelated data when you delete values • Databases with these characteristics are called 3NF(Third Normal Form) databases • Normalization to be discussed later in the course

  35. Program Design SQL Design Program SQL Goal: Build a Business Application Tools: Database Design SQL (queries) Programming Best: Spend your time on design and SQL. Worst: Compensate for poor design and limited SQL with programming.

  36. Application Development tasks Feasibility Identify scope, costs, and schedule Analysis Gather information from users Design Define tables, relationships, forms, reports Development Create forms, reports, and help; test Implementation Transfer data, install, train, review time

  37. Database engine Storage Retrieval Update Query Processor Data dictionary Utilities Security Report writer Forms generator (input screens) Application generator Communications Programming Interface DBMS Features/Components

  38. DBMS Engine, Security, Utilities Data Tables Product ItemID Description 887 Dog food 946 Cat food Order OrderID ODate 9874 3-3-97 9888 3-9-97 Customer CustomerID Name 1195 Jones 2355 Rojas Database Engine Product ItemID Integer, Unique Description Text, 100 char Customer CustomerID Integer, Unique Name Text, 50 char Data Dictionary Security User Identification Access Rights Concurrency and Lock Manager Utilities Backup and Recovery Administration

  39. Database Tables (MS Access)

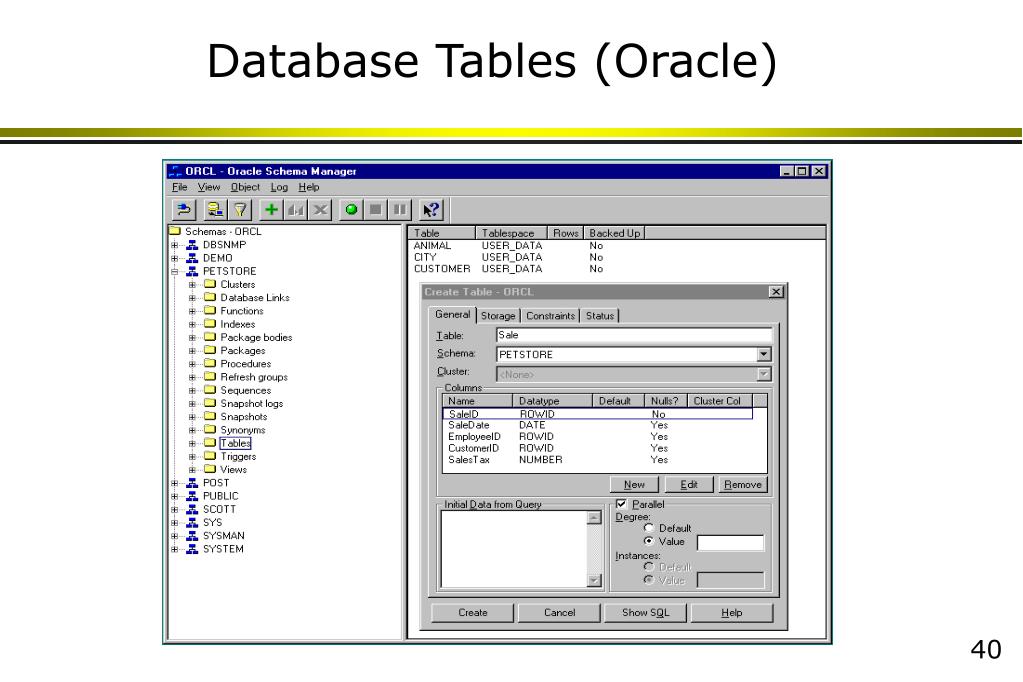

  40. Database Tables (Oracle)

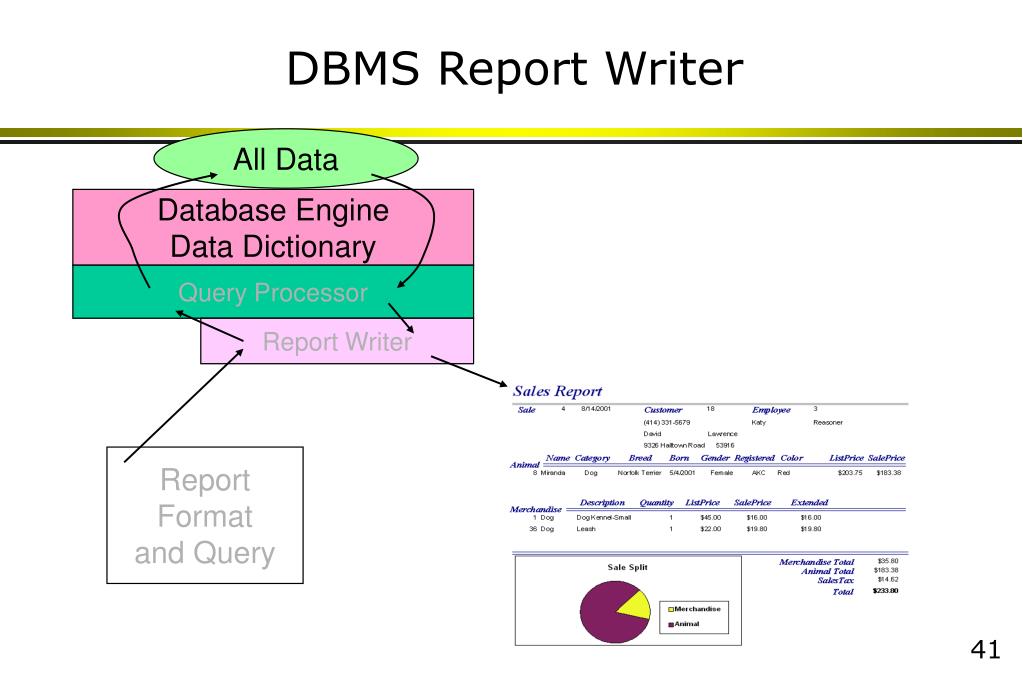

  41. DBMS Report Writer All Data Database Engine Data Dictionary Query Processor Report Writer Report Format and Query

  42. Report Writer (Oracle)

  43. DBMS Input Forms All Data Database Engine Data Dictionary Query Processor Form Builder Input Form Design

  44. DBMS Components All Data Communication Network Database Engine Data Dictionary Security 3GL Connector Query Processor Form Builder Report Writer Program Application Generator

  45. Relational Database Customer(CustomerID, Name, … Order(OrderID, CustomerID, OrderDate, … ItemsOrdered(OrderID, ItemID, Quantity, … Items(ItemID, Description, Price, …

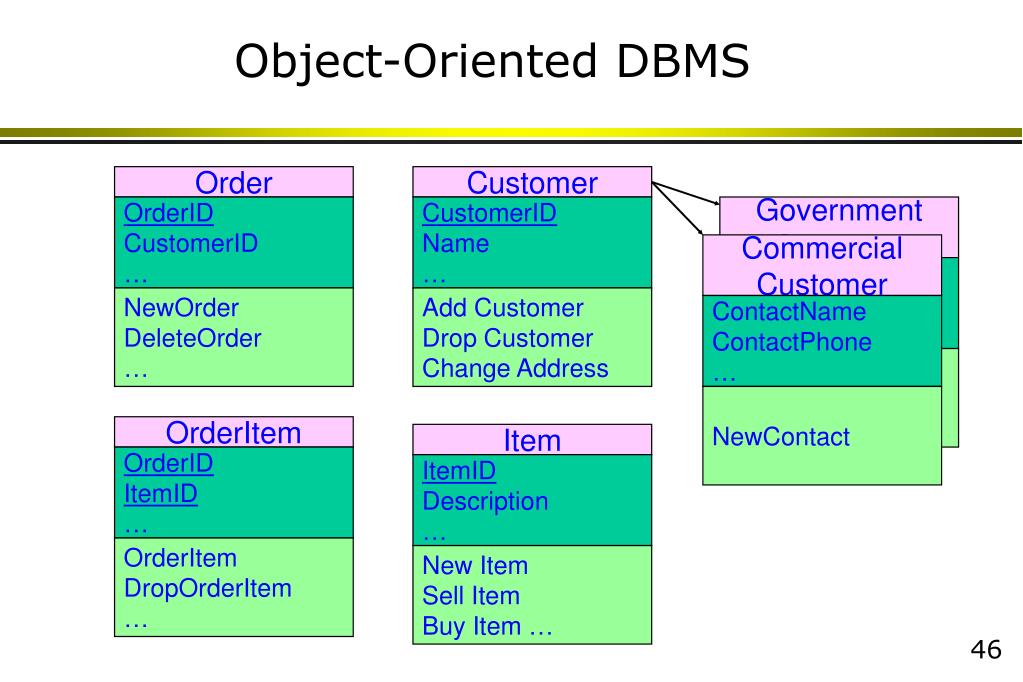

  46. Government Customer Commercial Customer ContactName ContactPhone Discount, … ContactName ContactPhone … NewContact NewContact Object-Oriented DBMS Order Customer OrderID CustomerID … CustomerID Name … NewOrder DeleteOrder … Add Customer Drop Customer Change Address OrderItem Item OrderID ItemID … ItemID Description … OrderItem DropOrderItem … New Item Sell Item Buy Item …

  47. Object Definition Object Name Properties Methods Inheritance Combine into one table. Use multiple tables and link by primary key. More efficient. Need to add rows to many tables. Customer CustomerID Address Phone AddCustomer DropCustomer Commercial Government Contact VolumeDiscount Contact BalanceDue ComputeDiscount BillLateFees AddCustomer Objects Class name Properties Methods Inheritance

  48. Separate inherited classes. Link by primary key. Adding a new customer requires new rows in each table. Objects in a Relational Database Customer CustomerID Address Phone GovernmentCustomer CommercialCustomer CustomerID Contact VolumeDiscount CustomerID Contact BalanceDue

  49. OO Difficulties: Methods IBM Server Unix Server Database Object Personal Computer Database Object How can a method run on different computers? Different processors use different code. Possibility: Java Customer Method: Add New Customer Application Customer Name Address Phone Program code

  50. End of Lecture
