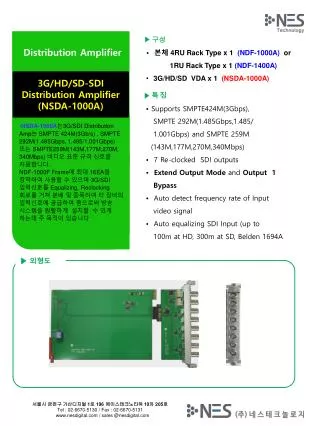

  1. ▶ 구성 •본체 4RU Rack Type x 1 (NDF-1000A) or 1RU Rack Type x 1 (NDF-1400A) •3G/HD/SD VDA x 1 (NSDA-1000A) 허허허허 Distribution Amplifier 3G/HD/SD-SDI Distribution Amplifier (NSDA-1000A) ▶ 특 징 •Supports SMPTE424M(3Gbps), SMPTE 292M(1.485Gbps,1.485/ 1.001Gbps) and SMPTE 259M (143M,177M,270M,340Mbps) • 7 Re-clocked SDI outputs • Extend Output Mode and Output 1 Bypass • Auto detect frequency rate of Input video signal • Auto equalizing SDI Input (up to 100m at HD, 300m at SD, Belden 1694A • NSDA-1000A는3G/SDI Distribution Amp는 SMPTE 424M(3Gb/s) , SMPTE 292M(1.485Gbps, 1.485/1.001Gbps) 또는 SMPTE259M(143M,177M,270M, 340Mbps) 비디오 표준 규격 신호를 지원합니다. NDF-1000F Frame에 최대 16EA을 장착하여 사용할 수 있으며 3G/SDI 입력신호를 Equalizing, Reclocking 회로를 거쳐 분배 및 증폭하여 타 장비의 입력신호에 공급하여 줌으로써 방송 시스템을 원활하게 설치할 수 있게 하는데 주 목적이 있습니다 ▶외형도 서울시 금천구 가산디지털 1로 196 에이스테크노타워 10차 205호 Tel : 02-6670-5130 / Fax : 02-6670-5131 www.nesdigital.com / sales @nesdigital.com

  2. ▶ 규격 <Input> Input Connector: 1EA & BNC 75Ω Input Standard SMPTE424M SMPTE 292M: SMPTE 259M : Return Loss : >15dB to clock freq Signal Level : >800mV ± 10% <Output> Output Connector 7EA & BNC 75Ω Output Standard SMPTE424M : 3Gb/s SMPTE 292M : SMPTE 259M : Rise & fall time : 400~800ps(SD), < 270ps(HD) Signal Level : >800mV ± 10% 서울시 금천구 가산디지털 1로 196 에이스테크노타워 10차 205호 Tel : 02-6670-5130 / Fax : 02-6670-5131 www.nesdigital.com / sales @nesdigital.com

  3. ▶ Output Mode 별 사용법 • <Extend Output Mode 시> Ex) In:1ea / Out:15ea 구성 시 3G/SDI Input(Embedded Audio 포함) 3G/SDI Output-8 3G/SDI Output-1 3G/SDI Output-9 3G/SDI Output-2 3G/SDI Output-10 3G/SDI Output-3 3G/SDI Output-11 3G/SDI Output-4 3G/SDI Output-12 3G/SDI Output-5 3G/SDI Output-13 3G/SDI Output-14 3G/SDI Output-6 3G/SDI Output-7 3G/SDI Output-15 NSDA-1000A (2) NSDA-1000A (1) • <Single Output Mode 시> • <Single Output Mode 시> <Single Output Mode 시> 3G/SDI Input(Embedded Audio 포함) 3G/SDI Input(Embedded Audio 포함 3G/SDI Output-1 Output-1 Bypass 3G/SDI Output-2 3G/SDI Output-3 3G/SDI Output-4 3G/SDI Output-5 3G/SDI Output-6 3G/SDI Output-7 서울시 금천구 가산디지털 1로 196 에이스테크노타워 10차 205호 Tel : 02-6670-5130 / Fax : 02-6670-5131 www.nesdigital.com / sales @nesdigital.com
