a decompression architecture for low power embedded systems

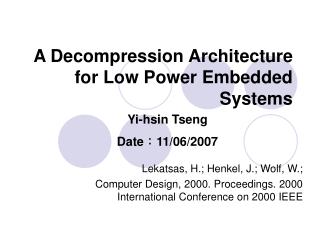

A Decompression Architecturefor Low Power Embedded Systems

Yi-hsin Tseng

Date:11/06/2007

Lekatsas, H.; Henkel, J.; Wolf, W.;

Computer Design, 2000. Proceedings. 2000 International Conference on 2000 IEEE

outline
Outline
  • Introduction & motivation
  • Code Compression Architecture
  • Decompression Engine Design
  • Experimental results
  • Conclusion & Contributions of the paper
  • Our project
  • Relate to CSE520
  • Q & A
for embedded system
For Embedded system
  • More complicated architecture in embedded system nowadays.
  • Available memory space is smaller.
  • A reduced executable program can also indirectly affect the chip on…
    • Size
    • Weight
    • Power consumption
why code compression decompression
Why code compression/decompression?
  • Compress the instruction segment of the executable running on the embedded system…
    • Reducing the memory requirements and bus transaction overheads
  • Compression  Decompression
related work on compressed instructions
Related work on compressed instructions
  • A logarithmic-based compression scheme where 32-bit instructions map to fixed but smaller width compressed instructions.
    • (The system using memory area only)
  • Frequently appearing instructions are compressed to 8 bits.
    • (fixed-length 8 or 32 bits)
the compressed method in this paper
The compressed method in this paper
  • Give comprehensive results for the whole system including
    • buses
    • memories (main memory and cache)
    • decompression unit
    • CPU
architecture in this system post cache
Architecture in this system (Post-cache)
  • Reason ?
  • -Increase the effective cache size
  • Improve instruction bandwidth
code compression architecture10
Code Compression Architecture
  • Use SAMC to compress instructions
    • (Semiadaptive Markov Compression)
  • Divide instructions into 4 groups
    • based on SPARC architecture
    • appended a short code (3-bit) in the beginning of each compressed instruction
4 groups of instructions
4 Groups of Instructions
  • Group 1
    • instructions with immediates
      • Ex: sub %i1, 2, %g3 ; set 5000, %g2
  • Group 2
    • branch instructions
      • Ex: be, bne, bl, bg, ...
  • Group 3
    • instructions with no immediates
      • Ex: add %o1,%o2,%g3 ; st %g1,[%o2]
  • Group 4
    • Instructions that are left uncompressed
the key idea is
The Key idea is….
  • Present an architecture for embedded systems that decompresses offline-compressed instructions during runtime
    • to reduce the power consumption
    • a performance improvement (in most cases)
pipelined design group 1 stage 1
Pipelined Design – group 1 (stage 1)

Index the

Dec. Table

Input Compressed Instructions

Forward instructions

pipelined design group 3 instructions with no immediates stage 1
Pipelined Design – group 3instructions with no immediates (stage 1)

No immediate instructions may appear in pairs.

-> compressed in one byte. (<-> 64 bits)

256 entry table

8 bits as index to address

experimental results30
Experimental results
  • Use different applications:
    • an algorithm for computing 3D vectors for a motion picture ("i3d“)
    • a complete MPEGII encoder ("mpeg ")
    • a smoothing algorithm for digital images ("smo")
    • a trick animation algorithm ("trick")
  • A simulation tool written in C for obtaining performance data for the decompression engine
experimental results con t
Experimental results (con’t)
  • The decompression engine is application specific.
    • for each application -- build a decoding table and a fast dictionary table that will decompress that particular application only.
slide33

Worse performance on smo 512-byte instruction cache?

-Do not require large memory. (Execute in tight loops)

- Generates very few misses for this cache size.

(So the compressed architecture therefore does not help an alreadyalmost perfect hit ratio and the slowdown by the decompression engine prevails)

conclusion contributions of the paper
Conclusion & Contributions of the paper
  • This paper designed an instruction decompression engine as a soft IP core for low power embedded systems.
  • Applications run faster as opposed to systems with no code compression (due to improved cache performance).
  • Lower power consumption (due to smaller memory requirements for the executable program and smaller number of memory accesses)
relate to cse520
Relate to CSE520
  • Implement the system performance and power consumption by using Pipeline Architecture in system.
  • A different architecture design for lower power consumption on the Embedded system.
  • Smaller cache size perform better on compressed architecture ; larger cache perform better on no-compressed architecture.
    • Cache hit ratio
our project
Our project
  • Goal:
    • How to improve the efficiency of power management in embedded multicore system
  • Idea:
    • Use different power mode within a given power budget, global power management policy (In Jun Shen’s presentation)
    • Use the SAMC algorithm and this decompress architecture as another factor to simulate (This paper)
  • How?
    • SimpleScalar tool set
      • try simple function at first, then try the different power mode
