    1. Migration of ATLAS PanDA to CERN Graeme Stewart, Alexei Klimentov, Birger Koblitz, Massimo Lamanna, Tadashi Maeno, Pavel Nevski, Marcin Nowak, Pedro Salgao, Torre Wenus, Mikhail Titov

    2. Outline • PanDA Review • PanDA History • PanDA Architecture • First steps of Migration to CERN • Infrastructure Setup • PanDA Monitor • Task Request Database • Second Phase Migration • PanDA Server and Bamboo • Database bombshells • Migration, Tuning and Tweaks • Conclusions

    3. PanDA was developed by US ATLAS in 2005 Became the executor of all ATLAS production in EGEE during 2008 March 2009: executes production for ATLAS in NDGF as well using ARC Control Tower (aCT) As PanDA had become central to ATLAS operations it was decided in late 2008 to re-locate it to CERN 35k simultaneous running jobs 150k jobs per day finished PanDA Recent History

    4. PanDA Server Architecture • PanDA (Production and Distributed Analysis) is a pilot job system • Executes jobs from the ATLAS production system and from users • Brokers jobs to sites based on available compute resource and data • Can move and stage data if necessary • Triggers data movement back to Tier-1s for dataset aggregation ATLAS ProdDB Panda Monitor Panda Client Bamboo Panda Server Panda Databases Pilots get jobs Computing Site Pilot Factory Pilots

    5. PanDA Monitor • PanDA Monitor is the web interface to the panda system • Provides summaries of processing per cloud/site • Drill down to individual job logs • And directly view logfiles • Task status • Also provides a web interface to request actions from the system • Task requests • Dataset Subscriptions

    6. AKTR MySQL PandaDB MySQL ProdDBOracle Task Request Database • Task request interface is hosted as part of the panda monitor • Allows physicists do define MC production task • Backend database exists separately from rest of panda • Prime candidate for migration from MySQL at BNL to Oracle at CERN AKTR Oracle PandaDB MySQL ProdDBOracle

    7. Migration – Phase 1 • Target was migration of task request database and panda monitor • First step was to prepare infrastructure for services: • 3 server class machines to host panda monitors • Dual CPU, Quad Core Intel E5410 CPUs • 16GB RAM • 500GB HDD • Setup as much as possible as standard machines supported by CERN FIO • Quattor templates • Lemon monitoring • Alarms for host problems • Utilise CERN Arbitrating DNS to balance load across all machines • Picks the 2 ‘best’ machines of 3 with a configurable metric • Also migrated to the ATLAS standard python environment • Python 2.5, 64 bit

    8. Parallel Monitors • Panda was always architected to have multiple stateless monitors • Each monitor queries the backend database to retrieve user requested information and display it • Thus setting up a parallel monitor infrastructure at CERN was relatively easy • Once external dependencies were sorted • ATLAS Distributed Data Management (DDM) • Grid User Interface tools • This was deployed at the beginning of December 2008 DB

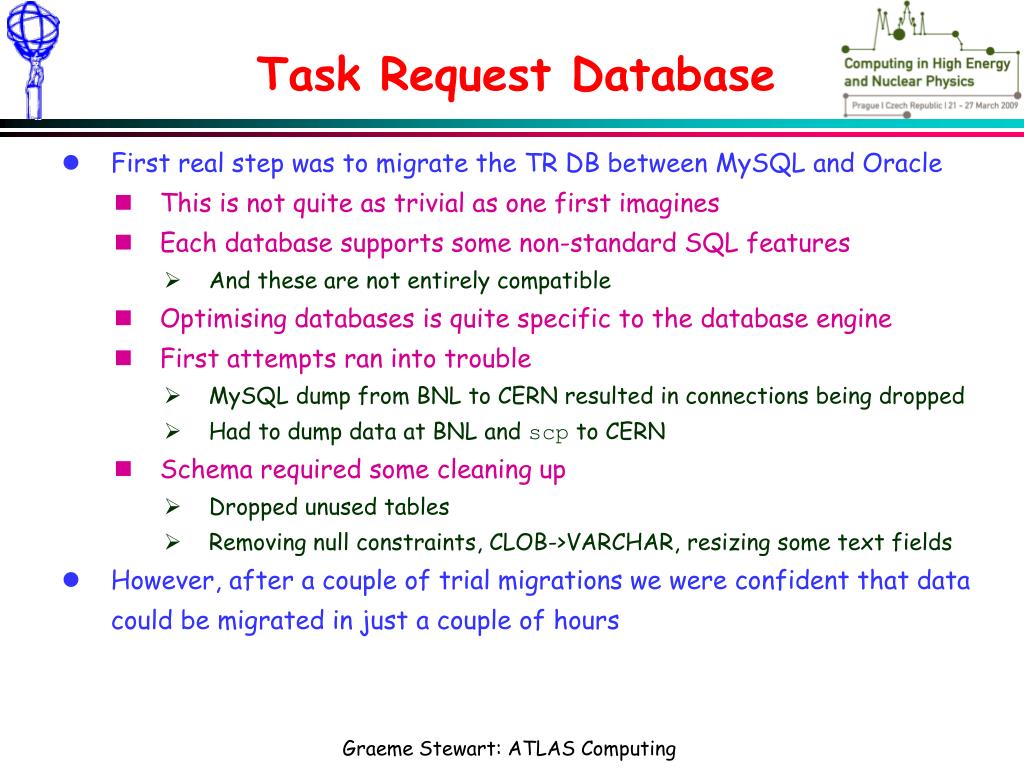

    9. Task Request Database • First real step was to migrate the TR DB between MySQL and Oracle • This is not quite as trivial as one first imagines • Each database supports some non-standard SQL features • And these are not entirely compatible • Optimising databases is quite specific to the database engine • First attempts ran into trouble • MySQL dump from BNL to CERN resulted in connections being dropped • Had to dump data at BNL and scp to CERN • Schema required some cleaning up • Dropped unused tables • Removing null constraints, CLOB->VARCHAR, resizing some text fields • However, after a couple of trial migrations we were confident that data could be migrated in just a couple of hours

    10. Migration • Migration occurred on Monday December 8th • Database data was migrated in a couple of hours • Two days were then used to iron out any glitches • In the Task Request interfaces • In the scripts which manage the Task Request to ProdDB interface • Could this all have been prepared in advance? • In theory yes, but we are migrating a live system • So there only a limited amount of test data which can be inserted into the system • Real tasks trigger real jobs • System was live again and accepting task requests on Wednesday • Latency of tasks in the production system is usually several days, even for short tasks • Acceptable to the community

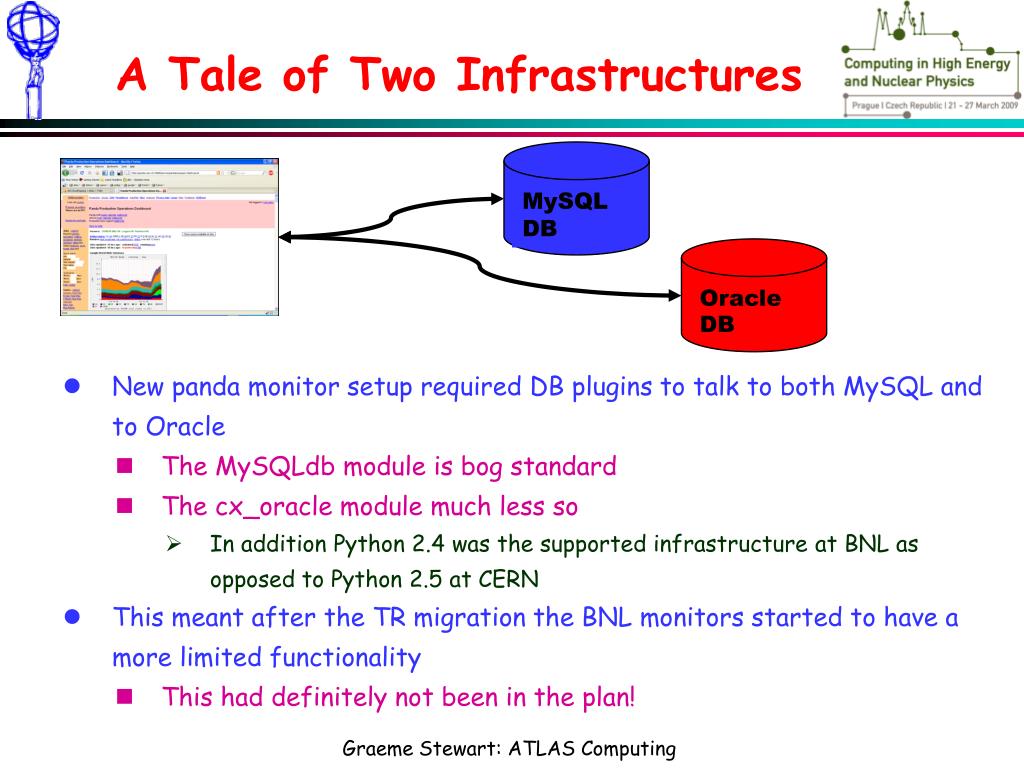

    11. MySQL DB Oracle DB A Tale of Two Infrastructures • New panda monitor setup required DB plugins to talk to both MySQL and to Oracle • The MySQLdb module is bog standard • The cx_oracle module much less so • In addition Python 2.4 was the supported infrastructure at BNL as opposed to Python 2.5 at CERN • This meant after the TR migration the BNL monitors started to have a more limited functionality • This had definitely not been in the plan!

    12. PanDA Servers • Some preliminary work on the panda server has been done already in 2008 • However much still required to be done to migrate the full suite of panda server databases: • PandaDB – holds live job information and status (‘fast buffer’) • LogDB – holds pilot logfile extracts • MetaDB – holds panda scheduler information on sites and queues • ArchiveDB – ultimate resting place of any panda job (big!) • For most databases the data volume was minimal and the main work was in the schema details • Including the setup of Oracle triggers • For the infrastructure side we copied the BNL setup, with multiple panda servers running on the same machines as the monitors • We knew the load was low and the machines were capable • We also required one server component which interfaces between the panda servers and ProdDB, bamboo • Same machine template worked fine

    13. ArchiveDB • In MySQL, because of constraints on the table performance vs. size an explicit partitioning had been adopted • One ArchiveDB table for every two months of jobs • Jan_Feb_2007 • Mar_Apr_2007 • … • Jan_Feb_2009 • In Oracle internal partitioning is supported: • CREATE TABLE jobs_archived (<list of columns>) PARTITION BY RANGE(MODIFICATIONTIME) ( PARTITION jobs_archived_jan_2006 VALUES LESS THAN (TO_DATE('01-JAN-2006','DD-MON-YYYY')),  PARTITION jobs_archived_feb_2006 VALUES LESS THAN (TO_DATE('01-MAR-2006','DD-MON-YYYY')),  PARTITION jobs_archived_mar_2006 VALUES LESS THAN (TO_DATE('01-APR-2006','DD-MON-YYYY')), … • This allows for considerable simplification of the client code in the panda monitor

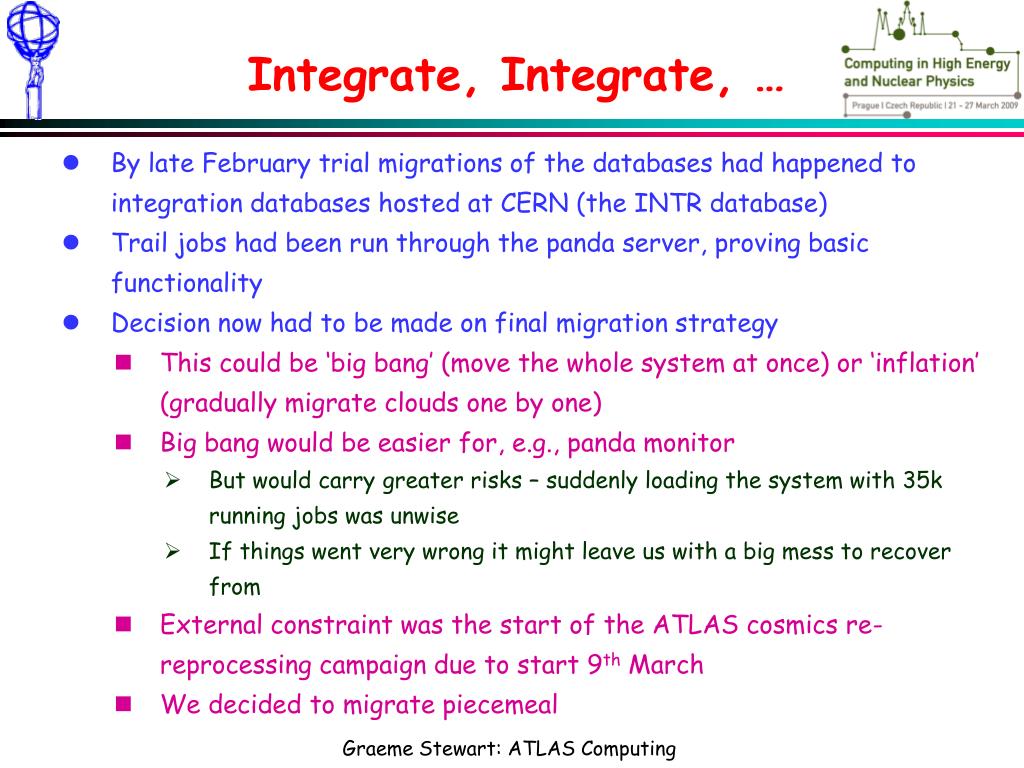

    14. Integrate, Integrate, … • By late February trial migrations of the databases had happened to integration databases hosted at CERN (the INTR database) • Trail jobs had been run through the panda server, proving basic functionality • Decision now had to be made on final migration strategy • This could be ‘big bang’ (move the whole system at once) or ‘inflation’ (gradually migrate clouds one by one) • Big bang would be easier for, e.g., panda monitor • But would carry greater risks – suddenly loading the system with 35k running jobs was unwise • If things went very wrong it might leave us with a big mess to recover from • External constraint was the start of the ATLAS cosmics re-reprocessing campaign due to start 9th March • We decided to migrate piecemeal

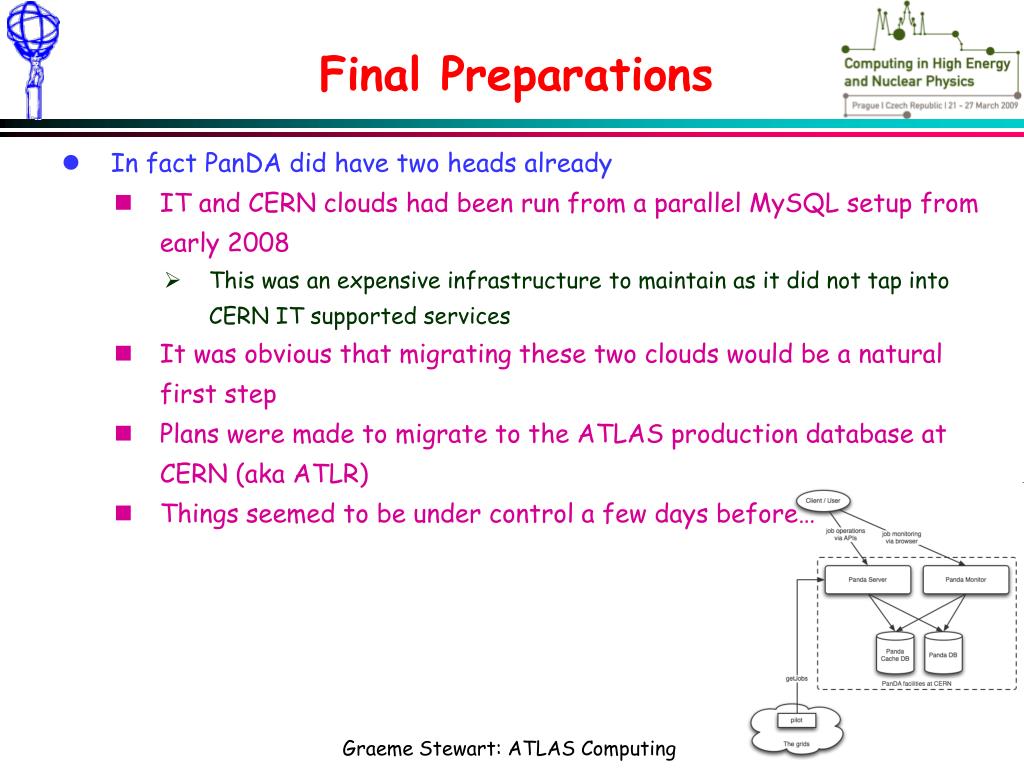

    15. Final Preparations • In fact PanDA did have two heads already • IT and CERN clouds had been run from a parallel MySQL setup from early 2008 • This was an expensive infrastructure to maintain as it did not tap into CERN IT supported services • It was obvious that migrating these two clouds would be a natural first step • Plans were made to migrate to the ATLAS production database at CERN (aka ATLR) • Things seemed to be under control a few days before…

    16. DBAs • Friday before we were due to migrate CERN DBAs asked us not to do so • They were worried that not enough testing of the Oracle setup in INTR has been done • This triggered a somewhat frantic weekend of work, resulting in several thousand jobs being run through the CERN and IT clouds using the INTR databases • From our side this testing looked to be successful • However, we reached a subsequent compromise that • We would migrate the CERN and IT clouds to panda running against the INTR • They would start backups on the INTR database giving us the confidence to run production for ATLAS though this setup • Subsequent migration from INTR to ATLR could be achieved much more rapidly as the data was already in the correct Oracle formats

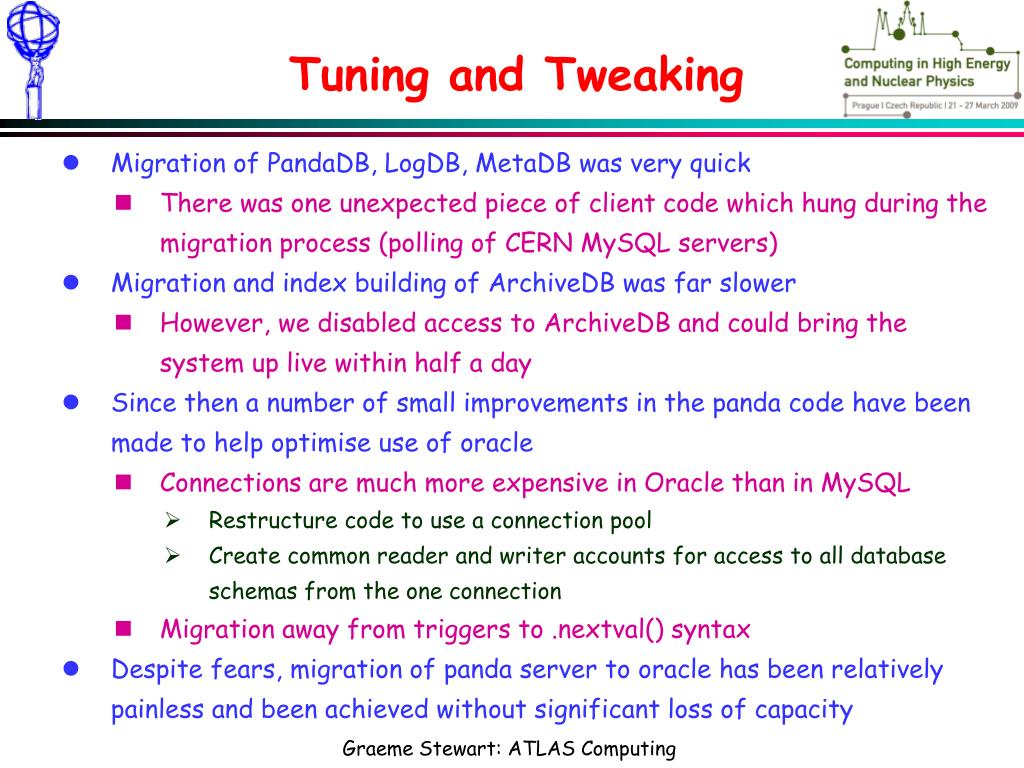

    17. Tuning and Tweaking • Migration of PandaDB, LogDB, MetaDB was very quick • There was one unexpected piece of client code which hung during the migration process (polling of CERN MySQL servers) • Migration and index building of ArchiveDB was far slower • However, we disabled access to ArchiveDB and could bring the system up live within half a day • Since then a number of small improvements in the panda code have been made to help optimise use of oracle • Connections are much more expensive in Oracle than in MySQL • Restructure code to use a connection pool • Create common reader and writer accounts for access to all database schemas from the one connection • Migration away from triggers to .nextval() syntax • Despite fears, migration of panda server to oracle has been relatively painless and been achieved without significant loss of capacity

    18. Cloud Migration • Initial migration was for CERN and IT clouds • We added NG, the new Nordugrid cloud, which was from a standing start • We added DE after a major intervention in which the cloud was taken offline • Similarly TW will come up in the CERN Oracle instance • UK was the interesting case where we migrated a cloud live: • Switched bamboo instance to send jobs to CERN Oracle servers • Current jobs are left being handled by old bamboo and servers • Start sending pilots to UK asking from jobs from CERN Oracle servers • Force the failure of jobs not yet started in the old instance • These return to prodDB and then are picked up again by panda using the new bamboo • Old running jobs are handled correctly by the ‘old’ system • There will be a subsequent re-merge into the CERN ArchiveDB

    19. Monitor Blues • A number of problems did arise in the new monitor setup required for the migrated clouds • Coincident with the migration there was a repository change from CVS to SVN • However, the MySQL monitor was deployed from CVS and the Oracle monitor from SVN • This lead to a number of accidents and minor confusions which it took a while to recover from • New security features cause some loss of functionality at times as it was hard to check all the use cases • And the repository problems augmented this • However, these are now mostly resolved issues and ultimely the system will in fact become simpler

    20. Conclusions • Migration of the panda infrastructure from BNL to CERN has underlined how difficult the transition of a large scale, live, distributed computing system is • A very pragmatic approach was adopted in order to get the migration done in a reasonable time • Although it always takes longer then you think • (This is true even when you try and factor in knowledge of the above) • Much has been achieved • Monitor and task request database fully migrated • CERN Panda server infrastructure moved to Oracle • Now running 5(6) of the 11 ATLAS clouds: CERN, DE, IT, NG, UK, (TW) • Remaining migration steps are now a matter of scaling and simplifying • We learned a lot • Love your DBAs, of course • If we have to do this again, now we know how • But there is still considerable work to do • Mainly in improving service stability, monitoring and support proceedures
