memory subsystem
Memory Subsystem
  • Memory Hierarchy
  • Nomenclature
  • Primary Memory Designs
  • Cache
  • Virtual Memory

cse241 1

memory hierarchy
Memory Hierarchy

Memory is organized hierarchically by size and speed

usually: faster costlier, smaller

slower cheaper, larger

Style Speed Size

registers CPU speed few 10’s

L1 (primary) cache near CPU speed few KBs (e.g., 16KB -- 128KB)

L2 (secondary) cache slower than L1 KBs (256KB)

Main Memory 60ns MBs (128MB -- )

On-line secondary (disk) 100MB/s GBs

Off-line (tape, CD ROM etc.) -- GBs -- TBs

The blue area constitutes what is usually called the “memory subsystem”.

cse241 2

semiconductor memory nomenclature
Semiconductor Memory Nomenclature
  • RAM --Random Access Memory time taken to access any arbitrary location
  • in memory is constant (c.f., disks)
  • SRAM --Static RAM A RAM chip design technology (see later)
  • DRAM --Dynamic RAM A RAM chip design technology (see later)
  • ROM --Read Only Memory ROMs are RAMs with data built-in when the
  • chip is created. Usually stores BIOS info.
      • Older uses included storage of bootstrap info
  • PROM --Programmable ROM A ROM which can be bench programmed
  • EPROM --Erasable PROM A PROM which can be bench programmed, erased
  • by exposure to UV radiation
  • EEPROM – Electrically erasable PROM
  • IGCMOSFET-EEPROM

cse241 3

other nomenclature
Other Nomenclature

There are a lot of these acronyms. Here are a few of the more common ones.

SIMM Single In-Line Memory Module

A packaging technology (single 32-bit data path)

DIMM Dual In-Line Memory Module

A packaging technology (dual 32-bit data paths)

FPM RAM Fast Page-Mode RAM

An older technology capable of about 60ns cycle time

EDO RAM Extended-data-out RAM

More modern FPM RAM, exploiting address coherency (see cachelater) capable of about 20ns access speed

SDRAM Synchronous DRAM

Synchronous Dynamic RAM; allows access speeds as

low as about 10ns

cse241 4

static vs dynamic ram
Static vs Dynamic RAM

Static and dynamic RAMs are two different technologies implementing the basic RAM

functionality.

A static RAM (SRAM) is a device which can retain its state (the contents of the RAM)

as long as power is applied to the device

Of course, SRAMs lose their contents when power is removed.

SRAMs are usually characterized by (relatively) low density (bits per chip)

but fast access (but see technology changes to DRAMs)

Low power: current flows only when memory cell value changes

A dynamic RAM (DRAM) is a device which must employ special designs to retain

their state, even if the power to them is kept on. One way to view DRAMs

is that the cells of the DRAM are capacitors which eventually lose their

charge unless they are replenished.

A DRAM employs special refresh circuitry which replenishes the contents

of the DRAM during its operation.

cse241 5

a typical sram
A Typical SRAM

The diagram below shows a typical SRAM (a T14M1024A 128K x 8 SRAM). It has a

read and a write cycle of 10, 12 or 15ns (depending on the chip you buy).

17 address lines

A0 -- A16

8 data I/O lines

/CE1

CE2

/WE

/OE

cse241 6

functionality
Functionality

The T14M1024A functions as follows:-

/CE1 CE2 /OE /WE Mode IO0--IO7

H X X X not selected hi-Z

X L X X not selected hi-Z

L H H H output disable hi-Z

L H L H Read Data Out

L H X L Write Data In

Notice that some signals are active low (CE1, OE and WE).

Note that

/CE1 and CE2 select the chip

Compare /OE to /CE1 and CE2. Can you see the difference?

cse241 7

a simple 128k x 8 memory
a simple 128K x 8 memory

Address Bus (17 bits)

Data Bus (8 bits)

Control Bus (8 bits)

17 address lines A0 -- A16

8 Data Lines

Write

Read

/OE

/WE

cse241 8

decoders

6

7

G1

Y7

4

9

G2A

Y6

5

10

G2B

Y5

11

138

Y4

3

12

C

Y3

2

13

B

Y2

1

14

A

Y1

15

Y0

Decoders

Remember that a decoder has n input lines and 2n output lines labeled 0 to 2n - 1; the

decoder will set an active-high 1 (or active low 0) onto the output line labeled k

if the binary value k appears on the n input lines.

Below is a 3-to-8 decoder with active low outputs:-

InputsOutputs

G1 G2 A B C Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7

- H - - - H H H H H H H H

L - - - - H H H H H H H H

H L L L L L H H H H H H H

H L L L H H L H H H H H H

H L L H L H H L H H H H H

H L L H H H H H L H H H H

H L H L L H H H H L H H H

H L H L H H H H H H L H H

H L H H L H H H H H H L H

H L H H H H H H H H H H L

G2 = G2A + G2B

cse241 9

a 256k x 8 memory

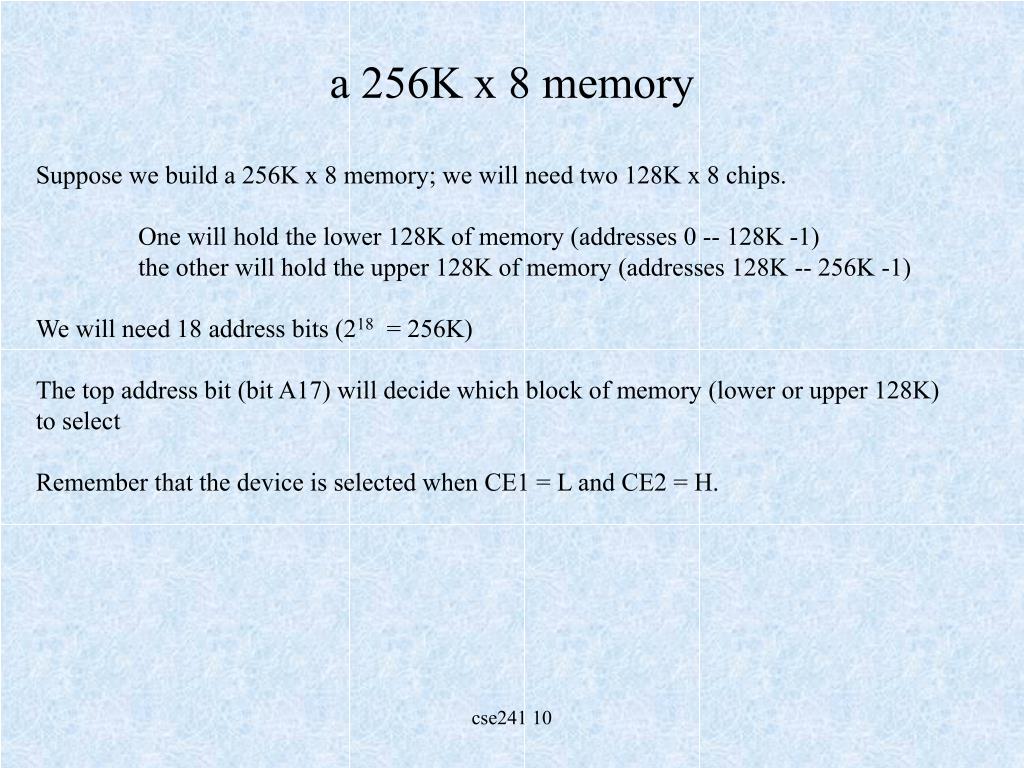

a 256K x 8 memory

Suppose we build a 256K x 8 memory; we will need two 128K x 8 chips.

One will hold the lower 128K of memory (addresses 0 -- 128K -1)

the other will hold the upper 128K of memory (addresses 128K -- 256K -1)

We will need 18 address bits (218 = 256K)

The top address bit (bit A17) will decide which block of memory (lower or upper 128K)

to select

Remember that the device is selected when CE1 = L and CE2 = H.

cse241 10

a simple 1 stage decoded 256k memory

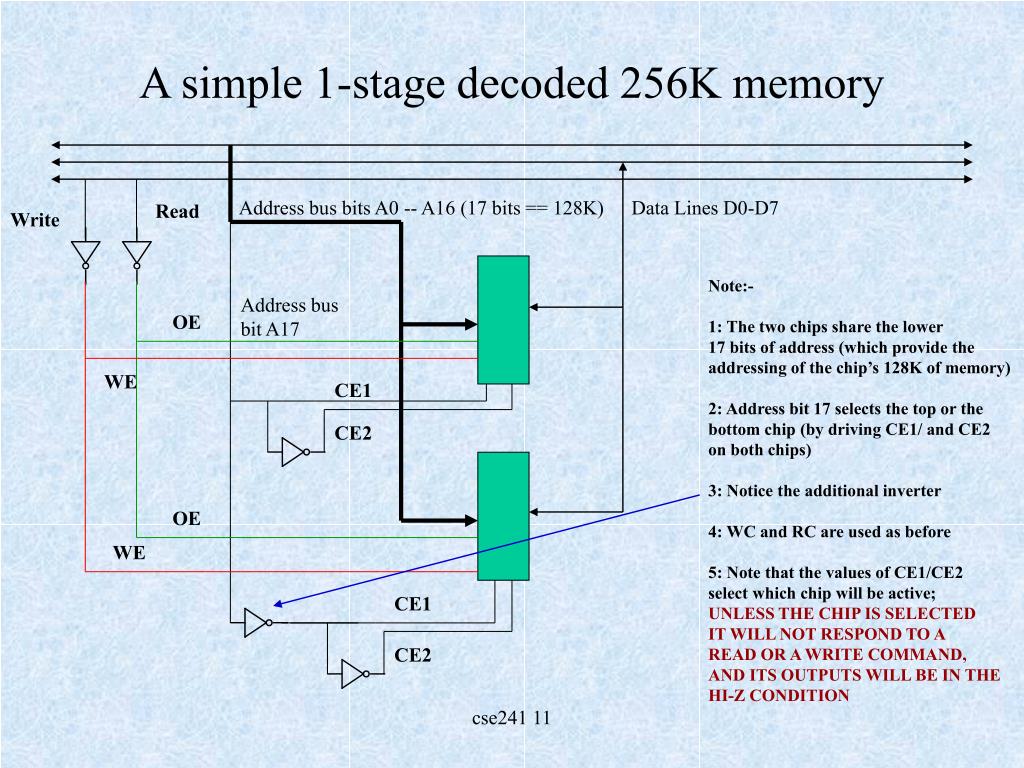

A simple 1-stage decoded 256K memory

Address bus bits A0 -- A16 (17 bits == 128K)

Data Lines D0-D7

Read

Write

Note:-

1: The two chips share the lower

17 bits of address (which provide the

addressing of the chip’s 128K of memory)

2: Address bit 17 selects the top or the

bottom chip (by driving CE1/ and CE2

on both chips)

3: Notice the additional inverter

4: WC and RC are used as before

5: Note that the values of CE1/CE2

select which chip will be active;

UNLESS THE CHIP IS SELECTED

IT WILL NOT RESPOND TO A

READ OR A WRITE COMMAND,

AND ITS OUTPUTS WILL BE IN THE

HI-Z CONDITION

Address bus

bit A17

OE

WE

CE1

CE2

OE

WE

CE1

CE2

cse241 11

building a 1mb memory
Building a 1MB memory

Suppose we build a 1MB memory from the 128KB chips; we would need 8 such

chips (8X128K = 1M), and each chip would hold 128K of the 1M memory:

This will be chip 0

This will be chip 1

This will be chip 7

The address space is

partitioned into 128K

blocks;

block 0 has addresses 0 -- 128K -1

block 1 has addresses 128K -- 256K-1

block 2 has addresses 256K -- 384K -1

:

:

:

:

block 7 has addresses 896K -- 1024K -1

How many address bits are there?

How many chip-select bits are there?

cse241 12

address decoder design

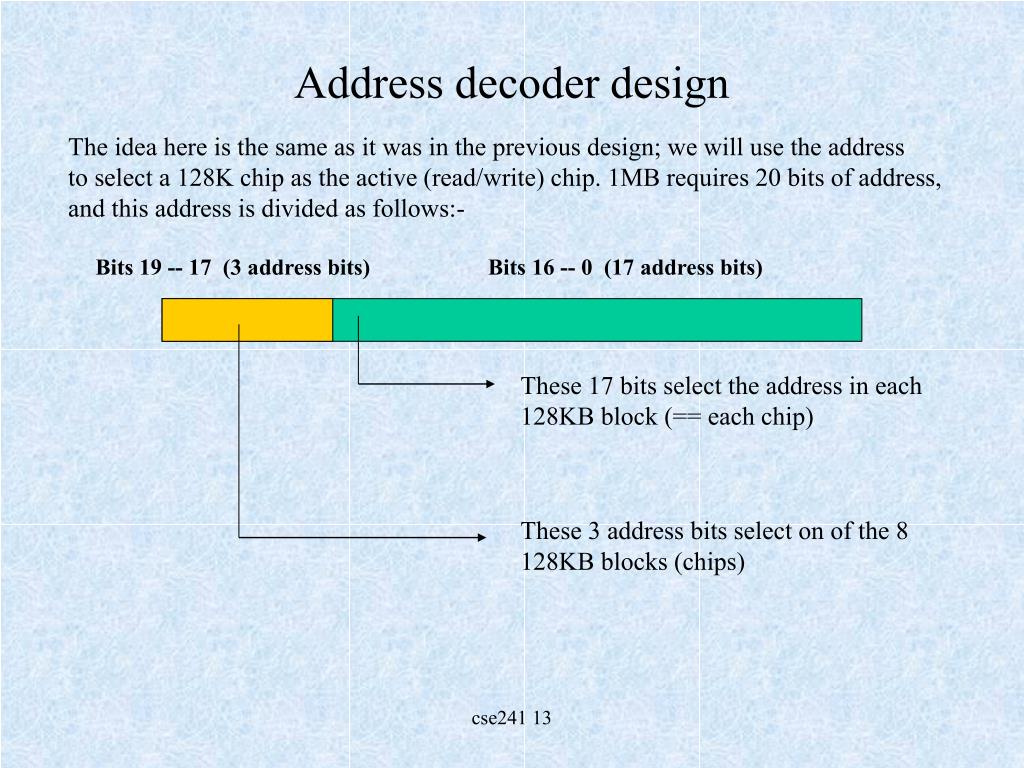

Address decoder design

The idea here is the same as it was in the previous design; we will use the address

to select a 128K chip as the active (read/write) chip. 1MB requires 20 bits of address,

and this address is divided as follows:-

Bits 19 -- 17 (3 address bits)

Bits 16 -- 0 (17 address bits)

These 17 bits select the address in each

128KB block (== each chip)

These 3 address bits select on of the 8

128KB blocks (chips)

cse241 13

a simpler ram chip
A simpler RAM chip

Suppose we assume a simpler 128KB RAM chip i.e., the following:-

8 data lines

17 address lines

/CS

/WE

/CS /WE Function Data Lines

H X not selected Hi-Z

L H Read data at location on address lines

L L Write write data on data lines to address

on address lines

cse241 14

1mb memory

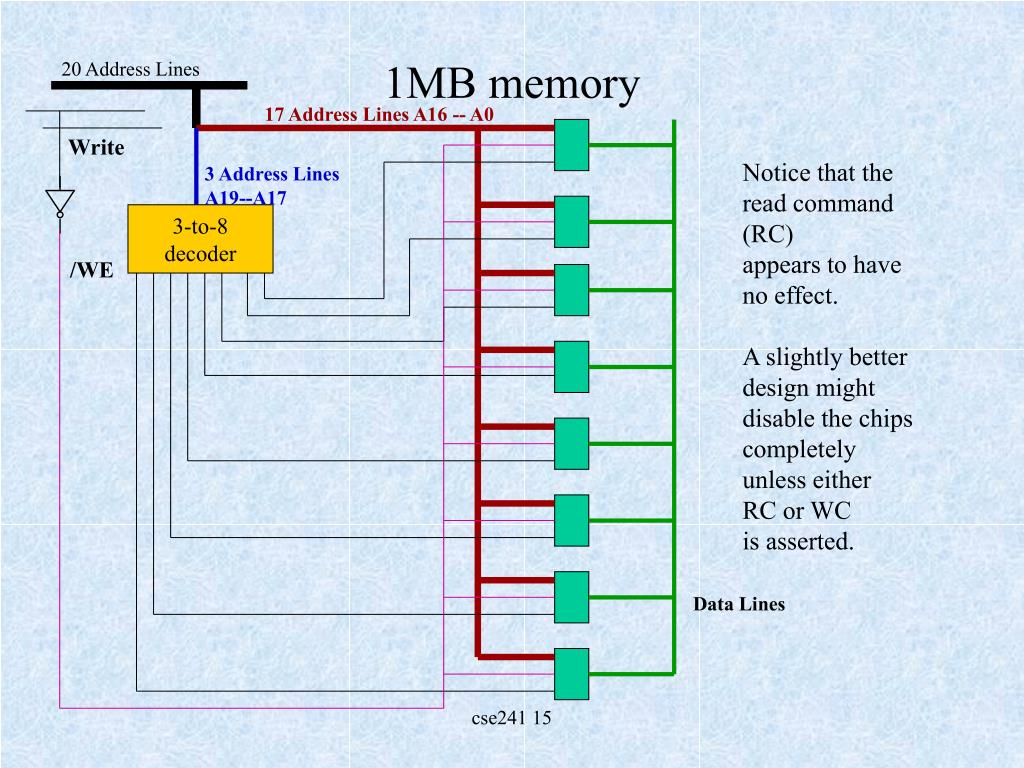

1MB memory

20 Address Lines

17 Address Lines A16 -- A0

Write

Notice that the

read command

(RC)

appears to have

no effect.

A slightly better

design might

disable the chips

completely

unless either

RC or WC

is asserted.

3 Address Lines

A19--A17

3-to-8

decoder

/WE

Data Lines

cse241 15

1mb memory16
1MB memory

20 Address Lines

Write

17 Address Lines A16 -- A0

In this design, note that

we assume that the decoder

can be enabled i.e., we will

assume that the outputs of the

decoder are always H unless

the enable signal E is a 1.

This way, no chip can be

selected unless either

Write or Read is active.

Read

3 Address Lines

A19--A17

3-to-8

decoder

EN

Data Lines

cse241 16

WE

effect of address partition
Effect of Address Partition

Bits 19 -- 17 (3 address bits)

Bits 16 -- 0 (17 address bits)

Notice that the effect of partitioning the address bits as above is to keep contiguous

memory addresses (128KB blocks of them) in the same block

But consider this partition:-

17 address bits A19--A13 3 address bits A2..A0

Suppose we use the lower 3 bits to select the block, not the upper 3 bits. How does

this effect the way addresses are partitioned? (Or, how would you describe where

consecutive memory addresses are located?)

cse241 17

interleaving

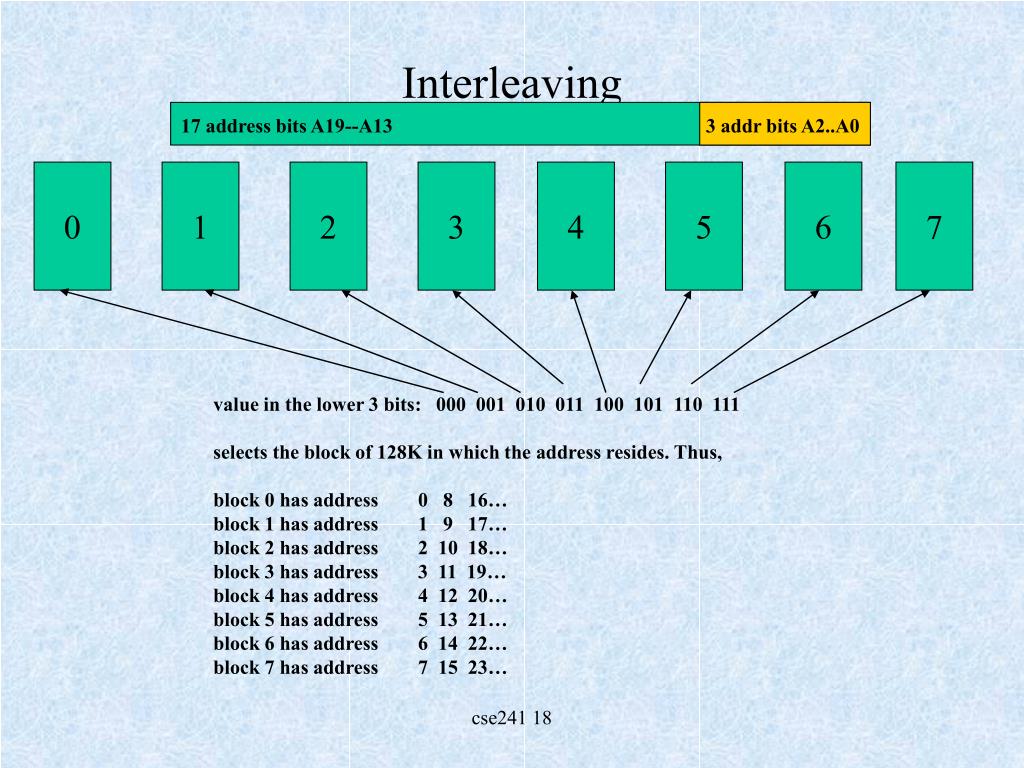

Interleaving

17 address bits A19--A13 3 addr bits A2..A0

0

1

2

3

4

5

6

7

value in the lower 3 bits: 000 001 010 011 100 101 110 111

selects the block of 128K in which the address resides. Thus,

block 0 has address 0 8 16…

block 1 has address 1 9 17…

block 2 has address 2 10 18…

block 3 has address 3 11 19…

block 4 has address 4 12 20…

block 5 has address 5 13 21…

block 6 has address 6 14 22…

block 7 has address 7 15 23…

cse241 18

interleaved memory
Interleaved memory

It is important to note the difference between interleaved and non-interleaved memory:-

Interleaved: consecutive addresses are in consecutive memory blocks

a block failure will leave gaps (missing addresses) distributed

throughout memory

but if we could organize the read/write mechanism to read

or write to blocks independently, then we could speed up

memory accesses by allowing overlapped fetches

Non-Interleaved: consecutive addresses are in the same memory block

a block failure just removes a contiguous block of memory

(this can be easily compensated for)

but we could not exploit the parallel fetching process

cse241 19

the principle of locality of reference
The Principle of Locality of Reference

A very important principle, underpinning

--EDO RAM design

--interleaved memory with overlapped access

--cache

Principle:

If a data word (instruction) has been fetched from address K,

then the likelihood that the next data word (instruction) is

in the next sequential memory address is high

Observation:

Obviously, this is program/data dependent. But it holds

up well in practice.

cse241 20

overlapped fetches in interleaved memory

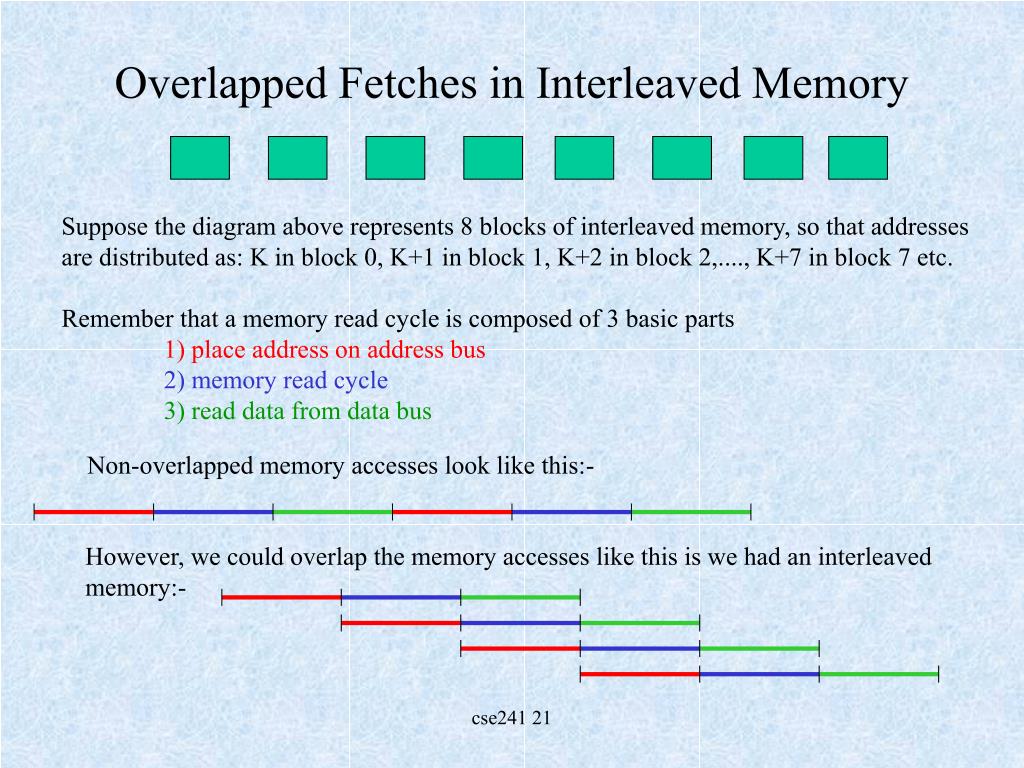

Overlapped Fetches in Interleaved Memory

Suppose the diagram above represents 8 blocks of interleaved memory, so that addresses

are distributed as: K in block 0, K+1 in block 1, K+2 in block 2,...., K+7 in block 7 etc.

Remember that a memory read cycle is composed of 3 basic parts

1) place address on address bus

2) memory read cycle

3) read data from data bus

Non-overlapped memory accesses look like this:-

However, we could overlap the memory accesses like this is we had an interleaved

memory:-

cse241 21

overlapped fetches in interleaved memory22
Overlapped Fetches in Interleaved Memory

To get these fetches to overlap, we would need

a) to place an address on the address bus and have the addressed memory

module “latch” (save) it

b) remove that address during that memory module’s read cycle

c) during that time slot, place the address of the next location (in a

different memory module) on the address bus

--and so on

We could then read data from the data bus by keeping track of when

we expect to see a data word appear on the data bus

cse241 22

generic memory system simplified
Generic Memory System (simplified)

System Bus (Address/Data/Control)

Data

Rd,

Wt

M

e

m

o

r

y

A

r

r

a

y

XACK

Block

Select

Decoder

XACK

generate

logic

Chip

Selects

WE/OE

Command

Decode Logic

cse241 23
