Presentation Transcript
csf formation
CSF Formation
  • 140 ml spinal and cranial CSF
  • 30 ml in the spinal cord
  • Production is approx. 0.35 ml/min
  • Net flow out of ventricles 50 – 100 ml/day
  • Reduces brain weight from 1400 to 50g.
indications for lumbar puncture
Indications for Lumbar Puncture
  • Primary indication for emergent spinal tap is possibility of CNS infection
  • The second indication for an emergent spinal puncture is a suspected spontaneous subarachnoid hemorrhage.
infectious indications
Infectious Indications
  • Fever of unknown origin
  • Children 1mo to 3yrs: fever, irritability, and vomiting. Cannot comfort child
  • Over age 3yrs: nuchal rigidity, Kernig’s sign, and Brudzinski’s sign
  • Petechial rash in a febrile child
  • Partially treated children are less likely to be febrile or exhibit an altered mental status
subarachnoid hemorrhage
Subarachnoid Hemorrhage
  • Diagnosis usually made by CT scan or by blood in CSF.
  • Initial presentation: CT 92-98% accurate
  • Later than 24 hr presentation: 76% accurate
  • 20-60% of aneurismal subarachnoid hemorrhage will have “sentinel thunderclap” or “warning clap”
  • After initial leak, CT is usually negative
contraindications for lp

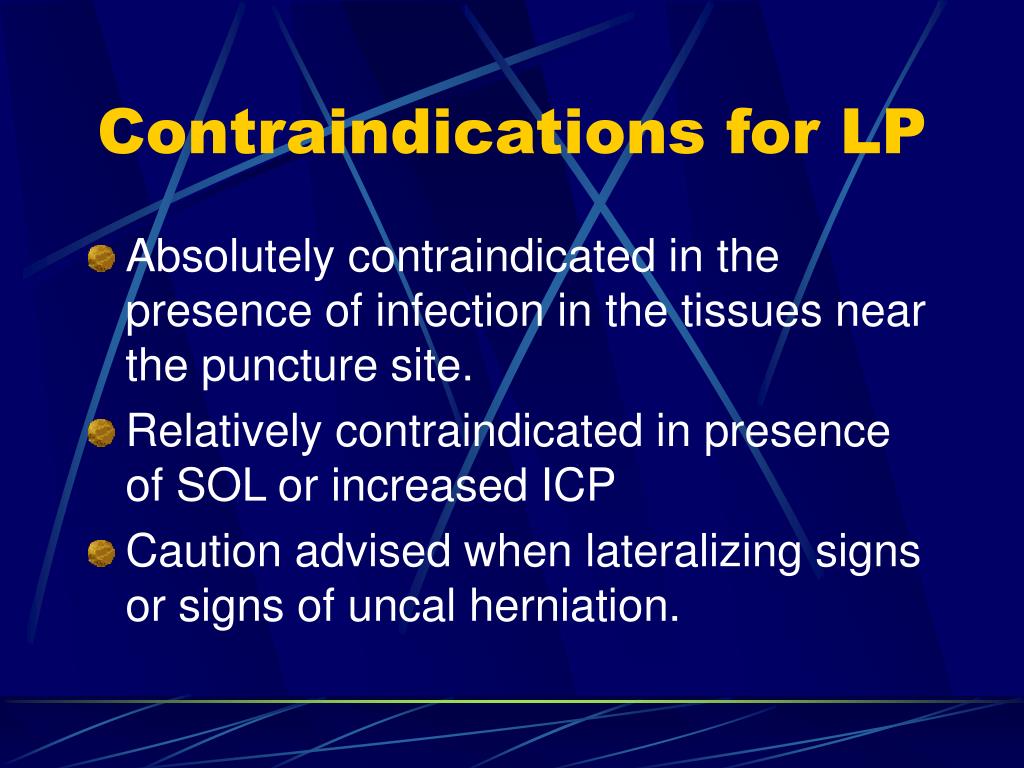

Contraindications for LP
  • Absolutely contraindicated in the presence of infection in the tissues near the puncture site.
  • Relatively contraindicated in presence of SOL or increased ICP
  • Caution advised when lateralizing signs or signs of uncal herniation.
equipment

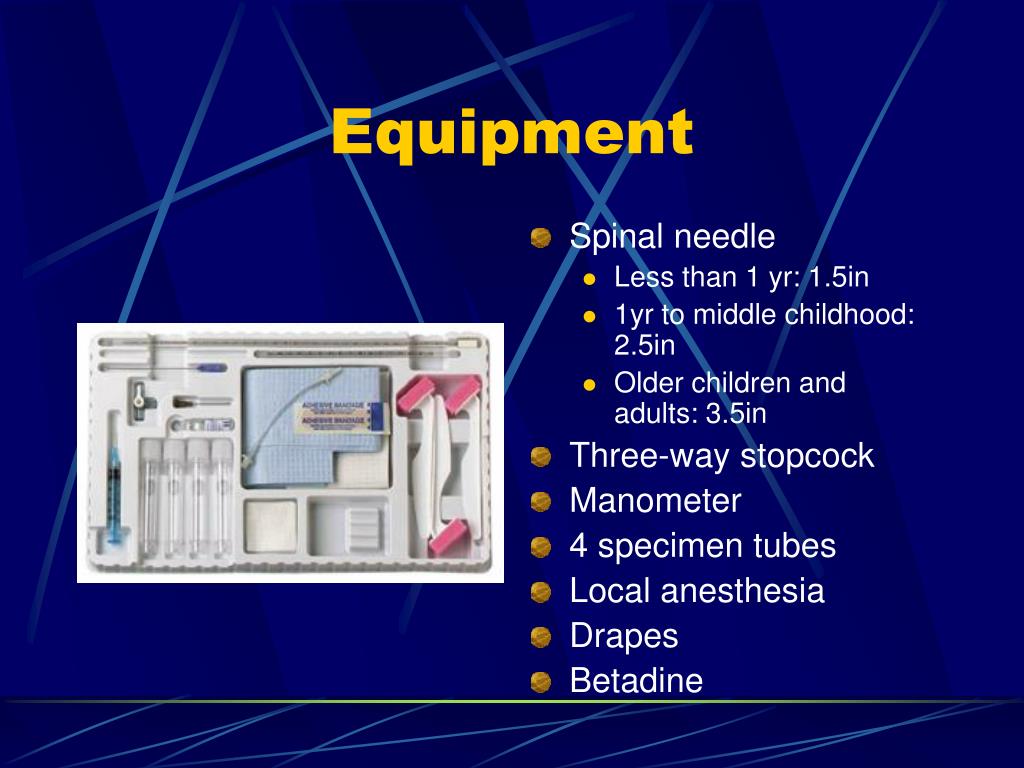

Equipment
  • Spinal needle
    • Less than 1 yr: 1.5in
    • 1yr to middle childhood: 2.5in
    • Older children and adults: 3.5in
  • Three-way stopcock
  • Manometer
  • 4 specimen tubes
  • Local anesthesia
  • Drapes
  • Betadine
interpretations

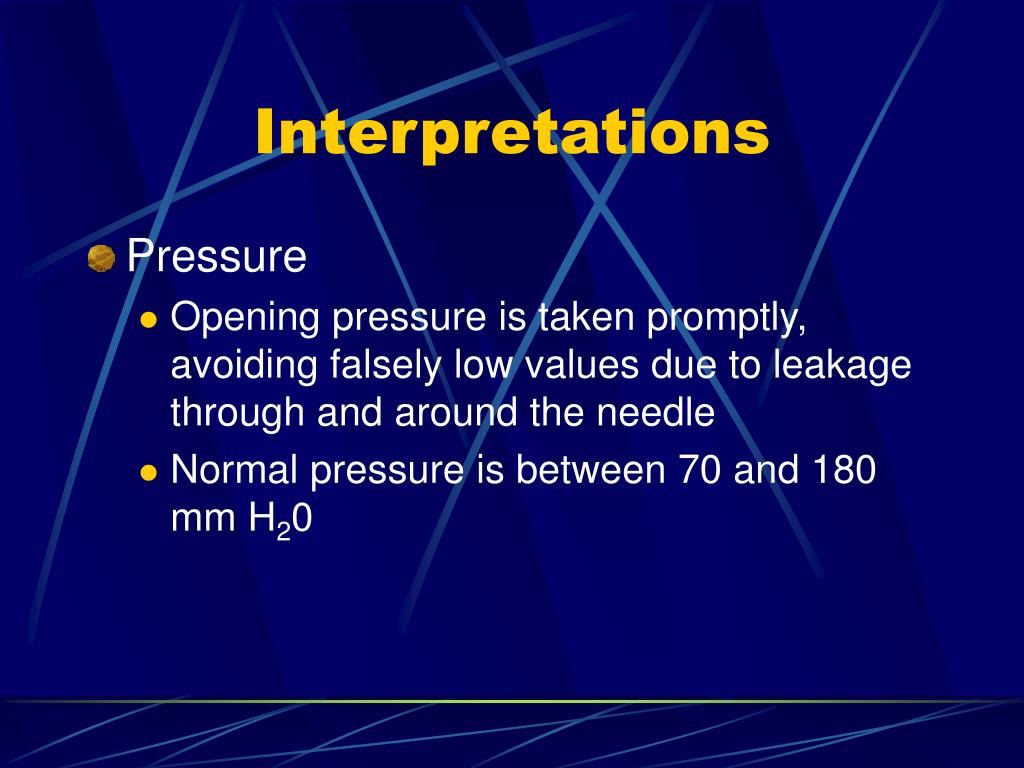

Interpretations
  • Pressure
    • Opening pressure is taken promptly, avoiding falsely low values due to leakage through and around the needle
    • Normal pressure is between 70 and 180 mm H20
interpretation
Interpretation
  • Appearance
    • If CSF is not crystal clear, a pathologic condition of the CNS should be suspected
    • Compare fluid to water
    • Fluid may be clear with as many as 400 RBCs/mm3 and 200 WBCs/mm3
interpretation1
Interpretation
  • Cells
    • WBC counts over 5 cells/mm3 should be taken to indicate the presence of pathologic condition
    • Polymorphonuclear leukocytes are never seen in normal adults
    • Neutrophilic pleocytosis is commonly associated with bacterial infections or early stages of viral infections, tuberculosis, meningitis, hematogenous meningitis, and chemical meningitis due to foreign bodies.
interpretation2
Interpretation
  • Cells
    • Eosinophils are always abnormal and most commonly represent a parasite infestation.
    • Eosinophils have also been reported in cases of subarachnoid hemorrhage, lymphoma, Hodgkin’s disease, brucellosis, fungal meningitis, mycoplasma pneumonia infection, measles, lymphocytic choriomeningitis, rickettsial infections, leukemia, demyelinating disease, sarcoiodosis, acute inflammatory demyelinating polyneuropathy, allergic reactions, and idiopathic eosinophilic meningitis.
interpretation3
Interpretation
  • Cells
    • Normal CSF RBCs are less than 10/mm3.
    • Counts that are otherwise unexplained may be due to a traumatic tap.
    • Herpes simplex virus encephalitis may elevate the CSF RBC count in many patients.
interpretation4

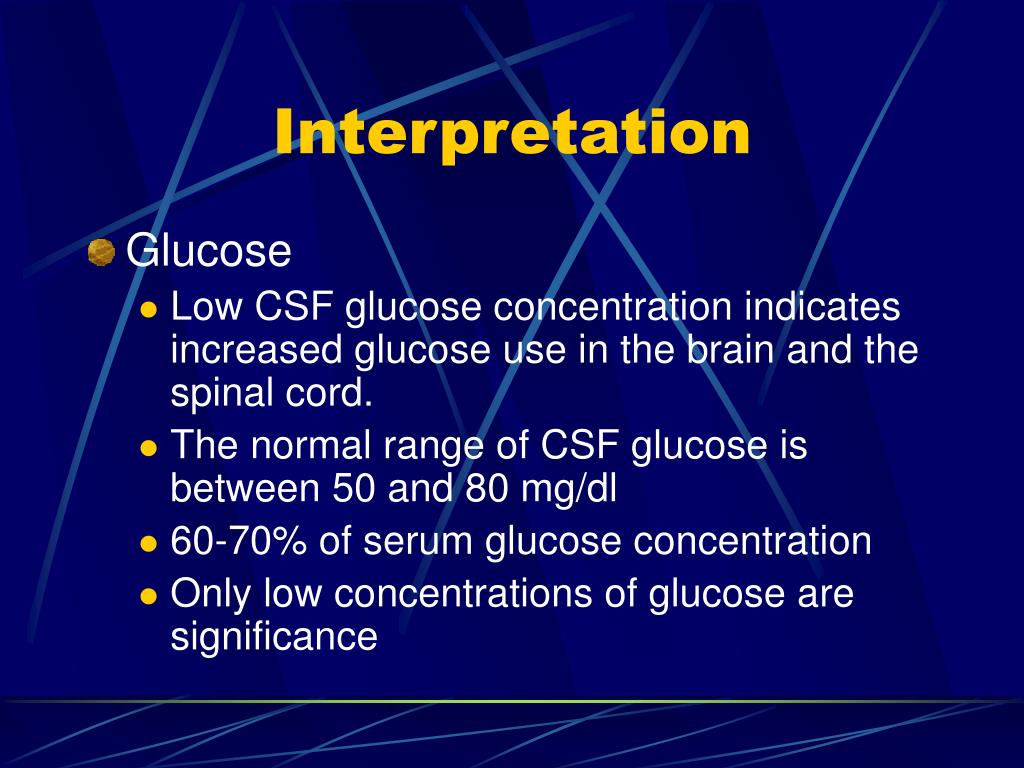

Interpretation
  • Glucose
    • Low CSF glucose concentration indicates increased glucose use in the brain and the spinal cord.
    • The normal range of CSF glucose is between 50 and 80 mg/dl
    • 60-70% of serum glucose concentration
    • Only low concentrations of glucose are significance
interpretation5
Interpretation
  • Low CSF Glucose Syndromes
interpretation6
Interpretation
  • Protein
    • Increase in CSF total protein levels are a nonspecific abnormality associated with many disease states.
    • Levels > 500mg/dl are uncommon and are seen mainly in meningitis, in subarachnoid bleeding, and with spinal tumors.
the traumatic tap
The Traumatic Tap
  • It should not be difficult to distinguish between subarachnoid hemorrhage and a traumatic tap.
  • In traumatic taps, the fluid generally clears between 1st and 3rd tubes.
csf analysis with infections
CSF Analysis with Infections
  • Bacterial Infections
    • The Gram stain is of great importance, because this often dictates the initial choice of antibiotic.
    • Gram-negative intracellular or extracellular diplococci are indicative of Neisseria meningitidis
    • Small Gram-negative bacilli may include Haemophilus influenza, especially in children.
    • Gram-positive cocci indicates Streptococcus pneumoniae, other Streptococcus species, or Staphylococcus.
    • 20% of Gram stains may be falsely negative.
csf analysis with infections1
CSF Analysis with Infections
  • Bacterial Infections
    • While the culture is pending, one may suspect a bacterial infection in the presence of an elevated opening pressure and a marked pleocytosis ranging between 500 and 20,000 WBCs/mm3.
    • The differential count is usually chiefly neutrophils.
    • A count above 1000 cells/mm3 seldom occurs in viral infections.
csf analysis with infections2

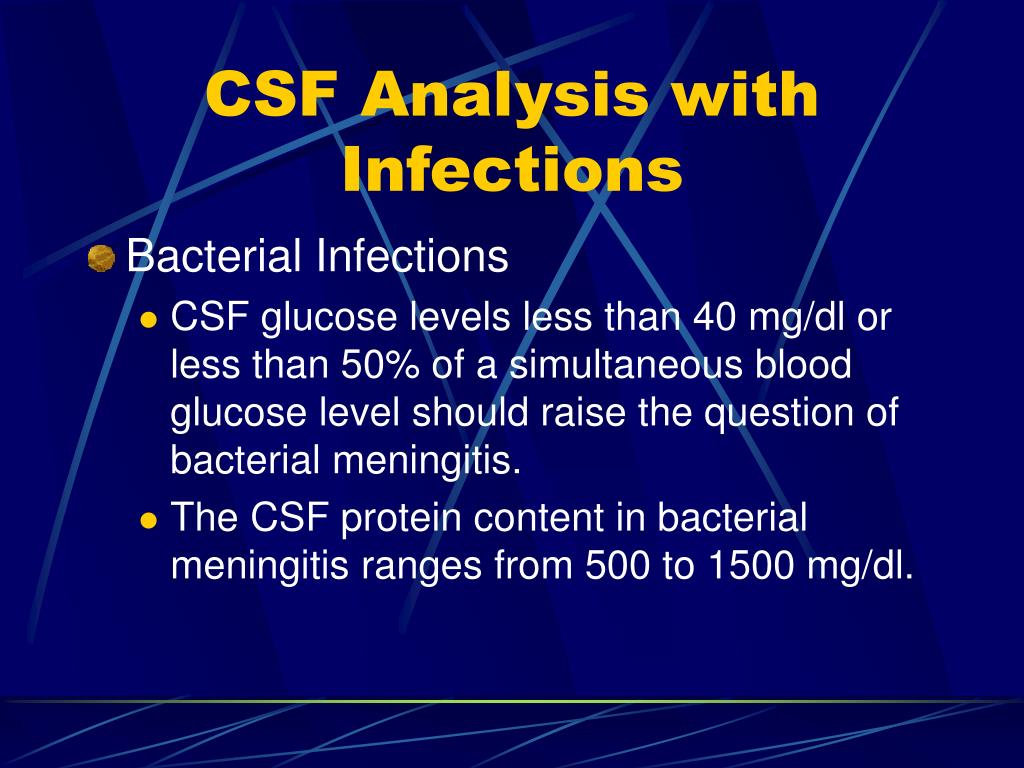

CSF Analysis with Infections
  • Bacterial Infections
    • CSF glucose levels less than 40 mg/dl or less than 50% of a simultaneous blood glucose level should raise the question of bacterial meningitis.
    • The CSF protein content in bacterial meningitis ranges from 500 to 1500 mg/dl.
csf analysis with infections3
CSF Analysis with Infections
  • Viral Studies
    • The organisms most commonly isolated in viral meningitis are enteroviruses and mumps.
      • Enteroviruses: summer and fall
      • Mumps: winter and spring
csf analysis with infections4
CSF Analysis with Infections
  • Viral Studies
    • WBC count in viral meningitis and encephalitis usually: 10 to 1000 cells/mm3.
    • The differential count is predominantly lymphocytic and mononuclear in type.
    • Protein levels are usually mildly elevated
    • Antibiotic coverage pending culture results may be reasonably initiated pending culture results if in doubt.
complications
Complications
  • Headache After Lumbar Puncture
    • Most common complication
    • Occurs 5-30% of all spinal taps
    • Usually starts up to 48 hours after to procedure.
    • Usually lasts 1-2 days (occas 14 days)
complications1
Complications
  • Headache After Lumbar Puncture
    • Usually begins within minutes after arising and resolves with recumbent position.
    • Pain is mild to incapacitating and is usually cervical and sub-occipital, but may involve the shoulders and the entire cranium.
    • Caused by leaking of fluid through dural puncture site.
complications2
Complications
  • Headache After Lumbar Puncture
    • Incidence is higher in younger patients and females, and those with headache history.
    • Treatment: barbiturates, fluids, caffeine (500mg in 2 ml NS IV push) more common 500mg in 2 L over 1 hr.
    • Blood patch by anesthesia if no improvement.
procedure
Procedure
  • Performed with the patient in the lateral recumbent position.
  • A line connecting the posterior superior iliac crest will intersect the midline at approx. the L4 spinous process.
  • Spinal needles entering the subarachnoid space at this point are well below the termination of the spinal cord.
procedure1
Procedure
  • In the adult, the spinal cord extends to the lower level of L1 or the body of L2.
  • LP in adults and in older children may be performed from L2 to L3 interspace to the L5 to S1 interspace.
  • At birth, the cord ends at the level of L3.
  • LP in infant may be performed at the L4 to L5 or L5 to S1 interspace.
procedure2
Procedure
  • Almost all patients are afraid of an LP. Explaining the procedure in advance and discussing each step aids in reducing anxiety.
  • Inquire about allergies to anesthetics.
  • Informed consent.
procedure3
Procedure
  • Position the patient:
    • Generally performed in the lateral decubitus position.
    • A pillow is placed under the head to keep it in the same plane as the spine.
    • Shoulders and hips are positioned. perpendicular with the table.
    • Lower back should be arched toward practitioner.
procedure4

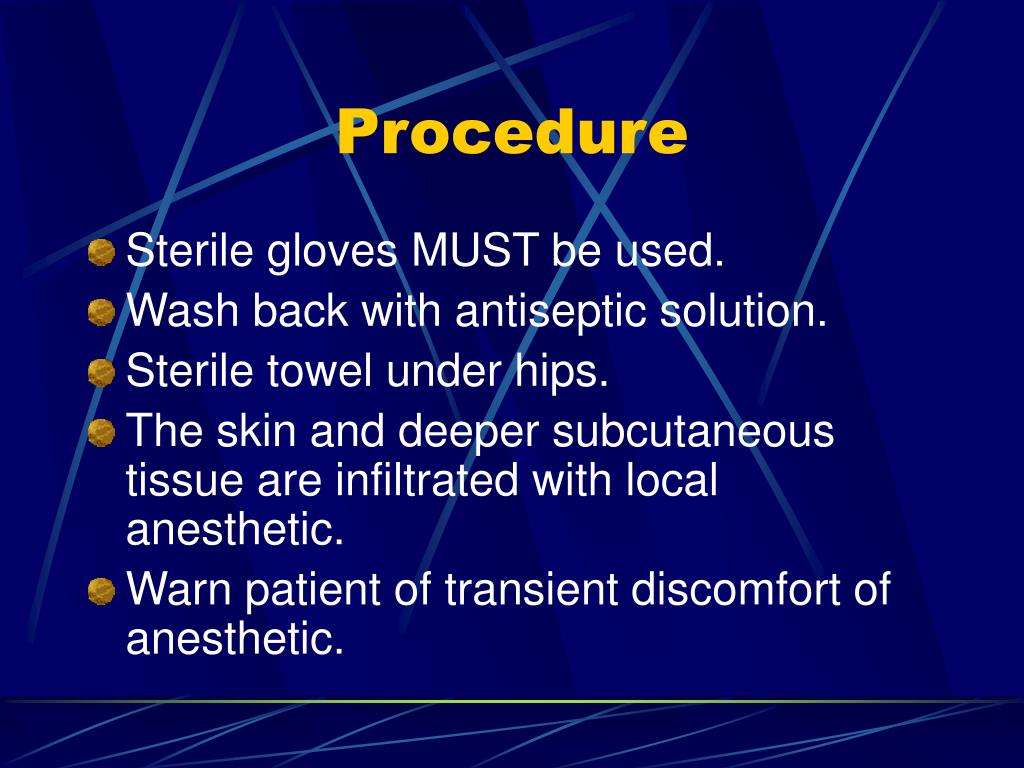

Procedure
  • Sterile gloves MUST be used.
  • Wash back with antiseptic solution.
  • Sterile towel under hips.
  • The skin and deeper subcutaneous tissue are infiltrated with local anesthetic.
  • Warn patient of transient discomfort of anesthetic.
procedure5

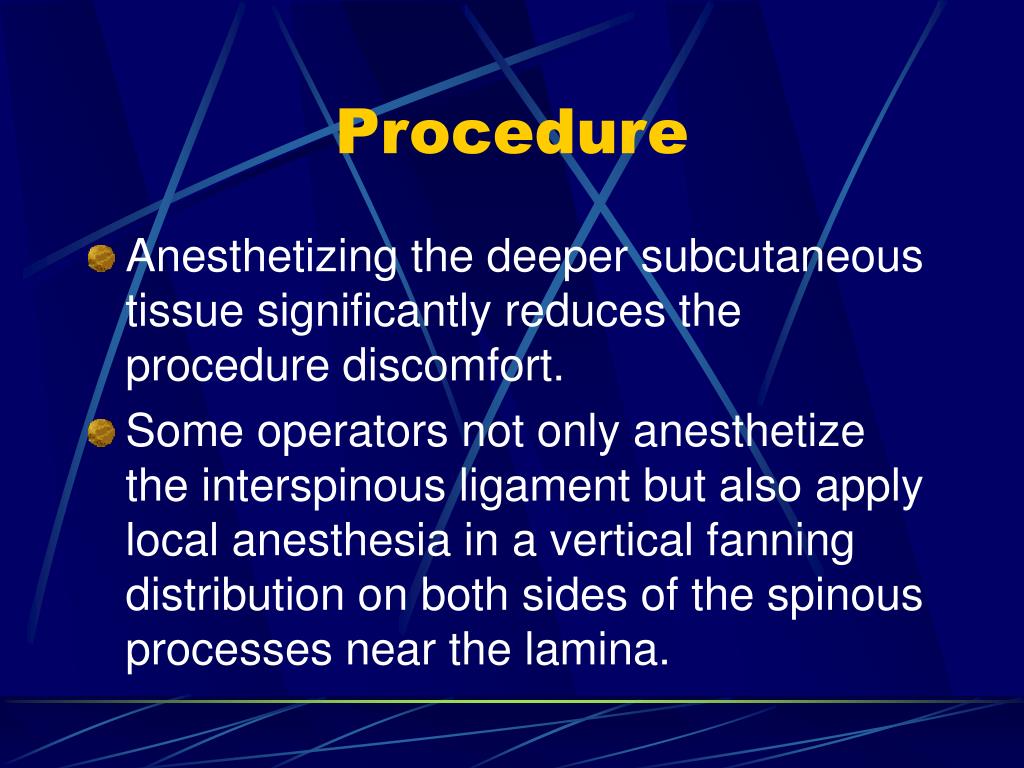

Procedure
  • Anesthetizing the deeper subcutaneous tissue significantly reduces the procedure discomfort.
  • Some operators not only anesthetize the interspinous ligament but also apply local anesthesia in a vertical fanning distribution on both sides of the spinous processes near the lamina.
procedure6

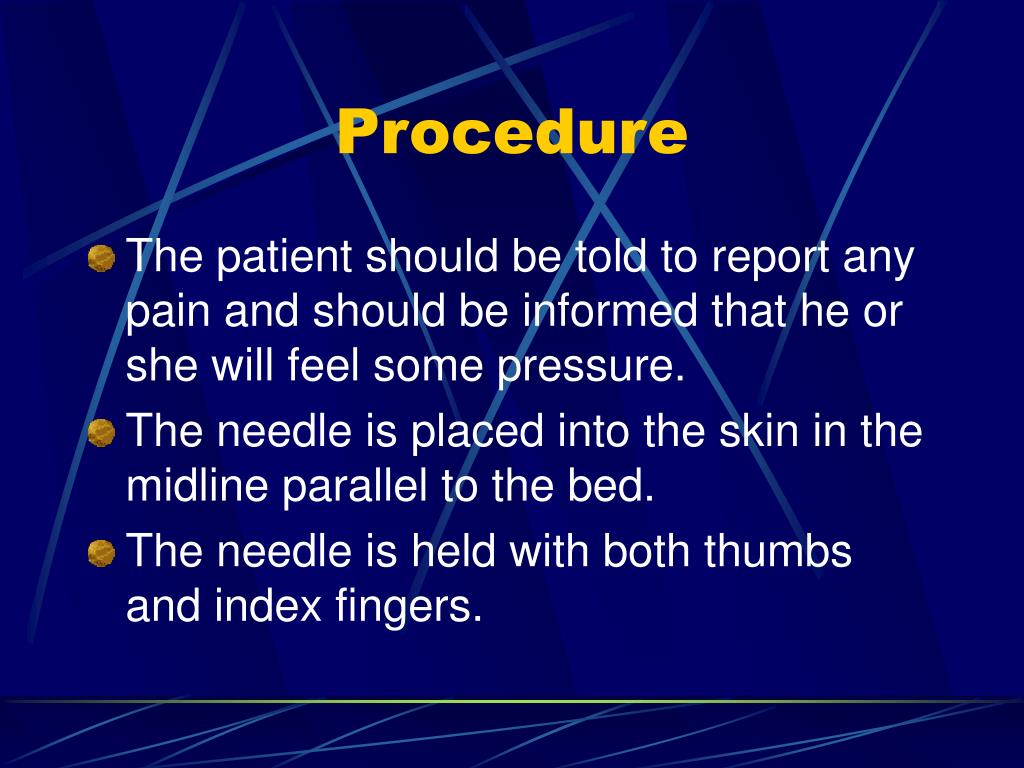

Procedure
  • The patient should be told to report any pain and should be informed that he or she will feel some pressure.
  • The needle is placed into the skin in the midline parallel to the bed.
  • The needle is held with both thumbs and index fingers.
procedure7
Procedure
  • After the subcutaneous tissue has been penetrated, the needle is angled toward the umbilicus.
  • The bevel of the needle should be facing laterally (toward patients side).
procedure8

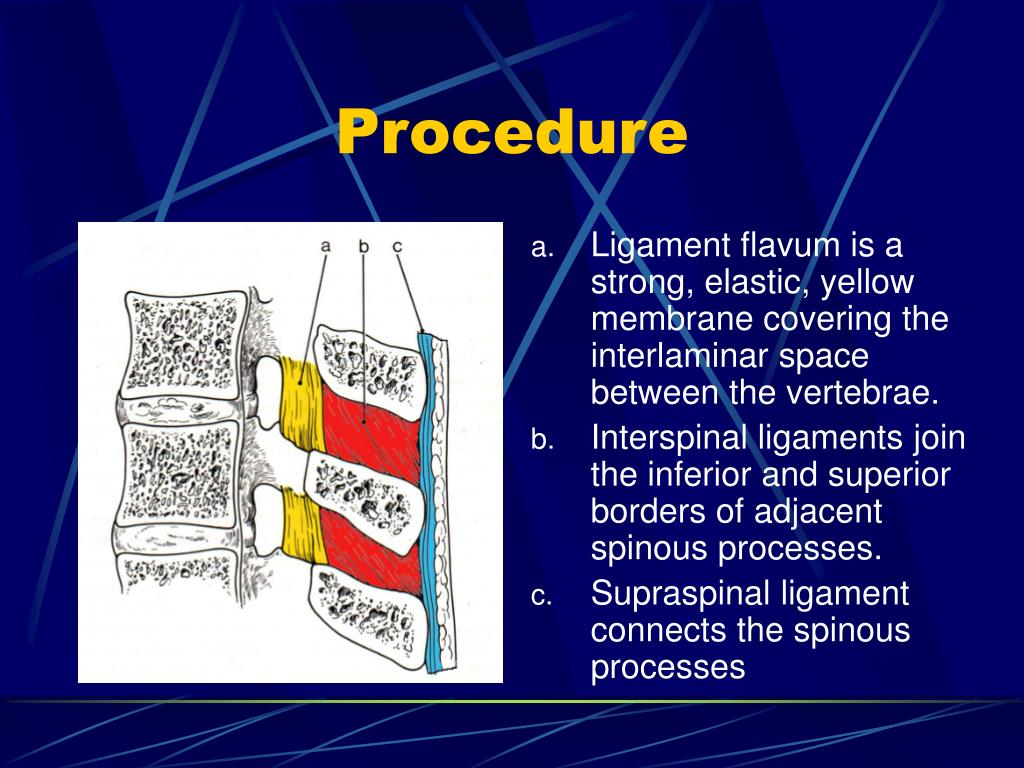

Procedure
  • Ligament flavum is a strong, elastic, yellow membrane covering the interlaminar space between the vertebrae.
  • Interspinal ligaments join the inferior and superior borders of adjacent spinous processes.
  • Supraspinal ligament connects the spinous processes
procedure9
Procedure
  • The ligaments offer resistance to the needle, and a “pop” is often felt as they are penetrated.
  • Clear fluid will flow from the needle when the subarachnoid space has been penetrated.
procedure10
Procedure
  • If bone is encountered, withdrawal into subcutaneous tissue and redirect.
  • Attach a manometer and record opening pressure.
  • Turn stopcock and collect fluid.
  • Withdrawal needle and place a dressing.
procedure11

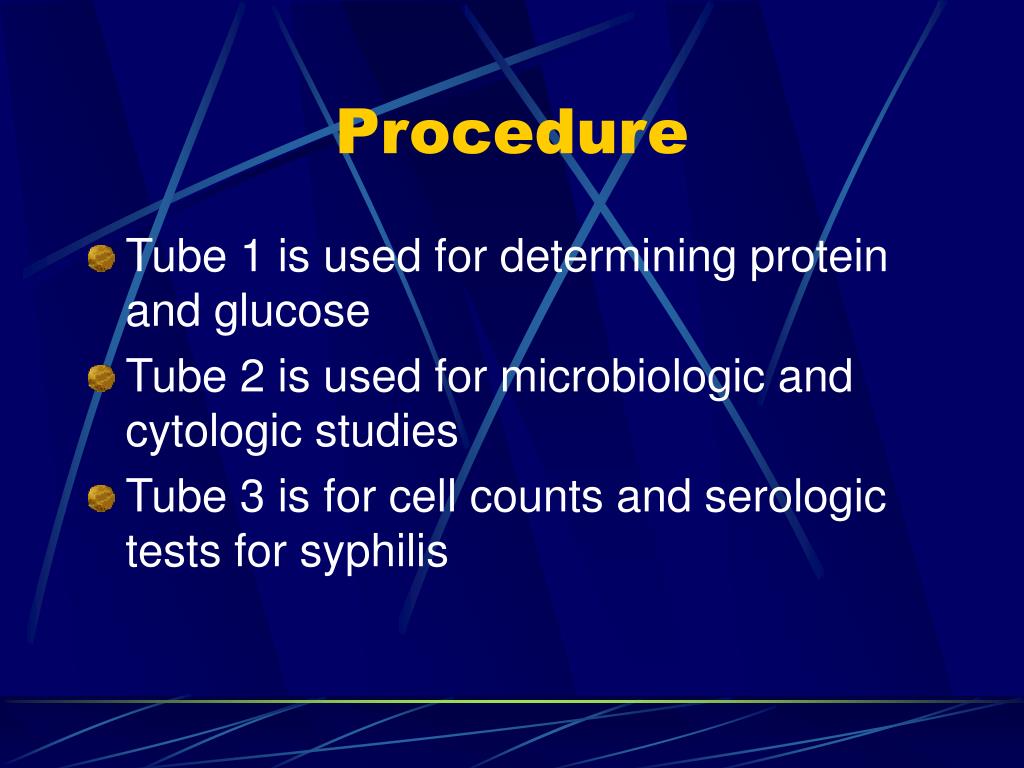

Procedure
  • Tube 1 is used for determining protein and glucose
  • Tube 2 is used for microbiologic and cytologic studies
  • Tube 3 is for cell counts and serologic tests for syphilis
