New Challenges in Deepwater

New Challenges in Deepwater. Deepwater fields getting more complex: no single technology will “unlock”. Ultra-deep water and remote locations Harsh environments Small and/or sub-economic accumulations Viscous oil, low energy drive and lift High cost drilling & infrastructure

katima
Download Presentation

New Challenges in Deepwater

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

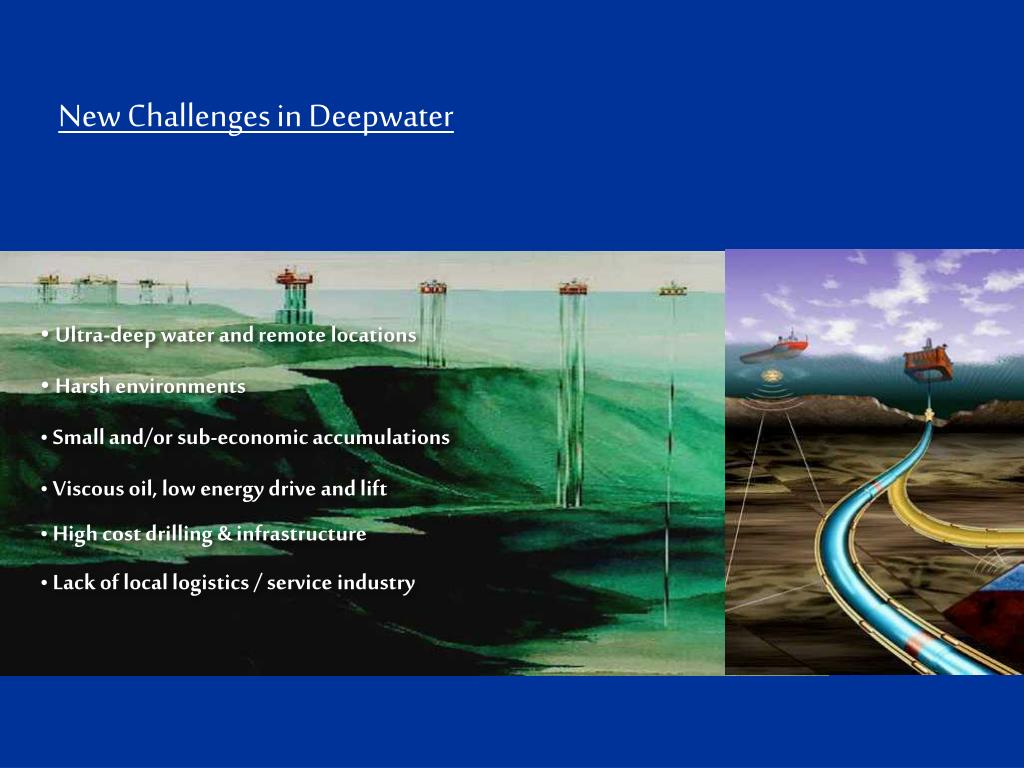

  1. New Challenges in Deepwater Deepwater fields getting more complex: no single technology will “unlock” • Ultra-deep water and remote locations • Harsh environments • Small and/or sub-economic accumulations • Viscous oil, low energy drive and lift • High cost drilling & infrastructure • Lack of local logistics / service industry

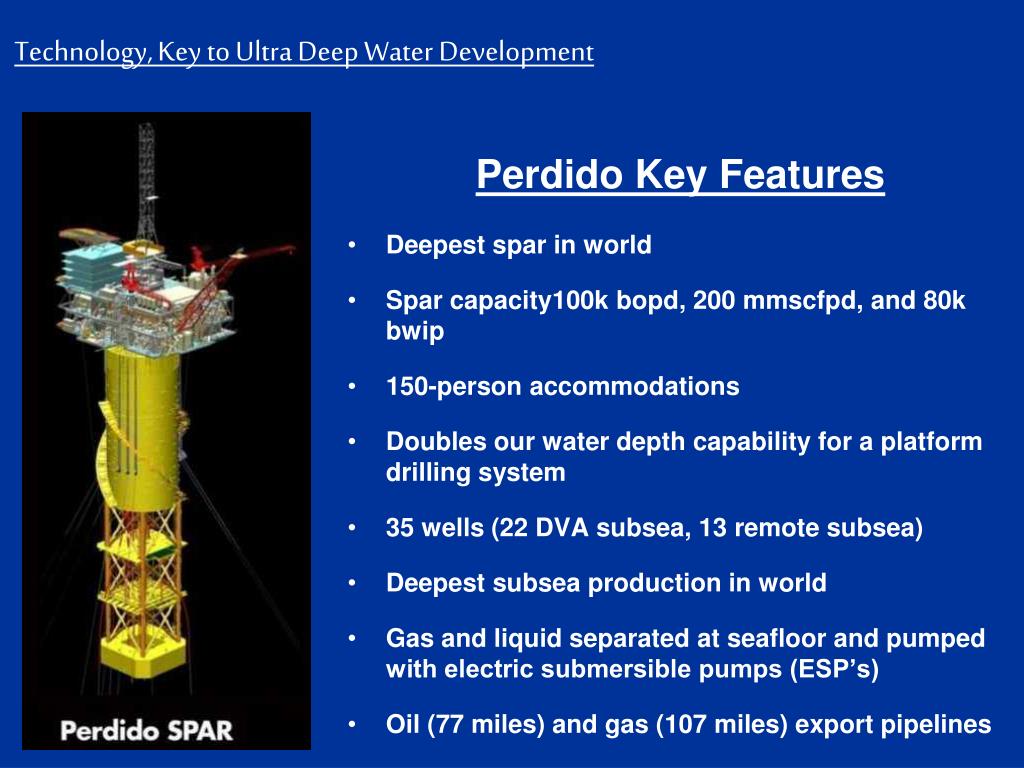

  2. Technology, Key to Ultra Deep Water Development Perdido Key Features • Deepest spar in world • Spar capacity100k bopd, 200 mmscfpd, and 80k bwip • 150-person accommodations • Doubles our water depth capability for a platform drilling system • 35 wells (22 DVA subsea, 13 remote subsea) • Deepest subsea production in world • Gas and liquid separated at seafloor and pumped with electric submersible pumps (ESP’s) • Oil (77 miles) and gas (107 miles) export pipelines

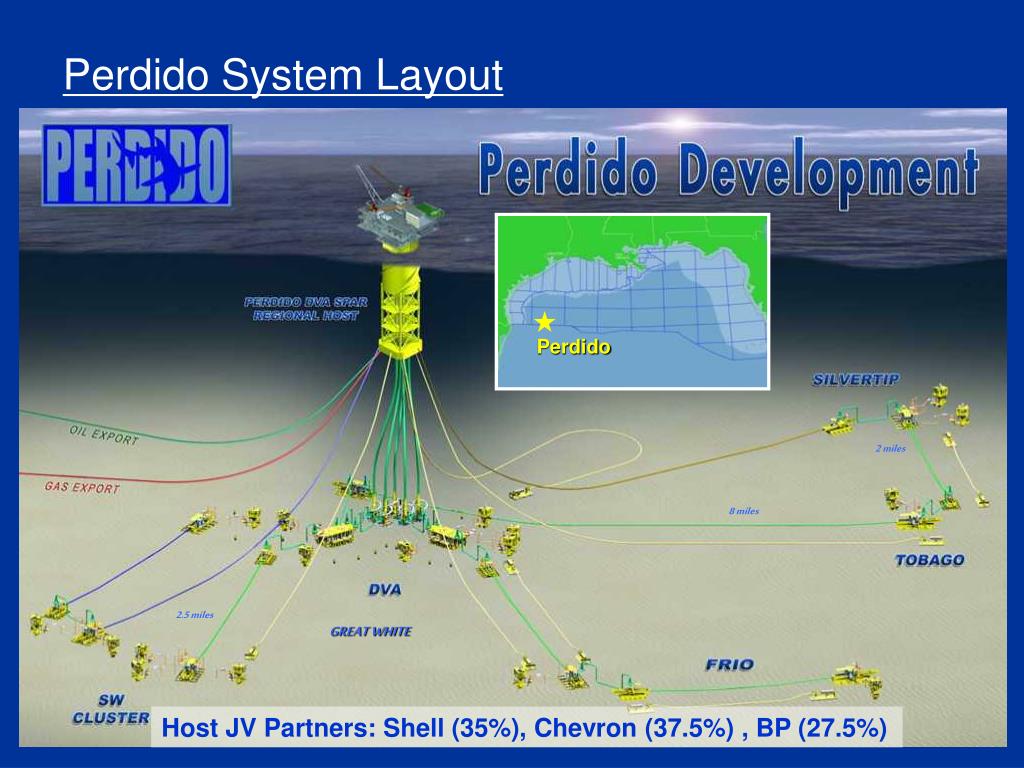

  3. Perdido System Layout Perdido 2 miles 8 miles 2.5 miles GREAT WHITE Host JV Partners: Shell (35%), Chevron (37.5%) , BP (27.5%)

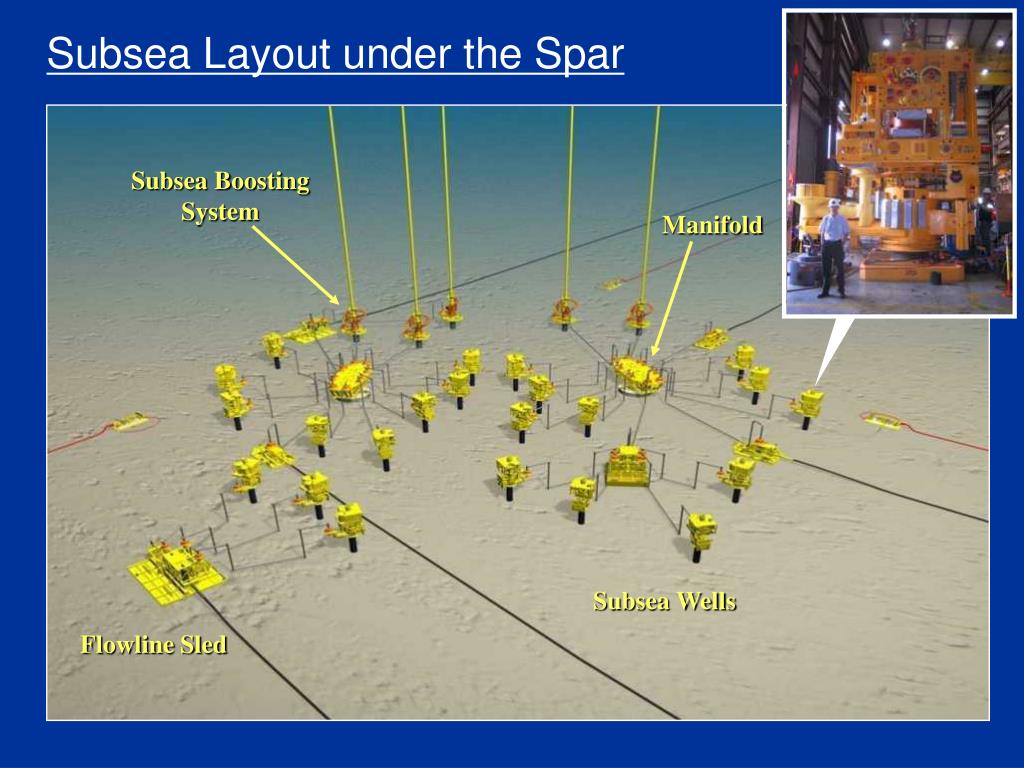

  4. Subsea Layout under the Spar Subsea Boosting System Manifold Subsea Wells Flowline Sled

  5. Liquid Makeup oil Gas Top Tensioned Riser Subsea Boosting System • Host-scale subsea separation • Cyclonic flow to 35" x 320’ caissons • Liquids pumped w/ 1500 HP ESPs (25,000 bpd per ESP) • Free Gas flows through annulus • Umbilical Voltage = 4.4 KV

  6. Perdido – Night Shot
