  1. Maxx V6 Mechanical Overview last updated: 10-19-06

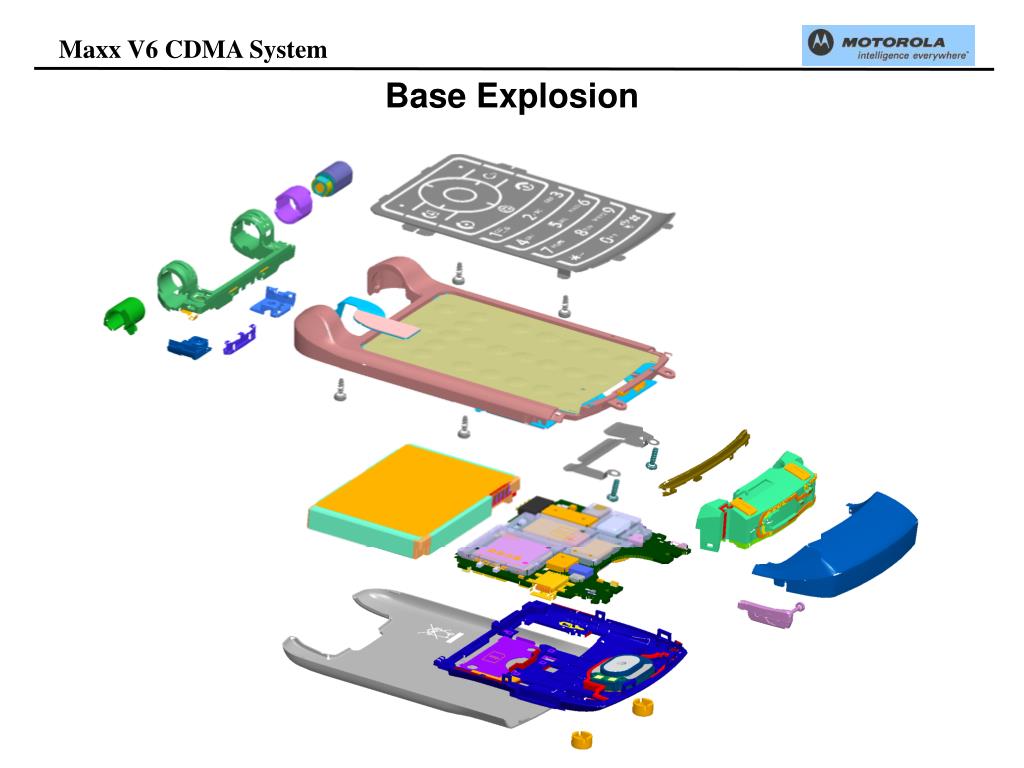

  2. Base Explosion

  3. Rear Housing T6 Screws (2.2 in-lbs) Latch

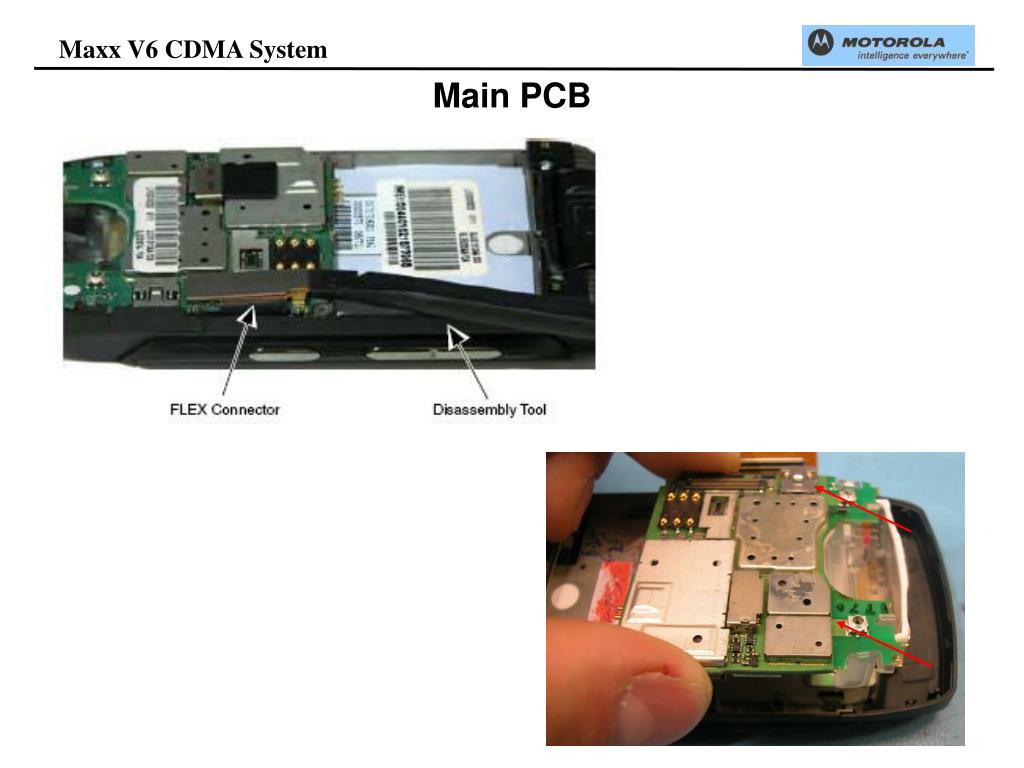

  4. Main PCB

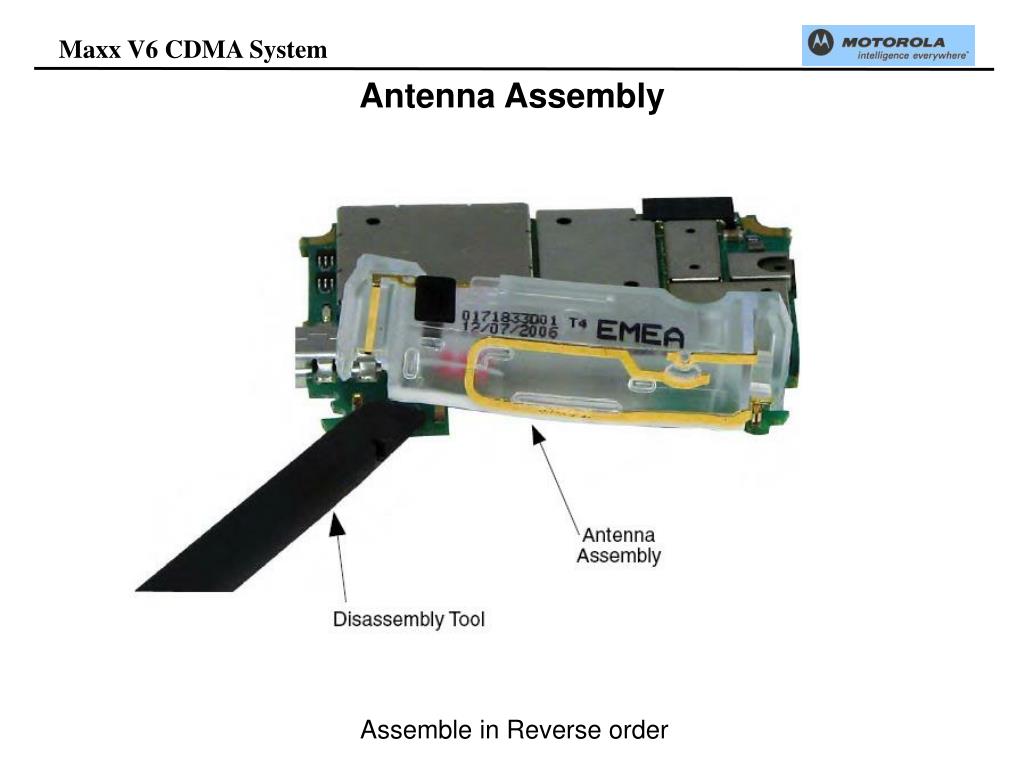

  5. Antenna Assembly Assemble in Reverse order

  6. Keypad

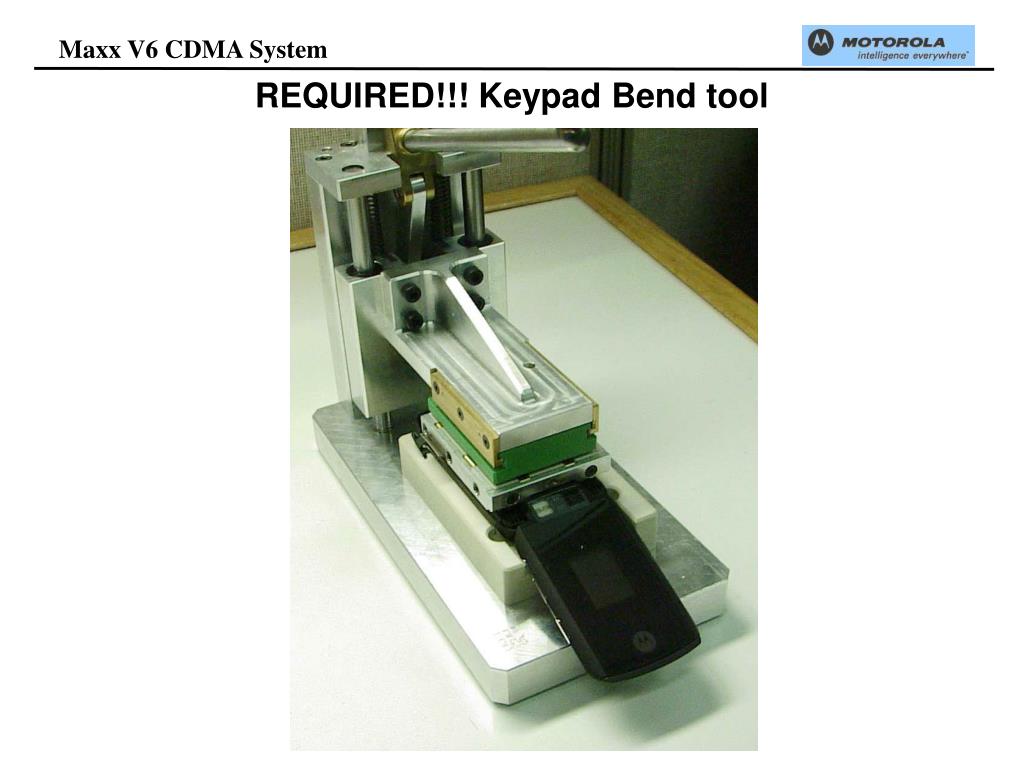

  7. REQUIRED!!! Keypad Bend tool

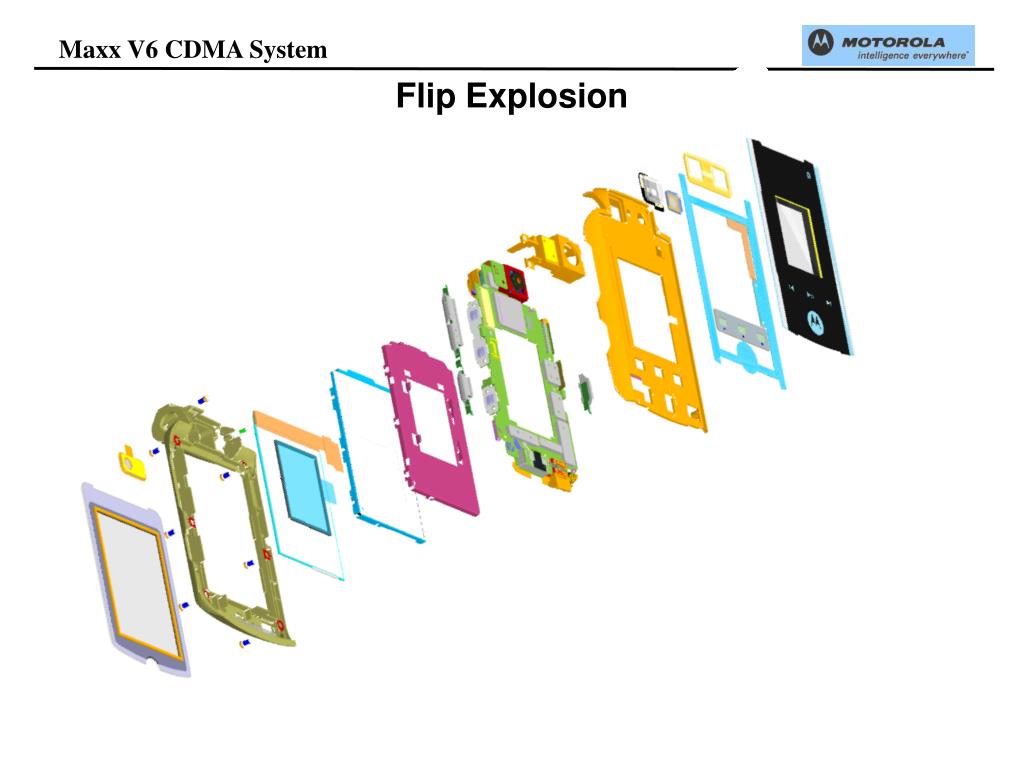

  8. Flip Explosion

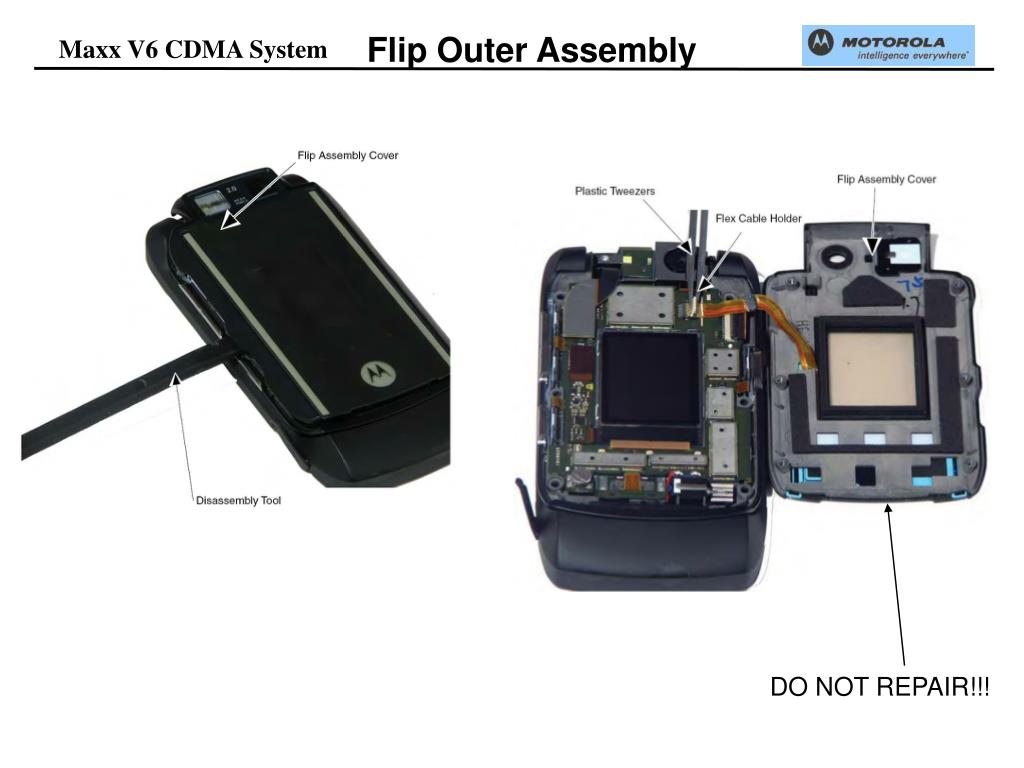

  9. Flip Outer Assembly (2.1 in-lbs)

  10. Flip Outer Assembly DO NOT REPAIR!!!

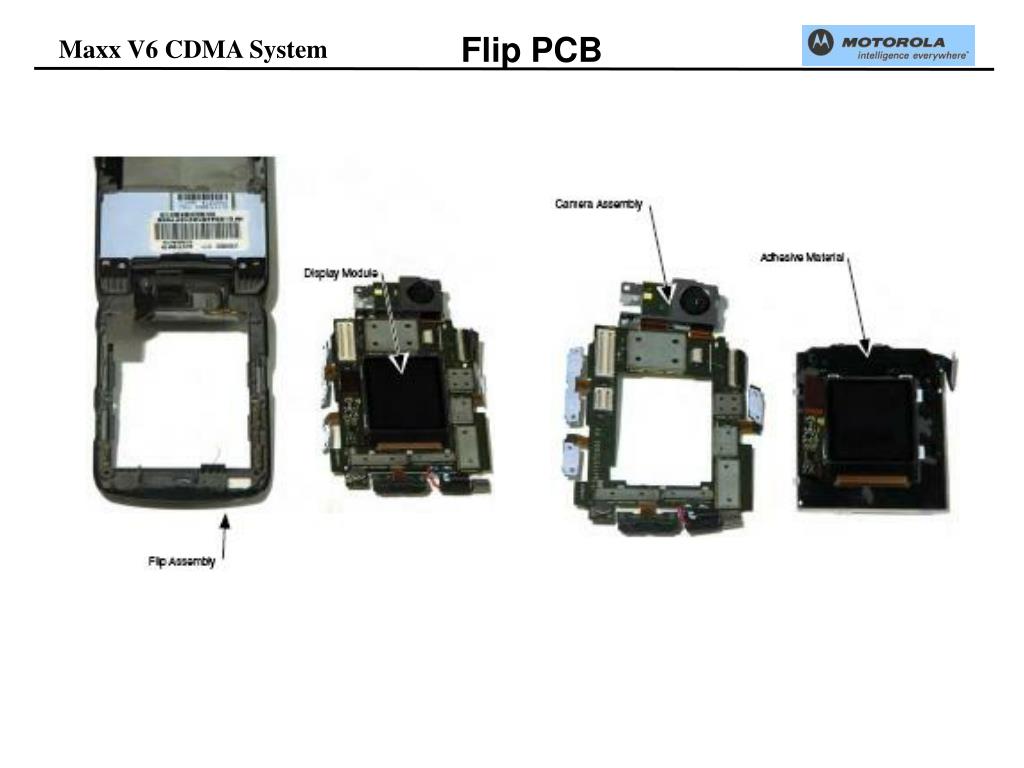

  11. Flip PCB Remove T5(0.8 in-lbs) Disconnect Disconnect Adhesive Adhesive Remove Adhesive

  12. Flip PCB

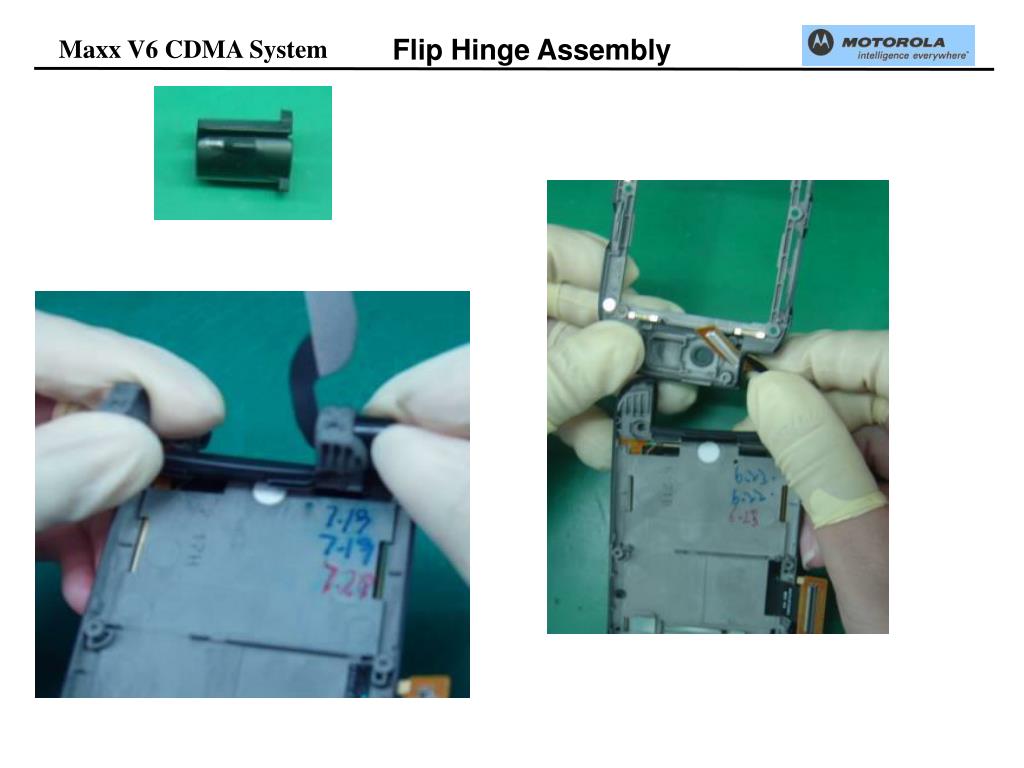

  13. Flip Hinge Assembly

  14. Flip Hinge Assembly

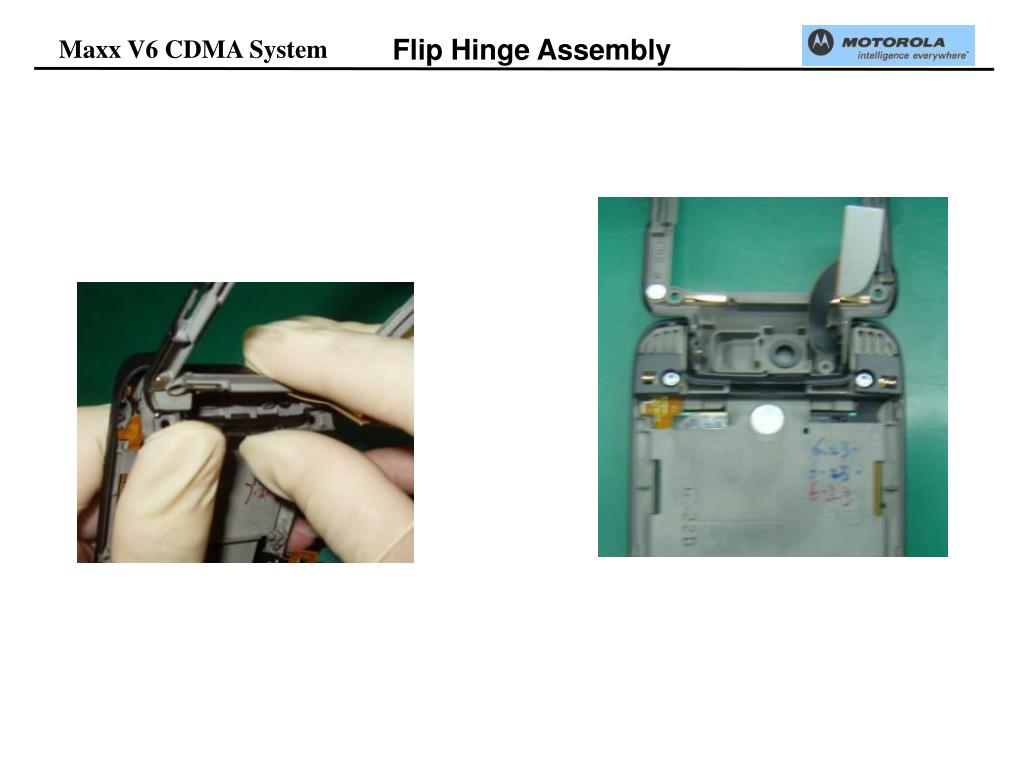

  15. Flip Hinge Assembly

  16. Flip Hinge Assembly
