  1. KP8 SIMATIC HMI KP8/F SIMATIC HMI den fail-safe version SIMATIC HMI KP8 og KP8/F tilbyder 8 store lysende trykknapper, som let kan mærkes med mærkningsstrimler.

  2. 1. Mærkning strimler 2. Aflange huller til montage klemme 3. Tastatur

  3. KP8 Bagsiden • Net tilslutning og digitale indgange og udgange • Bøjle for aflastning. • Pakning. • Profinet tilslutninger

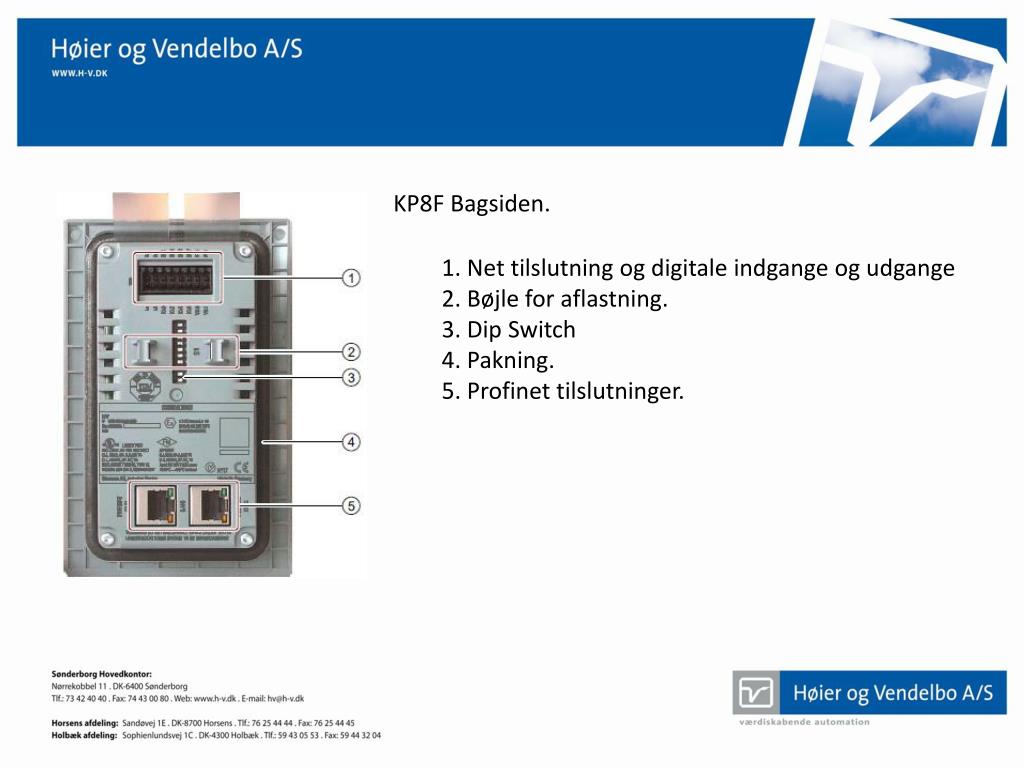

  4. KP8F Bagsiden. 1. Net tilslutning og digitale indgange og udgange 2. Bøjle for aflastning. 3. Dip Switch 4. Pakning. 5. Profinet tilslutninger.

  5. Tilslutning af forsyning For 24 VDC forsyning, brug kun strømforsyningsenheder med sikkerhedsisolation ( SELV, PELV)

  6. Tilslutning af input / output På bagsiden af HMI enhed, du vil finde 8 digitale indgange / udgange til ikke fail-safe input og output

  7. Tilslutning af nødstop på KP8F

  8. KP8 PN : 6AV3688-3AY36-0AX0 KP8FPN : 6AV3688-3AF37-0AX0

  9. Tak for nu
