  1. Computer Networks Chapter 2 – Data Link Layer Issues CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  2. LAN Properties • Shared medium • High data rate • Low delay • Low error rate • Native broadcast support • Limited physical extent (a few kms) • Limited number of stations (100’s) • STAs are peers • Local management (not under PTT regulation) CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  3. Medium Access • Access allocation so that • One STA at a time accesses medium • Each STA gets a fair share • Delays are reasonable • Overhead and waste are minimized • Approaches • Tokens • Contention CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  4. Token-based Approaches • Token Ring • STAs linked (simplex) to two neighbors • Token circulates physical ring • Add STA by insertion into ring • Token Bus • STAs attached to bus • Token circulates logical ring • Add STA to bus and insert into logical ring CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  5. Contention Approaches • ALOHA • Can’t sense medium, so just talk! • CSMA • Listen before talk • CSMA/CD • Add collision detection (need sensitive PCS) • CSMA/CA • Use collision avoidance (when VCS used) CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  6. IEEE 802 • 802.1 – common issues • Addressing, management, bridging, security • 802.2 – LLC • Type 1 – best effort / Type 2 - reliable • 802.3 – CSMA/CD LAN • From Xerox Ethernet • 802.4 – Token Bus • 802.5 – Token Ring • 802.11 – Wireless LAN • 802.16 – Wimax • Note – FDDI standardized by ANSI CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  7. Names, Addresses, Routes • Name – what • Location-independent identifier • May be human-friendly or not • Address – where • Independent of source location, but will change if destination moves • Route – how to get there • Depends on both source and destination CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

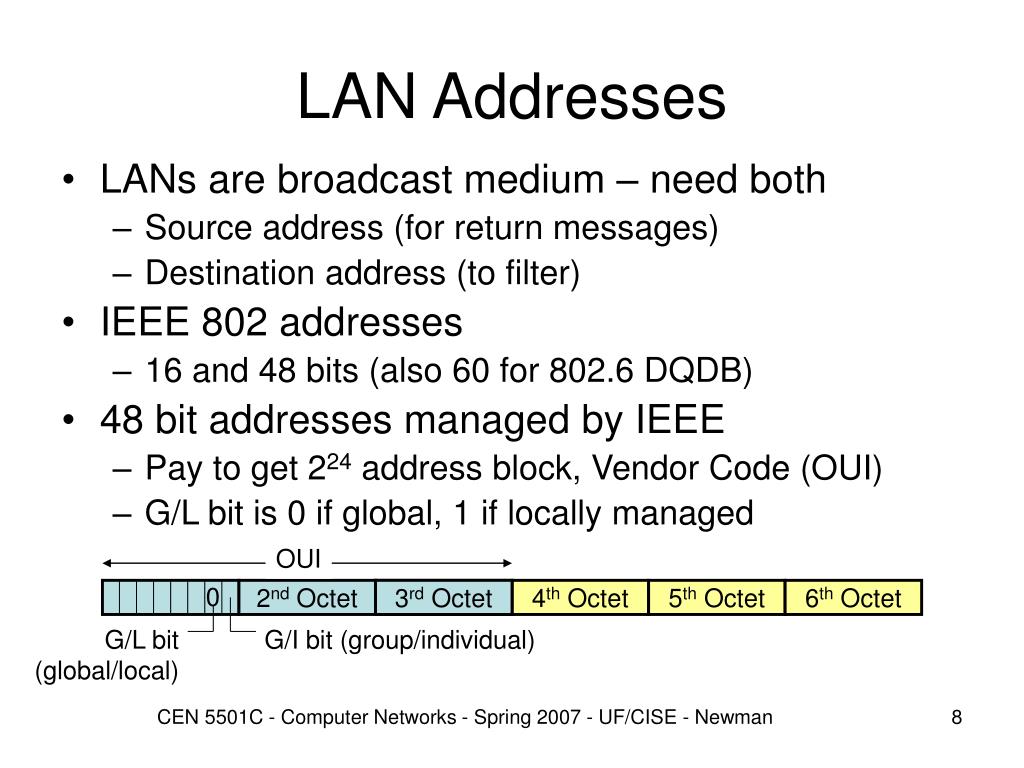

  8. LAN Addresses • LANs are broadcast medium – need both • Source address (for return messages) • Destination address (to filter) • IEEE 802 addresses • 16 and 48 bits (also 60 for 802.6 DQDB) • 48 bit addresses managed by IEEE • Pay to get 224 address block, Vendor Code (OUI) • G/L bit is 0 if global, 1 if locally managed OUI 0 2nd Octet 3rd Octet 4th Octet 5th Octet 6th Octet G/L bit (global/local) G/I bit (group/individual) CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  9. Multicast Addresses • Service Discovery • Solicitation (client mcast to Z-Servers address) • Advertisement (Z-Servers mcast to Z-Client addr) • Why Multicast (group) addresses? • Reduce interrupt handling by hosts • Hardware filter • Why G/I bit? • Allow filtering by hash buckets in HW • SW filters all hits in relevant hash buckets CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  10. Broadcast • The all 1’s address (0xffffffffffff) is bcast • Means that all STAs must receive • Really, though, only those implementing the protocol used in the broadcast packet have to… • Broadcast address interrupts everyone anyway CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  11. Multiplexing Field • Multiple higher layer protocols • Format and data alone cannot distinguish • Multiplexing field selects which one • Protocol type in Ethernet • DSAP and SSAP in IEEE 802 • Service Access Point (SAP) Structure • G/L and G/I bits also, hence 6 bits • All 1’s = all SAPs (!!!) • Others assigned by IEEE – too few! • SNAP (Subnetwork Access Protocol) • When DSAP = SSAP = 0xaa • extra protocol type field (5 octets) • 3 OUI octets, 3 vendor-assigned octets CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  12. Bit Order • Bit order is order in which bits are put onto the medium • Not standard () • LSB first canonical and for most LANs • MSB first for 802.5, FDDI • Bridges must convert • Shuffle bit order within octets • Impact on ARP and higher layer protocols CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  13. LLC • 802.2 LLC has two significant types • Type 1 – datagrams (best effort) • Type 2 – reliable (connection oriented) • Type 1 Control – 1 octet • UI – unnumbered info (datagram) • XID – Exchange ID (command/response) • ID of transmitter • LLC types supported • Test – (Cmd/Rsp) – Rsp echo data in Cmd CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  14. LLC Type 2 • Control is 1 or 2 octets, per type • 2-octet control fields contain 7-bit seq #s • I = Information (data) – SN plus ACK SN • RR = Receive Ready (ACK) – ACK SN • RNR = Rcv Not Ready (Busy) – ACK SN • REJ = Reject – ACK SN CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

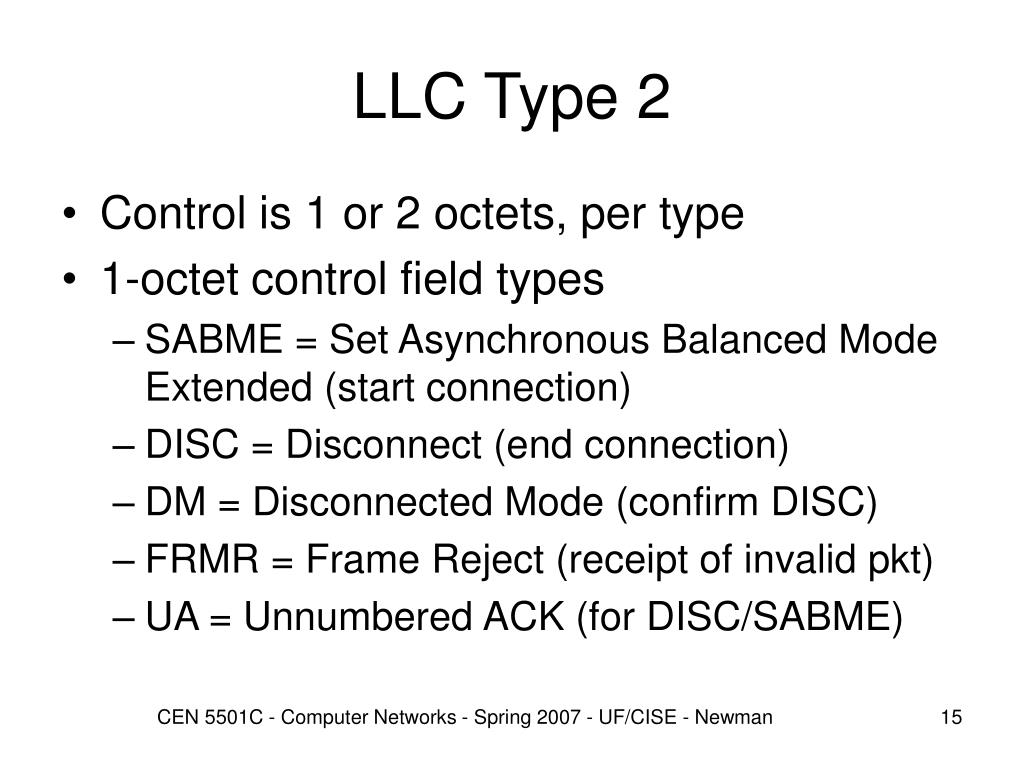

  15. LLC Type 2 • Control is 1 or 2 octets, per type • 1-octet control field types • SABME = Set Asynchronous Balanced Mode Extended (start connection) • DISC = Disconnect (end connection) • DM = Disconnected Mode (confirm DISC) • FRMR = Frame Reject (receipt of invalid pkt) • UA = Unnumbered ACK (for DISC/SABME) CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  16. 802.3 Issues • CSMA/CD • Listen before talk • Detect collisions • Binary exponential backoff • Minimum frame length • So all STAs detect collision • Slot time = 2t (512 bits at 2.5km and 10Mbps) Start Tx End Tx Start Tx Start Rx Detect Collision End Tx End Rx CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  17. 802.5 Issues • Each packet traverses every station in physical ring • Each STA has transceiver buffer with special HW to recognize token, addresses • Two bits at end of each frame for ACK: • A bit (address recognized) • C bit (frame copied) • Each STA may modify bits • Sender sees A/C bits when frame returns CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  18. 802.5 Issues • A/C Bits on return: • A=0: Address not recognized (give up) • A=1, C=0: Address recognized, but STA busy (try again) • A=1, C=1: Address recognized and frame copied (success!) • What does a bridge do with these? • Clear both? • Leave unmodified • Set A and C if bridge forwards • Clear A and set C if bridge forwards • A/C used for other purposes: • Ring order (bcast frame with A bit clear indicates predecessor) • Only 31 functional addresses for multicast • Mapping • Oversubscription CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  19. Packet Bursts • Station processing rate may be slower than the LAN data rate • While OK on average, packets may be sent in a burst • Early packets received, later ones lost • Problem if naïve protocol retransmits whole burst every time CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  20. Why Bridges? • Limit number of stations in LAN • Packet lengths • Delay • Size limitations • 802.3 collision detection • Traffic • Capacity is shared • Simple, high performance, allow limited location transparency (keep IP address) CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  21. Point-to-Point Links flag address control data checksum flag • Flag • Special pattern to delimit frames • In HDLC, 01111110 • In DDCMP, DLE-SOF & DLE-EOF • Bit-stuffing/character-stuffing for data transparency • In HDLC, 011111… -> 0111110… on Transmit • In DDCMP, … DLE … -> … DLE DLE … on Transmit • Addressing • Needed if multiple stations on medium • Traditionally assume master/slave • Control – Like LLC Type 2 • Checksum – 16 bit CRC HDLC format CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  22. Point-to-Point Links flag Addr=0xff Ctl=0x03 protocol data checksum flag • Multiplexing • Protocol field in PPP (16 bits – see RFC 1700) • Service • If links not reliable, need reliable transfer per hop (HDLC, DDCMP, LLC Type 1) • What is probability of success for k hops with FER P? • What is cost per attempt for k hops with FER P? • What is overall cost for success for k hops with FER P? • If links reliable, then datagram service OK (PPP, LLC Type 2) PPP format CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  23. Link Reliability Issues CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

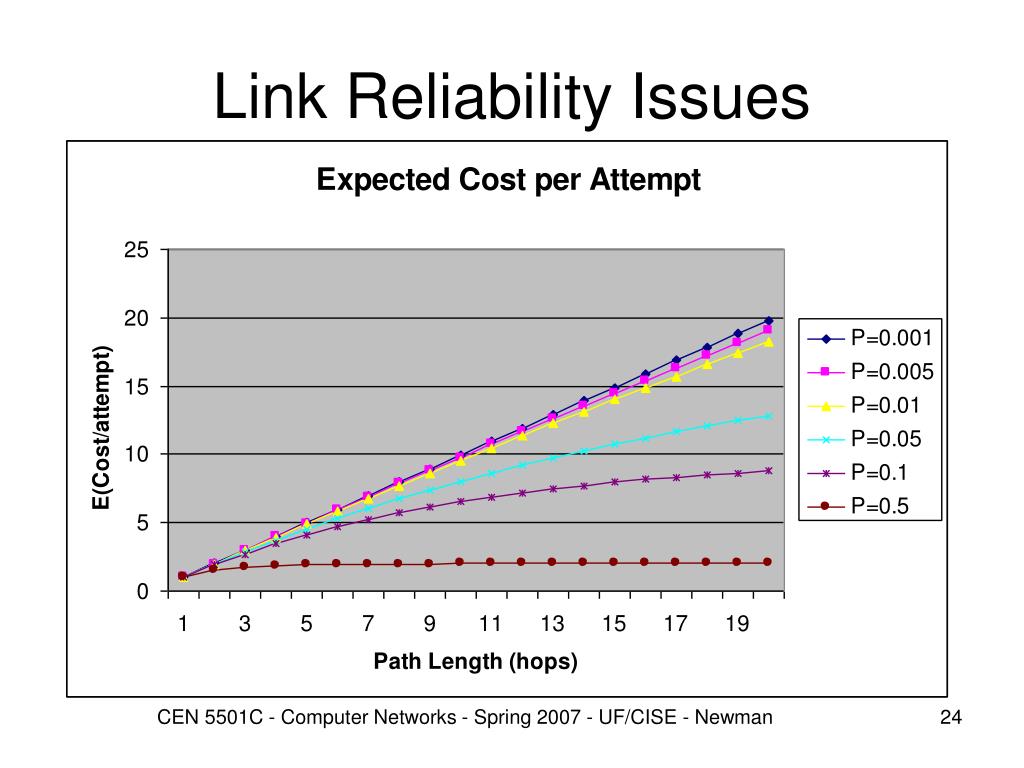

  24. Link Reliability Issues CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  25. Link Reliability Issues CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

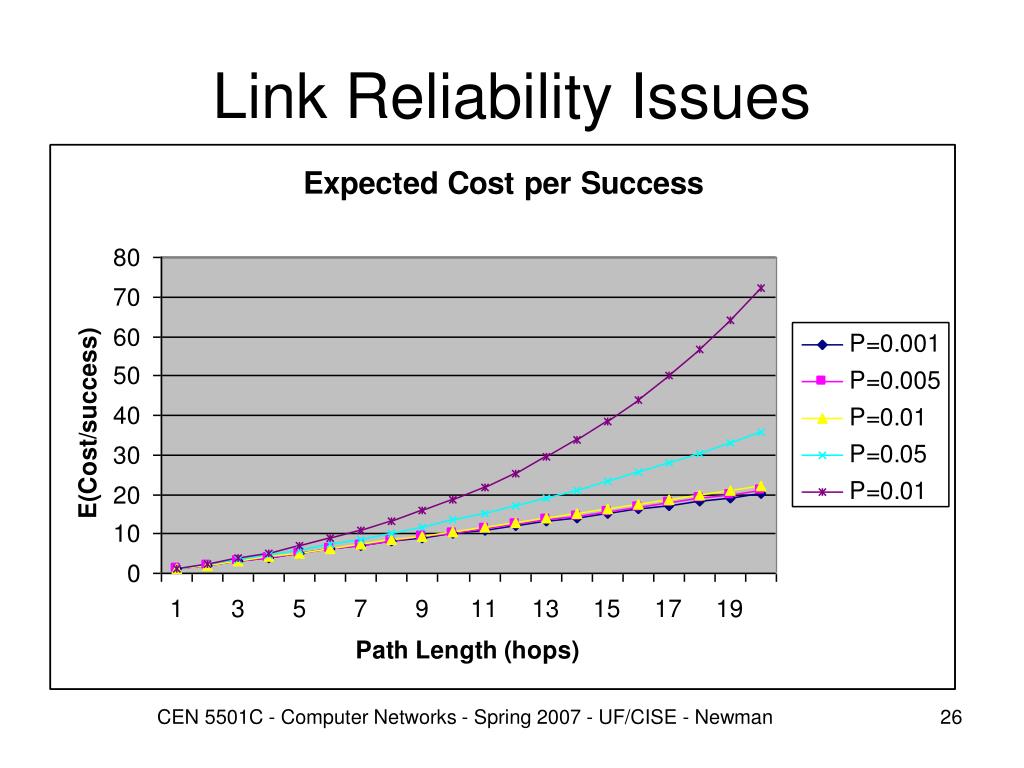

  26. Link Reliability Issues CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman

  27. Per Hop vs. End-to-End BEC Pkt Sent Pkt Sent Pkt Recv Pkt Recv ACK Recv ACK Recv Per Hop End-to-End CEN 5501C - Computer Networks - Spring 2007 - UF/CISE - Newman
