Optimization of Multiple Quality Characteristics Using Desirability Function

Advanced Tools of Quality Engineering. Optimization of Multiple Quality Characteristics Using Desirability Function. The desirability approach. The method finds operating conditions X that provide the "most desirable" response values Xi - Quality characteristics

karli
Download Presentation

Optimization of Multiple Quality Characteristics Using Desirability Function

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

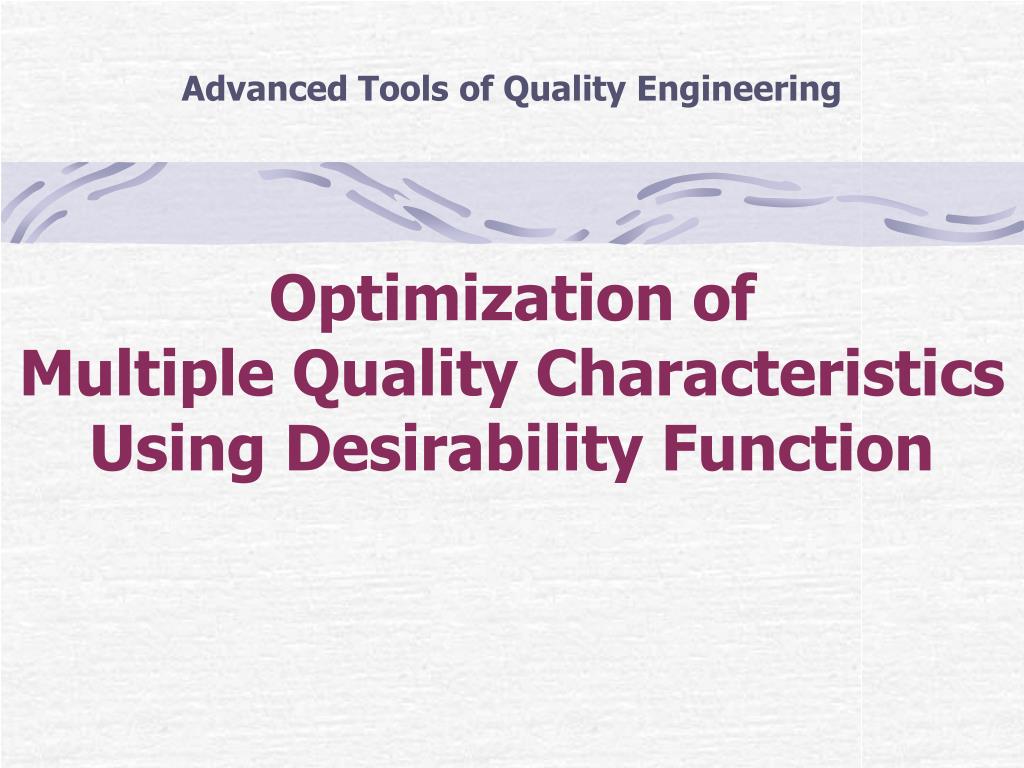

  1. Advanced Tools of Quality Engineering Optimization of Multiple Quality Characteristics Using Desirability Function

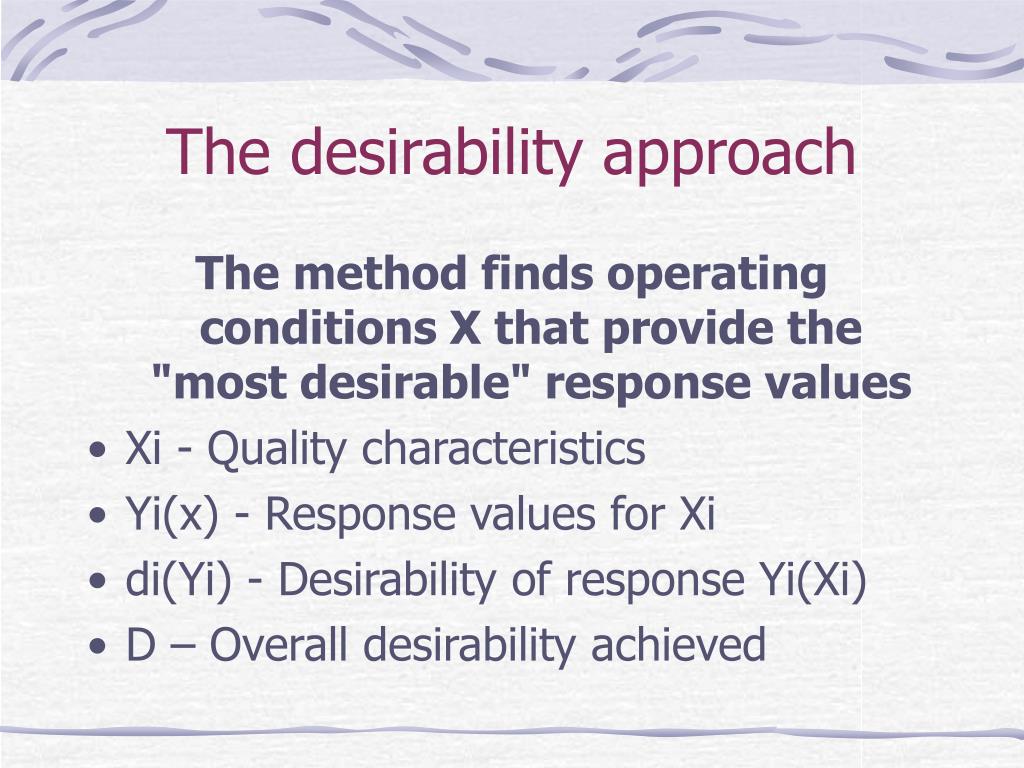

  2. The desirability approach The method finds operating conditions X that provide the "most desirable" response values • Xi - Quality characteristics • Yi(x) - Response values for Xi • di(Yi) - Desirability of response Yi(Xi) • D – Overall desirability achieved

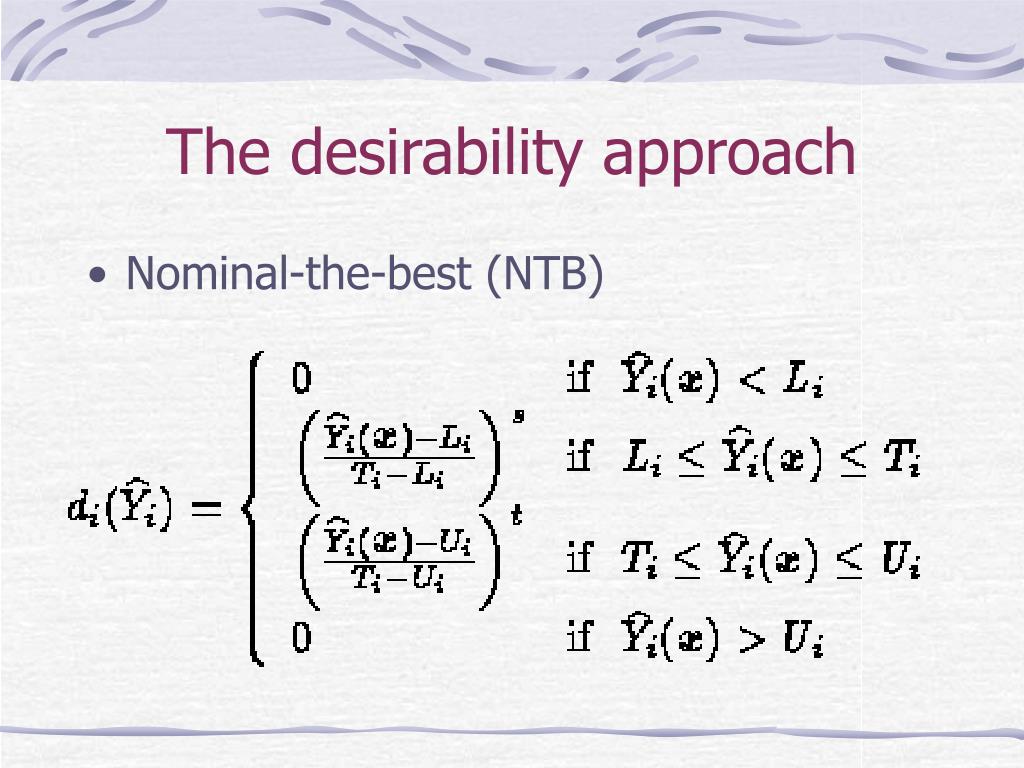

  3. The desirability approach • Nominal-the-best (NTB)

  4. The desirability approach • Smaller-the-better (STB)

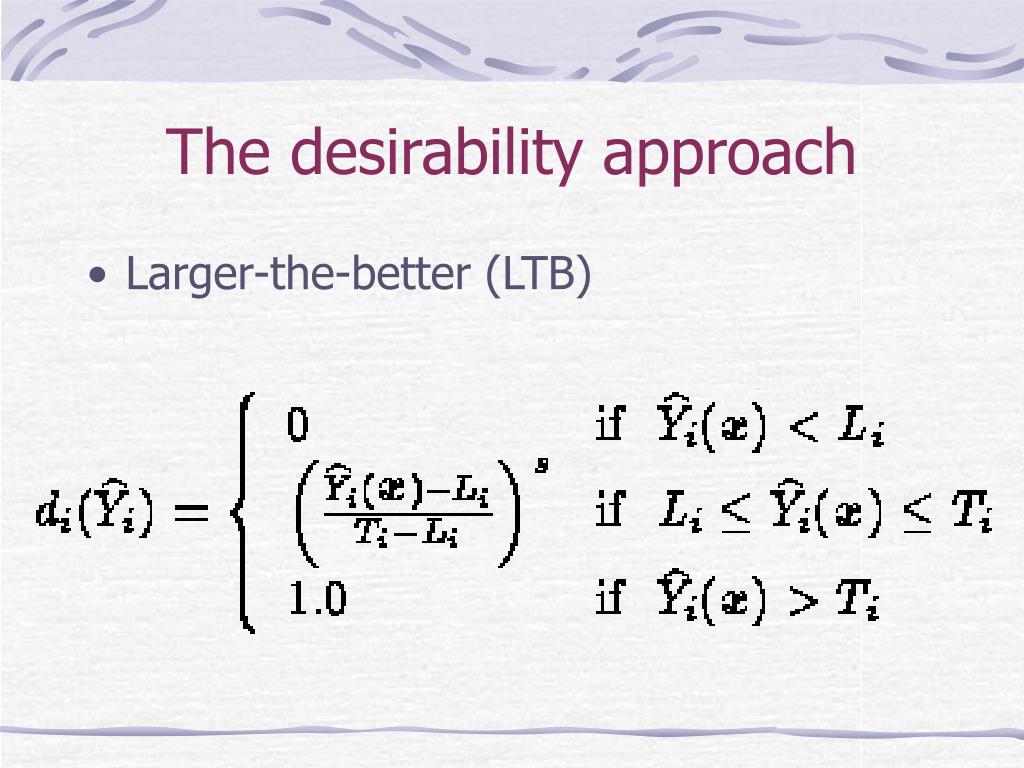

  5. The desirability approach • Larger-the-better (LTB)

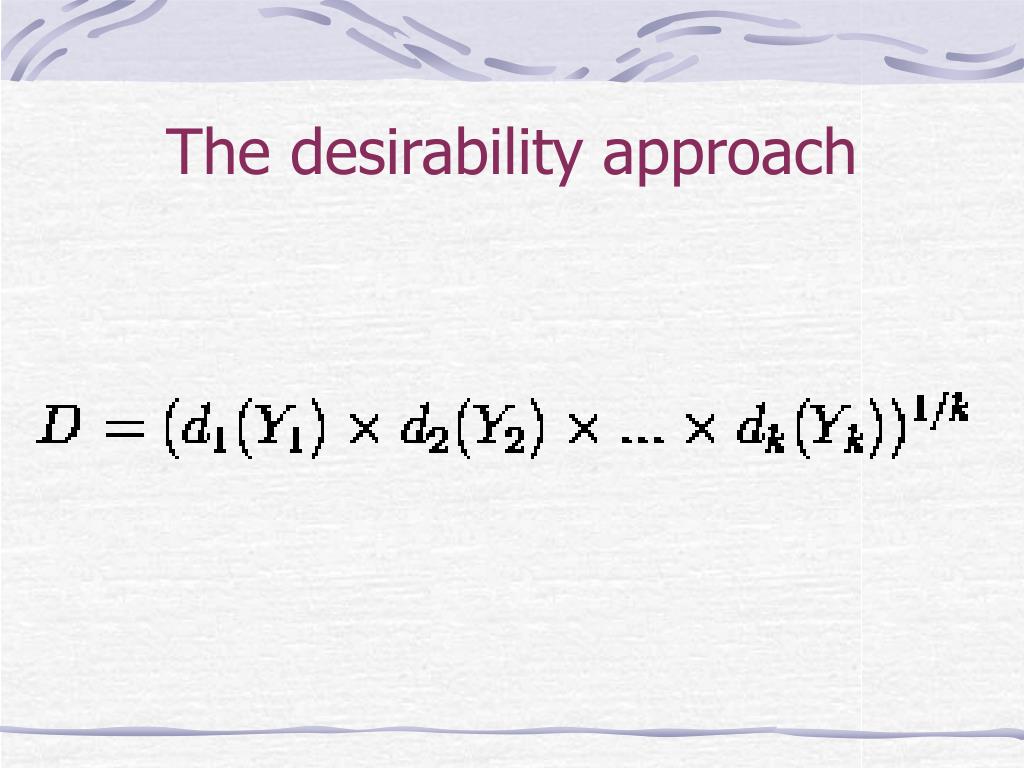

  6. The desirability approach

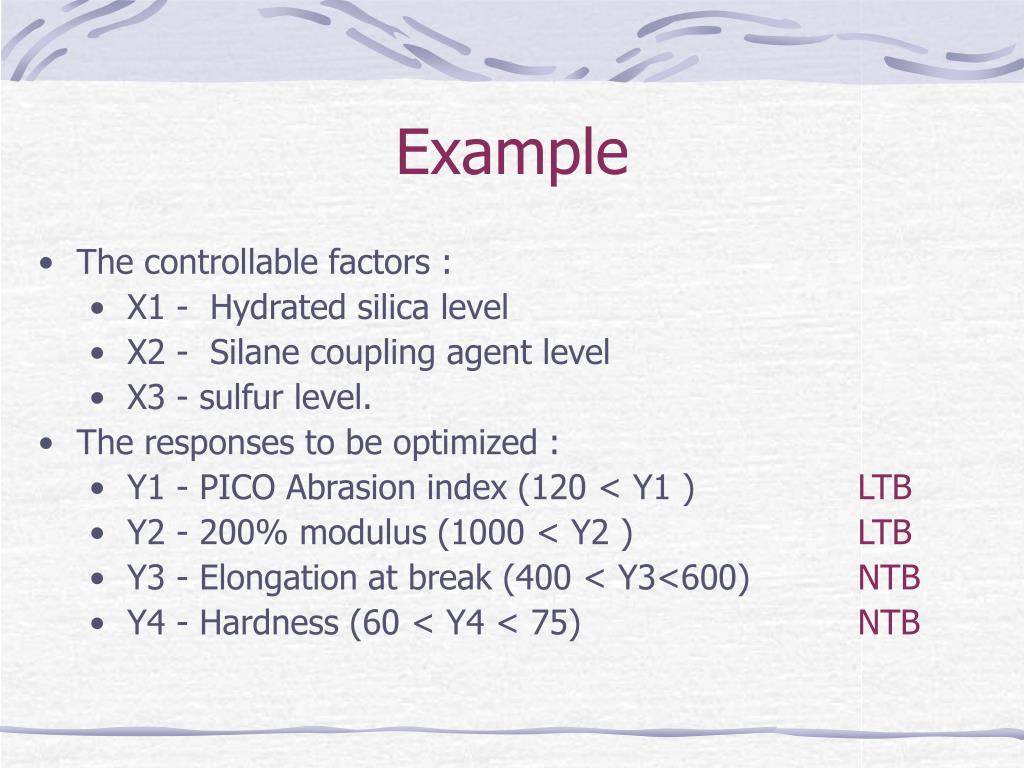

  7. Example • The controllable factors : • X1 - Hydrated silica level • X2 - Silane coupling agent level • X3 - sulfur level. • The responses to be optimized : • Y1 - PICO Abrasion index (120 < Y1 ) LTB • Y2 - 200% modulus (1000 < Y2 ) LTB • Y3 - Elongation at break (400 < Y3<600) NTB • Y4 - Hardness (60 < Y4 < 75) NTB

  8. Open Excel File
