Presentation Transcript
shading languages

Shading Languages

Yung-feng Chiu

agenda
Agenda
  • Introduction
  • Pixar’s RenderMan, MS’s HLSL, NV’s CgFX, ATI’s RenderMonkey
  • Demos
  • .fx file
  • Comparsion
key idea of a shading language
Key Idea of a Shading Language
  • Image synthesis can be divided into two basic concerns
    • Shape: Geometric Objects, Coordinates, Transformations, Hidden-Surface Methods…
    • Shading: Light, Surface, Material, Texture, …
  • Control shading not only by adjusting parameters and options, but by telling the shader what you want it to do directly in the form of a procedure
pixar s renderman
Pixar’s RenderMan
  • Separation of Modeling and Rendering
    • RenderMan serves as the interface.
  • Scene = Shape + Shading
  • The power of RenderMan is in the shading part.
pixar s renderman 2

RIB

File

.rib

Rman

Geom

Code

Rman

Program

cc

render

Program

(rendrib)

Shader

(slc)

Rman

Shader

.sl

Byte-code

Shader

.slc

txmake


File

TIFF


Rman

texture

Pixar’s RenderMan -2
renderman s shader
RenderMan’s Shader
  • Phong shader

surface phong( float Ka = 1, Kd =1, Ks = 0.5;

float roughness = 0.1;

color specularcolor = 1; )

{

normal Nf = faceforward( normalize(N), I );

vector V = -normalize(I);

color C = 0;

illuminance( P ) {

vector R = 2*normalize(N)*

(normalize(N) . normalize( L )) -

normalize( L );

C += Ka*Cs +

Kd*Cs*( normalize(N) . normalize(L) ) +

Ks*specularcolor* pow(( R . V ), 10);

}

Ci = C*Cs;

}

renderman s shader 2
RenderMan’s Shader -2
  • Attaching to the RIB file

***********

AttributeBegin

Translate 0 -1.5 0

Rotate 20 0 0 1

Color [ 0.8 0.0 0.0 ]

Surface "phong" "Ka" [.1] "Kd" [.8] "Ks" [1]

"roughness" [0.1] "specularcolor" [1 1 1]

Basis "bezier" 3 "bezier" 3

PatchMesh "bicubic" 13 "nonperiodic" 10 "nonperiodic" "P" [1.5 0 0 1.5 0.828427 0 0.828427 1.5 0 0 1.5 0 -0.828427 1.5 0 -1.5 0.828427 0 -1.5 0 0 -1.5 -0.828427 0 -0.828427 -1.5 0 0 -1.5 0 0.828427 -1.5 0 1.5 -0.828427 0 1.5 0 0 1.5 0 0.075 1.5 0.828427 0.075 0.828427 1.5 0.075 0 1.5 0.075 -0.828427 1.5 0.075 -1.5 0.828427 0.075 -1.5 0 0.075 -1.5 -0.828427 0.075 -0.828427 -1.5 0.075 0 -1.5 0.075 0.828427 -1.5 0.075 1.5 -0.828427 0.075 1.5 0 0.075 2 0 0.3 2 1.10457 0.3 1.10457 2 0.3 0 2 0.3 -1.10457

**************

misrosoft s hlsl fx
Assembly

dp3 r0, r0, r1

max r1.x, c5.x, r0.x

pow r0.x, r1.x, c4.x

mul r0, c3.x, r0.x

mov r1, c2

add r1, c1, r1

mad r0, c0.x, r1, r0

...

Misrosoft’s HLSL (.fx)

HLSL

float4 cSpec = pow(max(0, dot(Nf, H)), phongExp).xxx;

float4 cPlastic = Cd * (cAmbi + cDiff) + Cs * cSpec;

  • Simple Blinn-Phong shader expressed in both assembly and HLSL
nvidia s cgfx overview 2
nVidia’s CgFX Overview -2
  • Supports Microsoft .fx files
  • Cg plus:
    • Multi-pass
    • Hardware fallbacks (techniques)
    • Complete Hardware states
    • Tweakables
  • MS .fx plus:
    • DirectX8 and OpenGL
nvidia s cgfx overview 3
nVidia’s CgFX Overview -3
  • CgFX (.fx)
    • Manages whole rendering process
    • Handles render states – cross API support
    • Convenient exposure of tweakables & artist controls
  • Cg Shaders (.cg)
    • semantics directives to match your C++ and other custom hardware shaders
    • Bind textures/parameters to specific HW registers
  • Cg Runtime
    • Thin API to compile on demand at runtime
    • Optimizes & manages .Cg for range of target HW
nvidia s cgfx viewer 2
nVidia’s CgFX Viewer -2
  • Scene graph GUI
  • .fx parameters edition
  • Error reporting for easy .fx file problem identification
  • Runs OpenGL, DirectX8, DirectX9
    • Switch between devices at any point
ati s rendermonkey 2
ATI’s RenderMonkey -2
  • Try to solve some of the problems developers face when designing software on emerging hardware
  • Create a flexible, extensible shader development environment that allows easy incorporation of existing APIs
    • Support for low level DirectX8/9 in the current version
    • Extensible framework to support emerging HLSL standards
      • DirectX9 HLSL
      • OpenGL 2.0 Shading Language
      • RenderMan
      • Maya Shade Trees
      • ……
ati s rendermonkey 3
ATI’s RenderMonkey -3
  • Encapsulate all effect data in a single XML text file
  • Each Effect Workspace consists of
    • Effect Group(s)
      • Effect(s)
        • Pass(es)
          • Render state
          • Pixel Shader
          • Vertex Shader
          • Geometry
          • Textures
    • Variables and stream mapping nodes
bump map example
Bump Map Example
  • Bump mapping simulates detail with a surface normal that varies across a surface
renderman example
RenderMan Example

displacement

lumpy ( float Km = 1, frequency = 1, maxoctaves = 6;

string shadingspace = "shader";

float truedisp = 1;)

{

point Pshad = transform (shadingspace, frequency*P);

float dPshad = filterwidthp(Pshad);

float magnitude = fBm (Pshad, dPshad, maxoctaves, 2, 0.5);

N = Displace (normalize(N), shadingspace, Km*magnitude, truedisp);

}

pixel shader example
Pixel Shader Example

ps.1.1

tex t0 // base map

tex t1 ; // bump map

tex t2 ; // light vector from normalizer cube map

dp3_sat r1, t1_bx2, t2_bx2 ; // N.L

mul r1, r1, c0 ; // N.L * diffuse_light_color

mul_sat r0, t0, r1; // (N.L * diffuse_light_color) * base

cg example
Cg Example

f2fb DiffuseBumpPS(v2f IN, uniform sampler2D DiffuseMap,

uniform sampler2D NormalMap, uniform float4 bumpHeight)

{

f2fb OUT;

float4 color = tex2D(DiffuseMap);//fetch base color

//fetch bump normal

float4 bumpNormal = expand(tex2D(NormalMap)) * bumpHeight;

//expand iterated light vector to [-1,1]

float4 lightVector = expand(passthrough(IN.LightVector));

//compute final color (diffuse + ambient)

float4 bump = uclamp(dot3_rgba(bumpNormal.xyz, lightVector.xyz));

OUT.col = color * bump;

return OUT;

}

fixed function example
Fixed Function Example

Texture[0] = <normalMap>;

Target[0] = Texture2D;

MinFilter[0] = Linear;

MagFilter[0] = Linear;

MipFilter[0] = Linear;

Texture[1] = <diffuseTexture>;

Target[1] = Texture2D;

MinFilter[1] = Linear;

MagFilter[1] = Linear;

MipFilter[1] = Linear;

ColorOp[0] = DotProduct3;

AlphaOp[0] = SelectArg1;

ColorArg1[0] = Texture;

ColorArg2[0] = Diffuse;

AlphaArg1[0] = Texture;

AlphaArg2[0] = Diffuse;

ColorOp[1] = Modulate;

ColorArg1[1] = Current;

ColorArg2[1] = Texture;

AlphaOp[1] = SelectArg1;

opengl fixed function vertex
OpenGLFixed Function Vertex

Vertex (object)

Vertex (clip)

Transform[MVP],[MV],[MV]-T

Normal

Vertex (eye)

ColorSecondaryColor

Front&BackColor

[0,1]

Lighting

Front&BackSecondaryColor

[0,1]

Texgen

TextureMatrixn

TexCoordn

TexCoordn

EdgeFlag

EdgeFlag

gl2 vertex processor
GL2 Vertex Processor

Vertex (object)

Vertex (clip)

Uniform

Normal

Vertex (eye)

ColorSecondaryColor

VertexShader

Front&BackColor

Front&BackSecondaryColor

TexCoordn

Temporaries

TexCoordn

EdgeFlag

EdgeFlag

opengl fixed function fragment
OpenGLFixed Function Fragment

Color

SecondaryColor

Texn

TEn

Sum

Fog

TexCoord[n]

Color

[0,1]

z (|ze|,f )

Depth

Depth

Coord

Coord

FrontFacing

FrontFacing

gl2 fragment processor
GL2 Fragment Processor

Color

Texture

Uniform

SecondaryColor

FragmentShader

TexCoord[n]

Color

z (|ze|,f )

Depth

Depth

Temporaries

Coord

Coord

FrontFacing

FrontFacing

using fx in your application
Using FX in Your Application
  • Load effect
  • Validate technique for hardware
  • Detect parameters for technique
  • Render Loop (for each object in scene):
    • Set technique for the object
    • Set parameter values for technique
    • For each pass in technique
      • Set state for pass
      • Draw object
using fx the fx api
Using FX – The FX API

LPD3DXBUFFER pError = NULL;

D3DXCreateEffectFromFile(m_pd3dDevice, _T("simple.fx"), NULL, NULL, 0, NULL, &m_pEffect, &pError);

SAFE_RELEASE(pError);

. . .

UINT iPass, cPasses;

m_pEffect->SetTechnique(“Simple");

m_pEffect->SetVector(“var1", v);

m_pEffect->Begin(&cPasses, 0);

for (iPass = 0; iPass < cPasses; iPass++)

{

m_pEffect->Pass(iPass);

m_pMesh->Draw();

}

m_pEffect->End();

effect file structure
Effect File Structure
  • An effect is made up of multiple rendering algorithms (techniques) each made up of one or more passes
  • Effect File Structure:

Variable declarations

Technique 1

      • Pass 1
      • Pass n

Technique n

      • Pass 1
      • Pass n
fx file
.fx file

float4x4 worldMatrix : World; // World or model matrix

float4x4 mvpMatrix : WorldViewProjection; // Model * View * Projection

float4x4 worldViewMatrix : WorldView; // World * View

texture diffuseTexture : DiffuseMap// Diffuse Map semantic

<

string File = "default_color.dds"; // Default texture file annotation

>;

texture normalMap : NormalMap// Normal Map semantic

<

string File = "default_bump_normal.dds";// Default texture file annotation

>;

float4 ambientColor : Ambient < > = {0.1, 0.1, 0.1, 1.0};

float bumpHeight

< // GUI annotations

string gui = "slider";

float min = 0;

float max = 1;

float step = 0.1;

> = 0.5;

fx file37
.fx file

void DiffuseBumpVS(float4 Position : POSITION,// Position in object space

float2 TexCoord : TEXCOORD0,// Texture coordinates

out float4 TexCoord0 : TEXCOORD0, // Texture coordinates

out float4 Position : POSITION)// Position in projection space

{

TexCoord0.xy = IN.TexCoord.xy; // Pass texture coordinates for the diffuse map

Position = mul(WorldViewProj, IN.Position);// Compute position in projection space

}

void DiffuseBumpPS(float4 Position : POSITION, // Position in projection space

out float4 col : COLOR)

{

float4 color = tex2D(DiffuseMap, UV); // Look up the diffuse map

col = color * light; // Modulate the diffuse color by the light

}

fx file38
.fx file

sampler2D diffuseSampler = sampler_state {

Texture = <diffuseTexture>;

MinFilter = Linear;

MagFilter = Linear;

MipFilter = Linear;

};

sampler2D normalSampler = sampler_state {

Texture = <normalMap>;

MinFilter = Linear;

MagFilter = Linear;

MipFilter = Linear;

};

technique CgTechnique // Both the vertex and the fragment shaders are in Cg

{

pass p0

{

ZEnable = true;

ZWriteEnable = true;

CullMode = None;

VertexShader = compile vs_1_1 DiffuseBumpVS(mvpMatrix, WorldIMatrix, lightPos);

PixelShader = compile ps_1_1 DiffuseBumpPS(diffuseSampler, normalSampler, bumpHeight);

}

pass p1

{

...

}

}

slide39

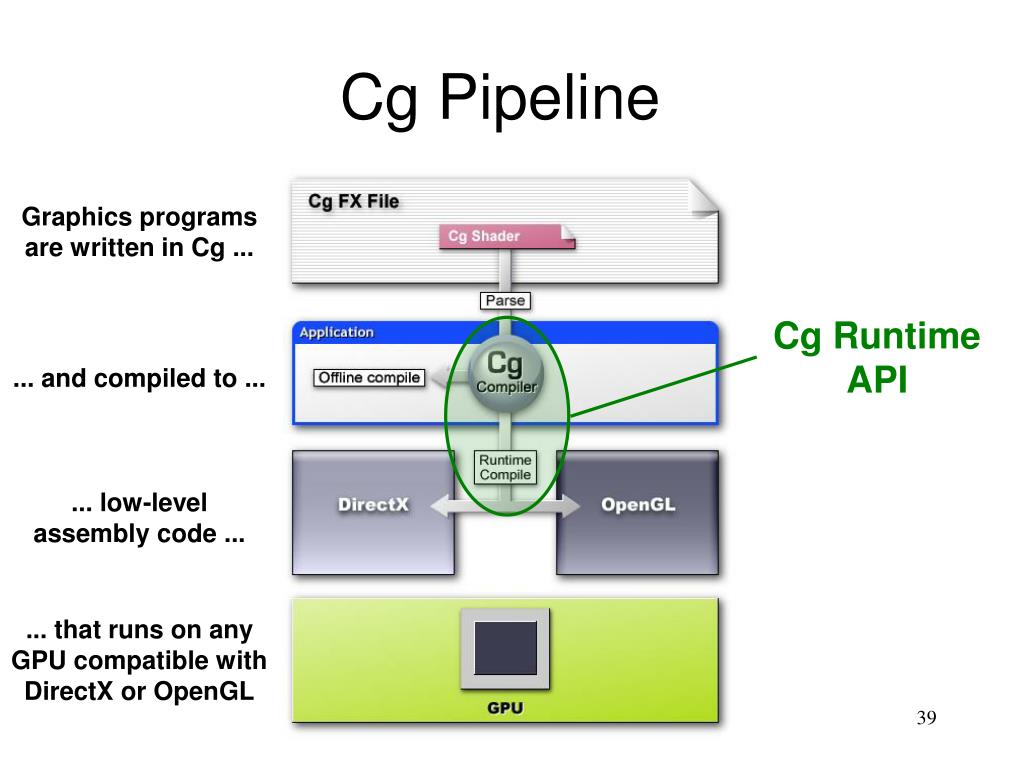

Cg Pipeline

Graphics programs

are written in Cg ...

Cg Runtime API

... and compiled to ...

... low-level

assembly code ...

... that runs on any GPU compatible with DirectX or OpenGL

using the cg compiler
Using the Cg Compiler

Application Development

Your Application

//

// Diffuse lighting

//

float d = dot(normalize(frag.N), normalize(frag.L));

if (d < 0)

d = 0;

c = d*f4tex2D(t, frag.uv)*diffuse;

Cg program

source code

  • Load/bind program
  • Specify program parameters
  • Specify vertex inputs
  • Render

Cg Compiler

DP3 r0.x, f[TEX0], f[TEX0];

RSQ r0.x, r0.x;

MUL r0, r0.x, f[TEX0];

DP3 r1.x, f[TEX1], f[TEX1];

RSQ r1.x, r1.x;

MUL r1, r1.x, f[TEX1];

DP3 r0, r0, r1;

MAX r0.x, r0.x, 1.0;

MUL r0, r0.x, DIFFUSE;

TEX r1, f[TEX1], 0, 2D;

MUL r0, r0, r1;

Shader program

assembly code

Shader Compiler

(nvasm.exe, psa.exe)

Shader Binary

typical production pipeline

ASM Shaders (HW1)

ASM Shaders (HW2)

Game Image

DCC Image

Typical Production Pipeline

Artists create models, textures, maps, … in DCC tool of choice

Programmerswrite assembly for different hardware

DCC tool (Maya, Max, SoftImage, …)

Scene exporter plug-in

Models, Textures, Maps, …

Not the same!

Application (game, renderer, …)

Scene manager

App Scene Manager hard-coded to choose

at run-time

the appropriate ASM shaders + state

for the hardware

fx enabled production pipeline

FX

files

Game Image

DCC Image

FX-Enabled Production Pipeline

Artists assign

FX files

to scene objects

and tweak parameters

for each object

in real-time

Programmers and/or artists write FX effects

DCC tool (Maya, Max, SoftImage, …)

FX material plug-in

Scene exporter plug-in

Models, Textures, Maps, FX effects + parameters

Same Image!

Application (game, renderer, …)

Scene manager

For any FX, App Scene Manager chooses

at run-time

the appropriate technique

for the hardware

FX runtime

comparison

RenderMan

OpenGL 2.0

D3D VS (2.0/3.0)

D3D PS (2.0/3.0)

Program Size

No limit

No limit

256/256

256/256

Vertex Attributes

No limit

>=16

16/16

Constants

No limit

VS:>=512 floats

PS: >= 64 floats

128/256

32/128

Varying Parameters

No limit

>= 40 interpolators

10/10

10/10

Texture Samplers

No limit

No limit

16/16

Temp Registers

No limit

No limit

12/16

12/16

Constant-Based Flow Control

Yes

Yes

Yes/Yes

No/Yes

Variable-Based Flow Control

Yes

Yes

No/No

No/No

Comparison
ad
