  1. NMR repetition NMR parameters Chemical shifts Integrals Coupling constants

  2. Dependence of methyl chemical shift on electronegativity

  3. Correlation chart for chemical shifts

  4. Integrals

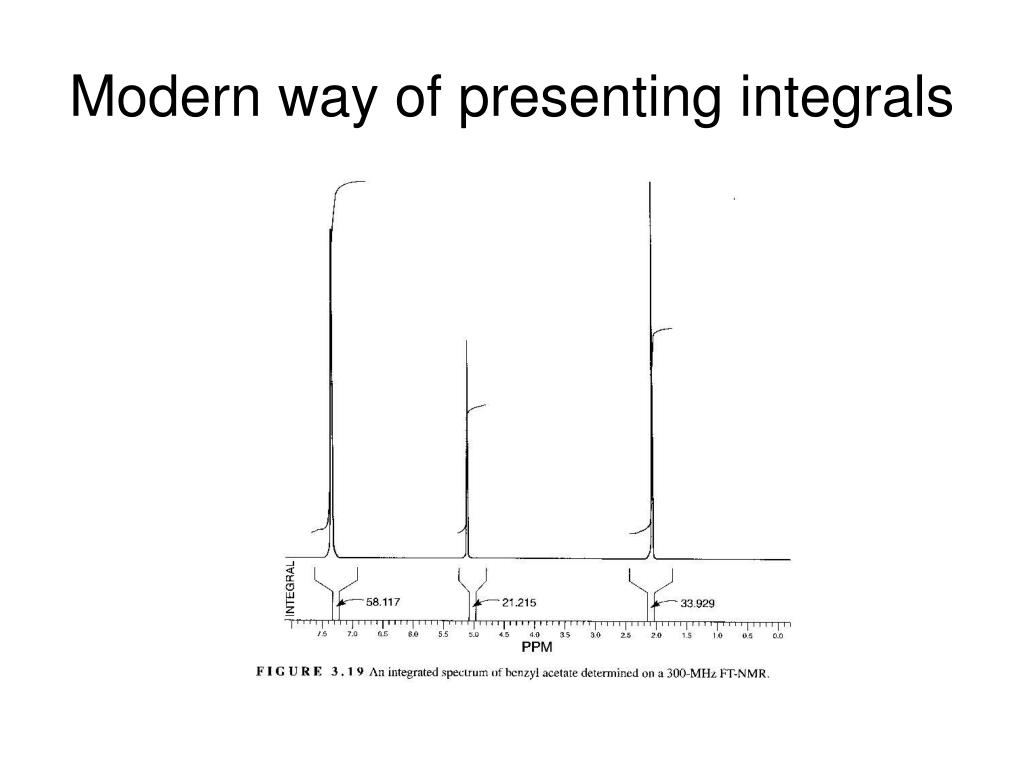

  5. Modern way of presenting integrals

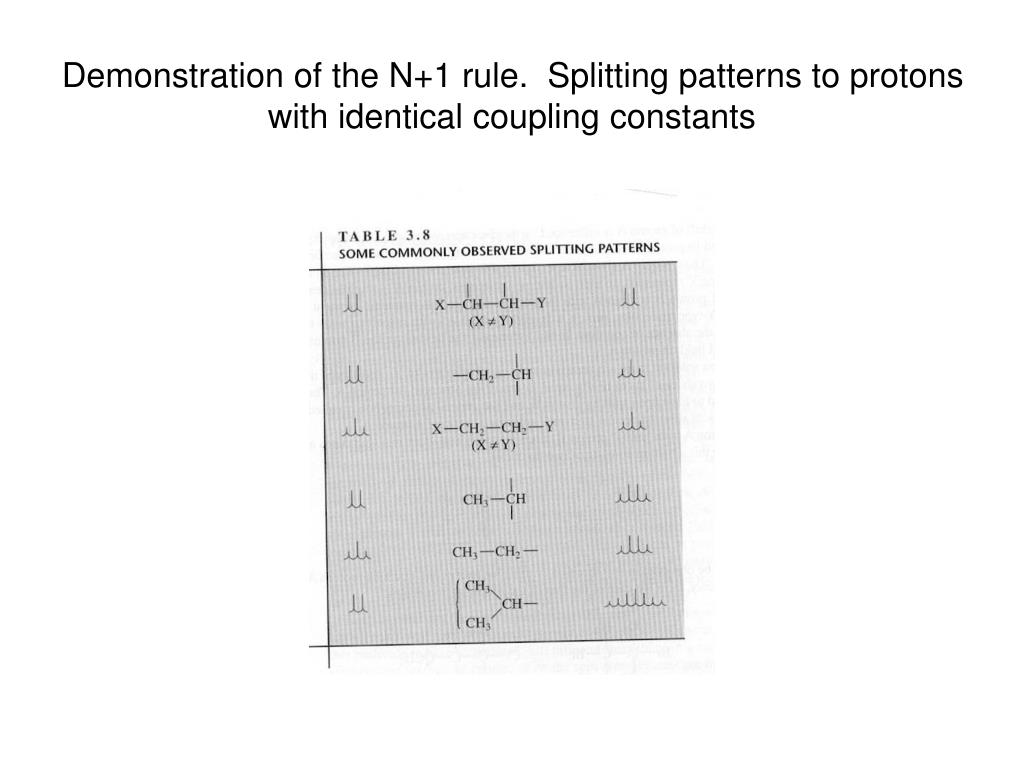

  6. Demonstration of the N+1 rule. Splitting patterns to protons with identical coupling constants

  7. Explanation of spin pattern for CH2 group next to a CH3

  8. Pascal triangle demonstrating intensities in multiplets

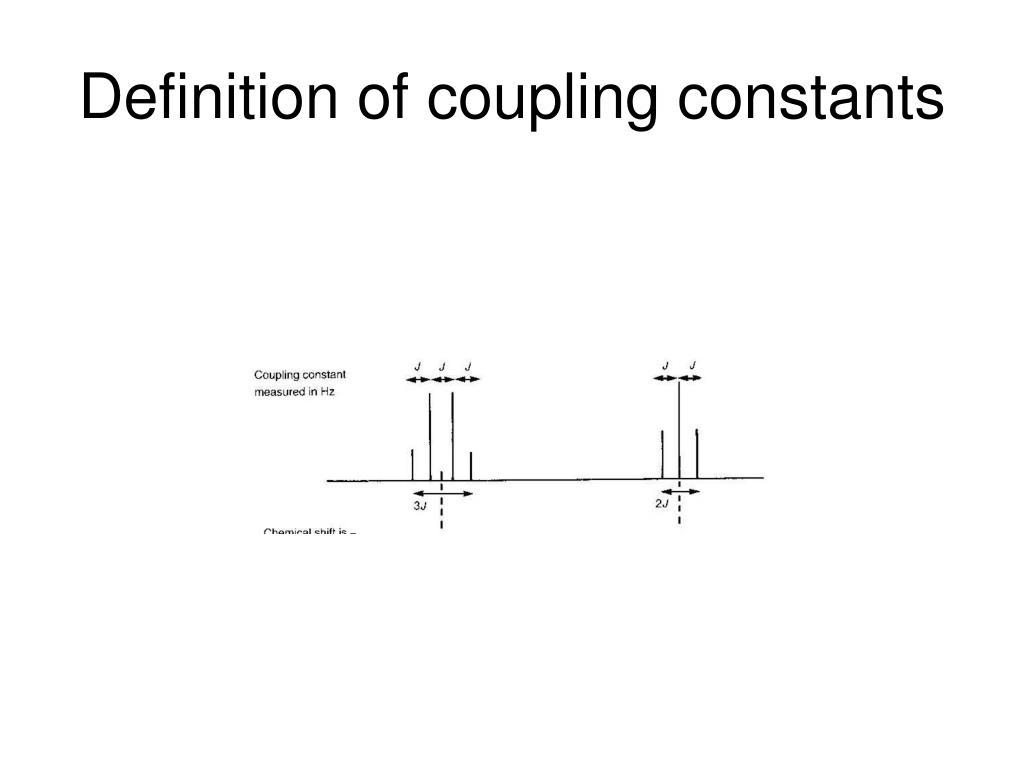

  9. Definition of coupling constants

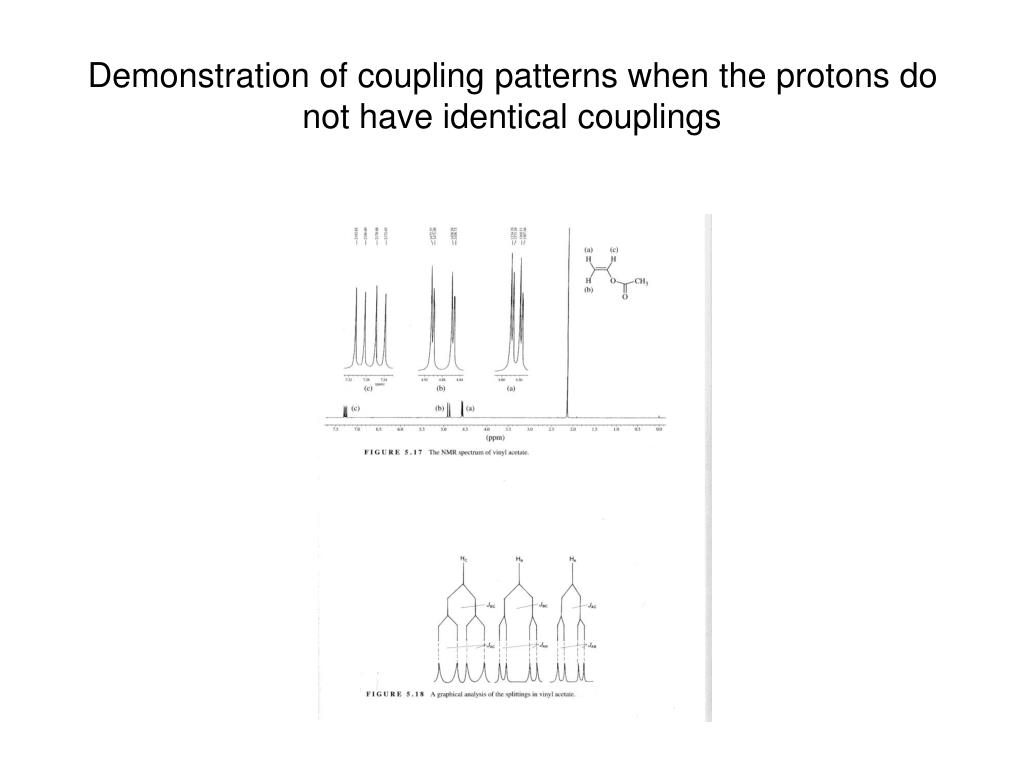

  10. Demonstration of coupling patterns when the protons do not have identical couplings
