Presentation Transcript
covalent bonding
Covalent Bonding
  • When Atoms join they do so by a Chemical Bond
  • When non - metal atoms join they form a Covalent Bond
  • When Atoms join it is their outer electrons that are directly affected
  • Remember that atoms join so as to try and achieve their nearest most stable electron arrangement.
  • To try do do this non-metal atoms overlap and share Electron Clouds
covalent bonding2
Covalent Bonding
  • Let us consider two Chlorine atoms joining

Cl

Cl

Each Chlorine atom has seven electrons in its outer energy level

**

**

**

**

*

*

**

**

Chlorine atoms overlap and electrons are shared equally

It is the attraction of the outer unpaired electrons for the nearby atoms positive nucleus that pulls the atoms together

**

Cl -Cl

ionic bonding
Ionic Bonding
  • Ionic Bonding occurs between Metal and a Non-Metal atoms.
  • Again they do so as to get to their nearest most stable Electron Arrangement ie. 2, 2,8 or 2,8,8 etc.

This leaves the Na with one less electron and there fore positively charged and the and the Cl atom with one more and therefore negatively charged.

Consider Sodium and Chlorine joining together

Na

e

Cl

Electron Arrangement of each atom

2,8,1

2,8,7

In order to do this an electron istransferred from the metal to the non-metal

Cl wants to get to an EA of 2,8,8

Na wants to get to an EA of 2,8

Na+-Cl-

Opposite charges attract to give

valency
Valency
  • The Valency is the Combining Power of an atom.
  • It is calculated form the number of electrons that an atom wishes to gain or lose so as to get to its most stable Electron Arrangement
  • Group 1, 2 and 3metals have a valency of 1+,2+ and 3+ respectively. Groups 7, 6and 5 have valencies of 1-,2- and 3- since they are more likely to receive electrons in order for them to get to their most stable Electron Arrangement.
  • Group 0 elements have valency of zero since they are already in their most stable EA.
  • Valencies are used to write down Chemical Formulae

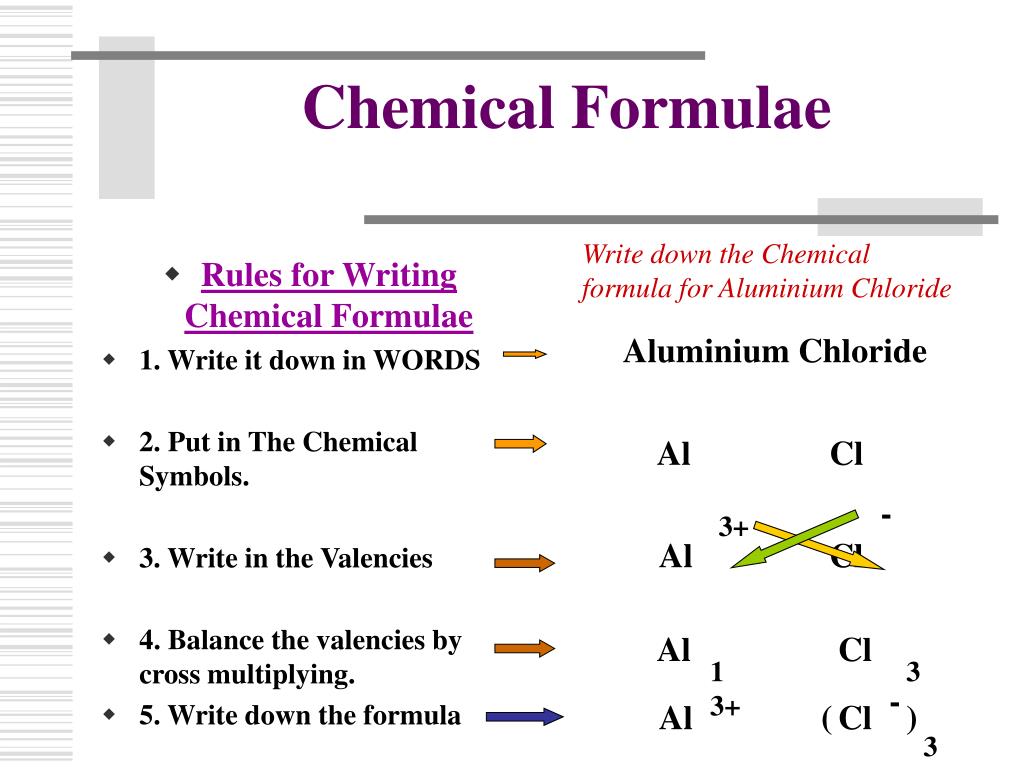

chemical formulae
Chemical Formulae

Write down the Chemical formula for Aluminium Chloride

  • Rules for Writing Chemical Formulae
  • 1. Write it down in WORDS
  • 2. Put in The Chemical Symbols.
  • 3. Write in the Valencies
  • 4. Balance the valencies by cross multiplying.
  • 5. Write down the formula

Aluminium Chloride

Al

Cl

-

3+

Al

Cl

Al

Cl

1

3

-

3+

Al

(

Cl

)

3
