  1. WelcomeTechnical Services Virtual Boot Camp Session 8 Technical Services India Team

  2. Technology • ·  Architecture OverviewUCS C-series
 UCS B-series • ·       UCS InteroperabilityHardware

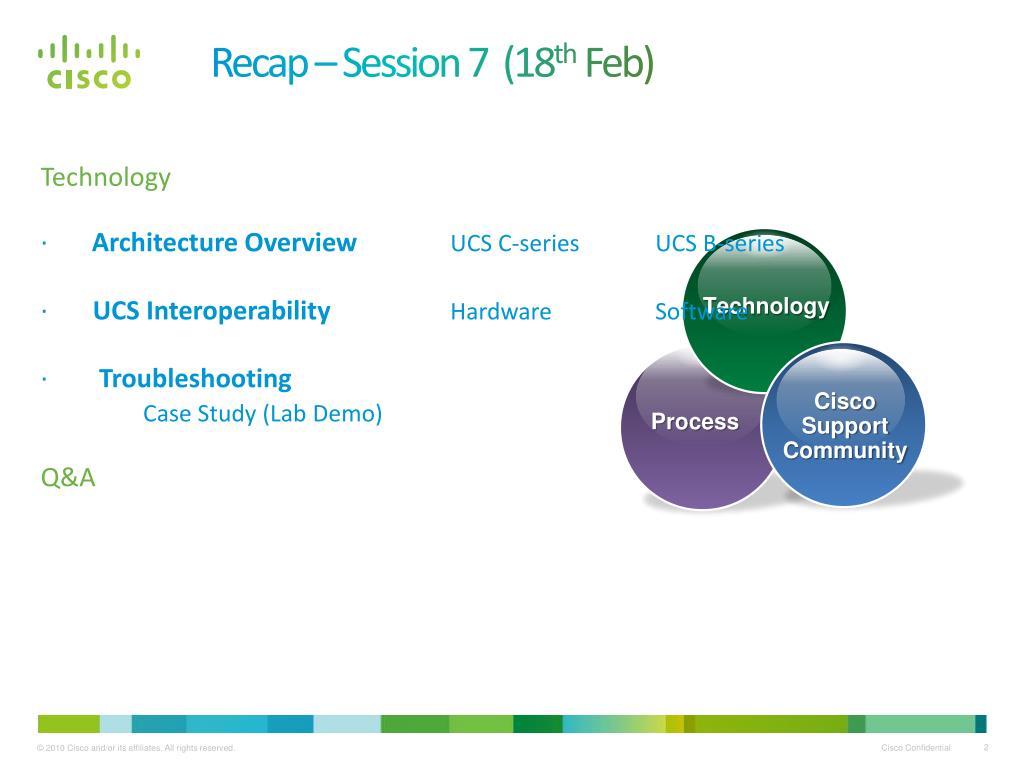

 Software • ·        Troubleshooting • Case Study (Lab Demo) • Q&A Cisco Support Community Technology Process Recap – Session 7 (18th Feb)

  3. Cisco Support Community Technology Process Course Material https://supportforums.cisco.com/docs/DOC-37994 ...PPT https://supportforums.cisco.com/videos/7517 ....Video https://supportforums.cisco.com/docs/DOC-37851 ...Q&A

  4. Technology • ·  Firmware Install and upgrade UCS C-series
 UCS B-series • ·        Troubleshooting • Case Study (Lab Demo) • Important logs • Part Identification and RMA • Q&A Cisco Support Community Technology Process Today Agenda (Session -8)

  5. Introduction

  6. Technology – UCS Cisco Support Community Technology Process AvinashShukla TeclusD'Souza ChetanBadami

  7. Agenda • UCS Upgrade Procedure • C-series • B-series • UCS H/W and S/W Interoperability • UCS Troubleshooting • UCSM / FI / IOM / Blade • C-series

  8. UCS H/W and S/W Interoperability Avinash Shukla Cisco TAC

  9. Operating System • Check the support matrix before installing the OS on the blade • Install / keep the drivers (Eth / FC) updated as per the matrix • Few important things to check: • Is the blade running the certified OS and OS version? • Are there any special needs for that OS? E.g. VMWare – OEM Image • Are the drivers at the OS level updated and current? • Answer: • UCS S/W and H/W matrix • http://www.cisco.com/web/techdoc/ucs/interoperability/matrix/matrix.html • http://www.cisco.com/en/US/products/ps10477/prod_technical_reference_list.html

  10. H/W and S/W Interop

  11. What each matrix provides

  12. Sample..driver versions

  13. UCS Upgrades

  14. Agenda • C series firmware upgrade • Pre-requisites • Firmware ISO location and downloading • Upgrade process • B series firmware upgrade • Pre-requisites • Firmware bundles and downloading • Upgrade process • Additions / Modifications from version 2.1

  15. Pre-requisites C Series

  16. Things to consider • Release Notes will cover gotchas and concerns in the upgrade process • Upgrades from one version back will always work • Check release notes about prior versions • If customer is really far behind it might require two upgrades to get to current code • Schedule an maintenance window • CIMC and server will reboot during upgrade

  17. Firmware ISO

  18. C Series Upgrade • Downloading iso file

  19. Upgrade process C Series

  20. Map the iso on the KVM

  21. Boot from Virtual Media

  22. HUU Screen and options

  23. HUU Screen and options

  24. After all component upgrade

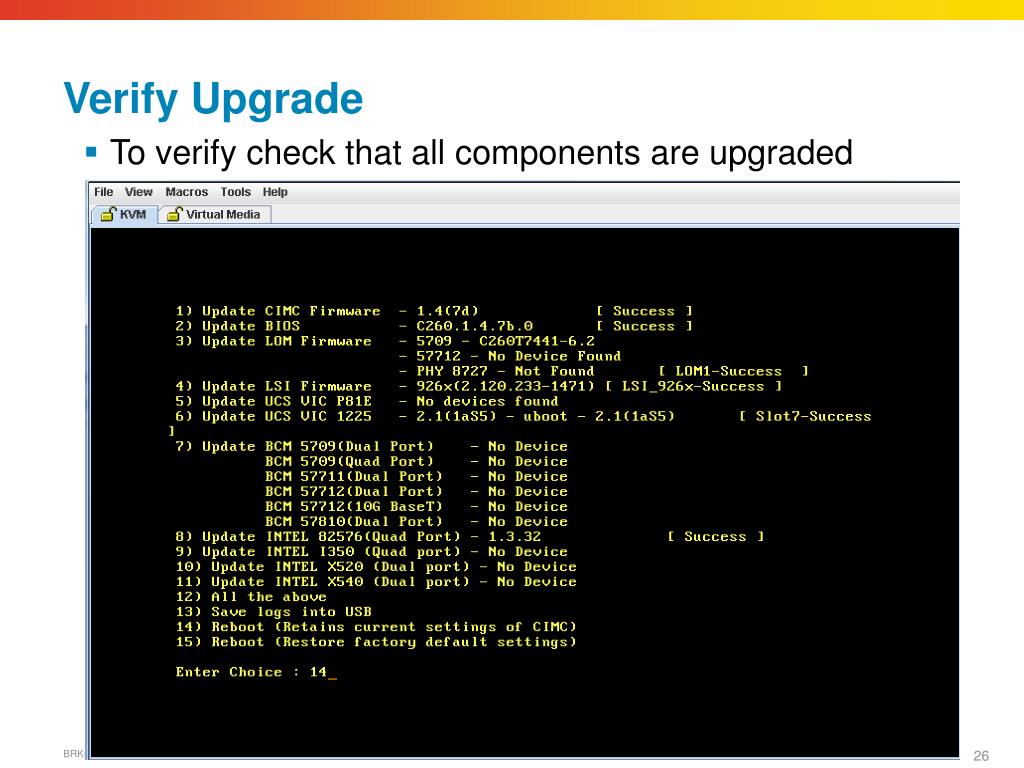

  25. Verify Upgrade • To verify check that all components are upgraded

  26. Pre-requisites B Series

  27. Things to consider • Release Notes will cover gotchas and concerns in the upgrade process • Upgrades from one version back will always work • Check release notes about prior versions • If customer is running a very old version, it might require two upgrades to get to current code • Schedule an maintenance window • FI and IOM will reboot during upgrade • Make sure network and storage fabric are redundant • Highly recommended to backup UCSM configuration

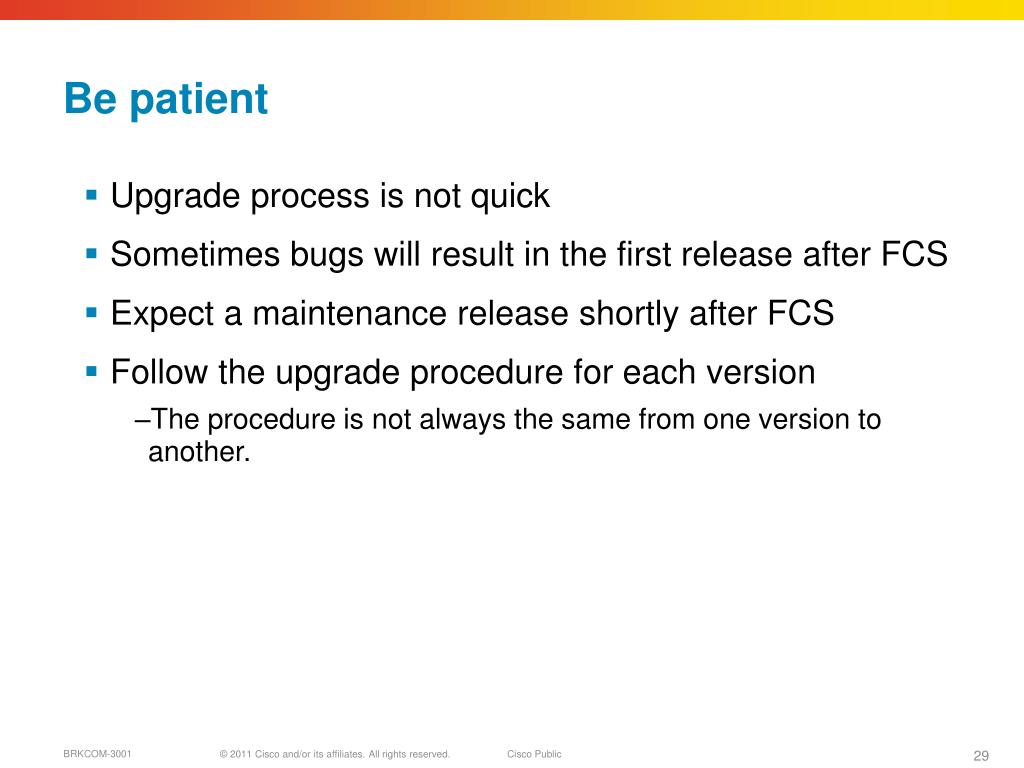

  28. Be patient • Upgrade process is not quick • Sometimes bugs will result in the first release after FCS • Expect a maintenance release shortly after FCS • Follow the upgrade procedure for each version • The procedure is not always the same from one version to another.

  29. Downgrading • Sometimes there might be data loss • Might have to erase config to downgrade • Database changes in new versions cannot always be back ported

  30. Bundles

  31. Bundles • Prior to 1.4 there was only all inclusive bundle • Now there are multiple bundles • Infra-bundle – contains code for FI, IOM, and UCSM • B-series bundle – contains BIOS and blade specific code • C-series bundle – contains BIOS and rack server specific code

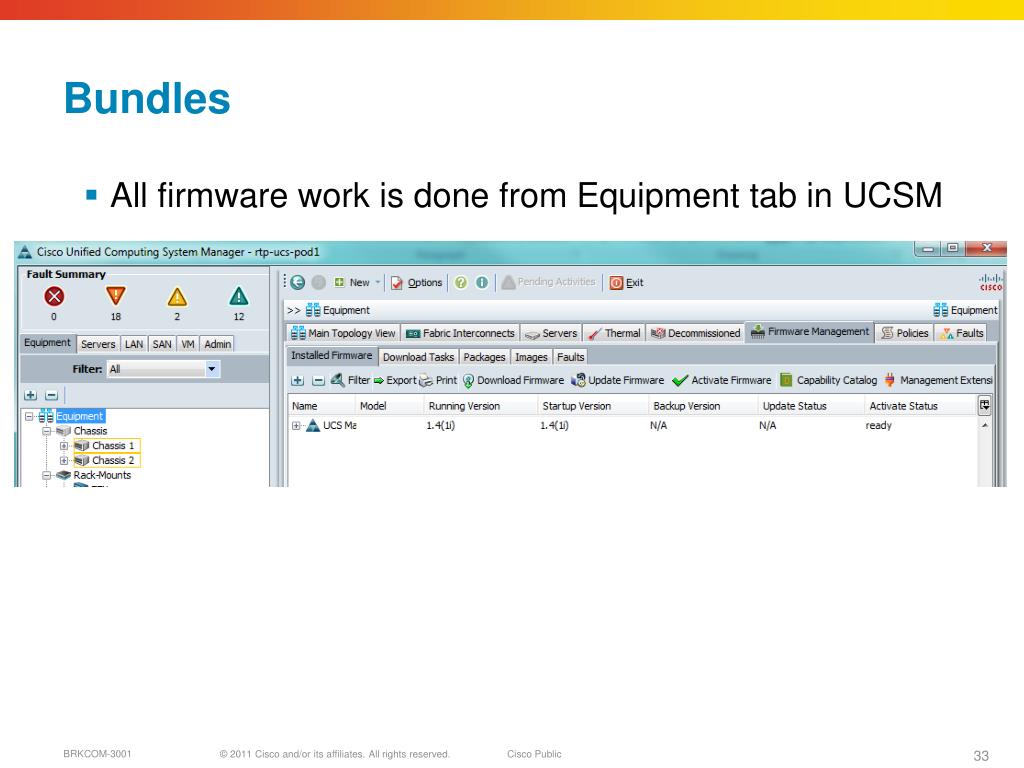

  32. Bundles • All firmware work is done from Equipment tab in UCSM

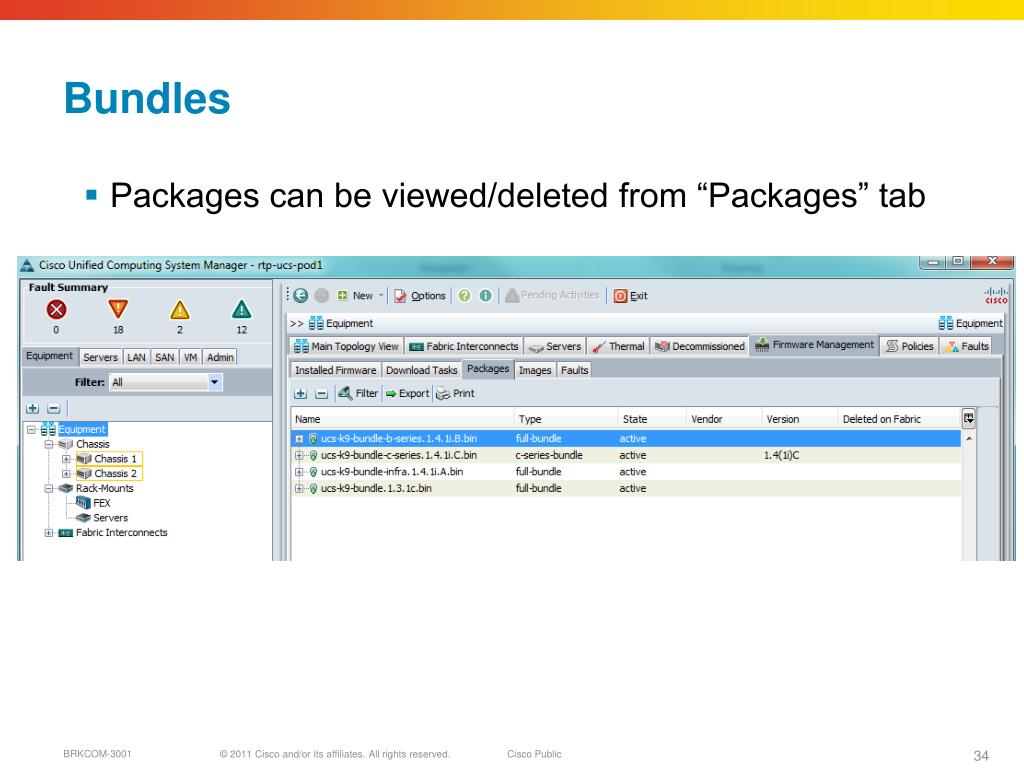

  33. Bundles • Packages can be viewed/deleted from “Packages” tab

  34. Bundles • Bundles are downloaded from the “Download Tasks” tab • Downloads can be through desktop or using ftp/scp/sftp/tftp

  35. Cisco.com to download FCS bundles FI, IOM, and UCSM software B-Series packages C-Series packages

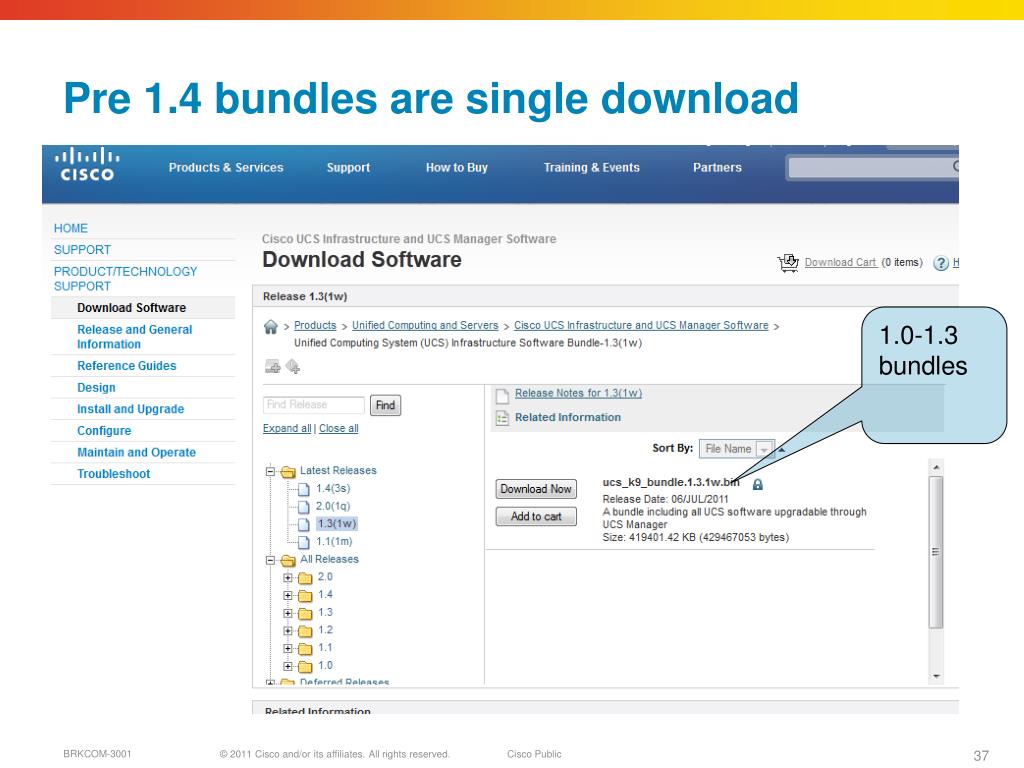

  36. Pre 1.4 bundles are single download 1.0-1.3 bundles

  37. Upgrade process B Series

  38. Upgrade Process • Again always consult release notes • Upgrade through GUI is easiest • General Process is • Backup UCSConfig (Full & All Config) • Download code • Update components • Activate components in order of (Check RN cause order can change) • Interface cards – Set Startup Only • CIMC • IOM – Set Startup Only • UCSM • FI

  39. Updating Components • Update means copy new code to backup location of all UCSM components • Simply stages the new code • Can update all components at once

  40. Updating Components • Time to update will vary based on component • IOMs take a long time. Up to 5 minutes • If any component has issues check FSM for that component • Update process does not work on FI • Once everything is in “Ready” state you can move to Activate

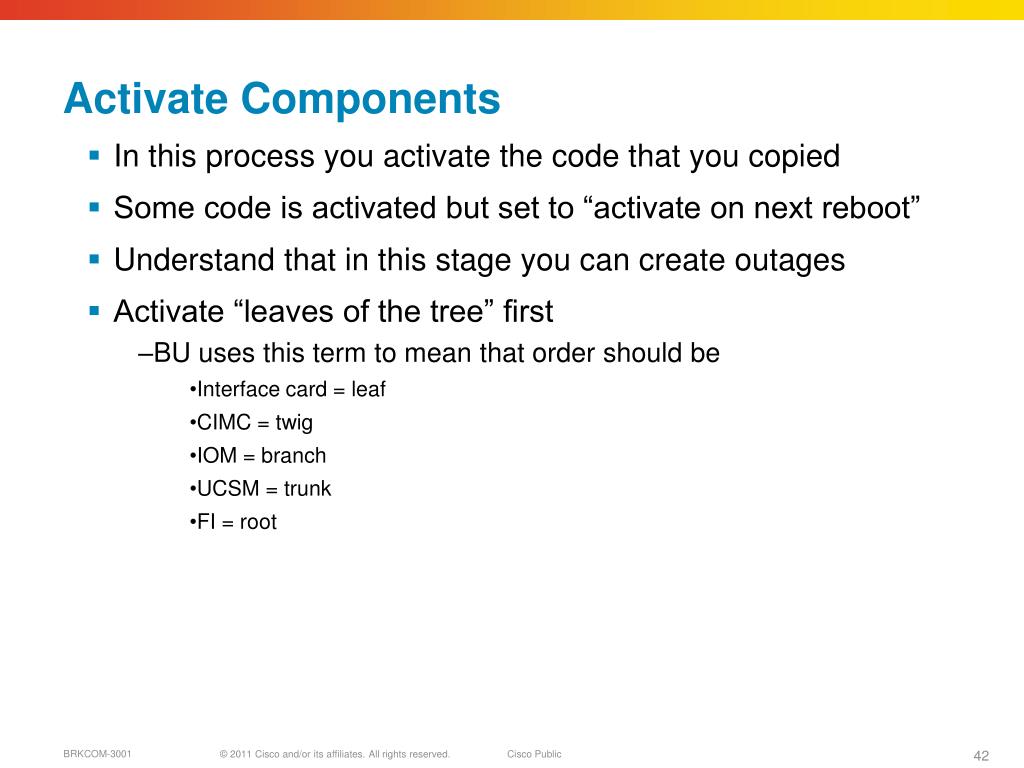

  41. Activate Components • In this process you activate the code that you copied • Some code is activated but set to “activate on next reboot” • Understand that in this stage you can create outages • Activate “leaves of the tree” first • BU uses this term to mean that order should be • Interface card = leaf • CIMC = twig • IOM = branch • UCSM = trunk • FI = root

  42. Activate Blade Components • Recommended Method is to use Policies • Host Firmware Policy to apply latest BIOS, Board Controller, Adapters, etc.

  43. Activate Interface cards • Set to “Set to startup version only” • If you uncheck above box it will cause a blade reboot!!!

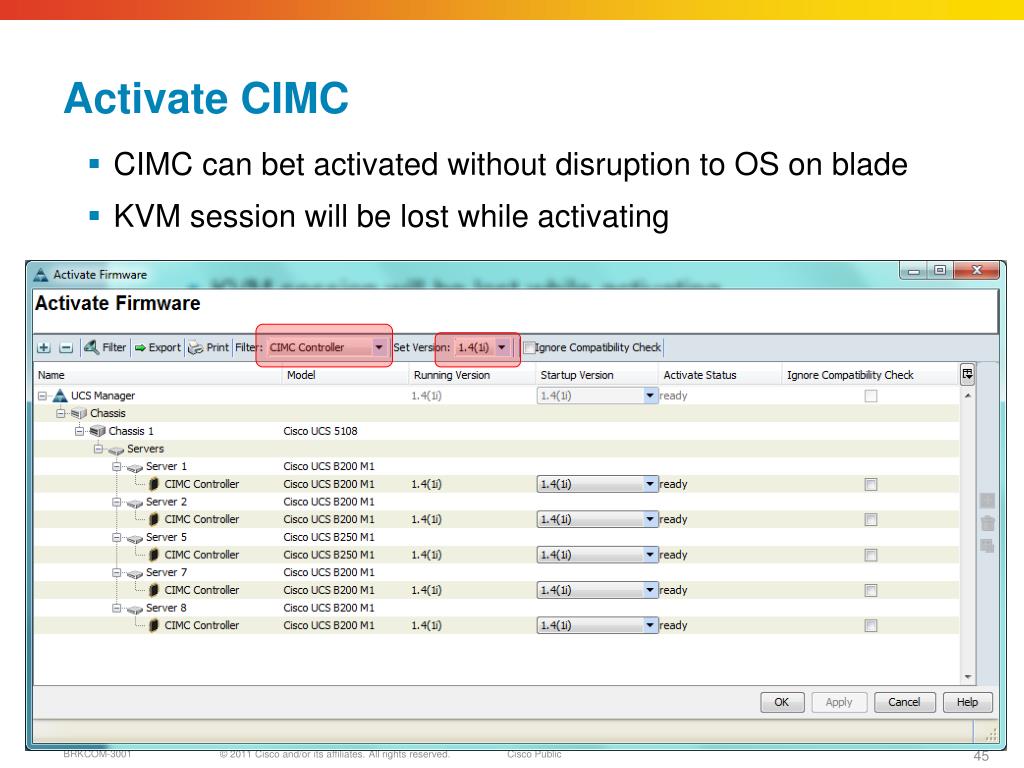

  44. Activate CIMC • CIMC can bet activated without disruption to OS on blade • KVM session will be lost while activating

  45. Activate IOM • Same as Interface card “Set Startup Version Only” • IOM needs to be at same version as FI!!!

  46. Activate UCSM • Will cause UCSM to disconnect • Takes a few minutes

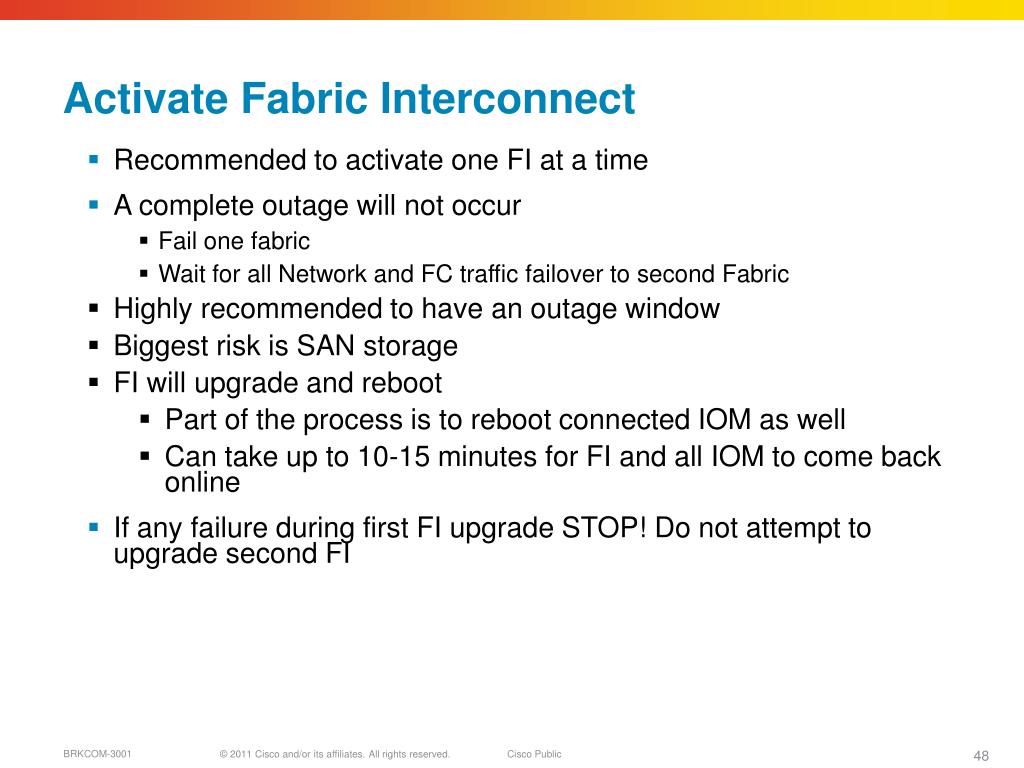

  47. Activate Fabric Interconnect • Recommended to activate one FI at a time • A complete outage will not occur • Fail one fabric • Wait for all Network and FC traffic failover to second Fabric • Highly recommended to have an outage window • Biggest risk is SAN storage • FI will upgrade and reboot • Part of the process is to reboot connected IOM as well • Can take up to 10-15 minutes for FI and all IOM to come back online • If any failure during first FI upgrade STOP! Do not attempt to upgrade second FI

  48. Activate Fabric Interconnect • Activate FI from Equipment tab • Upgrade subordinate first

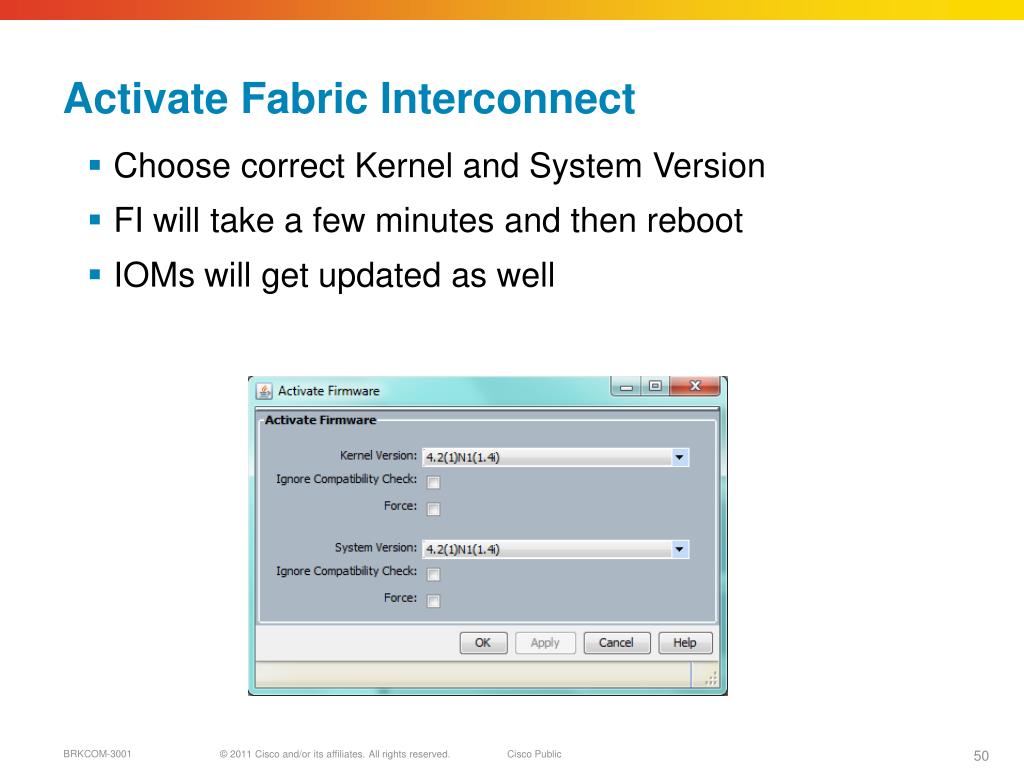

  49. Activate Fabric Interconnect • Choose correct Kernel and System Version • FI will take a few minutes and then reboot • IOMs will get updated as well
