  1. AN ULTIMATE GUIDE TO CLOSED DIE FORGING COMPONENTS https://www.kalariaautoforge.com

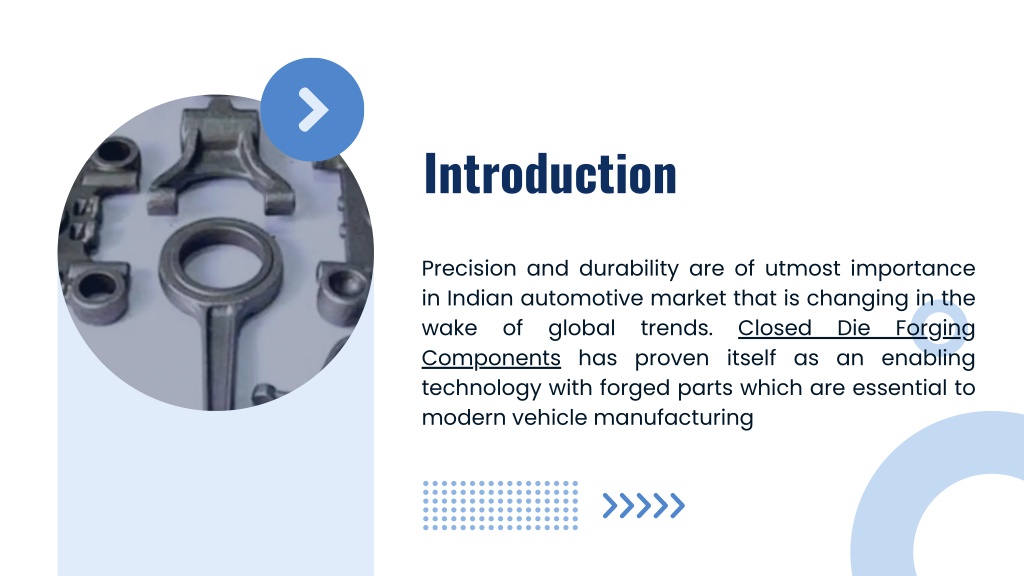

  2. Introduction Precision and durability are of utmost importance in Indian automotive market that is changing in the wake of global trends. Components has proven itself as an enabling technology with forged parts which are essential to modern vehicle manufacturing Closed Die Forging

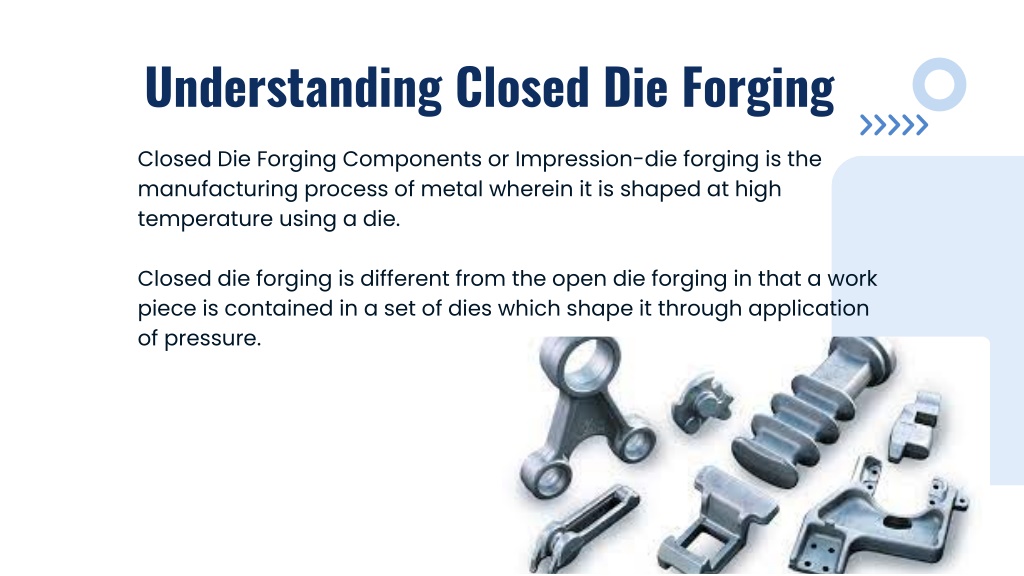

  3. Understanding Closed Die Forging Closed Die Forging Components or Impression-die forging is the manufacturing process of metal wherein it is shaped at high temperature using a die. Closed die forging is different from the open die forging in that a work piece is contained in a set of dies which shape it through application of pressure.

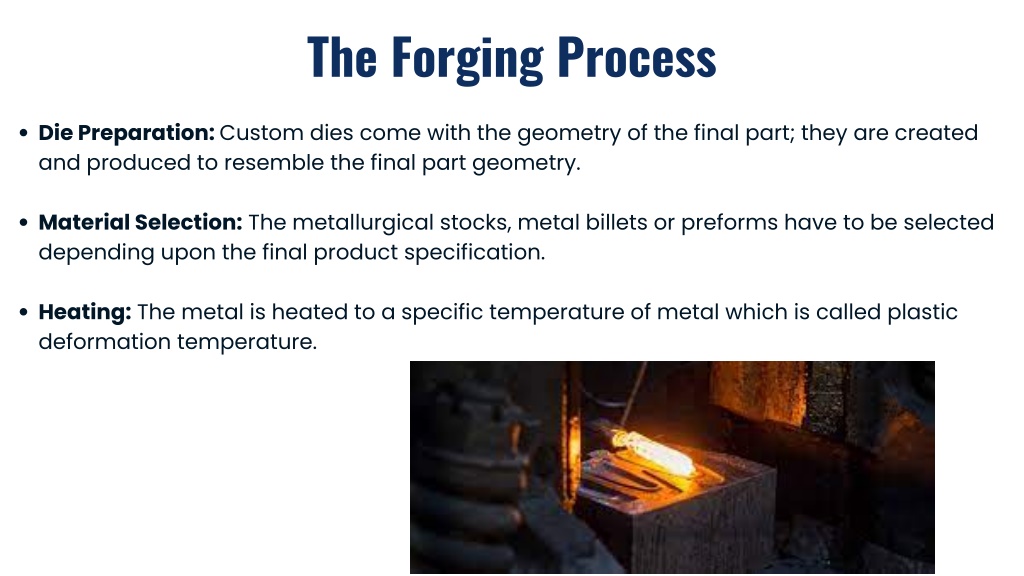

  4. The Forging Process Die Preparation: Custom dies come with the geometry of the final part; they are created and produced to resemble the final part geometry. Material Selection: The metallurgical stocks, metal billets or preforms have to be selected depending upon the final product specification. Heating: The metal is heated to a specific temperature of metal which is called plastic deformation temperature.

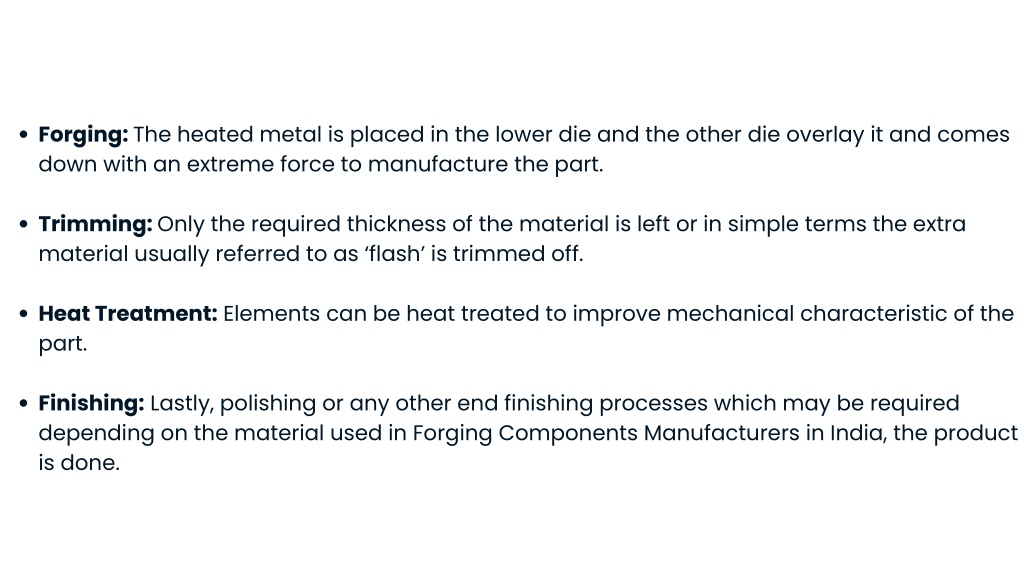

  5. Forging: The heated metal is placed in the lower die and the other die overlay it and comes down with an extreme force to manufacture the part. Trimming: Only the required thickness of the material is left or in simple terms the extra material usually referred to as ‘flash’ is trimmed off. Heat Treatment: Elements can be heat treated to improve mechanical characteristic of the part. Finishing: Lastly, polishing or any other end finishing processes which may be required depending on the material used in Forging Components Manufacturers in India, the product is done.

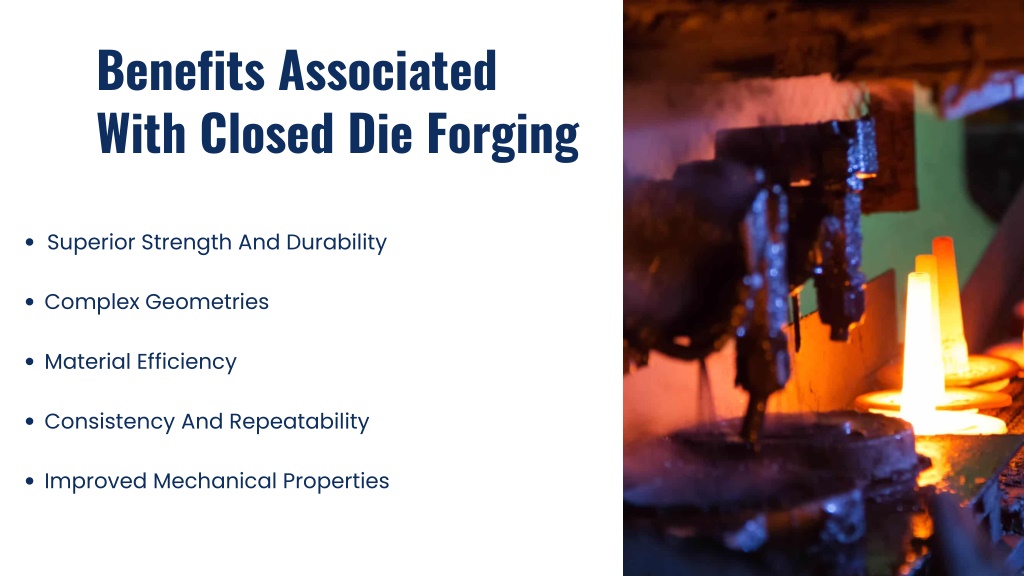

  6. Benefits Associated With Closed Die Forging Superior Strength And Durability Complex Geometries Material Efficiency Consistency And Repeatability Improved Mechanical Properties

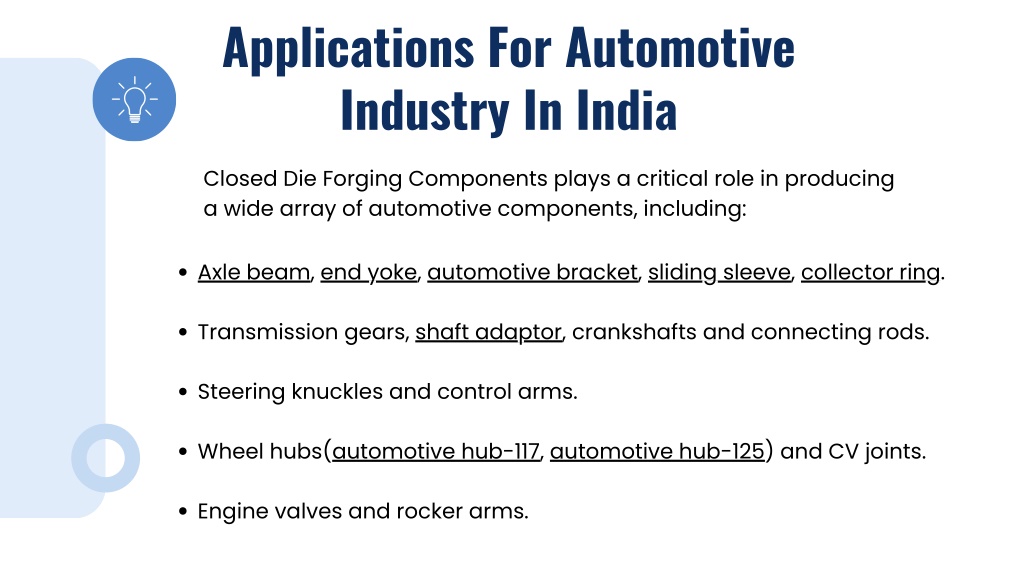

  7. Applications For Automotive Industry In India Closed Die Forging Components plays a critical role in producing a wide array of automotive components, including: Axle beam, end yoke, automotive bracket, sliding sleeve, collector ring. Transmission gears, shaft adaptor, crankshafts and connecting rods. Explain more about some global solutions to save the arctic here. Steering knuckles and control arms. Wheel hubs(automotive hub-117, automotive hub-125) and CV joints. Engine valves and rocker arms.

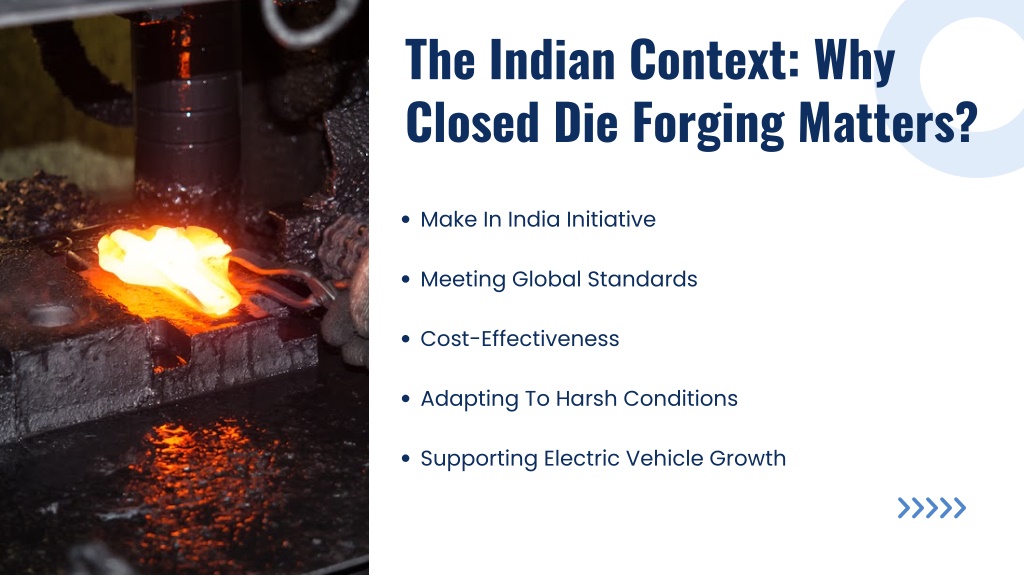

  8. The Indian Context: Why Closed Die Forging Matters? Make In India Initiative Meeting Global Standards Cost-Effectiveness Adapting To Harsh Conditions Supporting Electric Vehicle Growth

  9. Conclusion Closed Die Forging Components remains the notable process on the production of high-end automotive forging parts. For emerging automotive industry of India this is not a luxury but a necessity to excel in this process. Thus, the companies effectively using closed die forging capabilities will have competitive advantage in domestic and international market as the industry develop in the future.

  10. THANK YOU!
