Presentation Transcript

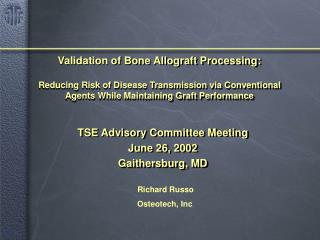

slide1

Validation of Bone Allograft Processing:Reducing Risk of Disease Transmission via Conventional Agents While Maintaining Graft Performance

TSE Advisory Committee Meeting

June 26, 2002

Gaithersburg, MD

Richard Russo

Osteotech, Inc.

validation of bone allograft processing
Validation of Bone Allograft Processing

Risk reduction is a multi-functional process, built on several factors:

  • Donor testing and screening
  • Donor deferral and tissue discard policies
  • Appropriate segregation and quarantine procedures
  • Adequate cleaning and disinfection between batches
  • Processing to inactivate and/or remove pathogens
validation of bone allograft processing3
Validation of Bone Allograft Processing

Potential pathogens in tissue:

  • Bacteria, yeasts, mold and fungi
  • Viruses
  • TSE

Presentation focus:

  • Viruses in standard non-demineralized grafts

Principal viruses of concern:

  • HIV 1 + 2, HTLV 1+2, HBV, HCV
validation of bone allograft processing4
Validation of Bone Allograft Processing

Performance

  • Primary purpose of bone graft is to support bone formation across a defect due to disease, trauma, or reconstructive surgery
  • Not all processing has same effect on bone graft performance
  • Failure of graft procedure typically leads to revision surgery
  • Limitation of capacity of graft to support bone formation leads to increased morbidity and risk to patient
validation of bone allograft processing treatments affecting performance
Validation of Bone Allograft Processing:Treatments Affecting Performance
  • Preprocessing Storage
  • Temperature
  • Multiple Freeze-Thaw Cycles
  • Sterilization Procedures
    • UV Radiation
    • Gamma
    • E-beam
    • Ethylene Oxide
  • Solvents (GnHC1, Acid-Alcohol, EDTA)
  • Sonication (> 20,000 cycles/sec.)
  • Peracetic Acid
  • Hydrogen Peroxide
    • Concentration and time dependent
  • Strong base, e.g, NaOH

Reviewed by Russell & Block, Orthopedics Vol. 22 (5); 524, 1999

validation of bone allograft processing6
Validation of Bone Allograft Processing

Comparison of Osteoinductivity: Independent Published Study

NASS Proceedings, 15th Annual Meeting 2000, p38

validation of bone allograft processing7
Validation of Bone Allograft Processing

Risk reduction via processing begins with characterization of tissues and assessment of risk

  • Each type of tissue presents its own profile
  • Musculoskeletal tissues can be characterizedas soft or hard
    • Soft: ligaments, tendons, fascia, cartilage
    • Hard: bone
      • Cancellous
      • Cortical
validation of bone allograft processing8
Validation of Bone Allograft Processing

In terms of mass, bone tissue can be described as having two phases:

  • Inorganic
  • Organic
validation of bone allograft processing9

Organic (30%)

Mineral (70%)

Cells (2%)

Osteoblasts

Osteocytes

Osteoclasts

+

Matrix (98%)

Collagen (95%)

Non-collagenous proteins (5%)

(includes growth factors)

Hydroxyapatite (95%)

+

Magnesium

Sodium

Potassium

Fluoride

Chloride

Validation of Bone Allograft Processing

Composition of Normal Bone

slide11

Validation of Bone Allograft Processing

Structure of Cortical (Compact) Bone

validation of bone allograft processing13
Validation of Bone Allograft Processing

Maximum Viral Burden in Bone: General Considerations

  • No published reports that quantitative viral burden in bone
  • Extrapolate viral burden from values reported for blood: data exist for HIV, HTLV, HBV, and HCV
  • Bone is divided into discrete compartments
  • Conservative bone allografts “dose”
    • 90cc mineralized tissue
  • Calculation of blood volumes
  • Calculation of theoretical maximum viral burden
validation of bone allograft processing14
Validation of Bone Allograft Processing

Viral Clearance Process Validation: General Approach

  • Spike bone with known amount of virus
    • Relevant panel
    • Demonstrate quantitative recovery
  • Proceed through process step
  • Quantitatively assay viral inactivation
  • Calculate difference between theoretical maximum viral burden and log reduction value of process
  • Viral clearance must be at least 3 logs greater than maximum viral burden to provide acceptable level of safety
validation of bone allograft processing15
Validation of Bone Allograft Processing

Estimated Theoretical Maximum Viral BurdenDemineralized Bone

validation of bone allograft processing16
Validation of Bone Allograft Processing

Maximum Viral Burden: Mineralized Bone

Log values

slide17

Validation of Bone Allograft ProcessingViral Inactivation - D-MIN® Process

Log10 Reduction

*Insufficient published data to calculate viral burden.

slide18
Validation of Bone Allograft ProcessingStandard Bone AllograftsViral Inactivation and Removal Data
validation of bone allograft processing19
Validation of Bone Allograft Processing
  • Current process validation guidance documents and virology perspectives can be successfully adapted to viral clearance process validation for bone allografts
  • Bone allograft performance can be maintained while producing a significant SAL using a conservatively calculated theoretical maximum viral burden
validation of bone allograft processing20
Validation of Bone Allograft Processing
  • Center for Biologics Evaluation and Research. “Points to Consider in the Characterization of Cell Lines Used to Produce Biologicals” (Food and Drug Administration) 1993
  • Center for Biologics Evaluation and Research. “Points to Consider in Manufacture and Testing of Monoclonal Antibody Products for Human Use” (Food and Drug Administration) 1997
  • Committee for Proprietary Medicinal Products Ad Hoc Working Party on Biotechnology/Pharmacy and Working Party on Safety Medicines, Note for Guidance. “Validation of Virus Removal and Inactivation Procedures”, Biologicals 1991: 19-247-251
  • Committee for Proprietary Medicinal Products: EEC Council Directive 89/381: “Medicinal Products Derived from Human Plasma” (Revised Draft 1995)
validation of bone allograft processing21
Validation of Bone Allograft Processing
  • Committee for Proprietary Medicinal Products: 1995 Revised CPMP Guidelines. Virus Validation Studies: The design, contribution and interpretation of studies validating the inactivation and removal of viruses (revised)
  • ICH Viral Safety Document: QSA Viral Safety Evaluation of Biotechnology Products Derived from Cell Lines of Human or Animal Origin: 1998
validation of allograft bone processing
Validation of Allograft Bone Processing

Prion Inactivation by Cleaning Procedures

  • Spike Samples – Hamster Scrapie Homogenate
  • Evaluation by prion Western Blot Assay
  • Solid surface cleaning with existing procedures

Log Reduction Factors

  • Solid surface cleaning – Sporklens > 4.0
  • Solid surface cleaning – Expor (1) > 3.4
  • Solid surface cleaning – Expor (2) >3.4
validation of allograft bone processing23
Validation of Allograft Bone Processing

Cleaning Validation to Prevent Cross Contamination

Post Cleaning Residuals (mg/sq ft)
