Presentation Transcript
references

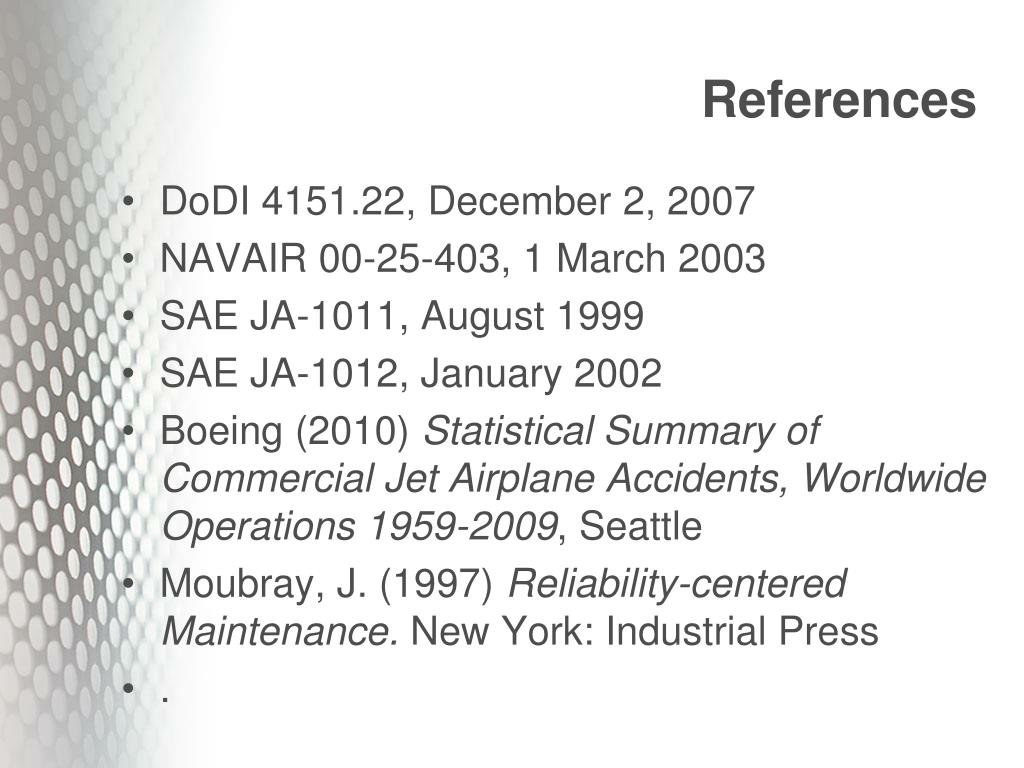

References
  • DoDI 4151.22, December 2, 2007
  • NAVAIR 00-25-403, 1 March 2003
  • SAE JA-1011, August 1999
  • SAE JA-1012, January 2002
  • Boeing (2010) Statistical Summary of Commercial Jet Airplane Accidents, Worldwide Operations 1959-2009, Seattle
  • Moubray, J. (1997) Reliability-centered Maintenance. New York: Industrial Press
  • .

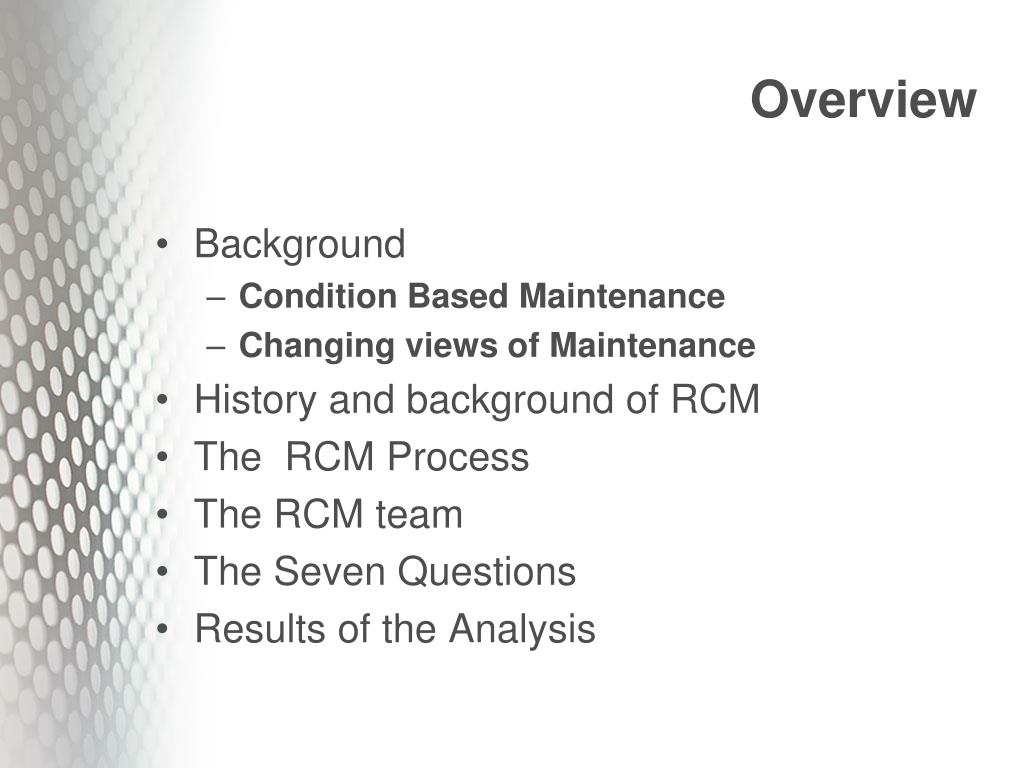

overview
Overview
  • Background
    • Condition Based Maintenance
    • Changing views of Maintenance
  • History and background of RCM
  • The RCM Process
  • The RCM team
  • The Seven Questions
  • Results of the Analysis
what is rcm

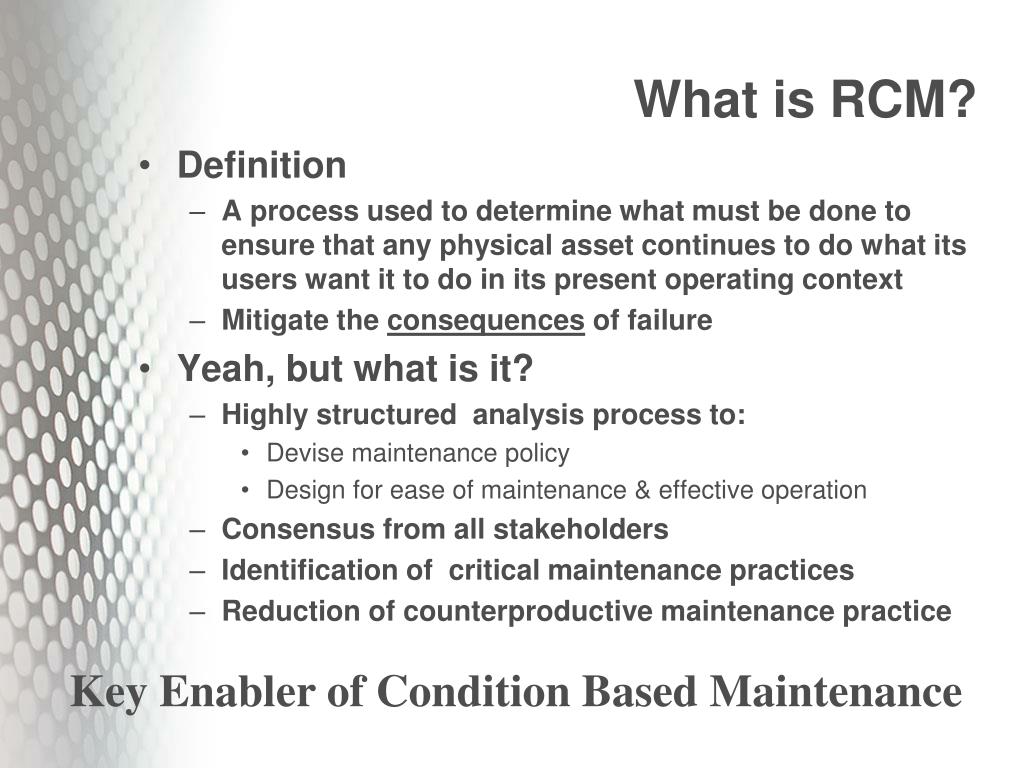

What is RCM?
  • Definition
    • A process used to determine what must be done to ensure that any physical asset continues to do what its users want it to do in its present operating context
    • Mitigate the consequences of failure
  • Yeah, but what is it?
    • Highly structured analysis process to:
      • Devise maintenance policy
      • Design for ease of maintenance & effective operation
    • Consensus from all stakeholders
    • Identification of critical maintenance practices
    • Reduction of counterproductive maintenance practice

Key Enabler of Condition Based Maintenance

condition based maintenance

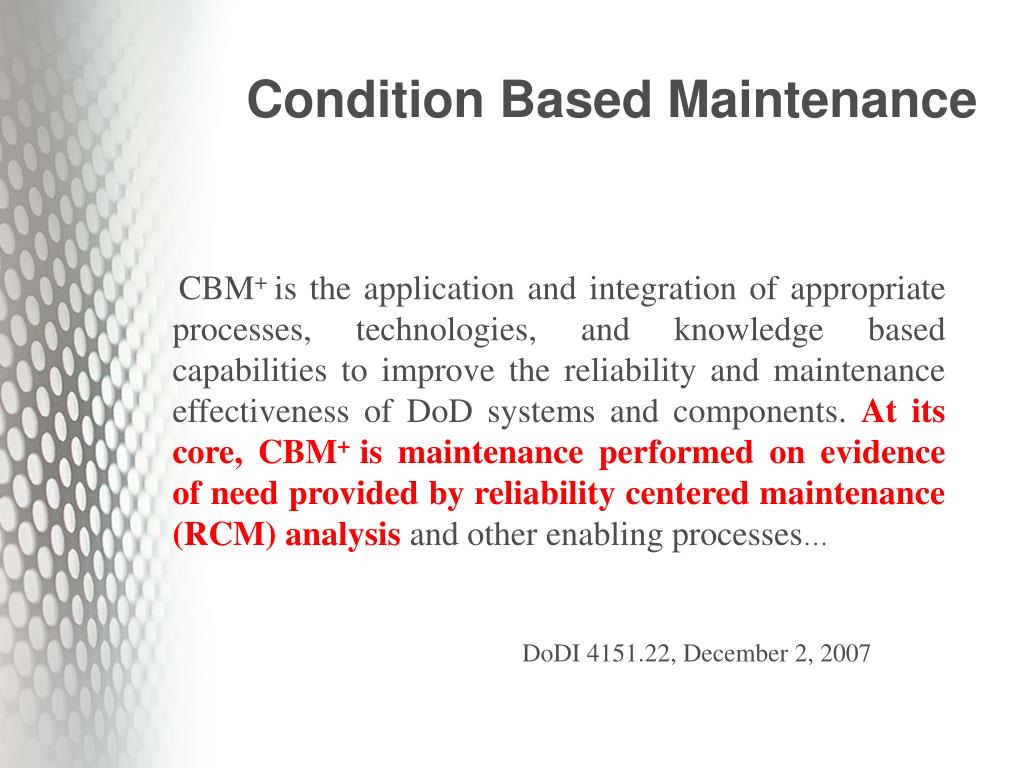

Condition Based Maintenance

CBM+ is the application and integration of appropriate processes, technologies, and knowledge based capabilities to improve the reliability and maintenance effectiveness of DoD systems and components. At its core, CBM+ is maintenance performed on evidence of need provided by reliability centered maintenance (RCM) analysis and other enabling processes…

DoDI 4151.22, December 2, 2007

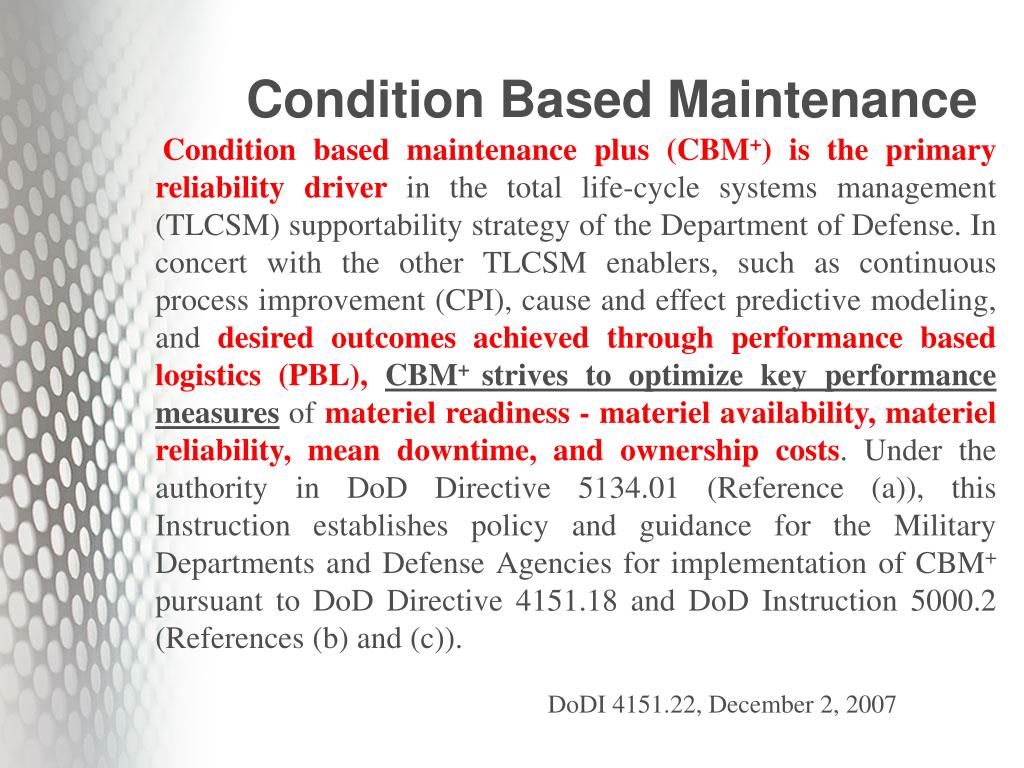

condition based maintenance1
Condition Based Maintenance

Condition based maintenance plus (CBM+) is the primary reliability driver in the total life-cycle systems management (TLCSM) supportability strategy of the Department of Defense. In concert with the other TLCSM enablers, such as continuous process improvement (CPI), cause and effect predictive modeling, and desired outcomes achieved through performance based logistics (PBL), CBM+ strives to optimize key performance measures of materiel readiness - materiel availability, materiel reliability, mean downtime, and ownership costs. Under the authority in DoD Directive 5134.01 (Reference (a)), this Instruction establishes policy and guidance for the Military Departments and Defense Agencies for implementation of CBM+ pursuant to DoD Directive 4151.18 and DoD Instruction 5000.2 (References (b) and (c)).

DoDI 4151.22, December 2, 2007

what does that mean

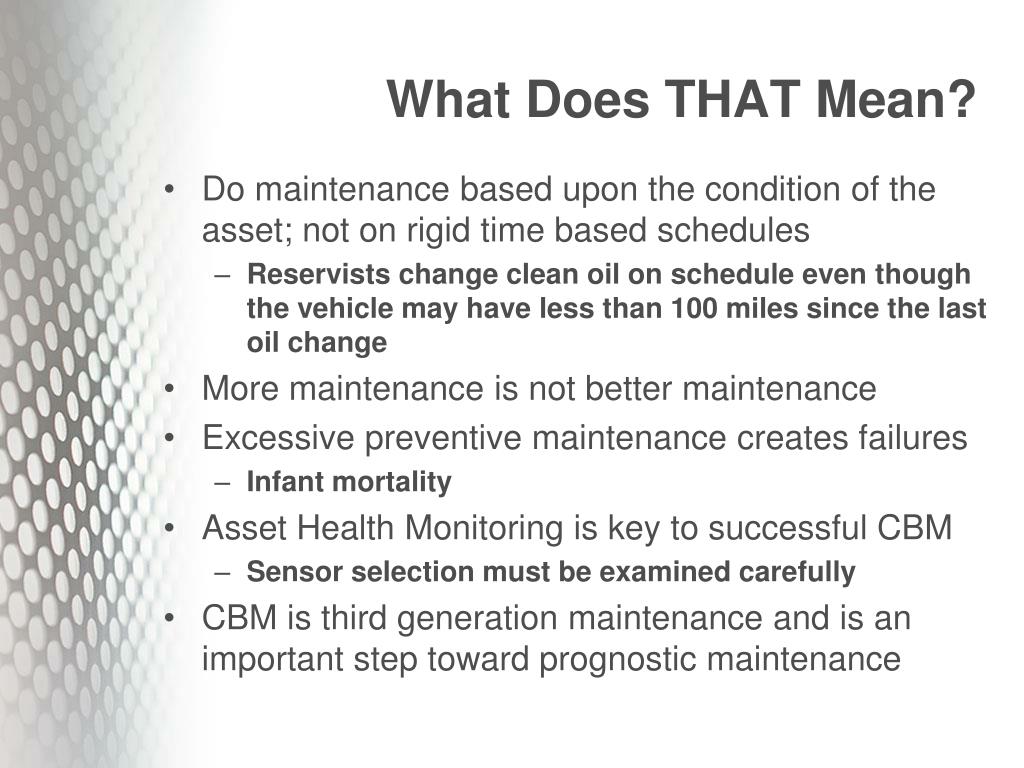

What Does THAT Mean?
  • Do maintenance based upon the condition of the asset; not on rigid time based schedules
    • Reservists change clean oil on schedule even though the vehicle may have less than 100 miles since the last oil change
  • More maintenance is not better maintenance
  • Excessive preventive maintenance creates failures
    • Infant mortality
  • Asset Health Monitoring is key to successful CBM
    • Sensor selection must be examined carefully
  • CBM is third generation maintenance and is an important step toward prognostic maintenance
changing views of maintenance

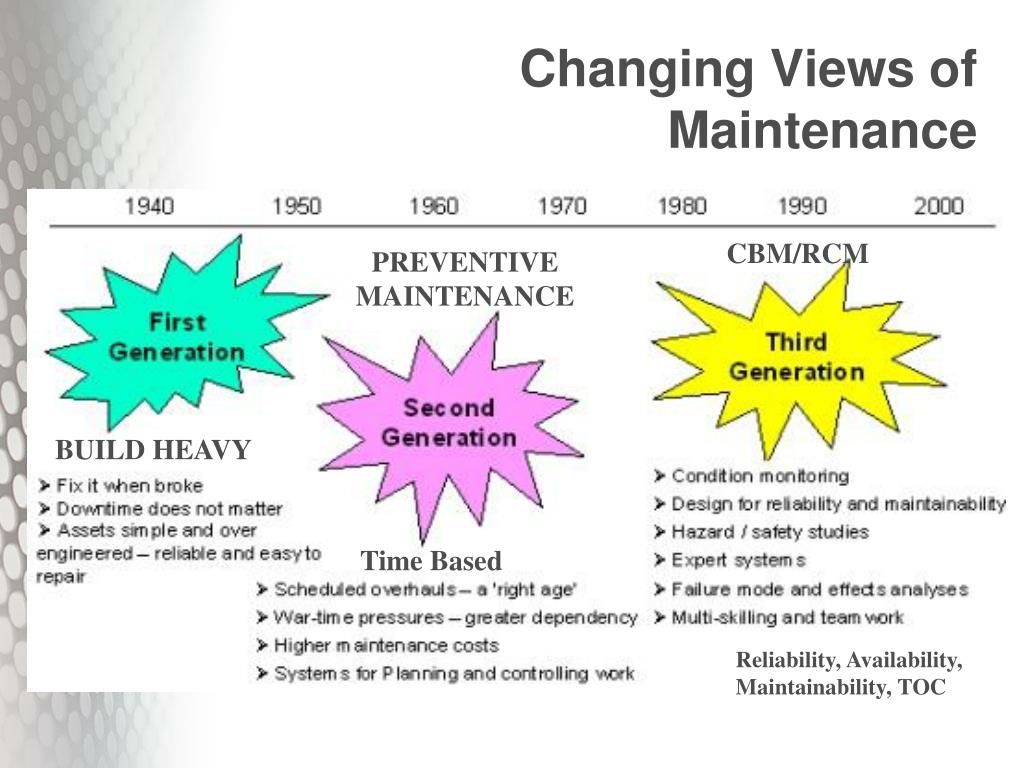

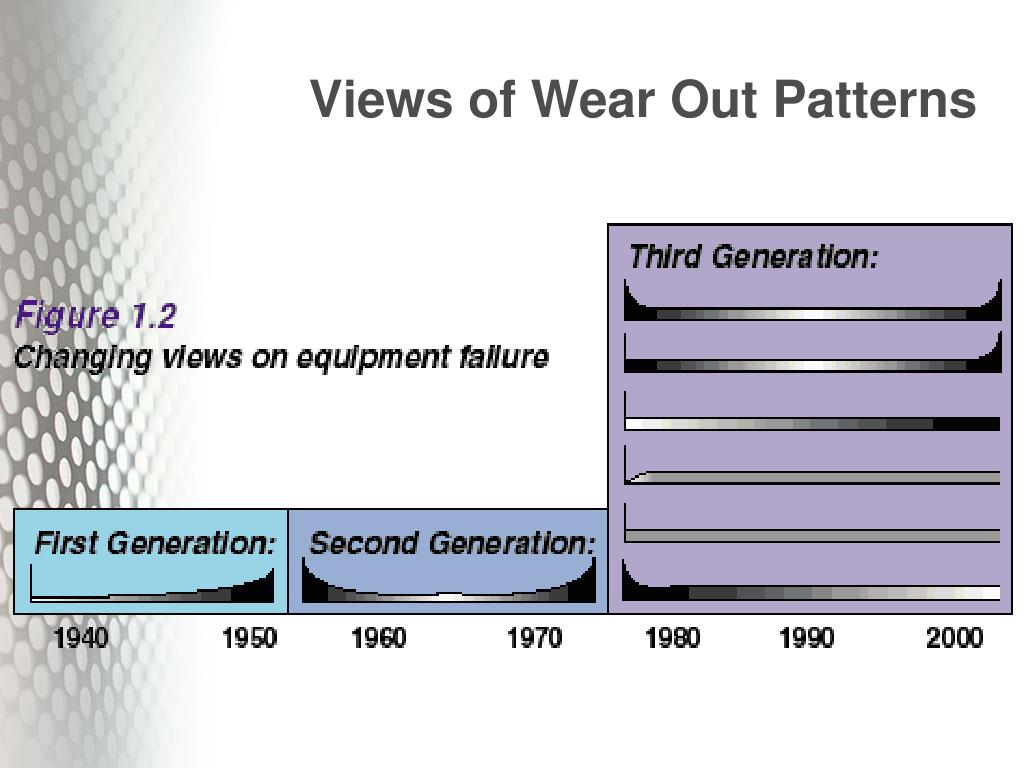

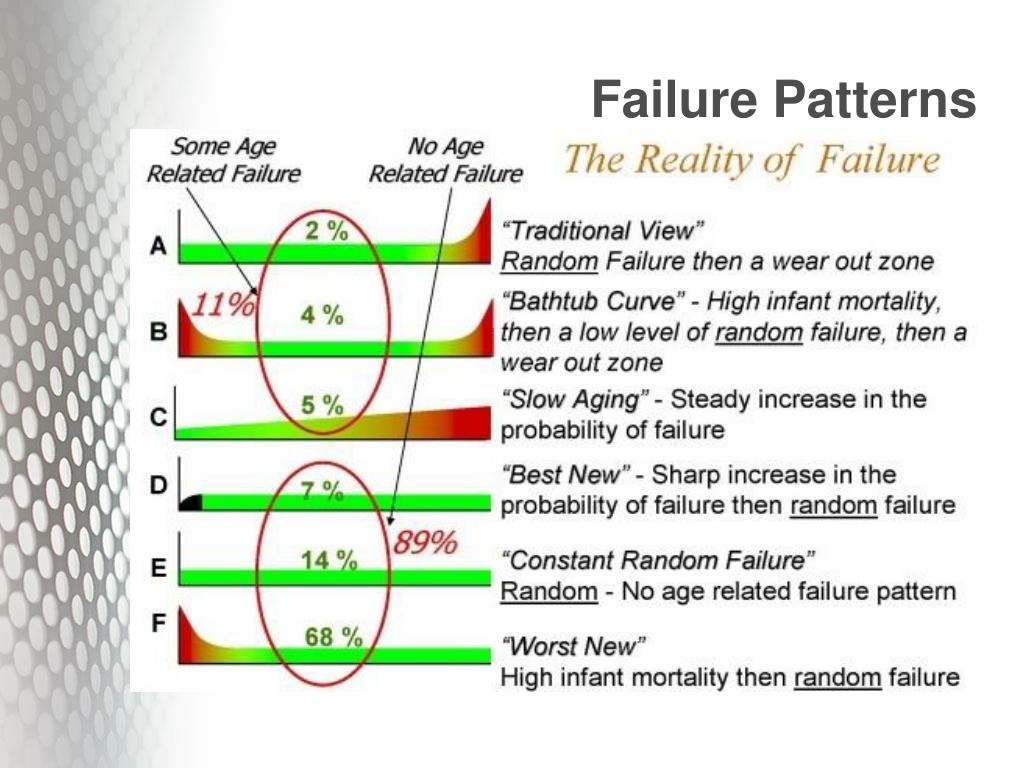

Changing Views of Maintenance

CBM/RCM

PREVENTIVE MAINTENANCE

BUILD HEAVY

Time Based

Reliability, Availability,

Maintainability, TOC

origin of rcm

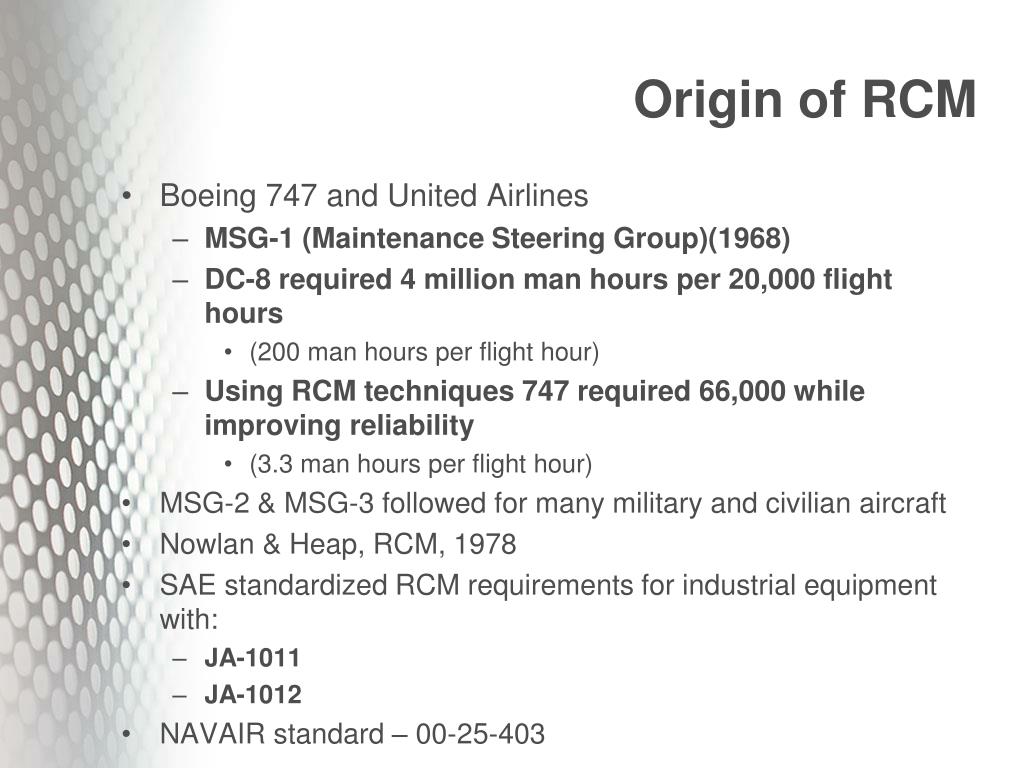

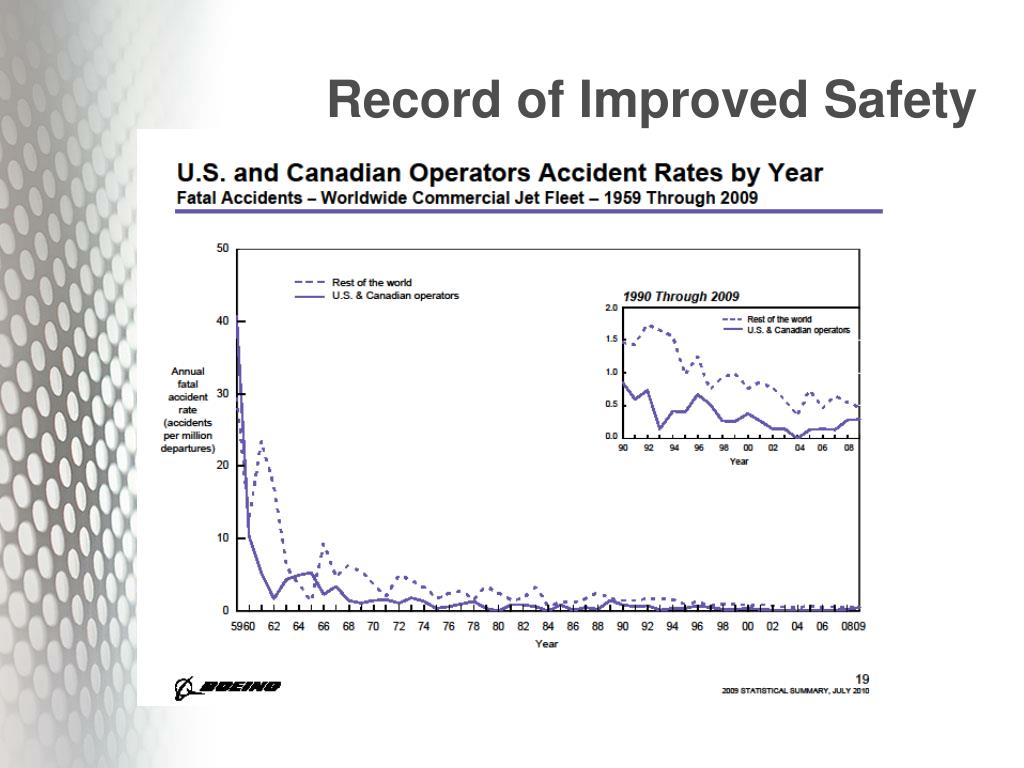

Origin of RCM
  • Boeing 747 and United Airlines
    • MSG-1 (Maintenance Steering Group)(1968)
    • DC-8 required 4 million man hours per 20,000 flight hours
      • (200 man hours per flight hour)
    • Using RCM techniques 747 required 66,000 while improving reliability
      • (3.3 man hours per flight hour)
  • MSG-2 & MSG-3 followed for many military and civilian aircraft
  • Nowlan & Heap, RCM, 1978
  • SAE standardized RCM requirements for industrial equipment with:
    • JA-1011
    • JA-1012
  • NAVAIR standard – 00-25-403
the rcm analysis team

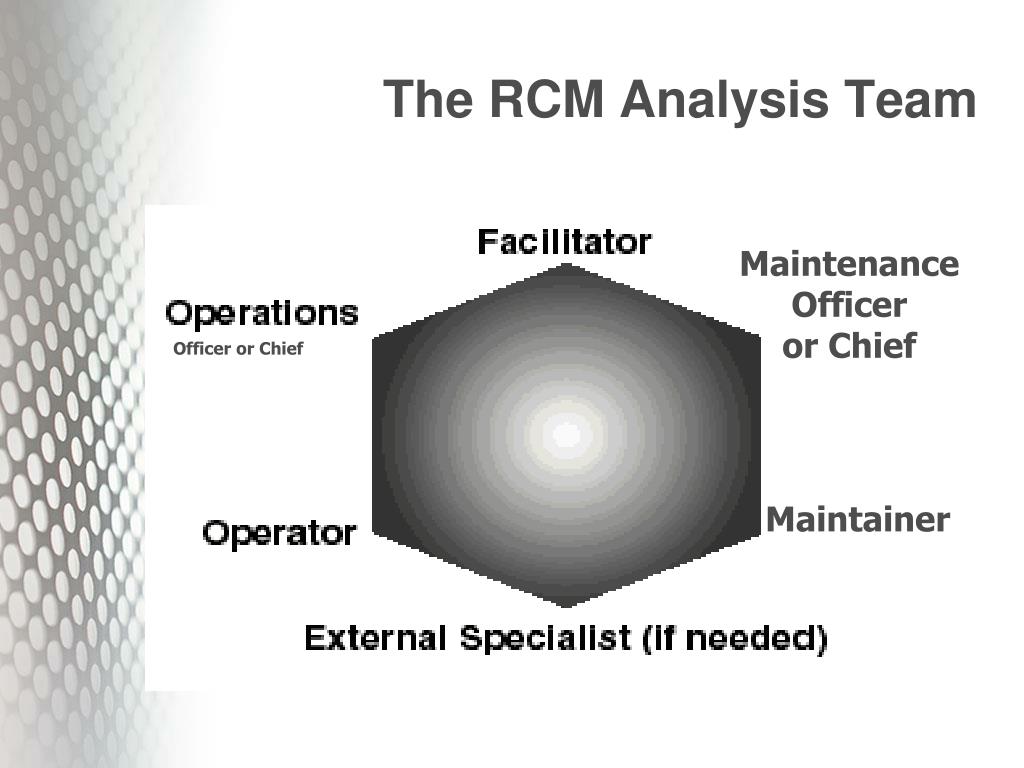

The RCM Analysis Team

Maintenance Officer

or Chief

Officer or Chief

Maintainer

the rcm process

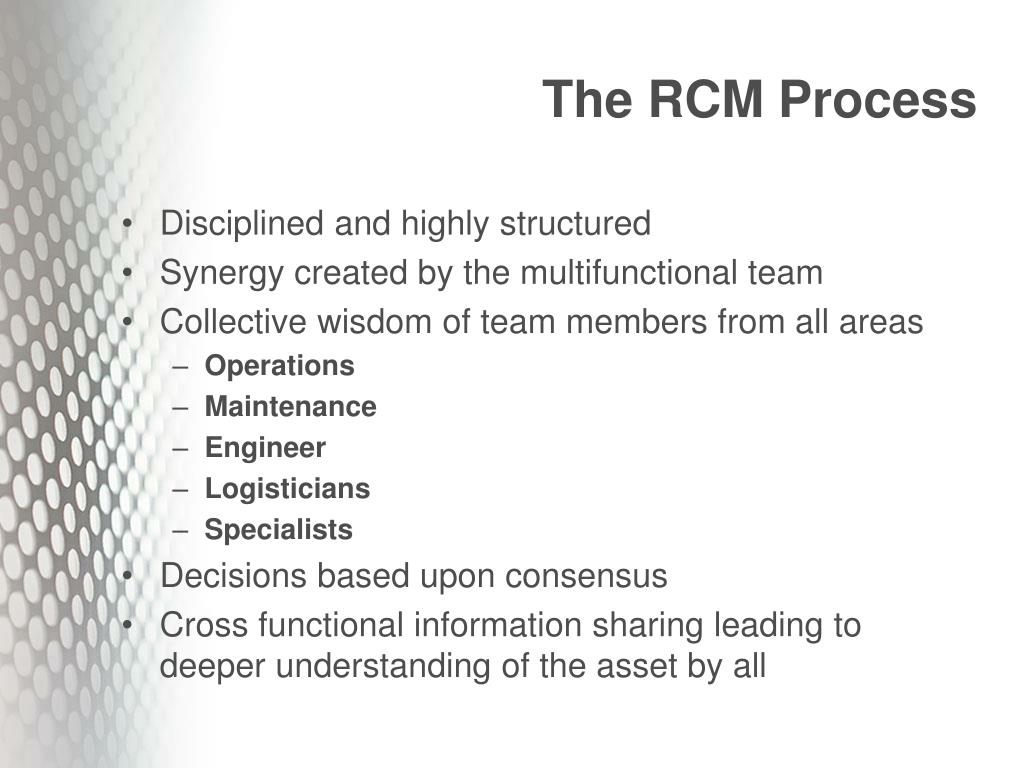

The RCM Process
  • Disciplined and highly structured
  • Synergy created by the multifunctional team
  • Collective wisdom of team members from all areas
    • Operations
    • Maintenance
    • Engineer
    • Logisticians
    • Specialists
  • Decisions based upon consensus
  • Cross functional information sharing leading to deeper understanding of the asset by all
the seven questions

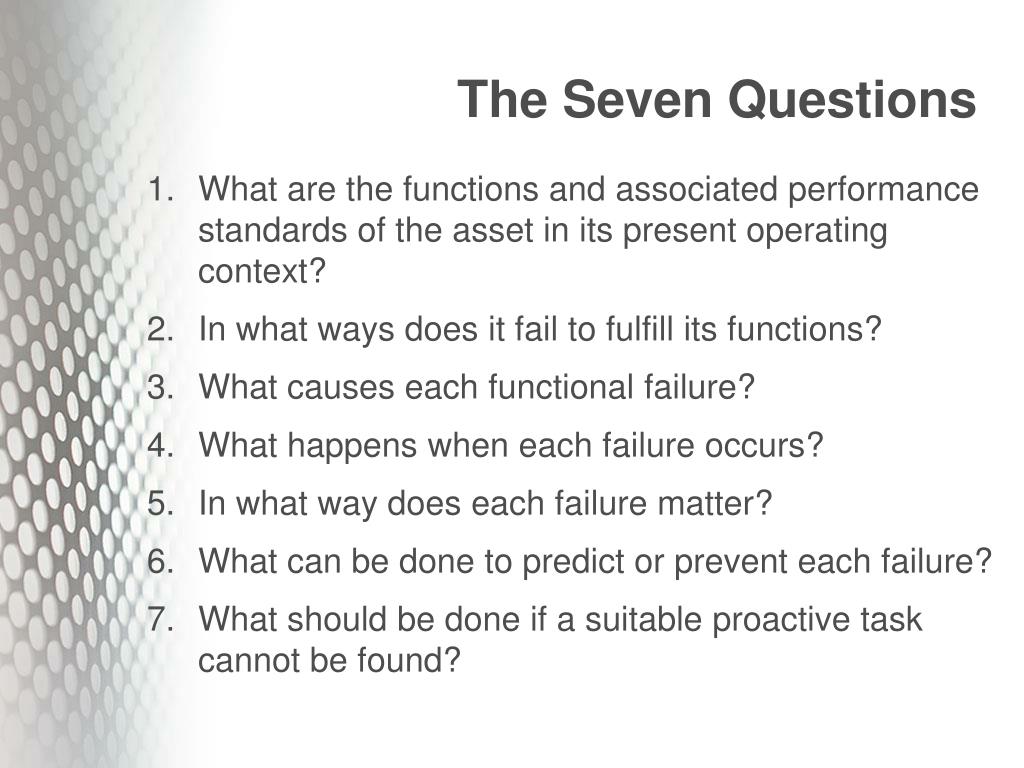

The Seven Questions
  • What are the functions and associated performance standards of the asset in its present operating context?
  • In what ways does it fail to fulfill its functions?
  • What causes each functional failure?
  • What happens when each failure occurs?
  • In what way does each failure matter?
  • What can be done to predict or prevent each failure?
  • What should be done if a suitable proactive task cannot be found?

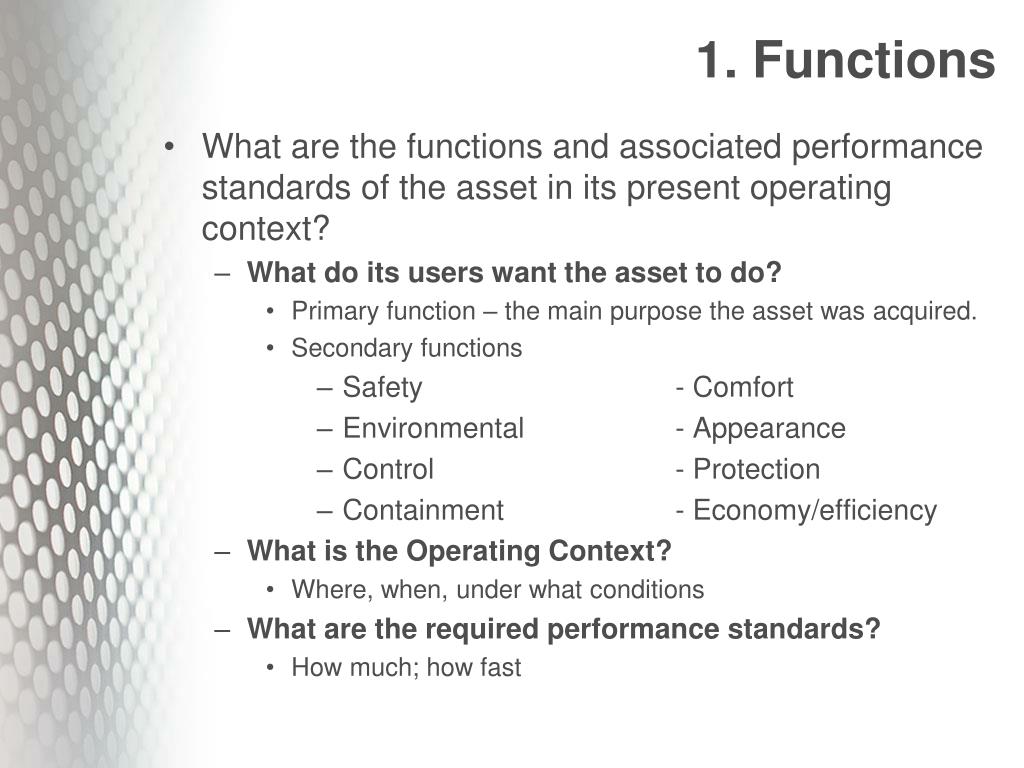

1 functions
1. Functions
  • What are the functions and associated performance standards of the asset in its present operating context?
    • What do its users want the asset to do?
      • Primary function – the main purpose the asset was acquired.
      • Secondary functions
        • Safety - Comfort
        • Environmental - Appearance
        • Control - Protection
        • Containment - Economy/efficiency
    • What is the Operating Context?
      • Where, when, under what conditions
    • What are the required performance standards?
      • How much; how fast

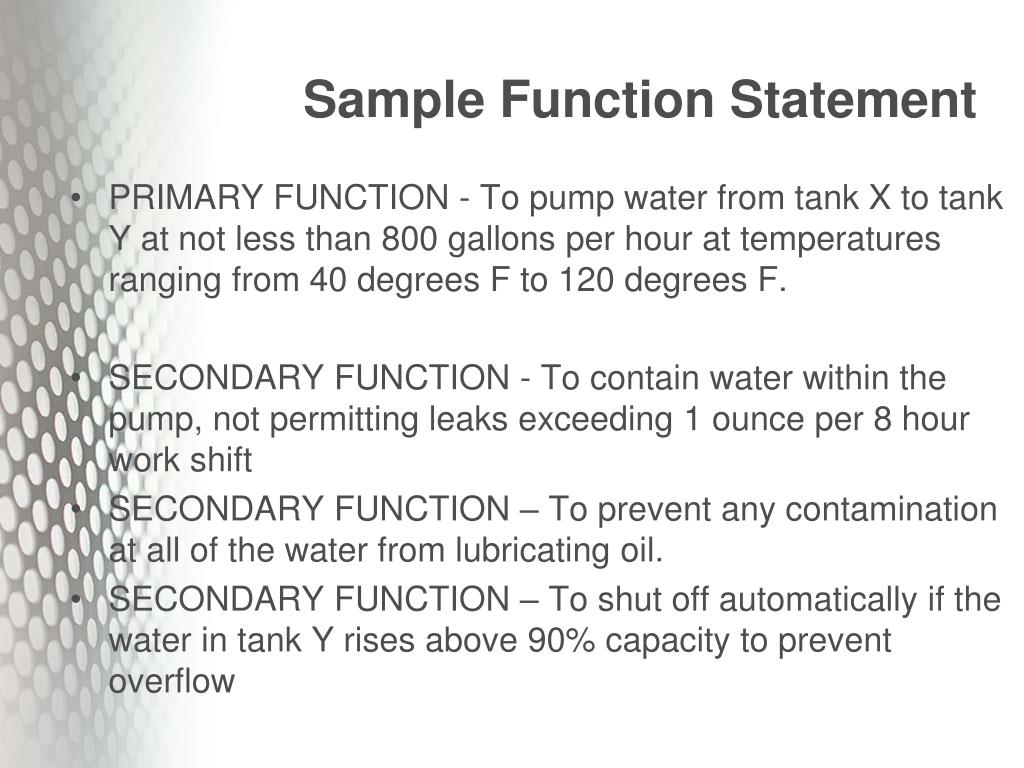

sample function statement
Sample Function Statement
  • PRIMARY FUNCTION - To pump water from tank X to tank Y at not less than 800 gallons per hour at temperatures ranging from 40 degrees F to 120 degrees F.
  • SECONDARY FUNCTION - To contain water within the pump, not permitting leaks exceeding 1 ounce per 8 hour work shift
  • SECONDARY FUNCTION – To prevent any contamination at all of the water from lubricating oil.
  • SECONDARY FUNCTION – To shut off automatically if the water in tank Y rises above 90% capacity to prevent overflow
initial capability

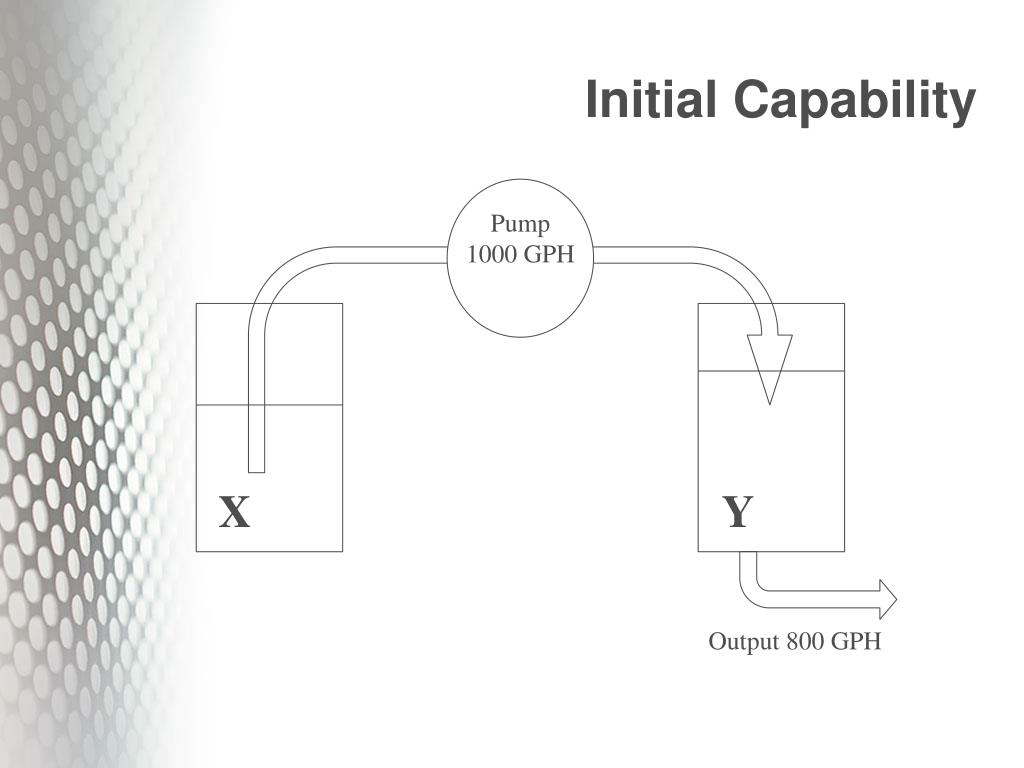

Initial Capability

Pump

1000 GPH

X

Y

Output 800 GPH

deterioration not failed

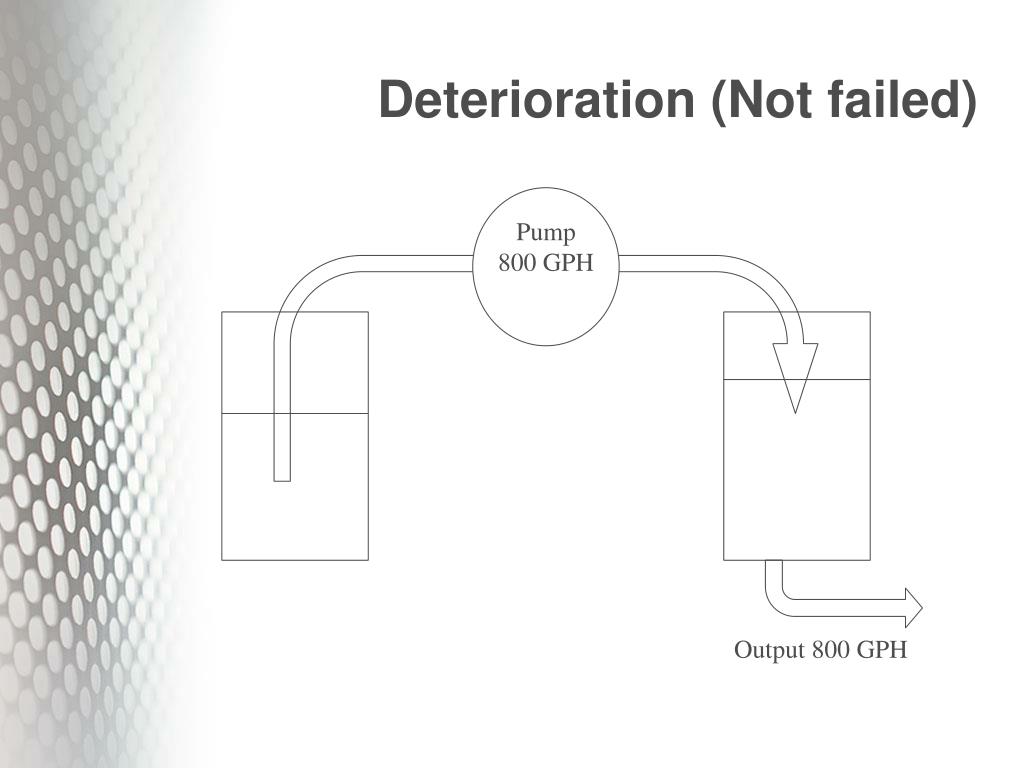

Deterioration (Not failed)

Pump

800 GPH

Output 800 GPH

2 functional failures

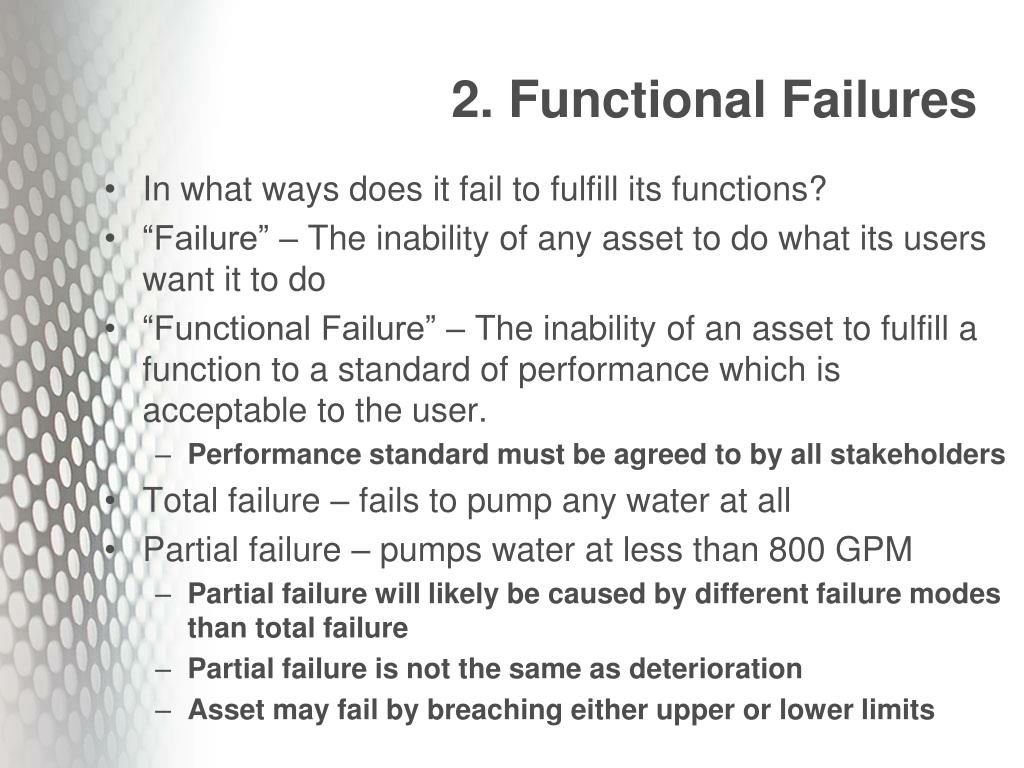

2. Functional Failures
  • In what ways does it fail to fulfill its functions?
  • “Failure” – The inability of any asset to do what its users want it to do
  • “Functional Failure” – The inability of an asset to fulfill a function to a standard of performance which is acceptable to the user.
    • Performance standard must be agreed to by all stakeholders
  • Total failure – fails to pump any water at all
  • Partial failure – pumps water at less than 800 GPM
    • Partial failure will likely be caused by different failure modes than total failure
    • Partial failure is not the same as deterioration
    • Asset may fail by breaching either upper or lower limits
failure

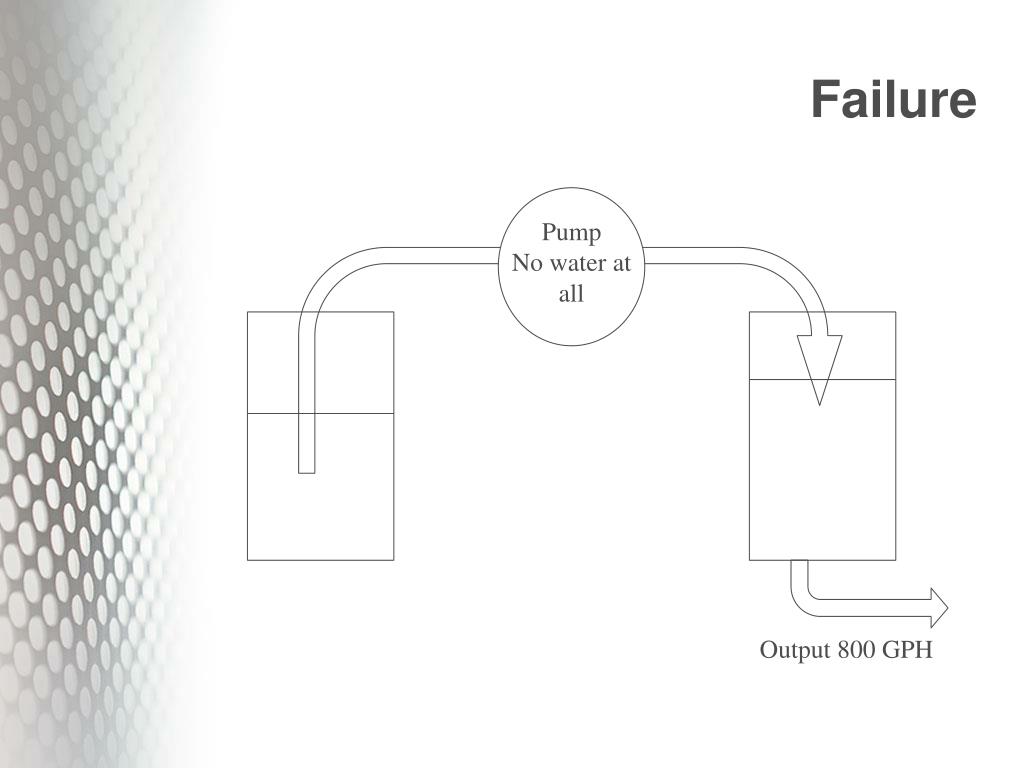

Failure

Pump

No water at all

Output 800 GPH

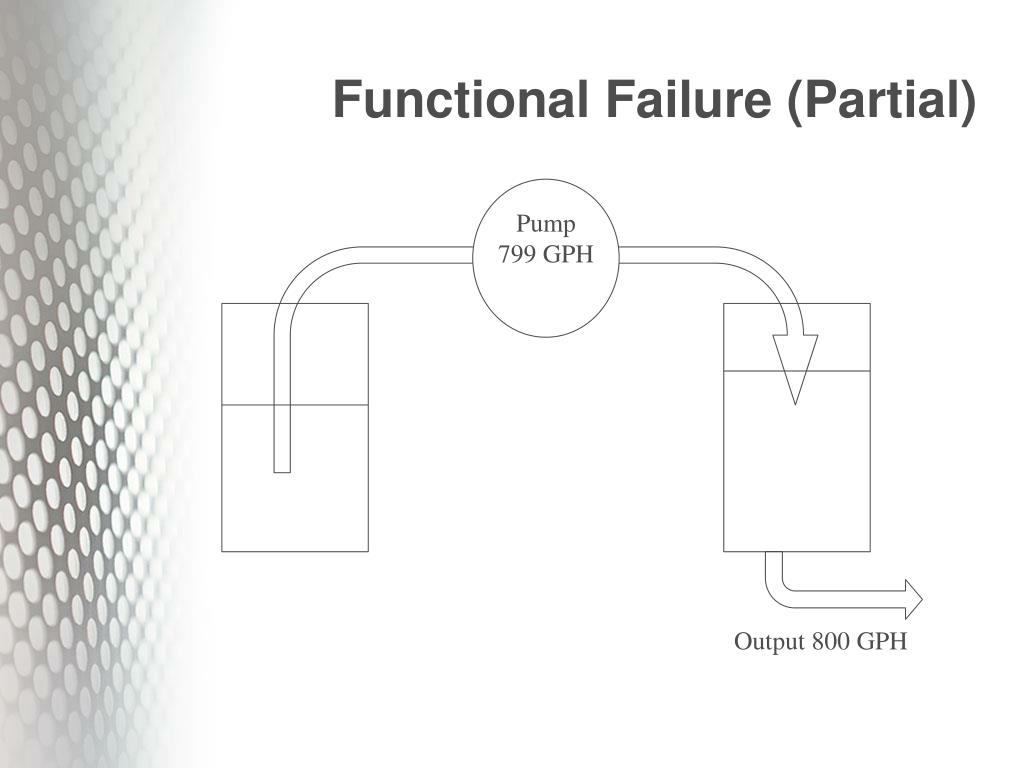

functional failure partial
Functional Failure (Partial)

Pump

799 GPH

Output 800 GPH

3 failure modes fmea
3. Failure Modes (FMEA)
  • What causes each functional failure?
  • Failure mode statements should contain a noun and a verb
    • “Bearing seized” or “impeller worn”
    • Not “broken,” fails,” or “malfunctions”
  • Ineffective Failure Mode statements lead to unproductive failure management techniques
    • P: Number 3 engine missing.S: Engine found on right wing after brief search.
    • P: Aircraft handles funny.S: Aircraft warned to straighten up, fly right, and be serious.
    • P: Something loose in cockpit.S: Something tightened in cockpit.
3 failure modes fmea1

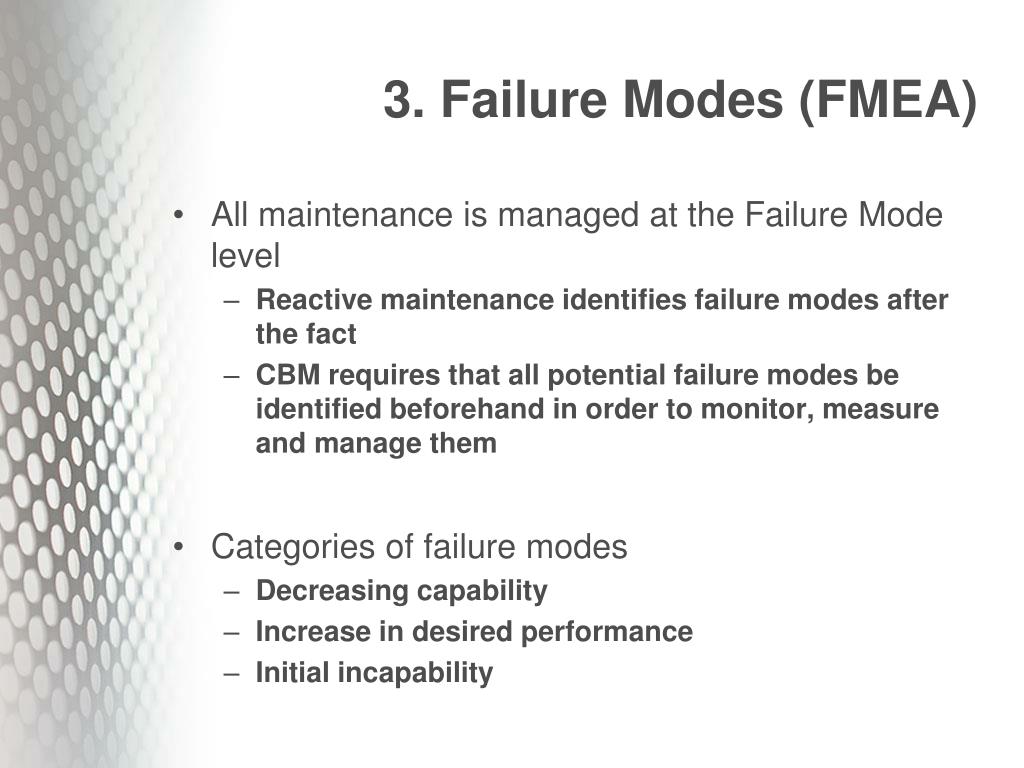

3. Failure Modes (FMEA)
  • All maintenance is managed at the Failure Mode level
    • Reactive maintenance identifies failure modes after the fact
    • CBM requires that all potential failure modes be identified beforehand in order to monitor, measure and manage them
  • Categories of failure modes
    • Decreasing capability
    • Increase in desired performance
    • Initial incapability
different failures different failure modes

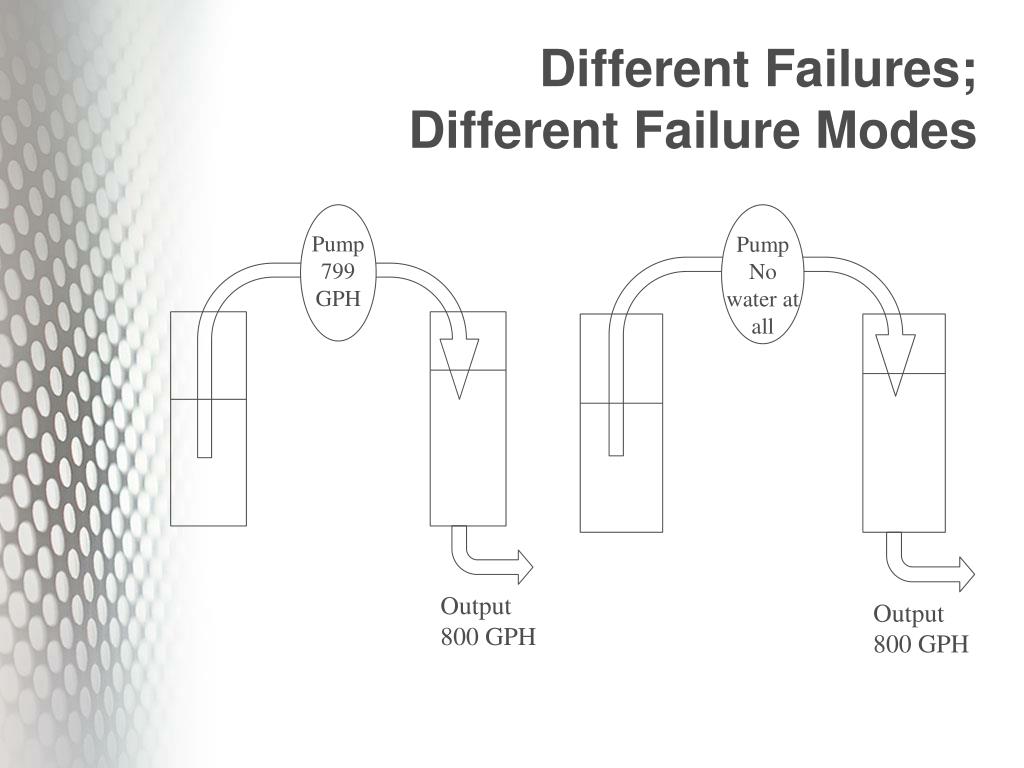

Different Failures;Different Failure Modes

Pump

No water at all

Pump

799 GPH

Output 800 GPH

Output 800 GPH

4 failure effects fmea

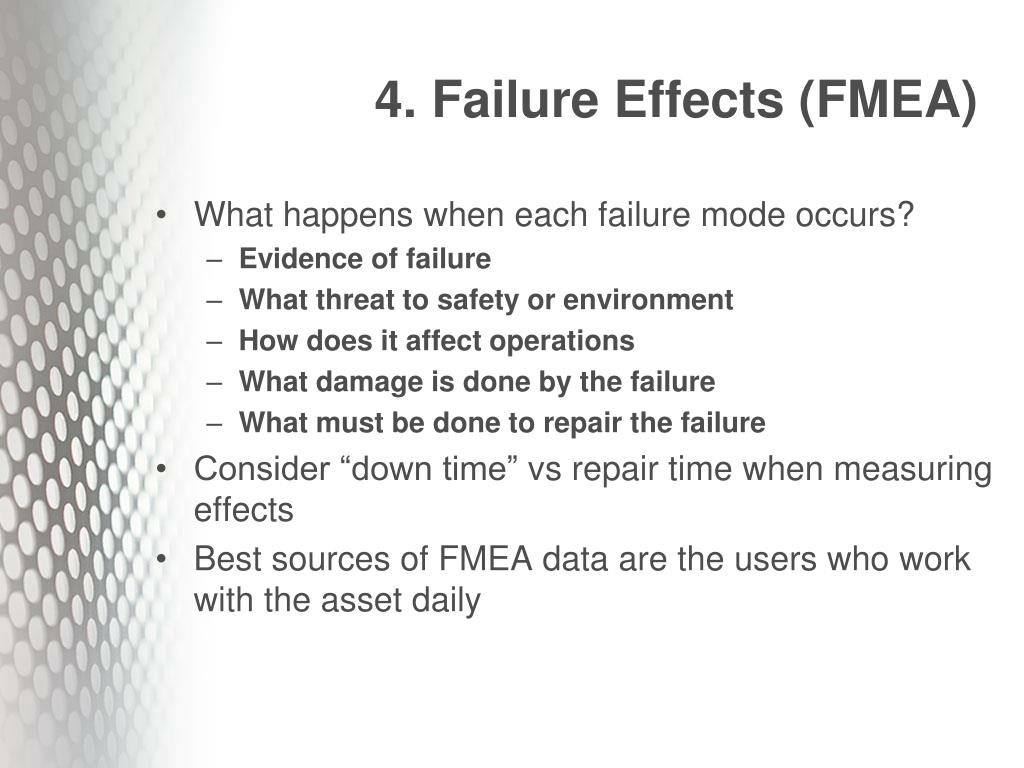

4. Failure Effects (FMEA)
  • What happens when each failure mode occurs?
    • Evidence of failure
    • What threat to safety or environment
    • How does it affect operations
    • What damage is done by the failure
    • What must be done to repair the failure
  • Consider “down time” vs repair time when measuring effects
  • Best sources of FMEA data are the users who work with the asset daily

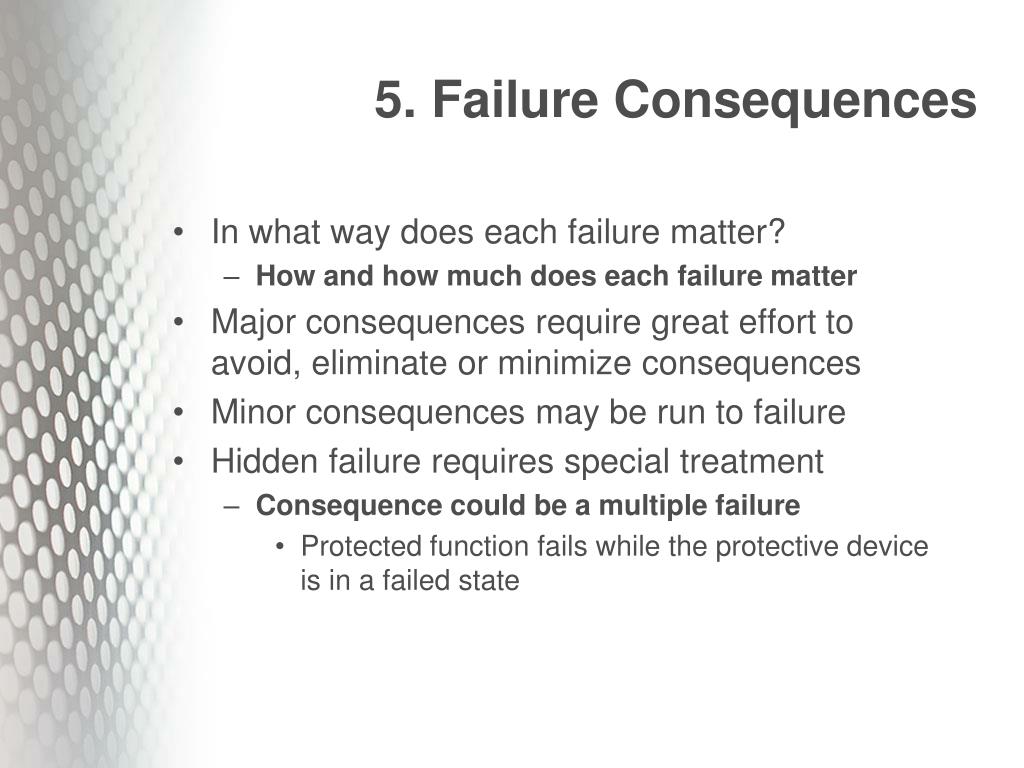

5 failure consequences
5. Failure Consequences
  • In what way does each failure matter?
    • How and how much does each failure matter
  • Major consequences require great effort to avoid, eliminate or minimize consequences
  • Minor consequences may be run to failure
  • Hidden failure requires special treatment
    • Consequence could be a multiple failure
      • Protected function fails while the protective device is in a failed state

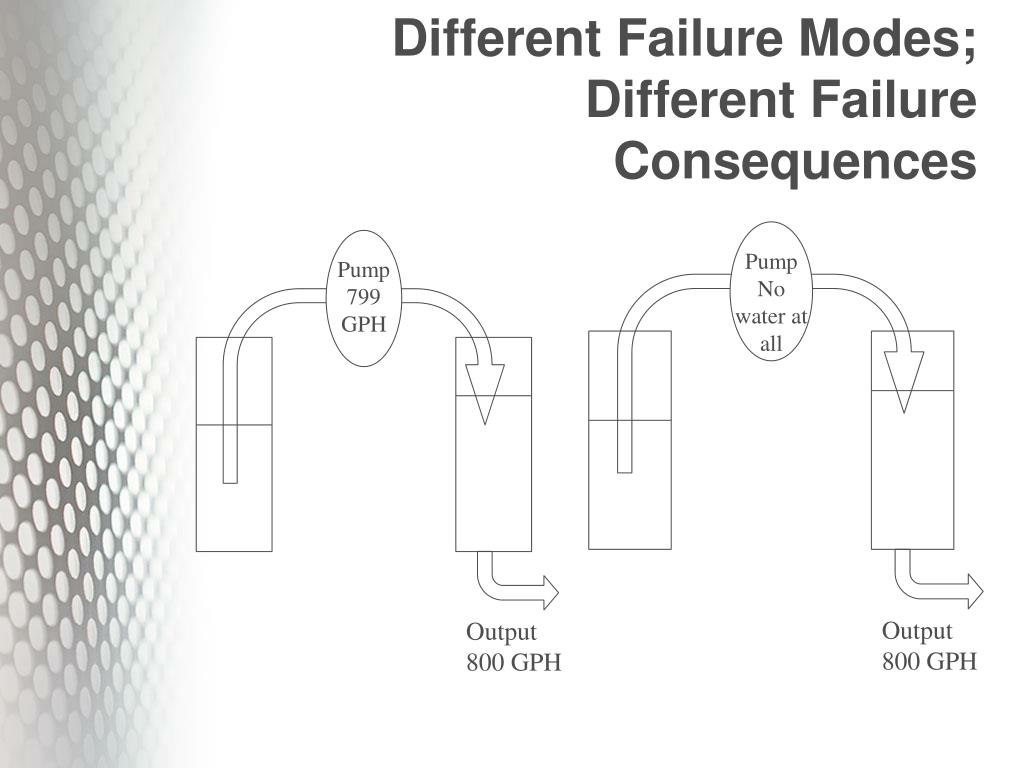

different failure modes different failure consequences
Different Failure Modes;Different Failure Consequences

Pump

No water at all

Pump

799 GPH

Output 800 GPH

Output 800 GPH

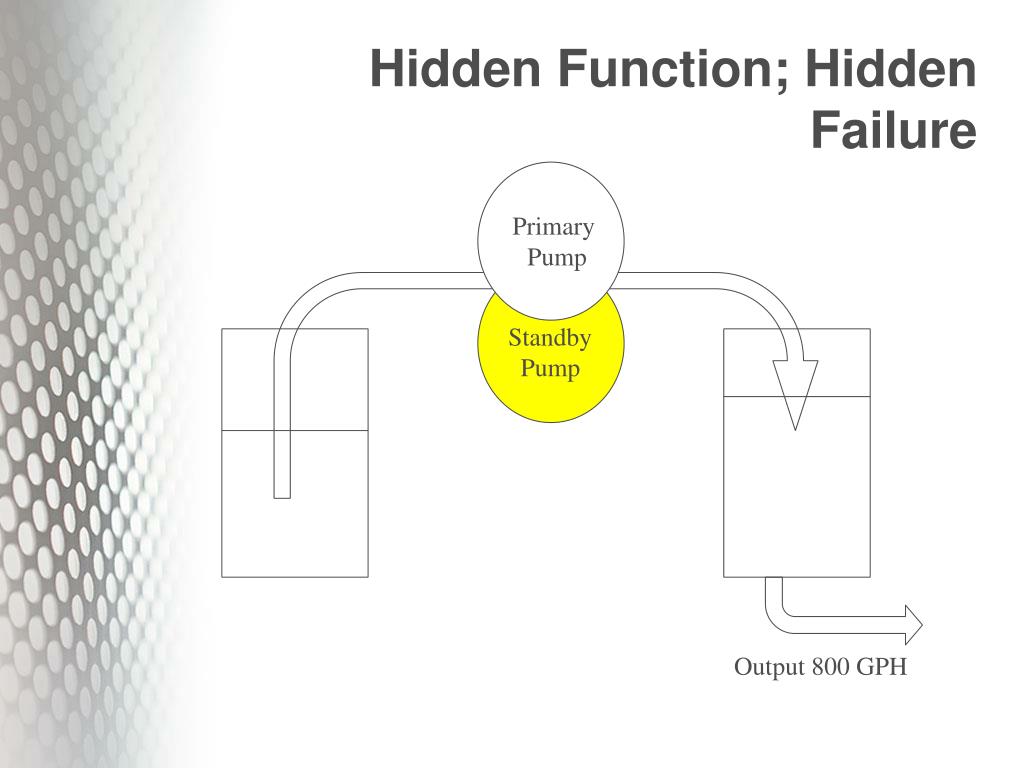

hidden function hidden failure

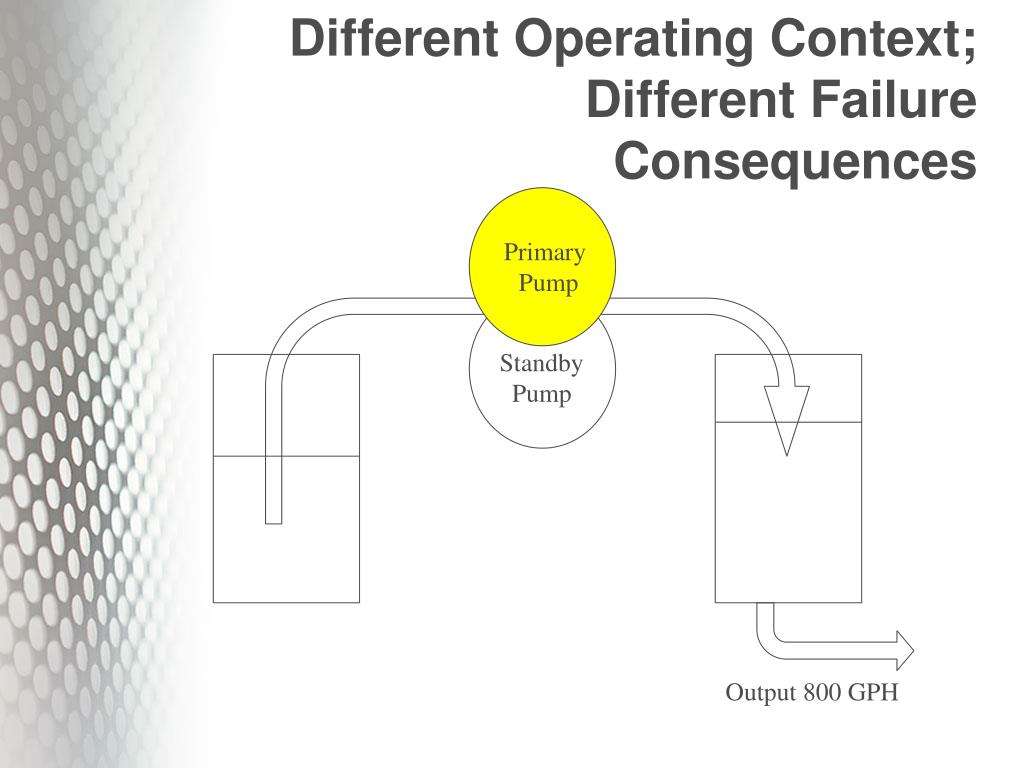

Hidden Function; Hidden Failure

Primary

Pump

Standby

Pump

Output 800 GPH

6 failure management techniques

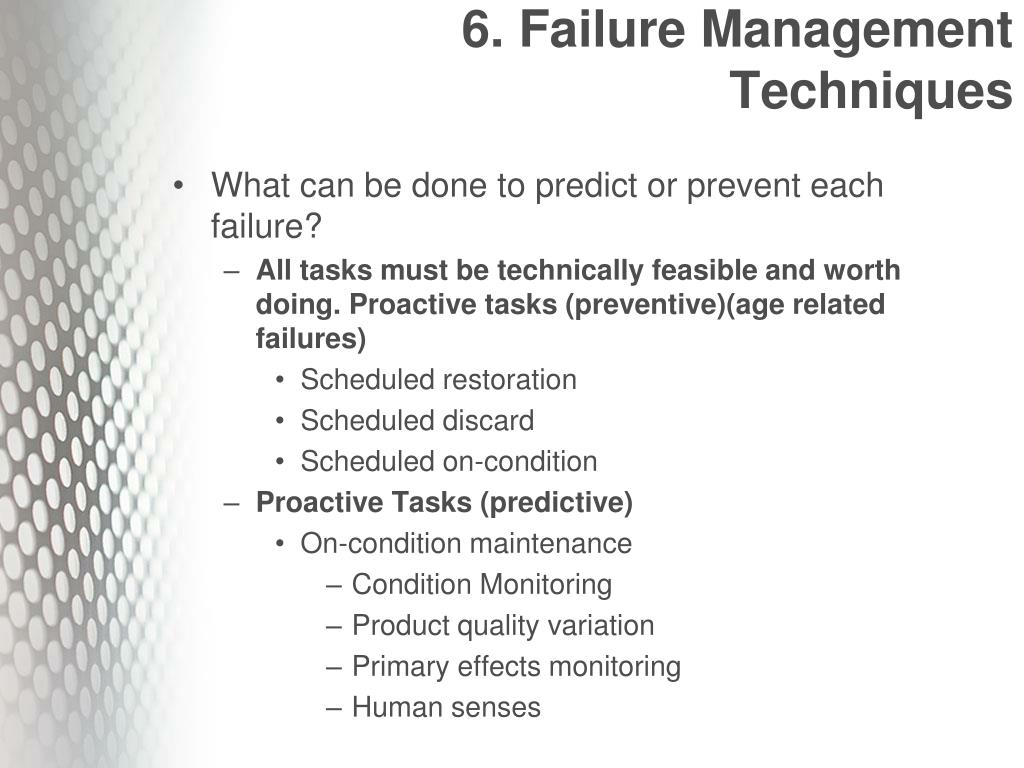

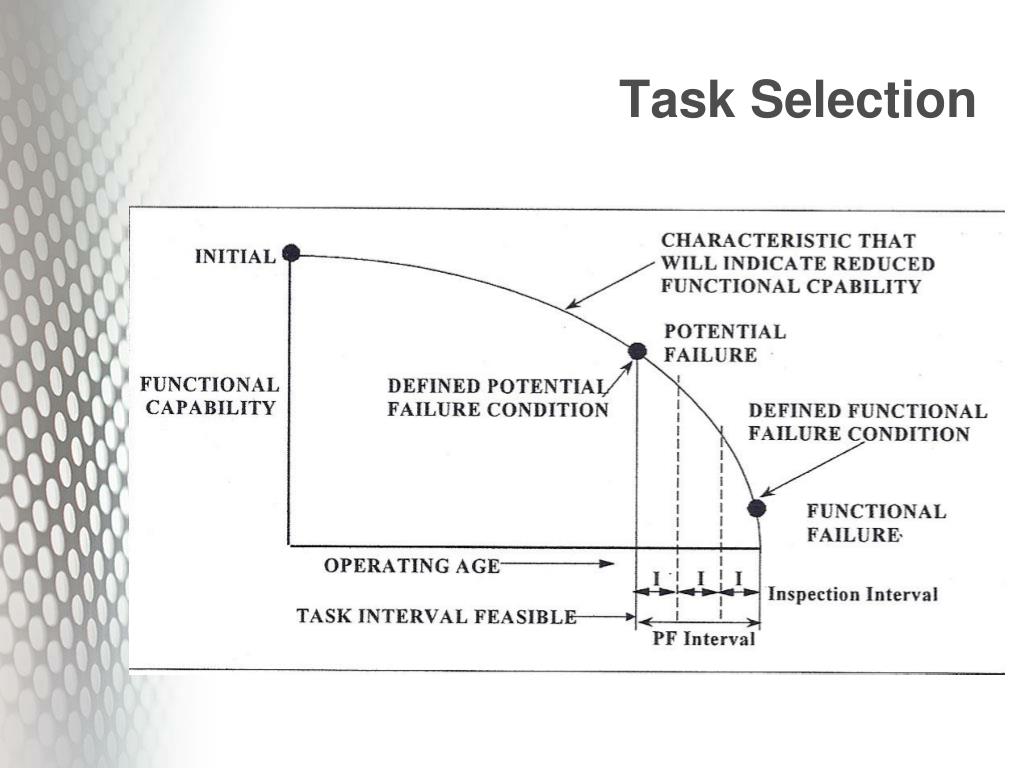

6. Failure Management Techniques
  • What can be done to predict or prevent each failure?
    • All tasks must be technically feasible and worth doing. Proactive tasks (preventive)(age related failures)
      • Scheduled restoration
      • Scheduled discard
      • Scheduled on-condition
    • Proactive Tasks (predictive)
      • On-condition maintenance
        • Condition Monitoring
        • Product quality variation
        • Primary effects monitoring
        • Human senses

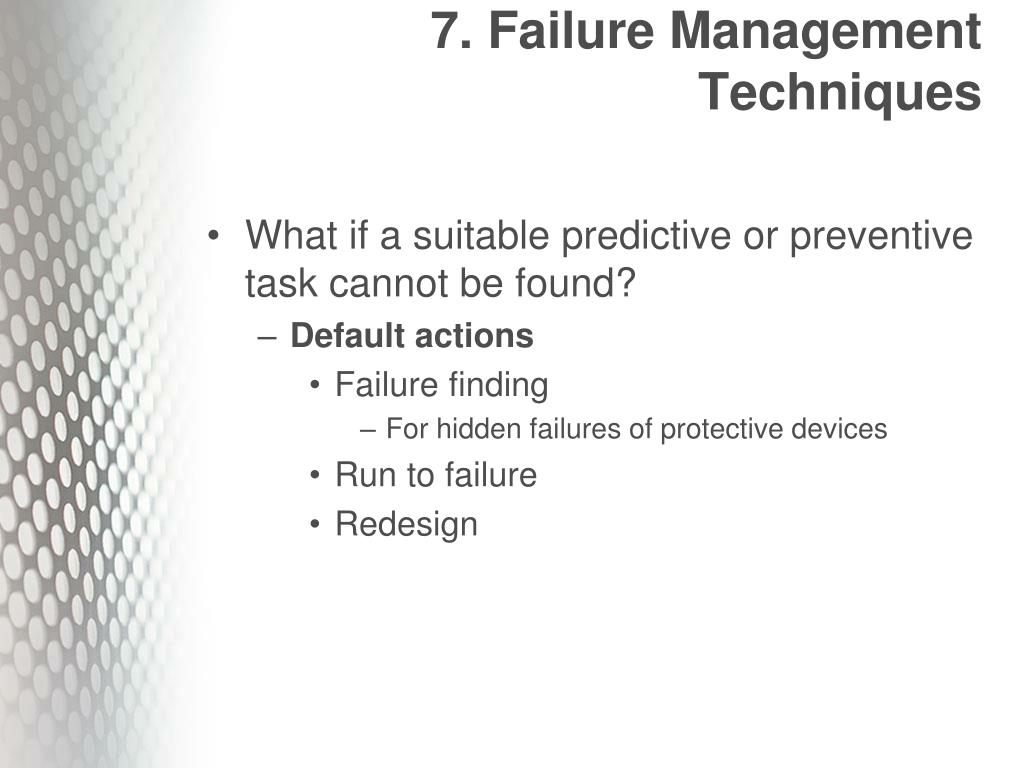

7 failure management techniques
7. Failure Management Techniques
  • What if a suitable predictive or preventive task cannot be found?
    • Default actions
      • Failure finding
        • For hidden failures of protective devices
      • Run to failure
      • Redesign
outcomes of rcm analysis

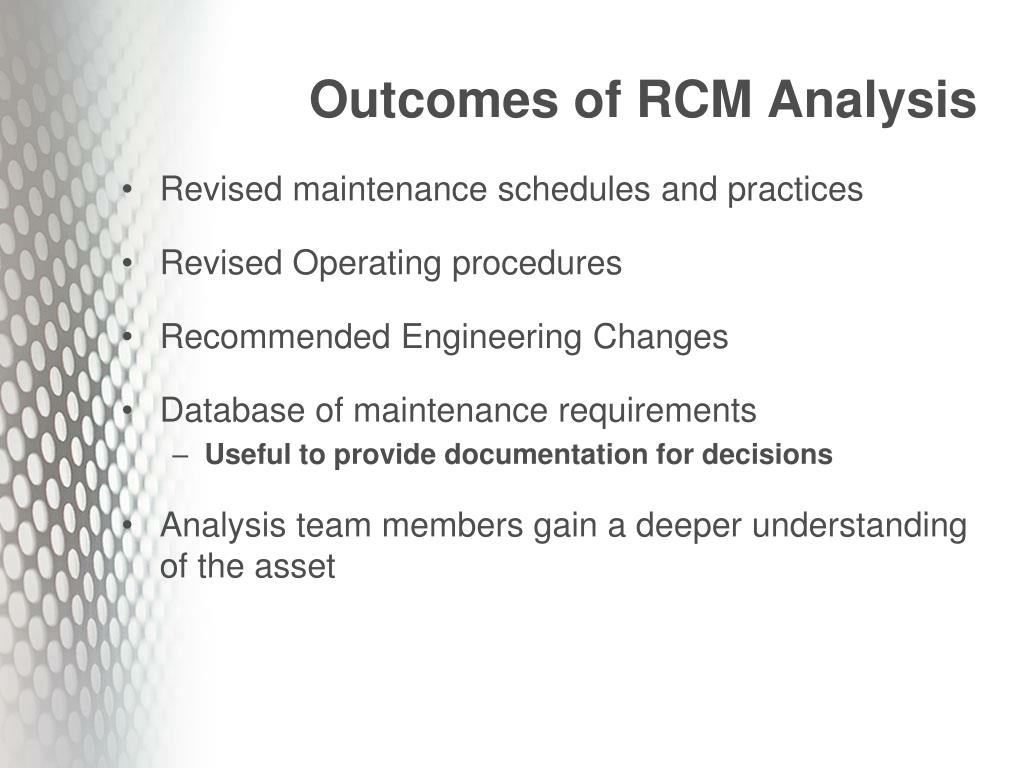

Outcomes of RCM Analysis
  • Revised maintenance schedules and practices
  • Revised Operating procedures
  • Recommended Engineering Changes
  • Database of maintenance requirements
    • Useful to provide documentation for decisions
  • Analysis team members gain a deeper understanding of the asset
