operating system issues in multi processor systems

Operating System Issues in Multi-Processor Systems

John Sung

Hardware Engineer

Compaq Computer Corporation

outline

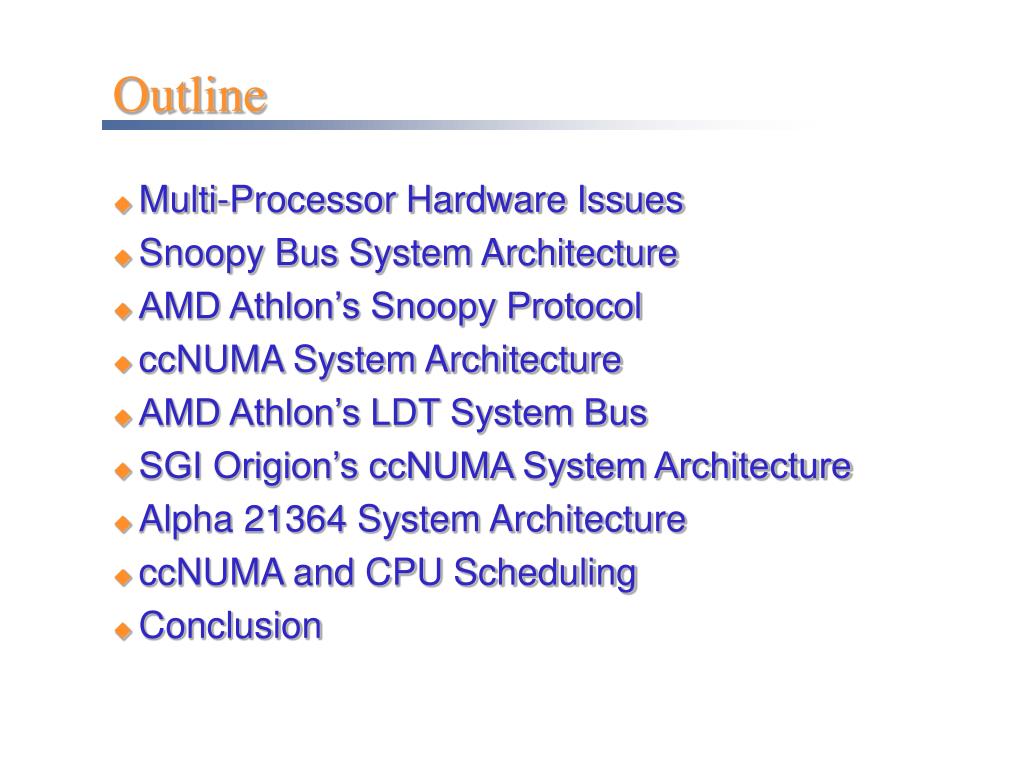

Outline
  • Multi-Processor Hardware Issues
  • Snoopy Bus System Architecture
  • AMD Athlon’s Snoopy Protocol
  • ccNUMA System Architecture
  • AMD Athlon’s LDT System Bus
  • SGI Origion’s ccNUMA System Architecture
  • Alpha 21364 System Architecture
  • ccNUMA and CPU Scheduling
  • Conclusion
multi processor hardware issues

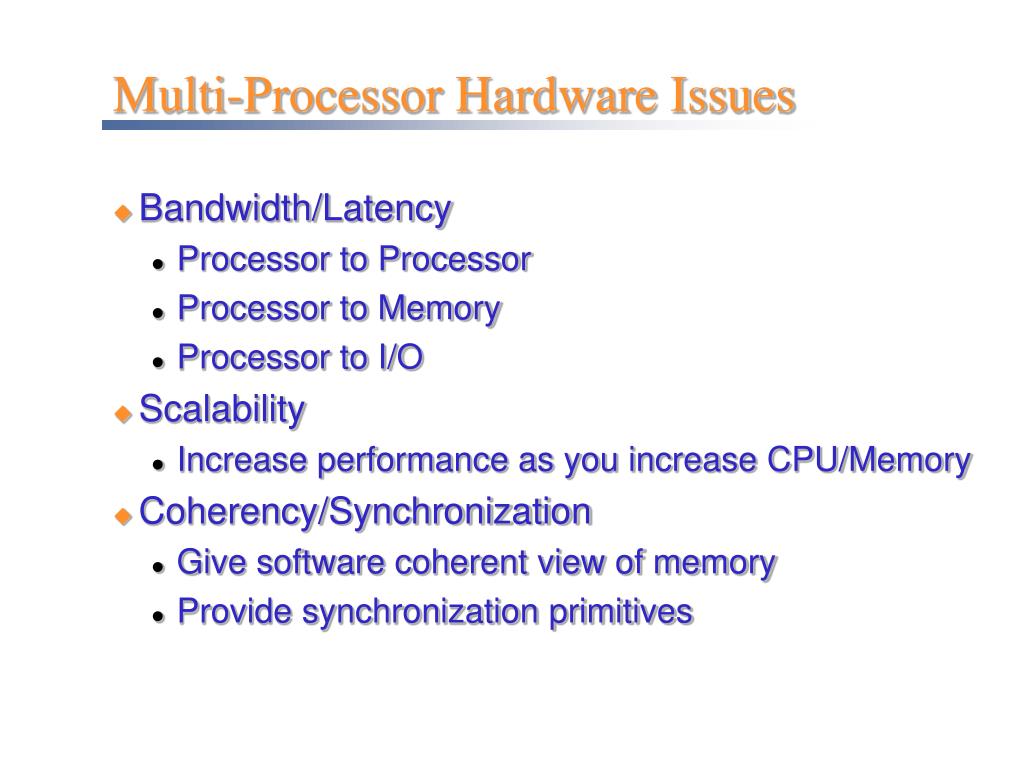

Multi-Processor Hardware Issues
  • Bandwidth/Latency
    • Processor to Processor
    • Processor to Memory
    • Processor to I/O
  • Scalability
    • Increase performance as you increase CPU/Memory
  • Coherency/Synchronization
    • Give software coherent view of memory
    • Provide synchronization primitives
snoopy bus system architecture

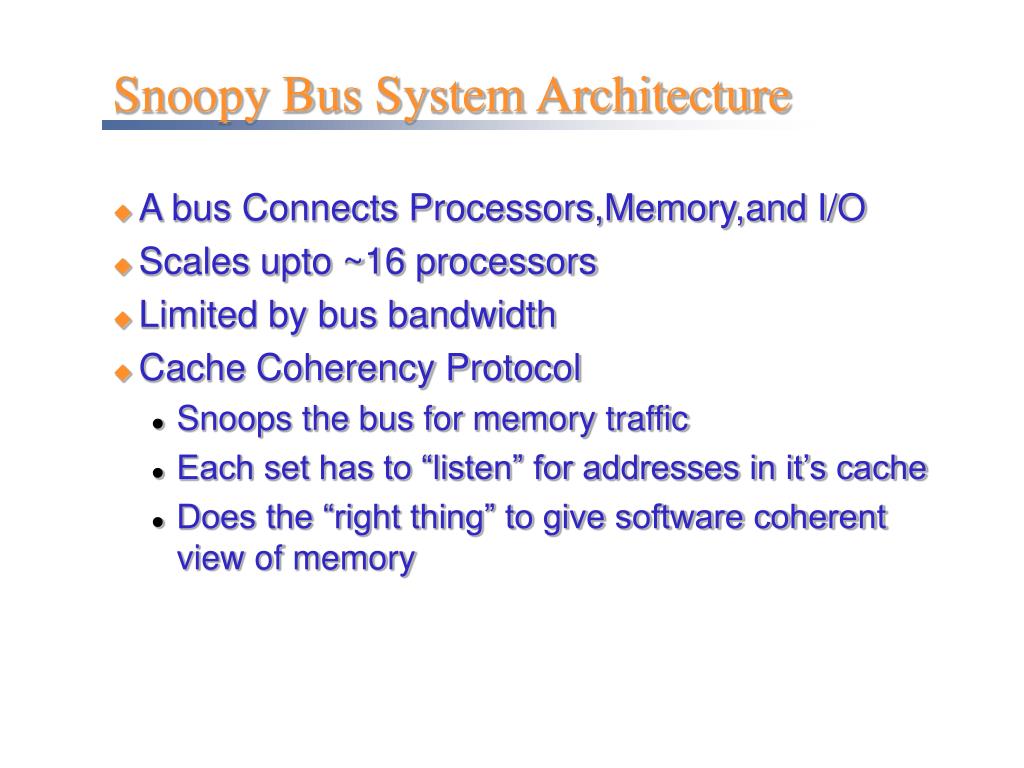

Snoopy Bus System Architecture
  • A bus Connects Processors,Memory,and I/O
  • Scales upto ~16 processors
  • Limited by bus bandwidth
  • Cache Coherency Protocol
    • Snoops the bus for memory traffic
    • Each set has to “listen” for addresses in it’s cache
    • Does the “right thing” to give software coherent view of memory

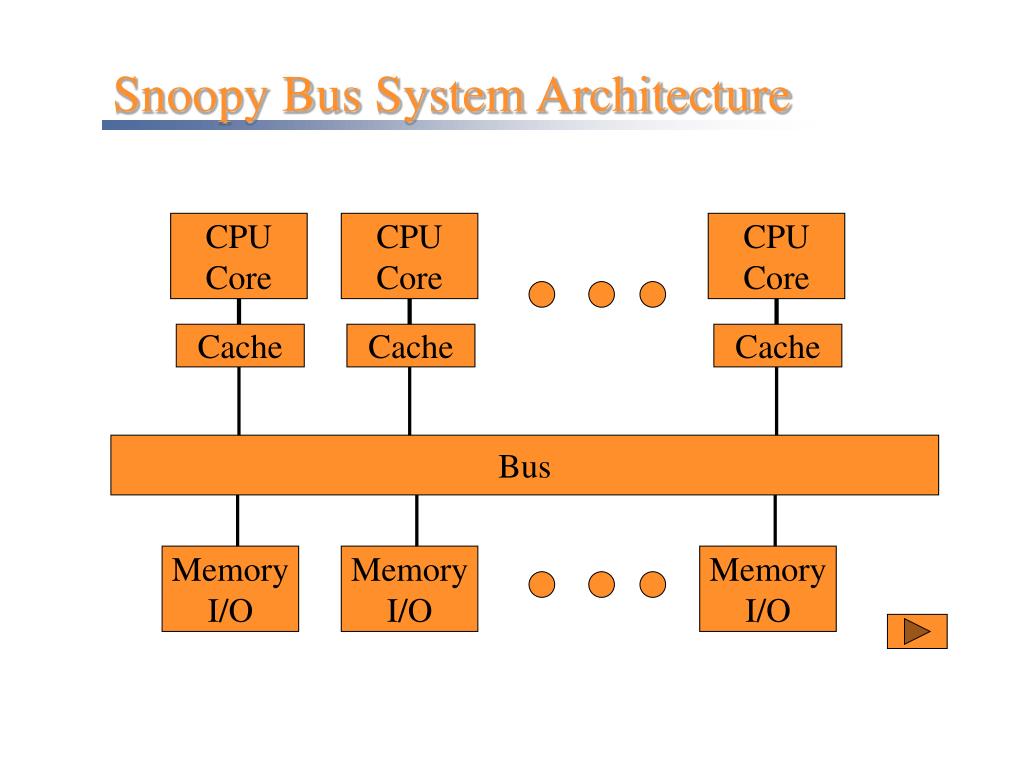

snoopy bus system architecture1
Snoopy Bus System Architecture

CPU

Core

CPU

Core

CPU

Core

Cache

Cache

Cache

Bus

Memory

I/O

Memory

I/O

Memory

I/O

ccnuma system architecture

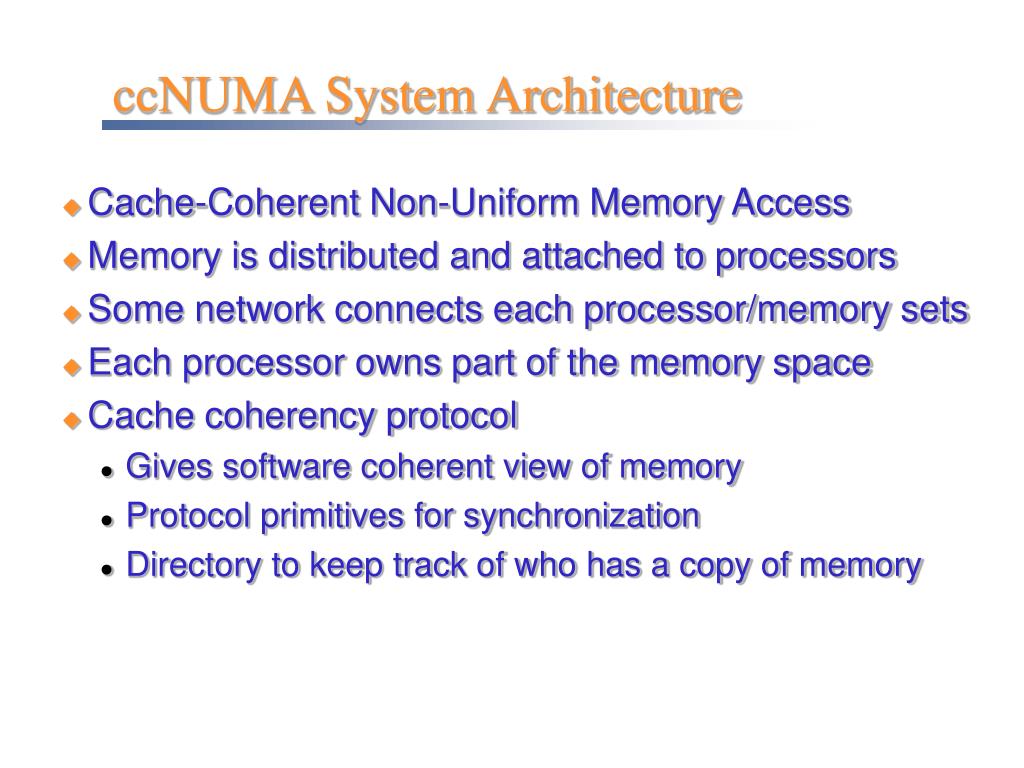

ccNUMA System Architecture
  • Cache-Coherent Non-Uniform Memory Access
  • Memory is distributed and attached to processors
  • Some network connects each processor/memory sets
  • Each processor owns part of the memory space
  • Cache coherency protocol
    • Gives software coherent view of memory
    • Protocol primitives for synchronization
    • Directory to keep track of who has a copy of memory
ccnuma system architecture1

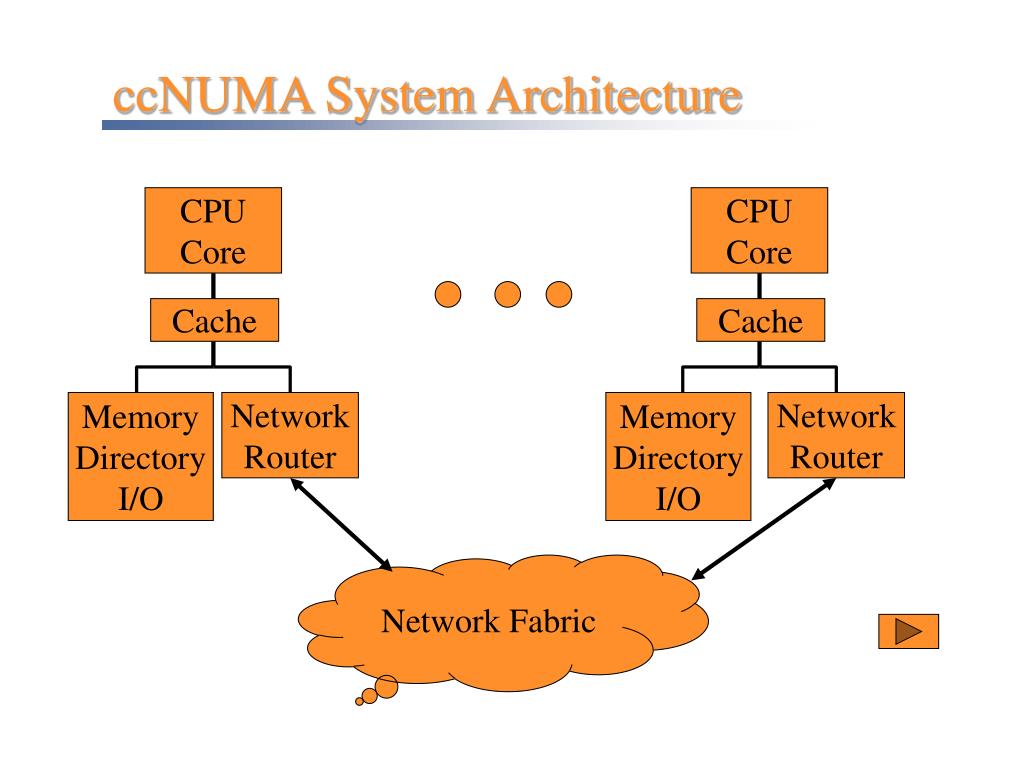

ccNUMA System Architecture

CPU

Core

CPU

Core

Cache

Cache

Memory

Directory

I/O

Network

Router

Memory

Directory

I/O

Network

Router

Network Fabric

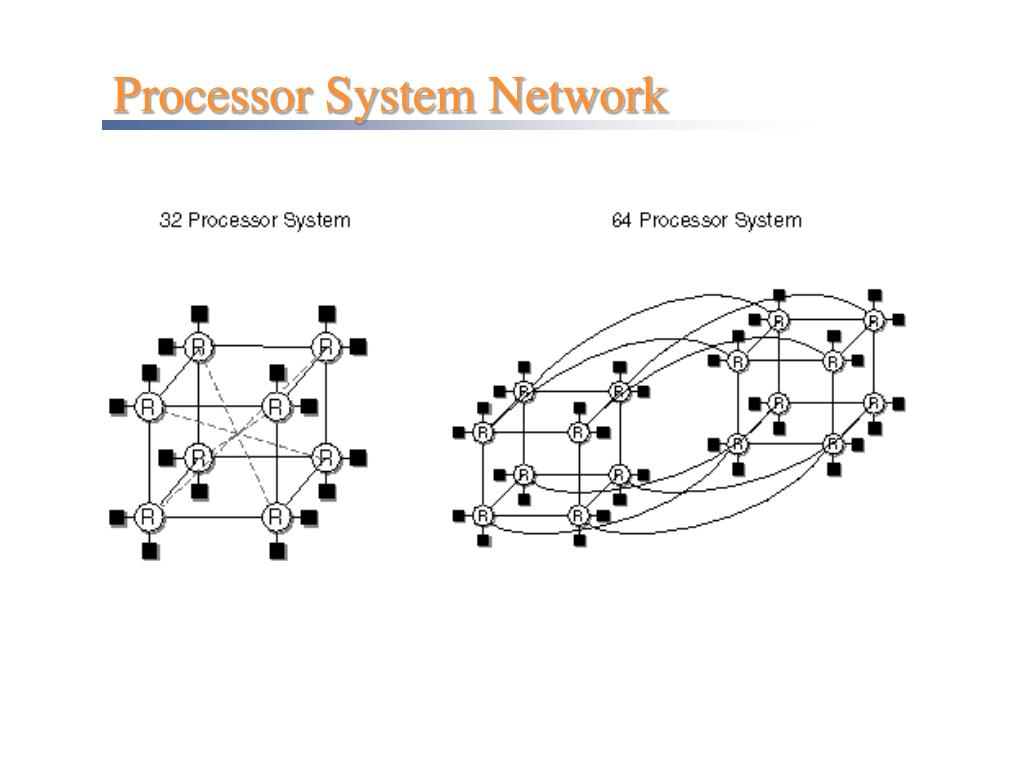

sgi craylink tm

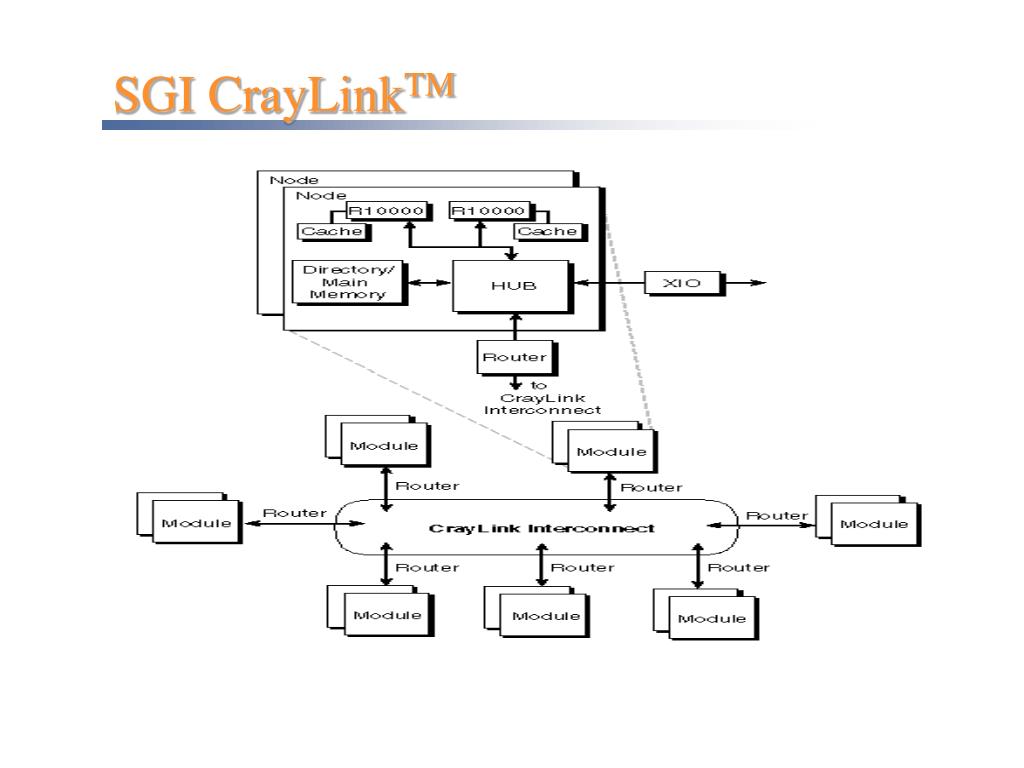

SGI CrayLinkTM
  • Node = 2 CPU and their cache
  • Module = Memory + Directory + HUB
  • 2 Modules per Router
  • System = Modules + Routers + CrayLinkTM Network

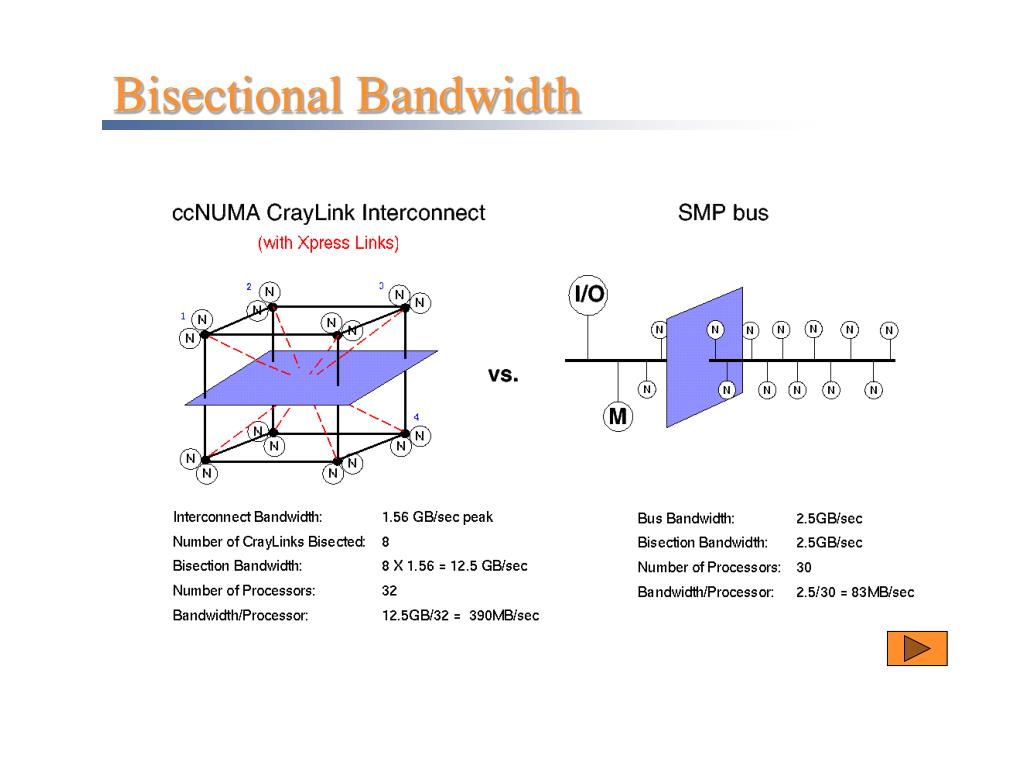

os s questions

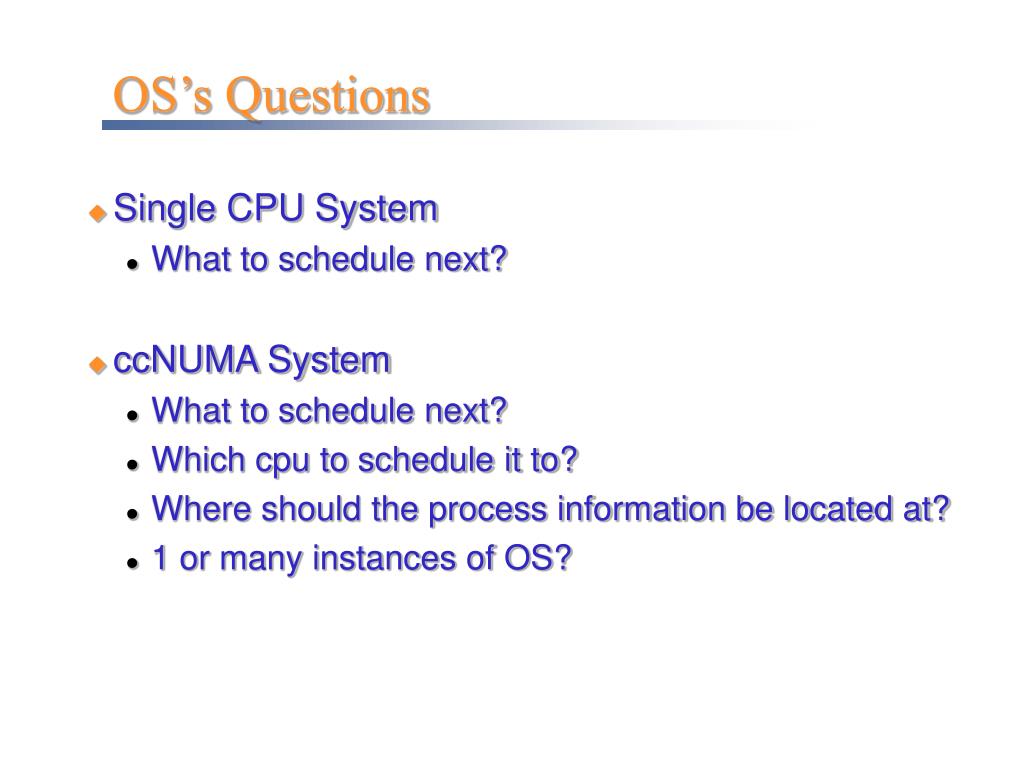

OS’s Questions
  • Single CPU System
    • What to schedule next?
  • ccNUMA System
    • What to schedule next?
    • Which cpu to schedule it to?
    • Where should the process information be located at?
    • 1 or many instances of OS?
os s choices for a process
OS’s Choices for a Process
  • Single CPU System
    • Process has1 choice
    • Process information has 1 choice
  • ccNUMA System with N CPU’s and M Memory
    • Process has N choices
    • Process information M choices per virtual page
    • “Distance” between process and it’s information
context switch penalty

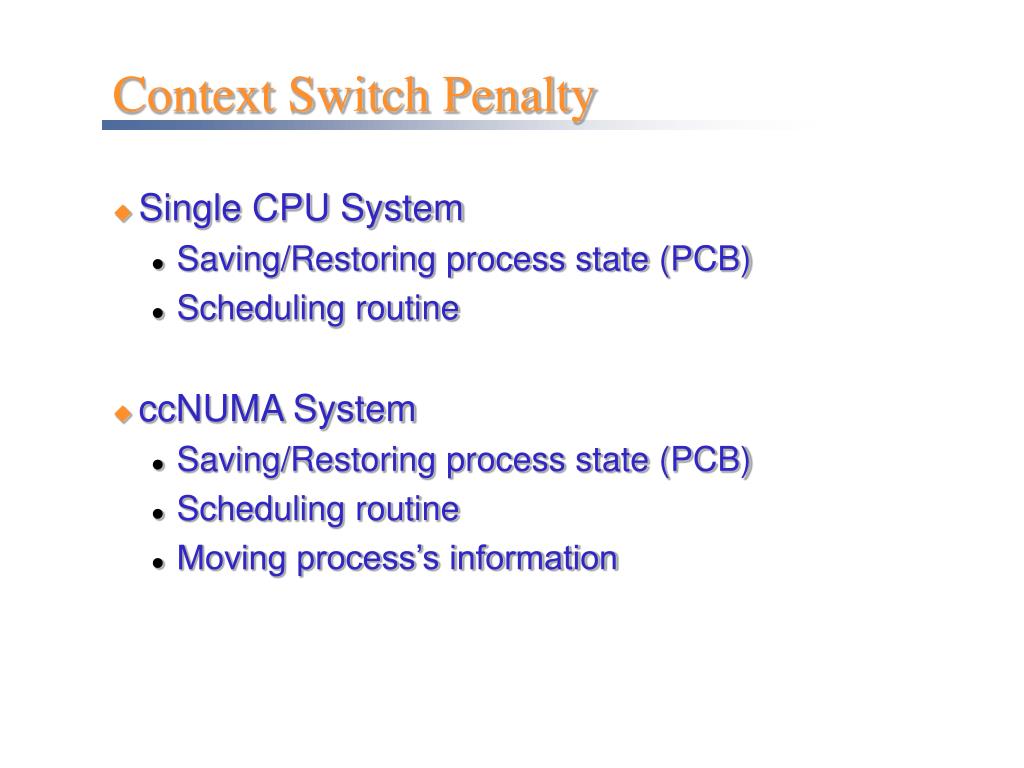

Context Switch Penalty
  • Single CPU System
    • Saving/Restoring process state (PCB)
    • Scheduling routine
  • ccNUMA System
    • Saving/Restoring process state (PCB)
    • Scheduling routine
    • Moving process’s information
some common sense

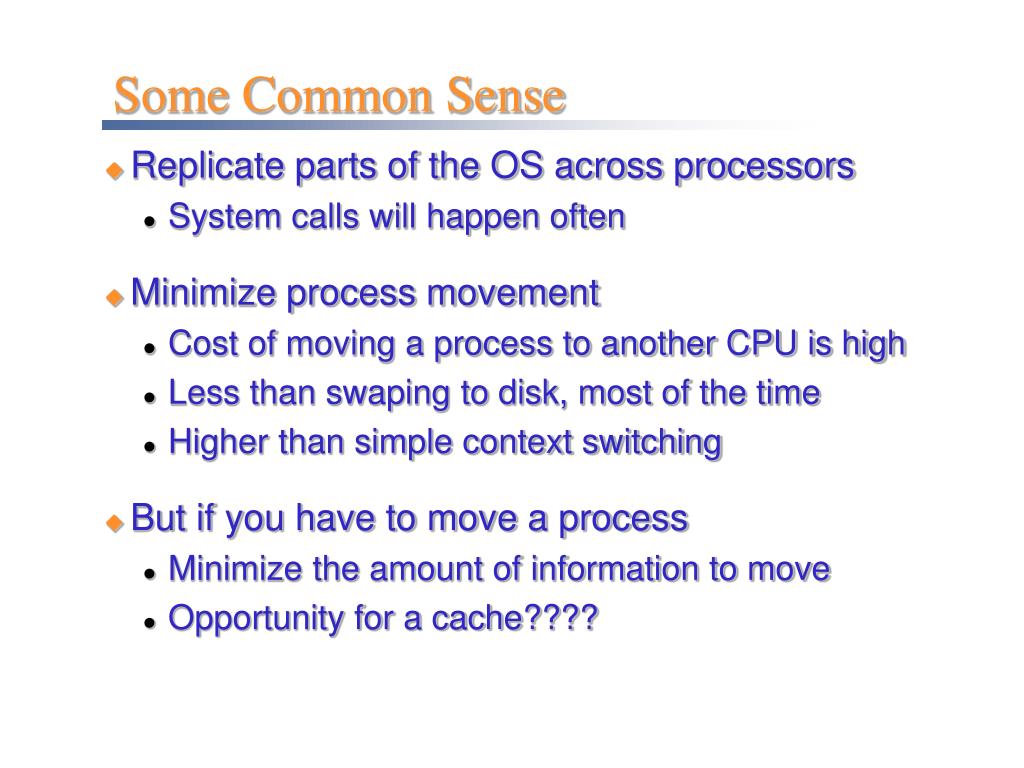

Some Common Sense
  • Replicate parts of the OS across processors
    • System calls will happen often
  • Minimize process movement
    • Cost of moving a process to another CPU is high
    • Less than swaping to disk, most of the time
    • Higher than simple context switching
  • But if you have to move a process
    • Minimize the amount of information to move
    • Opportunity for a cache????
conclusion
Conclusion
  • Hardware
    • Bandwidth and Latency for performance
    • Cache Coherency for correctness
  • Operating System
    • ccNUMA adds complexity in CPU scheduling
    • HW performance = Lower Context Switch Penalty => flexibility in scheduling choices for a process
references
References
  • Alpha
    • http://www.digital.com/alphaoem/present/ev7forum98.ppt
    • http://www.compaq.com/InnovateForum99/presentation/session31/
    • http://www.digital.com/alphaoem/
  • AMD
    • http://www.amd.com/products/cpg/mpf/speech/slides99.ppt
  • SGI
    • http://www-europe.sgi.com/origin/numa_tech.html
  • BenchMarks
    • http://www.spec.org/
    • http://www.tpc.org/
abbreviation index

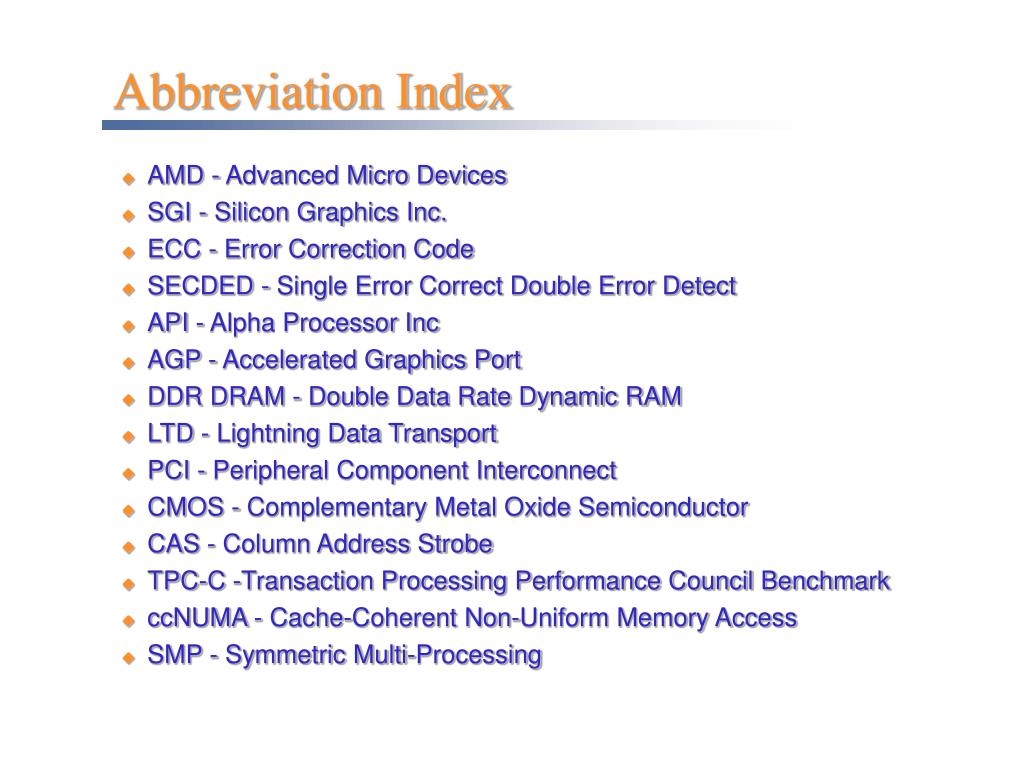

Abbreviation Index
  • AMD - Advanced Micro Devices
  • SGI - Silicon Graphics Inc.
  • ECC - Error Correction Code
  • SECDED - Single Error Correct Double Error Detect
  • API - Alpha Processor Inc
  • AGP - Accelerated Graphics Port
  • DDR DRAM - Double Data Rate Dynamic RAM
  • LTD - Lightning Data Transport
  • PCI - Peripheral Component Interconnect
  • CMOS - Complementary Metal Oxide Semiconductor
  • CAS - Column Address Strobe
  • TPC-C -Transaction Processing Performance Council Benchmark
  • ccNUMA - Cache-Coherent Non-Uniform Memory Access
  • SMP - Symmetric Multi-Processing
