    1. Topic 7 Solutions

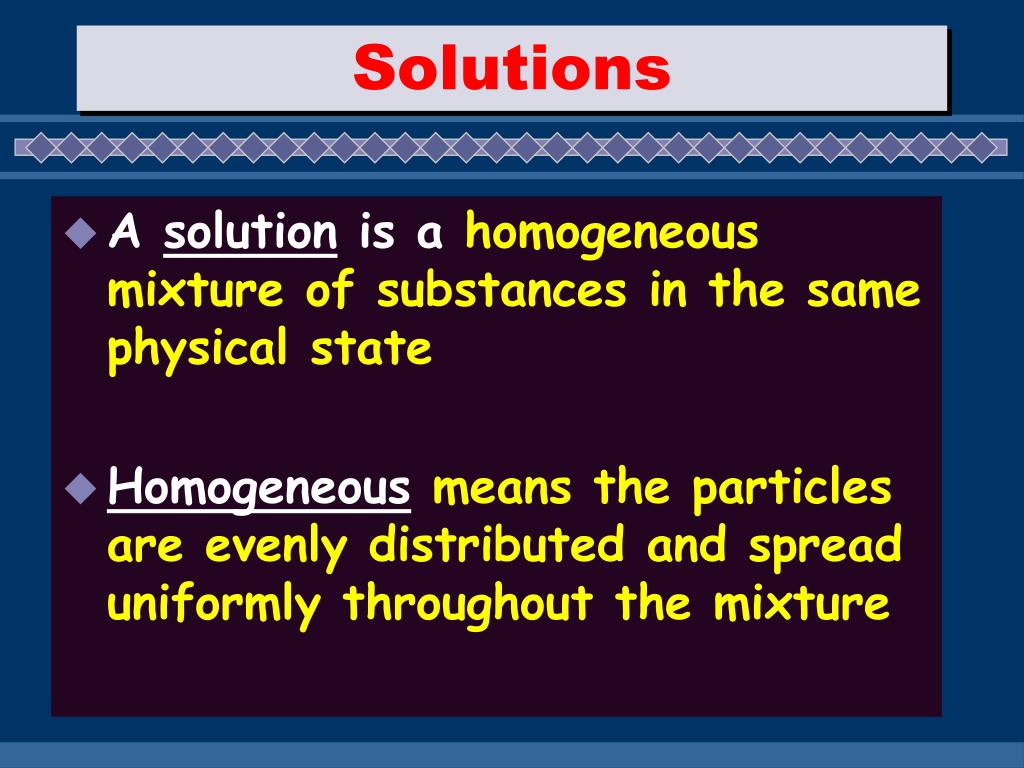

    2. Solutions • A solution is a homogeneous mixture of substances in the same physical state • Homogeneousmeans the particles are evenly distributed and spread uniformly throughout the mixture

    3. Types of Solutions Solutions can exist in all three states (s, l, g) • gas - both solvent/solute are gases ex. Air • liquid - gas, liquid, or solid dissolved in a liquid ex. salt water, antifreeze • Miscible – ex. Sugar and water • Immiscible – ex. Oil and water • Solids - 2 or more solids are uniformly spread out • alloy- ex. brass = Cu/Zn; steel = iron + carbon • aqueous –water is the solvent, (aq) ex. NaCl(aq)

    4. SOLUTIONS 1. Solute - substance being dissolved • Are homogeneous mixtures are made up of two parts: Saltin salt water Carbon dioxide or sugar in soda drinks 2. Solvent - present in greater amount Waterin salt water Water is a common solvent Solutions made with water are called aqueous solutions (aq) Waterin soda

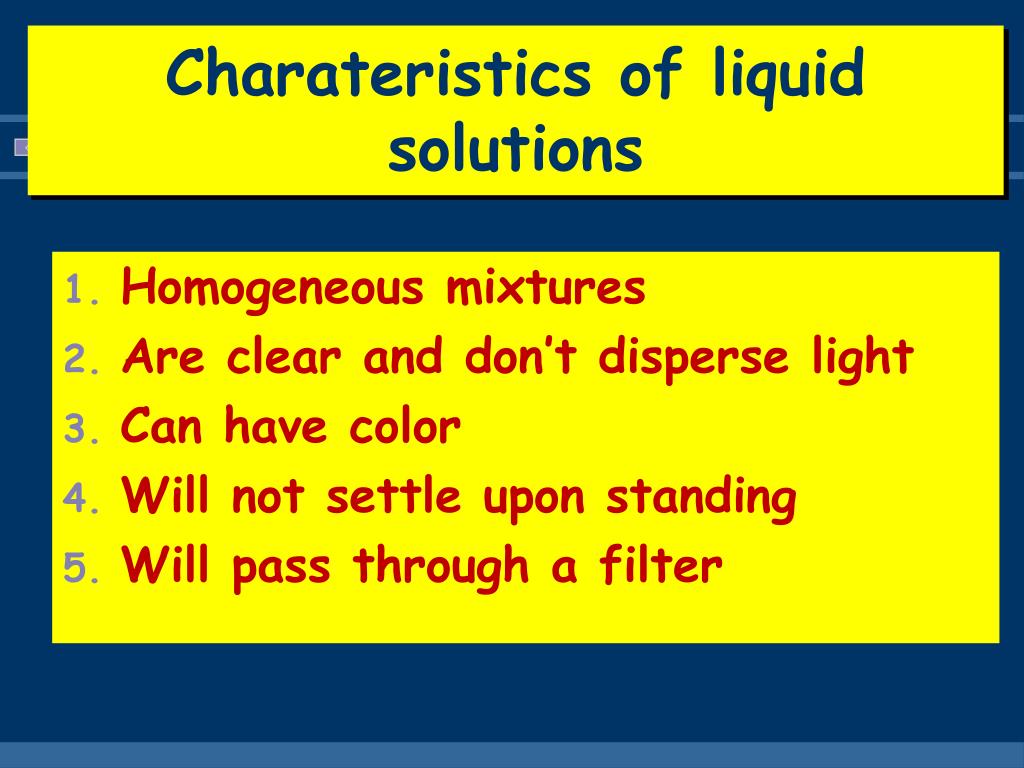

    5. Charateristics of liquid solutions • Homogeneous mixtures • Are clear and don’t disperse light • Can have color • Will not settle upon standing • Will pass through a filter

    6. Hydration • the process of dissolving a solid in water solute particles are surrounded by solvent particles First... solute particles are separated and pulled into solution Then...

    7. Dissolution of sodium Chloride Hydration

    8. Hydration process Dissociation: separation of an ionic solid into aqueous ions Molecular solvation: molecules stay intact; covalent C6H12O6(s)  C6H12O6(aq) NaCl(s)  Na+(aq) + Cl–(aq) Electrolyte –conducts Why? Ions present Non Electrolyte –doesn’t conduct Why? Ions are NOT present

    9. - + - - + + acetic acid salt sugar Solvation and Conductivity Non- Electrolyte Weak Electrolyte Strong Electrolyte solute exists as ions and molecules solute exists as ions only solute exists as molecules only DISSOCIATION

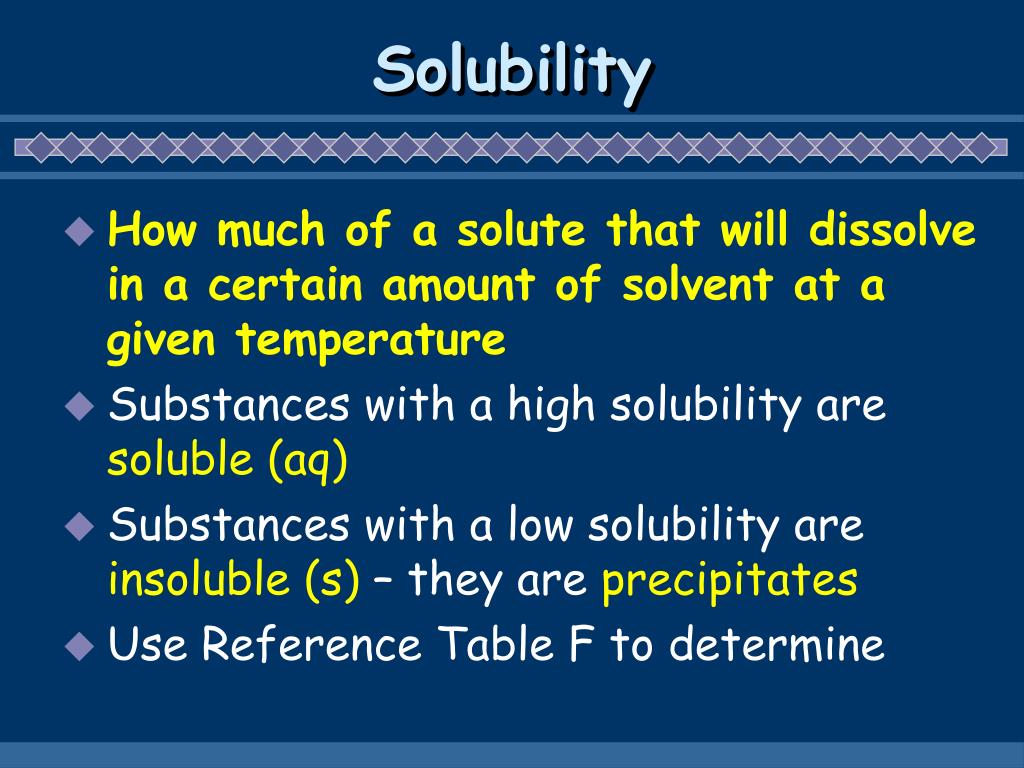

    10. Solubility • How much of a solute that will dissolve in a certain amount of solvent at a given temperature • Substances with a high solubility are soluble (aq) • Substances with a low solubility are insoluble (s) – they are precipitates • Use Reference Table F to determine

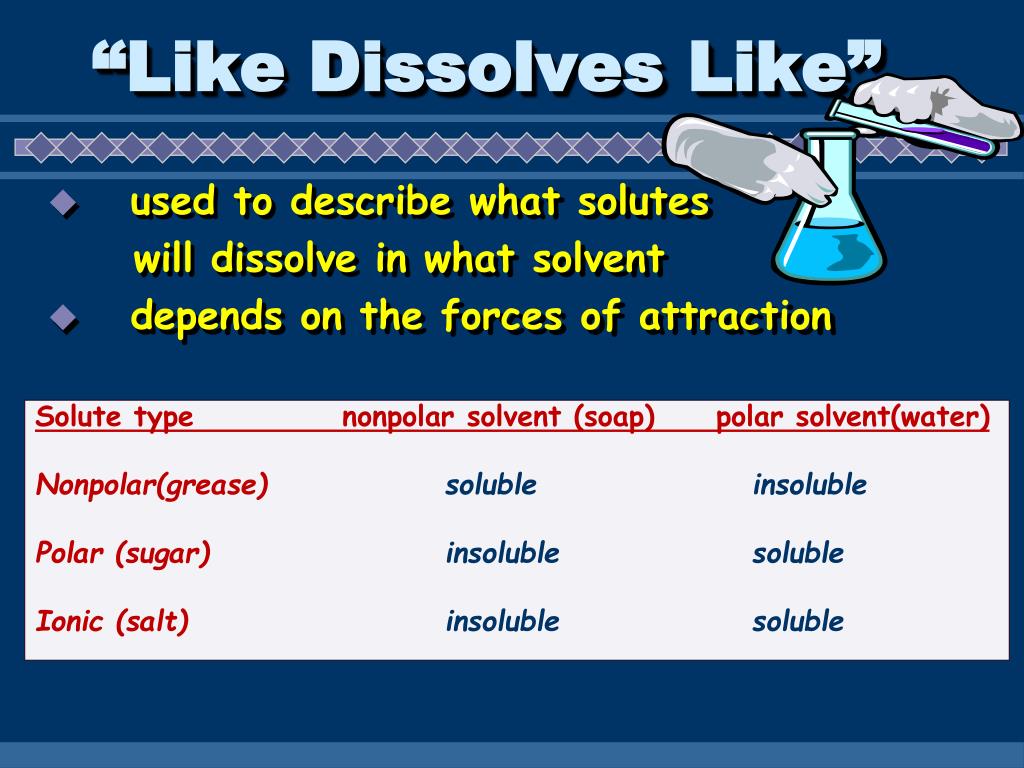

    11. “Like Dissolves Like” • used to describe what solutes • will dissolve in what solvent • depends on the forces of attraction Solute type nonpolar solvent (soap) polar solvent(water) Nonpolar(grease) soluble insoluble Polar (sugar) insoluble soluble Ionic (salt) insoluble soluble

    12. Solubility: Temperature • As temp increases, most solids become more soluble in water • As temp increases, most gases become less soluble in water Sol (s & l) temp Sol (g) temp

    13. Solubility: Pressure • Pressure has little or no effect on the solubility of solid or liquid solutes. Pressure does effect the solubility of gases in liquids • As press increases, the solubility of gases in a liquid increases • See Reference Table G Sol (g) pressure

    14. Factors Affecting Solubility • Temperature affects the solubility of solid, liquid, and gaseous solutes in a solvent; both temperature and pressure affect the solubility of gaseous solutes.

    15. Rate of Solution Formation • The composition of the solvent and the solute determine whether a substance will dissolve. • The factors that determine how fast (rate) a substance dissolves are • temperature • stirring (agitation) • the surface area of the dissolving particles

    16. Rate of Solution Formation • Temperature and Solution Formation • At higher temperatures, the kinetic energy of water molecules is greater than at lower temperatures, so they move faster. As a result, the solvent molecules collide with the surface of the sugar crystals more frequently and with more force.

    17. Temperatureand Solution Formation • Granulated sugar dissolves in cold water more quickly than a sugar cube, especially with stirring. • Granulated sugar dissolves very quickly in hot tea. A cube of sugar in cold tea dissolves slowly. • At higher temperatures, the kinetic energy of water molecules is greater than at lower temperatures, so they move faster. • As a result, the solvent molecules collide with the surface of the sugar crystals more frequently and with more force.

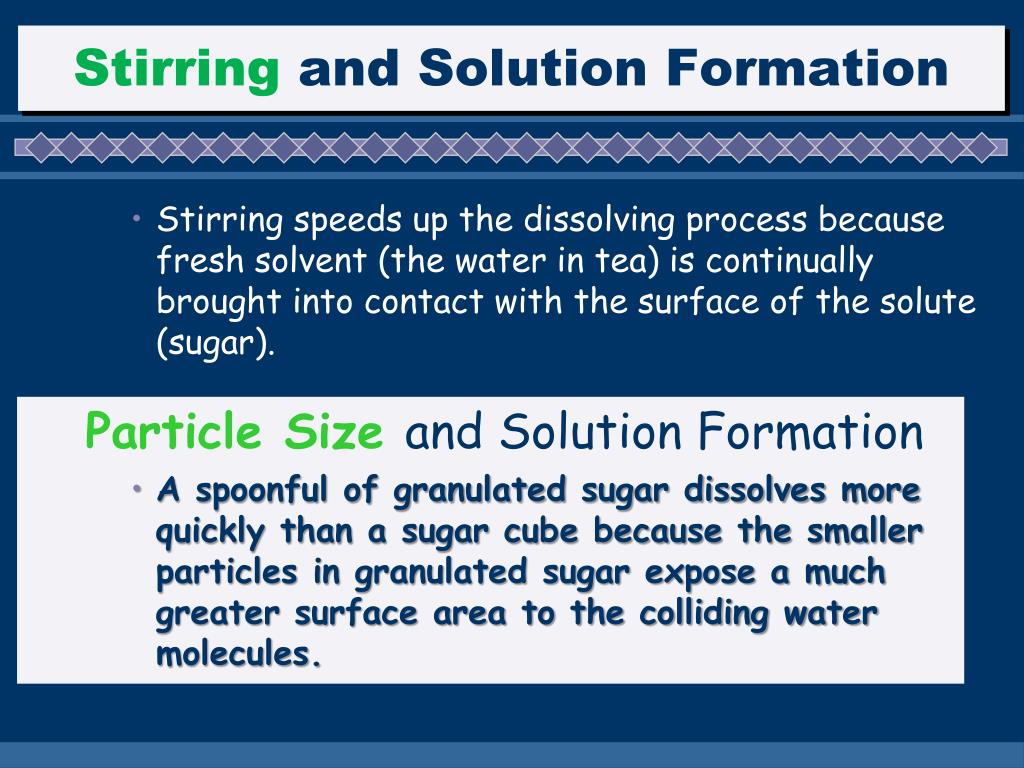

    18. Stirring and Solution Formation • Stirring speeds up the dissolving process because fresh solvent (the water in tea) is continually brought into contact with the surface of the solute (sugar). Particle Sizeand Solution Formation • A spoonful of granulated sugar dissolves more quickly than a sugar cube because the smaller particles in granulated sugar expose a much greater surface area to the colliding water molecules.

    19. Therefore… Solids tend to dissolve best when: • Heated • Stirred • Ground into small particles Gases tend to dissolve best when: • The solution is cold • Pressure is high

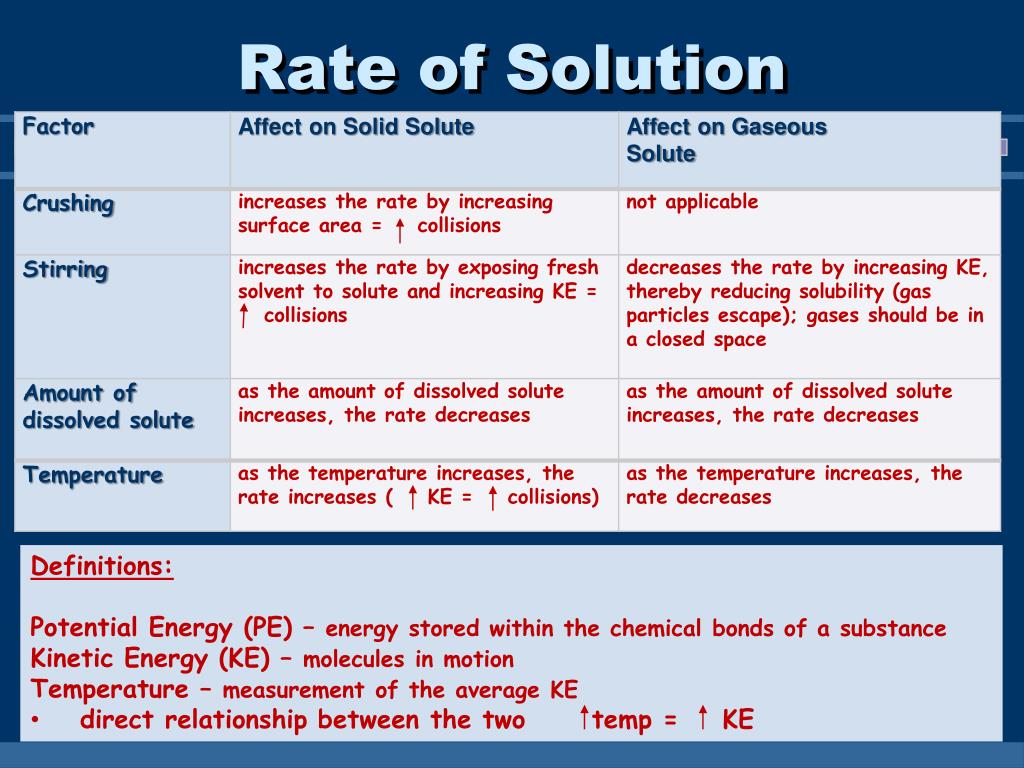

    20. Rate of Solution • Definitions: • Potential Energy (PE) – energy stored within the chemical bonds of a substance • Kinetic Energy (KE) – molecules in motion • Temperature – measurement of the average KE • direct relationship between the two temp = KE

    21. Saturation and Solubility Curves 1. Saturated solution – solution that cannot dissolve any more solute at a given temperature • added solute will NOT dissolve • At equilibrium: • Ratedissolving = Ratecrystallization • NaCl(aq)NaCl(s) 2. Unsaturated solution – solution that can dissolve more solute at a given temperature • added solute will dissolve – NOT at equilibrium 3. Supersaturated solution – solution that holds more solute than it can dissolve at a given temperature • produced by dissolving solute at a high temperature and allowing it to cool slowly • addition of solute causes precipitation of the excess

    22. Concentration – the amount of solute compared to solvent • Qualitative descriptions • concentrated – large amount of solute compared to the amount of solvent • example: frozen concentrated OJ • dilute – small amount of solute compared to the amount of solvent • example: weakcoffee Concentrated vs. Dilute

    23. UNSATURATED SOLUTION more solute dissolves SATURATED SOLUTION no more solute dissolves SUPERSATURATED SOLUTION becomes unstable, crystals form Solubility – the ability to dissolve in water concentration

    24. Solubility Curves • shows the dependence of solubility on temperature

    25. Solubility Curves • shows the dependence of solubility on temperature • maximum grams of solute that will dissolve in 100 g of solvent at a given temperature • varies with temp • based on a saturated solution

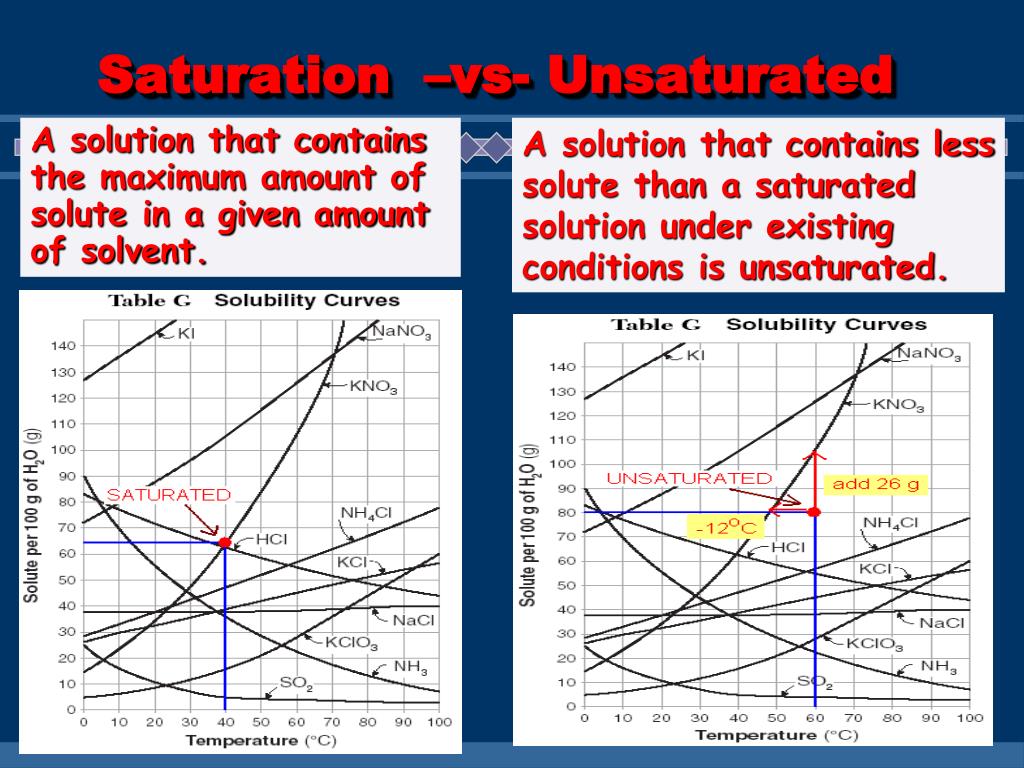

    26. Saturation –vs- Unsaturated A solution that contains the maximum amount of solute in a given amount of solvent. A solution that contains less solute than a saturated solution under existing conditions is unsaturated.

    27. Supersaturated • A solution that contains more dissolved solute than a saturated solution under the same conditions is supersaturated. • The crystallization of a supersaturated solution can be initiated if a very small crystal, called a seed crystal, of the solute is added.

    28. Supersaturated • A supersaturated solution is clear before a seed crystal is added.

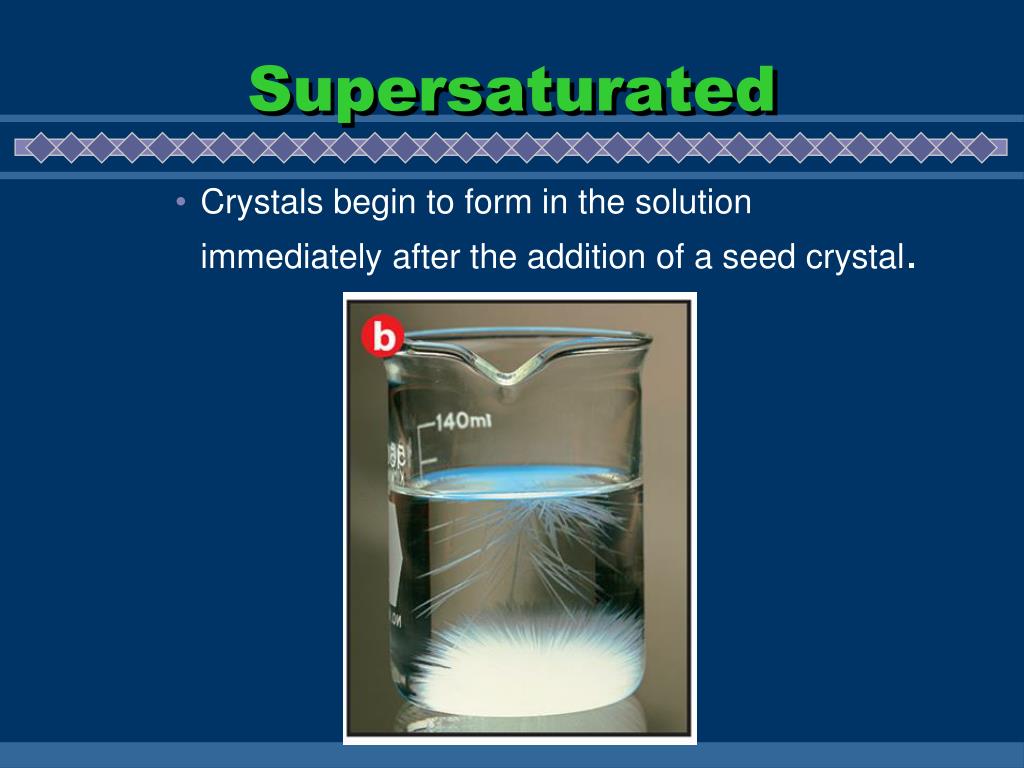

    29. Supersaturated • Crystals begin to form in the solution immediately after the addition of a seed crystal.

    30. Excess solute crystallizes rapidly.

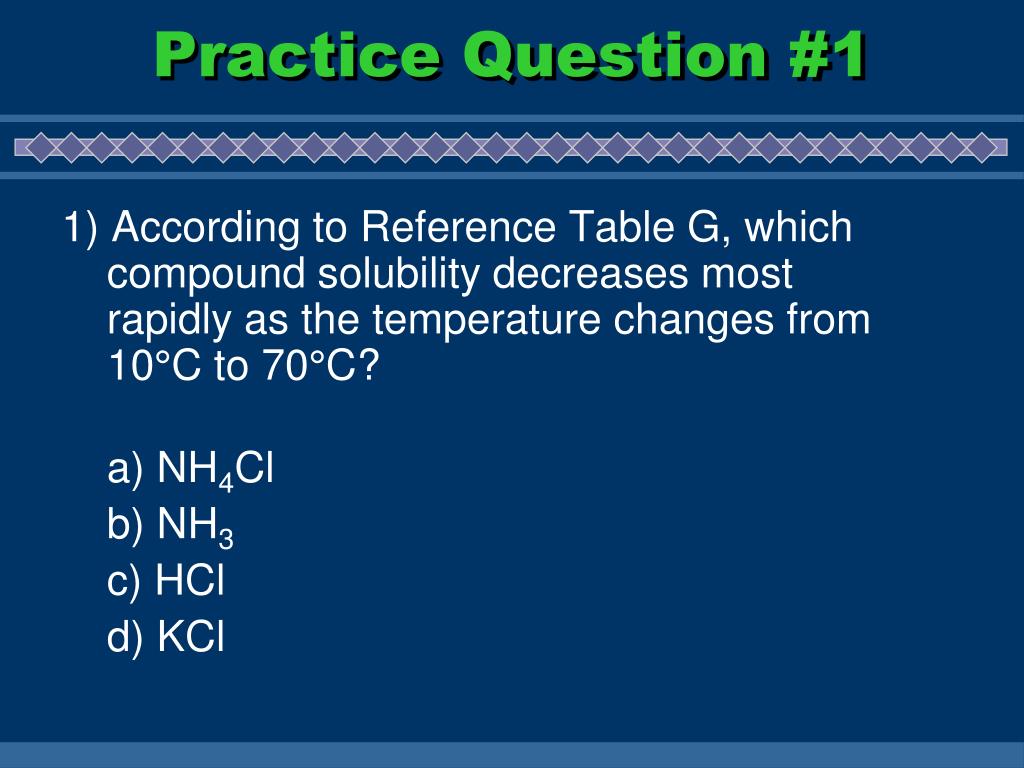

    31. Practice Question #1 1) According to Reference Table G, which compound solubility decreases most rapidly as the temperature changes from 10°C to 70°C? a) NH4Cl b) NH3 c) HCl d) KCl

    32. Answer to problem #1 • Correct Answer Number: 2 • Explanation: See Ref. Table G. Notice the curves for choices 1 and 4 increase. Choice 2 and 3 both decrease but choice 2 (NH3) decreases more than 50 degrees, while HCl decreases only about 16 degrees.

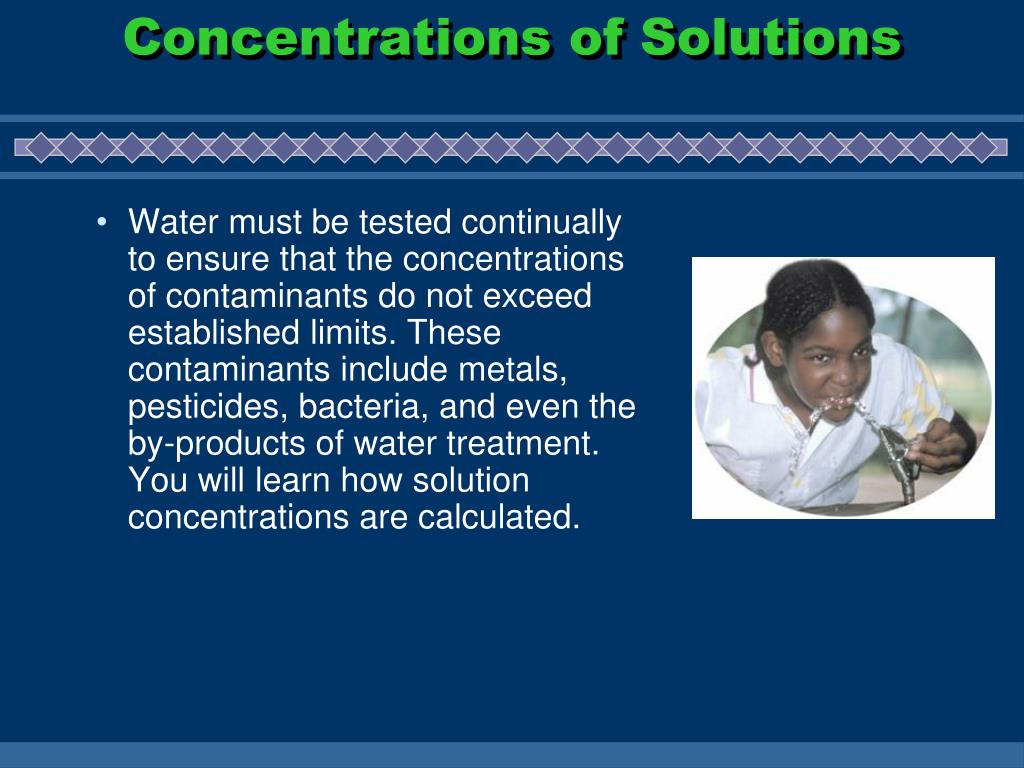

    33. Concentrations of Solutions • Water must be tested continually to ensure that the concentrations of contaminants do not exceed established limits. These contaminants include metals, pesticides, bacteria, and even the by-products of water treatment. You will learn how solution concentrations are calculated.

    34. Quantities in Solutions • The amount of solute in a solution. • Describing Concentration • % by mass - medicated creams • % by volume - rubbing alcohol • ppm, ppb - water contaminants • molarity - used by chemists • molality - used by chemists

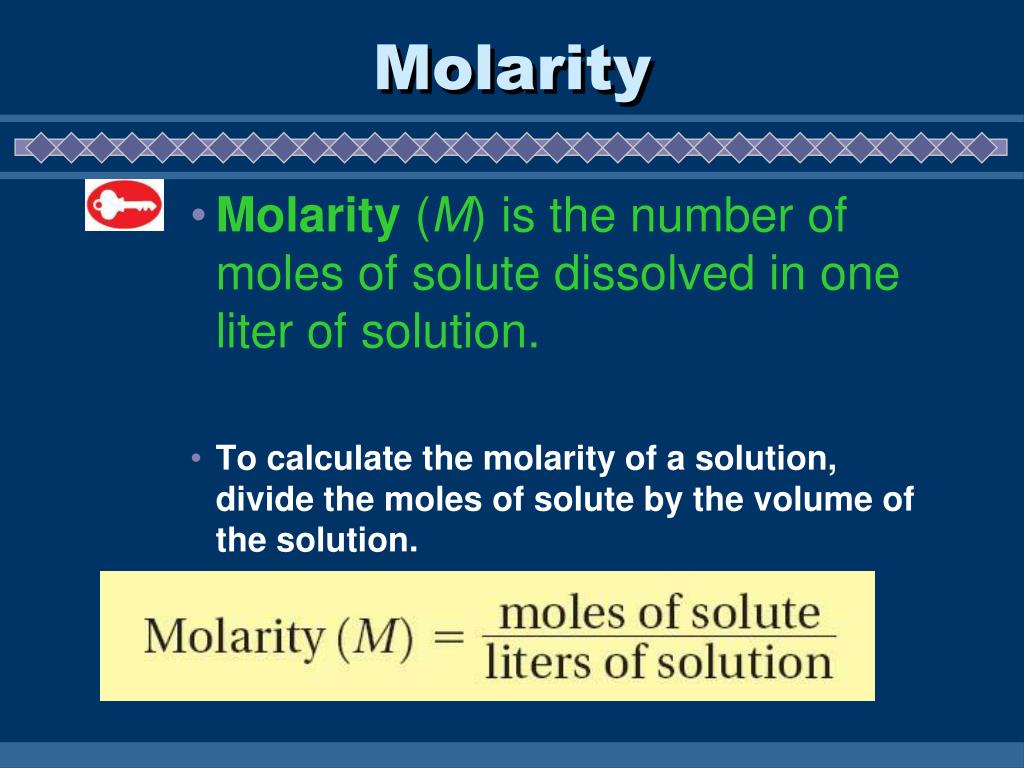

    35. Molarity • Molarity (M) is the number of moles of solute dissolved in one liter of solution. • To calculate the molarity of a solution, divide the moles of solute by the volume of the solution.

    36. Molarity • To make a 0.25 molar (0.25M) solution, first add ? mol of solute to a 0.50-L (500mL) volumetric flask half filled with distilled water.

    37. Solve for Moles • Solute used is NaCl • We want to prepare 500 mL of a 0.25 Molar solution • Using the Molarity formula solve for moles of solute M = Moles of Solute Liters of Soln

    38. Plug in Numbers • 0.250 mol/Liter = x moles 0.500L # of Moles = 0.250mol/liter x 0.500 L x = 0.125 moles

    39. Convert Moles to Grams • 0.125 moles NaCl ? Grams • Use Mole Conversion Formula • Moles = given mass gfm

    40. Plug in Numbers • 0.125 moles = x grams 58 g/mol (gfm of NaCl) X= 7.25 grams NaCl

    41. Molarity • Add 7.25 grams of NaCl to water in flask • Swirl the flask carefully to dissolve the solute.

    42. 16.2 Molarity • Fill the flask with water exactly to the 500-mL mark.

    43. #1: How many moles of NaOH are contained in 200 ml of 0.1M solution of NaOH? • Answer: • moles = (M)(L) • = (0.1 M)(.2L) • =.02 mol

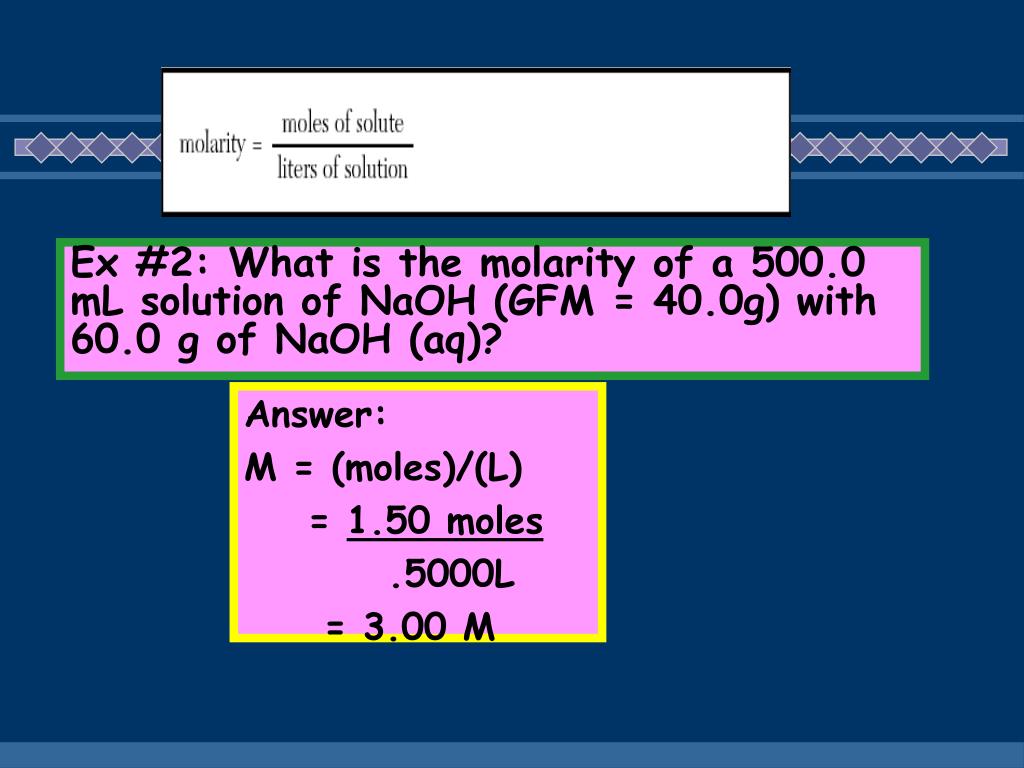

    44. Answer: M = (moles)/(L) = 1.50 moles .5000L = 3.00 M Ex #2: What is the molarity of a 500.0 mL solution of NaOH (GFM = 40.0g) with 60.0 g of NaOH (aq)?

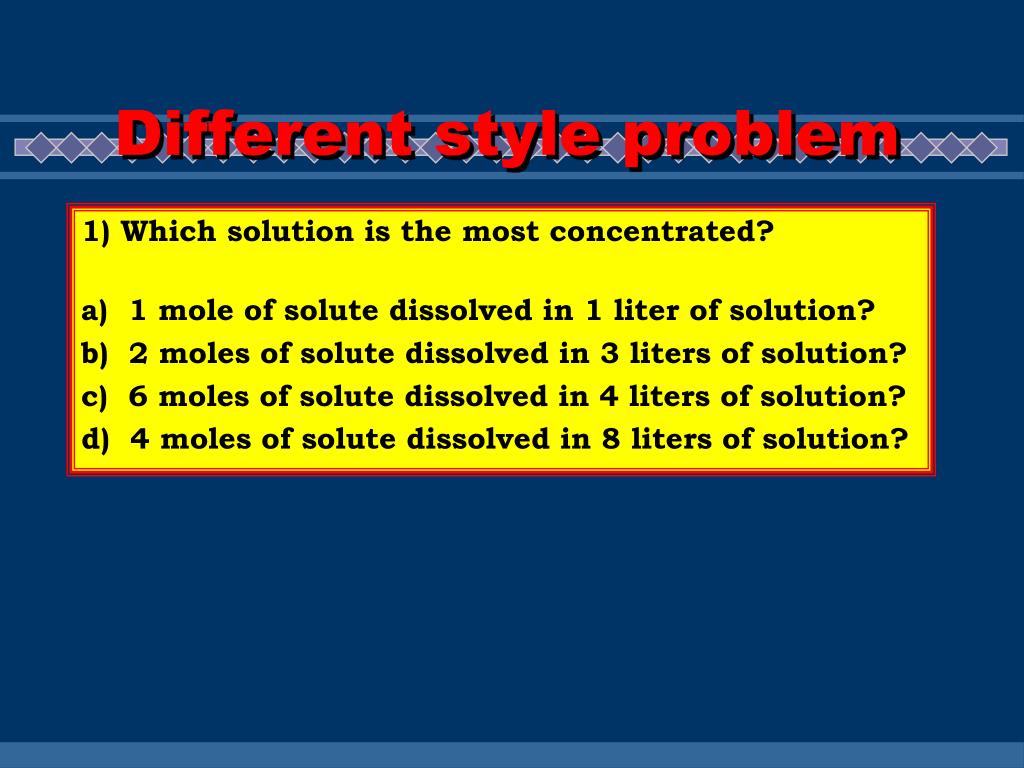

    45. Different style problem 1) Which solution is the most concentrated? a) 1 mole of solute dissolved in 1 liter of solution? b) 2 moles of solute dissolved in 3 liters of solution? c) 6 moles of solute dissolved in 4 liters of solution? d) 4 moles of solute dissolved in 8 liters of solution?

    46. Answer to different style problem 1) Which solution is the most concentrated? a) 1 mole of solute dissolved in 1 liter of solution? b) 2 moles of solute dissolved in 3 liters of solution? c) 6 moles of solute dissolved in 4 liters of solution? d) 4 moles of solute dissolved in 8 liters of solution? • Correct Answer Number: 3 • Explanation: #3 (1.5 M. ) is the most concentrated. Find the molarity ( moles of solute/liter of solution) for each answer. #1) 1 mole / 1 liter or 1 M.        #2) 2 moles / 3 liters or 0.67 M. #3) 6 moles / 4 liters or 1.5 M.       #4) 4 moles / 8 liters or 0.5 M.

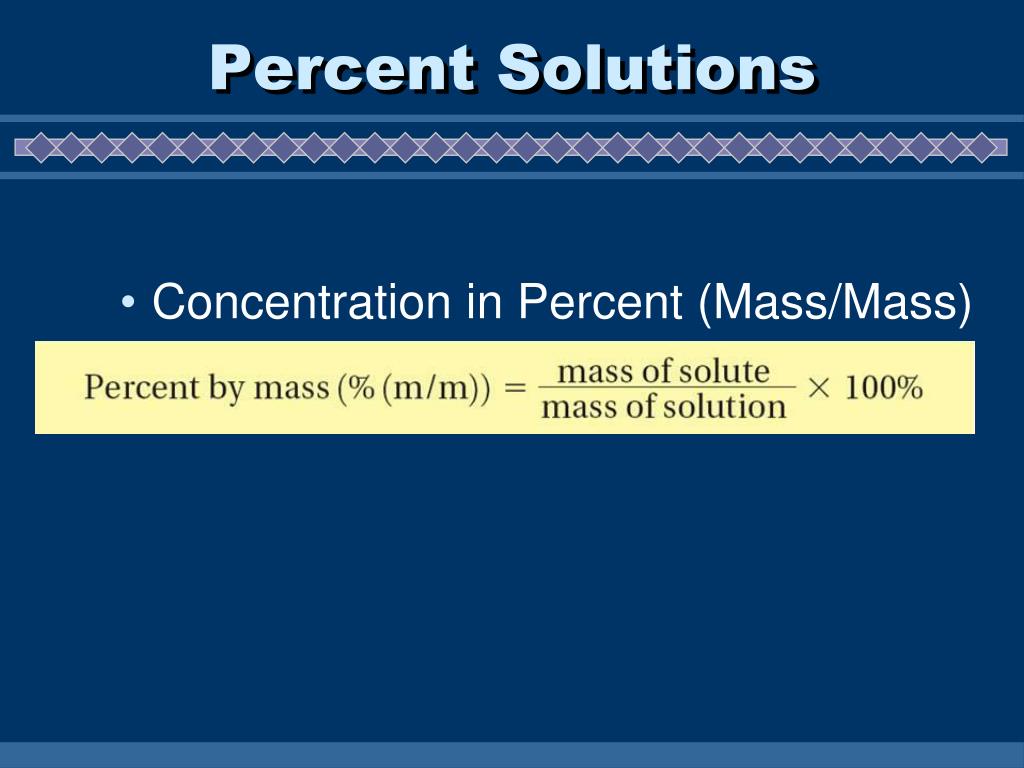

    47. 16.2 Percent Solutions • Concentration in Percent (Mass/Mass)

    48. Concentration = Mass of solute (g) Volume of Solvent or Solution (mL) • Substitute “volume” for “mass” in the above equation and vice versa. • Ex.#1 What is the percent by volume of hexane if 20.0 mL of hexane are dissolved in benzene to a total volume of 80.0 mL? % volume = volume of solute x 100 volume of solution = 20.0 mL x 100 80.0 mL = 25.0%

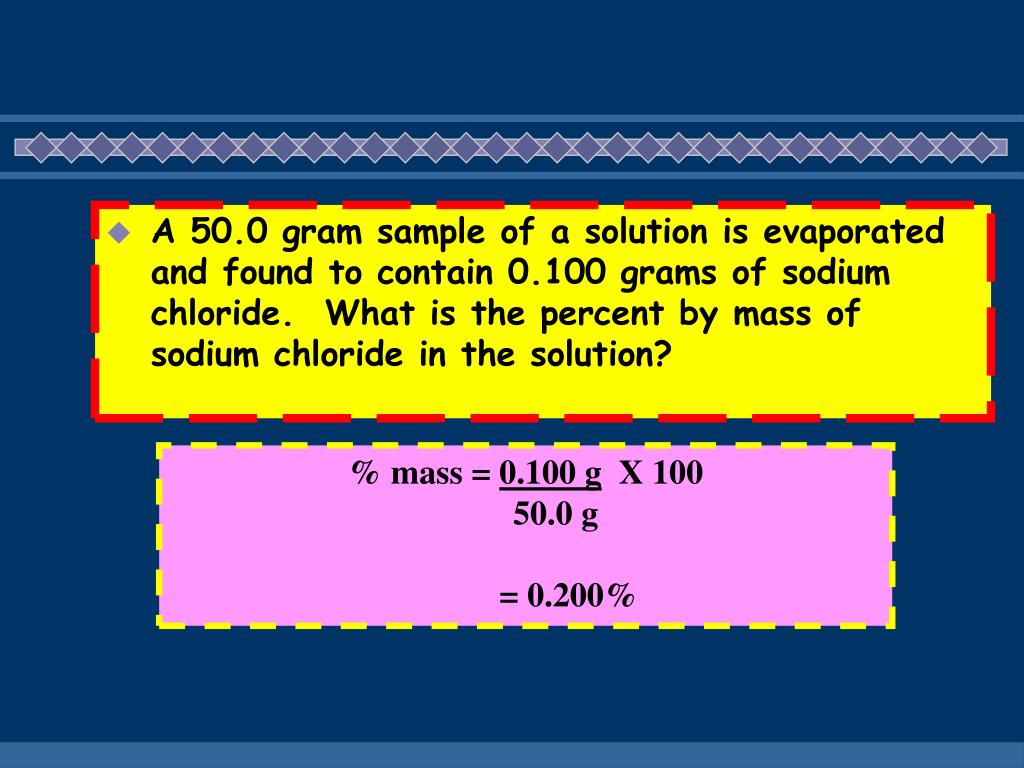

    49. A 50.0 gram sample of a solution is evaporated and found to contain 0.100 grams of sodium chloride. What is the percent by mass of sodium chloride in the solution? % mass = 0.100 g X 100 50.0 g = 0.200%

    50. 100.0 grams of water is evaporated and analyzed for lead. 0.00010 grams of lead ions are found. What is the concentration of the lead, in parts per million? • ppm = grams of solute x 1,000,000 • grams of solution • = (0.00010 g) x 1,000,000 • 100.00010 g • = .9 ppm • If the legal limit for lead in the water is 3.0 ppm, then the water sample is within the legal limits (it’s safe and ok)
