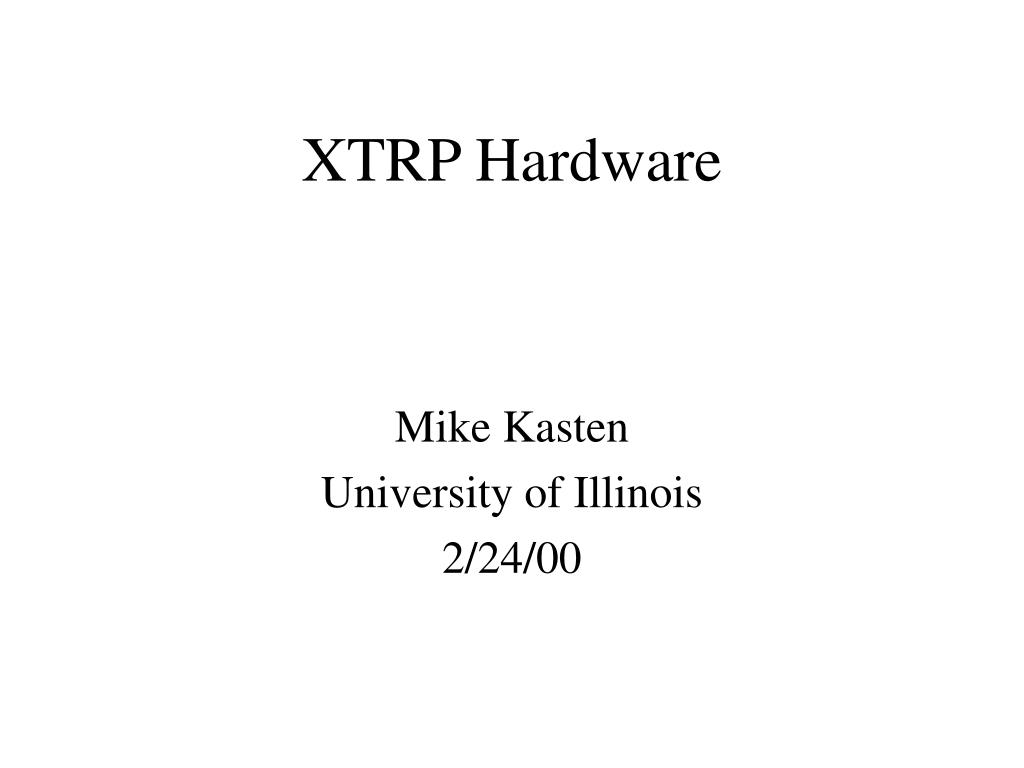

xtrp hardware

XTRP Hardware

Mike Kasten

University of Illinois

2/24/00

slide2
2 XFT linkers

CDF clock

L1 calorimetry

L1 muon

L2 trigger

SVT

Data board transition module (x12)

Clock/control transition module

Level1 Request

Clock/control board

Track Data

Data board (x12)

30° (2 wedges)

Data boards (duplicates)

132 ns + 33ns clocks

12 data boards

XTRP I/O

The core XTRP System

Internal communication

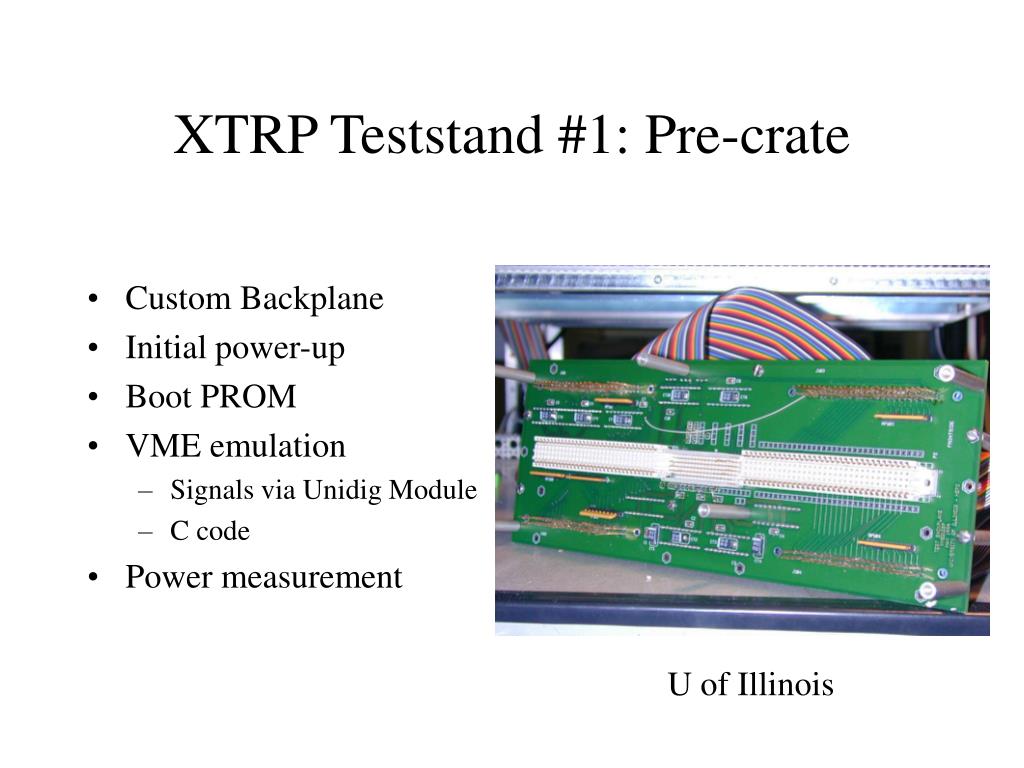

xtrp teststand 1 pre crate
XTRP Teststand #1: Pre-crate
  • Custom Backplane
  • Initial power-up
  • Boot PROM
  • VME emulation
    • Signals via Unidig Module
    • C code
  • Power measurement

U of Illinois

xtrp teststand 1 vme crate
XTRP Teststand #1: VME crate
  • Successfully completed VME transactions
    • Write/Read registers
    • Load extrapolation RAMs
  • Benchtop accessibility & VME emulation were extremely helpful for initial debugging
  • This teststand will provide initial testing infrastructure for new VME boards

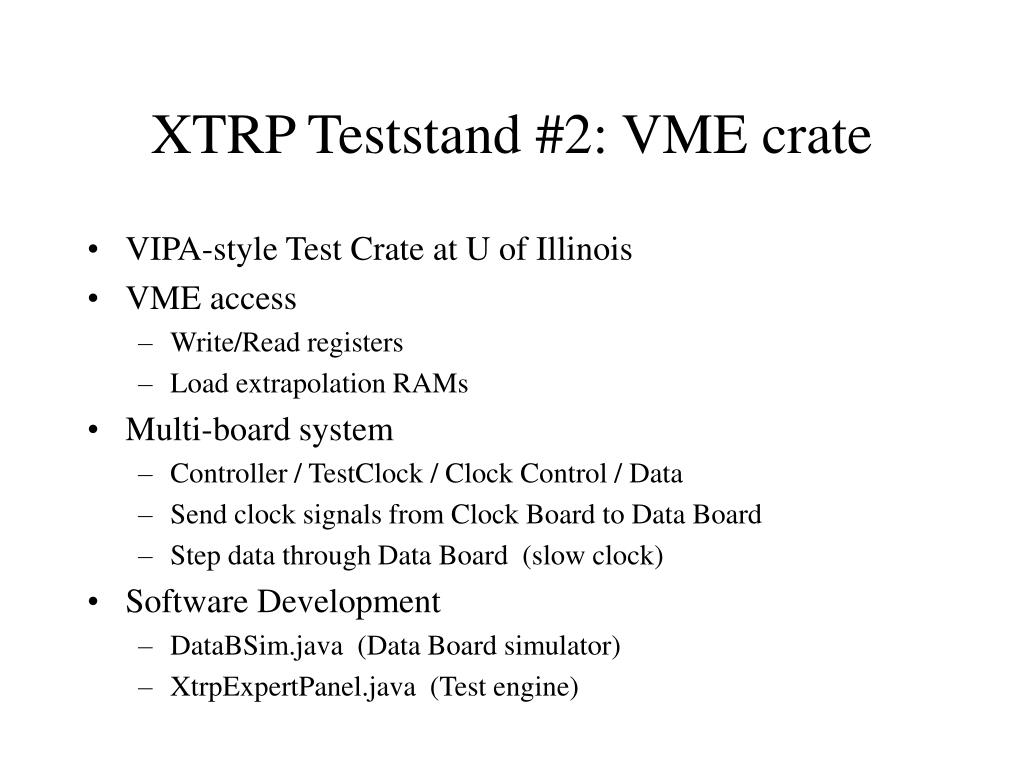

xtrp teststand 2 vme crate
XTRP Teststand #2: VME crate
  • VIPA-style Test Crate at U of Illinois
  • VME access
    • Write/Read registers
    • Load extrapolation RAMs
  • Multi-board system
    • Controller / TestClock / Clock Control / Data
    • Send clock signals from Clock Board to Data Board
    • Step data through Data Board (slow clock)
  • Software Development
    • DataBSim.java (Data Board simulator)
    • XtrpExpertPanel.java (Test engine)

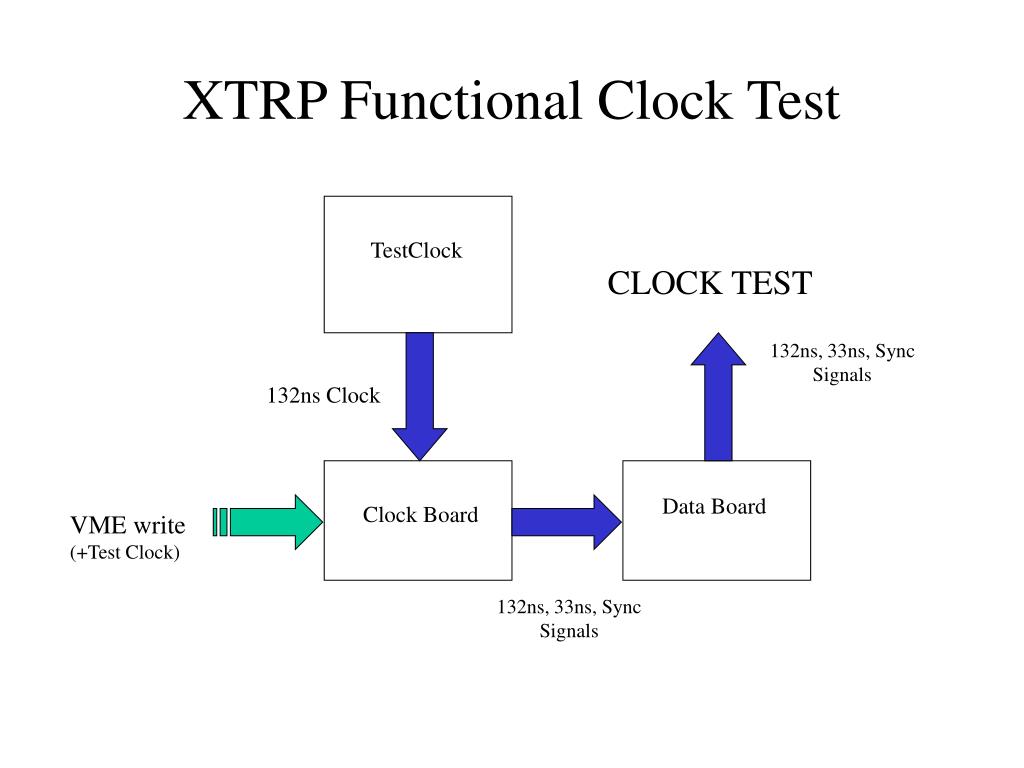

xtrp functional clock test
XTRP Functional Clock Test

TestClock

CLOCK TEST

132ns, 33ns, Sync

Signals

132ns Clock

Data Board

Clock Board

VME write

(+Test Clock)

132ns, 33ns, Sync

Signals

slide7

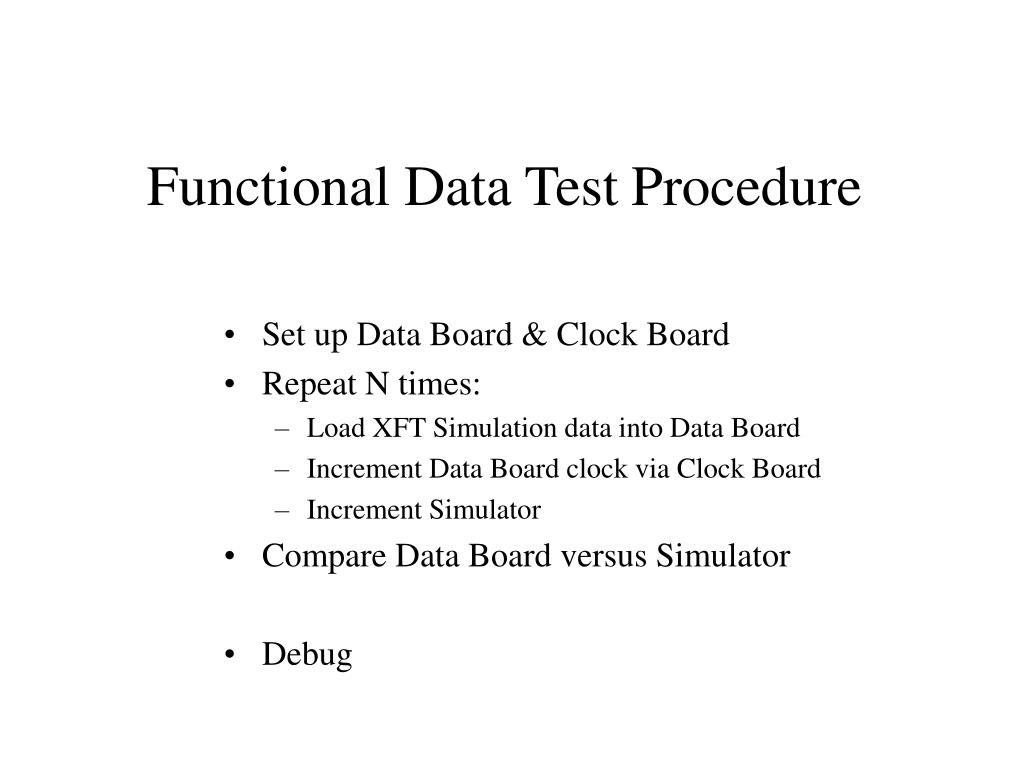

Functional DataTestProcedure
  • Set up Data Board & Clock Board
  • Repeat N times:
    • Load XFT Simulation data into Data Board
    • Increment Data Board clock via Clock Board
    • Increment Simulator
  • Compare Data Board versus Simulator
  • Debug

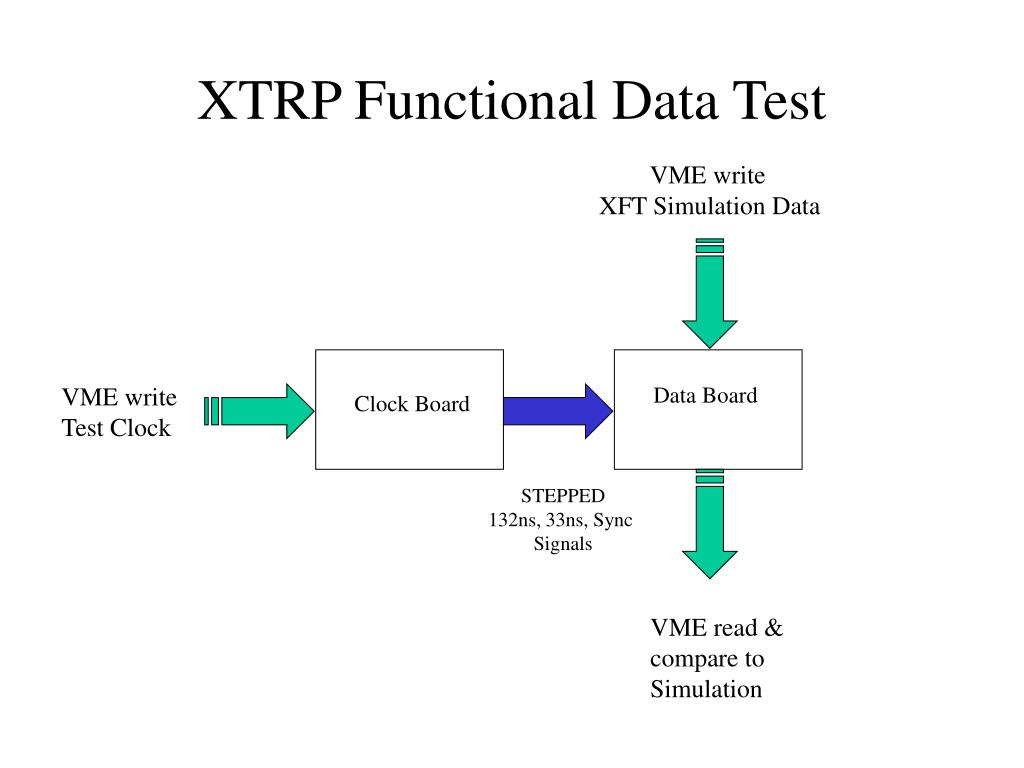

xtrp functional data test
XTRP Functional Data Test

VME write

XFT Simulation Data

VME write

Test Clock

Data Board

Clock Board

STEPPED

132ns, 33ns, Sync

Signals

VME read &

compare to

Simulation

xtrp teststand 2 vme crate1
XTRP Teststand #2: VME crate
  • Data Board II is necessary
    • simple reroutes: ~100
      • power supply pins (64 identical ICs )
      • various
    • Mechanical compliance
    • Improvements (JTAG & buffering)
  • Data Board I lives on…
    • Completely Functional
    • Acceptable to use for B0 integration tests
  • Clock Control Board is OK (so far)
    • Corrections do exist: ~25 total wires
    • Relayout not planned
xtrp teststand 3 wilson hall
XTRP Teststand #3: Wilson Hall
  • Multi-crate system
    • XFT CDF-style Crate
      • Test Clock / Clock Splitter / Controller / TRACER
      • LinkerTester
      • Linker / Output Modules
    • XTRP VIPA-style Crate
      • Controller / TRACER
      • Data Board
      • Clock Control Board
  • Much much more Software Development
xtrp tests
XTRP Tests

DATA TEST

>1,000,000 clocks error free

Linker(2) Output

Formatters

VME write

VME read &

compare to

Simulation

Data transferred at full

speed for 250 clocks

VME read

from

Pipe FPGAs

Linkertester

Input Fifos

Data Board

CAL/MUON

Data

INPUT TEST

>100,000,000 clocks

errors: x000000 to xFFFFFF

xtrp tests1
XTRP Tests

VME

write

Output Fifos

Linkers (2)

Linkertesters

(2)

Data transferred

at full speed

for 10k clocks

VME read

&

compare to

Simulation

Data Board

Input Fifos

>10,000,000 clocks error free

xtrp tests2
XTRP Tests

VME

write

Output Fifos

Linkertester

Data Board

Data transferred

at full speed

for 10k clocks

VME read

&

compare to

Simulation

Input Fifos

Software under development

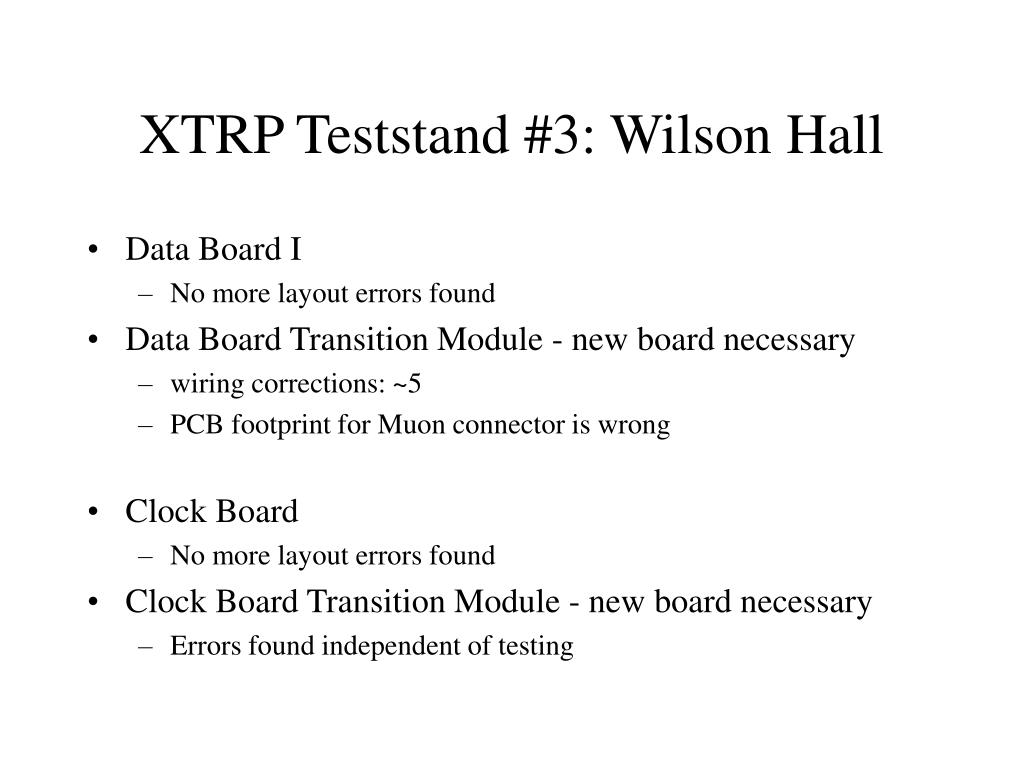

xtrp teststand 3 wilson hall1
XTRP Teststand #3: Wilson Hall
  • Data Board I
    • No more layout errors found
  • Data Board Transition Module - new board necessary
    • wiring corrections: ~5
    • PCB footprint for Muon connector is wrong
  • Clock Board
    • No more layout errors found
  • Clock Board Transition Module - new board necessary
    • Errors found independent of testing
plan for new hardware
Plan for New Hardware
  • Data Board II
    • Quotes requested, waiting for responses
    • Contract Assembler reviewing BOM
    • Target date for 1st DBII: April 1, 2000
  • Data Board Transition Module
    • Want to connect to Muon & Calorimetry systems first
    • Target date for new TM: April 15, 2000
  • Clock Board Transition Module
    • Need a new board for SVT & L2P integration
    • Target date for new TM: May 1, 2000

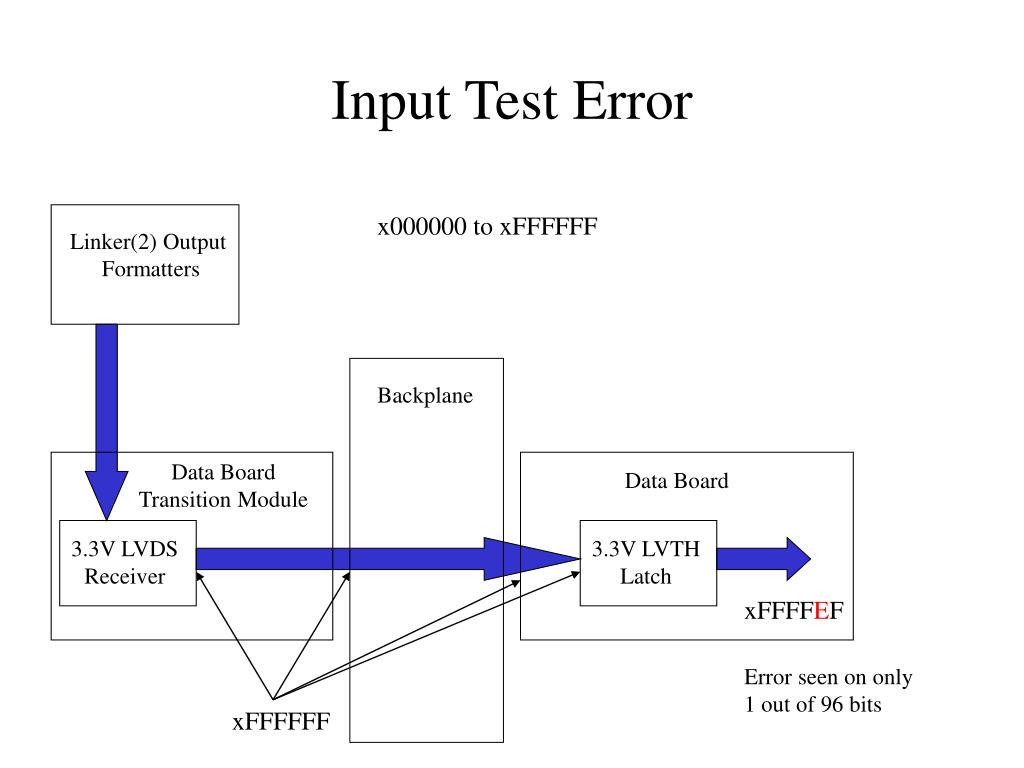

input test error
Input Test Error

x000000 to xFFFFFF

Linker(2) Output

Formatters

Backplane

Data Board

Transition Module

Data Board

3.3V LVDS

Receiver

3.3V LVTH

Latch

xFFFFEF

Error seen on only

1 out of 96 bits

xFFFFFF
