  1. R&M Foccos - The new rack line Communication at R&M leads to the new generation Foccos

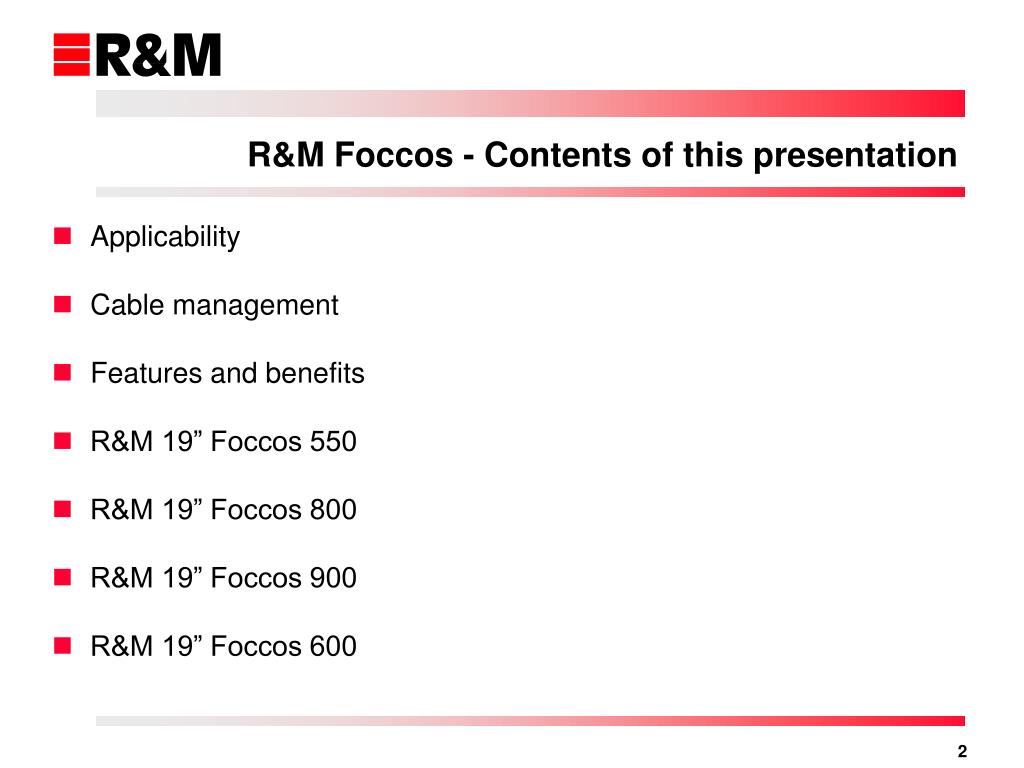

  2. R&M Foccos - Contents of this presentation • Applicability • Cable management • Features and benefits • R&M 19” Foccos 550 • R&M 19” Foccos 800 • R&M 19” Foccos 900 • R&M 19” Foccos 600

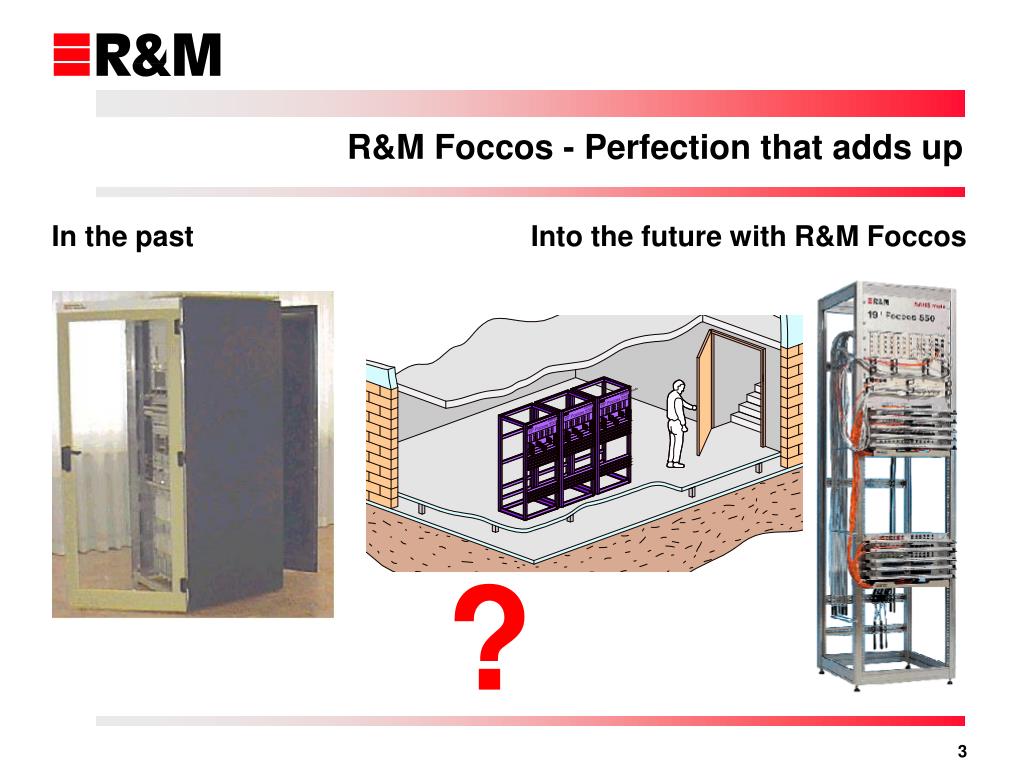

  3. R&M Foccos - Perfection that adds up In the past Into the future with R&M Foccos ?

  4. Main Distribution Frames and Interfaces - R&M 19” Foccos System

  5. R&M Foccos - Applications

  6. 1U FO 19” 1U UniRack yes, 432 terminations yes, 672 terminations yes, 864 terminations no yes, 768 terminations yes, 1104 terminations yes, 1104 terminations yes, 768 terminations 3U R&M Fiberliner splice with 19” SubRack yes, 480 terminations yes, 840 terminations yes, 1080 terminations yes, 960 terminations yes, 960 terminations yes, 1320 terminations yes, 1320 terminations no Hight Units and in mm 24, 1067 36, 1601 46, 2200 40, 2200 40, 2200 46, 2200 46, 2200 40, 2200 19” Foccos 550, Depth 300 mm or Depth 600 mm 19” Foccos 800, Depth 420 mm Depth 600 mm 19” Foccos 900, Depth 300 mm Depth 600 mm 19” Foccos 600, Depth 300 mm R&M Foccos - Maximum capacities

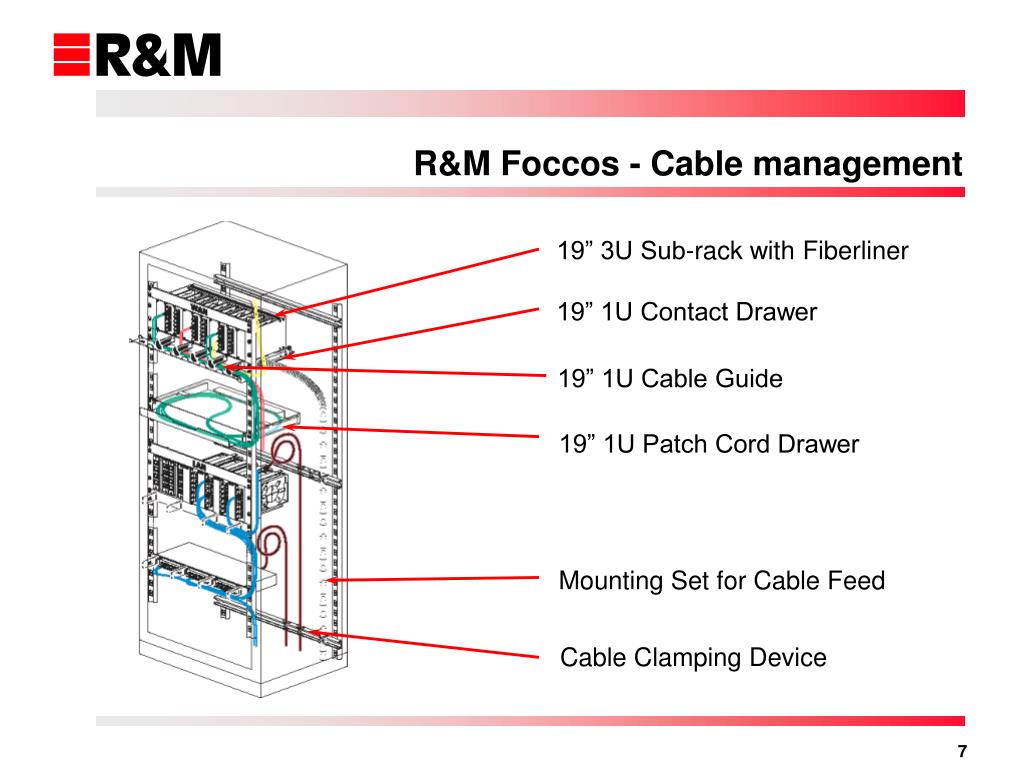

  7. R&M Foccos - Cable management 19” 3U Sub-rack with Fiberliner 19” 1U Contact Drawer 19” 1U Cable Guide 19” 1U Patch Cord Drawer Mounting Set for Cable Feed Cable Clamping Device

  8. R&M Foccos - Basic configuration Cable fastener bar Earthing point Adjustable feet

  9. 2 1 3 4 R&M Foccos - Joining several Foccos Patch Cords between 19” Foccos 550 or 19” Foccos 800 19” Foccos Joining set

  10. Width 550 Depth 600 mm FO and Copper Depth 300 mm FO R&M 19” Foccos 550 - Overview Mounted, consisting of: • Back side • Front side • Lateral cross profiles

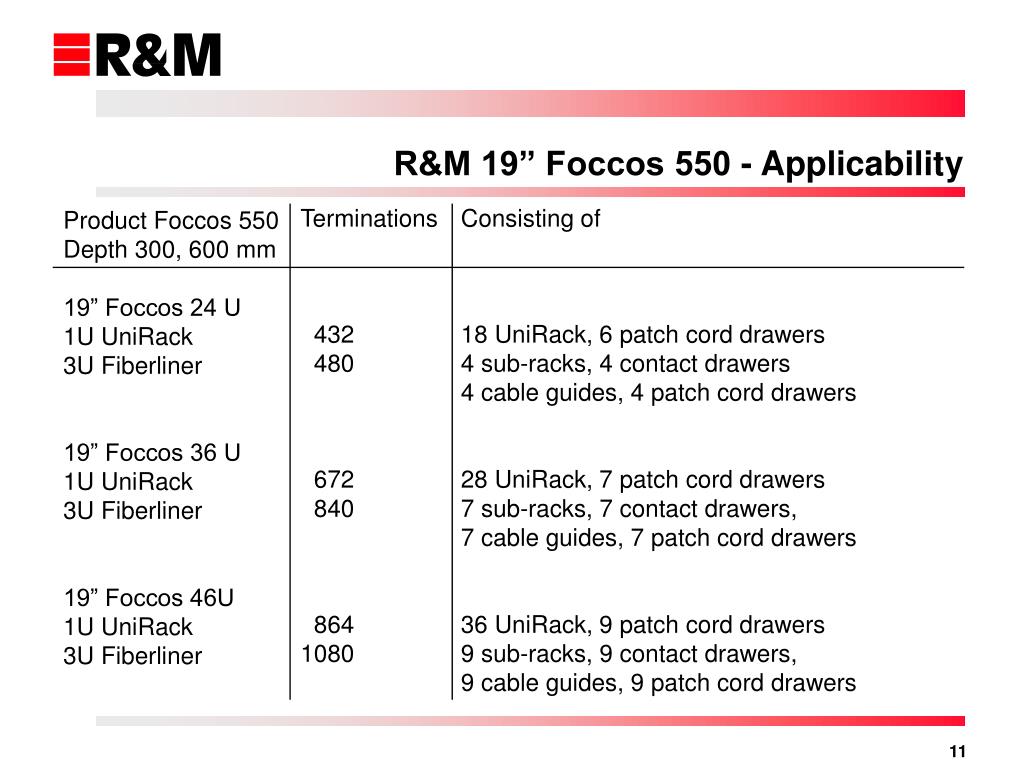

  11. Terminations 432 480 672 840 864 1080 Consisting of 18 UniRack, 6 patch cord drawers 4 sub-racks, 4 contact drawers 4 cable guides, 4 patch cord drawers 28 UniRack, 7 patch cord drawers 7 sub-racks, 7 contact drawers, 7 cable guides, 7 patch cord drawers 36 UniRack, 9 patch cord drawers 9 sub-racks, 9 contact drawers, 9 cable guides, 9 patch cord drawers Product Foccos 550 Depth 300, 600 mm 19” Foccos 24 U 1U UniRack 3U Fiberliner 19” Foccos 36 U 1U UniRack 3U Fiberliner 19” Foccos 46U 1U UniRack 3U Fiberliner R&M 19” Foccos 550 - Applicability

  12. Differences to R&M Foccos 550, 46U Price per 1U with a depth of300mm Price per 1U with a depth of600 mm Accommodating back-/side-walls Assembly kit: front-/back-side and cross profiles Rittal Germany CHF 14.50 CHF 15.70 Yes No ELDON England not available CHF 15.55 Yes No R&M CH CHF 14.50 CHF 15.30 not available Yes R&M 19” Foccos 550 - Competition

  13. 19" Width 800 mm Depth 600 mm FO Depth 420 mm FO R&M 19” Foccos 800 - Overview Mounted, consisting of: • Back side • Front side • Lateral cross profiles

  14. Product Foccos 800 19” Foccos 40 U Depth 420 mm 1U UniRack 3U Fiberliner 19” Foccos 40 U Depth 600 mm 1U UniRack 3U Fiberliner Terminations No 960 768 960 Consisting of 8 sub-racks 3U, 8 contact drawers,8 cable guides, 8 patch cord drawers 32 UniRack, 8 patch cord drawers 8 sub-racks, 8 contact drawers, 8 cable guides, 8 patch cord drawers R&M 19” Foccos 800 - Applicability

  15. R&M 19” Foccos 800 - Features and Benefits The swivel frame has an opening angle of 145° 145° All-side access to the components thanks to the 19’’ swivel frame Welded and torsionally rigid square- tube with with a 19’’ grid Patch cords deposit

  16. Width 900 mm 19" Depth 600 mm FO and Copper Depth 300 mm FO R&M 19” Foccos 900 - Overview Mounted, consisting of: • Back side • Front side • Lateral cross profiles

  17. Product Foccos 900 19” Foccos 46 U Depth 300 mm 1U UniRack 3U Fiberliner 19” Foccos 46 U Depth 600 mm 1U UniRack 3U Fiberliner Terminations 1104 1320 1104 1320 Consisting of 46 UniRack 11 sub-racks 3U, 11 contact drawers,11 cable guides 46 UniRack 11 sub-racks 3U, 11 contact drawers,11 cable guides R&M 19” Foccos 900 - Applicability

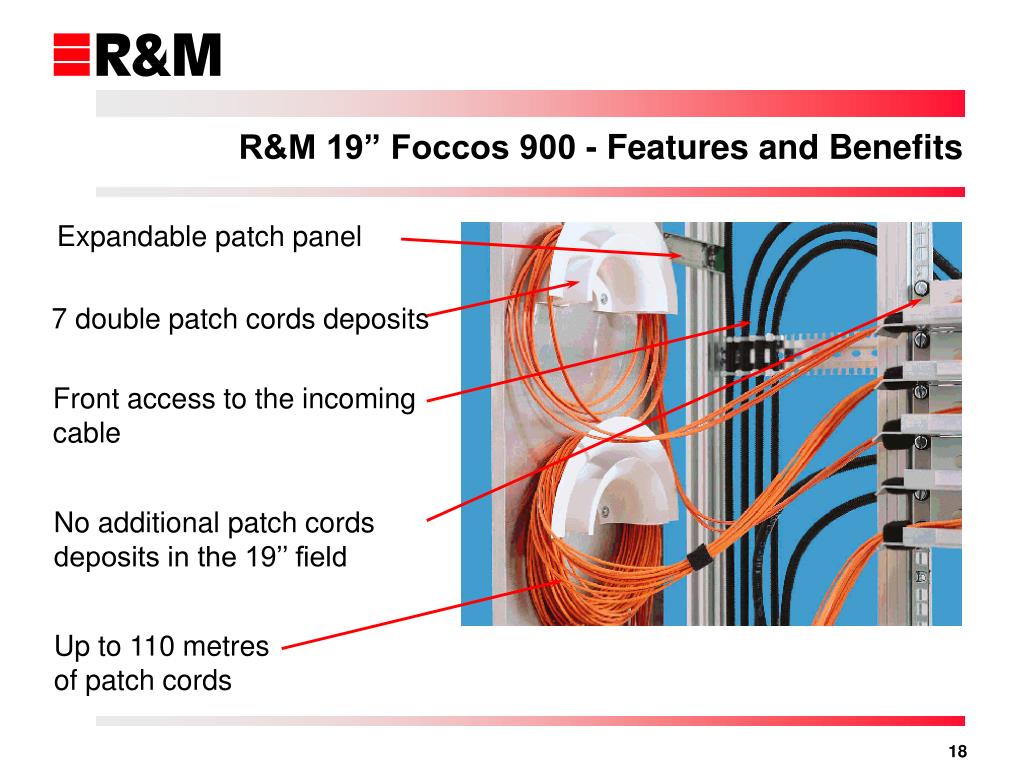

  18. R&M 19” Foccos 900 - Features and Benefits Expandable patch panel 7 double patch cords deposits Front access to the incoming cable No additional patch cords deposits in the 19’’ field Up to 110 metres of patch cords

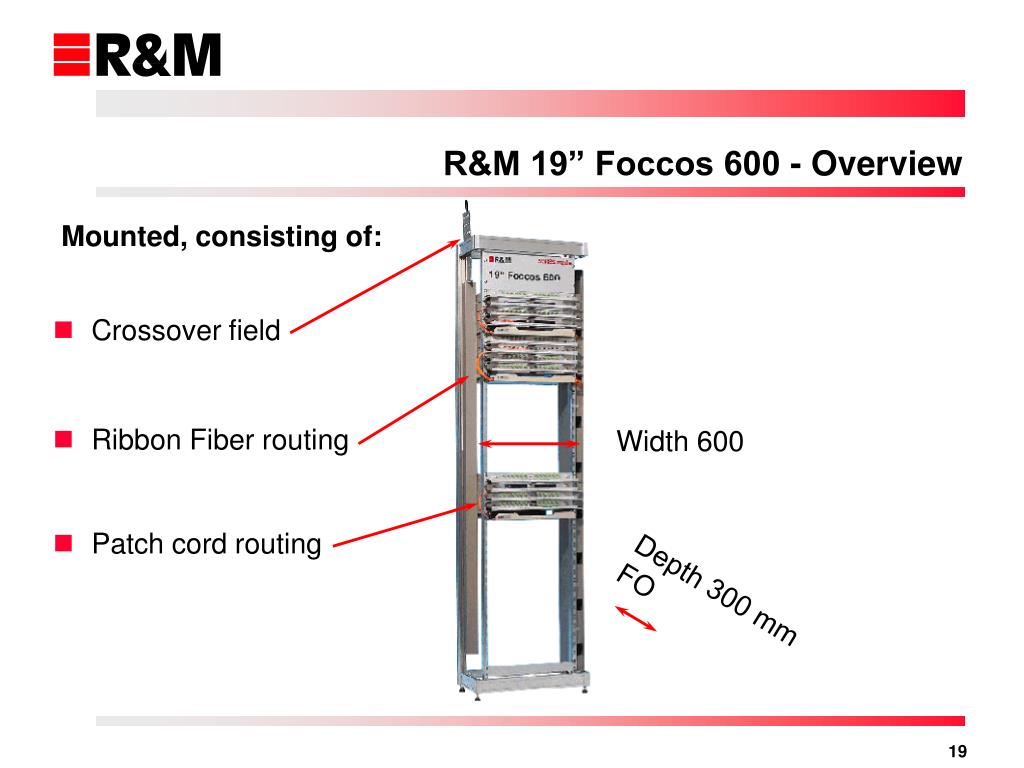

  19. Width 600 Depth 300 mm FO R&M 19” Foccos 600 - Overview Mounted, consisting of: • Crossover field • Ribbon Fiber routing • Patch cord routing

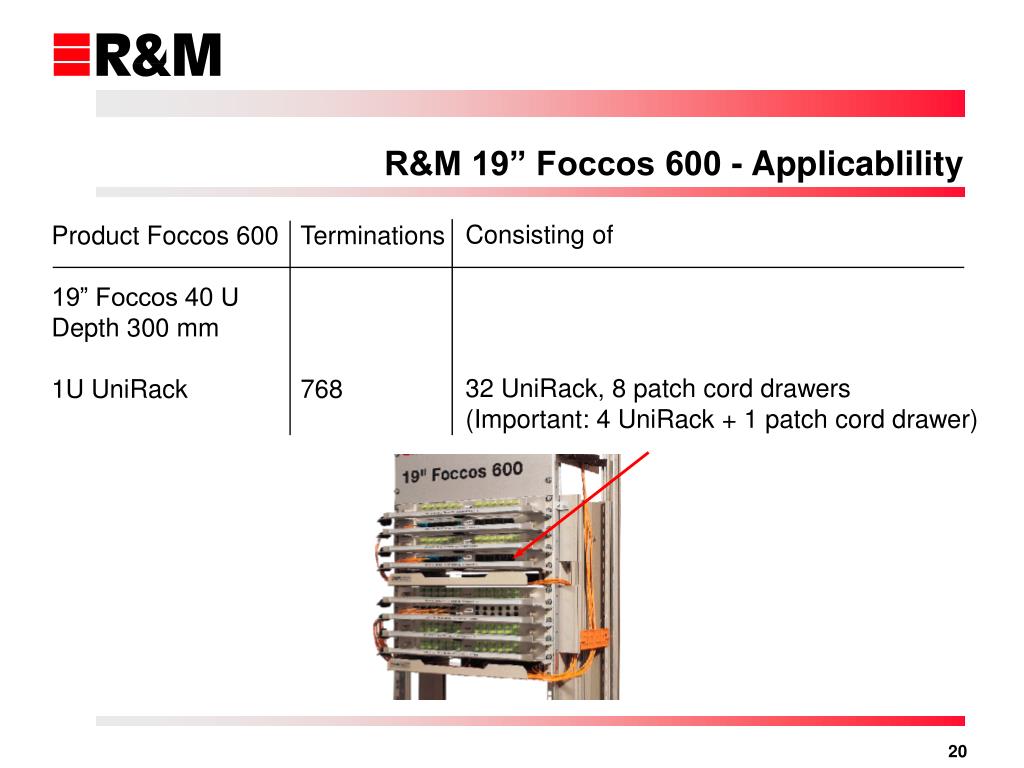

  20. Consisting of 32 UniRack, 8 patch cord drawers (Important: 4 UniRack + 1 patch cord drawer) Product Foccos 600 19” Foccos 40 U Depth 300 mm 1U UniRack Terminations 768 R&M 19” Foccos 600 - Applicablility

  21. R&M 19” Foccos 600 - Features and Benefits Crossover field of the ribbon fiber cable Lateral ribbon fiber routing

  22. R&M 19” Foccos 600 - Features and Benefits Patch cord box for the patch cable deposit Patch cord routing
