    1. Teamcenter - Lab Wide EDMS

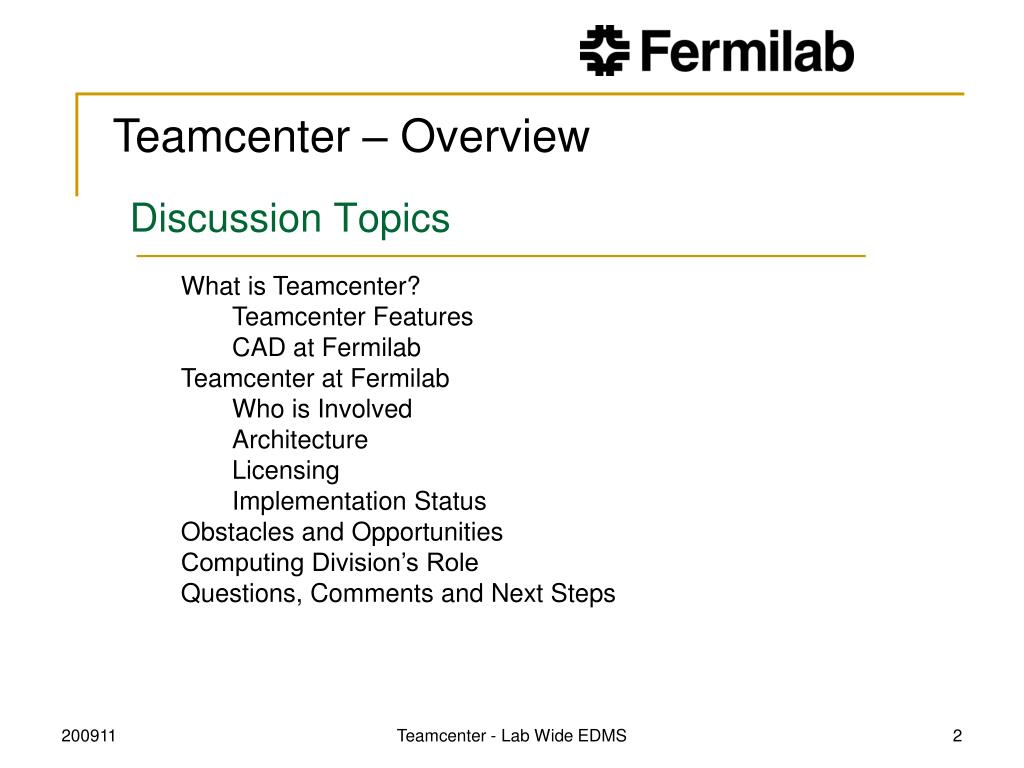

    2. Discussion Topics • What is Teamcenter? • Teamcenter Features • CAD at Fermilab • Teamcenter at Fermilab • Who is Involved • Architecture • Licensing • Implementation Status • Obstacles and Opportunities • Computing Division’s Role • Questions, Comments and Next Steps Teamcenter - Lab Wide EDMS

    3. What is Teamcenter? • Teamcenter Features: • Data Management for Engineering Documents • CAD Models, Drawing, Assemblies • Engineering Calculations • Safety Documents • Manufacturing Documents • Revisioning • Release Status • Bill of Materials • Change Management • Visualization • Workflow Teamcenter - Lab Wide EDMS

    4. What is Teamcenter? • Teamcenter Features: Teamcenter - Lab Wide EDMS

    5. What is Teamcenter? • CAD/CAM/CAE at Fermilab: • Mechanical Analysis • ANSYS • 12 Mechanical Licenses; 1 Multiphysics Licence • 3 Design Modeler • NASTRAN • 8 NX NASTRAN Licenses • Mechanical Design/Drafting • IDEAS • 65 Drafting Licenses • 30 Modeling Licenses • 23 Assembly Licenses • Manufacturing • NX • 5 Manufacturing Licenses Teamcenter - Lab Wide EDMS

    6. What is Teamcenter? • CAD/CAM/CAE at Fermilab: • FESS • AutoCAD - ~40 Licenses (~15 Used at one time) • Electrical • AutoCAD - Few Licenses for power line drawings • OrCAD – 19 Licenses • Mentor Graphics – 15 Licenses • Altium – 6 Licenses • Other Systems • Solid Edge • 6 Licenses (ADMS) • Solid Works • 5 Licenses (TD) • 1 License (ADMS) Teamcenter - Lab Wide EDMS

    7. Teamcenter at Fermilab • Who is Involved: • Tony Metz – CAD Manager • Tony Parker – ADMS Design/Drafting Supervisor • John Rauch – PPD Design/Drafting Supervisor • Don Mitchell – TD Design/Drafting Supervisor • Paula Lambertz – ADCS Lead Designer • Rich Stanek – Directorate • Julie Trumbo – CD – TC Infrastructure • Arkadiy Klebaner – Cryogenic Safety Subcommittee • Michael Geynisman – Cryogenic Safety Subcommittee • Tom Page – Mechanical Safety Subcommittee • Nancy Grossman – ES&H Teamcenter - Lab Wide EDMS

    8. Teamcenter at Fermilab • Architecture: • Database Management System • Team Data Management (TDM) 5 unique databases • FERMI – Common TDM • TD, PPD, ADCS, ADMS - Departments • ~200K items ~150K Unique … • ~75K external DCS items (IDEAS dwg, ACAD, text) • ~100K Scanned TIFF Files • ~375K Total • (DCS – document control system) Teamcenter - Lab Wide EDMS

    9. Current Situation • CAD/CAM/CAE at Fermilab: • [Picture of Lab architecture] Teamcenter - Lab Wide EDMS

    10. Current Situation • CAD/CAM/CAE at Fermilab: • [Picture of Lab architecture] Teamcenter - Lab Wide EDMS

    11. Teamcenter at Fermilab • CAD/CAM/CAE at Fermilab: Teamcenter - Lab Wide EDMS

    12. Teamcenter at Fermilab • Architecture: • Existing 2 tier Architecture • Database Servers – SUN/UNIX/Oracle/3 Par SAN • Volumes – Windows Servers/BlueArc NAS • Clients – Windows Based (Rich Client) • Future: • 4 Tier – Collaborate with other labs and vendors • Web Tier – Thin Client • MS Office Integration • ETS Server • Update from Engineering to Unified Teamcenter - Lab Wide EDMS

    13. Current Situation Teamcenter - Lab Wide EDMS

    14. Current Situation Teamcenter - Lab Wide EDMS

    15. Teamcenter at Fermilab • Architecture: • Software: • Teamcenter Engineering 2007 a1 • Rich Client • WIP: • Web Tier (WebDAV for MS Office Integration) • Future: • Engineering to Unified • ETS Server • Thin Client • Customization for migration of Legacy Data Teamcenter - Lab Wide EDMS

    16. Teamcenter at Fermilab • Architecture: • Configuration: • People, Users, Groups, Roles, Volumes • General Engineering Documents • Safety Item • ES&H Engineering Documents • Job Request • Projects • Design Item Teamcenter - Lab Wide EDMS

    17. Teamcenter at Fermilab • Architecture: • WIP: • Migrate IDEAS Test Data • Manufacturing Item • Beta Test DesignItem • Future: • Analysis Item • Quality Item • Maintenance Item • Requirements Item Teamcenter - Lab Wide EDMS

    18. Teamcenter at Fermilab • Licensing: • Author – Read and Write • Consumer – Read with Approve and Release • Community – SharePoint plug-in to TC • Originally - 101 Author Licenses • Team • Stanek, Metz, Parker, Andree, Borowski, Bruce, Koncelik, Kaletka • Costs Orig. – $1.3M for 500 seats • Costs Now – $425K for 1200 Author, 600 Consumer, 300 Community Teamcenter - Lab Wide EDMS

    19. Teamcenter at Fermilab • Licensing: Teamcenter - Lab Wide EDMS

    20. Teamcenter at Fermilab • Implementation Status - Match Teamcenter with Engineering Process: Teamcenter - Lab Wide EDMS

    21. Teamcenter at Fermilab • Implementation Status: • One Lab Wide Data Vault • One set of workflows • Revisioning • Release Status • ~100 milestones Teamcenter - Lab Wide EDMS

    22. Teamcenter at Fermilab • SafetyItem: • ES&H Documents • FMEA • Hazard Analysis Teamcenter - Lab Wide EDMS

    23. Teamcenter at Fermilab • JobRequest: • Design Authorization Teamcenter - Lab Wide EDMS

    24. Teamcenter at Fermilab • DesignItem: • CAD Model • CAD Drawing • CAD Assembly Teamcenter - Lab Wide EDMS

    25. Teamcenter at Fermilab • DesignItem: • CAD Model • CAD Drawing • CAD Assembly Teamcenter - Lab Wide EDMS

    26. Teamcenter at Fermilab • MfgItem: • CAM Model (Wave Linked CAD Model) • Tool Paths • Tool Lists • Tool Setup • M&G Codes Teamcenter - Lab Wide EDMS

    27. Teamcenter at Fermilab • Items to be Developed: • Requirements Item • Requirements • Specifications • Analysis Item • ANSYS Results • Reports • Engineering Calculations • Technical Specifications • Posters Teamcenter - Lab Wide EDMS

    28. Teamcenter at Fermilab • Items to be Developed: • Quality Item • Travelers • Inspection Data • Testing Procedures • Assembly Procedures • Material Specifications • Maintenance Item • Operating Procedures • Operating Manuals • Maintenance Records Teamcenter - Lab Wide EDMS

    29. Obstacles and Opportunities • Obstacles: • Directorate Support • Division Resources • Consulting Money Teamcenter - Lab Wide EDMS

    30. Obstacles and Opportunities • Obstacles: • Directorate Support • Require push from top to move culture Teamcenter - Lab Wide EDMS

    31. Obstacles and Opportunities • Obstacles: • Division Resources • Need subject matter experts from each division to: • Remove unneeded data • Clean old data • Help in migration process • Agree on common workflow processes Teamcenter - Lab Wide EDMS

    32. Obstacles and Opportunities • Obstacles: • Consulting Money • Timely implementation will require consulting services • Second set of eyes to make sure we are implementing correctly Teamcenter - Lab Wide EDMS

    33. Obstacles and Opportunities • Obstacles - Consulting: • Evaluate current configuration and Items prior to production • DesignItem Evaluation • Legacy pseudo-folder in Item Master • ETS Installation • JT – Released Models • CGM – Released Drawings • PDF – Released Drawings (2D Drawings, 3D Models) • IGES/STEP – Released Models (Future) • Migration Strategy – IDEAS/DCS • 2 tier to 4 tier upgrade • Engineering to Unified upgrade Teamcenter - Lab Wide EDMS

    34. Obstacles and Opportunities • Obstacles - Consulting: • Legacy Data Folder Teamcenter - Lab Wide EDMS

    35. Obstacles and Opportunities • Obstacles – Consulting Expectations: • Experiences in • Teamcenter • IDEAS Integration • NX • Schedule Flexibility • Local Offices • Implementation Experiences • ETS • Custom Programming • 2 Tier to 4 Tier • Engineering to Unified • Part of Licensing Deal; 80-120 hours of Siemens consulting Teamcenter - Lab Wide EDMS

    36. Obstacles and Opportunities • Opportunities: • New Look at Hardware • SharePoint Interface • Client Performance (Workstation speed, LAN,…) • 4-Tier – WAN Performance • Record EDMS • LDAP Teamcenter - Lab Wide EDMS

    37. Computing Division Role • CD’s Role: • Purchased licensing - Kaletka • Site wide software (100 vs 1000 licenses) • Expand team • Revisit existing plan and make adjustments • Policy statement Teamcenter - Lab Wide EDMS

    38. Questions, Comments, Next Steps • Questions/Comments: • Next Steps: • CD • Intro. Meeting • Other… • Tony • Updating Implementation Plan • Policy Statement • Beta Test for DesignItem • Update Experimental system to Unified • Rich • Meet with Vicky Teamcenter - Lab Wide EDMS
