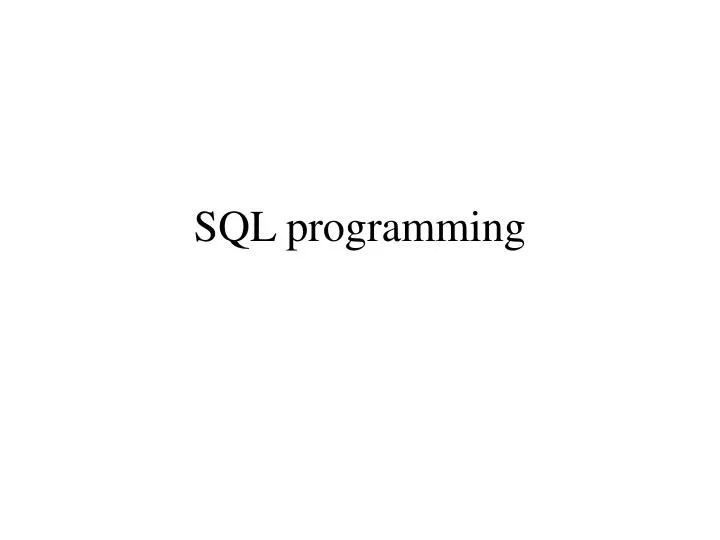

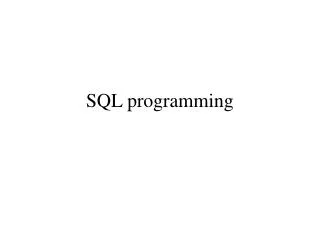

  1. SQL programming

  2. Transactions in Procedures • On the surface – very easy. • If everything goes well (at end): • COMMIT: • If things go badly (at end): • ROLLBACK; • Problem is controlling bad outcomes: • Handling exceptions • Giving useful feedback

  3. Simple example – with Commit SQL> CREATE OR REPLACE PROCEDURE add_patient (pat_id in char, pat_name in char, pat_address in char, pat_dobirth in date, pat_regdate in date) 2 AS 3 BEGIN 4 insert into patient(pid,pname,address,dobirth,date_reg) values(pat_id,pat_name,pat_address,pat_dobirth,pat_regdate); 5 DBMS_OUTPUT.PUT_LINE ('Insert attempted'); 6 COMMIT; 7 END; 8 / Procedure created.

  4. Review of Assignment Procedure • Asked to add a procedure to add vaccination data • Generate: • one successful run • three unsuccessful runs • Here review closely results of run

  5. ADD_VACC procedure SQL> CREATE OR REPLACE PROCEDURE add_vacc (pat_id in char, vis_vdate in date, vis_act in number, vac_vacc in char) 2 AS 3 BEGIN 4 insert into vaccinations(pid,vdate,action,vaccinated) values(pat_id,vis_vdate,vis_act,vac_vacc); 5 DBMS_OUTPUT.PUT_LINE ('Insert attempted'); 6 END; 7 / Procedure created.

  6. Successful Run 1a SQL> execute add_vacc('2','16-dec-1999',3,'cholera'); PL/SQL procedure successfully completed. SQL> select * from vaccinations 2 where pid = '2' and action = 3; PID VDATE ACTION VACCINATED ------ --------- ---------- -------------------- 2 06-AUG-91 3 polio 2 16-DEC-99 3 cholera SQL> commit; Commit complete.

  7. Successful Run 1b • No error messages • Message ‘PL/SQL procedure successfully completed’ is significant. It means: • Any exception raised during run has been properly handled • Does not necessarily mean data has been added successfully • COMMIT should have been last line in procedure • Here user has made decision to commit

  8. Unsuccessful Run 1a SQL> execute add_vacc('2','16-dec-1999',1,'cholera'); BEGIN add_vacc('2','16-dec-1999',1,'cholera'); END; * ERROR at line 1: ORA-00001: unique constraint (CGNR1.PKVAC) violated ORA-06512: at "CGNR1.ADD_VACC", line 4 ORA-06512: at line 1

  9. Unsuccessful Run 1b • Error message returned: • ORA-00001 indicates non-unique primary key value • Text message ‘unique constraint violated’ spells out nature of problem • CGNR1.PKVAC is name of constraint in CREATE TABLE definition for Vaccinations • constraint pkvac primary key (pid,vdate,action) • Note no message about successful completion. • Does not necessarily mean unsuccessful addition • Means that exception raised in INSERT operation has not been handled within the procedure

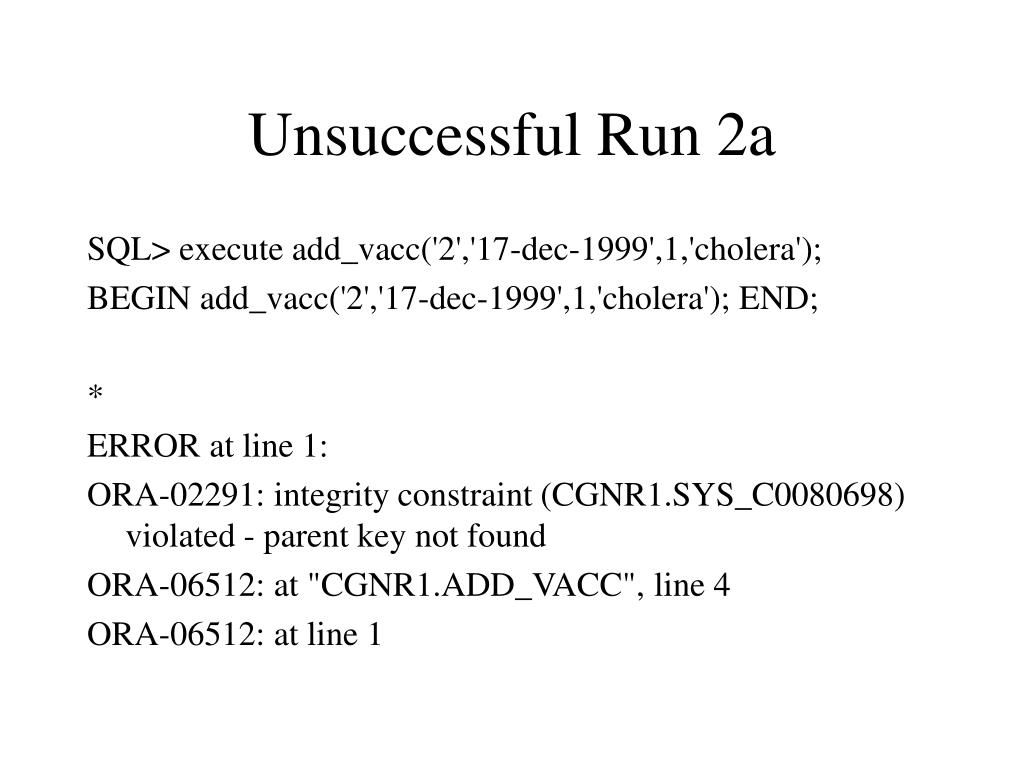

  10. Unsuccessful Run 2a SQL> execute add_vacc('2','17-dec-1999',1,'cholera'); BEGIN add_vacc('2','17-dec-1999',1,'cholera'); END; * ERROR at line 1: ORA-02291: integrity constraint (CGNR1.SYS_C0080698) violated - parent key not found ORA-06512: at "CGNR1.ADD_VACC", line 4 ORA-06512: at line 1

  11. Unsuccessful Run 2b • Error message returned: • ORA-02291 indicates foreign key entered does not match a primary key value (in visits) • Text message ‘parent key not found’ spells out nature of problem • foreign key(pid,vdate) REFERENCES visits(pid,vdate); • CGNR1.SYS_C0080698 is name of constraint • Named constraints give more information • Again no message about successful completion • As exception not handled

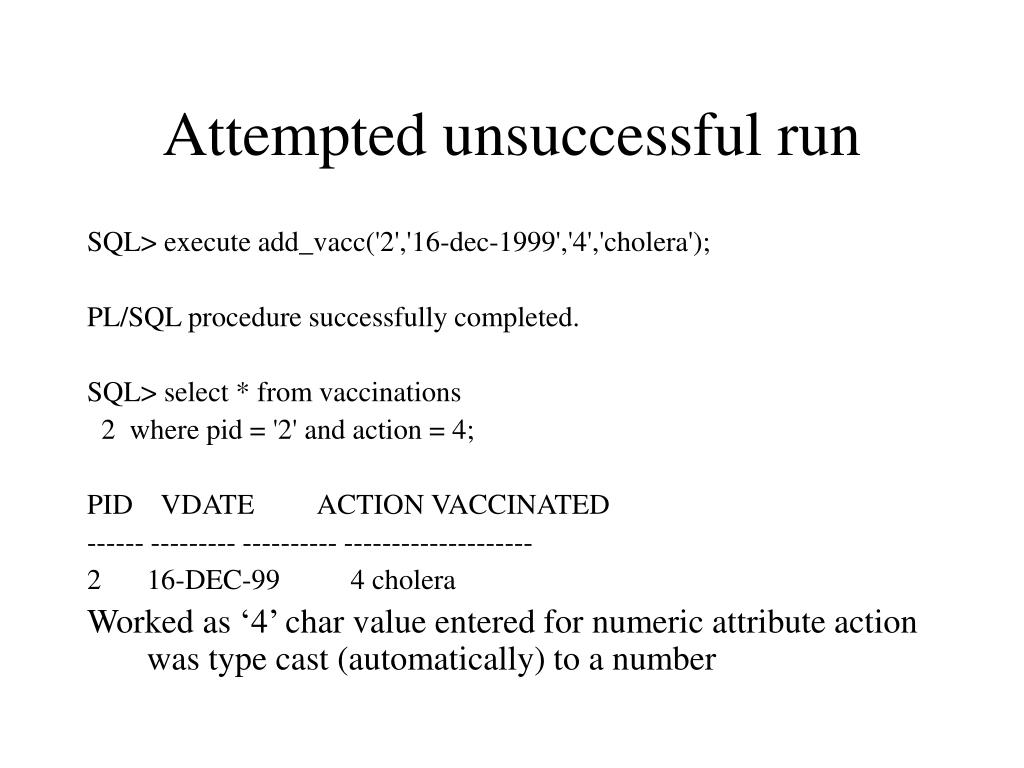

  12. Attempted unsuccessful run SQL> execute add_vacc('2','16-dec-1999','4','cholera'); PL/SQL procedure successfully completed. SQL> select * from vaccinations 2 where pid = '2' and action = 4; PID VDATE ACTION VACCINATED ------ --------- ---------- -------------------- • 16-DEC-99 4 cholera Worked as ‘4’ char value entered for numeric attribute action was type cast (automatically) to a number

  13. Unsuccessful Run 3a SQL> execute add_vacc('2','16-dec-1999','4',cholera); BEGIN add_vacc('2','16-dec-1999','4',cholera); END; * ERROR at line 1: ORA-06550: line 1, column 38: PLS-00201: identifier 'CHOLERA' must be declared ORA-06550: line 1, column 7: PL/SQL: Statement ignored

  14. Unsuccessful Run 3b • Error message returned: • ORA-06550 indicates non-declared identifier • Parameter value CHOLERA is not in quotes • Therefore taken as variable • Not declared to system • Again no message about successful completion • As exception not handled

  15. Exception Handling PL/SQL • Essential part of any program • Particularly needed for updates • open-ended nature of user inputs • But also needed for searches • e.g. may not find any matching data • An exception is raised when an operation: • fails to perform normally • A non-handled exception leads to program failure

  16. Exceptions Raised • With input particularly • Cannot specify all Oracle error codes in advance • Too many codes to specify • Some rule exceptions though can be emphasised • Need specific exceptions • And general (catch-all) exceptions

  17. Complete PL/SQL procedure • CREATE OR REPLACE PROCEDURE proc_name (parameters) AS • [DECLARE] local_vars • BEGIN • executable_code • EXCEPTION exception_code • END • /

  18. Explanation • Upper case -- literal (as is) • Lower case (to be substituted) • [DECLARE] omitted in procedures but part of full definition for PL/SQL • Executable_code • SQL commands, assignments, condition checking, text output, transactions • Exception_code: • event handling, transactions • proc_name is procedure name • local_vars are variables declared for use within procedure (standard SQL types + Boolean types)

  19. Example Procedure - part 1 CREATE OR REPLACE PROCEDURE add_patient (pat_id in char, pat_name in char, pat_address in char, pat_dobirth in date, pat_regdate in date) AS pid_too_high exception; PRAGMA EXCEPTION_INIT(pid_too_high,-20000); BEGIN insert into patient(pid,pname,address,dobirth,date_reg) values(pat_id,pat_name,pat_address,pat_dobirth,pat_regdate); DBMS_OUTPUT.PUT_LINE ('Insert attempted'); IF pat_id > '500' THEN RAISE pid_too_high; END IF; COMMIT;

  20. Example Procedure - part 2 EXCEPTION WHEN pid_too_high THEN DBMS_OUTPUT.PUT_LINE ('pid too high'); ROLLBACK; END; /

  21. Explanation 1 • pid_too_high exception; • variable pid_too_high of type exception (value true or false) • PRAGMA EXCEPTION_INIT(pid_too_high,-20000); • instruction to compiler • enables launch of further transaction to handle exception pid_too_high • IF pat_id > '500' THEN RAISE pid_too_high; END IF; • IF .. THEN … END IF construction • enforces a business rule that pid <= 500 by • raising exception pid_too_high when this state occurs

  22. Explanation 2 • EXCEPTION • opens exception handling part of procedure • WHEN … THEN …; • defines actions when a particular exception occurs

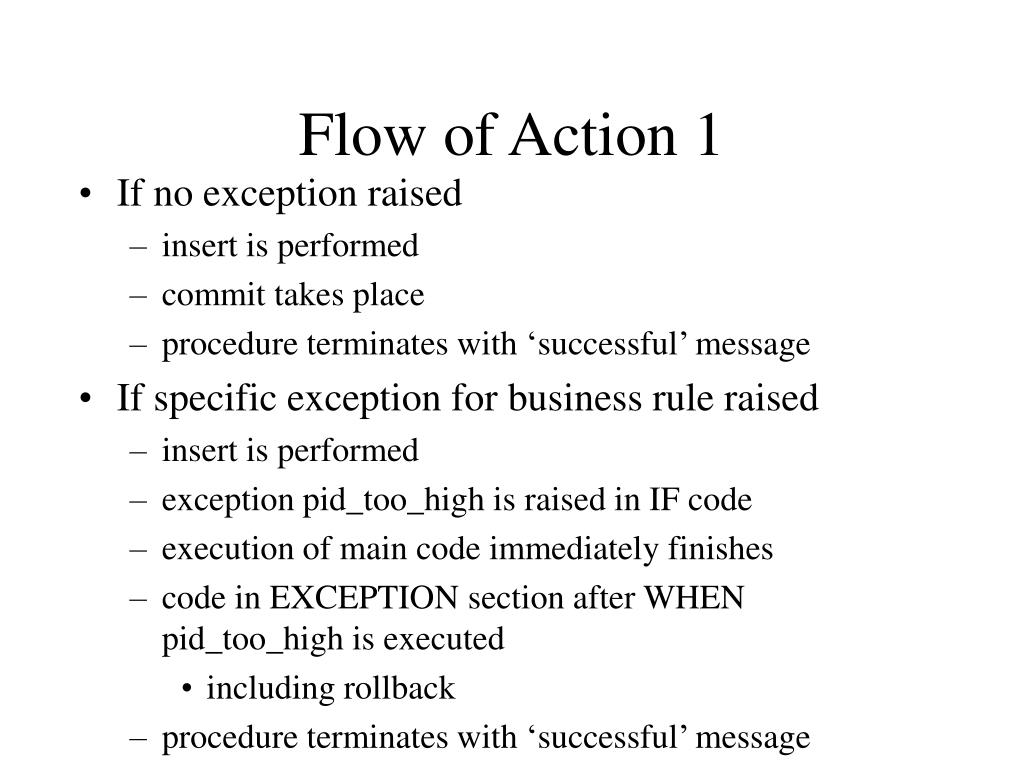

  23. Flow of Action 1 • If no exception raised • insert is performed • commit takes place • procedure terminates with ‘successful’ message • If specific exception for business rule raised • insert is performed • exception pid_too_high is raised in IF code • execution of main code immediately finishes • code in EXCEPTION section after WHEN pid_too_high is executed • including rollback • procedure terminates with ‘successful’ message

  24. Flow of Action 2 • If another exception raised (on insert e.g. primary key violation) • insert is not performed • exception is raised in procedure • execution of main code immediately finishes • As no further exception handlers are declared • procedure terminates with: • error reports • no ‘successful’ message • Need catch-all exception handlers
