Code Optimization II: Machine Independent Optimizations

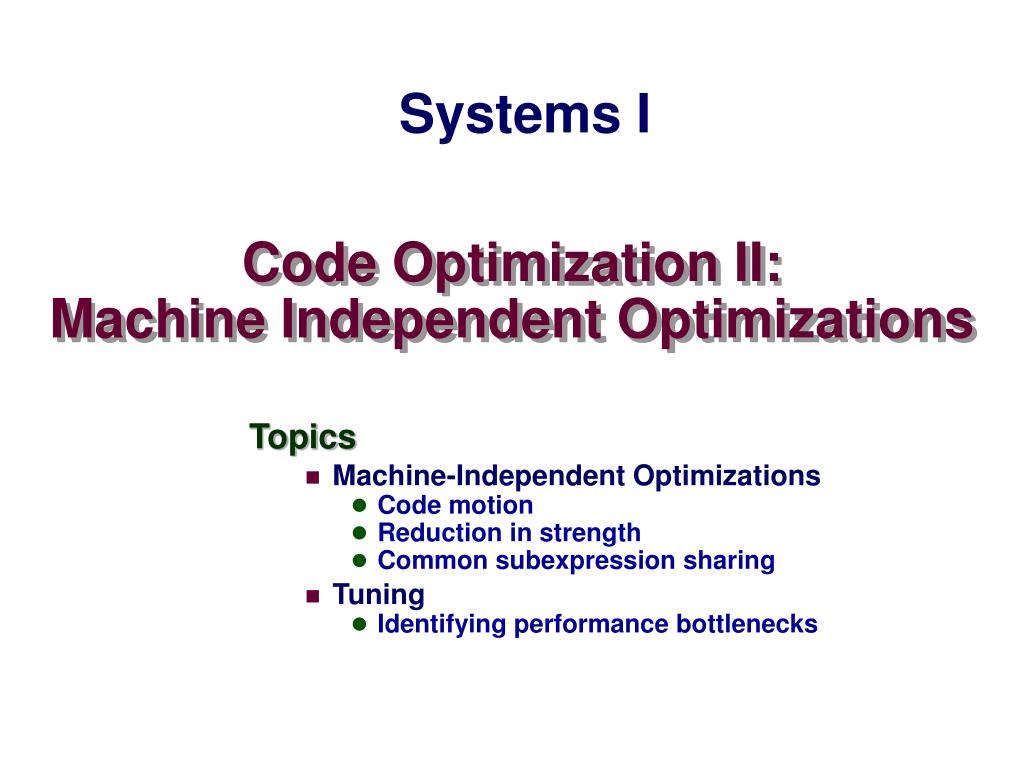

1. Code Optimization II:Machine Independent Optimizations Systems I • Topics • Machine-Independent Optimizations • Code motion • Reduction in strength • Common subexpression sharing • Tuning • Identifying performance bottlenecks

2. length 0 1 2 length–1 data    Vector ADT • Procedures vec_ptr new_vec(int len) • Create vector of specified length int get_vec_element(vec_ptr v, int index, int *dest) • Retrieve vector element, store at *dest • Return 0 if out of bounds, 1 if successful int *get_vec_start(vec_ptr v) • Return pointer to start of vector data • Similar to array implementations in Pascal, ML, Java • E.g., always do bounds checking

3. Optimization Example void combine1(vec_ptr v, int *dest) { int i; *dest = 0; for (i = 0; i < vec_length(v); i++) { int val; get_vec_element(v, i, &val); *dest += val; } } • Procedure • Compute sum of all elements of integer vector • Store result at destination location • Vector data structure and operations defined via abstract data type • Pentium II/III Performance: Clock Cycles / Element • 42.06 (Compiled -g) 31.25 (Compiled -O2)

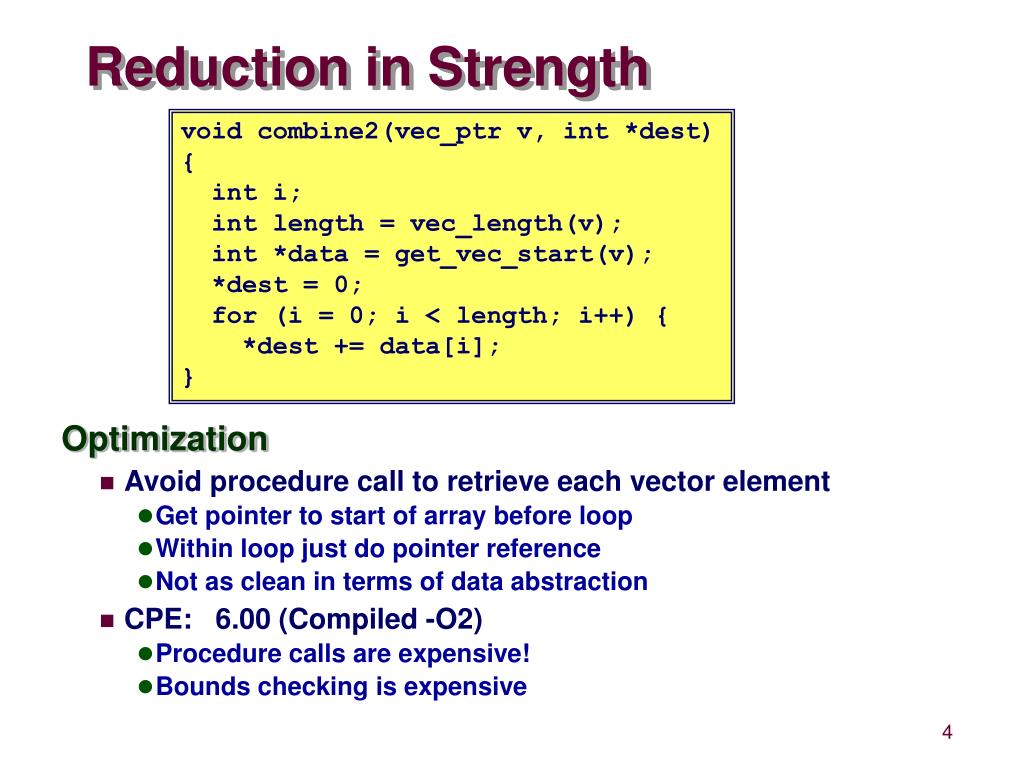

4. Reduction in Strength void combine2(vec_ptr v, int *dest) { int i; int length = vec_length(v); int *data = get_vec_start(v); *dest = 0; for (i = 0; i < length; i++) { *dest += data[i]; } • Optimization • Avoid procedure call to retrieve each vector element • Get pointer to start of array before loop • Within loop just do pointer reference • Not as clean in terms of data abstraction • CPE: 6.00 (Compiled -O2) • Procedure calls are expensive! • Bounds checking is expensive

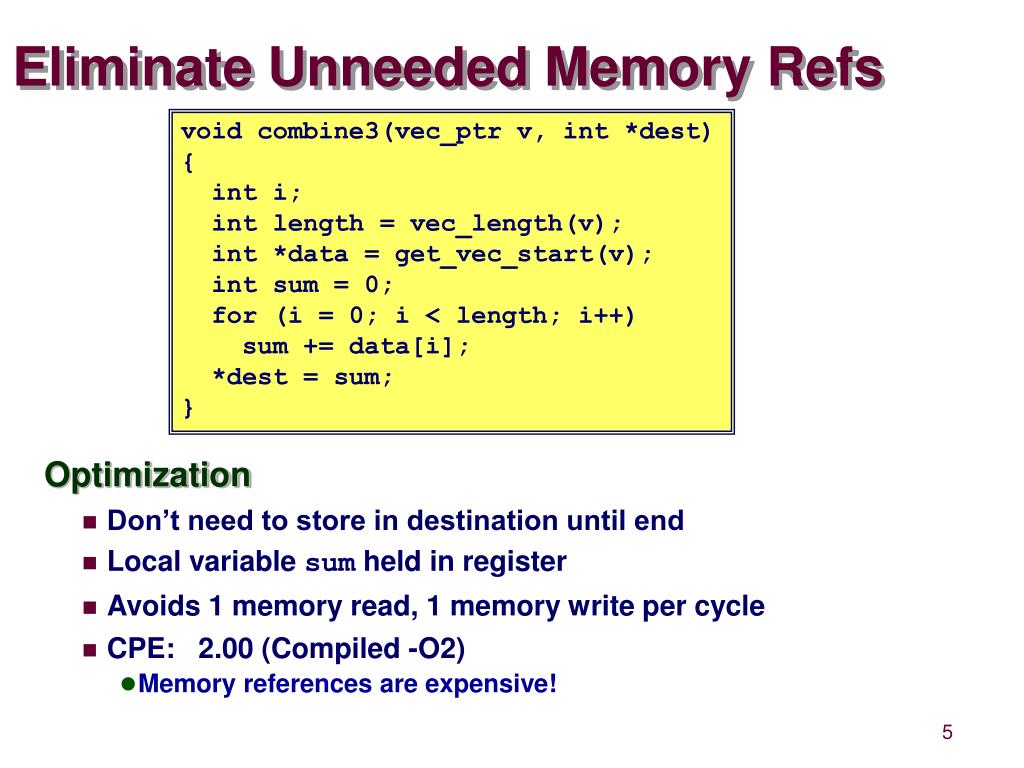

5. Eliminate Unneeded Memory Refs void combine3(vec_ptr v, int *dest) { int i; int length = vec_length(v); int *data = get_vec_start(v); int sum = 0; for (i = 0; i < length; i++) sum += data[i]; *dest = sum; } • Optimization • Don’t need to store in destination until end • Local variable sum held in register • Avoids 1 memory read, 1 memory write per cycle • CPE: 2.00 (Compiled -O2) • Memory references are expensive!

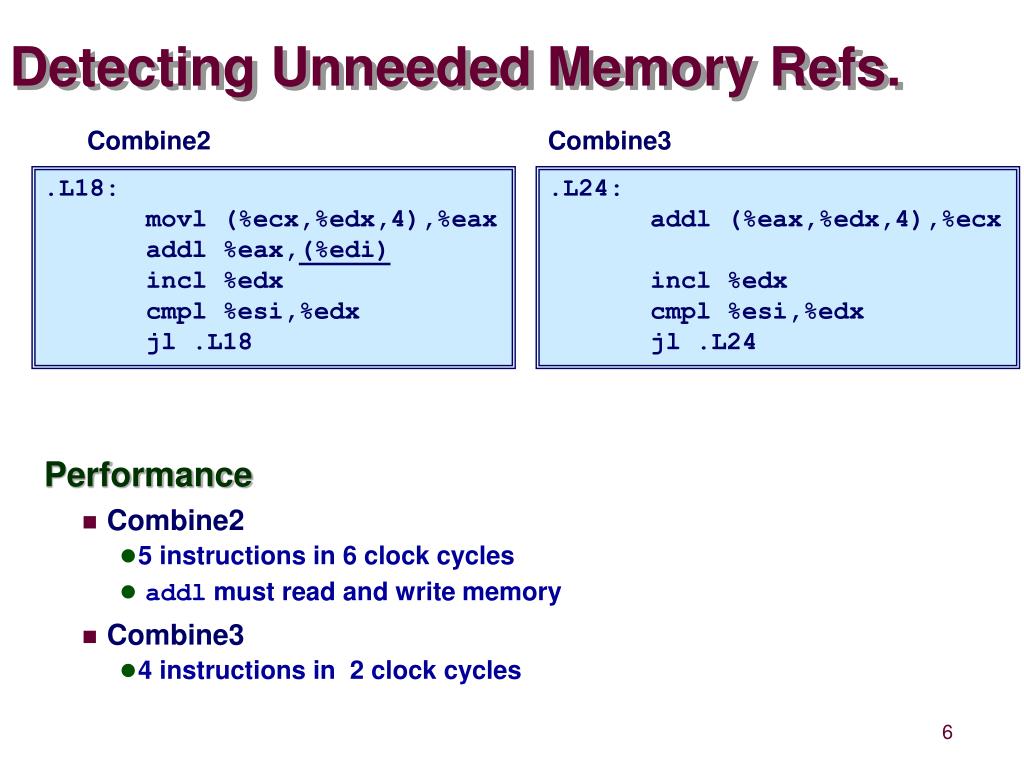

6. Detecting Unneeded Memory Refs. Combine2 Combine3 • Performance • Combine2 • 5 instructions in 6 clock cycles • addl must read and write memory • Combine3 • 4 instructions in 2 clock cycles .L18: movl (%ecx,%edx,4),%eax addl %eax,(%edi) incl %edx cmpl %esi,%edx jl .L18 .L24: addl (%eax,%edx,4),%ecx incl %edx cmpl %esi,%edx jl .L24

7. Optimization Blocker: Memory Aliasing • Aliasing • Two different memory references specify single location • Example • v: [3, 2, 17] • combine2(v, get_vec_start(v)+2) --> ? • combine3(v, get_vec_start(v)+2) --> ? • Observations • Easy to have happen in C • Since allowed to do address arithmetic • Direct access to storage structures • Get in habit of introducing local variables • Accumulating within loops • Your way of telling compiler not to check for aliasing

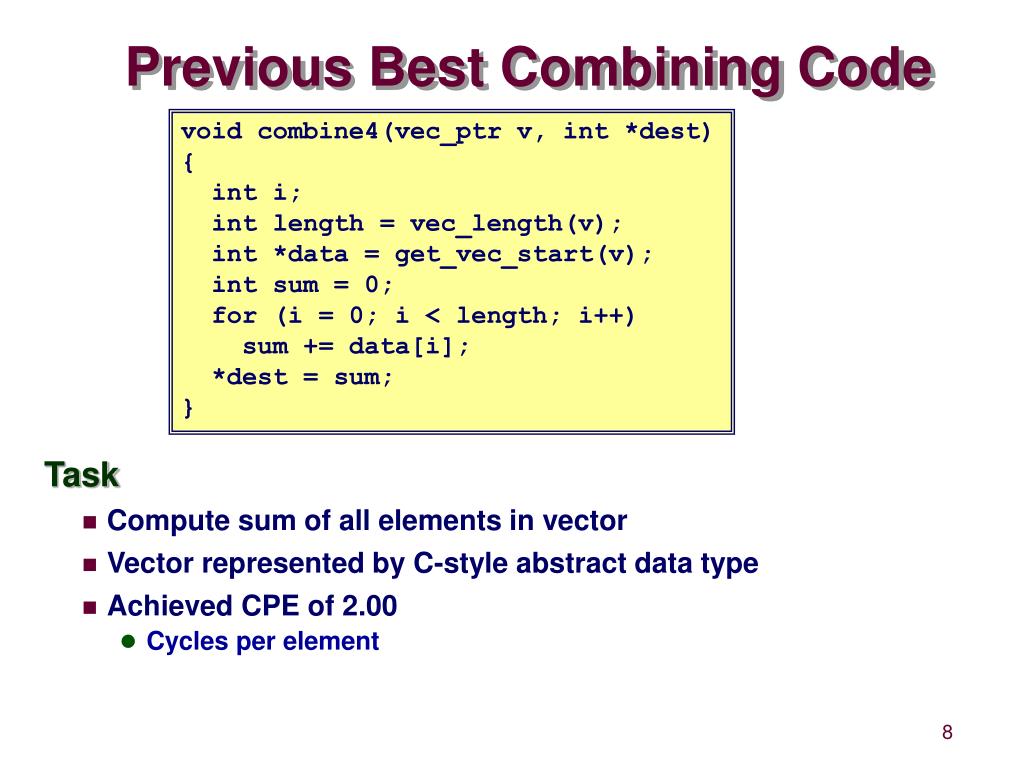

8. Previous Best Combining Code void combine4(vec_ptr v, int *dest) { int i; int length = vec_length(v); int *data = get_vec_start(v); int sum = 0; for (i = 0; i < length; i++) sum += data[i]; *dest = sum; } • Task • Compute sum of all elements in vector • Vector represented by C-style abstract data type • Achieved CPE of 2.00 • Cycles per element

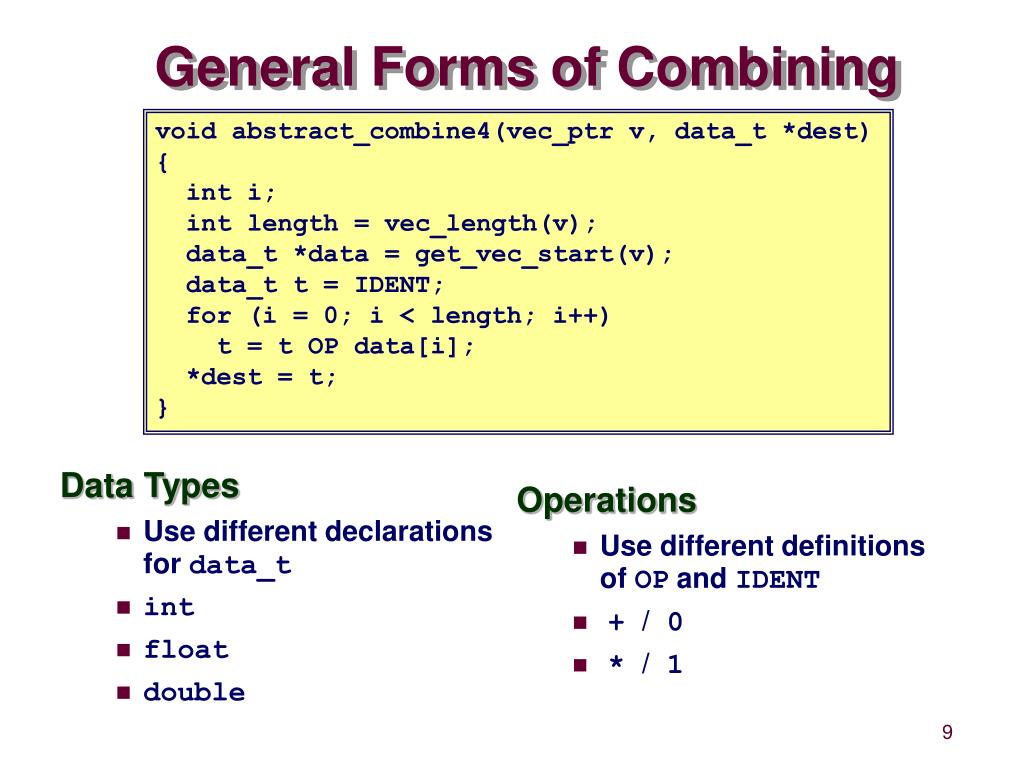

9. Data Types Use different declarations for data_t int float double Operations Use different definitions of OP and IDENT + / 0 * / 1 General Forms of Combining void abstract_combine4(vec_ptr v, data_t *dest) { int i; int length = vec_length(v); data_t *data = get_vec_start(v); data_t t = IDENT; for (i = 0; i < length; i++) t = t OP data[i]; *dest = t; }

10. Machine Independent Opt. Results • Optimizations • Reduce function calls and memory references within loop • Performance Anomaly • Computing FP product of all elements exceptionally slow. • Very large speedup when accumulate in temporary • Caused by quirk of IA32 floating point • Memory uses 64-bit format, register use 80 • Benchmark data caused overflow of 64 bits, but not 80

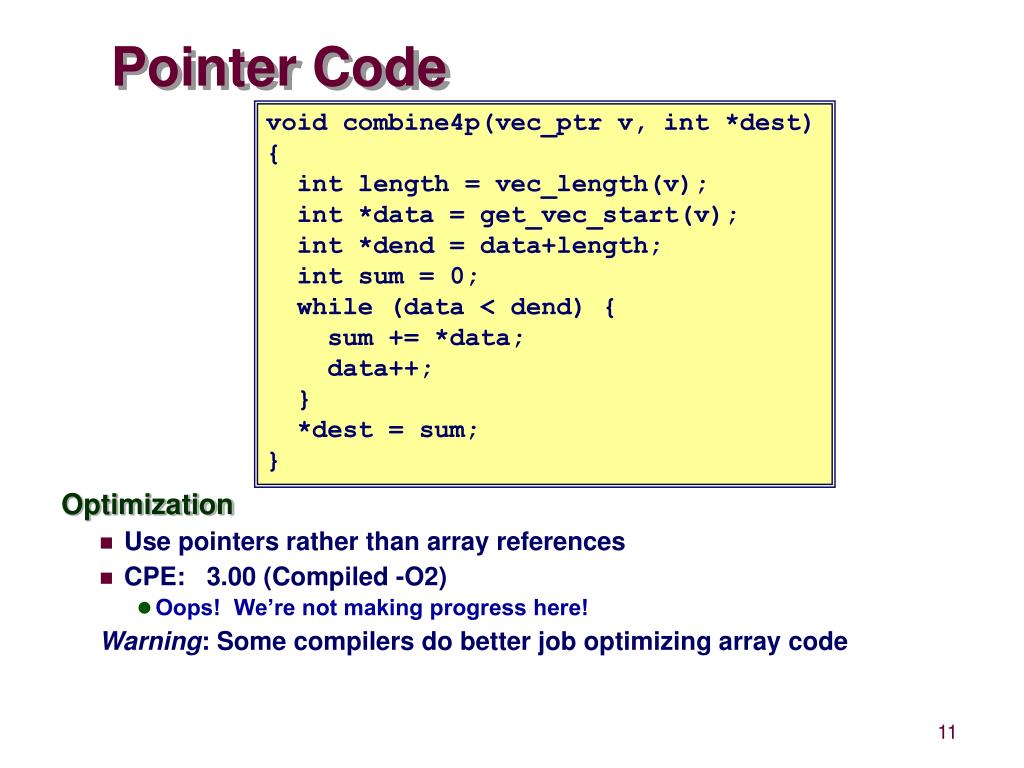

11. Pointer Code void combine4p(vec_ptr v, int *dest) { int length = vec_length(v); int *data = get_vec_start(v); int *dend = data+length; int sum = 0; while (data < dend) { sum += *data; data++; } *dest = sum; } • Optimization • Use pointers rather than array references • CPE: 3.00 (Compiled -O2) • Oops! We’re not making progress here! Warning: Some compilers do better job optimizing array code

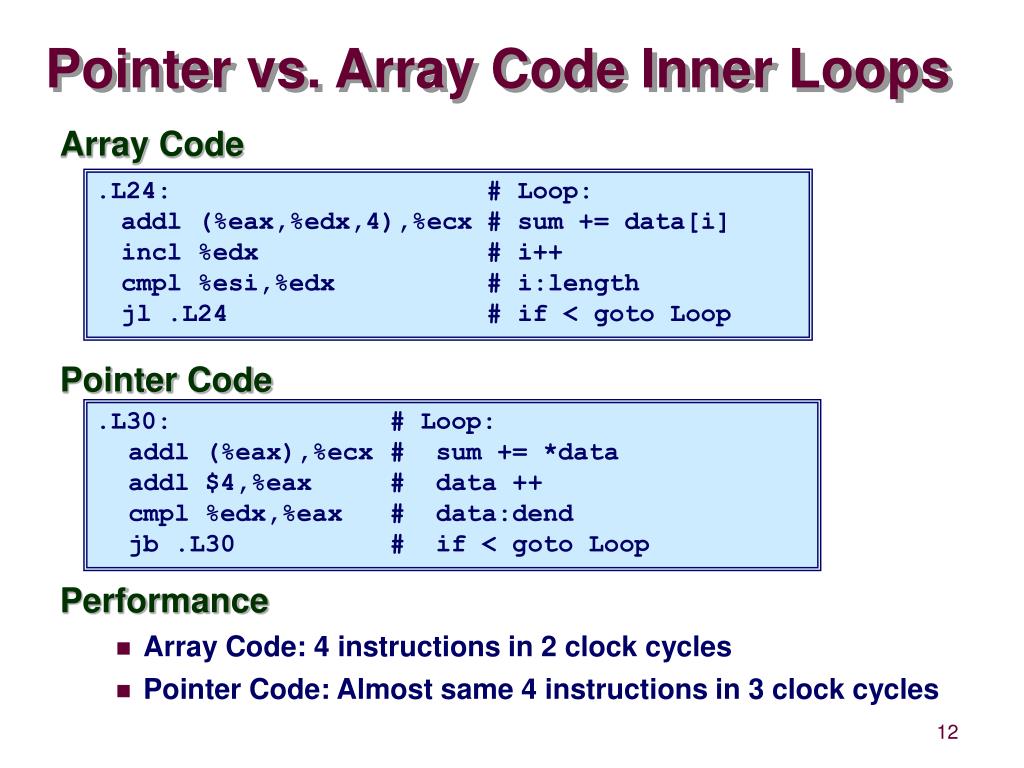

12. Pointer vs. Array Code Inner Loops • Array Code • Pointer Code • Performance • Array Code: 4 instructions in 2 clock cycles • Pointer Code: Almost same 4 instructions in 3 clock cycles .L24: # Loop: addl (%eax,%edx,4),%ecx # sum += data[i] incl %edx # i++ cmpl %esi,%edx # i:length jl .L24 # if < goto Loop .L30: # Loop: addl (%eax),%ecx # sum += *data addl $4,%eax # data ++ cmpl %edx,%eax # data:dend jb .L30 # if < goto Loop

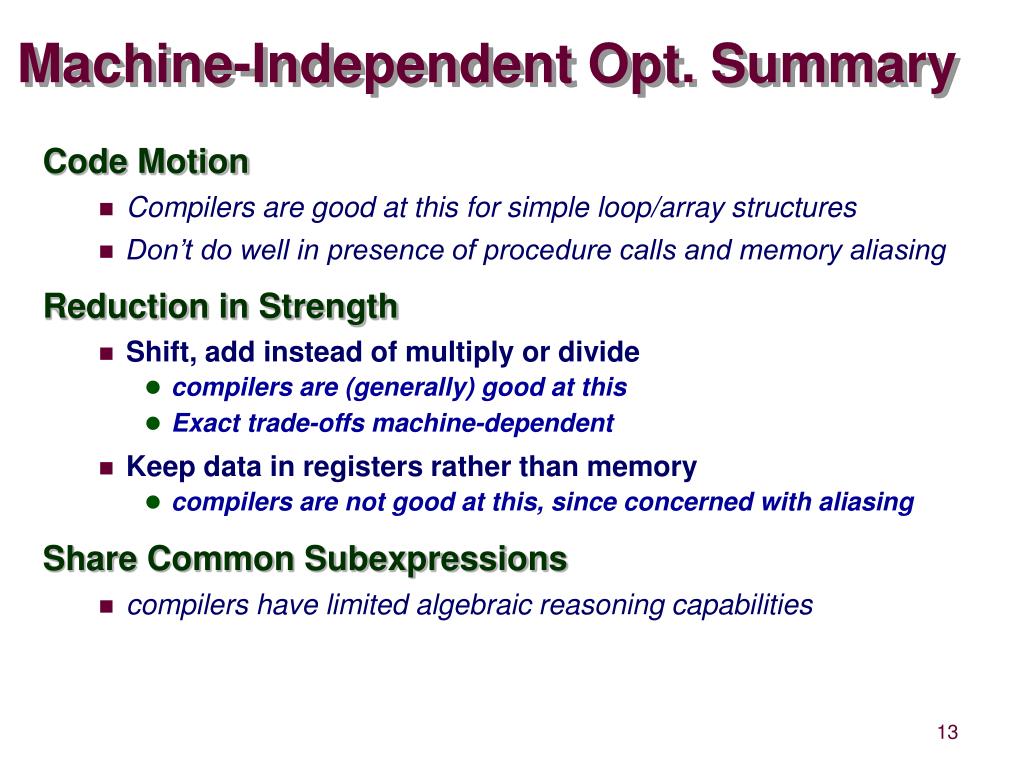

13. Machine-Independent Opt. Summary • Code Motion • Compilers are good at this for simple loop/array structures • Don’t do well in presence of procedure calls and memory aliasing • Reduction in Strength • Shift, add instead of multiply or divide • compilers are (generally) good at this • Exact trade-offs machine-dependent • Keep data in registers rather than memory • compilers are not good at this, since concerned with aliasing • Share Common Subexpressions • compilers have limited algebraic reasoning capabilities

14. Important Tools • Measurement • Accurately compute time taken by code • Most modern machines have built in cycle counters • Using them to get reliable measurements is tricky • Profile procedure calling frequencies • Unix tool gprof • Observation • Generating assembly code • Lets you see what optimizations compiler can make • Understand capabilities/limitations of particular compiler

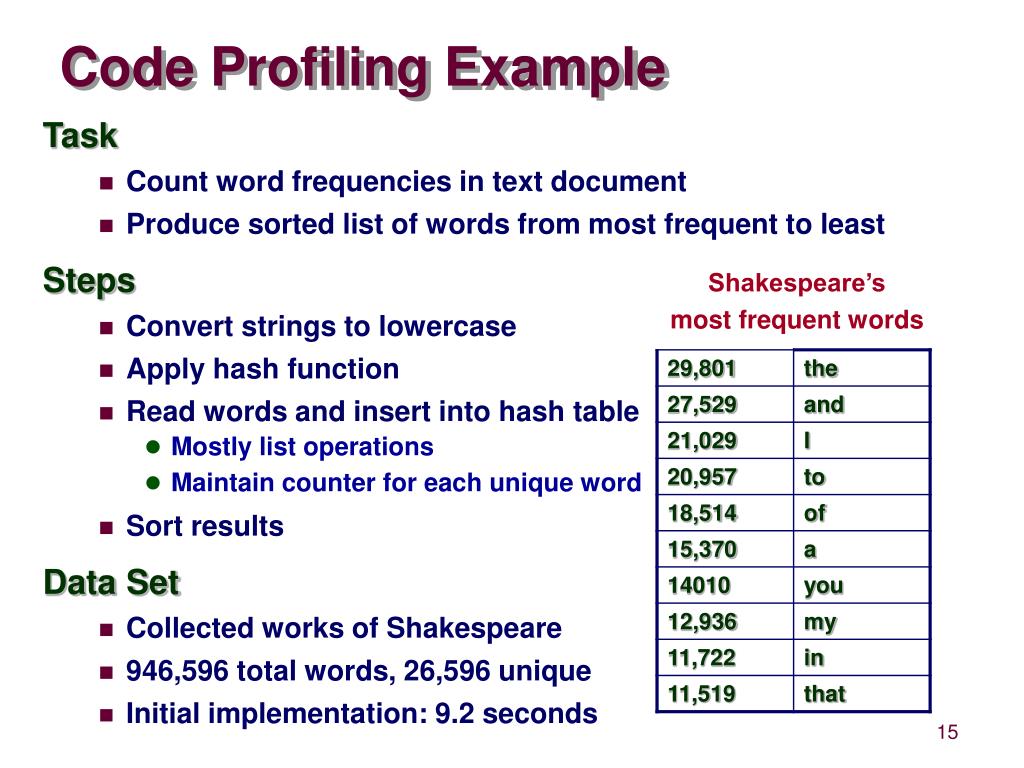

15. Code Profiling Example • Task • Count word frequencies in text document • Produce sorted list of words from most frequent to least • Steps • Convert strings to lowercase • Apply hash function • Read words and insert into hash table • Mostly list operations • Maintain counter for each unique word • Sort results • Data Set • Collected works of Shakespeare • 946,596 total words, 26,596 unique • Initial implementation: 9.2 seconds • Shakespeare’s • most frequent words

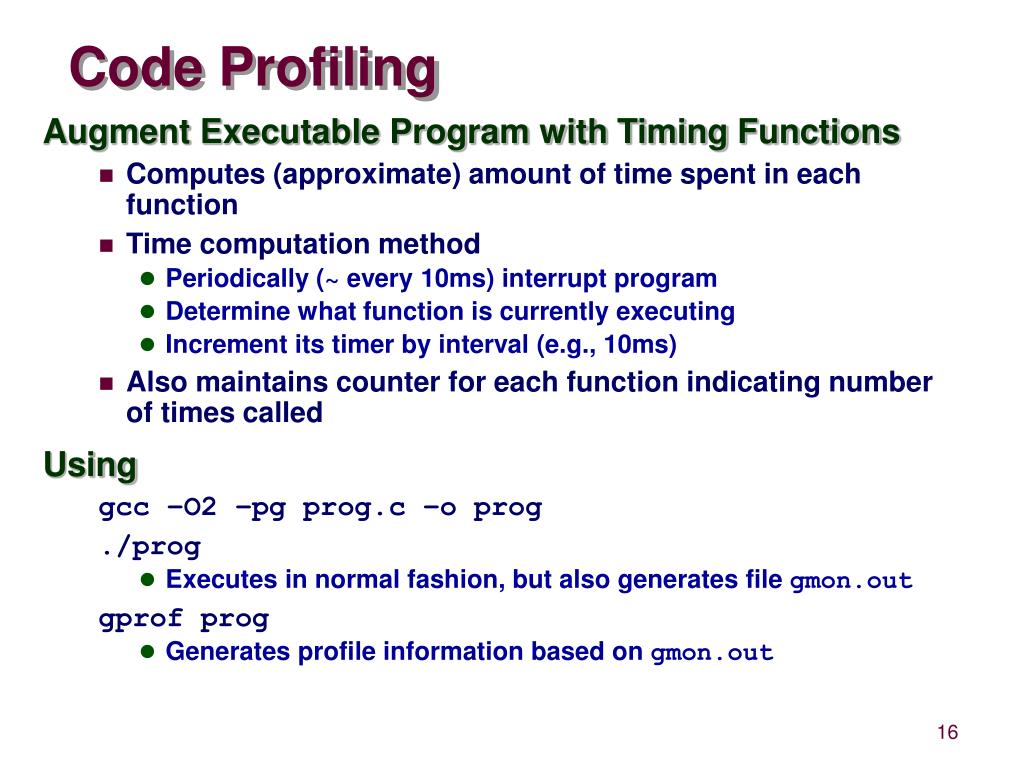

16. Code Profiling • Augment Executable Program with Timing Functions • Computes (approximate) amount of time spent in each function • Time computation method • Periodically (~ every 10ms) interrupt program • Determine what function is currently executing • Increment its timer by interval (e.g., 10ms) • Also maintains counter for each function indicating number of times called • Using gcc –O2 –pg prog.c –o prog ./prog • Executes in normal fashion, but also generates file gmon.out gprof prog • Generates profile information based on gmon.out

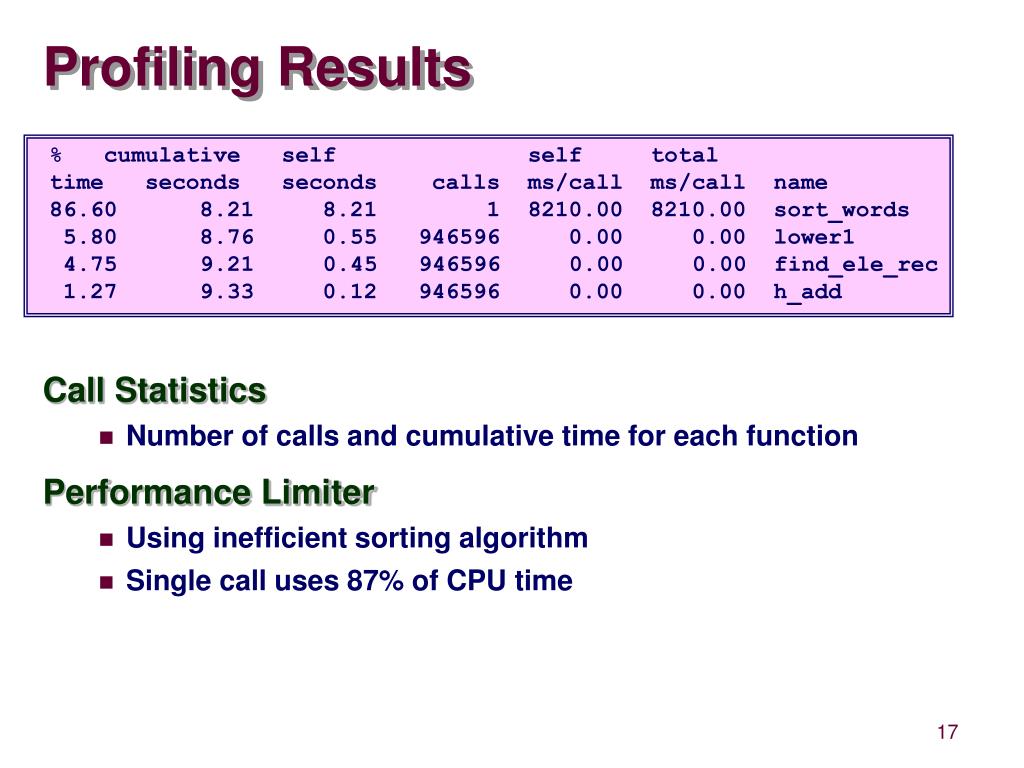

17. Profiling Results % cumulative self self total time seconds seconds calls ms/call ms/call name 86.60 8.21 8.21 1 8210.00 8210.00 sort_words 5.80 8.76 0.55 946596 0.00 0.00 lower1 4.75 9.21 0.45 946596 0.00 0.00 find_ele_rec 1.27 9.33 0.12 946596 0.00 0.00 h_add • Call Statistics • Number of calls and cumulative time for each function • Performance Limiter • Using inefficient sorting algorithm • Single call uses 87% of CPU time

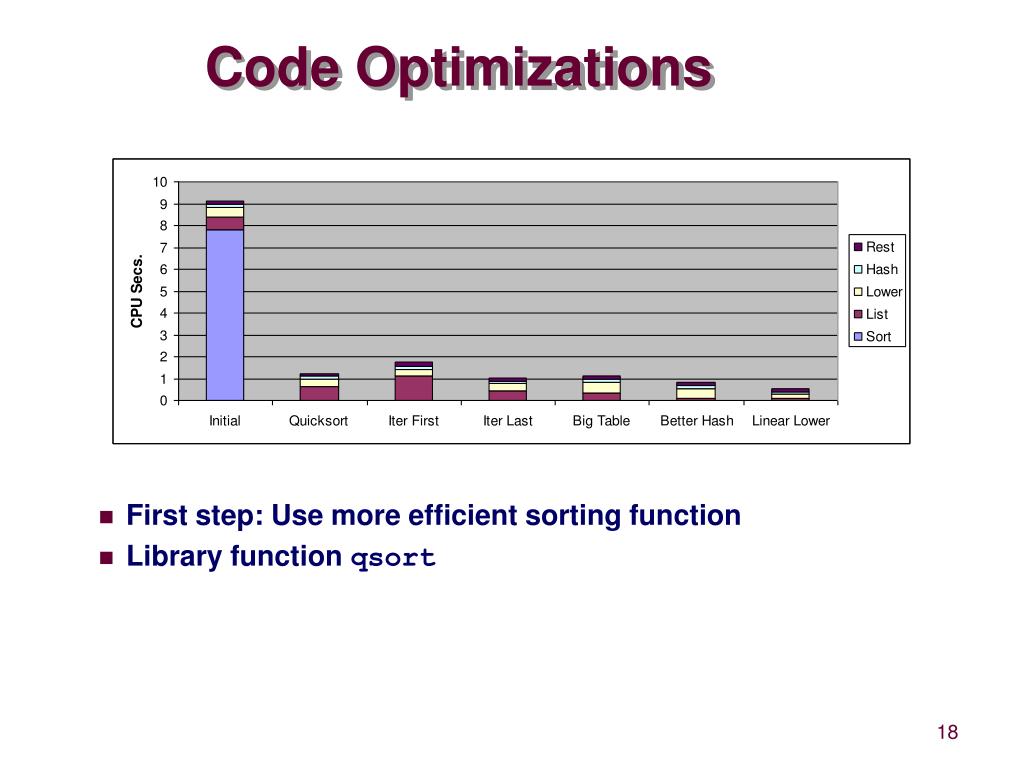

18. Code Optimizations • First step: Use more efficient sorting function • Library function qsort

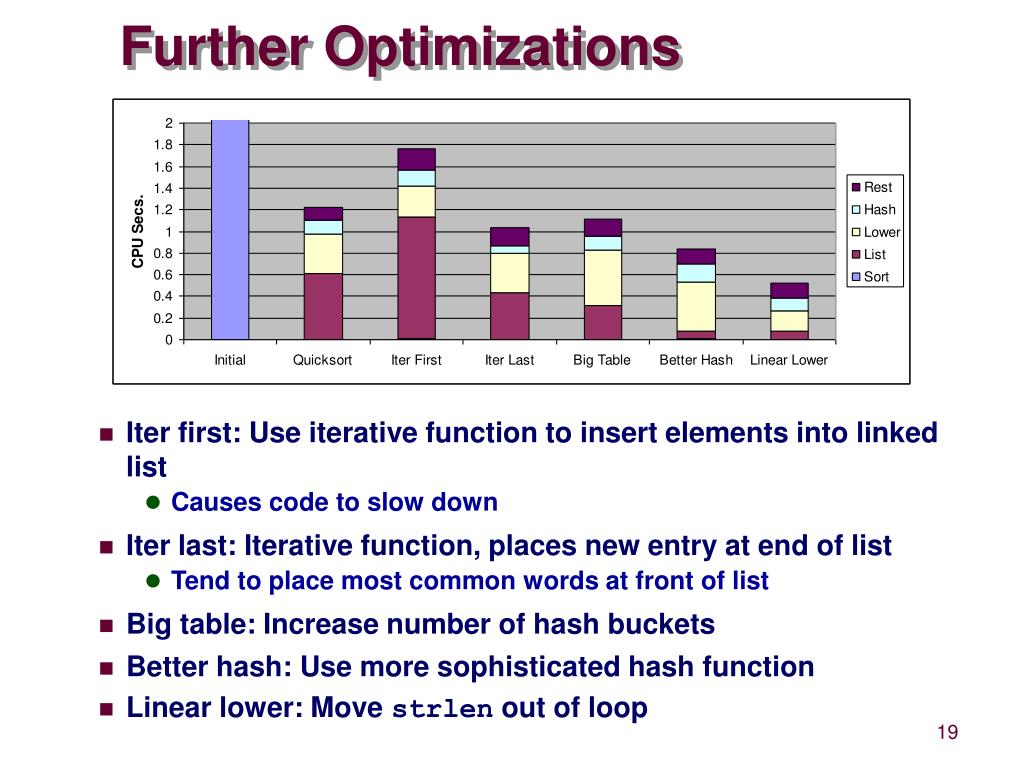

19. Further Optimizations • Iter first: Use iterative function to insert elements into linked list • Causes code to slow down • Iter last: Iterative function, places new entry at end of list • Tend to place most common words at front of list • Big table: Increase number of hash buckets • Better hash: Use more sophisticated hash function • Linear lower: Move strlen out of loop

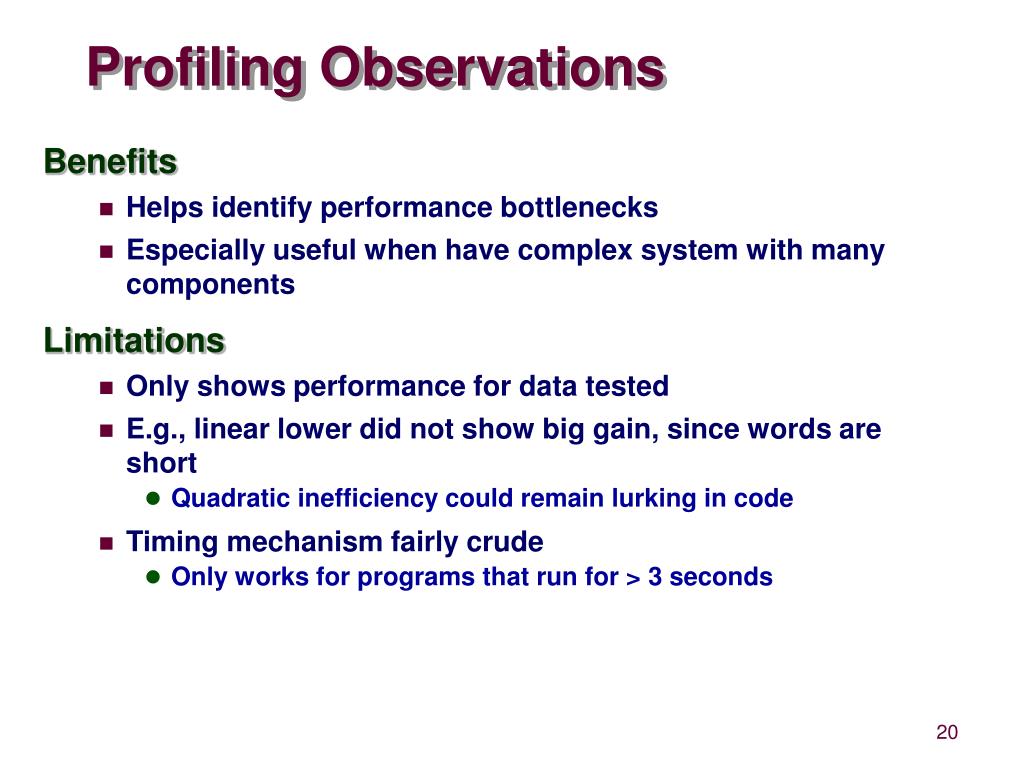

20. Profiling Observations • Benefits • Helps identify performance bottlenecks • Especially useful when have complex system with many components • Limitations • Only shows performance for data tested • E.g., linear lower did not show big gain, since words are short • Quadratic inefficiency could remain lurking in code • Timing mechanism fairly crude • Only works for programs that run for > 3 seconds

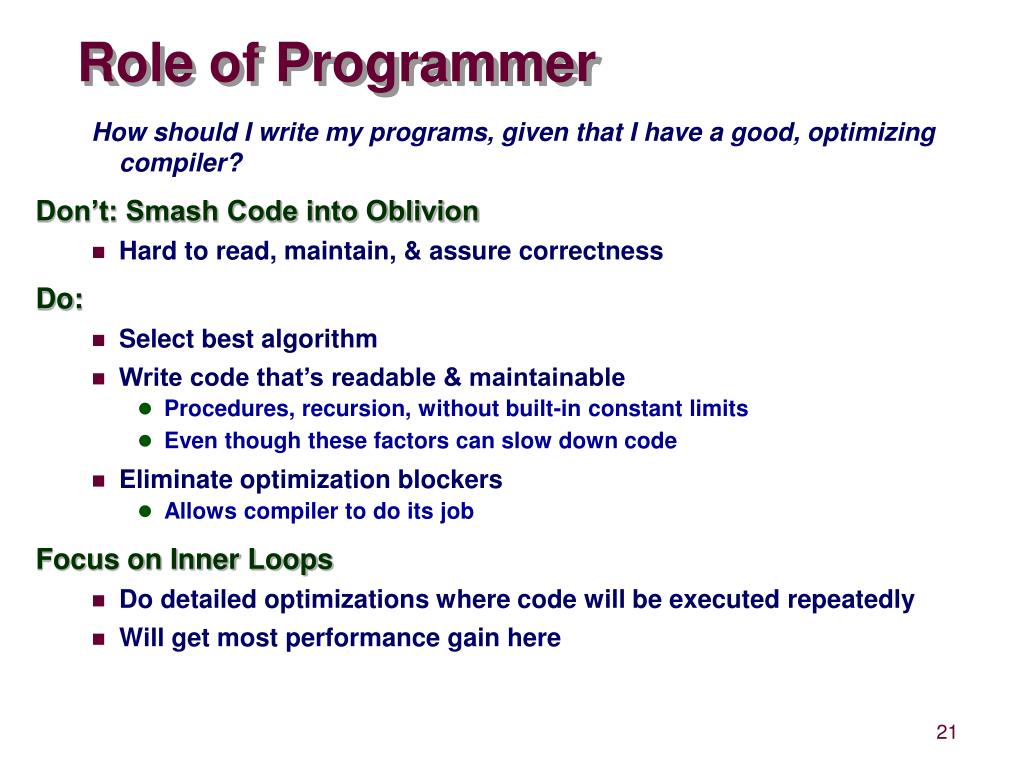

21. Role of Programmer How should I write my programs, given that I have a good, optimizing compiler? • Don’t: Smash Code into Oblivion • Hard to read, maintain, & assure correctness • Do: • Select best algorithm • Write code that’s readable & maintainable • Procedures, recursion, without built-in constant limits • Even though these factors can slow down code • Eliminate optimization blockers • Allows compiler to do its job • Focus on Inner Loops • Do detailed optimizations where code will be executed repeatedly • Will get most performance gain here

22. Summary • Today • Optimization blocker: procedure calls • Optimization blocker: memory aliasing • Tools (profiling) for understanding performance • Next time • Memory system optimization
