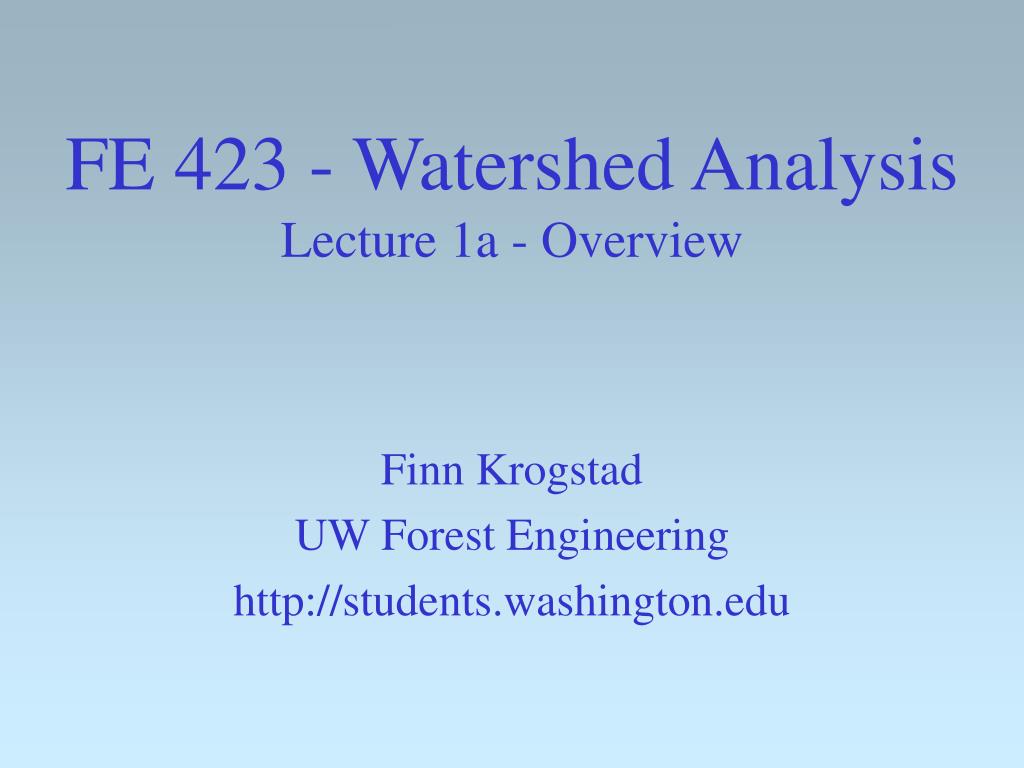

  1. FE 423 - Watershed AnalysisLecture 1a - Overview Finn Krogstad UW Forest Engineering http://students.washington.edu

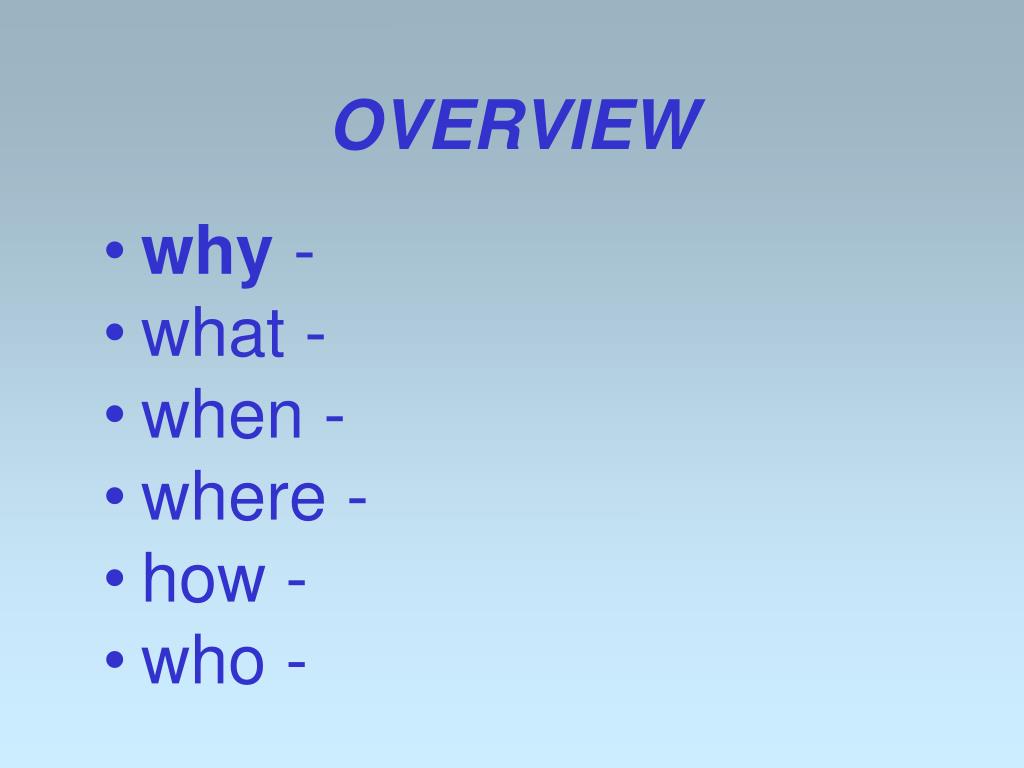

  2. OVERVIEW • why - • what - • when - • where - • how - • who -

  3. EARLY MANAGEMENT • Management was done with little consideration of environmental impacts

  4. Early Regulations • Case-by-case evaluation of roads, harvests, and locations • Still dominates forest management today

  5. Watershed Analysis • APPROACH - basin specific • where are the hazards • what are they sensitive to • will they reach the stream • are there sensitive reaches • are vulnerable fish there • do inputs exceed background


  6. Watershed Analysis • PROBLEMS • Massive expert time • Site-by-site investigation • Stop being watershed specific • Site, not landscape plans • Is plan A worse than plan B?

  7. Goal: Comparing Landscape Options

  8. OVERVIEW • why - spatial approach • what - • when - • where - • how - • who -

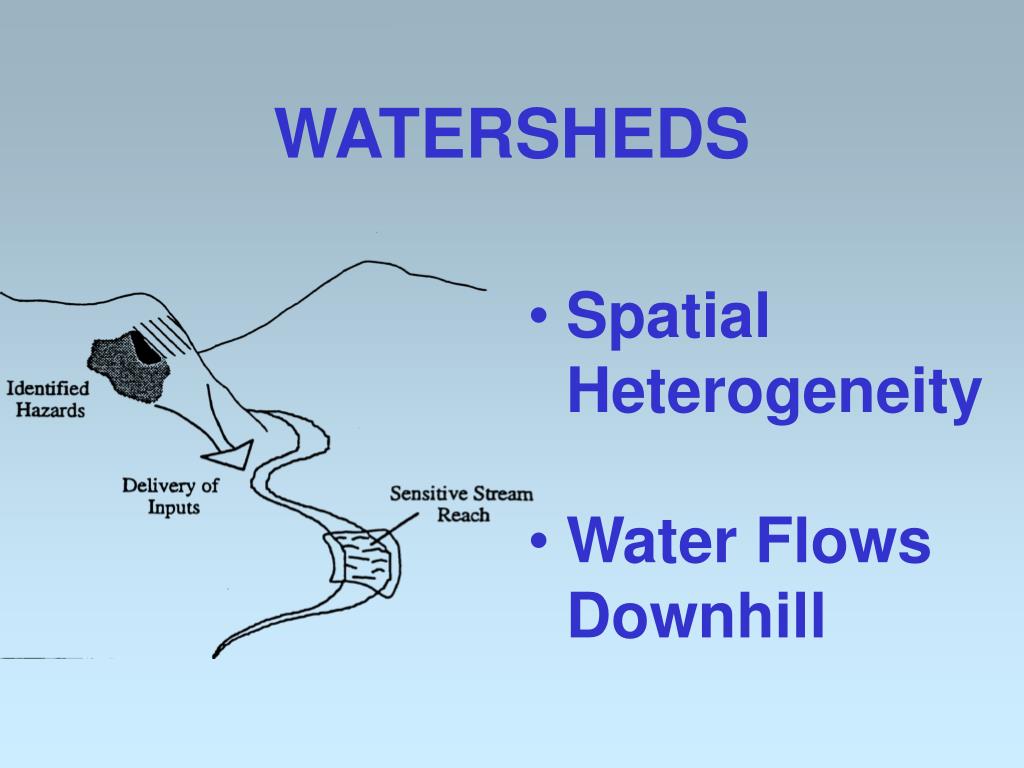

  9. WATERSHEDS • Spatial Heterogeneity • Water Flows Downhill

  10. EACH POINT HAS UNIQUE: • Vegetation • Soil • Slope • Aspect • Upslope Area • Distance to Stream • Management

  11. ‘DOWNHILL’ IMPACTS • Saturating Hillslopes • Erosion Runoff Filtering • Stream Flow Volumes • Stream Width & Depth • Sediment Supply • Fish Habitat

  12. WE NEED 1a. Data for each point in the watershed 1b. Calculate processes at each point 2a. Sum outputs from upslope area 2b. Sum ‘delivery costs’ to stream

  13. Spreadsheets - The Most Powerful Scientific Tool Ever Developed 1. Bring in data 2. Run calculations 3. Display results Originally was: Programming for Accountants

  14. GRID: the Spreadsheet for Landscapes 1. Bring in spatial data (soils, vegetation, topography, ) 2. Run equations 3. Display results ArcView: not just pretty pictures

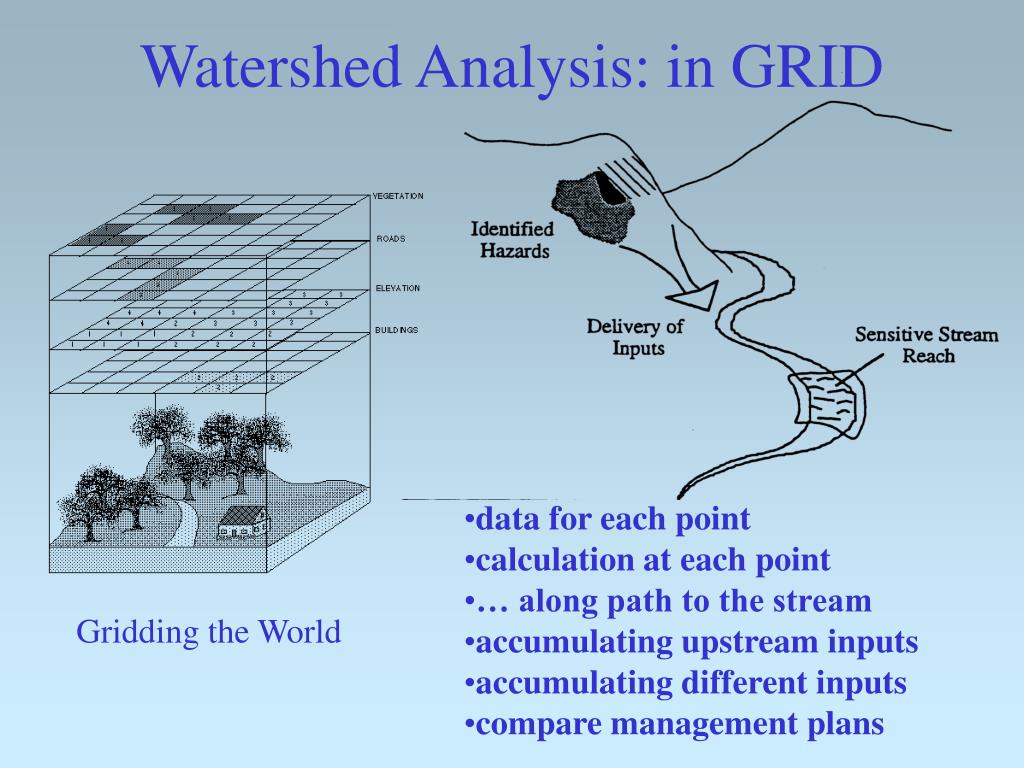

  15. Gridding the World Watershed Analysis: in GRID • data for each point • calculation at each point • … along path to the stream • accumulating upstream inputs • accumulating different inputs • compare management plans

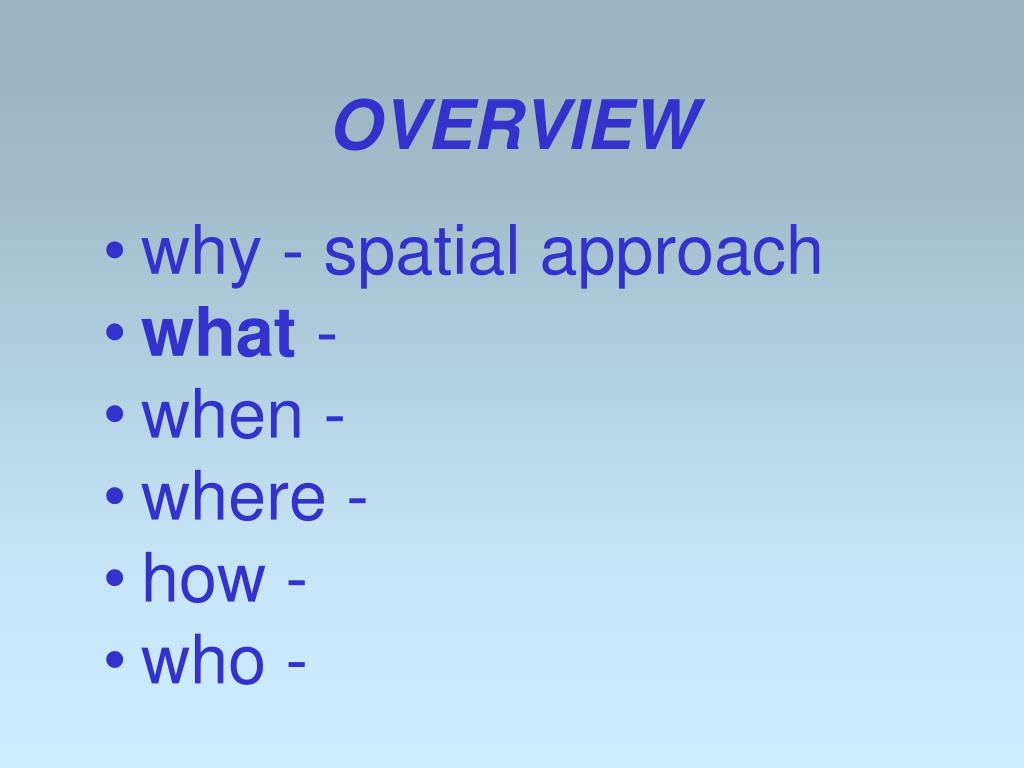

  16. OVERVIEW • why - spatial approach • what - downhill in GIS • when - • where - • how - • who -

  17. SCHEDULE

  18. OVERVIEW • why - spatial approach • what - downhill in GIS • when - schedule • where - • how - • who -

  19. SYLLABUS OSB

  20. OVERVIEW • why - spatial approach • what - downhill in GIS • when - schedule • where - OSB 111 • how - • who -

  21. SYLLABUS Instructors: Finn Krogstad, Peter Schiess Grading:FE423: three exams (33% each)FE523: three exams and a project (25% each) Lectures: Tuesday & Thursday, 9:30-11:20, in OSB 111 (except first day in AND 302) Exams:Each exam will include an in-class and a take-home part. The in-class part is open book, open note, pencil-and-paper discussion of grid-based solution of watershed problems. The take-home part which will require solution of problems. Practice Problems:Each lecture will include a set of problems to provide hands-on experience in the grid-based approach to solving watershed problems. These problems are not handed in, but the exams will look much like these problems, and will assume that students have completed all problems.

  22. READINGS • Hard copy of the online helpCell Based Modeling with GRID • People without ArcView experienceGetting to know ArcView GIS • Another view of Spatial Analyst Extending Arcview GIS • Some Hydrology and Geomorphology Water in Environmental Planning, Watershed Analysis Manual (WFPB) Geomorphology (Chorley, et al)

  23. OVERVIEW • why - spatial approach • what - downhill in GIS • when - schedule • where - OSB 111 • how - syllabus • who -

  24. Why Watershed Analysis in GRID? • PROBLEMS • not a survey class: an approach, not ‘facts’ • learning GIS: requires work • existing software: more accurate ‘black boxes’ • ADVANTAGES • quantitative approach: actually ‘say something’ • insight into process: applicable to many issues • GIS skills: applicable to other types of problems

  25. Should you take this course? • Spatial Hydrology • Landscape Scale • More GIS

  26. Discussion Problems:for Thursday, try and be ready to discuss the following Make a spreadsheet that will estimate the peak flow Q5=.157*A.9*Pa1.35*F-.21 for a five year storm in Region XII, using a table of road crossings with their respective contributing area A, percent forest cover F, and annual rainfall Pa.
