Presentation Transcript
Physics 7c ss1 lecture 2 wave model

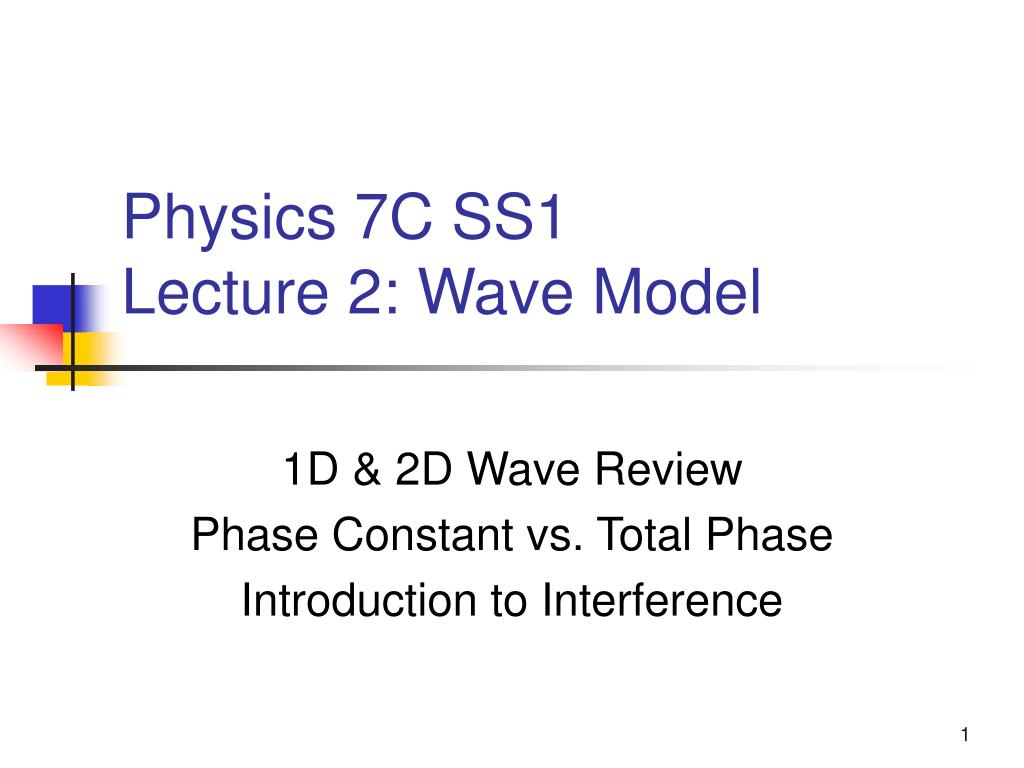

Physics 7C SS1Lecture 2: Wave Model

1D & 2D Wave Review

Phase Constant vs. Total Phase

Introduction to Interference

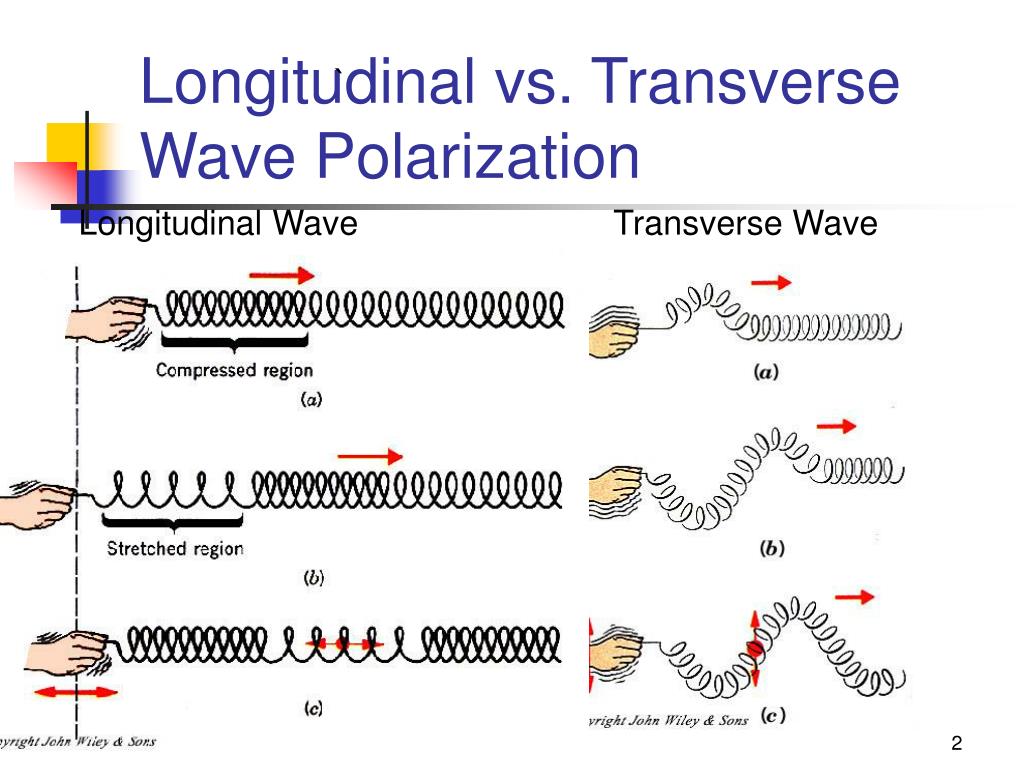

Longitudinal vs transverse wave polarization

`

Longitudinal vs. Transverse Wave Polarization

Longitudinal Wave

Transverse Wave

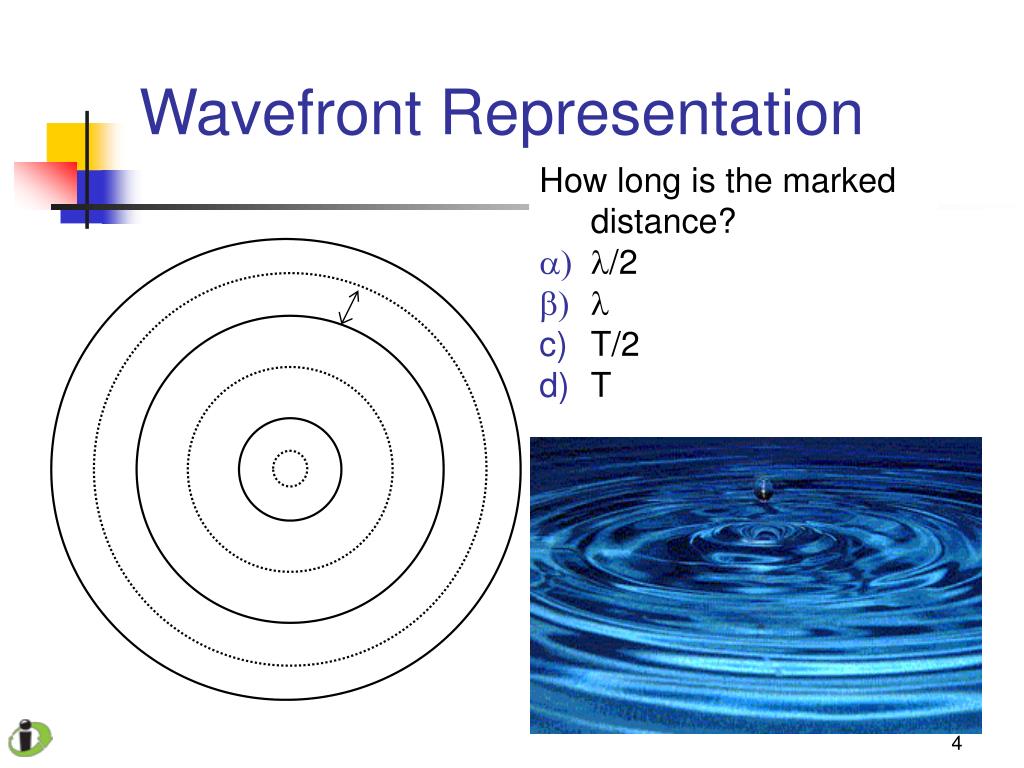

Wavefront representation1
Wavefront Representation

How long is the marked distance?

/2

T/2

T

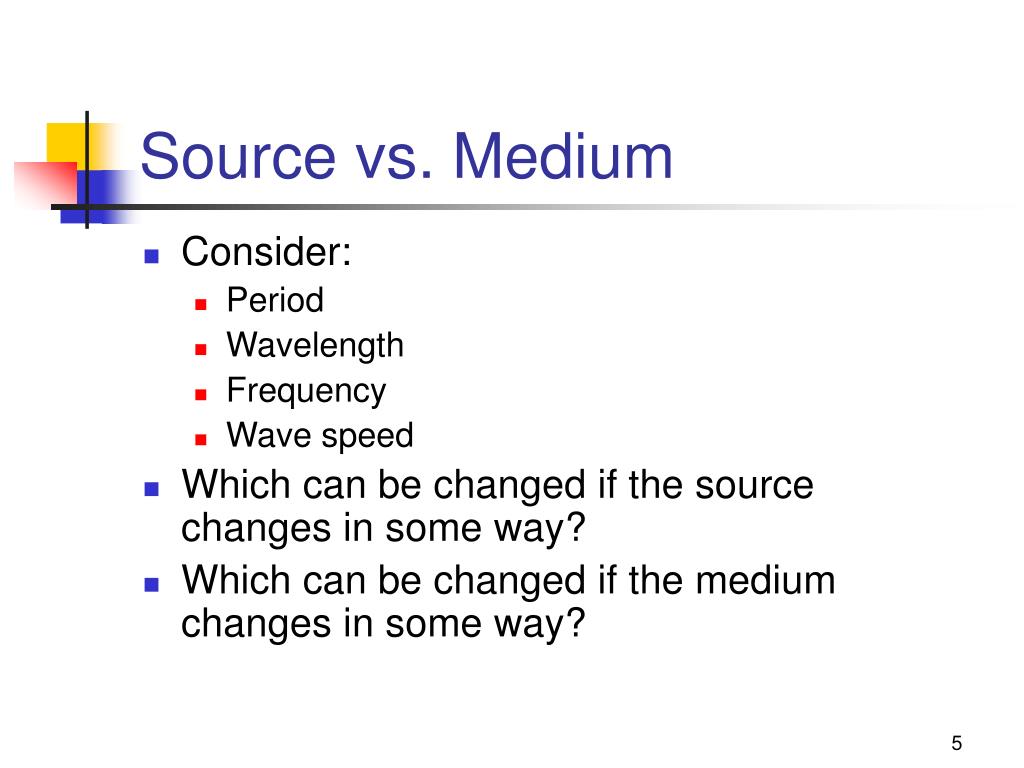

Source vs medium
Source vs. Medium

  • Consider:

    • Period

    • Wavelength

    • Frequency

    • Wave speed

  • Which can be changed if the source changes in some way?

  • Which can be changed if the medium changes in some way?

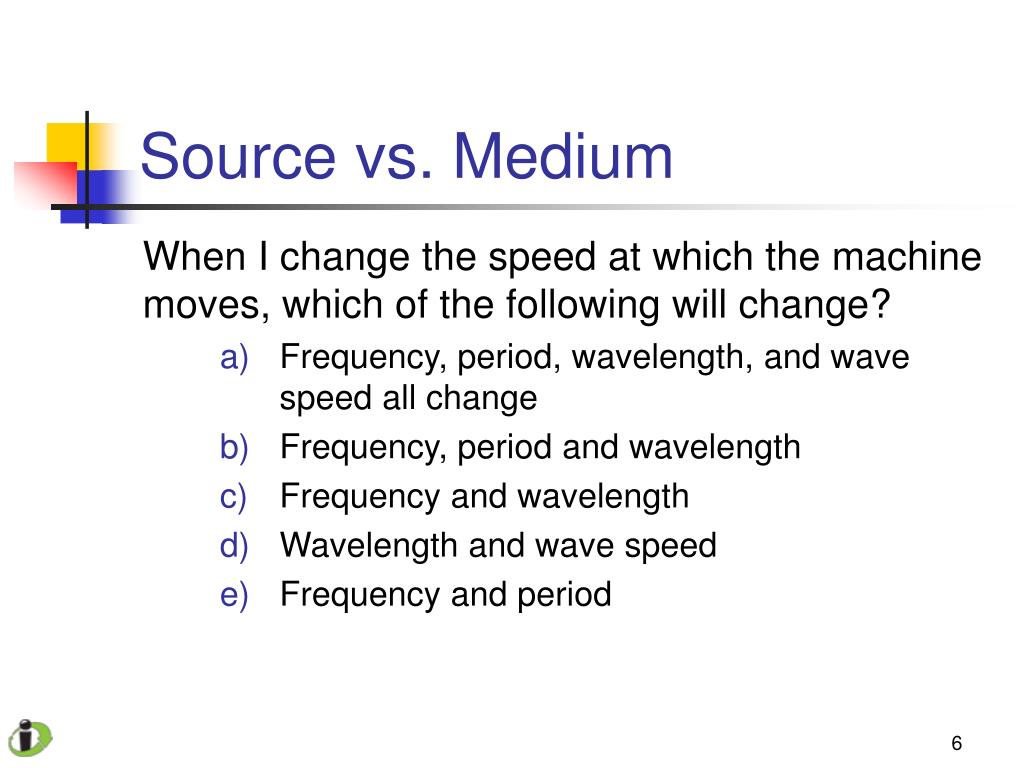

Source vs medium1
Source vs. Medium

When I change the speed at which the machine moves, which of the following will change?

  • Frequency, period, wavelength, and wave speed all change

  • Frequency, period and wavelength

  • Frequency and wavelength

  • Wavelength and wave speed

  • Frequency and period


Waves review
Waves review

  • Wave displacement depends on where AND when (x and t)!

  • What are we graphing anyway?

Check out “longitudinal traveling wave” application; Link on web page!


Total phase
Total Phase

Which of the following includes only points with a total phase of exactly/2?

  • All

  • ABC

  • ADG

  • AEH

  • ACF


Total phase1
Total Phase

Which of the following includes only points with a total phase equivalent to /2?

  • All

  • ABC

  • ADG

  • AEH

  • ACF

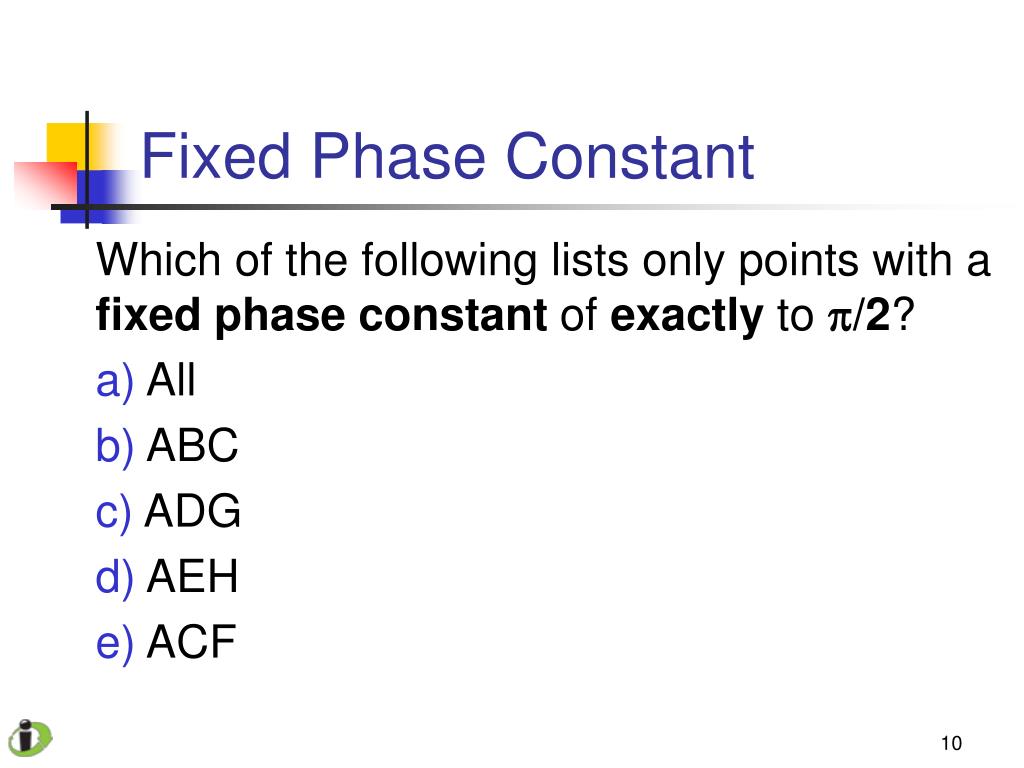

Fixed phase constant
Fixed Phase Constant

Which of the following lists only points with a fixed phase constant of exactly to/2?

  • All

  • ABC

  • ADG

  • AEH

  • ACF

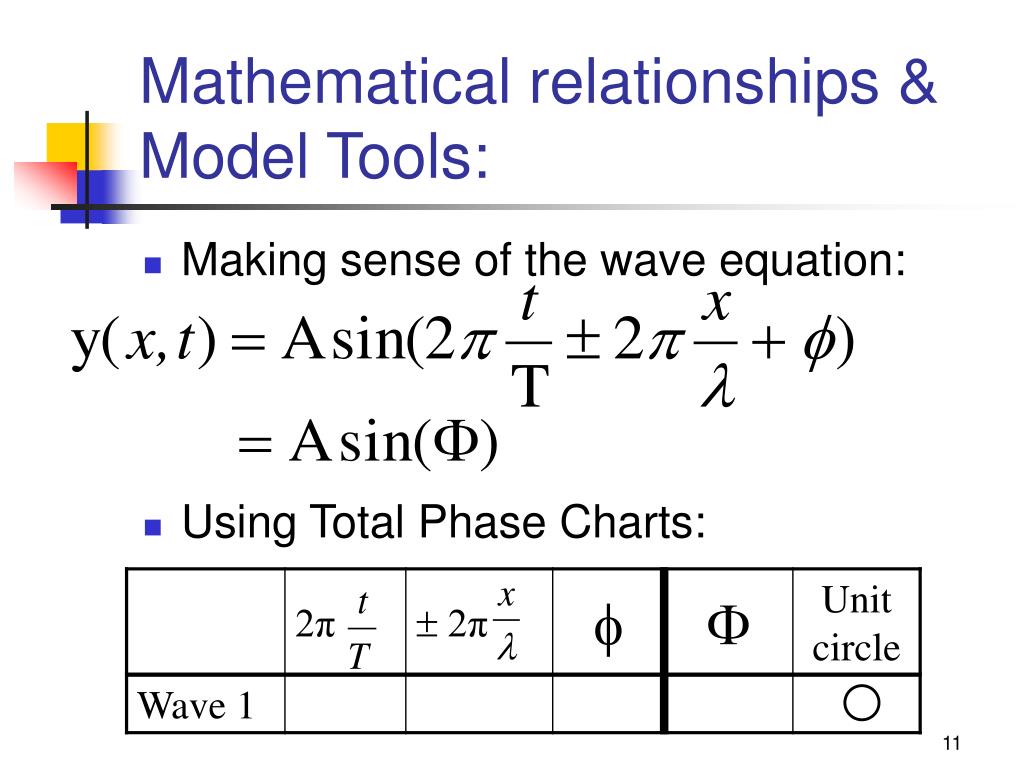

Mathematical relationships model tools
Mathematical relationships & Model Tools:

  • Making sense of the wave equation:

  • Using Total Phase Charts:
