Upgrade Your Bowling Machine with Heavy Duty Pivot Shaft #090-005-025

Enhance your bowling machine's performance with our Heavy Duty Original Standard Pivot Shaft #090-005-025. This upgrade features a high-quality steel construction, capable of withstanding bend stresses of up to 5400 N, unlike the original lower part. With guaranteed precision in bearing dimension and new sleeves, bearings, and spacers included, installation is a breeze. The polished shaft has a diameter of 17mm and matches the length of the original shaft, making it ready for immediate installation. Trust BowlingParts.com for quality parts and service.

jolene
Download Presentation

Upgrade Your Bowling Machine with Heavy Duty Pivot Shaft #090-005-025

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BOWLINGPARTS.COM Machine parts & services Specials Heavy duty Original standard

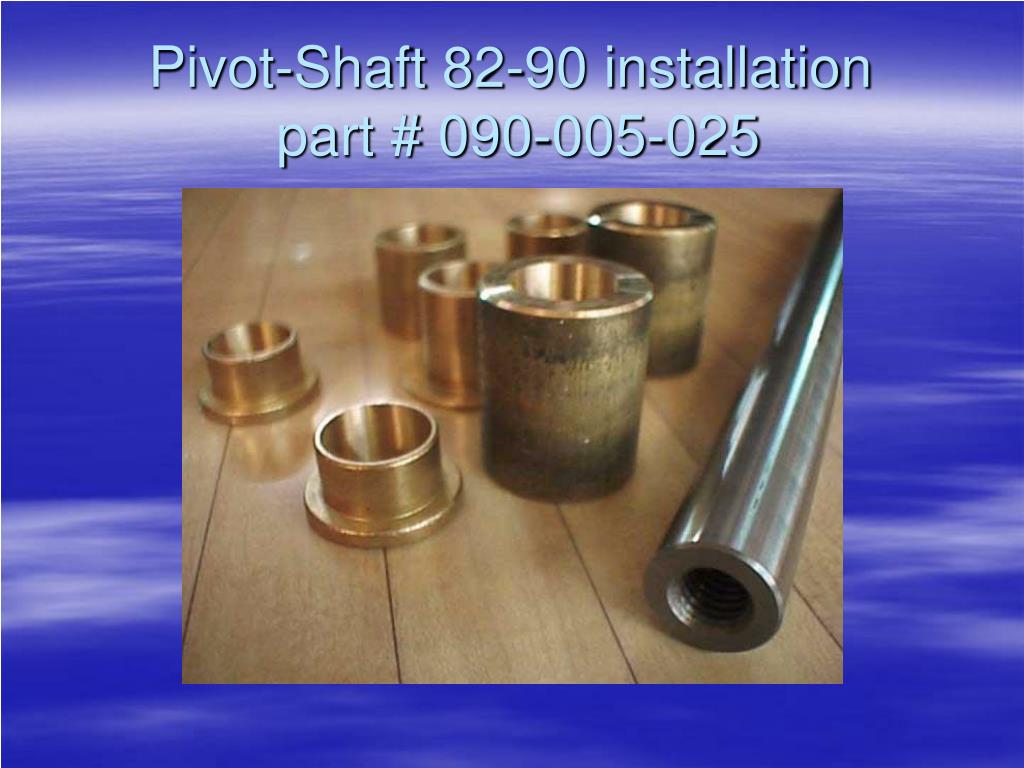

  2. Pivot-Shaft 82-90 installation part # 090-005-025

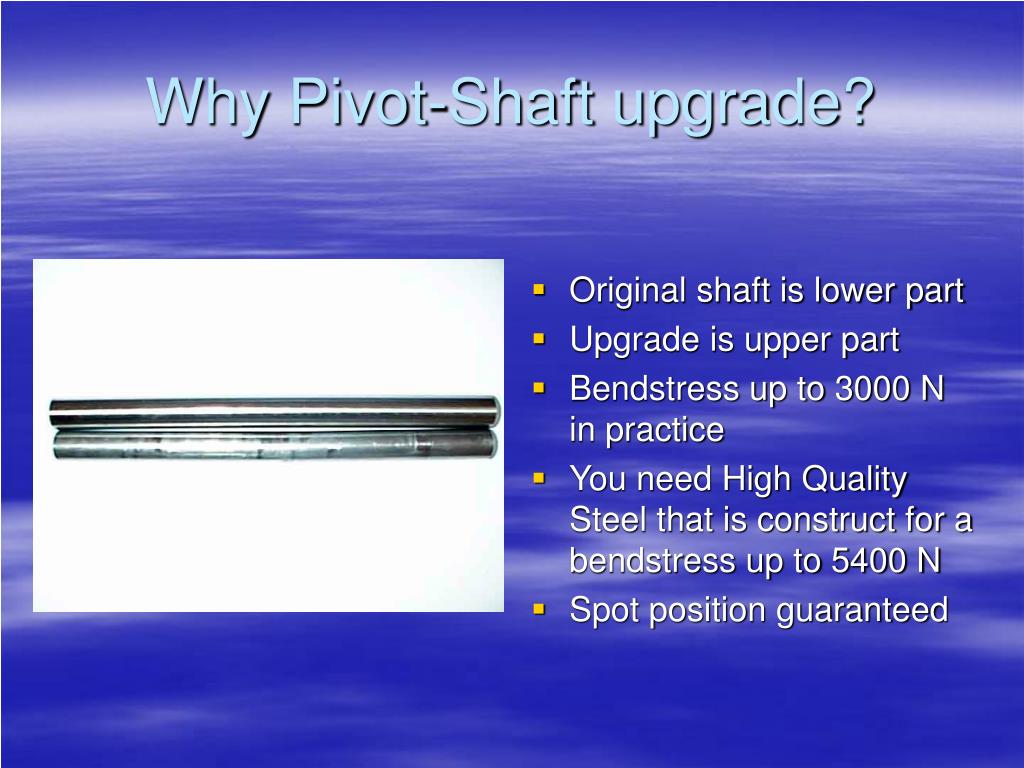

  3. Why Pivot-Shaft upgrade? • Original shaft is lower part • Upgrade is upper part • Bendstress up to 3000 N in practice • You need High Quality Steel that is construct for a bendstress up to 5400 N • Spot position guaranteed

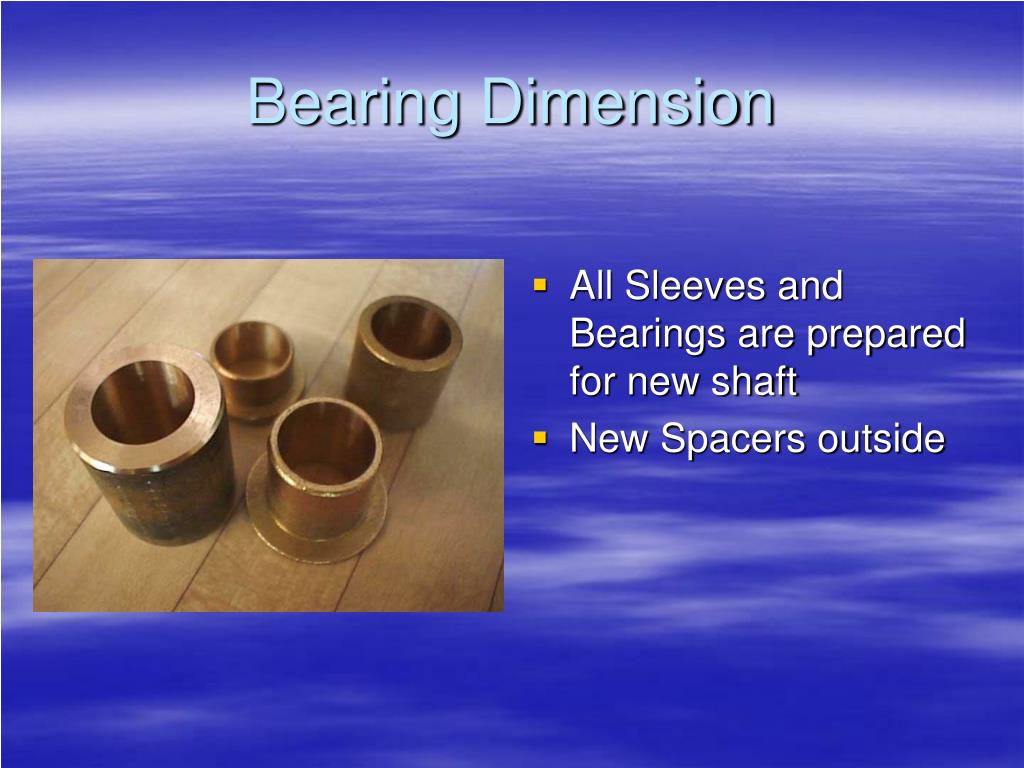

  4. Bearing Dimension • All Sleeves and Bearings are prepared for new shaft • New Spacers outside

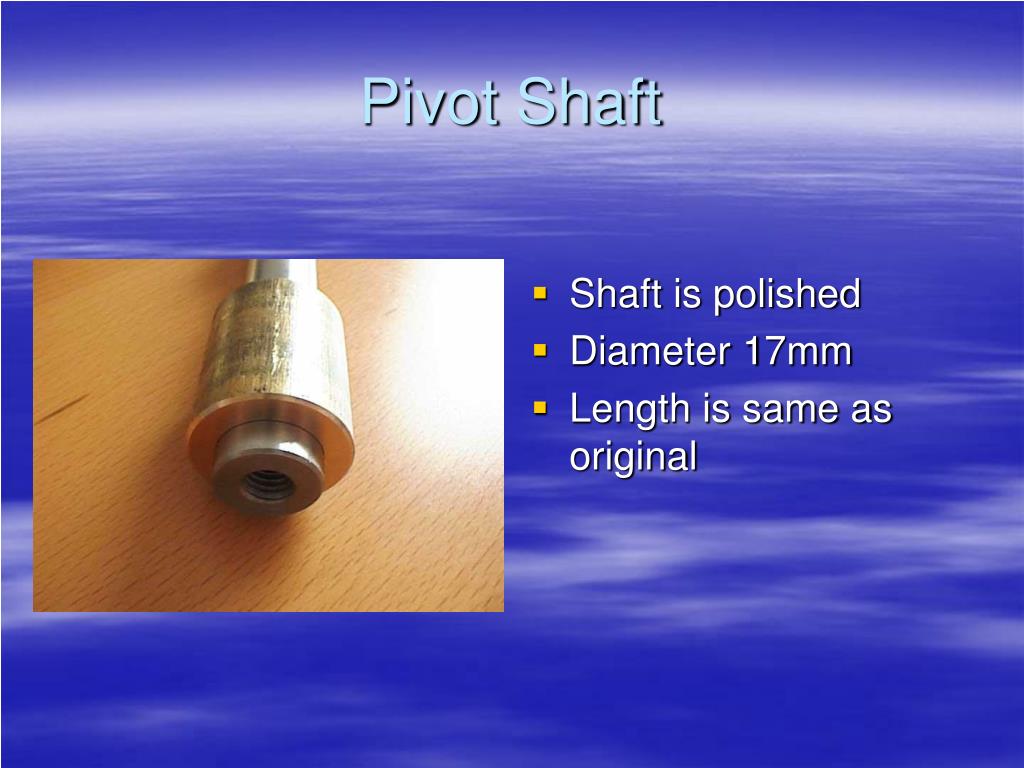

  5. Pivot Shaft • Shaft is polished • Diameter 17mm • Length is same as original

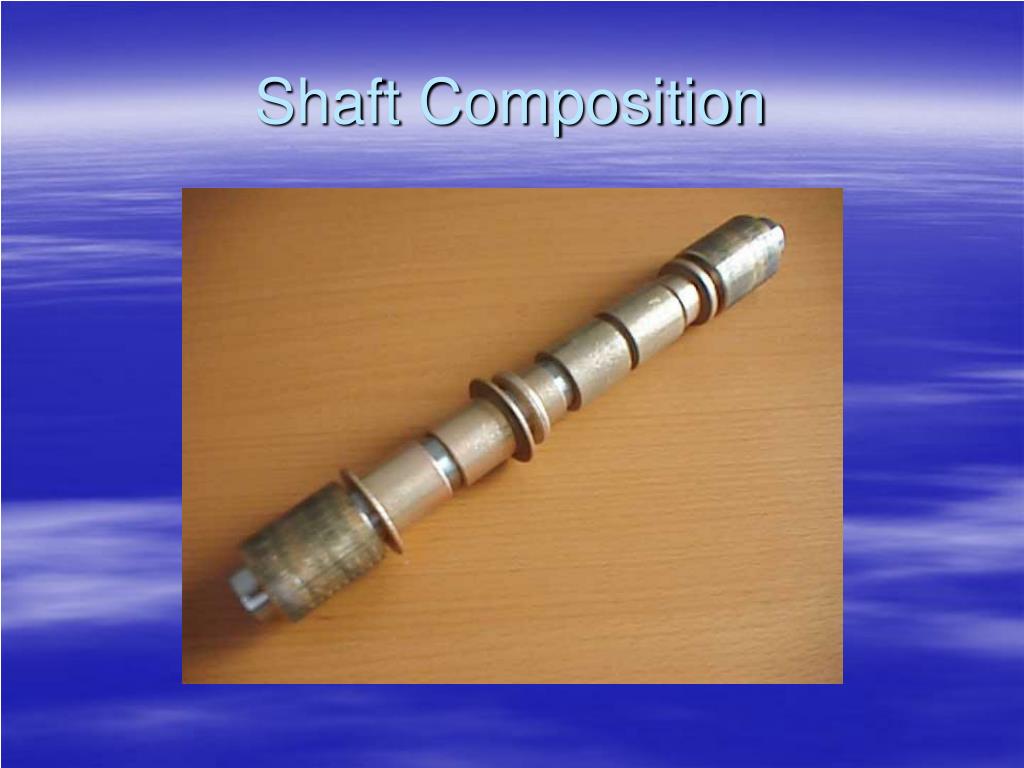

  6. Shaft Composition

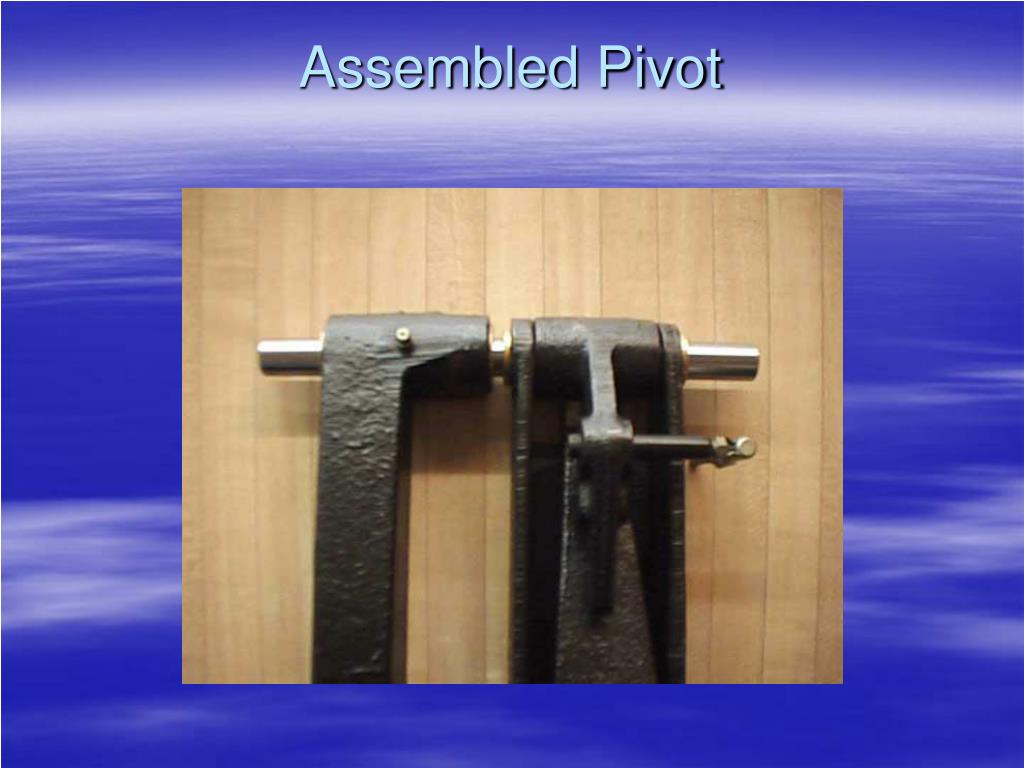

  7. Assembled Pivot

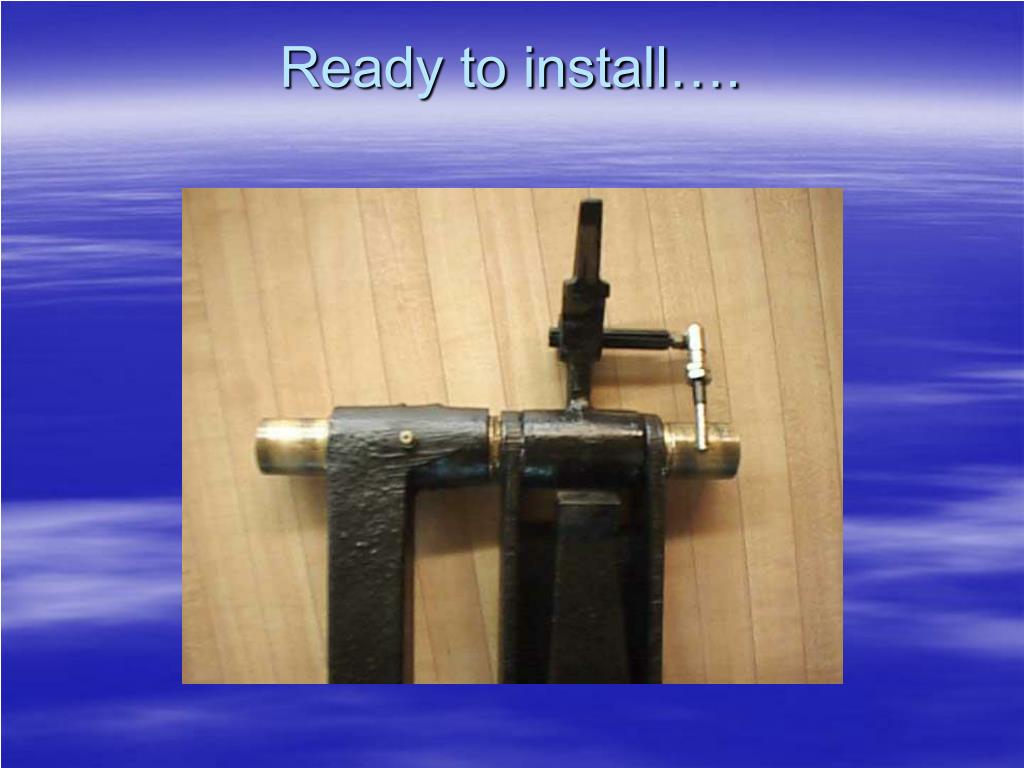

  8. Ready to install….

  9. bowlingparts.com Information : LITO-Techniek Valkstraat 4 6611 KW Overasselt The Netherlands Tel : 00 31 (0)6-12288241 info@bowlingparts.com www.bowlingparts.com
