  1. BOWLINGPARTS.COM Machine parts & services Specials Heavy duty Original standard

  2. Pivot-Shaft 82-90 installation part # 090-005-025

  3. Why Pivot-Shaft upgrade? • Original shaft is lower part • Upgrade is upper part • Bendstress up to 3000 N in practice • You need High Quality Steel that is construct for a bendstress up to 5400 N • Spot position guaranteed

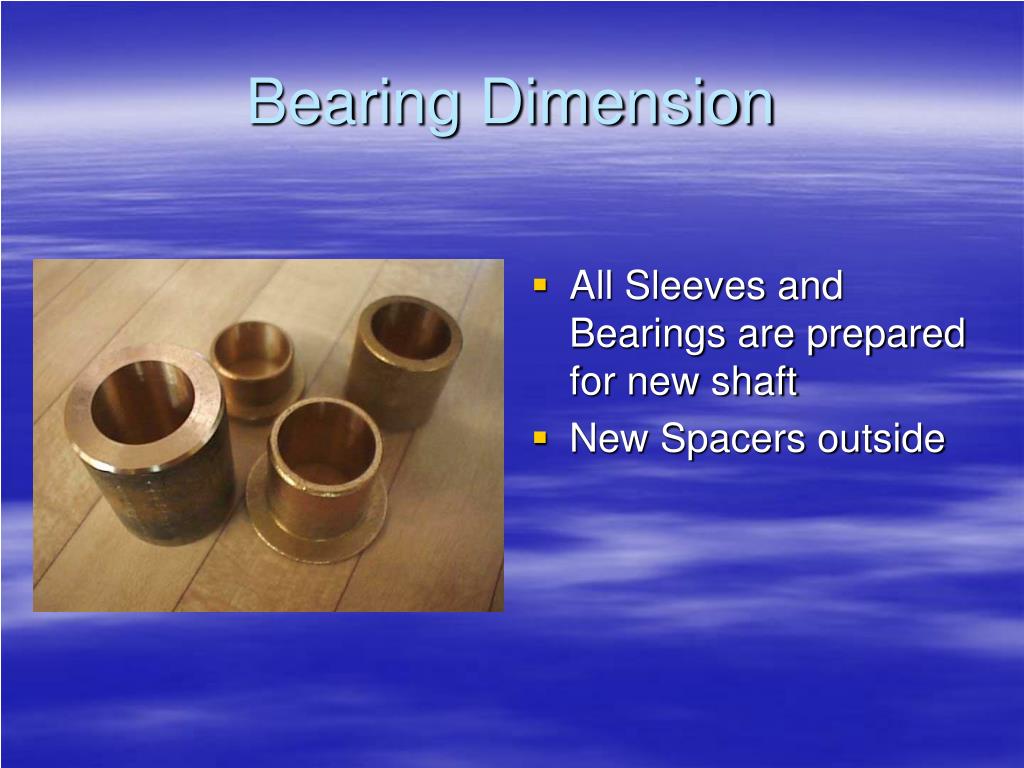

  4. Bearing Dimension • All Sleeves and Bearings are prepared for new shaft • New Spacers outside

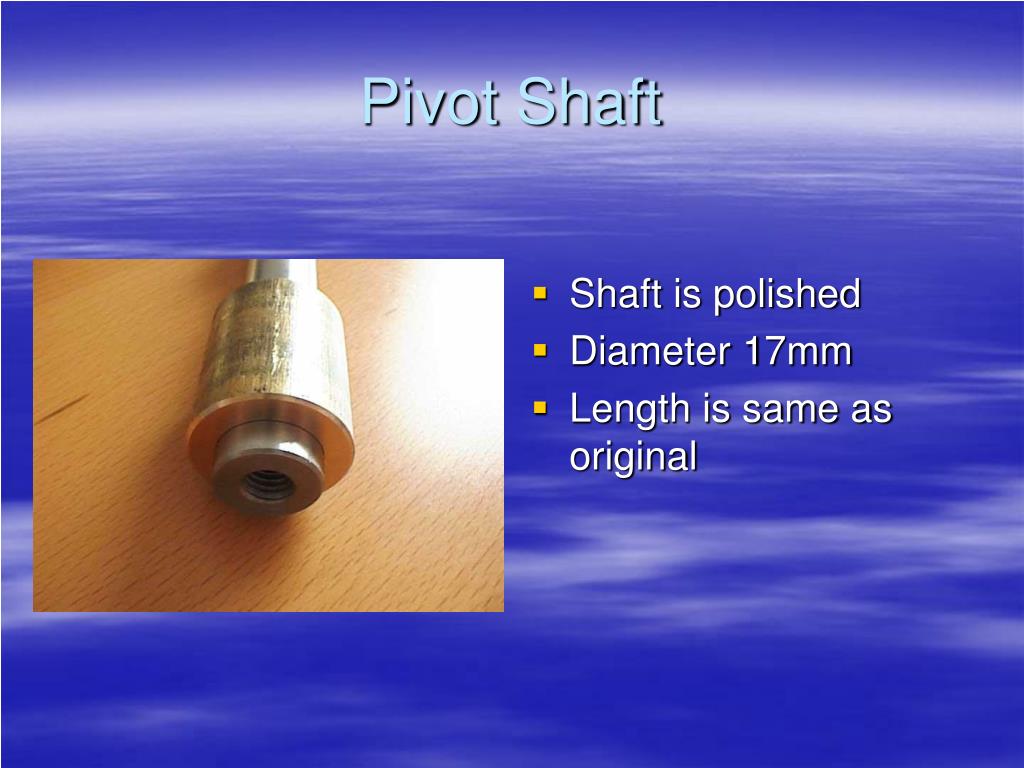

  5. Pivot Shaft • Shaft is polished • Diameter 17mm • Length is same as original

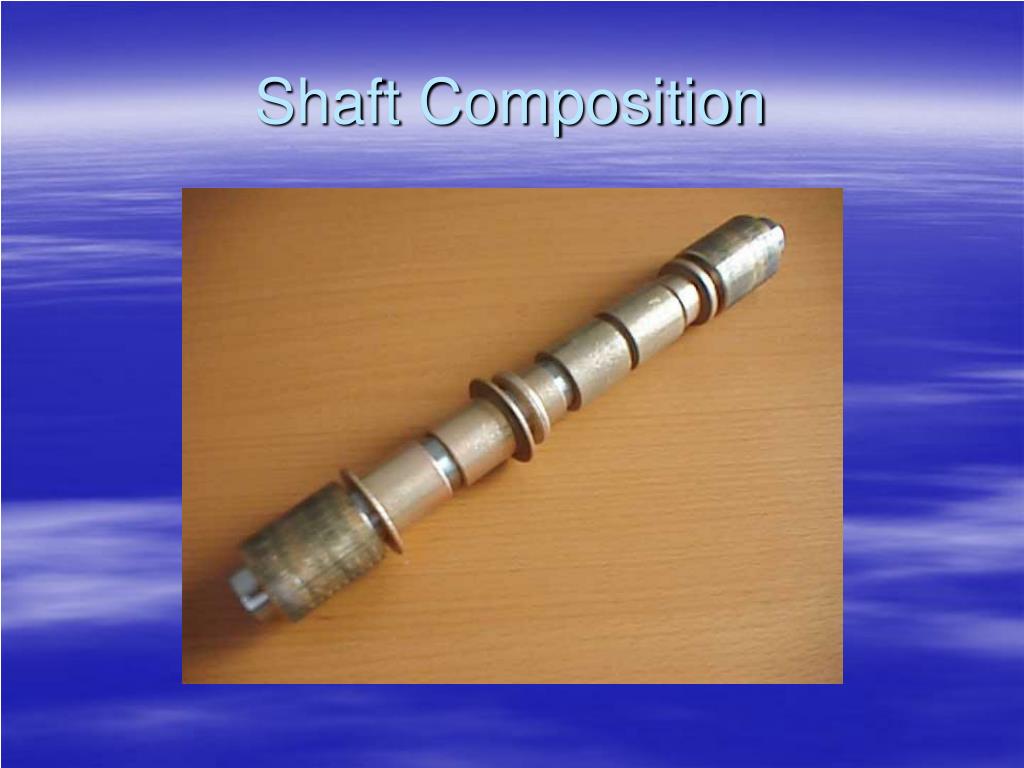

  6. Shaft Composition

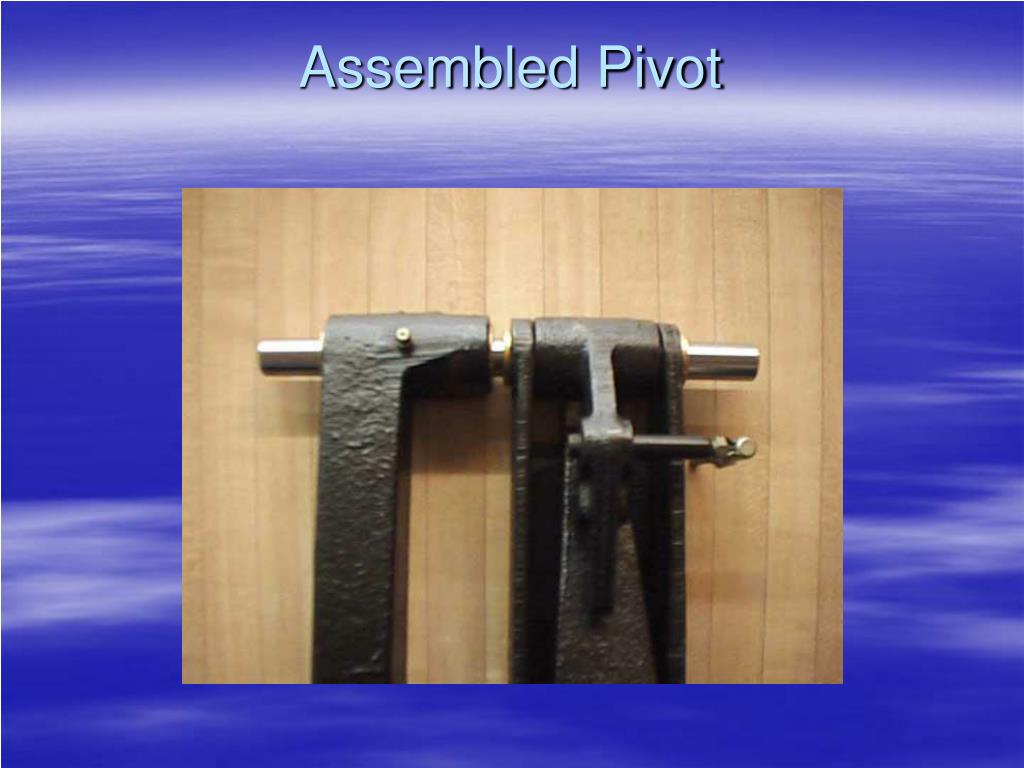

  7. Assembled Pivot

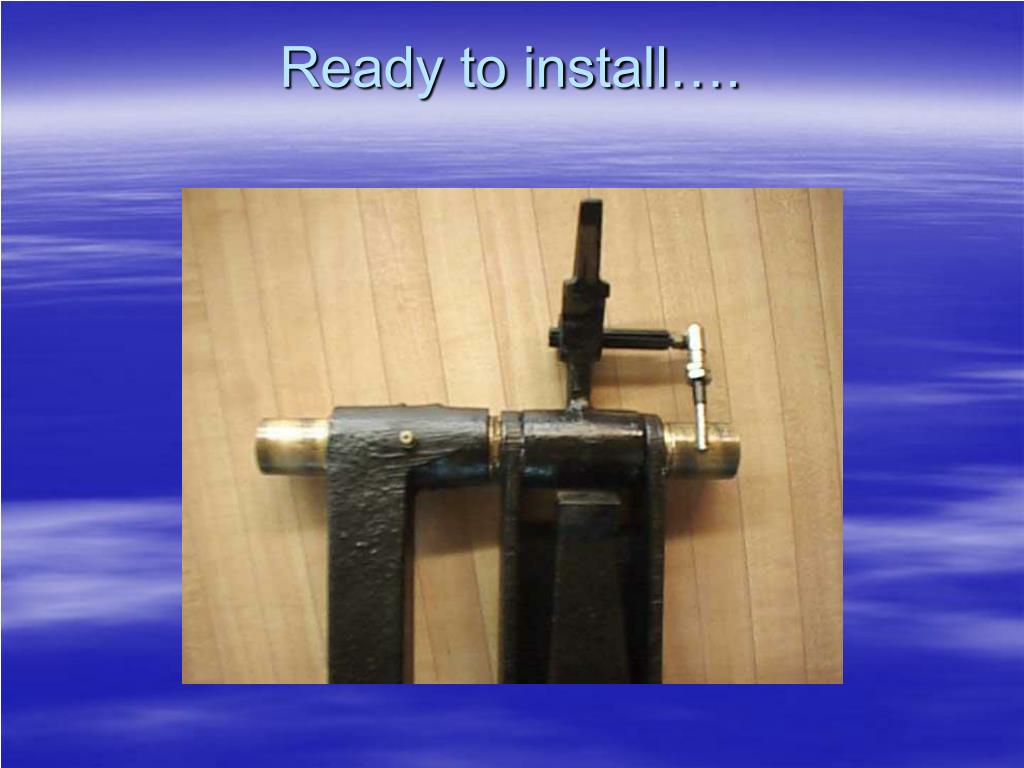

  8. Ready to install….

  9. bowlingparts.com Information : LITO-Techniek Valkstraat 4 6611 KW Overasselt The Netherlands Tel : 00 31 (0)6-12288241 info@bowlingparts.com www.bowlingparts.com
