  1. Hands-on and Online Classroom Adventures Bridging Basic Weather Science to Literacy, Arts, and ELL Cloudy Day Becca Hatheway and Lisa Gardiner WWW.WINDOWS.UCAR.EDU UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  2. Workshop plan… Classroom Activity: Cloud in a Bottle Overview of Cloud Science and How Clouds Affect the Weather Classroom Activities: • Cloud Types and Identification • Our Poetic Planet • Clouds in Art Online resources from Windows to the Universe UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  3. Four activities that make connections between the science of clouds, art and literacy: Available at Windows to the Universe (www.windows.ucar.edu), a University Corporation for Atmospheric Research educational project. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  4. Cloud in a Bottle • In this activity, students learn how clouds form by making a cloud in a bottle.There must be three main ingredients present in order for clouds to form: • Moisture – there must be sufficient water vapor in the air to build a cloud • Cooling air – the air temperature must decrease enough for water vapor to condense • Condensation nuclei – tiny particles such as dust provide surfaces on which water molecules can gather and condense into water droplets UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  5. Cloud in a Bottle, Version 1 Use a bottle cap retro-fitted with a tire valve and air freshener • Add a small amount of water to the bottle. • Spray the air freshener into the bottle. Swirl the water around so the air freshener mixes in. • Pump up the bottle to a fixed pressure (30 pso/2 bars). The air in the bottle will warm as you do this. • Let the bottle cool to room temperature. • Let the air out of the valve using the sucker stick and observe. • What happened? • You can do this with a second bottle that doesn’t have air freshener in it, and compare the two.

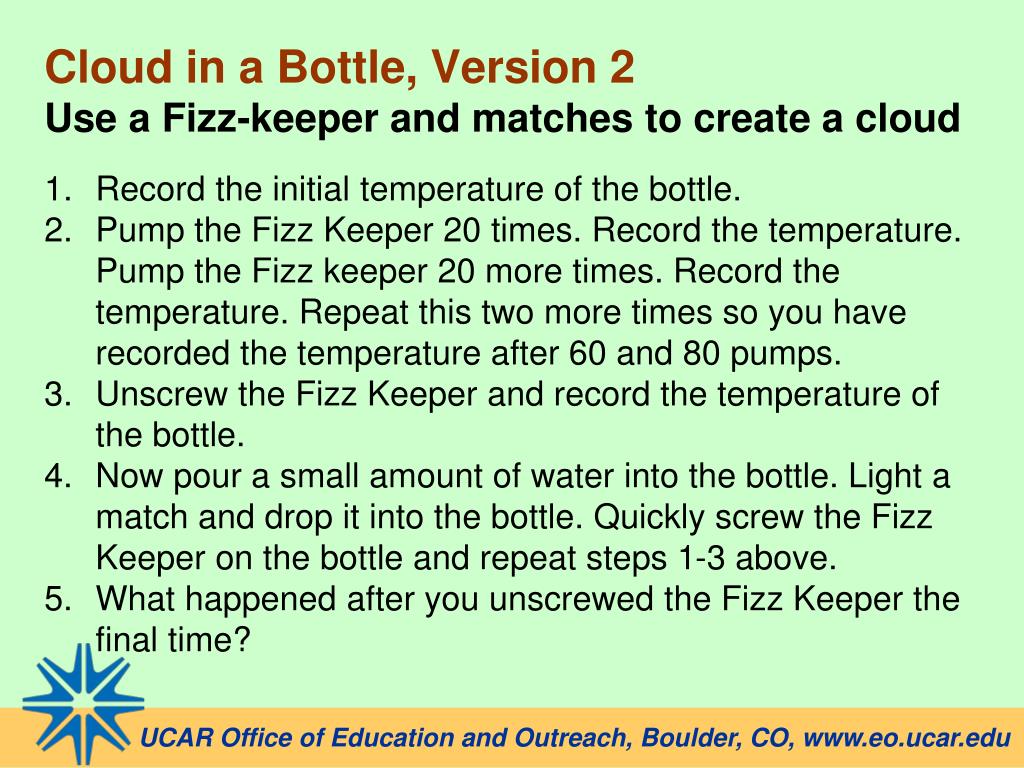

  6. Cloud in a Bottle, Version 2 Use a Fizz-keeper and matches to create a cloud • Record the initial temperature of the bottle. • Pump the Fizz Keeper 20 times. Record the temperature. Pump the Fizz keeper 20 more times. Record the temperature. Repeat this two more times so you have recorded the temperature after 60 and 80 pumps. • Unscrew the Fizz Keeper and record the temperature of the bottle. • Now pour a small amount of water into the bottle. Light a match and drop it into the bottle. Quickly screw the Fizz Keeper on the bottle and repeat steps 1-3 above. • What happened after you unscrewed the Fizz Keeper the final time? UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  7. Discussion: How Do Clouds Form? There are four main ways clouds form: • Surface Heating • Mountains and Terrain • Air masses being forced to rise • Weather fronts (cold or warm) All of these processes involve the cooling of air and the presence of condensation nuclei. Eventually, enough water vapor will condense upon condensation nuclei to form a cloud. The water droplets may fall down to Earth in the form of rain or snow.

  8. Cloud Formation Due to Surface Heating • The sun heats the Earth, which heats the air • The warm air is lighter and less dense and begins to rise • When it rises, it expands because of the lower pressures that exist at higher levels in the atmosphere • When air expands because of a drop in pressure it also cools • The cooling air can’t hold all the water vapor, so it begins to condense into water droplets • Eventually, enough moisture condenses out of the air parcel to form a cloud • Cumulonumbus, cumulus, and stratocumulus clouds form this way

  9. Cloud Formation Due to Mountains • Some clouds form when air encounters a mountain range or other types of terrain • The air rises over the mountain and cools, and forms a cloud • Cumulonimbus and cumulus clouds form this way

  10. Clouds Formed by Air Being Forced to Rise • Some clouds form when air at the surface is forced to rise. This happens from three different processes • In a low pressure system, wind moves into the center from all directions (from high to low pressure). When it meets at the center there is no where to go but up. • Air is forced to rise when it is traveling over land that slopes upward. The air cools as it rises, and eventually clouds will form. • Weather fronts produce clouds by causing air to rise when the lighter warm air flows over the heavier cool air • All cloud types are formed by these processes, especially altocumulus, altostratus, cirrocumulus, stratocumulus, and stratus

  11. Cloud Formation Due to Weather Fronts • Weather fronts occur when two large masses of air collide at the Earth’s surface – these can cause clouds to form • Warm fronts produce clouds when warm air replaces cold air by sliding over it • Warm fronts produce many types of clouds: altocumulus, altostratus, cirrocumulus, cirrostratus, cirrus, cumulonimbus, nimbostratus, stratocumulus, and stratus • Cold fronts occur when heavy cold air displaces lighter warm air, pushing it upward • Cold fronts produce cumulus, cumulonimbus, nimbostratus, stratocumulus, and stratus clouds

  12. Cloud Types Clouds can be divided into groups mainly based on the height of the cloud’s base above the Earth’s surface UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  13. Cloud #1 This is an image of cirrus clouds. These clouds are thin, wispy, and feathery. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  14. Cloud #2 This is an image of cumulus clouds. They are puffy white or light gray clouds that look like floating cotton balls, have sharp outlines, and have a flat base. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  15. Cloud #3 This is an image of stratocumulus clouds. These clouds are low, lumpy, and gray. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  16. Cloud #4 This is an image of altocumulus clouds. These clouds can be in groups or rows. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  17. Cloud #5 This is an image of cumulonimbus clouds. These clouds are large, have an anvil-shaped top, and are associated with thunderstorms. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  18. Clouds in Art Clouds in Art Interactive Students explore how Western artists have represented clouds in landscape paintings while honing their cloud identification skills and making their own cloud paintings. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  19. Our Poetic Planet Students make observations of clouds and weather and write poetry about nature about what they observed. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  20. Our Poetic Planet • Poetry about clouds, weather, and other aspects of the Earth can be very descriptive. Poetry is a form of expression that allows students to write about their observations about the natural world. • Share published poems with students • Discuss different types of poetry • Create a word wall with your class to give them descriptive words to use in their poems (good strategy for learning readers and English language learners) UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  21. Examples of Poetry about Weather and Clouds FOGThe fog comeson little cat feet.It sits lookingover harbor and cityon silent haunchesand then moves on. - Carl Sandburg UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  22. Examples of Poetry about Weather and Clouds With rushing winds and gloomy skiesThe dark and stubborn Winter dies:Far-off, unseen Spring faintly cries,Bidding her earliest child arise;March!                       - Bayard Taylor UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  23. Examples of Poetry about Weather and Clouds sun:  the sun is like a gentle golden pony rising in the morning,wind:  the wind is like a happy kitten rustling the branches,rain:  the rain is like a cup spilling over the valley,rainbow:  the rainbow is like a towel wiping up the spill,mountains:  the mountains are sleeping dragons in a long chain. By Sophie, 2nd grader, Roanoke, VA UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  24. Examples of Poetry about Weather and Clouds Snowflakes fall gently Fluttering to the ground Winter is still here. By Elaine, 5th grader, Boulder, CO UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  25. Poetry submissions on Windows to the Universe UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  26. http://www.windows.ucar.edu

  27. http://www.windows.ucar.edu/tour/link=/earth/Atmosphere/cloud.htmlhttp://www.windows.ucar.edu/tour/link=/earth/Atmosphere/cloud.html

  28. Three levels of content to connect with a broad audience

  29. Windows to the Universe Educator Newsletter Sign up now! UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  30. Are you looking for an online Professional Development Opportunity? Climate Discovery, a series of online professional development courses for middle and high school educators Summer Semester – June 19 to August 9, 2009 CD 501 – Introduction to Climate Change CD 502 – Earth System Science: A Climate Change Perspective CD 503 – Understanding Climate Change Today For registration information visit http://ecourses.ncar.ucar.edu UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu

  31. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu Windows to the Universe staff are presenting one more workshop during NSTA in New Orleans: Sunday, March 22, 11 AM – 12 PM WALLS (Water, Air, Land, Life, and Space)! – Morial Convention Center, room 226

  32. UCAR Office of Education and Outreach, Boulder, CO, www.eo.ucar.edu WWW.WINDOWS.UCAR.EDU For more information, visit Windows to the Universe or email Becca at hatheway@ucar.edu
