the advection dispersion equation

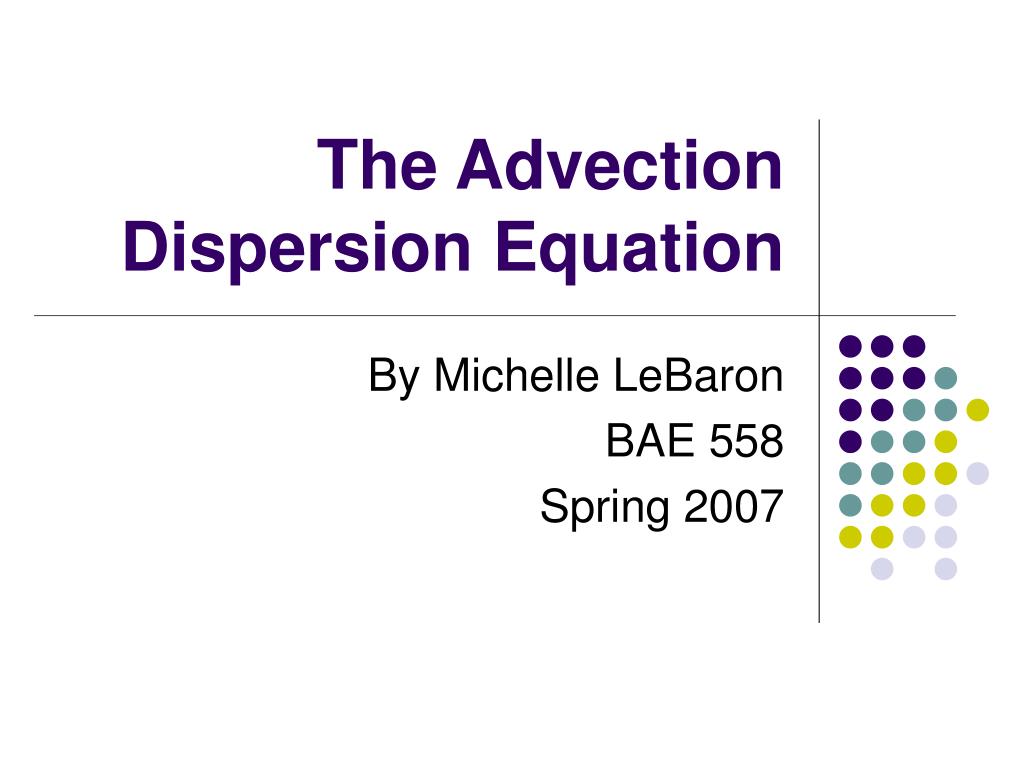

The Advection Dispersion Equation

By Michelle LeBaron

BAE 558

Spring 2007

what is the ade
What is the ADE?
  • ADE – Advection Dispersion Equation
    • An equation used to describe solute transport through a porous media
    • Mechanisms:
      • Advection
      • Diffusion
      • Dispersion
mechanisms
Mechanisms
  • Advection: the bulk movement of a solute through the soil
  • Diffusion: the movement of solutes caused by molecular movement that happens at the microscopic level
    • It causes solutes to move from areas of high concentration to areas of low concentration and is governed by Fick’s law.
  • Dispersion: a mixing that occurs because of the different velocities of neighboring flow paths.
    • This process occurs at many different levels and its affects increase as the scale increases.
mechanisms4
Mechanisms

Dispersion Continued

Images From:http://age-web.age.uiuc.edu/classes/age357/html/Advective%20Dispersive%20Equation.pdf

mechanisms5
Mechanisms

Dispersion Continued

Images From:http://age-web.age.uiuc.edu/classes/age357/html/Advective%20Dispersive%20Equation.pdf

derivation
Derivation
  • Application of the conservation of mass on a representative elementary volume (REV)
  • Analyze flux terms
  • Analyze sources and sinks term
conservation of mass
Conservation of Mass
  • Mass Balance on REV

Image from :http://www.webs1.uidaho.edu/age558/powerpoints/Solute_Part2.ppt

Where:

S = surface area

J = 3D vector flux

n = unit normal vector over S

Equation 1

Net volume leaving surface

Source and Sinks leaving surface

Change in mass of solute in volume over time

conservation of mass8
Conservation of Mass

The gauss divergence theorem (equation 2) turns surface integrals into a volume integrals

Equation 2

By applying this to the flux term below from equation 1 we get equation 3

Flux Term

Equation 3

conservation of mass9
Conservation of Mass

Bring everything over to one side to get equation 4

Equation 4

If the integral = 0 then everything inside the integral = 0 giving Equation 5 and rearranging terms to get equation 6

Equation 5

Equation 6

flux term j
Flux Term, J
  • The vector flux term J is made of 3 components: advection (Jadv), diffusion (Jdiff), and dispersion (Jdisp)

Advective Transport: mass / time going through dA:

flux term j11
Flux Term, J
  • Diffusion Transport:
  • mass / time going through dA
  • Fick’s Law: The molecules are always moving and tend to move away from origin. This makes the diffusive flux proportional the concentration gradient of the solute in a direction normal to dA

Total Microscopic Flux:

Equation 7

flux term j12
Flux Term, J
  • Dispersive Transport:
  • The dispersion component is due to variation in individual particles compared to the average velocity
  • . Depending on where they are in the flow path some will flow faster or slower than the average flow
  • The equation for the local velocity is the average velocity plus the deviation from the average velocity as can be seen in equation 8. A similar effect can be seen in equation 9 on the local concentration of a solute.

Equation 8

Equation 9

flux term j13
Flux Term, J

By substituting these effect of dispersion on the above term into equation 7 you get equation 10

Equation 10

Now we multiply the equation by and the fraction of the volume taking part in the flow and multiply the equation out to get the average flux with dispersion considered in Equation 11

Equation 11

Now note that the average deviation is zero to get Equation 12

Equation 12

flux term j14
Flux Term, J

This gives us the Jdisp:

Big assumption: It is not practical to track all the variations in concentration and velocity at every point at the macroscopic scale and we see that the variation increases with scale, so we assume it follow a “random walk” scheme that can now be modeled using Fick’s Law just like diffusion. This gives us the Jdisp term where D is a dispersion Coefficient and is a second rank tensor

flux term j15
Flux Term, J

Now add all of our flux terms to get the macroscopic flux found in equation 13

Finally by substituting J back into mass balance equation (equation 6) we get the ADE (equation 14)

Equation 6

Equation 14

dispersion coefficient
Dispersion Coefficient

D is a tensor term and can be expanded as seen in equation below

By aligning D with the velocity you get the simplified equation shown below

By Taking the two transverse dispersions to be equal D you get an even more simplified equation shown below

dispersion coefficient17
Dispersion Coefficient

Image From:http://www.webs1.uidaho.edu/age558/powerpoints/Solute_Mon_Apr_15.ppt

references
References
  • Derivation of Advection/Dispersion Equation for Solute Transport in Saturated Soils http://age-web.age.uiuc.edu/classes/age357/html/Advective%20Dispersive%20Equation.pdf
  • Selker, J. S., C.K. Keller, and J.T. McCord. Vadose Zone Processes. CRC Press LLC. Boca Raton Florida.1999.
  • Williams, Barbara. Solute Part 2 Lecture Notes. http://www.webs1.uidaho.edu/age558/powerpoints/Solute_Part2.ppt
  • Williams, Barbara. Dispersive Flux and Solution of the ADE. http://www.webs1.uidaho.edu/age558/powerpoints/Solute_Mon_Apr_15.ppt
