reinventing cs curriculum and other projects at the university of nebraska

Reinventing CS Curriculumand Other Projects atThe University of Nebraska

Leen-Kiat Soh

Computer Science and Engineering

NCWIT Academic Alliance

November Meeting 2007

introduction
Introduction
  • Reinventing CS Curriculum Project
    • Placement Exam
    • Learning Objects
    • Closed Labs CS1, CS2
    • Educational Research
  • Computer-Aided Education
    • I-MINDS (Computer-Supported Collaborative Learning)
    • ILMDA (Intelligent Tutoring System)
    • Affinity Learning Authoring System
placement exam
Placement Exam
  • The primary purpose of the placement test
    • Place students into one of CS0, CS1, and CS2
  • Our approach emphasizes both pedagogical contexts and validation of the test
    • Placement exams we researched
      • Not used as a pre- and post-test
      • Do not explicitly consider pedagogical contexts such as Bloom’s taxonomy
      • Results not used to improve course instruction
      • No formative or summative analyses available

Reinventing CS Curriculum

placement exam4
Placement Exam
  • 10 major content areas
    • based on ACM/IEEE Computing Curricula 2001
      • Functions, sets, basic logic, data structures, problem solving, representation of data, etc.
    • addressed in the CS0 and CS1 courses
    • students’ knowledge are tested at multiple levels of competency based on Bloom’s Taxonomy
    • First five (25 questions) address prerequisite skills; second five (25 questions) represent the topics students are expected to know after completion of CS1

Reinventing CS Curriculum

placement exam5
Placement Exam

Bloom’s Taxonomy

1. Knowledge/Memory

2. Comprehension

3. Application

4. Analysis

5. Synthesis

6. Evaluation

Reinventing CS Curriculum

placement exam statistics
Placement Exam | Statistics
  • Degree of difficulty (mean)
    • The percentage of test takers who answer the question correctly
      • Too easy or too difficult – not a meaningful discriminator
    • Targeted mean for each question is between 0.40 and 0.85
  • Item-total correlation
    • Shows the strength of the relationship between the students’ response to a question and their total score
      • A good question should have a strong positive correlation between the two
    • 0.3 is generally regarded as a good target, 0.2 is acceptable
  • Frequency of response for the choices
    • Unpicked choices are not providing any discrimination and should either be modified or dropped

Reinventing CS Curriculum

placement exam reliability validity
Placement Exam | Reliability & Validity
  • Internal Consistency Reliability
    • A measure of item-to-item consistency of a student’s response within a single test
    • Cronbach’s alpha statistic [0 – 1]
      • Results show 0.70 to 0.74, which is acceptable for research purposes
      • Goal is to obtain 0.80 or higher
  • Content Validity
    • Determined by expert opinion by CSE faculty
  • Predictive Validity
    • Determined by correlating a student’s total score on the placement test with his/her exam scores in the course
      • E.g., 0.58 for Spring 2004

Reinventing CS Curriculum

placement exam implementation
Placement Exam | Implementation
  • Duration: 1 hour
  • 50 questions
  • 10 content areas
    • 5 questions in each area
    • Each question is classified into one of the Bloom’s competence level
  • Students are not informed of the competence levels
  • The presentation order is by the competence level within each content area
    • “knowledge” first, then “comprehension”, and so on.
  • Placement recommendation cutoffs
    • Greater than or equal to 10/25  CS1
    • Greater than or equal to 35/50  CS2
    • Otherwise  CS0

Reinventing CS Curriculum

placement exam some results
Placement Exam | Some Results
  • Pre-Post comparisons
    • T(63) = 11.036, p<.001; highly significant
      • Instructional effectiveness of the CS1 validated
    • Significant predictor of total test scores in CS1
      • Test’s predictive validity

* Spring 2004 session

Reinventing CS Curriculum

placement exam some results10
Placement Exam | Some Results
  • Students who scored 48% or better vs. students who scored less
    • A one-way ANOVA found a significant difference between these two groups on total course points
      • F(1,64) = 4.76, p. < 0.5
    • Students who scored higher on the placement test received a higher grade in the course
  • Pre-Post Test
    • Overall Test: T(68) = 11.81, p < 0.001
    • Individual Bloom’s category: All show highly significant results (p < 0.001)
      • Greatest improvement on “knowledge” questions: t(68) = 8.27, p < 0.001)

Reinventing CS Curriculum

learning objects
Learning Objects
  • Development of web-based learning objects on “Simple Class” and “Recursion”
    • Small, stand-along “chunks” of instruction
    • SCORM – compliant (Shareable Content Object Reference Model)
    • Operating within Blackboard Course Management System
    • With extensive tracking for data collection

Reinventing CS Curriculum

learning objects12
Learning Objects
  • Tutorial component

Reinventing CS Curriculum

learning objects13
Learning Objects
  • Tutorial component

Reinventing CS Curriculum

learning objects14
Learning Objects
  • Real-world examples component

Reinventing CS Curriculum

learning objects15
Learning Objects
  • Practice exercises component

Reinventing CS Curriculum

learning objects16
Learning Objects
  • Assessment component

Reinventing CS Curriculum

learning objects17
Learning Objects
  • Self-paced, with learner control of additional practice
  • Extensive, elaborative feedback for remediation and instruction
  • Tracking System
    • Student outcomes and time-spent data captured in real time
    • Provides data on students’ problems and progress

Reinventing CS Curriculum

learning objects some results
Learning Objects | Some Results
  • No significant difference between lab and learning object instruction
  • Evaluation results showed positive student response to the learning objects
  • Modular, web-based learning objects can be used successfully for independent learning and are a viable option for distance learning

Reinventing CS Curriculum

closed labs
Closed Labs
  • Closed labs have multiple advantages
    • Active learning through goal-oriented problem solving
    • Promote students’ cognitive activities in comprehension and application
    • Some evidence that students test performance improves
    • Facilitates cooperative learning

Reinventing CS Curriculum

closed labs design
Closed Labs | Design
  • Lectures
  • 2-hour laboratory (16 weeks)
  • 20 – 30 students per lab
  • Provide students with structured, hands-on activities
  • Intended to reinforce and supplement the material covered in the course lectures
  • Majority of the time allocated to student activities

Reinventing CS Curriculum

closed labs design21

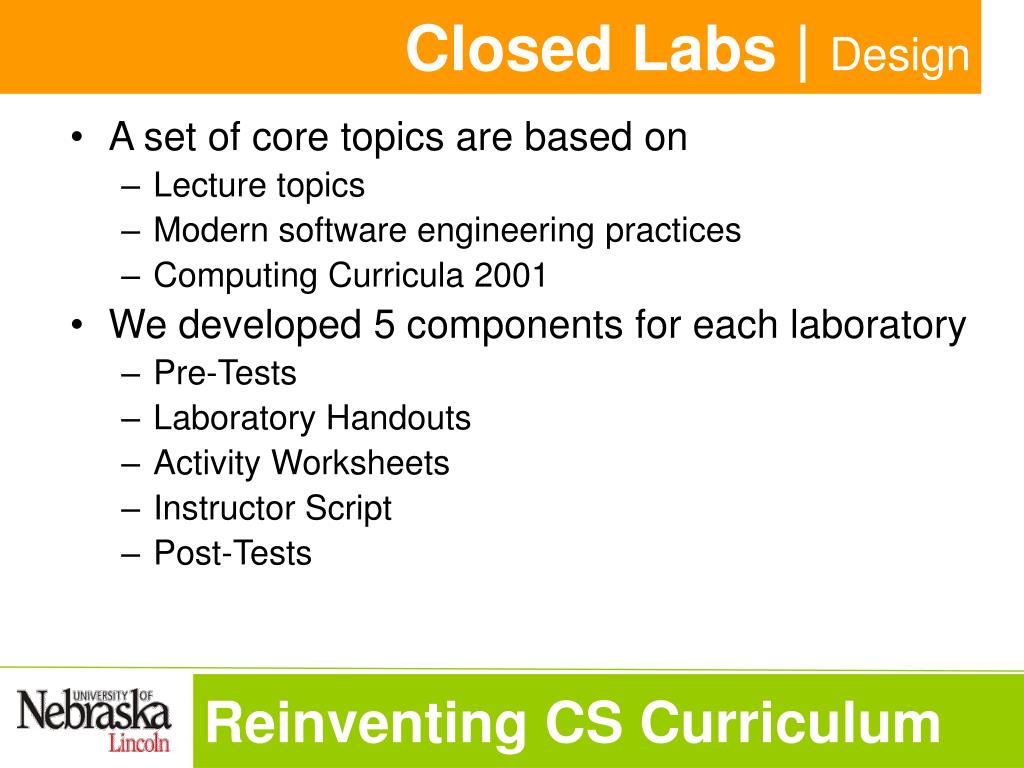

Closed Labs | Design
  • A set of core topics are based on
    • Lecture topics
    • Modern software engineering practices
    • Computing Curricula 2001
  • We developed 5 components for each laboratory
    • Pre-Tests
    • Laboratory Handouts
    • Activity Worksheets
    • Instructor Script
    • Post-Tests

Reinventing CS Curriculum

closed labs design22
Closed Labs | Design
  • Pre-Tests
    • Students are required to pass an on-line test prior to coming to lab
    • May take it multiple times
    • Passing score : 80%
    • Intended to encourage students to prepare for the lab and test their understanding of the lab objectives
    • Questions are categorized according to Bloom’s Taxonomy

Reinventing CS Curriculum

closed labs design23
Closed Labs | Design
  • Laboratory Handouts
    • Lab objectives
    • Activities students will perform in the lab (including the source code where appropriate),
    • Provide references to supplemental materials that should be studied prior to the lab
    • Additional materials that can be reviewed after the student has completed the lab

Reinventing CS Curriculum

closed labs design24

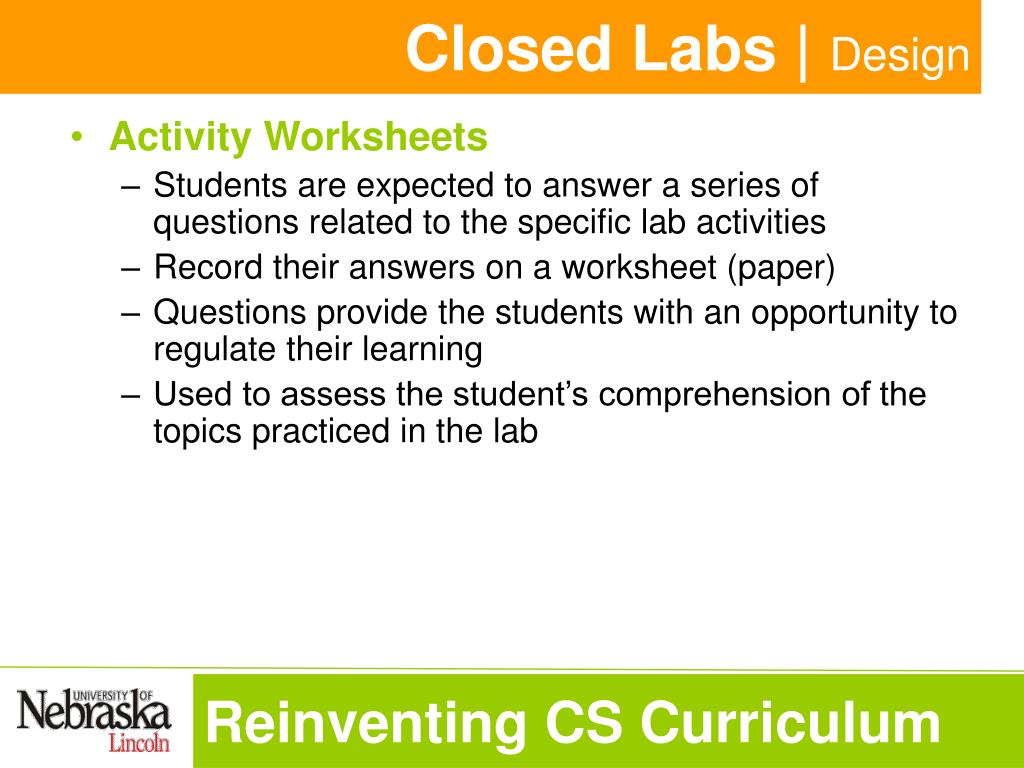

Closed Labs | Design
  • Activity Worksheets
    • Students are expected to answer a series of questions related to the specific lab activities
    • Record their answers on a worksheet (paper)
    • Questions provide the students with an opportunity to regulate their learning
    • Used to assess the student’s comprehension of the topics practiced in the lab

Reinventing CS Curriculum

closed labs design25
Closed Labs | Design
  • Instructor Script
    • The lab instructor is provided with an instructional script
    • Includes supplemental material that may not be covered during lecture, special instructions for the lab activities, hints, and resource links
    • Space for comments and suggestions

Reinventing CS Curriculum

closed labs design26
Closed Labs | Design
  • Post-Tests
    • During the last ten minutes of each lab, students take an on-line test
    • One-time-only
    • Another measure of their comprehension of lab topics
    • Questions are categorized according to Bloom’s Taxonomy

Reinventing CS Curriculum

closed labs some results
Closed Labs | Some Results
  • Study 1: To determine the most effective pedagogy for CS1 laboratory achievement
    • Participants: 68 students in CS1, Fall 2003
    • Procedures
      • Structured cooperative groups had prescribed roles (driver and reviewers)
      • Unstructured cooperative groups did not have prescribed roles
      • Direct instruction students work individually
      • Randomly assigned the pedagogy of each lab section
      • Used stratified random assignment to assign students to their cooperative groups within each section
        • Based on ranking of the placement test scores for this course (high, middle, low)

Reinventing CS Curriculum

closed labs some results28
Closed Labs | Some Results
  • Study 1, Cont’d …
    • Dependent Measures
      • Total laboratory grades
        • Combined worksheet scores and post-test grades for each lab
        • Although some students work in groups, all students were required to take the post-test individually
      • Pre-Post-Test measuring self-efficacy and motivation
        • Taken during the first and last week of the semester
        • Adapted 8 questions taken from Motivated Strategies for Learning Questionnaire by Pintrich and De Groot (1990)
        • Returned a reliability measure (Cronbach’s alpha) of .90 with a mean of 3.45 and standard deviation of .09; good reliability

Reinventing CS Curriculum

closed labs some results29
Closed Labs |Some Results
  • Results of Study 1
    • Both cooperative groups performed significantly better than the direct instruction group (F(2,66) = 6.325, p < .05)
      • Cooperative learning is more effective than direct instruction
      • No significant difference between the structured cooperative and unstructured cooperative groups
    • 6 out of 8 questions showed statistically significant changes in student perceived self-efficacy and motivation
closed labs some results30
Closed Labs |Some Results
  • Study 2
    • Same objective; revised motivation/self-efficacy tool, additional qualitative feedback; revised laboratories
    • Participants: 66 students in CS1, Spring 2004
    • Results
      • Both cooperative groups performed better than the direct instruction group (F(2,64) = 2.408, p < .05)
    • Discussion
      • Similar conclusions
computer aided education
Computer-Aided Education
  • Studies on the use of Computer-Supported Collaborative Learning (CSCL) tools
    • I-MINDS
    • structured cooperative learning (Jigsaw) vs. non-structured cooperative learning
    • CSCL vs. non-CSCL
  • Studies on the use of Intelligent Tutoring System (ITS)
    • ILMDA
    • ITS vs. Lab
    • ITS+Lab vs. Lab
  • Studies on the use of authoring tools
    • Affinity Learning Authoring System
    • How authoring tools impact learning
    • Graphical vs. non-graphical
ongoing work
Ongoing Work
  • Summer Institute with Center for Math, Science, and Computer Education
    • Teaching multimedia computing to student-teachers
  • NSF Advanced Learning Technologies Project
    • Intelligent Learning Object Guide (iLOG)
    • Developing SCORM-standard metadata to capture use characteristics of learning objects and student models
    • Developing software to automatically capture and generate metadata to tag learning objects
    • Creating SCORM-compliant learning objects for CS0, CS1, CS2
ongoing work 2
Ongoing Work 2
  • Renaissance Computing
    • Joint curricular programs with other departments
      • School of Biological Sciences
      • School of Music
      • College of Agricultural Sciences and Natural Resources
      • Digital Humanities
    • Multi-flavored introductory CS courses
      • Object first vs. traditional
      • Multimedia, Engineering, Life Sciences, Arts
ncwit academic alliance focus
NCWIT Academic Alliance Focus
  • Renaissance Computing
    • Multi-flavored introductory CS courses in conjunction with joint curricular programs with other departments (that have larger female populations) to promote more female participation in CS
  • Computer-Aided Education
    • Online learning objects for K-12 teachers to help them expose their students to computational thinking and real-world IT applications
    • Collaborative writing (via I-MINDS) for secondary female students on the use of CS paradigms to solve real-world problems
  • Reinventing CS Curriculum
    • Use placement exam as pre- and post-tests for future studies on learning performance of female students
    • Use cooperative learning in labs to recruit and improve retention of female students
people
People
  • Rich Sincovec, CSE Department Chair
  • Reinventing CS Curriculum Project
    • Leen-Kiat Soh, Ashok Samal, Chuck Riedesel, Gwen Nugent
  • Computer-Aided Education
    • Leen-Kiat Soh, Hong Jiang, Dave Fowler, Art Zygielbaum
others
Others
  • UNL
    • College of Education and Human Sciences
    • Center for Math, Science, and Computer Education
    • J.D. Edwards Honors Program (CS+Business)
    • Extended Education and Outreach (AP Courses)
    • Department of History, School of Biological Sciences, School of Music, etc.
  • Bellevue University (I-MINDS)
  • University of Wisconsin-Madison ADL Co-Lab (learning objects)
publications
Publications
  • Reinventing CS Curriculum
    • Framework
      • L.-K. Soh, A. Samal, and G. Nugent (2007). An Integrated Framework for Improved Computer Science Education: Strategies, Implementations, and Results, Computer Science Education, 17(1):59-83
    • Learning Objects
      • G. Nugent, L.-K. Soh, and A. Samal (2006). Design, Development and Validation of Learning Objects, Journal of Educational Technology Systems, 34(3):271-281
publications 2
Publications 2
  • Reinventing CS Curriculum, Cont’d …
    • Placement Exam
      • G. Nugent, L.-K. Soh, A. Samal, and J. Lang (2006). A Placement Test for Computer Science: Design, Implementation, and Analysis, Computer Science Education, 16(1):19-36
    • Structured Labs & Cooperative Learning
      • J. Lang , G. Nugent, A. Samal, and L.-K. Soh (2006). Implementing CS1 with Embedded Instructional Research Design in Laboratories, IEEE Transactions on Education, 49(1):157-165
      • Soh, L.-K., G. Nugent, and A. Samal (2005). A Framework for CS1 Closed Laboratories, Journal of Educational Resources in Computing, 5(4):1-13
publications 3
Publications 3
  • Computer-Aided Education
    • Computer-Supported Collaborative Learning
      • L.-K. Soh, N. Khandaker, and H. Jiang (2007). I-MINDS: A Multiagent System for Intelligent Computer-Supported Cooperative Learning and Classroom Management, to appear in Int. Journal of Artificial Intelligence in Education
    • Intelligent Tutoring System
      • L.-K. Soh and T. Blank (2007). Integrating Case-Based Reasoning and Multistrategy Learning for a Self-Improving Intelligent Tutoring System, to appear in Int. Journal of Artificial Intelligence in Education
    • Affinity Learning Authoring Tool
      • L.-K. Soh, D. Fowler, and A. I. Zygielbaum (2007). The Impact of the Affinity Learning Authoring Tool on Student Learning, to appear in J. of Educational Technology Systems
