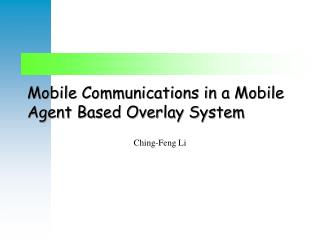

Mobile Communications in a Mobile Agent Based Overlay System

Loading in 2 Seconds...

play fullscreen
1 / 8

Mobile Communications in a Mobile Agent Based Overlay System - PowerPoint PPT Presentation


  • 282 Views
  • Uploaded on

Mobile Communications in a Mobile Agent Based Overlay System Ching-Feng Li Issues of Mobile Agent Communication The receiver agent may migrate to another peer How does the sender agent know the receiver agent has migrated?

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Mobile Communications in a Mobile Agent Based Overlay System' - johana


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
issues of mobile agent communication
Issues of Mobile Agent Communication
  • The receiver agent may migrate to another peer
    • How does the sender agent know the receiver agent has migrated?
    • How does the sender agent know the latest location of the receiver agent?
  • Message reliability
    • The receiver agent may crash when the peer it resides crash. How to ensure that the receiver agent does not miss any message?
receiver agent migrated before sender agent tries to communicate with it

Receiver agent

Sender agent

MCP C

MCP A

MCP B

Receiver agent migrated before sender agent tries to communicate with it

Communication

request

Target agent is

not here

receiver agent crashed before sender agent tries to communicate with it

Agent B

Agent A

MCP C / HCP of agent C

MCP A / HCP of agent A

MCP B / HCP of agent B

Receiver agent crashed before sender agent tries to communicate with it

Sending

message

Connection failed

mechanism for solving the mobile agent migration issue
Mechanism for solving the mobile agent migration issue
  • Terms
    • MCP – Mobile Context Peer
  • When a mobile agent migrates from MCP A to MCP B, the mobile agent sends a message to MCP A to update its new location.
  • The agent can also publish its new location to the overlay network
  • Before making a communication, the sender agent finds the current location of the receiver agent
mechanism for solving the mobile agent migration issue6

Receiver agent

Sender agent

MCP C

MCP A

MCP B

Mechanism for solving the mobile agent migration issue

Communication

request

Update its new location

Forward

communication

request

mechanism for solving the message reliability issue
Mechanism for solving the message reliability issue
  • Terms
    • MCP – Mobile Context Peer
    • HCP – Home Context Peer
  • Every MCP in the overlay system provides the “messaging-queue service”
  • The HCP of a mobile agent serves as the messaging-queue server of the mobile agent
  • The mobile agent publishes its HCP to the overlay network
  • Every message sent to a mobile agent will also be sent to its HCP if there is an error while sending the message
  • The message-queue will be checked when the mobile agent re-starts and then periodically
mechanism for solving the message reliability issue8

Agent B

Agent A

MCP C / HCP of agent C

MCP A / HCP of agent A

MCP B / HCP of agent B

Mechanism for solving the message reliability issue

Send

message

Check the message

queue when re-starts,

and then periodically

Connection failed

Retrieved the

lost messages.

Send message
