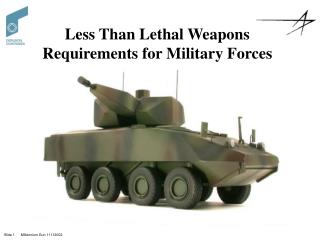

Less than lethal weapons requirements for military forces
1 / 25

Less Than Lethal Weapons Requirements for Military Forces - PowerPoint PPT Presentation

  • Updated On :

Less Than Lethal Weapons Requirements for Military Forces OVERVIEW The Situation The Requirement Terms of Reference Technology - Guns - Ammo Target Vulnerability Tactical Application The Situation The Fluid Battle Environment Organized Military Opposition Unconventional Warfare

Related searches for Less Than Lethal Weapons Requirements for Military Forces

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'Less Than Lethal Weapons Requirements for Military Forces' - johana

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Overview l.jpg

  • The Situation

  • The Requirement

  • Terms of Reference

  • Technology

    • - Guns

    • - Ammo

  • Target Vulnerability

  • Tactical Application

The situation l.jpg
The Situation

  • The Fluid Battle Environment

  • Organized Military Opposition

  • Unconventional Warfare

  • Civil Unrest

  • Non Combatant Screens

  • Dynamic Rules of Engagement

  • Currently Limited Response Options

  • Water Cannons

  • Sponge Balls

  • “Rubber” Bullets

  • Etc.

The requirement l.jpg
The Requirement

  • A Multi Purpose Weapon with Scaleable Lethality

    • Near instant Scalability from Lethal to Non Lethal and Back

    • Readily Deployed

    • Minimum Logistical Tail

    • Potential for various ammo types: ABM,HE,APDS

Nato policy less than lethal weapons ltlw l.jpg
NATO Policy Less Than LethalWeapons (LTLW)

  • Incapacitate or repel personnel, with a low probability of fatality

  • Expand the range of options available to NATO Military Authorities.

  • LTLW shall not be required to have zero probability of causing fatalities or permanent injuries.

Design elements of a scaleable kinetic energy weapon l.jpg
Design Elements of a Scaleable Kinetic Energy Weapon

  • Predictable delivery of subprojectiles requires:

  • MV Correction - Minimize error in range

  • Accurate Fuzing - Precise distance from the target

  • Uniformity of the payload - Subprojectiles same size

  • Uniformity of payload distribution - area coverage

35mm technology suite l.jpg

Payload: Subprojectiles

35mm Technology Suite

35mm air burst munition kinetic energy time fuze abm ketf layout l.jpg
35mm Air Burst Munition Kinetic Energy Time Fuze (ABM-KETF) – Layout:

Note: The payload (500g) is composed of cylindrical W-Subprojectiles (here 3.3 g).

For engagements other than AA (e.g. G-to-G) the mass of the subprojectiles can be reduced accordingly (e.g. 1 to 1.5 g)

35 mm abm ahead subprojectile dynamic parameters l.jpg
35 mm ABM (Ahead) – Layout:Subprojectile Dynamic Parameters

Subprojectile Density Valid for 3.3 g Subprojectiles

35 mm air burst munition various payload arrangements e g l.jpg
35 mm Air Burst Munition – Layout:Various Payload Arrangements, e.g:

Air Defense Version (Ahead)

IFV Version

35 mm Caliber

SP-diameter: 4.65 mm

11 Layers @ 31 SP (341) of 1.5 g each

Subprojectile, SP-diameter: 5.85 mm

8 Layers @ 19 SP (152) of 3.3 g each

F2 15201 BB

Payload foot print l.jpg
Payload Foot-Print – Layout:

35 mm ABM (Ahead): 152 subprojectiles of 3.3 g

35 mm ABM: 341 subprojectiles of 1.5 g

Slide13 l.jpg

On-line Compensation of – Layout:Muzzle Velocity Variation

Fixed Time Programming

On-Line∆Vo - Compensation

Firing Range approx. 1600m

400% Improvement



Mission roles targets l.jpg
Mission Roles-Targets – Layout:

  • Mission Roles

    • Dissuasion (from Non-Lethal/Less-Than-Lethal)

    • Destruction (Lethal Mission Kill/Hard Kill)

  • Targets (Anti Material/Anti Personnel)

    • Armored Vehicles

    • Other Military Vehicles

    • MOUTS

    • Troops in bunkers

    • Troops in open

    • Civilian Shields

Slide16 l.jpg

Scaleable ABM Lethality Level – Layout:




Lethality Level


Fragment Penetration & Hit Density

I n c a p a c i t a t i o n

D i s s u a s i o n

F2 15085 CC

Mission kill demonstration with the 35mm ahead against mbt swiss p 68 upgraded l.jpg
Mission Kill Demonstration with the 35mm Ahead against MBT – Layout:(Swiss P-68 Upgraded)


1F 9707-93

Total: 2 Shots

F2 15223 BB

Target vulnerability criteria 90 in a ground to ground defense role subprojectile size 3 3gr l.jpg
Target Vulnerability Criteria (>90%) – Layout:In a Ground-to-Ground Defense Role(Subprojectile size 3.3gr)

35 mm ahead payload ejection at 2 km range performance l.jpg
35 mm Ahead Payload Ejection at 2 km Range – Layout:: Performance

Case: 3.3 g Subprojectiles

Tactical scenarios using abm l.jpg
Tactical Scenarios Using ABM – Layout:

Point Target (incl. ATGW-Bunker, Prone & Covered Troops, MBT, Helicopter):

Area Target (Diffused Targets):


Linear Target (e.g. road with vehicles):

Pre-Determined Air Space (e.g. swarm of helicopters):


F2 15081 FF

Slide22 l.jpg

Air Burst Coverage Effectiveness Eg: 35mm Ahead with 3.3g Subprojectiles

Ahead payload growth potential l.jpg
Ahead Payload Growth Potential Ahead with 3.3g Subprojectiles

  • Traditional Payload Effects:

    • Mechanical effects based on KE (Frags / Subprojectiles)

    • Flash & Bang

  • Emerging Payload Effects:

    • Disabling passive effects (against target sensors): Chaff, Phosphor, ...

    • EM waves effects (against target electronic system): NNEMP: Non-Nuclear EMP, HPM: Hyper Power Microwave, UWB: Ultra Wide Band, ... in directional radiation pattern

F2 16337 BD

Summary l.jpg
Summary Ahead with 3.3g Subprojectiles

  • Military gun systems can extend their mission capabilities from lethal through near lethal to less-than-lethal.

  • Demonstrated technology exists that can be applied in the development of direct fire weapons systems.

  • The vulnerability of a broad range of targets can be accommodated within the mission profile.

Questions l.jpg
Questions? Ahead with 3.3g Subprojectiles

Contact information:

Andrew A. Bradick

6858 Old Dominion Dr,

Suite 210

McLean Va 22101

Tel 703 448 1947 Fax –1961 email abconsult@yahoo.com
