  1. New Benthic Macroinvertebrate Health Indicator Katie Foreman, Claire Buchanan, Andrea Nagel, Scott Phillips, Nontidal Workgroup MASC Indicator Workshop December 17, 2008

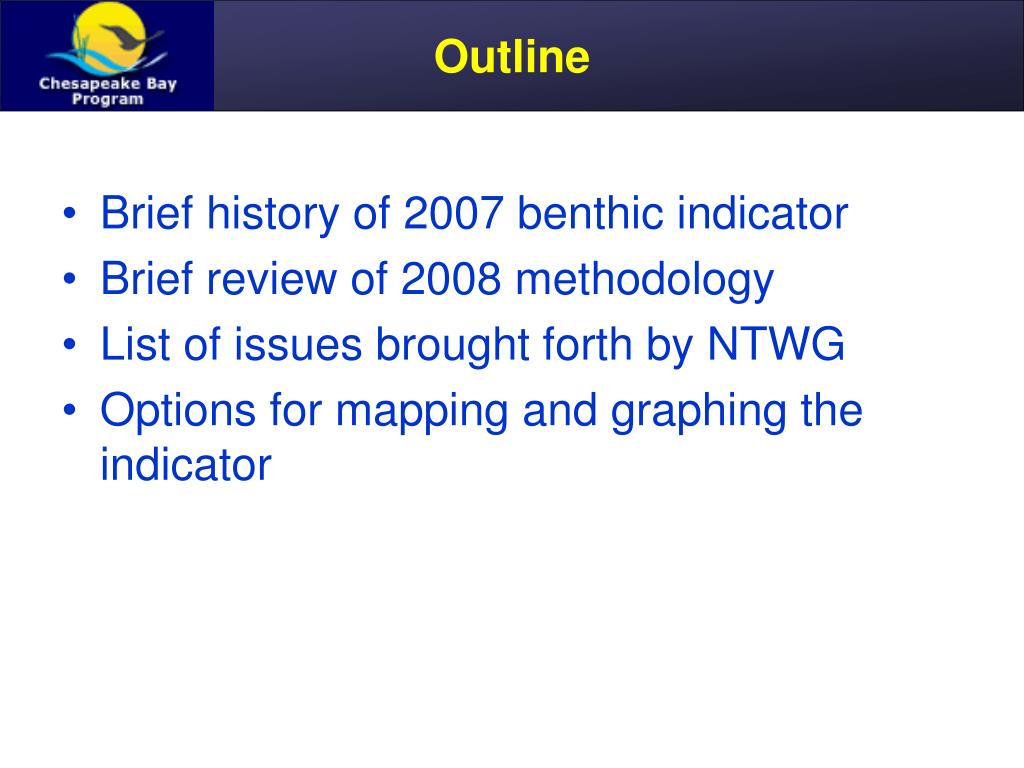

  2. Outline • Brief history of 2007 benthic indicator • Brief review of 2008 methodology • List of issues brought forth by NTWG • Options for mapping and graphing the indicator

  3. History: Watershed indicator development • Fall ’07 – Spring ’08: Watershed Health Indicator developed in response to STAC workshop and report: Developing Environmental Indicators for Assessing the Health of the Chesapeake Bay Watershed • Many options considered and reviewed as an indicator of benthic macroinvertebrate (BMI) health in the Chesapeake Bay Watershed (CBW) through the following process: • NTWG meetings (2007-08) • MASC indicator workshop (Dec. 18-19th, 2007) • IC meeting (Jan. 24th, 2008)

  4. Map of impaired segments chosen as indicator • Final indicator published in CBPO 2007 Health and Restoration Assessment Report: • Map of stream segments with degraded BMI communities in the Bay watershed (from 303(d)/305(b) reports) • Pie chart displaying the % of total stream miles in CBW portion of each state that were impaired, not impaired, and not assessed (2006 reporting period)

  5. 2007 INDICATOR: Chapter 4 Health of Freshwater Streams & Rivers

  6. Benthic Macroinvertebrate Community Health Percent of Non-tidal Tributaries with Healthy Benthic Macroinvertebrate Communities Goal 52% of Goal Achieved Data and Methods: www.chesapeakebay.net/TBD Bar chart of % goal achieved considered, but rejected

  7. Limitations of 2007 indicator • Incomparability between states’ results due to differences in: • sampling methodology, scale, and listing criteria for impaired waters. • These limitations do not allow for an overall watershed-wide assessment of the health of BMI communities.

  8. Organization’s sampling methodologies differ

  9. Improved benthic macroinvertebrate health indicator development • May 7-8th, 2008 MASC Workshop • Consensus that approach by ICPRB (Astin 2006, 2007) to develop a basin-wide BMI indicator would be applied to CBW to improve current indicator.

  10. Advantages of ICPRB basin-wide indicator • Indicator based on original raw data and not assessment/”processed data” • Larger data sets for rigorous metrictesting • Broader geographic distribution • Less unintentional bias in results • More reference sites • Thresholds for “good” and “bad” are more accurate • Consistent scoring across jurisdictional boundaries • Inequalities due to different state assessment methods are minimized Courtesy of ICPRB, 2007

  11. Bay B-IBI ecoregions

  12. Methodology (all ecoregions but coastal plains) • Merge habitat, water quality, and macroinvertebrate data provided by multiple monitoring programs (Access database) • Establish uniform thresholds (“good”/”bad”) to evaluate key habitat parameters common to all programs • Identify reference and degraded habitats in each physiographic region (using habitat and water quality data thresholds) • modified Relative Status Method • Develop standardized scoring for 7 benthic metrics from reference site data • 1-3-5 scoring (thresholds based on 50th, 10th and 90th percentiles of reference community) • Other scoring methods available, but not consistent with Astin 2006 • Sum of scored metrics  multi-metric BIBI • Test sensitivity of biological metrics and index • Discrimination efficiencies; classification efficiencies • Develop BIBI ratings from reference and degraded data distributions • 5 categories: Excellent, Good, Fair, Poor, Very Poor • Validate BIBI by physiographic region • Jackknife procedure Courtesy of ICPRB, 2007

  13. Results: BIBI is efficient • Classification Efficiencies all over 75%, variation between metrics • Jackknife validation: all metrics have acceptable total error (<20%)

  14. Issues to be resolved(from 12/10 NTWG mtg) • The use of the indicator to display stream health compared to state assessment results. • Creating an overall assessment summary of stream health for the entire watershed. • Displaying stream health information on watershed maps.

  15. Next Steps • States review results and identify concerns Jan. 14th conference call • Develop a map of results to supplement indicator Three options: • Sites by average condition rating • Average condition rating by HUC 8/HUC 10 • % Healthy sites (area weighted by HUC 8/HUC 10) • Finalize approach for presenting information on a graph • What is the criteria for “healthy” benthic community, how present this info • Report average condition rating or % of sites that are healthy? • How area weight and “roll-up” the information? • Communicate how indicator is different from states listing of impaired waters • Not comparable to the state’s 303(d) listing process or criteria • Intended as a condition indicator, not regulatory indicator

  16. Map Decisions • Three options: • Point data by average condition rating • Average condition rating • Scale of averaging - HUC 8/HUC 10? • % Healthy sites • What is criteria for “healthy”? • Area weighted by HUC 8/HUC 10?

  17. Map 1: Scores by site

  18. Map 2 and 3: average condition rating by HUC 8 and combo HUC8/10

  19. Map 4 and 5 - % healthy benthic community by HUC 8 and HUC8/10

  20. Recommended: Map 5 • Data is comparable to a restoration goal • Data scored on consistent 1-3-5 scale that is directly comparable to reference sites • More resolution in the data • Bias from localized intense sampled decreased ISSUE: Should a BIBI score of 3 be the threshold?

  21. Indicator graph decisions • What is the criteria for “healthy” benthic community? • BIBI score >3 (used by CBP for estuarine systems) • Report average condition rating or % of sites that are healthy? • How area-weigh and “roll-up” the information? • HUC 8 or combo HUC 8/HUC 10?

  22. Bar Chart 1 and 2 – average vs. % healthy

  23. Recommended: Bar Chart 2, HUC8/HUC10 scales • Data is comparable to a restoration goal • Data scored on consistent 1-3-5 scale that is directly comparable to reference sites • More resolution in the data • Bias from localized intense sampled decreased ISSUE: Should a BIBI score of 3 be the threshold?

  24. References • Astin, L.E. 2006. Data synthesis and bioindicator development for nontidal streams in the interstate Potomac River basin, USA. Ecological Indicators 6: 664-685. • Astin, L. E. 2007. Developing biological indicators from diverse data: The Potomac Basin-wide Index of Benthic Integrity (B-IBI). Ecological Indicators 7: 895-908.

  25. Results Vary by Ecoregion
