DilloDie: Removing Armadillo Tamper-Protection Matt Renzelmann, Kevin Roundy
What does it do? Obscures “Original Entry Point”
What does it do? Corrupts “Import Address Table” Address Data IAT 0x40101A JMP DWORD PTR DS: … 0x402000 0x7F76DE64 0x402004 0x7F76AEF0 0x402008 0x77D804EA 0x35FE4888 0x40200C 0x3234AF38 … 0x77D804EA Windows API …
What does it do? Prevents debugging • IsDebuggerPresent(); • Exploit bugs ? // BUGS! int *p = NULL; *p = 5;

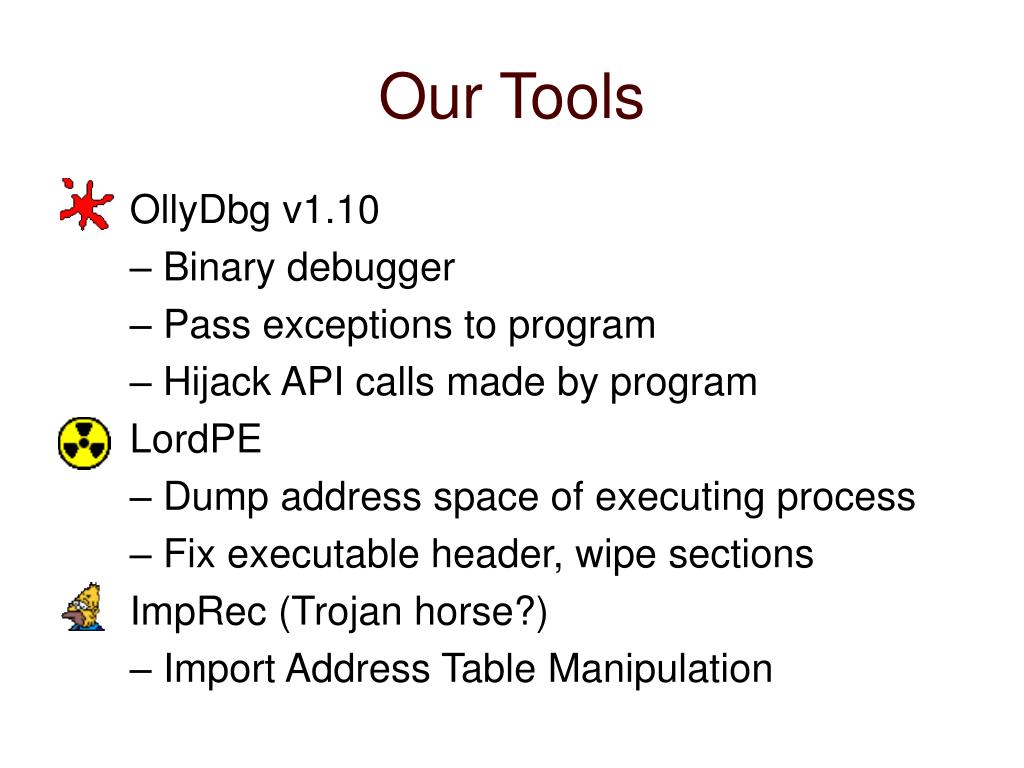

Our Tools OllyDbg v1.10 • Binary debugger • Pass exceptions to program • Hijack API calls made by program LordPE • Dump address space of executing process • Fix executable header, wipe sections ImpRec (Trojan horse?) • Import Address Table Manipulation
Honing the Blade • Tutorials for older Armadillo versions • Crackmes Armadillo Standard Protection Standard + Debug Blocker Standard + Debug Blocker + Copymem • Breaking the latest version – Armadillo 4.66 • Broke message box, console applications
Packaged Malware Why automate Armadillo removal? • Suppose a virus is Armadillo protected • Want to strip Armadillo, check with anti-virus
What is left to do? Write OEP finder • For Armadillo’s standard protection Study Armadillo’s advanced features • Debug Blocker • Copymem Win the Turing award
