workflow with websphere process server and websphere integration developer

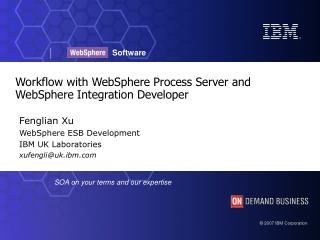

Workflow with WebSphere Process Server and WebSphere Integration Developer

Fenglian Xu

WebSphere ESB Development

IBM UK Laboratories

xufengli@uk.ibm.com

agenda
Overview IBM SOA Platforms

WS-BPEL 2.0

Assemble with WebSphere Integration Developer

Deploy with WebSphere Process Server

Summary

Agenda
human centric bpm with ibm websphere tools and clients for all key user roles

Process Engineers / Integration Specialists

Business Users

Integrated deployment of policies, rules, and process services based on an SOA platform with seamless support for human workflow

Collaborative Development

Business User Clients

Clean hand-off to IT with business models and metrics

WebSphere Integration Developer

Interact with business processes, collaborate, and perform human tasks

Workflow and Choreography

Business Modelingand Simulation

WebSphere Process Server

WebSphere Business Modeler

Manage running processes and tasks

ContentManagement

BPC Explorer

Business Monitoring, Dashboards and Analytics

Feedback for continuous improvement and optimization

WebSphere Business Monitor

Real time collaboration and management of business processes

BPC Observer

Business Managers /

Business Operations

Business Analysts

Human-Centric BPM with IBM WebSphereTools and Clients for All Key User Roles
soa reference architecture supporting your soa lifecycle

Facilitates communication between services

ESB

Apps &

Info Assets

SOA Reference ArchitectureSupporting your SOA Lifecycle

Business Innovation & Optimization Services

Facilitates better decision-making with real-time business information

Interaction Services

Process Services

Information Services

IT ServiceManagement

DevelopmentServices

Enables collaboration between people, processes & information

Orchestrate and automate business processes

Manages diverse data and content in a unified manner

Integrated environment for design and creation of solution assets

Manage and secure services, applications & resources

Partner Services

Business App Services

Access Services

Connect with trading partners

Build on a robust, scaleable, and secure services environment

Facilitates interactions with existing information and application assets

Infrastructure Services

Optimizes throughput, availability and performance

introducing the ibm soa foundation
Introducing the IBM SOA Foundation

Provides What You Need to Get Started with SOA

IBM SOA Foundation: Integrated, open set of software, best practice, and patterns

Supports complete lifecycle with a modular approach

Extends value of your existing investments, regardless of vendor

IBM SOA Foundation

Software

Scalable; start small and grow as fast as the business requires

Extensive business and IT standards support; facilitating greater interoperability & portability

Skills &

Support

Leveraging existing IT Infrastructure

Custom

Apps.

CICS

IMS

websphere process server leveraging infrastructure services from was nd

WebSphere Application Server

Transport layer foundation provides infrastructure via JMS 1.1, HTTP, IIOP

WebSphere Process ServerLeveraging infrastructure services from WAS ND

WebSphere Process Server:Process layer builds on WebSphere ESB and WebSphere Application Server

foundation to deliver robust business process management

  • Support for all styles of integration, including human tasks, roles based task assignments, and multilevel escalation.
  • Business rules, business state machines, and selectors to dynamically choose interface based on business scenarios
  • Change business processes on the fly with relatively minimal skills

Use WebSphere Process Server when you need to automate business processes that span people, workflows, applications, systems, platforms, and architectures

WebSphere ESBMediation layer builds on WebSphere Application Server

foundation to provide intelligent connectivity

WebSphere Application Server Network DeploymentBuilds on WebSphere Application Server foundation to deliver ahighly available transaction engine with advanced performance and management capabilities

websphere enterprise service bus

Shape = Protocol

Color = Data type

An ESB performs the following between requestor and service

WebSphere Enterprise Service Bus

An Enterprise Service Bus (ESB) is a flexible connectivity infrastructure for integrating applications and services.

An ESB powers your SOA by reducing the number, size, and complexity of interfaces.

  • ROUTINGmessages between services
  • CONVERTINGtransport protocols between requestor and service
  • TRANSFORMINGmessage formats between requestor and service
  • HANDLINGbusiness events from disparate sources
ws bpel 2 0
WS-BPEL 2.0
  • Industry standard language for expressing business processes
    • Leverage a common skill set and language
  • Designed to fit naturally into the Web services stack
    • Expressed entirely in XML
    • Uses and extends WSDL 1.1
    • Uses XML Schema 1.0 for the data model
  • Portable across platform and vendor
    • Will run on any WS-BPEL-compliant engine
  • Interoperable between interacting processes
    • Layering on top of Web services stack
  • WS-BPEL is a Recursive Aggregation Model for Web Services
  • Stateful conversations and lifecycle management
    • Supports multiple stateful long-running conversations
  • Recoverability
    • Long running business processes need fault handling and compensation mechanisms to manage and recover from errors
ws bpel language constructs
WS-BPEL Language Constructs
  • WS-BPEL process definition
  • Recursive composition and partner links
  • Variables
  • Variable properties
  • Correlation sets
  • Basic and structured activities
  • Scopes
  • Compensation handling
ws bpel patterns example replay activities
“WS-BPEL Patterns” Example: “Replay” Activities

Repeat while input invalid

Step 3a

Step 1

Step 2

Step 4

Step 5

Step 6

Step 3b

websphere integration developer assembling composite applications with ease
WebSphere Integration Developer Assembling composite applications with ease
  • Streamlining process design hand-off between business and IT
    • Import and work with business process models directly from the business analyst (WebSphere Business Modeler)
  • Simplifying and speeding composite application development
    • An Assembly Editor for overall solution assembly
    • All the tools you need for building solution components (Editors for BPEL, Business Rules, Business State Machines, Interface Maps, …)
    • One, easy-to-learn end user interface based on Eclipse
  • Architected for reuse and flexibility
    • Simplified componentinterfaces
    • Plug-and-play solution components
    • Ability to leverage existing services and develop for future reuse
websphere integration developer bpel without coding standards based process support
WebSphere Integration Developer BPEL without Coding – Standards-Based Process Support
  • Import models from WebSphere Business Modeler
  • Develop executable process
    • WS-BPEL-based business processes
    • WS-BPEL with or without IBM extensions
  • Intuitive drag-and-drop tools
    • Visually define the sequence and flow of business processes
  • A visual business process debugger
    • Step through and debug business processes
  • Integrated fault and event handling
    • Provide an easy and integrated means of handling in-flow exception handling and external events
  • Compensation support
    • Provide a logical “undo” capability
elements of websphere process server supports all aspects of process integration

BusinessProcesses

HumanTasks

BusinessStateMachines

BusinessRules

ServiceComponents

BusinessObjectMaps

DynamicServiceSelection

Mediation Flows(ESB)

SupportingServices

InterfaceMaps

Relation-ships

Service ComponentArchitecture

BusinessObjects

Common EventInfrastructure

SOA Core

z/OS

Elements of WebSphere Process ServerSupports all aspects of process integration

Also available for

WebSphere Application Server ND (J2EE Runtime)

Business Processes + Human Tasks = Human Workflow

service component architecture sca components

Reference:What thiscomponents calls

Interface:How to callthis component

Component

UniformRepresentation ofencapsulatedImplementation

JavaInterface

1..1

I

JavaInterface

WSDLPort Type

1..1

WSDLPort Type

Reminder

Service Component Architecture (SCA) – Components
two styles of service choreography
Business Processes

Traditional Business Processes

Full support for WS-BPEL

Import from WebSphere Business Modeler

Business State Machines

Event-driven Business Processes

Full support for State Machine programming model

States, Events, Transitions, Actions, Guards, …

State Machine Authoring / Debugging / Logging

Two Styles of Service Choreography
business processes
Business Processes
  • WS-BPEL compliant business process engine
  • Simplified Process Editor
    • Optional simplification ofterms
  • Generic Business Process
    • Operations / Parameters
    • Service Implementation Details hidden
  • Transactions / Compensation
  • Full XPath 1.0 Support
business state machines
Business State Machines
  • State MachineImplementation
    • Based on UML 2.0State Machine Models
    • Event driven businessprocesses
    • Creates WS-BPELunder the covers
  • Simple/Complex States
    • Entry/Exit
  • Transitions
    • Events
    • Actions (invokes)
    • Guards
    • Timeout
bpc standard client bpc explorer graphical view for processes
BPC Standard Client – BPC ExplorerGraphical View for Processes
  • Provide graphical view for process structure and instances
    • Actions in the graphical view:
      • Zoom and scroll within the view
      • Expand and collapse event, faultand compensation handlers
      • Show additional information aboutelements when moved over
      • Navigate to activity details view
  • Usage scenarios
    • Understand process structure
    • Check status of process and its activities
  • Like process instance monitor in WebSphere MQ Workflow

Activity Details

bpc standard client bpc observer reporting for business processes
BPC Standard Client – BPC ObserverReporting for Business Processes
  • Allows observing state and evolution of business processese.g., overall duration, actual work time
  • Provides customizable reports and graphical charts of historical and accumulated data of business processes
  • Supports flexible drill-down capabilities to retrieve statistical data on processes and activities
  • Has been available as sample in 6.0.1 and is now a fully supported product feature
bpc standard client bpc observer reporting for business processes technical background

BPC

BPC Standard Client – BPC ObserverReporting for Business Processes – Technical Background
  • BPC Observer has same look & feel as BPC Explorer
    • Built with JSF and BPC JSF Components
  • Collects BPC emitted events leveraging CEI
    • Can observe multiple BPC containers
  • Configuration is part of overall BPC
    • Also available in WID

BPC Observer

BPC Observer Client

Event Data

Common EventInfrastructure

BPC Observer

Datastore

Store

event

data

Event

Collector

Common

Base Events

WPS

WAS

WAS

business rules overview
Business RulesOverview
  • Business Rules allow to externalize business logic from applications (business processes)
  • Business Rules can be dynamically updated at runtime using the Business Rules Manager web application
      • NLS enabled free text representation for rules
  • Business Rules provide the most-requested rules functionalities
    • Decision Tables
    • Rule Sets (If/Then Rules)
    • Rule Templates
    • Action Rules
  • Rules Groups are provided for ease of use
    • Allow encapsulation of detailed implementation in a component with a well defined interface
dynamicity with business rules

Tools

WebSphere Integration Developer

Runtime

WebSphere Process Server

Dynamicity with Business Rules
  • Programmer defines rules from templates
  • This exposes the rule parameters to Business Rules Manager
  • Using Business Rules Manager, the Business Analyst changes rules at runtime
  • No need to restart the application
  • Users are authenticated using standard WAS authentication / security
  • Changes may be exported back to WID
human tasks overview and interaction patterns

Participating

Task

query

invoke

Task Web

Service Interface

Task Participant

Interface

claim

return

complete

Web service

Purely Human

Task

create

query

Task Originator

Interface

Task Participant

Interface

start

claim

complete

notify

Originating

Task

create

invoke

Web Service

Interface

Task Originator

Interface

start

return

notify

Web service

Web service

Human Tasks – Overview and Interaction Patterns
slide24

claim()

completeAndClaimSuccessor()

completeAndClaimSuccessor()

completeAndClaimSuccessor()

complete()

Server Controlled Page Flow (aka Single Person Workflow) Automatically present users with the page for the next task in the process
  • Controlling the flow of UI interactions with a single individual
    • Series of human tasks in a process to be performed by the same person
    • Each page represents a human task
  • New completeAndClaimSuccessor API

User / Client

WPS

BusinessFlowManagerService

operations

Tasklist

Page 1

Page 2

...

Page n

dynamic service selection overview
Selection is based on a Selector Algorithm

Framework for custom selector algorithms

The default Selection is date based

Dynamic Service SelectionOverview

Date Based Selection

Target Components

  • Client makes a call to the Selector Component
  • Selector determines dynamically which implementation of a target destination to invoke
dynamicity using dynamic service selection

Tools

WebSphere Integration Developer

Runtime

WebSphere Process Server

Dynamicity using Dynamic Service Selection
  • Programmer defines
    • What components to invoke
    • The selection criteria
  • The selector behavior can be modified at runtime
  • At runtime System Administrator can modify/add/delete
    • Modify or add the date/time
    • Target component
      • From a list of installed Components with the matching interface
  • Changes may be exported back to WID
transformation components interface maps business object maps and relationships

Export:

doOrder

Interface

Map

Business

Object Map

Import:

submitOrderSAP

SAPOrder

Order

Relationship

OrderID

SAPID

Transformation ComponentsInterface Maps, Business Object Maps, and Relationships

Interface:doOrder(Order)

Interface:submitOrder(SAPOrder)

BO (Order)

BO(SAPOrder)

references and further readings
References and Further Readings
  • Business Process Choreographer on developerWorkshttp://www7b.boulder.ibm.com/wsdd/zones/was/wpc.html
  • Business Process Choreographer Samples pagehttp://publib.boulder.ibm.com/bpcsamp/index.html
  • Business process choreography in WebSphere: Combining the power of BPEL and J2EEhttp://researchweb.watson.ibm.com/journal/sj/432/kloppmann.html
  • IBM Systems Journal Issue on Service Oriented Architecturehttp://researchweb.watson.ibm.com/journal/sj44-4.html
  • SOA programming model for implementing Web services, Part 8: Human-based Web serviceshttp://www-128.ibm.com/developerworks/webservices/library/ws-soa-progmodel8/
  • Web Services Platform Architecture (Prentice Hall, 2005)
  • Web Services Business Process Execution Language Version 2.0, Public Draft

http://docs.oasis-open.org/wsbpel/2.0/wsbpel-v2.0.pdf

  • WS-BPEL Extension for Peoplehttp://www.ibm.com/developerworks/webservices/library/specification/ws-bpel4people/
  • WS-BPEL 2.0 Extensions for Sub-Processeshttp://www.ibm.com/developerworks/webservices/library/specification/ws-bpelsubproc/
  • BPELJ: BPEL for Java technologyhttp://www.ibm.com/developerworks/library/specification/ws-bpelj/
slide29
Thank You!

Questions?

learning more about wps and wid ibm education assistant
Learning More about WPS and WID IBM Education Assistant
  • Overview, Big Picture and New Functions
  • Installation and Migration
  • Programming for Service Oriented Architecture
  • Monitoring SOA Integration Applications
  • Supporting Services for Service Applications
  • Enterprise Service Bus Application Components
  • Integration with enterprise applications using WebSphere Adapters
  • Unit Testing Service Components
  • System Administration
  • Clustering
  • Building integration applications - end-to-end scenario

http://publib.boulder.ibm.com/infocenter/ieduasst/v1r1m0/index.jsp?topic=/com.ibm.iea.wpi_v6/wpi6_coverpage.html

slide31

Thai

Traditional Chinese

Gracias

Russian

Spanish

Thank You

English

Merci

Obrigado

French

Brazilian Portuguese

Arabic

Danke

Grazie

Italian

German

Simplified Chinese

Japanese

ad
